Инверторное зарядное устройство на солнечной батарее 12 В 24 48 MPPT 30 Ампер 60 ампер 80 100 120
- Категория: >>>
- Поставщик: Guangzhou Felicity Solar Technology Co. Ltd.
Сохранить в закладки 1601011969035:
Описание и отзывы
Характеристики
MODEL | SCCM3024-II | SCCM4524-II | SCCM4548-II | SCCM6048-II | SCCM8048-II | SCCM10048-II | SCCM12048-II | |||||||
Maximum Battery Current | 30Amps | 45Amps | 45Amps | 60Amps | 80Amps | 100Amps | 120Amps | |||||||
Nominal System Voltage | 12 ,24VDC(Auto detection) | 12V, 24V, 48V DC (Auto detection) | ||||||||||||
Maximum Solar Input Voltage | 95V | 145V | 195V | |||||||||||
PV Start-up Voltage | 15V | |||||||||||||
PV Array MPPT Voltage Range | 12VDC / 24VDC | 12VDC /2 4 VDC / 48VDC | ||||||||||||
15-80VDC /30-80VDC | 15-130VDC / 30-130VDC 60-130VDC | 15-170VDC / 30-170VDC 60-170VDC | ||||||||||||
Maximum Input Power | 12V-420W | 12V-625W | 12V-625W | 12V-825W | 12V-1100W | 12V-1375W | 12V-1650W | |||||||
24V-830W | 24V-1250W | 24V-1250W | 24V-1650W | 24V-2200W | 24V- 2750W | 24V -3300W | ||||||||
/ | / | 48V-2500W | 48V-3300W | 48V-4400W | 48V - 5500W | 48V - 6600W | ||||||||
Transient Surge Protection | 4500 Watts / port | |||||||||||||

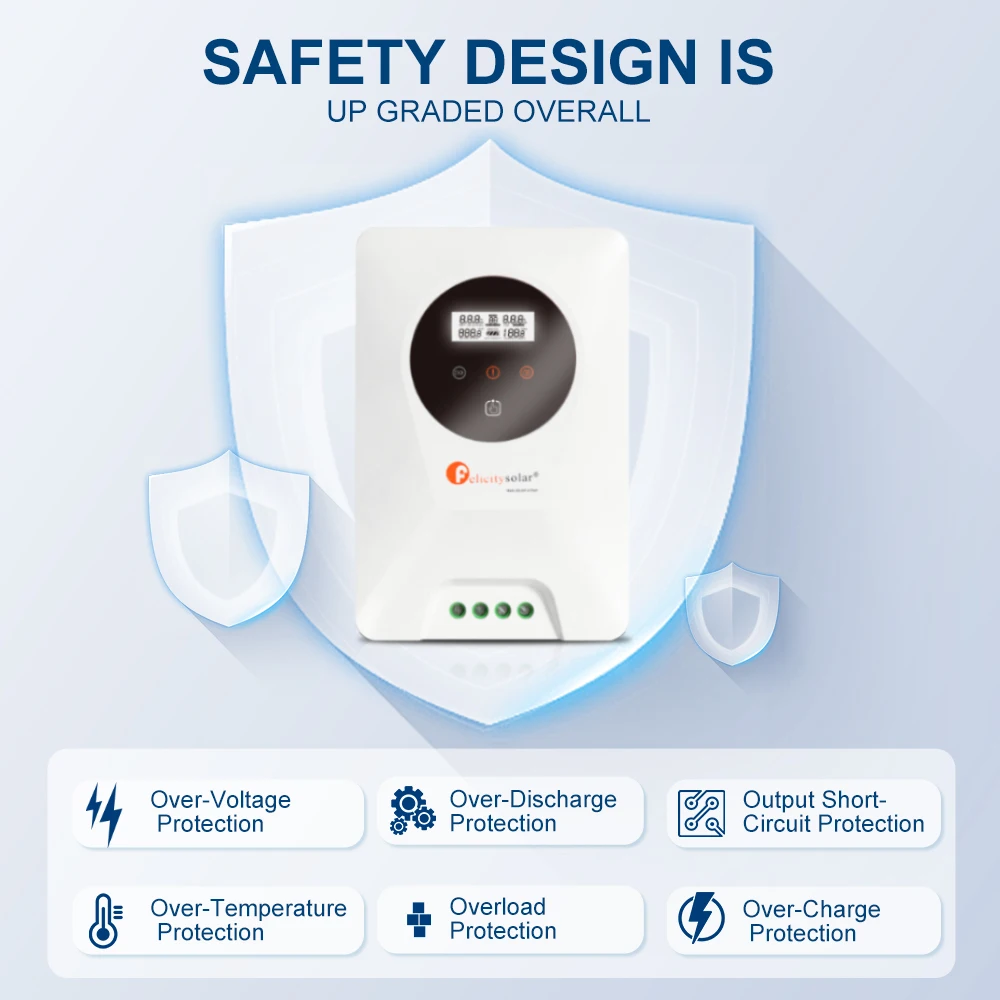

Protections | Solar high voltage disconnect Solar high voltage reconnect Battery high voltage disconnect Battery high voltage reconnect High temperature disconnect High temperature reconnect | |||||||||||||
Charging Algorithm | 3-Step | |||||||||||||
Charging stages | Bulk, Absorption, Float | |||||||||||||
Temperature compensation coefficient | -5 mV / °C / cell (25 °C ref.) | |||||||||||||
Temperature compensation range | 0 °C to +5 0 °C | |||||||||||||
Mechanical and Environment | ||||||||||||||

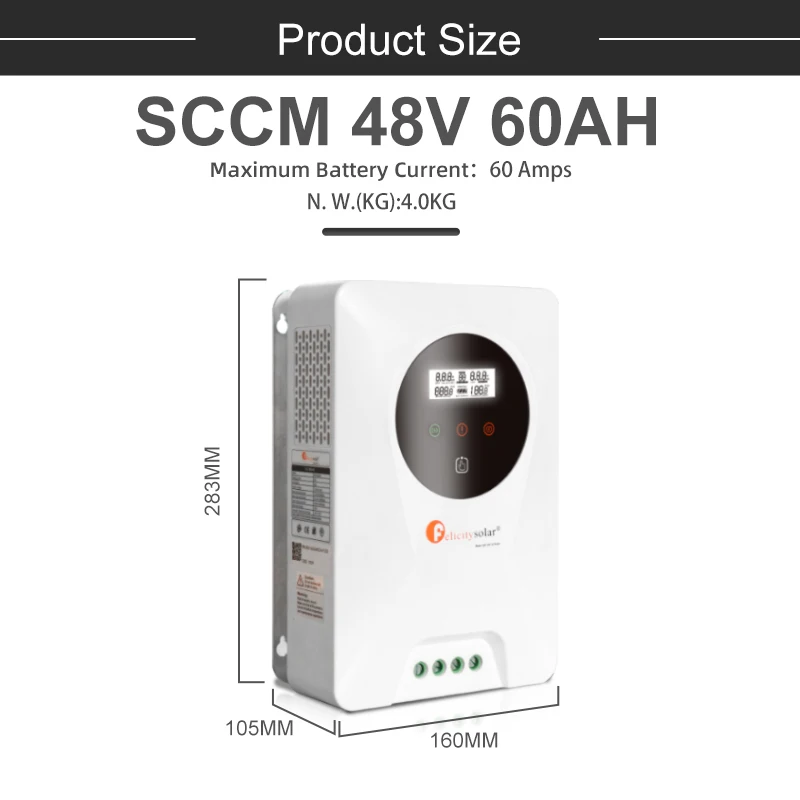

Product Size (WxHxD,mm) | 190x151x74 | 205x160x78 | 283x160x105 | 283x180x105 | 333x215x120 | |||||||||
Product Weight(Kg) | 1.2Kg | 1.8Kg | 4.0Kg | 5.1 Kg | 6.4Kg | 7.0Kg | ||||||||
Ambient Temperature Range | 0°C to +55°C | |||||||||||||
Storage Temperature | - 40°C to 75°C | |||||||||||||
Humidity | 0%-90%RH(No condensing) | |||||||||||||
Endosure | IP31(indoor&vented) | |||||||||||||
Features
•Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
•Compatible for PV systems in 12V, 24V or 48V
•Three-stage charging optimizes battery performance (Two-stage charging in lithium battery mode)
•Maximum charging current up to 30A/ 45A/ 60A/ 80A/ 100A / 120A
•Maximum efficiency up to 98%
•Automatic battery voltage detection (Lithium battery voltage needs to be set manually)

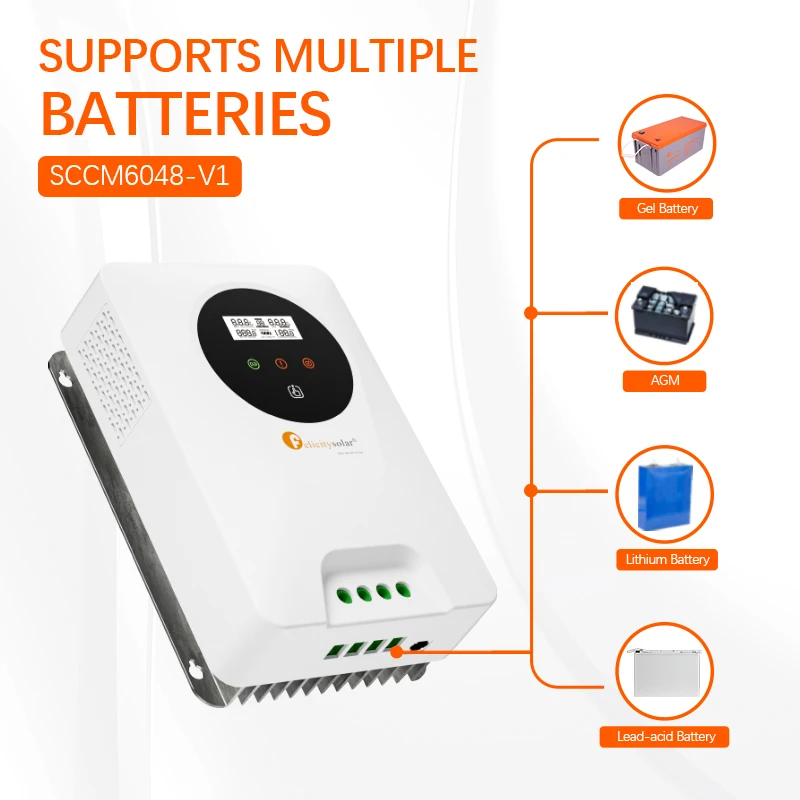

•Supports lithium battery and various lead-acid batteries, AGM and gel battery
•Integrated intelligent slot compatible with MODBUS communication
•Compatible for PV systems in 12V, 24V or 48V
•Three-stage charging optimizes battery performance (Two-stage charging in lithium battery mode)
•Maximum charging current up to 30A/ 45A/ 60A/ 80A/ 100A / 120A
•Maximum efficiency up to 98%
•Automatic battery voltage detection (Lithium battery voltage needs to be set manually)
•Supports lithium battery and various lead-acid batteries, AGM and gel battery
•Integrated intelligent slot compatible with MODBUS communication
To become a distributor or agent of Felicitysolar, please contact us！！！
We can ship from over 25 overseas warehouses in the United States, the European Union, Nigeria, South Africa, the Philippines,Myanmar, Dubai, Mali... and provide fast transportation services. If you need it, please click here to contact us directly.
100% genuine high quality A-grade MPPT with factory QR code on it. Not fake or used or bad quality MPPT!!!

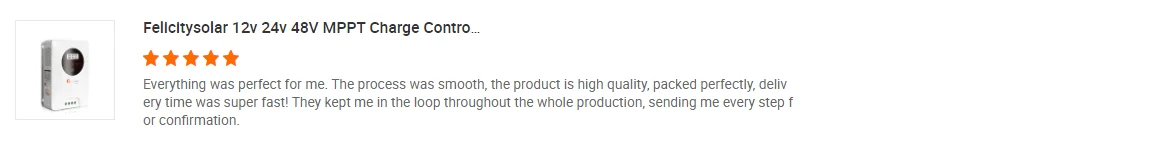

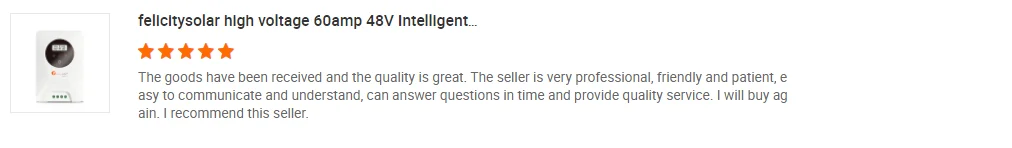

Many customers have used Felicitysolar MPPT and received good feedback:
Felicity solar is the best supplier for you:
*A professional supplier of solar energy products, headquartered in Guangzhou, China, with a history of 16 years, including 24V and 48V lithium batteries, 12V strong acid batteries, 2v OPZV batteries, solar inverters, controllers, street lights, and solar panels.
*OEM/ODM services are acceptable. We can customize products according to your requirements, ensuring 100% of the quality you expect.
*Provide fast transportation services. There are over 25 warehouses in China, United States, the European Union, Nigeria, South Africa, the Philippines, Myanmar, Dubai, Mali, and more.
*High quality local after-sales service. If there is a problem with the product, we have professional after-sales technical engineers in 25 countries, including United States, the European Union, Nigeria, South Africa, the Philippines, Myanmar, Dubai, Mali, to help you solve it.
*Alibaba TUV Verified Supplier. Felicitysolar is a professional supplier of gold products certified by Alibaba TUV in 2009
If you are interested in our products or services, please come to contact us immediately！
*A professional supplier of solar energy products, headquartered in Guangzhou, China, with a history of 16 years, including 24V and 48V lithium batteries, 12V strong acid batteries, 2v OPZV batteries, solar inverters, controllers, street lights, and solar panels.
*OEM/ODM services are acceptable. We can customize products according to your requirements, ensuring 100% of the quality you expect.
*Provide fast transportation services. There are over 25 warehouses in China, United States, the European Union, Nigeria, South Africa, the Philippines, Myanmar, Dubai, Mali, and more.
*High quality local after-sales service. If there is a problem with the product, we have professional after-sales technical engineers in 25 countries, including United States, the European Union, Nigeria, South Africa, the Philippines, Myanmar, Dubai, Mali, to help you solve it.
*Alibaba TUV Verified Supplier. Felicitysolar is a professional supplier of gold products certified by Alibaba TUV in 2009
If you are interested in our products or services, please come to contact us immediately！
Company Products
Похожие товары
Контроллер зарядного устройства на солнечной батарее
Новый умный беспроводной контроллер постоянного тока 12 В 24 В 36 В 48 В автоматическое распознавание 65А, контроллер заряда солнечной панели, Встроенный Mppt
10 301,42 ₽ - 12 144,83 ₽
Переключатель аккумулятора Coreplus onekey, модель батареи 10A 20A 30A 12V 24V, автоматическая адаптация, pwm Контроллер заряда солнечной батареи
Контроллер заряда солнечной батареи, 6 А
965,08 ₽ - 1 179,79 ₽

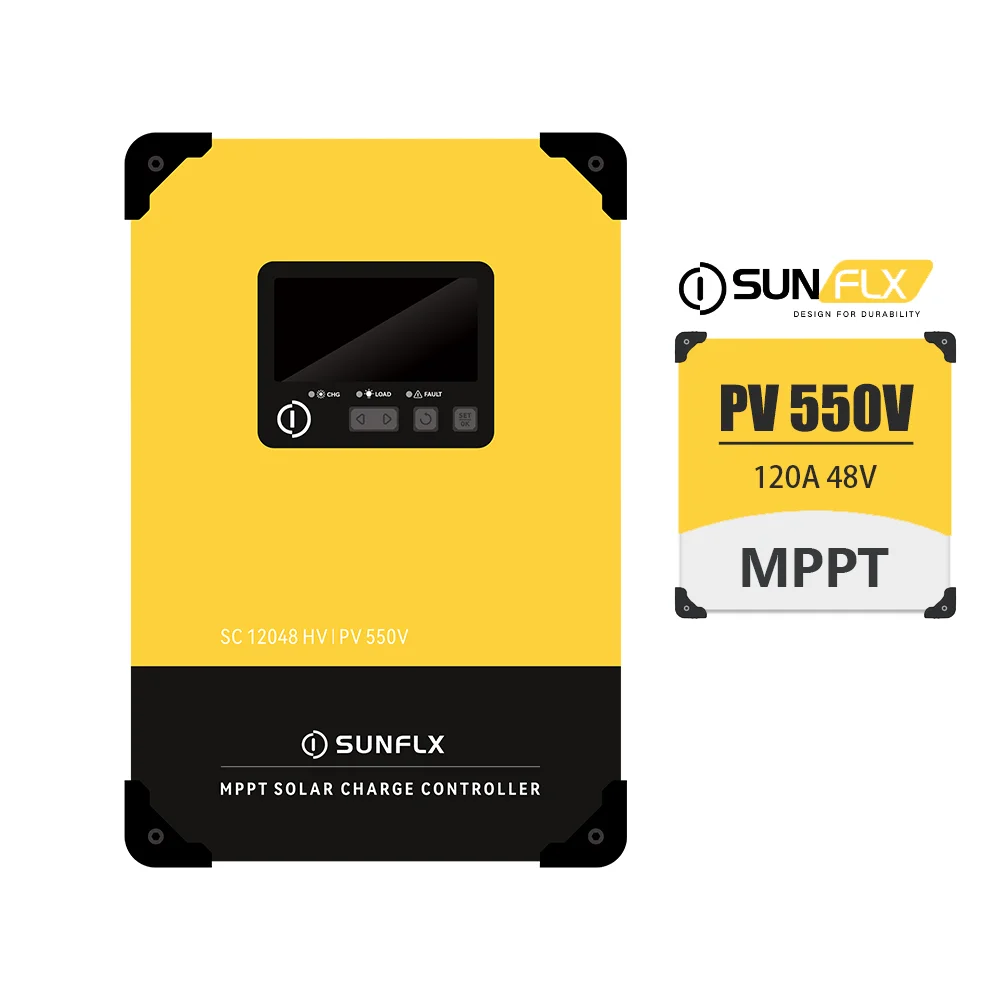

Sunflx SC 12048 HV Солнечный контроллер Mppt регулятор солнечной панели зарядное устройство 48 В 120 усилитель PV550V mppt контроллер солнечного заряда

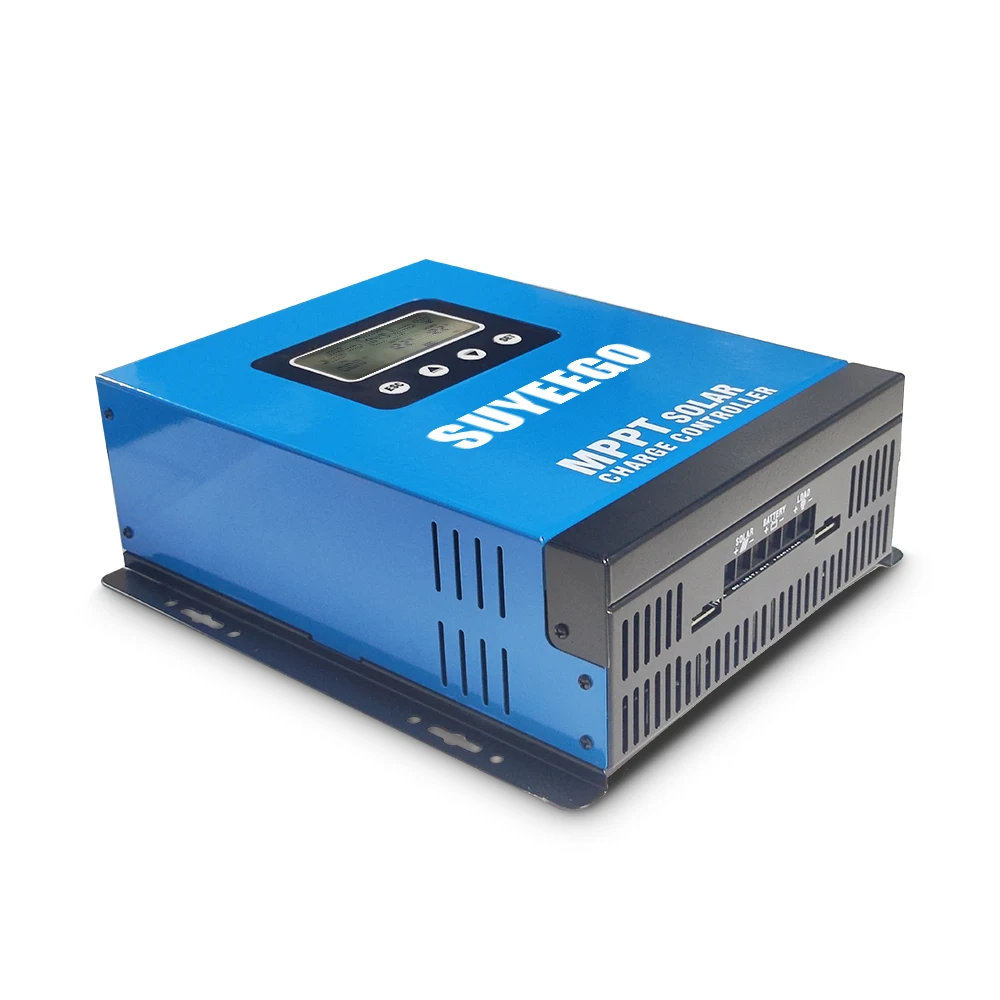

Контроллер заряда SUYEEGO 120A mppt с 30A 40A 50A 60A 80A 100A smart 12/24/48V Авто Высокое напряжение 180v Солнечная pv Входная батарея

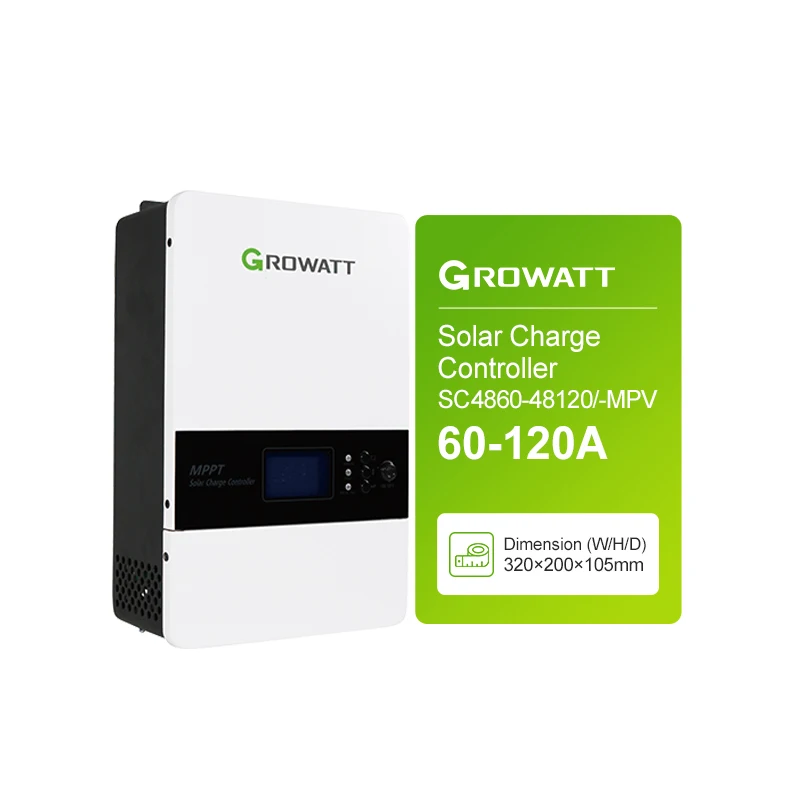

Многоступенчатая зарядка Growatt SC 4860-48120-MPV оптимизирует производительность батареи, контроллер заряда солнечной батареи
