Дизельный ручной вакуумный насос с правым приводом
1 020 338,85 ₽
Dongfeng 8 cbm канализационные всасывающие грузовики с jurop вакуумный канализационный насос 6 колес всасывающий грузовик экспортируется на Филиппины
- Категория: >>>
- Поставщик: Hubei Shaerkeli Auto Trading Co. Ltd.Hubei Ltd.
Сохранить в закладки 1601012171596:
Описание и отзывы
Характеристики
Product Description
Specification
Chassis parameters | ||
Brand | DONGFENG(You can choose Dongfeng, faw,ISUZU, Foton,SINOTRUK HOWO ,SHACMANetc.） | |
Driving Type | 4*2 | |
Emission Standard | EURO 3(Optional: Euro 5, Euro 2, Euro 4) | |
Wheel base | 3800MM | |
Engine horsepower | 120HP | |
gearbox | 6 speed gearbox | |
Dimensions | 6950*2250*3150(mm) | |
315/80R22.5Tire model | 8.25R20 | |
Gross Vehicle Weight | 11995 | |
Sewage suction system | ||
Tank volume | 8cbm | |
Tank material | carbon steel（optional stainless steel） | |
Tank thickness | 6-8mm | |
Sewage suction valve | 4 inches or 6 inches | |
Drain valve | 6 inches | |
Hydraulic function | The tank can be lifted hydraulically and the back cover can be opened hydraulically | |
Vertical suction lift | 8-10m | |
Horizontal suction lift | 30-50m | |
Pumping speed | 3-10min/tank | |
Details Images
Vacuum pressure gauge
Used to detect the internal pressure of the dirty tank
Hydraulically operated valve
Used to control tank lifting and back cover opening
Thick measuring tube
Used to monitor the amount of sewage in the tank

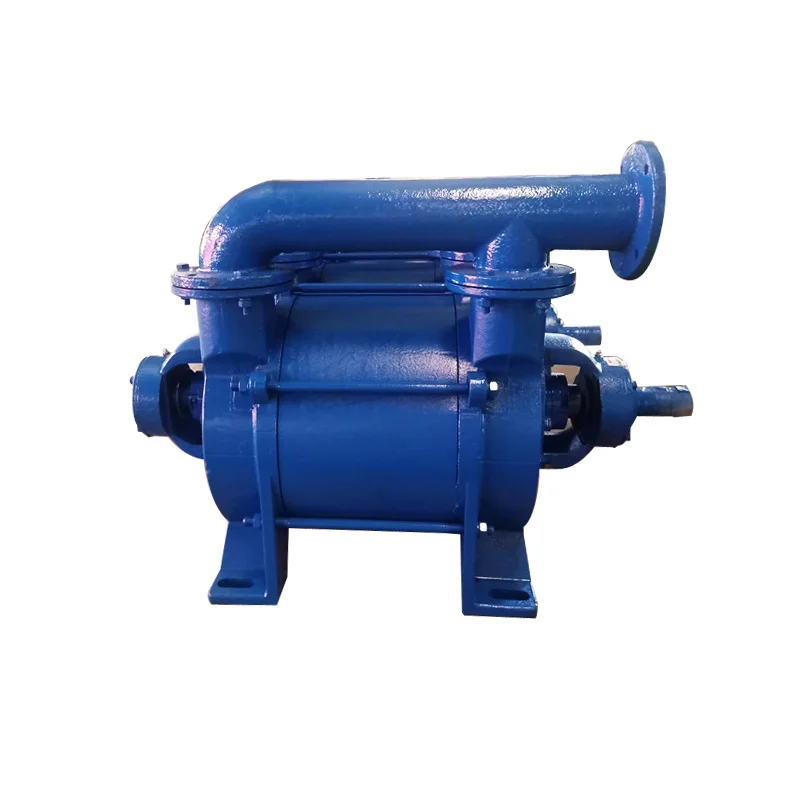

1.water circulation vacuum pump
To avoid the machine temperature being too high after continuous operation, which will affect the suction, improve the operating efficiency, low after-sales rate, stable performance, and the current mainstream products on the market.
2.Oil circulation vacuum pump
When used in winter, the machine will not freeze and is suitable for use in areas with relatively low temperatures in winter.
3.Italian imported vacuum pump
Relying on engine oil to drive, it does not affect the use of the machine when the temperature is high, and the price is relatively high.
High-pressure pump
Name: German Pinfu
Model:170L/min，215L/min，250L/min，270L/min，330L/min，350L/min，500L/min，620L/min（traffic per minute）
Pipe diameter:Suitable for 100-2000mm
Optional: Tianjin Shuangyao, Tianjin Tongjie
Scope of application
Bestsellers
Sewage suction truck classification
4*2 (3-15)CBM
6*4 (15-20)CBM
8*4 (25-33) CBM
Cleaning and sewage suction truck Classification
4*2 (3-15)CBM
6*4 (15-20)CBM
8*4 (25-33) CBM
Comment：
1.You can freely allocate the volumes of the clean water tank and wastewater tank.
2.You can freely choose the chassis, such as Jiefang, Foton, Dongfeng, Isuzu,SINOTRUK Howo, etc.
3.Please trust our professionalism and we will recommend the most suitable products for you.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Our survival what is based on the quality and credit standing is the guarantee of our success. We will do as we can that treating customers honestly,marketing flexibly, guaranteeing high quality and reasonable price,and concentrating on high efficiency.
FAQ
Q1. Payment term.
T/T ,30% as despite ,and 70% before delivery from factory.
L/C, L/C price is higher than T/T price
We will show you photos and video of the finished truck before you pay the balance.
Q2. Terms of delivery
EXW, FOB, CFR, CIF, DAF ,FCA ,DDU.DAP etc .
We mainly do FOB,CIF,DAF
Q3. Delivery time
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
(if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to
contract .)
Q4. Quality and warranty
We have Rich experience workers and engineer to control quality before and on production , we strictly follo STATE special trucks
technical specification and safety production specification . we 100% test trucks before delivery.
Our Warranty :12 months
We will provide the spare parts for free in one year.
Q5. How to trust us ?
You browse products by made-in-china website,our company pass BV factory audit. And you also can arrange a third party inspect our
factory.
We have been in this line for over 15 years, dealing with all kinds of trucks.
Q6.Visit our factory
Our factory are in suizhou city,hubei province, china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province,near our factory) .and our driver
will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter ,pls send your private information and company information to me.
T/T ,30% as despite ,and 70% before delivery from factory.
L/C, L/C price is higher than T/T price
We will show you photos and video of the finished truck before you pay the balance.
Q2. Terms of delivery
EXW, FOB, CFR, CIF, DAF ,FCA ,DDU.DAP etc .
We mainly do FOB,CIF,DAF
Q3. Delivery time
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
(if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to
contract .)
Q4. Quality and warranty
We have Rich experience workers and engineer to control quality before and on production , we strictly follo STATE special trucks
technical specification and safety production specification . we 100% test trucks before delivery.
Our Warranty :12 months
We will provide the spare parts for free in one year.
Q5. How to trust us ?
You browse products by made-in-china website,our company pass BV factory audit. And you also can arrange a third party inspect our
factory.
We have been in this line for over 15 years, dealing with all kinds of trucks.
Q6.Visit our factory
Our factory are in suizhou city,hubei province, china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province,near our factory) .and our driver
will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter ,pls send your private information and company information to me.
