Product Overview

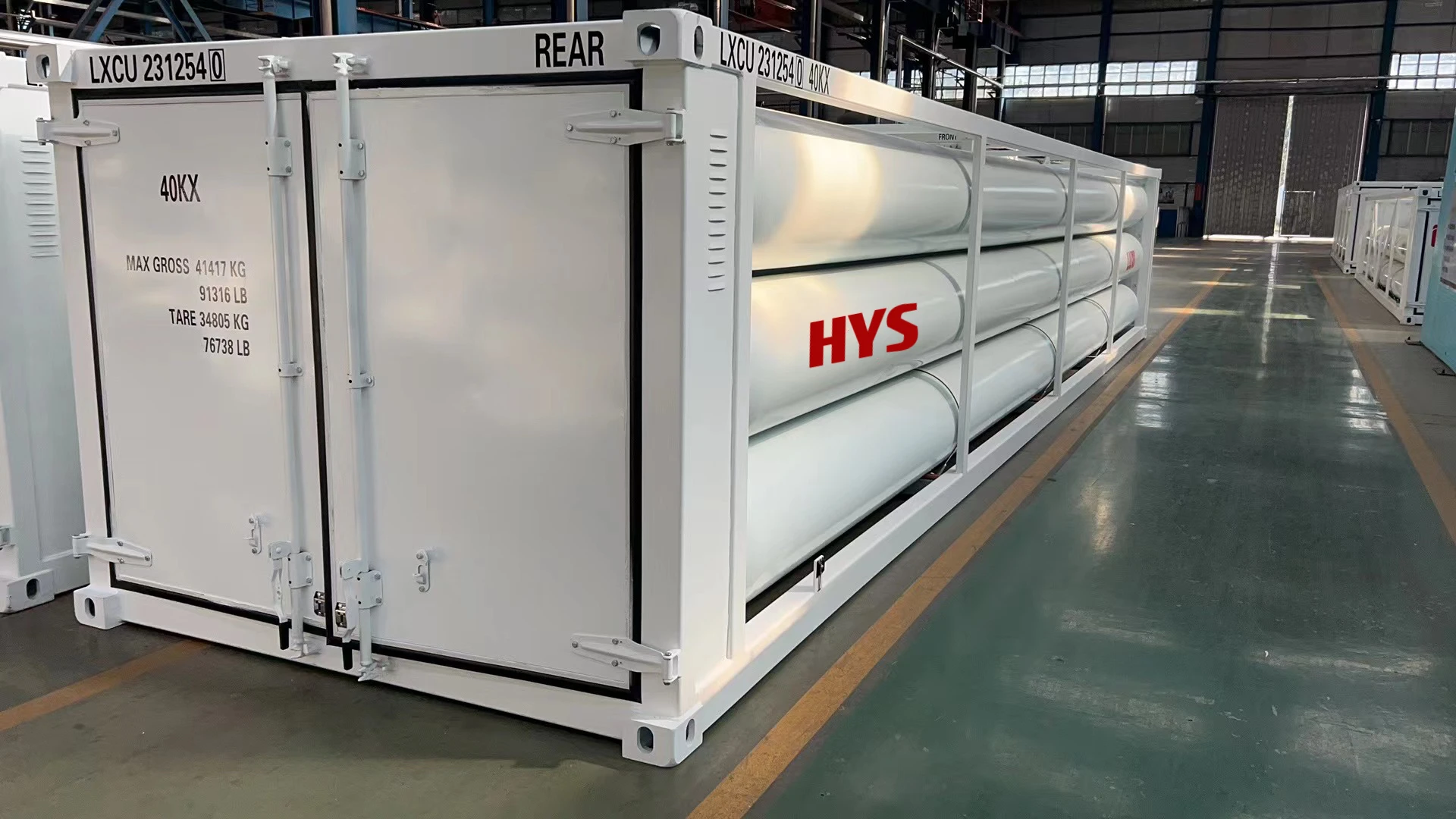

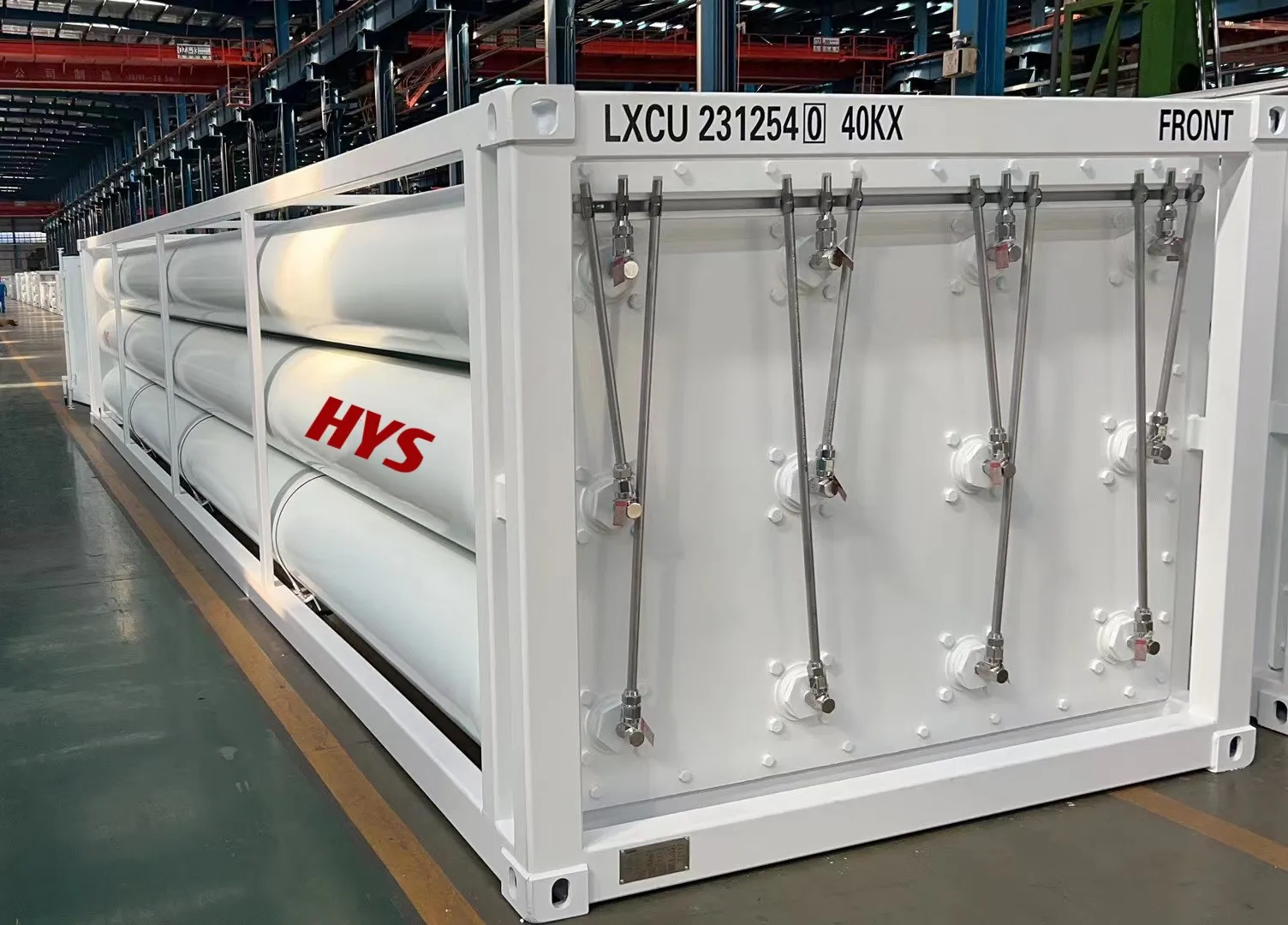

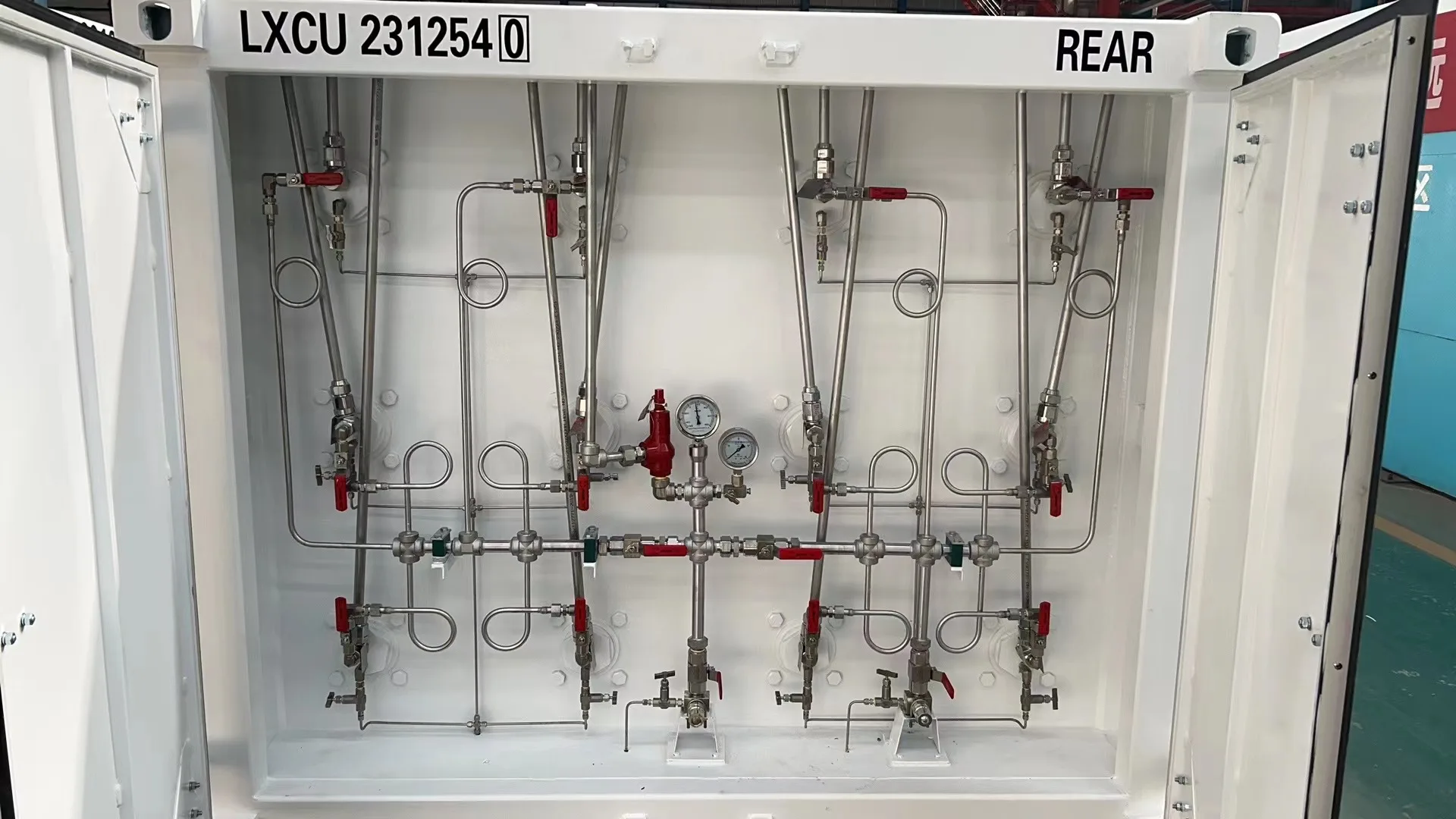

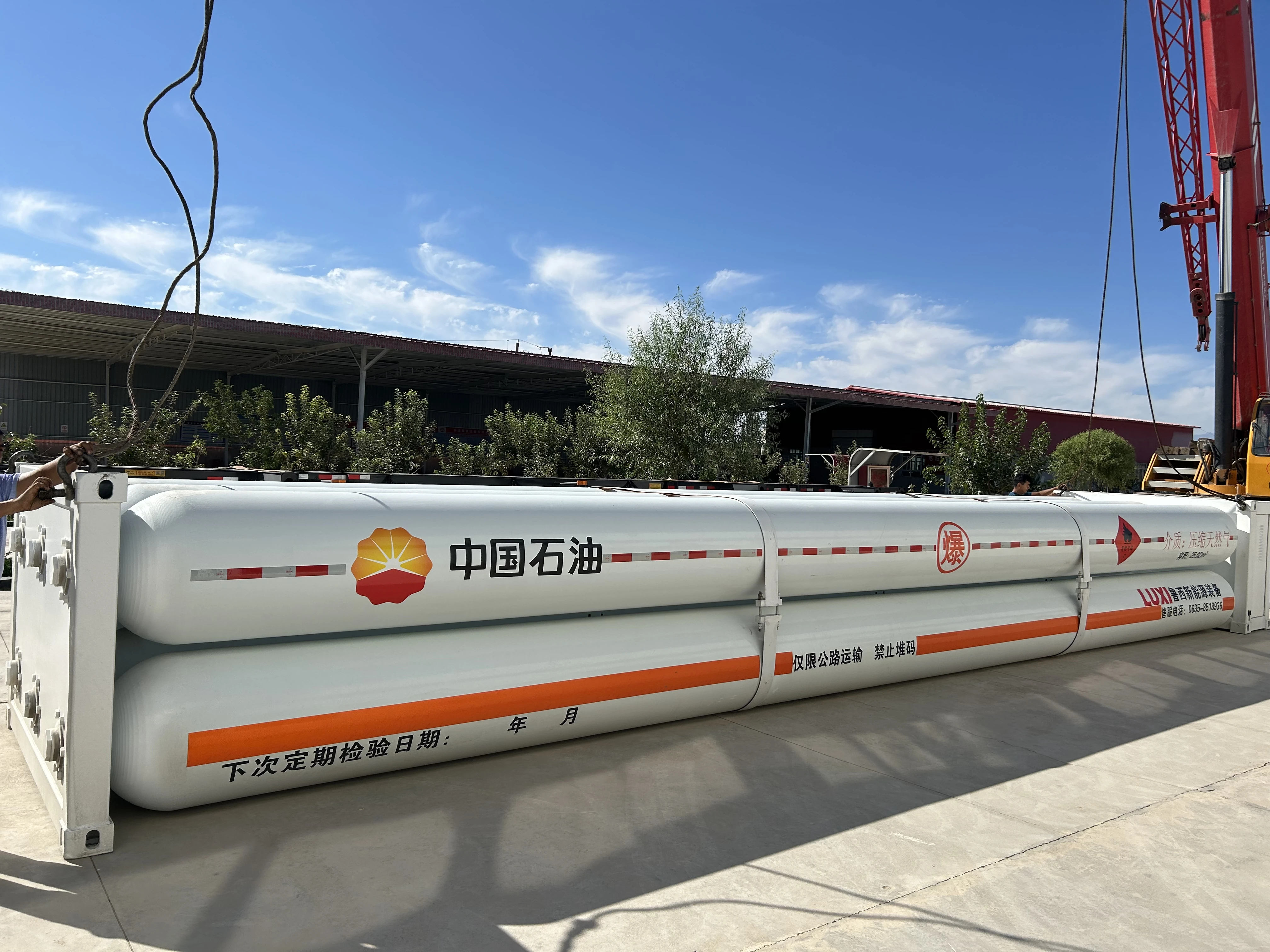

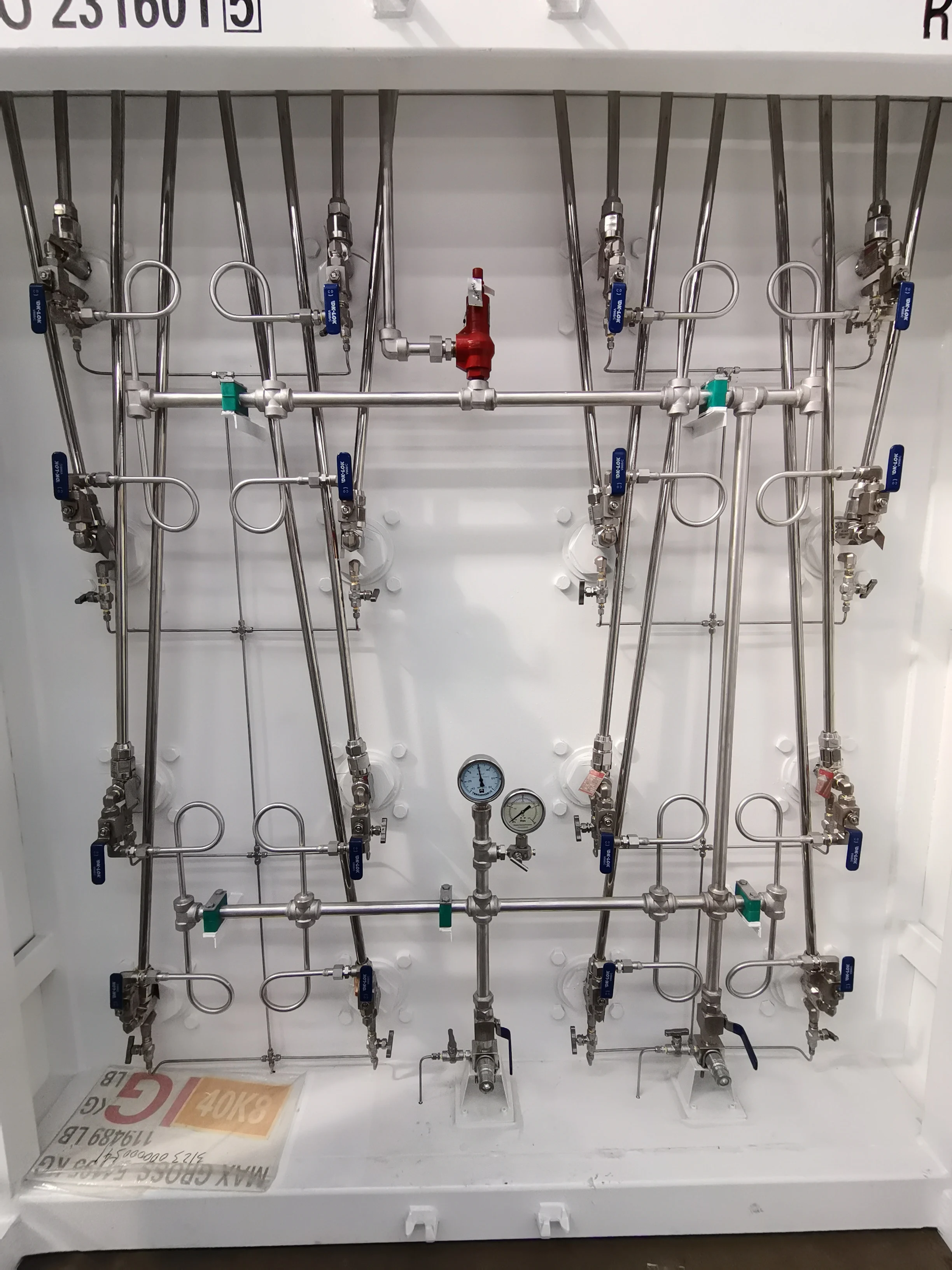

Customize CNG Tube Bundle Skid Container Semi Trailer
CNG Tube Bundle Skid Container is a new professional storage and transportation equipment for Compressed Natural Gas (CNG). According to customers' requirements, we can customize 6 tubes, 8 tubes, 12 tubes, 16 tubes, ect.
The CNG Tube Bundle Skid Container fit on the chassis skeleton semi trailer, its features are flexible, convenient, efficient. CNG Tube Bundle Skid Container Semi Trailer is the latest means of mass transportation specialized for compressed natural gas, applies to road transport compressed natural gas (CNG).
Technical Specification
CNG Tubes Bundle Container Skid Specification | ||
Dimension | Outside 12192mm x 2438mm x 2000mm (different quantity tubes, different height) | |
Filling Medium | CNG | |
Tubes Quantity | 6/8/9/12 /16 Tubes, customizable | |
Volume | 25 .1/30.8/29.4/33.6/37.8 m³, customizable | |
Container Weight | 30100/33200/34760 KG (based on actual production situation） | |
Filling Weight | 4500/5520/6615/6795 KG (based on actual production situation） | |
Full Load Weight | 34680/37600/41375 KG (based on actual production situation） | |
Working Pressure | 25 Mpa | |
Water Pressure Test | 37.5 Mpa | |
Working Temperature | -50--65°C | |
Service Life | 15 years | |
Chassis Trailer Specification | ||
Dimension | Outside 12500mm x 2500mm x 2800mm / Customized | |
Loading Capacity | 30--100T/Customized | |
Main Beam | Material: Q345/T700; Height: 450mm-520mm; upper plate is 14mm-25mm; middle plate is 8mm-12mm; down plate is 16mm-25mm; | |
Side Beam | Material: Q235steel; 16mm or 25mm steel channel | |
Axle | 2/3/4/5 axles, 13/16/20 tons HYS/FUWA/BPW brand (cutomized optional) | |
Landing Gear | HYS/JOST brand 28T lifting capacity | |
Brake System | Dual Line Braking System, ABS is optional | |
Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks; | |
Electronic System | 24v, 7core socket, LED light, Tail lamp with turn signal, Brake light & reflector, Side lamp, etc | |
King Pin | (#50) 2.00 / (#90) 3.5 inch bolt-in king pin | |
Suspension | Mechanical Suspension /Air Suspension optional | |
Leaf Spring | 90(W)mm×16(Thickness)mm×10 layers | |
Twist Lock | 8/12 units optional | |
Tire | 12R22.5, (13R22.5, 11.00R20, 12.00R20, 315/80R22.5, 385/65R22.5 optional) | |
Color | Electrophoresis painting, Yellow/Red/White/Blue/optional | |
Accessories | One standard tool box | |
Our Advantages
Exhibition & Customer Visit
Manufacturing Technique
Packaging and Shipping
Hiyousun Group Truck Trailer Factory will choose the most safety and economy shipping solution for customers.
Shipping by bulk ship, flat rack or Ro-ro ship.
Shipping by bulk ship, flat rack or Ro-ro ship.
Company Profile
Hiyousun Group Truck Trailer Factory is specialized in manufacturing high quality semi trailer and truck solution for transportation and logistic industry.
Owing to the advanced technology, we have dedicated factory units and technicians responsible for the manufacturing of different types of semi trailers such as flatbed/lowbed/skeleton semi trailer, tanker semi trailer, dump semi trailer, and so on. We also produce our own semi trailer parts axles, suspension, brakes, landing gear, etc, so we can guarantee the highest quality by having control and supervision over every single detail. As the leading professional semi trailer manufacturer with more than 20 years experience, we provide customized OEM/ODM service for semi trailer products to customers all over the world. Every year we export about 10,000-20,000 various types of semi trailers worldwide, unanimously approved and praised.
Owing to the advanced technology, we have dedicated factory units and technicians responsible for the manufacturing of different types of semi trailers such as flatbed/lowbed/skeleton semi trailer, tanker semi trailer, dump semi trailer, and so on. We also produce our own semi trailer parts axles, suspension, brakes, landing gear, etc, so we can guarantee the highest quality by having control and supervision over every single detail. As the leading professional semi trailer manufacturer with more than 20 years experience, we provide customized OEM/ODM service for semi trailer products to customers all over the world. Every year we export about 10,000-20,000 various types of semi trailers worldwide, unanimously approved and praised.
Hiyousun Group has established close stable relationships with customers from more than 50 countries and regions worldwide. We are dedicated to provide all of our customers with best possible service and the highest quality products.
Certifications
Our quality can meet European and American standards and accept third-party quality inspection.
