18 дюймовый сабвуфер 2400 Вт профессиональная звуковая система хороший бас наружный динамик
- Категория: >>>
- Поставщик: Guangzhou Tianjun Electronic Technology Co. Ltd.Guangzhou Ltd.
Сохранить в закладки 1601013500436:
Описание и отзывы
Характеристики

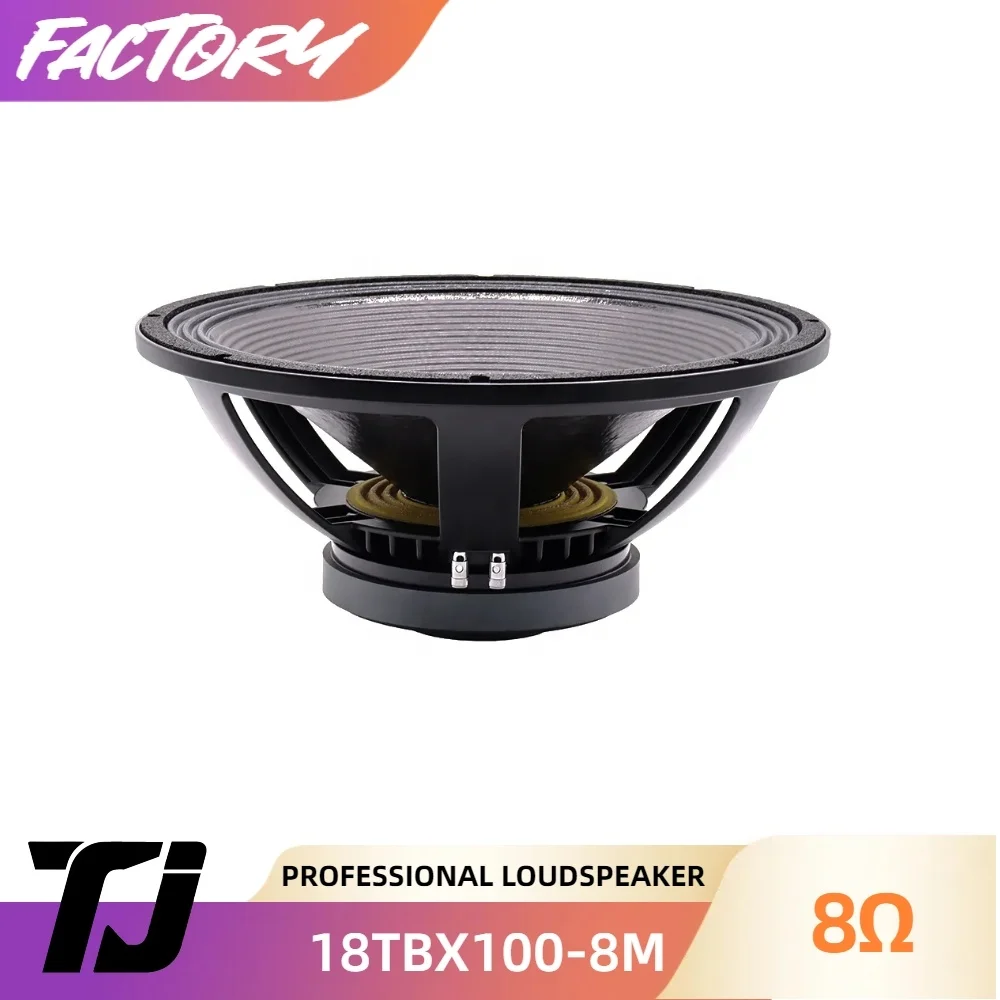

18 Inch SubWoofer 2400W Professional Sound System Good Bass Outdoor PA Speaker Unit
Product Paramenters
SPECIFICATIONS | ||
Type | FE SUBWOOFER | |
Nominal Diameter | 460/18 | mm/in |
Rated impedance | 8 | ohm |
Minimum Impedance | 6.7 | ohm |
Nominal Power Handling | 1200 | W |
Continuous Power Handling | 2400 | W |
Sensitivity | 97 | dB |
Frequency Range | 32-1000 | Hz |
Voice Coil Diameter | 100/4.0 | mm/in |
Winding Material | Copper | |
Former Material | Glass Fibre | |
Winding Depth | 25/0.98 | mm/in |
Megnetic Gap Depth | 12/0.47 | mm/in |
Megnetic Material | Ferrite Ring |
THIELE & SMALL PARAMETERS | ||||
Resonance frequency | Fs | 32 | Hz | |
Dc resistance | Re | 5.1 | ohm | |
Mechanical factor | Qms | 4.88 | ||
Electrical factor | Qes | 0.38 | ||
Total factor | Qts | 0.35 | ||
BL factor | Bl | 25 | T.M | |
Effective Moving mass | Mms | 246 | g | |
Effective Cas air load | Vas | 217 | liters | |
Effective piston area | Sd | 1230 | cm^2 | |
Inductance | Le | 2.0 | mh | |
Max linear excursion | Xmax | ±11 | mm | |
EBP | 84 | Hz | ||
MOUNTING AND SHIPPING | ||
Overall Diameter | 460/18 | mm/in |
Bolt Circle Diameter | 440/17.3 | mm/in |
Mount Baffle Cut-out | 420/16.5 | mm/in |
Mounting Hole | 8 | |
Depth | 209/8.2 | mm/in |
Frame And Gasket Thickness | 16/0.63 | mm/in |
N.W.(1 pc) | 12.4 / 27.3 | kg/lb |
G.W. (1 pc) | 16.1 / 35.4 | kg/lb |
Shipping Size (1 pc) | 520x520x290 mm | 20.5x20.5x11.4 in |
Welcome to CONTACT US

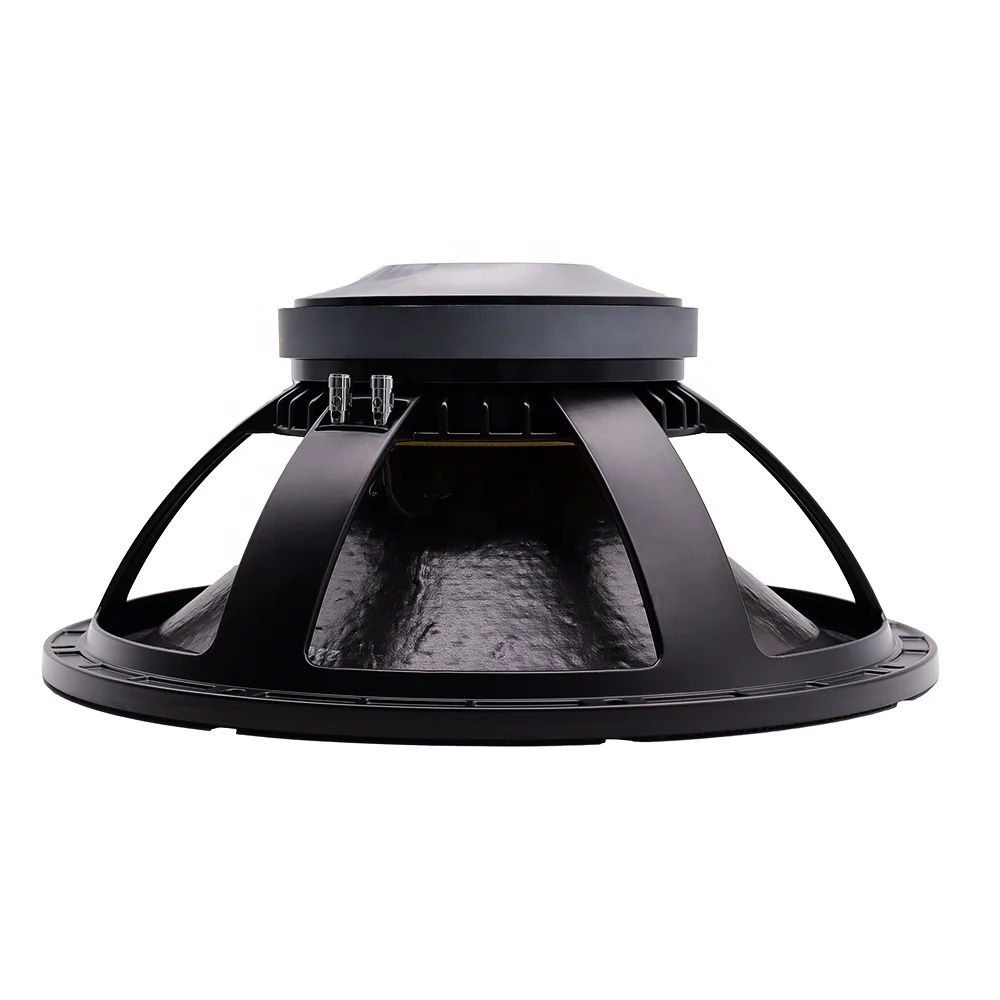

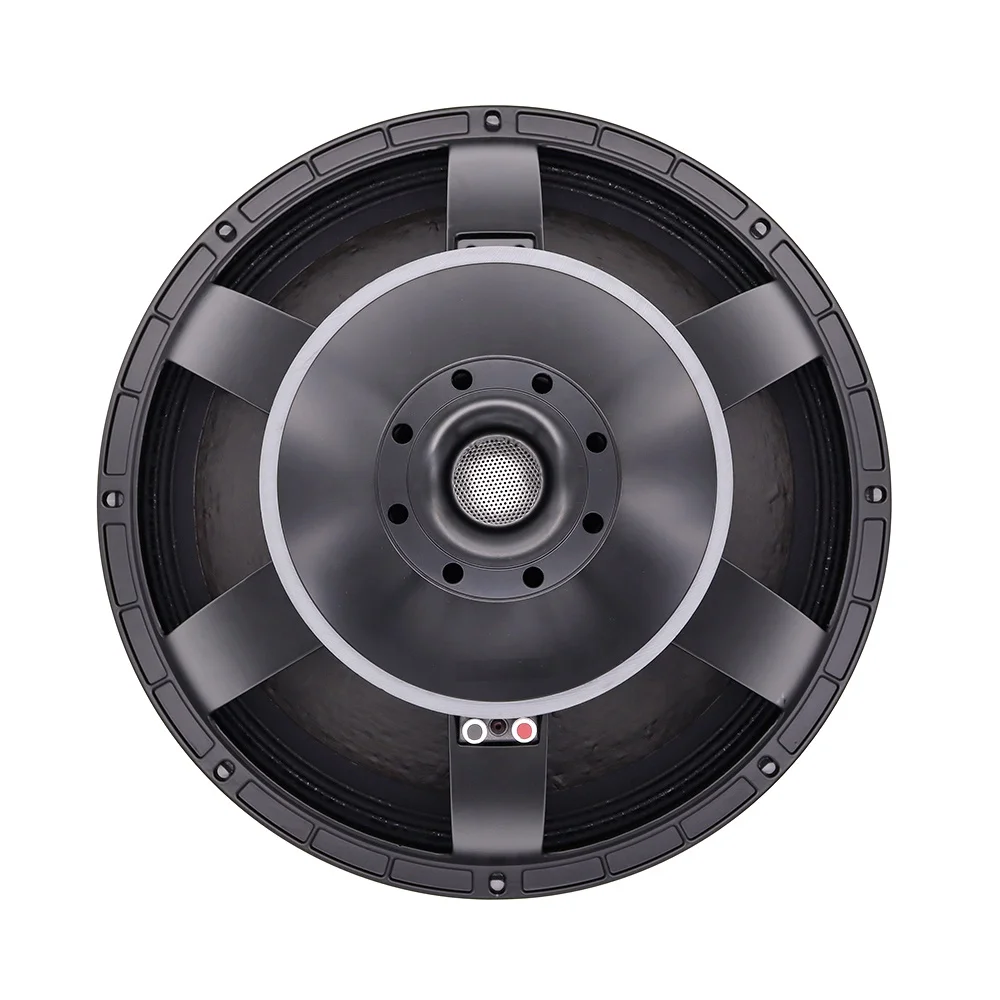

Details Images
2400 W continuous program power capacity
100 mm (4 in) copper voice coil

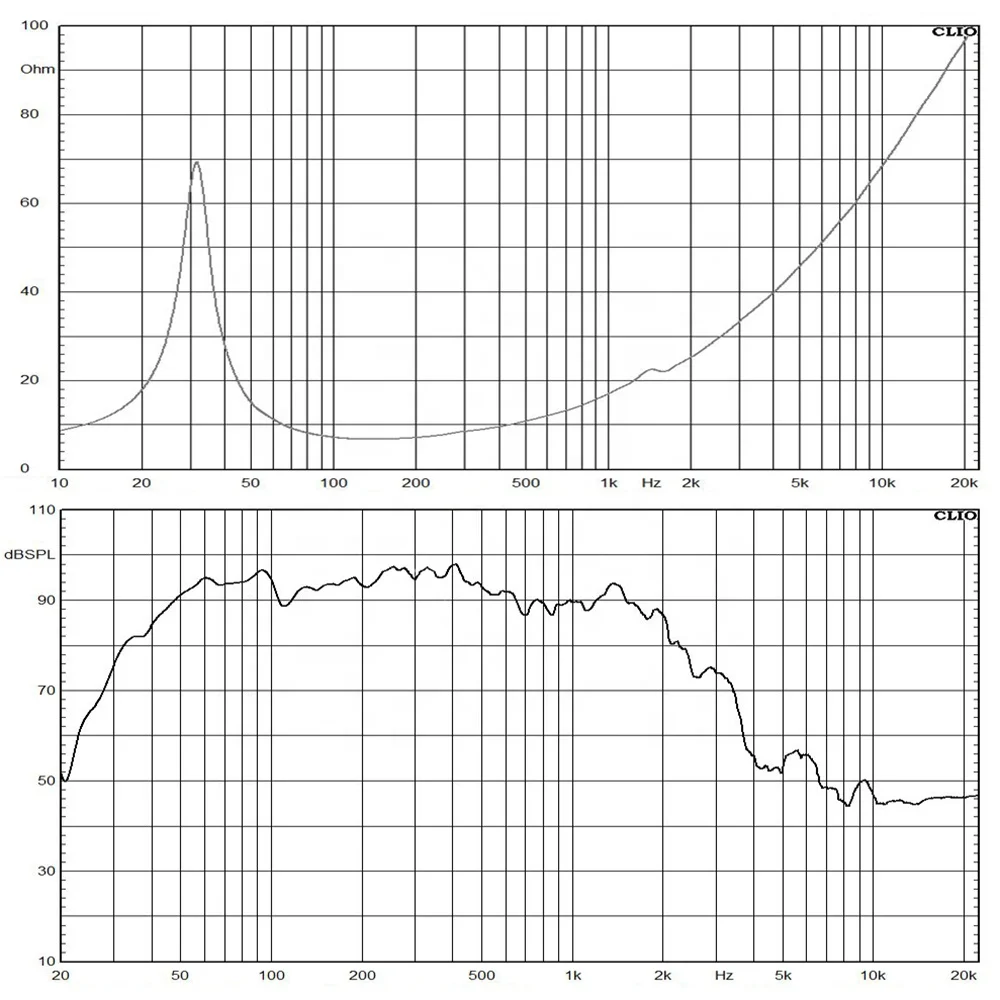

32 - 1000 Hz response
97 dB sensitivity
Aluminium demodulating ring allows a very low distortion figure
Double silicone spider with optimized compliance
Ventilated voice coil gap for reduced power compression
100 mm (4 in) copper voice coil
32 - 1000 Hz response
97 dB sensitivity
Aluminium demodulating ring allows a very low distortion figure
Double silicone spider with optimized compliance
Ventilated voice coil gap for reduced power compression
Manufacturing Process
Company Introduction
Guangzhou Tianjun Electronic Technology Co., Ltd. was established in 2011 as an electro-acoustic enterprise mainly engaged in R&D, production and sales of PA speakers.
We have a strong R&D department and engineers with 20 years of industry experience. The development auxiliary software includes FINEMOTER, LMS, CLIO and Swedish COMSOL physical simulation software. It has successively designed, customized, produced and OEM for well-known brands at home and abroad. Teaming up with international famous brands allows us to gain more professional electro-acoustic manufacturing experience.
TJ Company is positioned to further strengthen its internationalization and specialization. We adhere to the "professional technology, professional quality" as the core of the enterprise, and develop high-quality products. In order to further improve the quality and quality of products, key raw materials are developed and purchased in cooperation with global manufacturers such as the United Kingdom, Germany, the United States, Thailand, Japan, and Malaysia. Strictly control the quality from the introduction of raw materials to the delivery of products.
TJ Company is favored and recognized by customers for its high-quality products and beautiful prices. We look forward to receiving your inquiries!
Packing&Shipping
PACKING
1) Neutral packing 2) Strong carton 3)1PC per carton 4) 1CTN in one shipping carton
SHIPPING
1️⃣Ocean Transport 2️⃣Air Transport 3️⃣Rail Transport 4️⃣Road Transport 5️⃣International Express
