Открытый P4 P5 P6 P8 P10 светодиодный настенный экран высокой яркости водонепроницаемый светодиодный дисплей рекламный экран
16 265,39 ₽ - 27 108,98 ₽

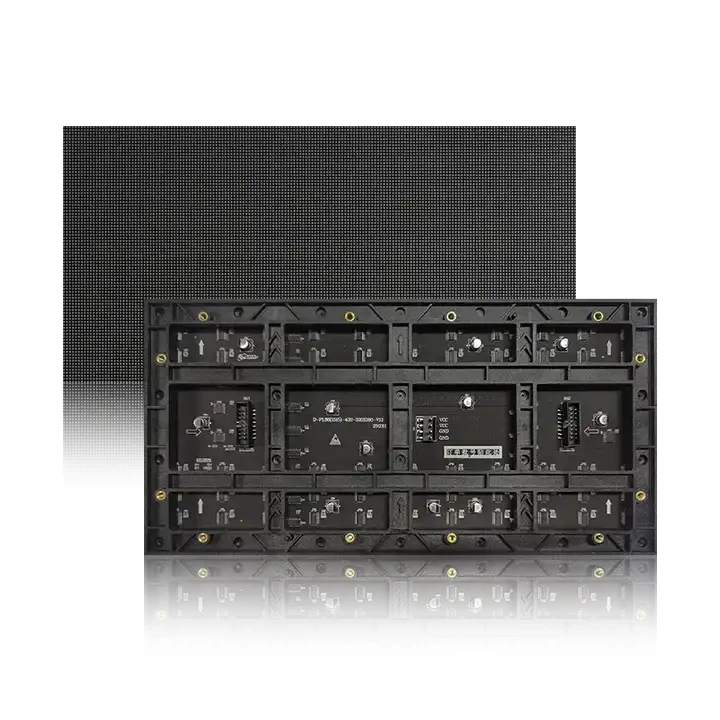

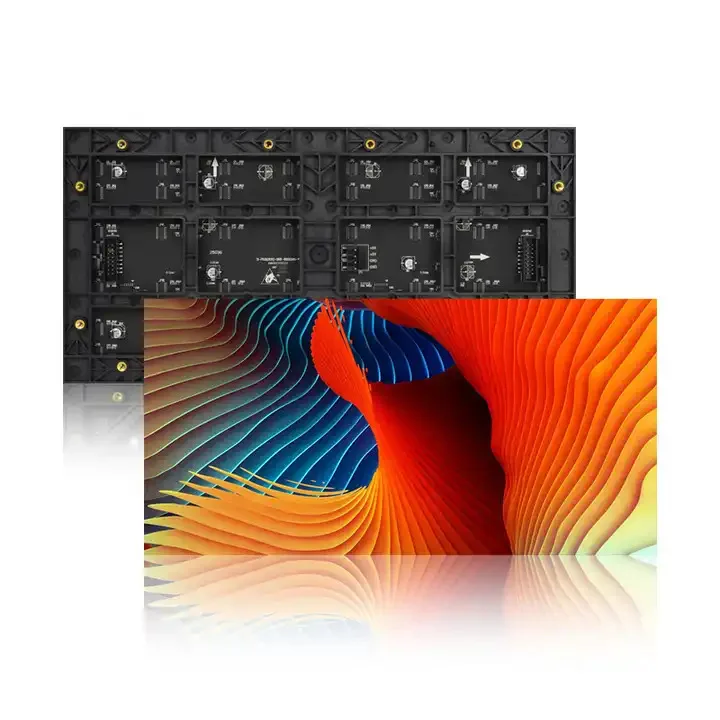

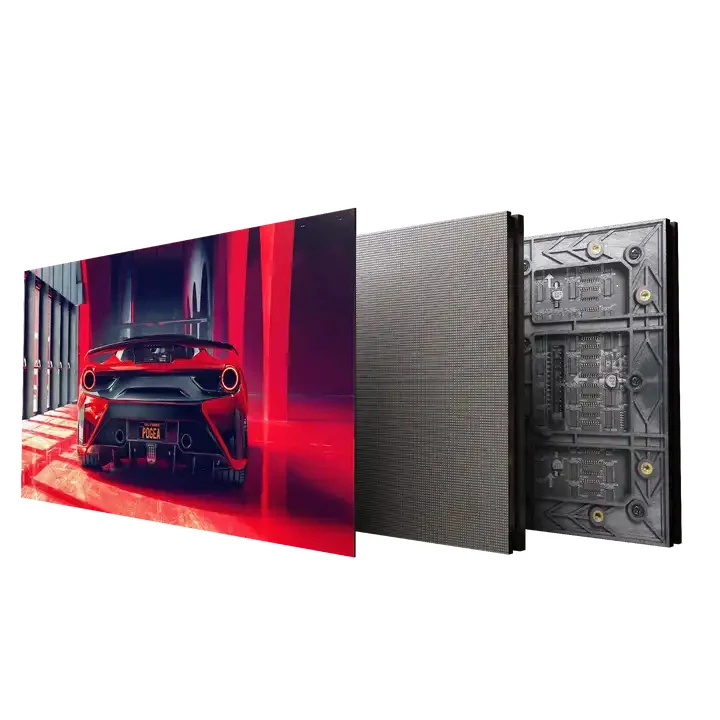

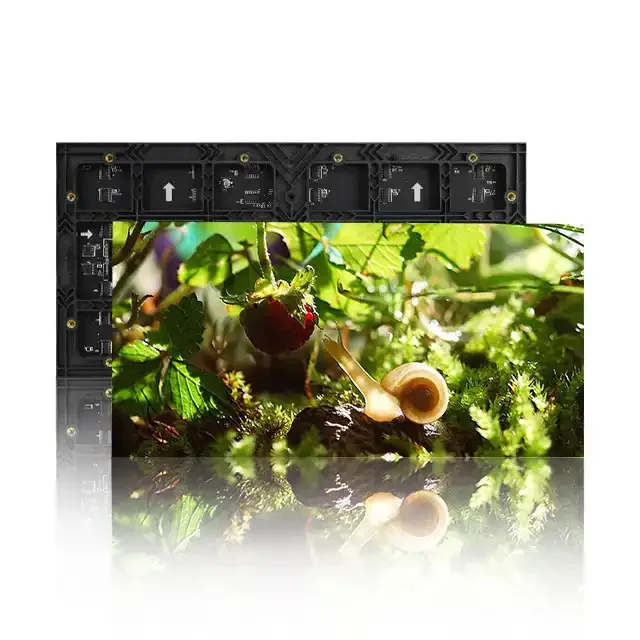

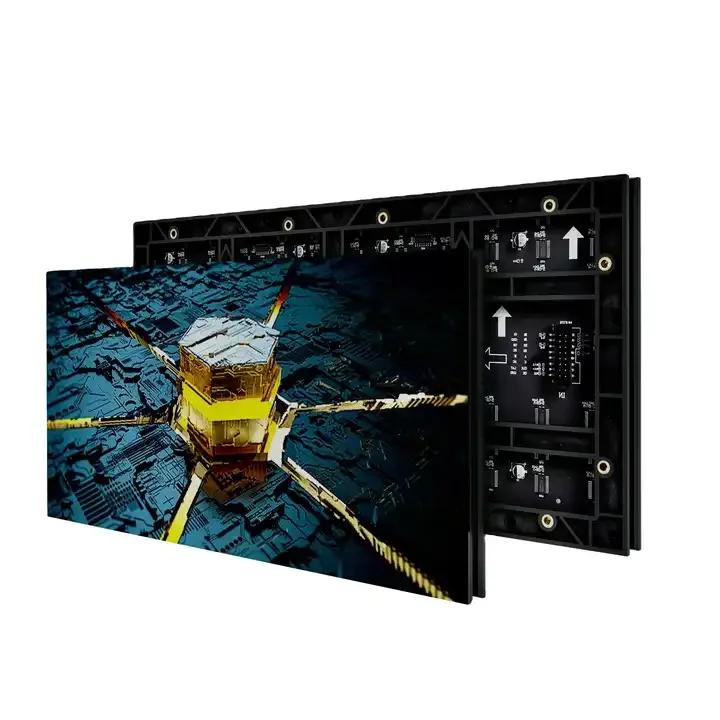

Популярный Крытый полноцветный P1.25/P1.53/ P1.86 светодиодный видеостена 4K дисплей модуль
- Категория: >>>
- Поставщик: Jingyunwei (shanxi) Technology Co. Ltd.
Сохранить в закладки 1601013734122:
Описание и отзывы
Характеристики
Products Description
Model | P1.25 | P1.53 | P1.86 | P2.0 | P2.5 | ||||
Plate Size | 320*160mm | ||||||||
Pixel Pitch | 1.25mm | 1.538mm | 1.86mm | 2mm | 2.5mm | ||||
Module Pixel | 256*128=32768dots | 208*104=21632dots | 172*86=14792dots | 160*80=12800dots | 128*64=8192dots | ||||
Pixel Density | 640000dots/㎡ | 422500dots/㎡ | 288906dots/㎡ | 250000dots/㎡ | 160000dots/㎡ | ||||
LED Lamp | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | ||||
Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥1920/3840Hz | ||||
Brightness Uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ||||
Life span | ≥100000h | ||||||||
Scan Method | 64S | 52S | 43S | 40S | 32S | ||||
Model | P2.5 | P3.076 | P4 | P5 | P6.67 | P8 | P10 | ||||||
Plate Size | 320*160mm | ||||||||||||
Pixel Pitch | 2.5mm | 3.076mm | 4mm | 5mm | 6.67mm | 8mm | 10mm | ||||||
Module Pixel | 128*64=8192dots | 104*52=5408dots | 80*40=3200dots | 64*32=2048dots | 48*24=1152dots | 40*20=800dots | 32*16=512dots | ||||||
Pixel Density | 160000dots/㎡ | 105625dots/㎡ | 62500dots/㎡ | 40000dots/㎡ | 22500dots/㎡ | 15625dots/㎡ | 10000dots/㎡ | ||||||
LED Lamp | SMD1515 | SMD1415 | SMD1921 | SMD1921 | SMD2525 | SMD3535 | SMD3535 | ||||||
Refresh Rate | ≥1920/3840Hz | ||||||||||||
Brightness Uniformity | ≥97% | ||||||||||||
Life span | ≥100000h | ||||||||||||
Scan Method | 16S | 13S | 10S | 8S | 6S | 5S | 2S | ||||||
Model | indoor P4.75 RED | indoor P4.75 Red Green Yellow | outdoor P10(DIP) | outdoor P10(SMD) |
Plate Size | 304*152mm | 304*152mm | 320*160mm | 320*160mm |
Pixel Pitch | 4.75mm | 4.75mm | 10mm | 10mm |
Module Pixel | 64*32=2048dots | 64*32=2048dots | 32*16=512dots | 32*16=512dots |
Pixel Density | 44321dots/㎡ | 44321dots/㎡ | 10000dots/㎡ | 10000dots/㎡ |
LED Lamp | SMD2121 | SMD2121 | SMD2835 | SMD2835 |
Refresh Rate | ≥120HZ | ≥120HZ | ≥120HZ | ≥120HZ |
Brightness Uniformity | ≥97% | ≥97% | ≥97% | ≥97% |
Life span | ≥100000h | ≥100000h | ≥100000h | ≥100000h |
Scan Method | 16S | 16S | 4S | 4S |
Model | P1.5(indoor) | P1.8(indoor) | P2.0(indoor) | P2.5(indoor) | P4(indoor) | P3.076(outdoor) | P4(outdoor) | ||||||
Plate Size | 320*160mm | ||||||||||||
Pixel Pitch | 1.538mm | 1.86mm | 2mm | 2.5mm | 4mm | 3.076mm | 4mm | ||||||
Module Pixel | 208*104=21632dots | 172*86=14792dots | 160*80=12800dots | 128*64=8192dots | 80*40=3200dots | 104*52=5408dots | 80*40=3200dots | ||||||
Pixel Density | 422500dots/㎡ | 288906dots/㎡ | 250000dots/㎡ | 160000dots/㎡ | 62500dots/㎡ | 105625dots/㎡ | 62500dots/㎡ | ||||||
LED Lamp | SMD1212 | SMD1515 | SMD1515 | SMD2121 | SMD2020 | SMD1415 | SMD1921 | ||||||
Refresh Rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥1920/3840Hz | ≥1920/3840Hz | ≥1920/3840Hz | ||||||
Brightness Uniformity | ≥450cd/㎡ | ≥450cd/㎡ | ≥450cd/㎡ | ≥500cd/㎡ | ≥500cd/㎡ | ||||||||
Life span | ≥100000h | ||||||||||||
Scan Method | 52S | 43S | 40S | 32S | 20S | 13S | 10S | ||||||
Product Feature
Company Profile
FAQ
Q1: Are you trading company or manufacturer?
A: We are led display manufacturer. Welcome visit our factory.
Q2: ls it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How does your factory do regarding quality control?
A：The lamp beads used in our LED display are all genuine lamp beads. We do not need to be used scattered lights and tail lights. Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
Q7. How about your Warranty term?
A: Calculated from the goods to the customer, the warranty period is 2 years, if there is any problem with the module, you can send it back to us for repair.
Q8: When will you make the delivery?
A:We can make the delivery within 3-5 working days for the led modules and 10-15 days for the Led finished screen according to the size and quantities of your order.
A: We are led display manufacturer. Welcome visit our factory.
Q2: ls it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How does your factory do regarding quality control?
A：The lamp beads used in our LED display are all genuine lamp beads. We do not need to be used scattered lights and tail lights. Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
Q7. How about your Warranty term?
A: Calculated from the goods to the customer, the warranty period is 2 years, if there is any problem with the module, you can send it back to us for repair.
Q8: When will you make the delivery?
A:We can make the delivery within 3-5 working days for the led modules and 10-15 days for the Led finished screen according to the size and quantities of your order.
