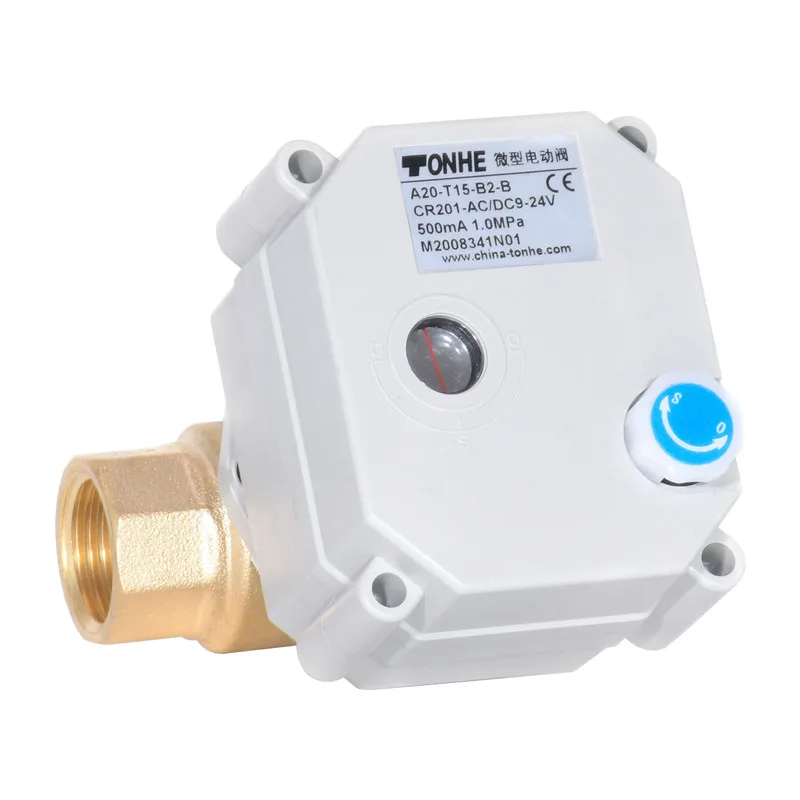

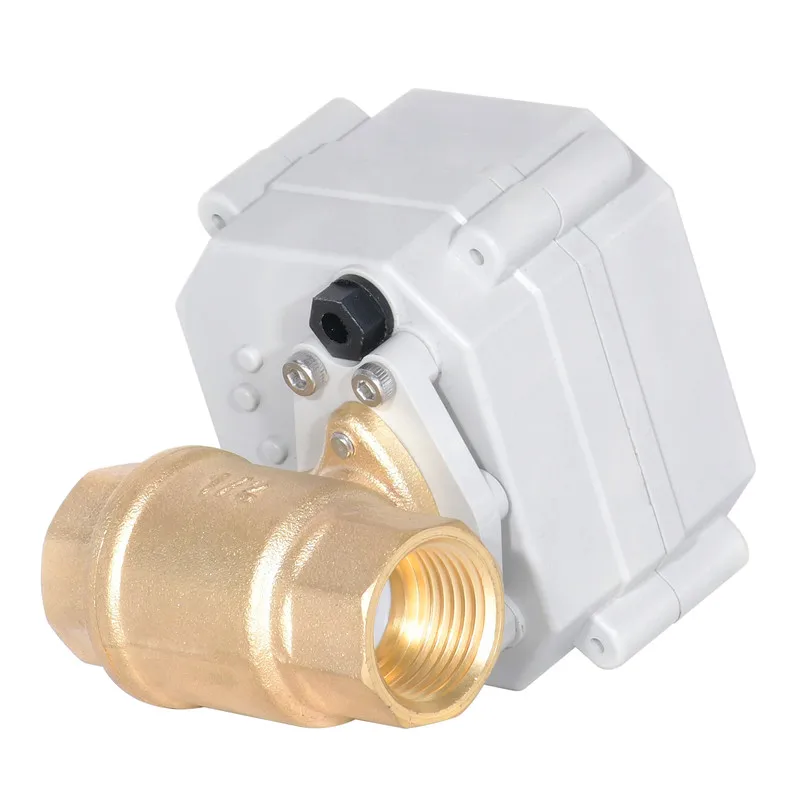

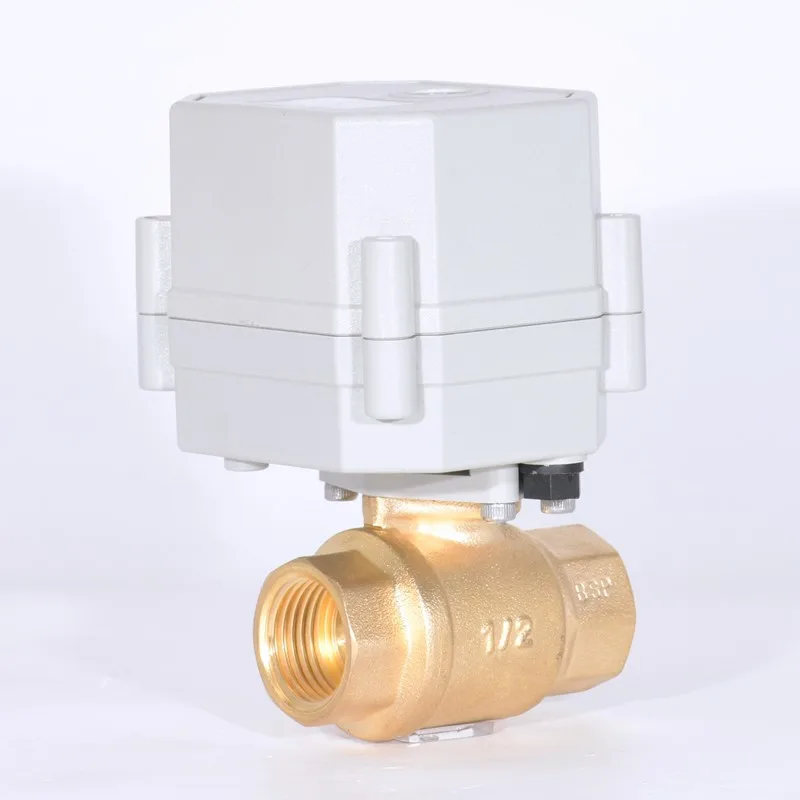

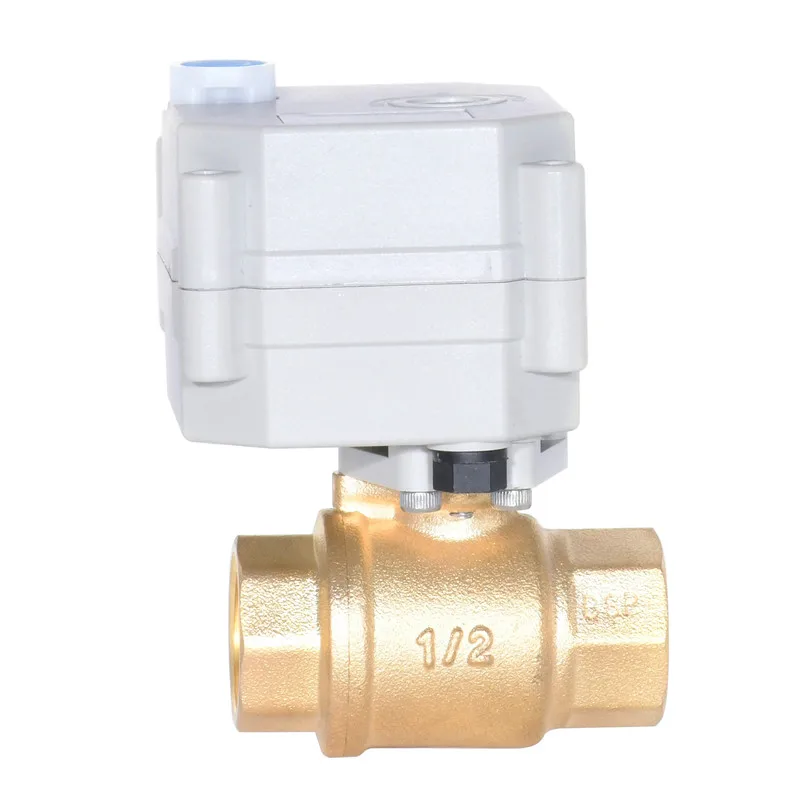

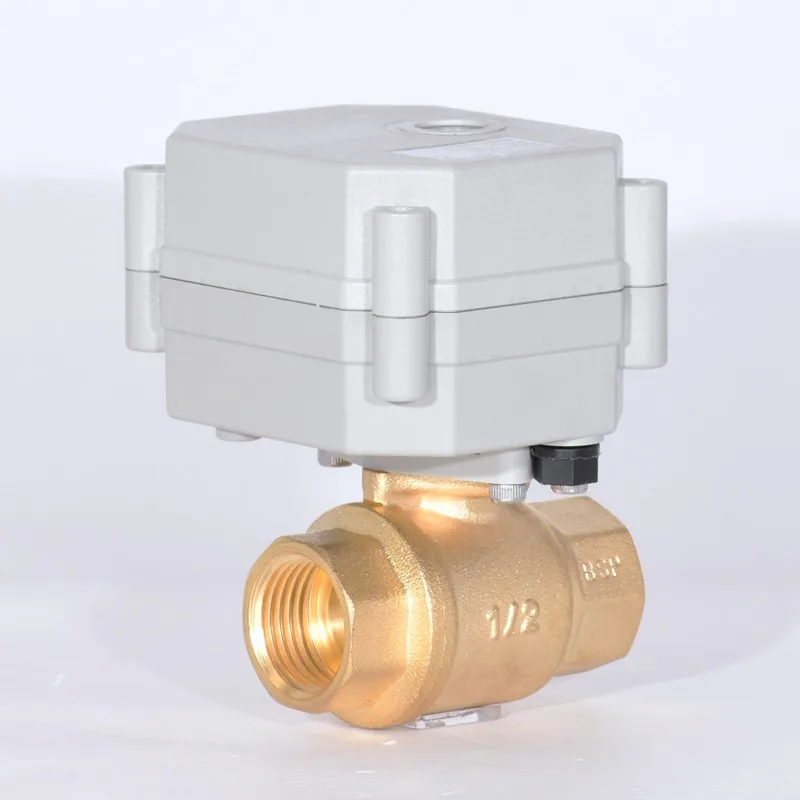

1/2 латунный шаровой клапан с электроприводом 9 24vac/DC или 110 230VAC Auto Return NO/NC Failsafe ручным управлением
- Категория: >>>
- Поставщик: Taizhou Tonhe Flow Control Co. Ltd.Taizhou Ltd.
Сохранить в закладки 1601014050581:
Описание и отзывы
Характеристики
Product Description
Specification
Model Number | A20-T15-B2-B/A20-T15-B2-C |
Port Size | 1/2‘’ DN15 BSPP or NPT |
Brand Name | Tonhe or Neutral or OEM |
Media | Fluid, Air |
Rated Voltage | 9-24Vac/dc or 110-230Vac |
Wiring Method | CR202/CR502/CR303/CR603 |
Max.Working Pressure | 1.0MPa (10bar/150psi) |
Open / Close time | ≤7s |
Circle Life | 70,000+ open/close |
Output Torque | 3NM |
Seals | PTFE + FKM/EPDM |
Actuator Material | PPO |
Actuator Color | White or Black or customized |
Visual position indication | With or Without (Optional) |
Manual Override Feature | With or Without (Optional), Available 9-24v only. |
Protection | IP67 |
Cable Length | 0.5m or 1.5m or customized |
Please specify the following details when inquiring or ordering sample:
1. Thread standard: BSPP-British Standard Pipe Parallel or NPT-National (American) Pipe Thread.
2. Working voltage: 9-24vac/dc or 110-230vac
3. Wiring diagram: CR202/CR502/CR303/CR603 or customized
4. Position indicator: With or without
5. Manual override: With or without (availabe 9-24v only)
6. Cable length: 0.5m/1.5m or customized
7. Actuator color: White/Black or customized
Please inform us if you have any special requirements or need any customization!
The default configuration for the sample order is:
9-24vac/dc, CR202 wiring, with position indicator & manual override, cable length 0.5m, white actuator.
Wiring Methods:
CR202 wiring (with failsafe feature):
1. Red wire connects to positive +
2. Black wire connects to negative -
3. Switch to be installed in line with the Red wire
4. Once opened or closed the actuator will not continue to draw power due to an internal cut off.
5. Capacitor Return Fail Safe - the actuator requires a minimum energized cycles of at lease 60 seconds to ensure the internal capacitor is fully charged and has enough power to close the valve completely.
Without a minimum of 60 seconds powered the capacitor may not maintain enough power to auto return the valve to the closed position, the valve may result in partial or incomplete closures.
*Please specify a fail position when ordering.
Failsafe Closed = Normally Closed(NC)=Power ON will OPEN - Power OFF will automatically CLOSE with reserve power.
Failsafe Open = Normally Open(NO)=Power ON will CLOSE - Power OFF will automatically OPEN with reserve power.
3. Switch to be installed in line with the Red wire
4. Once opened or closed the actuator will not continue to draw power due to an internal cut off.
5. Capacitor Return Fail Safe - the actuator requires a minimum energized cycles of at lease 60 seconds to ensure the internal capacitor is fully charged and has enough power to close the valve completely.
Without a minimum of 60 seconds powered the capacitor may not maintain enough power to auto return the valve to the closed position, the valve may result in partial or incomplete closures.
*Please specify a fail position when ordering.
Failsafe Closed = Normally Closed(NC)=Power ON will OPEN - Power OFF will automatically CLOSE with reserve power.
Failsafe Open = Normally Open(NO)=Power ON will CLOSE - Power OFF will automatically OPEN with reserve power.
CR502 wiring (with failsafe & position feedback feature):
1. Red wire connects to positive +
2. Black wire connects to negative -
3. Green & White wires connect to the valve’s fully open signal.
4. Yellow & White wires connect to the valve’s fully closed signal.
5. Switch to be installed in line with the Red wire
6. Once opened or closed the actuator will not continue to draw power due to an internal cut off.
7. Capacitor Return Fail Safe - the actuator requires a minimum energized cycles of at lease 60 seconds to ensure the internal capacitor is fully charged and has enough power to close the valve completely.
Without a minimum of 60 seconds powered the capacitor may not maintain enough power to auto return the valve to the closed position, the valve may result in partial or incomplete closures.
*Please specify a fail position when ordering.
Failsafe Closed = Normally Closed(NC)=Power ON will OPEN - Power OFF will automatically CLOSE with reserve power.
Failsafe Open = Normally Open(NO)=Power ON will CLOSE - Power OFF will automatically OPEN with reserve power.
5. Switch to be installed in line with the Red wire
6. Once opened or closed the actuator will not continue to draw power due to an internal cut off.
7. Capacitor Return Fail Safe - the actuator requires a minimum energized cycles of at lease 60 seconds to ensure the internal capacitor is fully charged and has enough power to close the valve completely.
Without a minimum of 60 seconds powered the capacitor may not maintain enough power to auto return the valve to the closed position, the valve may result in partial or incomplete closures.
*Please specify a fail position when ordering.
Failsafe Closed = Normally Closed(NC)=Power ON will OPEN - Power OFF will automatically CLOSE with reserve power.
Failsafe Open = Normally Open(NO)=Power ON will CLOSE - Power OFF will automatically OPEN with reserve power.
CR303 wiring (floating last position version):
1.Red & Green wires connect to positive +
2.Black wires connects to negative -
3.Switch to be installed in line with the Green wire. Use the Green wire to open and close the valve.
2.Black wires connects to negative -
3.Switch to be installed in line with the Green wire. Use the Green wire to open and close the valve.
Once opened or closed the actuator will not continue to draw power due to an internal cut off. If a power loss occurs the valve will remain in its current position.
CR603 wiring (floating last position version with position feedback signal):
1.Red & Green wires connect to positive +
2.Black wires connects to negative -
3.Switch to be installed in line with the Green wire. Use the Green wire to open and close the valve.
2.Black wires connects to negative -
3.Switch to be installed in line with the Green wire. Use the Green wire to open and close the valve.
4.Blue & White wires connect to the valve’s fully open signal.
5.Yellow & White wires connect to the valve’s fully closed signal.
5.Yellow & White wires connect to the valve’s fully closed signal.
Once opened or closed the actuator will not continue to draw power due to an internal cut off. If a power loss occurs the valve will remain in its current position.
Manual override feature (Available 9-24Vac/dc only)
Button Lift + Twist will open/close valve and disengage motor, push back down to re-engage motor.
Dimensions:
Customizations for reference:
Please contact us if you require any customization, price will be re-quoted accordingly.
1. Customized valve body
2. Customized Bracket for high-temperature liquids exceeding 100℃
3. Other wirings are available to choose from (Please contact us if you need other wiring or customized wiring)
Packing & Delivery
1pcs/case
30pcs/carton
30pcs/carton
Company Profile
TaizhouTonhe Flow Control Equipment Co., Ltd. is a professional manufacture and exporter of electric control valves from 2009, We always pay high attention to the quality control and new products R&D.Specialized in mini motorized ball valves, electric shut off valves, electric actuator, with intelligent design, manufacture, sales and technical service.
Our main products are Tonhe series straight-through motorized valve, Has compact size with smart shape, Perform reliably, with long life time,intelligent control, high torque actuators, low noise, no leak, and many other features. They are widely used in automatic water pump tanks, automatic watering, heat meter, central air conditioning fan coil, fire sprinkler, water treatment, water efficiency, solar instrument, Agriculture Irrigation equipment, industrial automatic control equipment, and so on.
All along, the research unit, institute strong support and concerted efforts of all colleagues, continually improved products, innovation, and a number of products for thentility model patents, and we will always maintain the idea that the pursuit of perfection to develop more products for the world to intelligent control fluid. Mechanized production lines in operation, to secure stability and excellent product quality to meet customer requirements.
We will uphold the "customer first, forge ahead" business philosophy, adhere to the "customer first" principle, to establish a positive corporate image, enhance corporate cohesion, with a view to alliance with the community to reach a long-term cooperative relations of mutual trust and seeking common development, create brilliant.
Our main products are Tonhe series straight-through motorized valve, Has compact size with smart shape, Perform reliably, with long life time,intelligent control, high torque actuators, low noise, no leak, and many other features. They are widely used in automatic water pump tanks, automatic watering, heat meter, central air conditioning fan coil, fire sprinkler, water treatment, water efficiency, solar instrument, Agriculture Irrigation equipment, industrial automatic control equipment, and so on.
All along, the research unit, institute strong support and concerted efforts of all colleagues, continually improved products, innovation, and a number of products for thentility model patents, and we will always maintain the idea that the pursuit of perfection to develop more products for the world to intelligent control fluid. Mechanized production lines in operation, to secure stability and excellent product quality to meet customer requirements.
We will uphold the "customer first, forge ahead" business philosophy, adhere to the "customer first" principle, to establish a positive corporate image, enhance corporate cohesion, with a view to alliance with the community to reach a long-term cooperative relations of mutual trust and seeking common development, create brilliant.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2009,sell to North America(42.00%),Domestic Market(40.00%),Western Europe(12.00%),Africa(5.00%),Southeast Asia(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Electric Valve/Electric Actuator/Micro Electric Valve/Actuator
4. why should you buy from us not from other suppliers?
Enterprise Tenet: people oriented, customer first, serve for society
Operation Principle: honesty,quality,innovation
Management Idea; humanization, scientific, rationalization
Quality Policy: excelsior, excellence
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2009,sell to North America(42.00%),Domestic Market(40.00%),Western Europe(12.00%),Africa(5.00%),Southeast Asia(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Electric Valve/Electric Actuator/Micro Electric Valve/Actuator
4. why should you buy from us not from other suppliers?
Enterprise Tenet: people oriented, customer first, serve for society
Operation Principle: honesty,quality,innovation
Management Idea; humanization, scientific, rationalization
Quality Policy: excelsior, excellence
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
Похожие товары

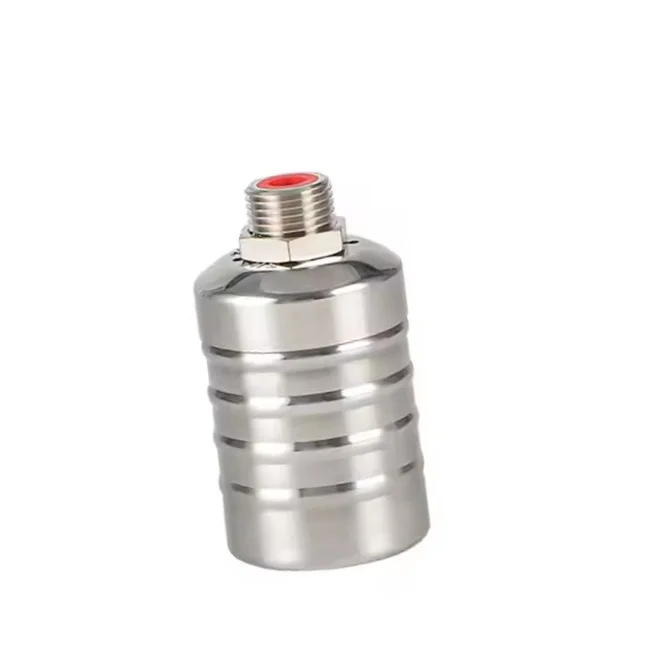

Переключатель уровня воды с поплавковым клапаном
281,69 ₽
Пневматические электромагнитные клапаны 110 В 220 24 1 5-7 бар
Полностью Размер электромагнитный регулирующий клапан из нержавеющей стали Открытый водонепроницаемый нормально открытый водяной
D & R FCU link
3 959,40 ₽

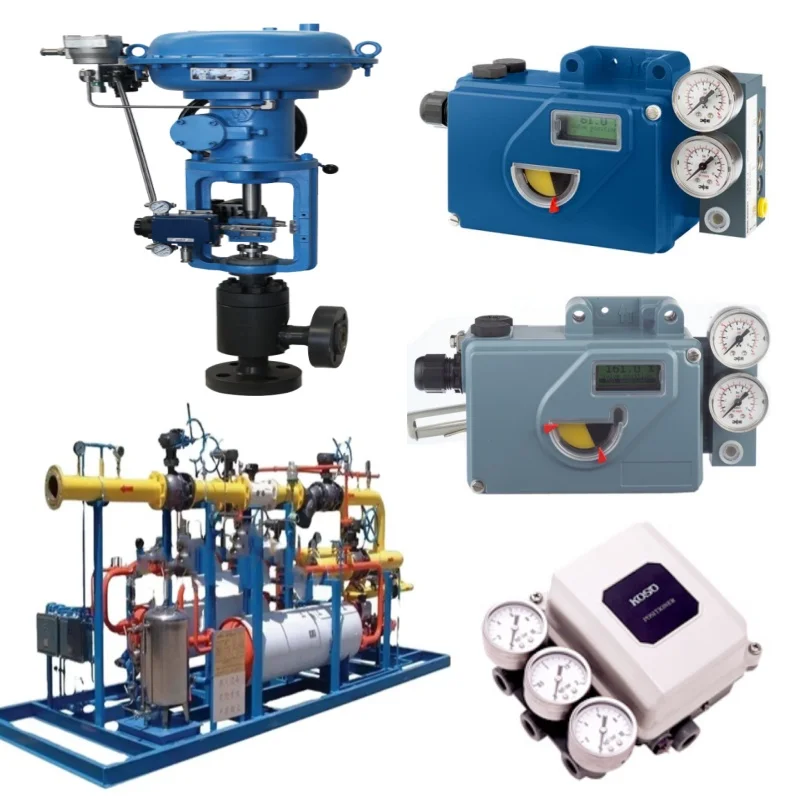

Угловой клапан Azbil с позиционером клапана koso EPA800 EPB800 KGP5000 Foxboro SRD991 SRI990 SRD998 SRD960 SRI986
271 501,44-303 176,61 ₽

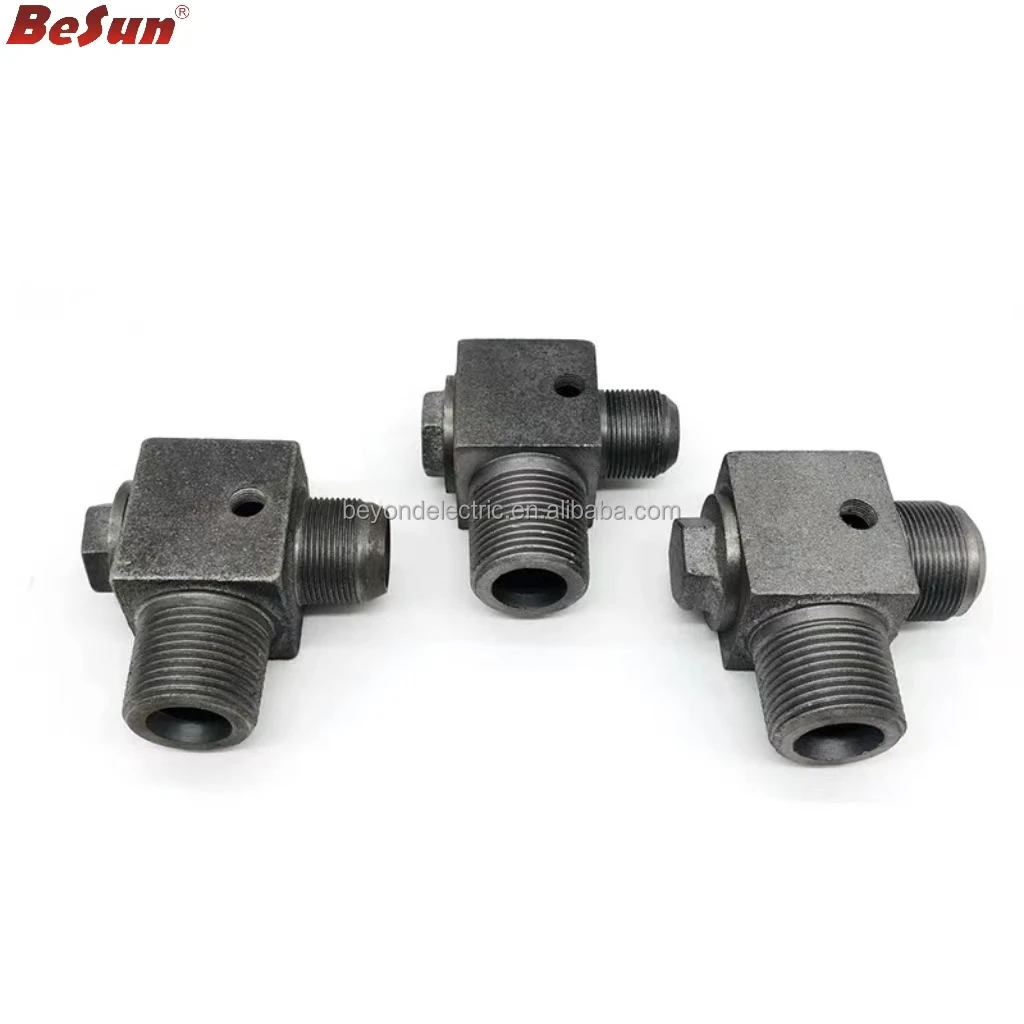

Трехходовой чугунный соединитель обратного клапана с наружной резьбой для воздушного компрессора высокотемпературные Гидравлические инструменты
160,64 ₽

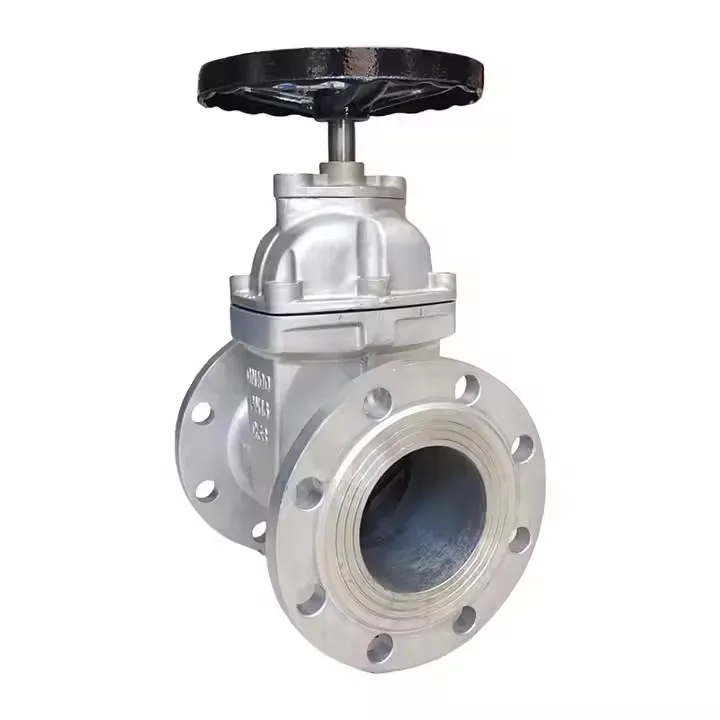

Прямые продажи от производителя из нержавеющей стали скрытый фланец с мягким уплотнением ковкий Железный запорный клапан дренажный регулирующий
