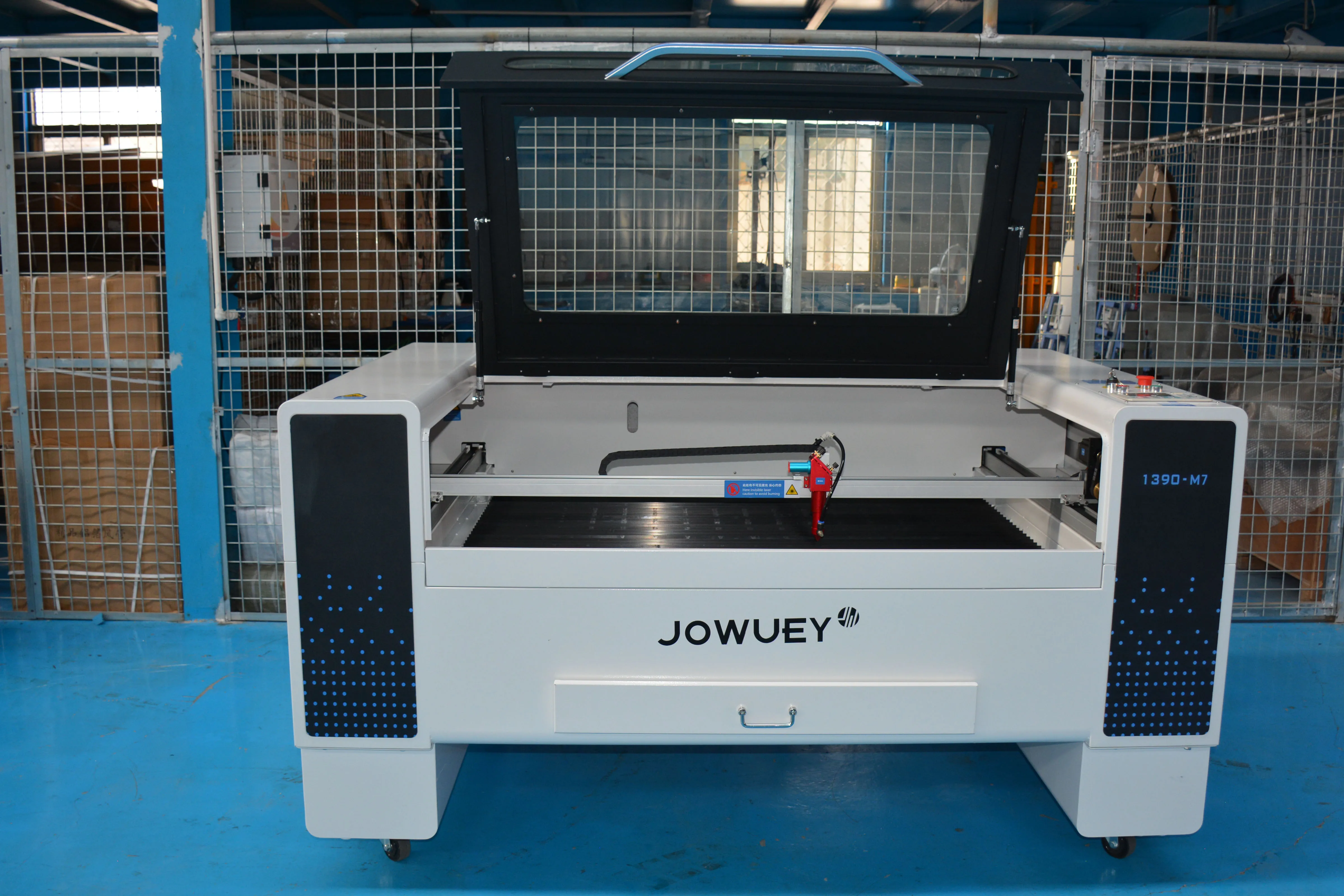

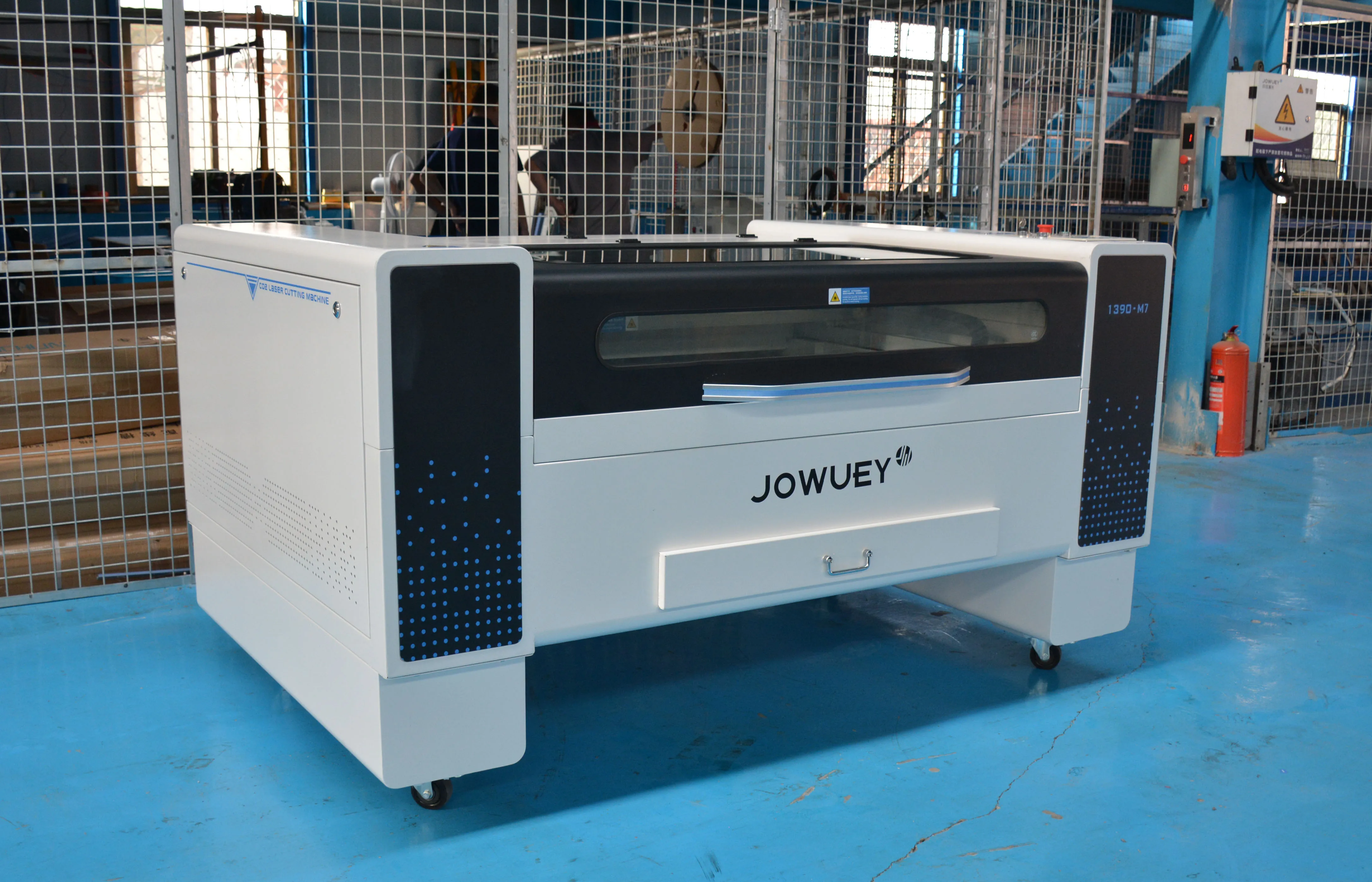

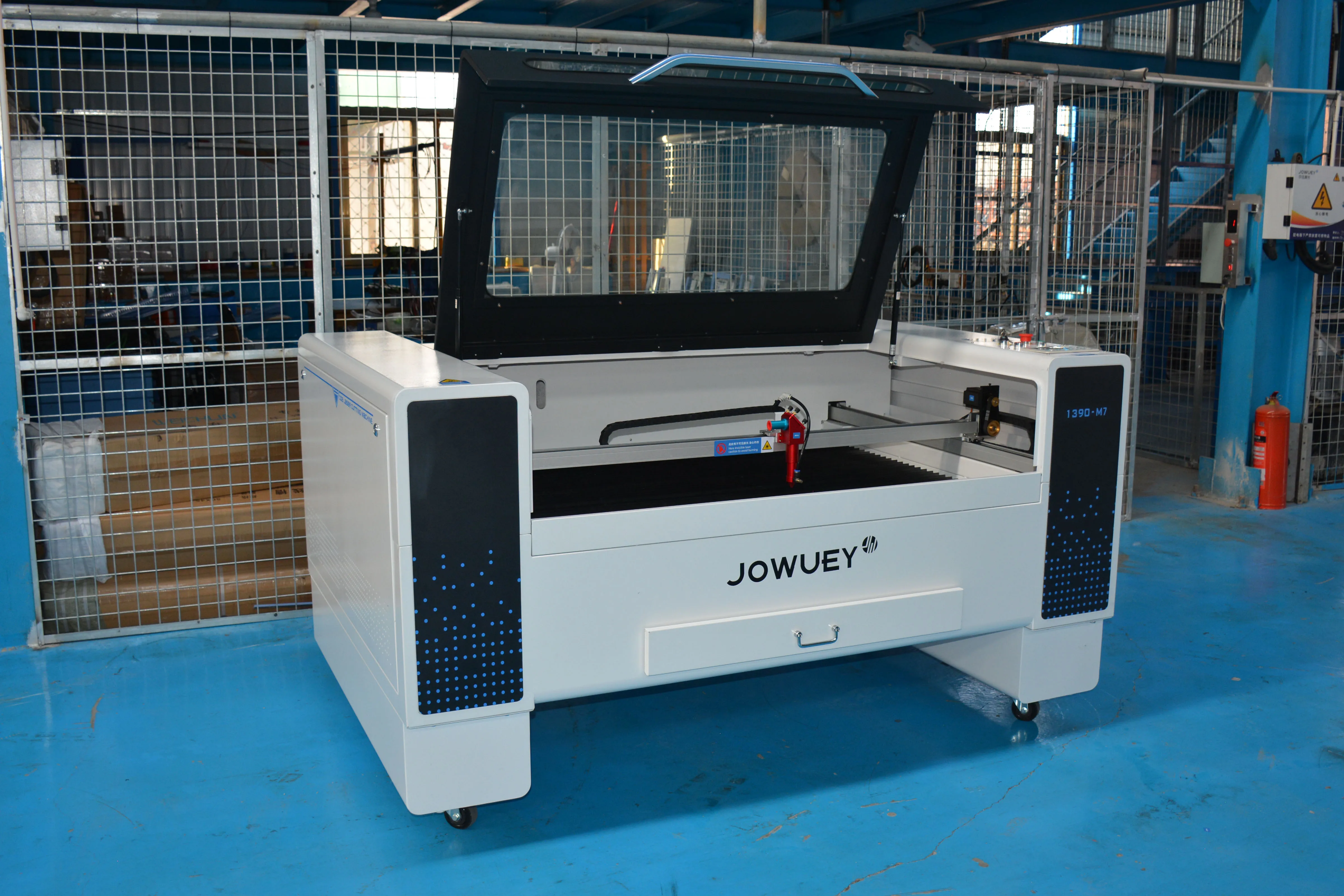

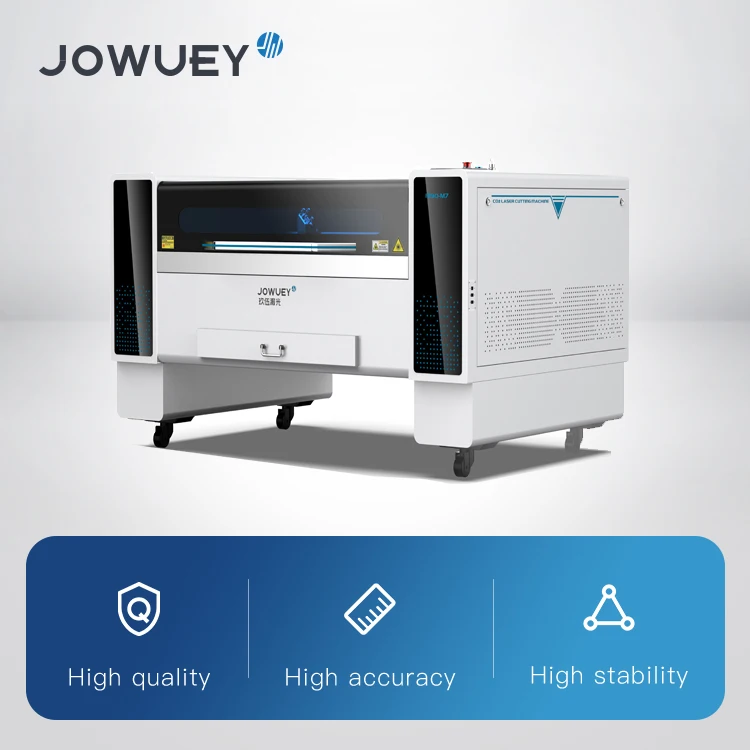

Jowuey 1390 CO2 лазерный станок для резки акриловой древесины MDF картон пластик резина ПВХ пена Ткань Кожа 80 Вт 100 Поддержка питания

Сохранить в закладки 1601014075632:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики






The 1390 LASER cutting machine is direct supplied from our factory, can cut many kinds of NON-metal material. The advantages as follows:
1. Professional laser optical system and imported lens, stable and reliable;
2. Efficient and stable programming and control system , easy to learn and user-friendly, compatible with a variety of CAD drawing formats, intelligent layout to save costs, automatic cutting path, matching to save processing time;
3. Low energy consumption and low use cost;
4. High cutting efficiency, high cutting quality, no noise;
5. Imported high precision servo motor guide rail, original gear and rack from Germany, while ensuring the
processing efficiency and accuracy Greatly improve the equipment running stability and reliability


_02






































































Working area



1300*900mm



Whole machine size



1920*1390*932mm



Weight



Gross weight 500KG, Net weight 400KG



Packing size



Machine 2.7cbm, Wood box 3.5cbm



Table



Blade, Honeycomb (optional)



Transmission



Belt, rack, screw



Laser type



Glass cavity sealed CO2 laser wavelength 10.6μm



Laser tube cooling



Pure circulating water cooling



Energy regulation



0-100% stepless control, 0-100% adjustable in software



Positioning accuracy



≤±0.05mm



Engraving speed



0 -1200mm/s



Cutting speed



0 - 600mm/s



Minimal formed words



English alphabet, 1mm



Working environment



Temperature 0 -45°C Humidity 5% -95% (no condensation)



Total power



<3KW



Software support file



Supporting, PLT,DXF,AI,BMP,RLD


Outputting directly, AUTOCAD,CORELDRAW







_08


Materials:
Laser engraving machine can work with most materials, such as Cloth, leather, wool, acrylic, plexiglass, board, plastic, rubber, crystal, ceramic tile, bamboo product, jade, granite, marble, resin and other non-metal materials.


Application industry:
Laser engraving machine is suitable for leather clothing, template cutting, printing and packaging, advertisement decoration, building decoration, computer embroidery tailoring, arts and crafts, paper products, plastic industry, acrylic board, decorative board, and other non metal sheet precision cutting and other industries.


_05


_06





Pre-Sales Service
1. Inquiry and consulting support.
2. 24 Hours service on telephone internet and email.
3. View our Factory, or we can make video chat to show you our factory.
4. Electrical & mechanical technical support
5. Can cutting samples as customer's request.
After-Sales Service
1. One year guarantee for whole machine except of laser tube and lens.
2. 12 hours service on Internet and Telephone, free instructions and problem solving.
3. Free training provides.
4. Engineers is available to service machinery oversea.


_10


_12 FAQ


Q :what’s the package?
A: We have 3 layers package,for the outside used standard export wooden case,in the middle ,the machine is covered by foam,to protect the machine shaking,for the inside layer,adopt stretch film for waterproof.


Q: Will the package damaged during the transportation?
A: Please don’t worry about it,our package considered all the damage factors and make it to be safe,and our shipping agent have full experienced in safe transportation, we also have exported to more than 100 countries all over the world.


Q: How to install and run the machine?
A: Our technician will installed the machine before shipping ,for some small parts installation we will send details training video, manual along with the machine, 95% customers can learn by themselves, if you also have any questions please feel free to call me.
