Заводская цена серводвигатель тонкий провод FFC FPC соединительный коаксиальный кабель паяльная машина хорошего качества

Product Introduction Of New & Original wire FFC FPC bonding machine With good quality

bonding machine hdmi cable (pulse soldering machine) is used to soldering FPC, PCB, LED display, cable, terminal and other products. Soldering machine uses pulse heating technology to work, so the temperature control is very accurate. This makes hot presses often used in places where temperature is very critical. When the hot press is working, the machine can be effectively controlled by multi-stage heating. The temperature of the hot press can be expressed by the real-time temperature curve, which is easy to understand and greatly facilitates the operation of the operator.

micro soldering machine Main Features

1.Japan high-speed temperature controlling system
Pulse heating, easy set soldering parameter, can be set to different multi-zone temperature control sensor detected by the system.
2.Microcomputer control system used to keep the equipment stability.
3. High quality titanium alloy pressure of indenter and imported temperature sensor, to ensure accurate heating temperature.

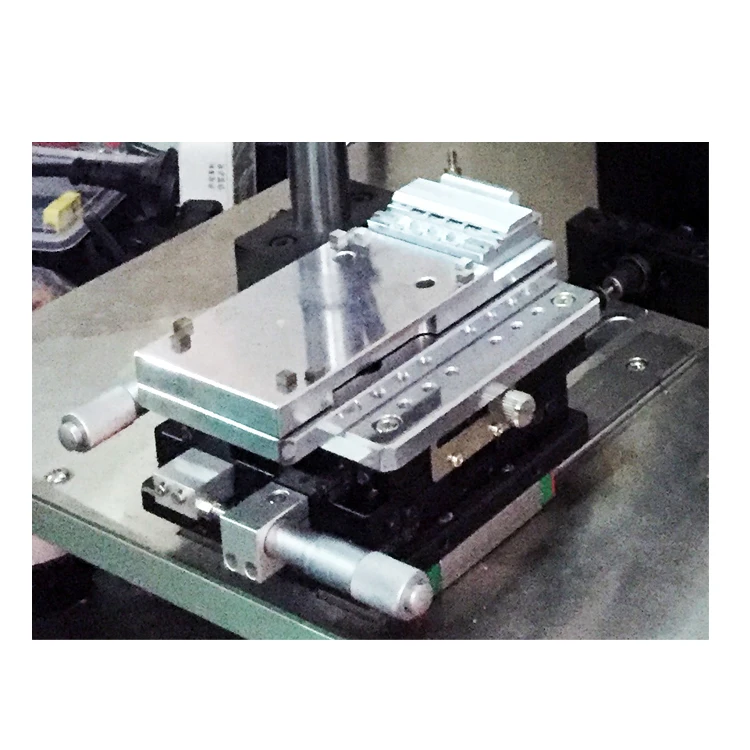

4.Clamp fixed type, so that soldering is more sophisticated and efficient.

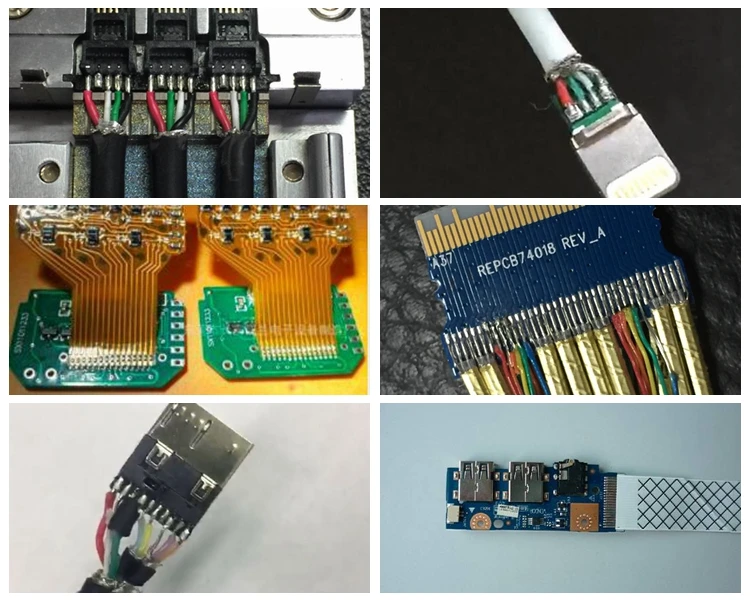

5. Applicable to all kinds of ordinary TAB, TCP crimping, and FPC, FFC and PCB soldering, high speed cable mini SAS, SAS cable, QSFP+, SFP+ and so on.
6. Temperature sensor detected by the system control, and equipped with password protection, the system self-test.
7. High definition CCD alignment position.

8. High quality heat seal application up to 0.25mm pitch
9. Digital programmable temperature control with LCD display

Machine Parts

Name: Motor

Brand: Toshiba

Original: Japan

Motor is small in size, light in weight, large in output, fast in response, high in speed, small in inertia, smooth in rotation and stable in torque.

.

Main Features

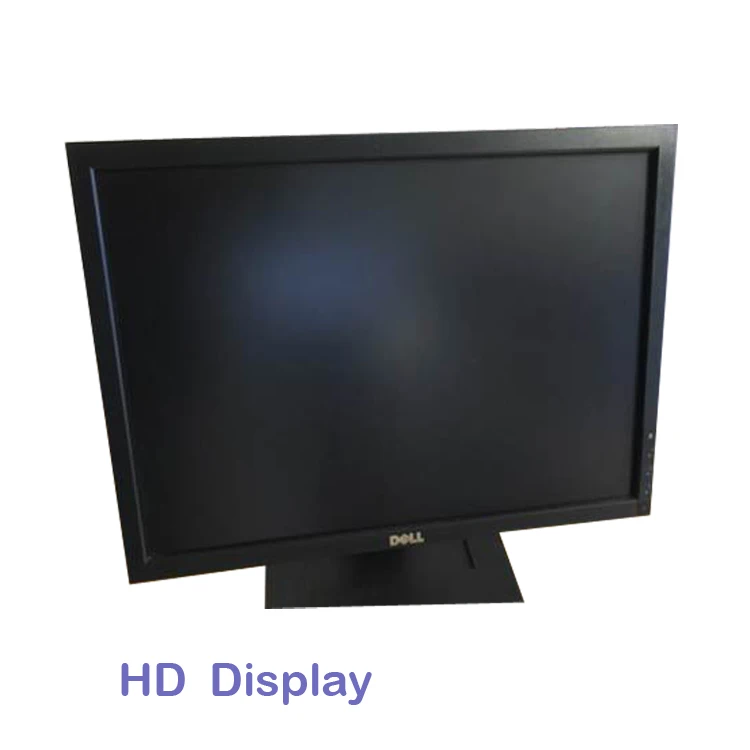

Name: Display
Brand: Dell
Original: America
Domestic famous display with HD resolution.

Machine Parts

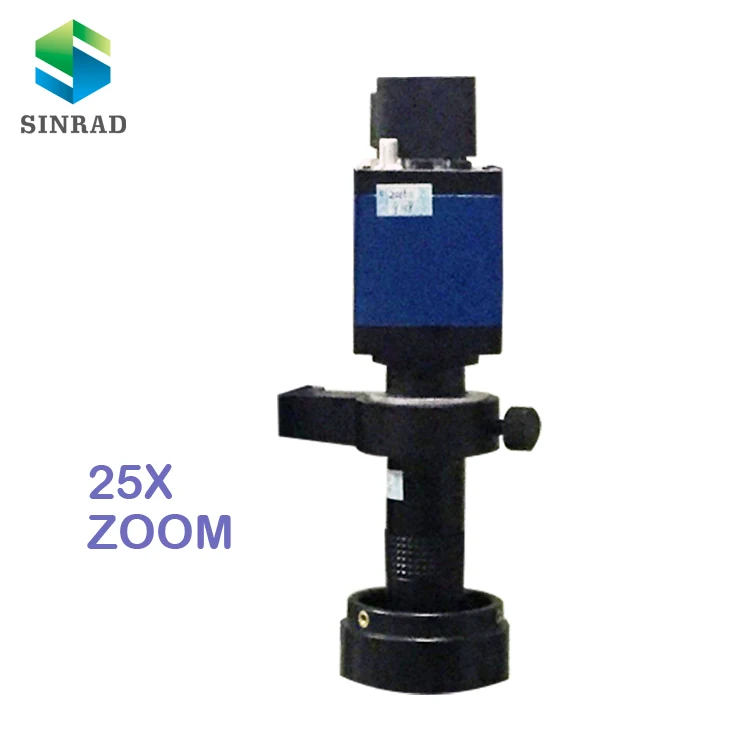

Name: CCD camera
Brand: Sinrad
Original: China
High DH amplify camera up to 25X. It is easy to operate, intuitive, and has a strong stereoscopic effect, and the image is clear and wide.

Main Features

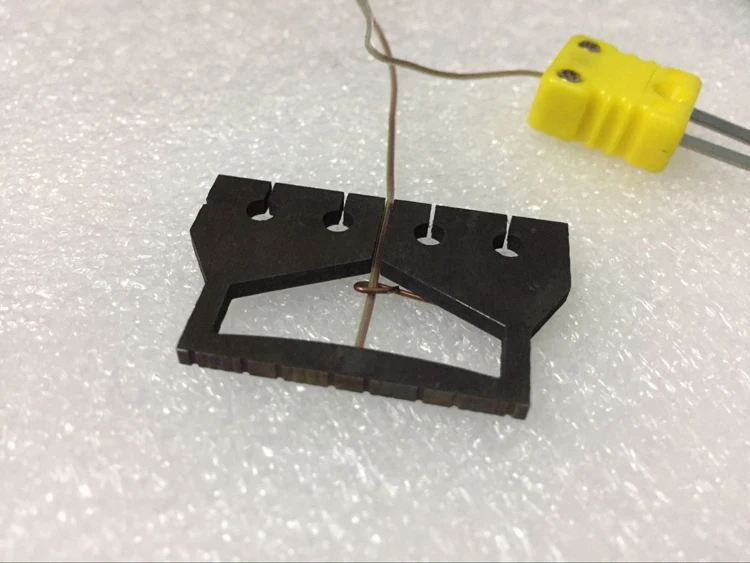

Name: indenter
Brand: sinrad
Original: China
Indenter made by Molybdenum/titanium/tungsten alloy, with long life time. Customized design base on product and match with fixture
