Гибридный инвертор с разделенной фазой 48 В 3 кВт 10 120 240
58 712,19-68 214,74 ₽
Многофункциональный инвертор мощности для солнечных панелей 7 кВт 8 10 RCB солнечной системы питания
- Категория: >>>
- Поставщик: Foshan Namkoo New Energy Technology Co. Ltd.Foshan Ltd.
Сохранить в закладки 1601014740971:
Описание и отзывы
Характеристики
Product Description

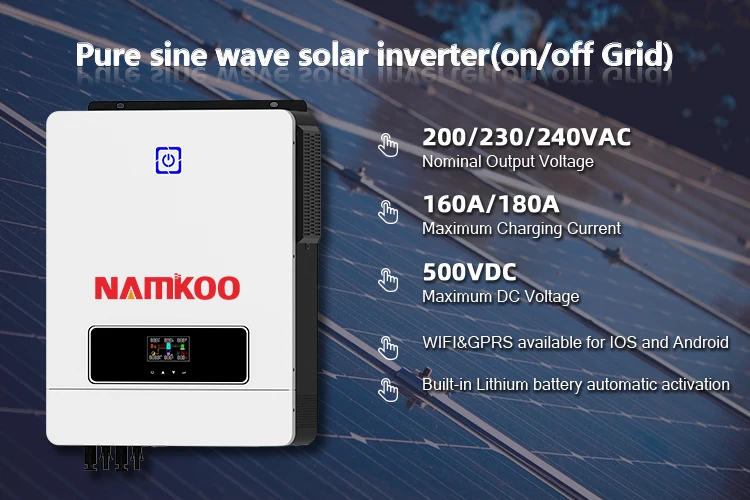

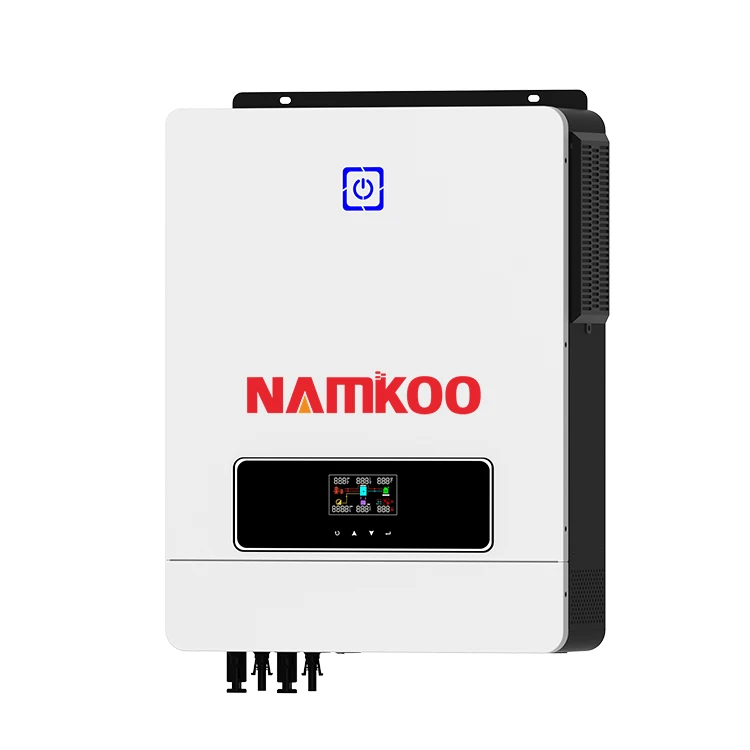

Inverter introduction

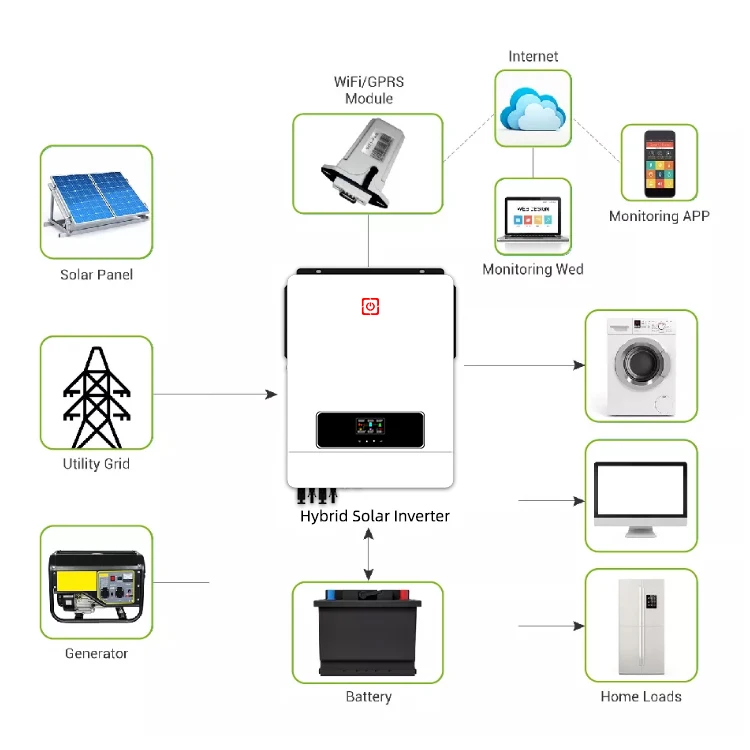

This is a multi-function inverter / charger , combining functions of inverter , solar charger and battery charger tooffer uninterruptible power support with portable size . Its comprehensive LCD display offers user-configurableand easy-accessible button operation such as battery charging current , AC / solar charger priority , andacceptable input voltage based on different applications.
MODEL | MPS-V MAX 7.2KW | MPS-V MAX 8.2KW | MPS-V MAX 10.2KW | |||
Phase | 1-phase | |||||
Maximum PV Input Power | 8200W | 8200W | 10200W | |||
Rated Output Power | 7200W/7200VA | 8200W/8200VA | 10200W/10200VA | |||
Maximum Solar Charging Current | 160A | 160A | 180A | |||
GRID-TIE OPERATION | ||||||
PV Input(DC) | ||||||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | |||||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | |||||
MPPT Voltage Range | 90VDC~450VDC | |||||
Number Of MPPT Trachers/Maximum Input Current | 1/27A | |||||
GRID OUTPUT(AC) | ||||||
Nominal Output Voltage | 200/230/240VAC | |||||
Output Voltage Range | 195.5~253VAC | |||||
Nominal Output Current | 31.3A | 35.6A | 44.3A | |||
Power Factor | >0.99 | |||||
Feed-in Grid Frequency Range | 49~51±1Hz | |||||
Maximum Conversion Efficiency(DC/AC) | 98% | |||||
OFF-GRID OPERATION | ||||||
AC INPUT | ||||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC / 180VAC | |||||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |||||
Maximum AC Input Current | 40A | 40A | 50A | |||
Nominal Operating Frequency | 50/60Hz | |||||
Surge Power | 14400W | 16400W | 20400W | |||
Our Project
Packing & Delivery
Reinforced wooden box with pallet.
Customized Wooden Box is Optional.
All-round protection your products during transportation.
Make sure all solar inverter safety.
Customized Wooden Box is Optional.
All-round protection your products during transportation.
Make sure all solar inverter safety.
Company Profile
As a leader in solar power station, NAMKOO POWER is committed to building high-quality solar power station and setting up industry benchmarks, providing users quality services and safely Tailor-made engineering solutions as well as money for a long time
We provide systematic bank financing plan and full range of insurance for each customer to protect their income.
NAMKOO POWER adheres to the goal of building a quality power station. Through global channels, technological means and continuous research and development innovation capabilities, NAMKOO POWER strives to make greater contributions to the development of global clean energy, the improvement of people's quality of life, and the construction of blue sky.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2018,sell to Southeast Asia(20.00%),Africa(20.00%),South America(15.00%),Mid East(10.00%),Domestic Market(10.00%),Eastern Europe(5.00%),Oceania(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our office.
We are based in Guangdong, China, start from 2018,sell to Southeast Asia(20.00%),Africa(20.00%),South America(15.00%),Mid East(10.00%),Domestic Market(10.00%),Eastern Europe(5.00%),Oceania(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Energy System,Solar Panel,Solar Inverter,Solar Controller,Solar Water Pump
Solar Energy System,Solar Panel,Solar Inverter,Solar Controller,Solar Water Pump
4. why should you buy from us not from other suppliers?
With 10 Years Solar Panel Manufacturing Experience and Annual Value of Production reaching 500MW. R&D Team more than 50 peoples.
With 10 Years Solar Panel Manufacturing Experience and Annual Value of Production reaching 500MW. R&D Team more than 50 peoples.
Dealers over 70 .more than 10 years experience for Provide Different Solar Solutions to Customers. 25 Years Services Warranty.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары
Трехфазный Гибридный Инвертор солнечной энергии
Гибридный инвертор GT на солнечной батарее 4 кВт для мини-Солнечной системы дома
18 213,23 ₽

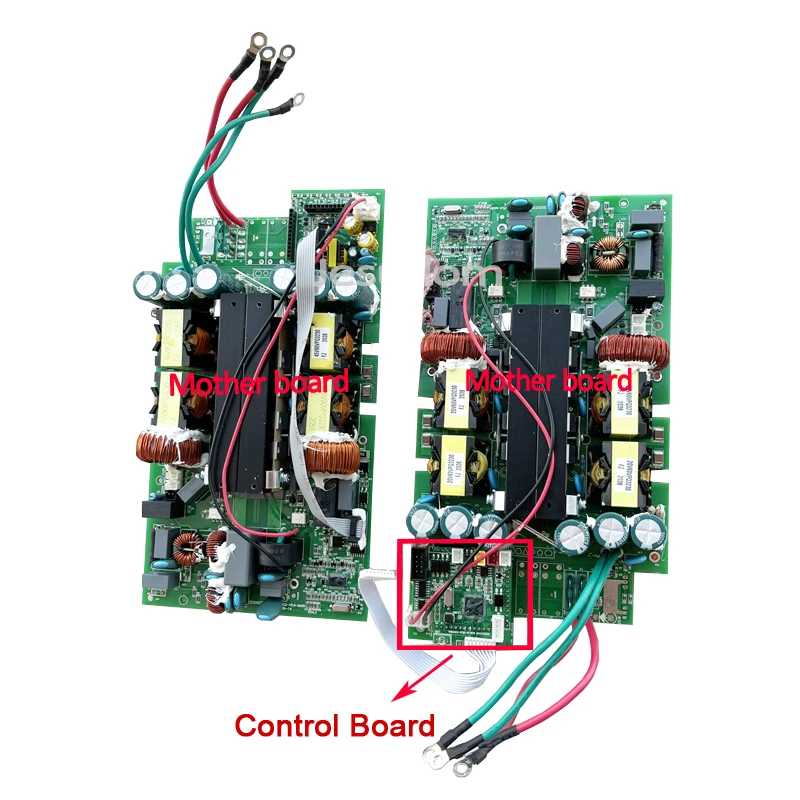

Новая материнская плата или управления для SUN-1000GTIL2-LCD SUN-2000GTIL2-LCD MPPT 1000 Вт 2000 Солнечная Сетка Инвертор Замена

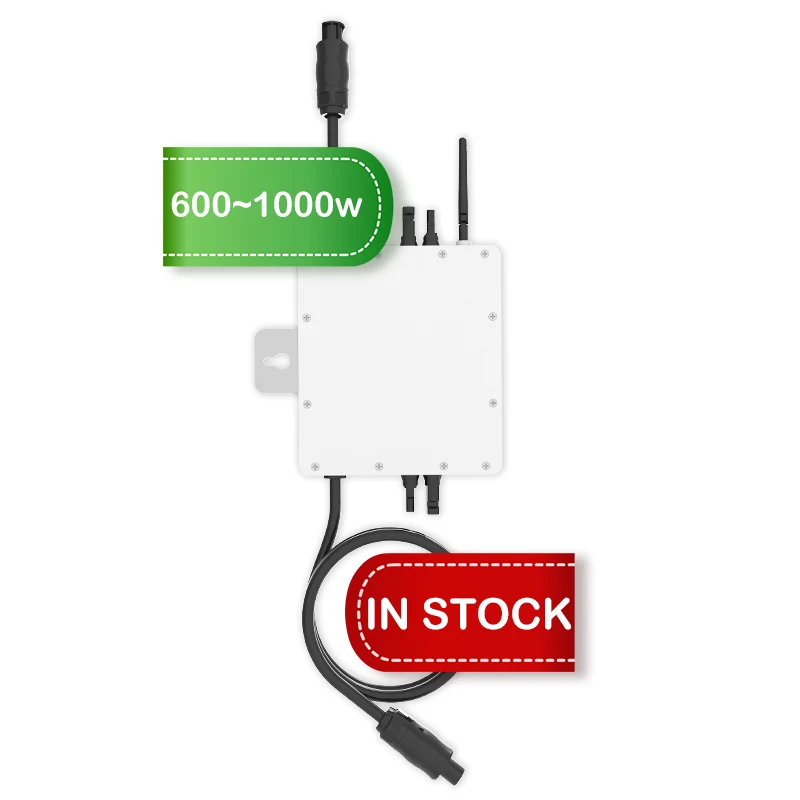

Deye Sun600g3-eu-230 солнечные микроинверторы 600 Вт 800 1000 2 Mppt Ip67 Pv система на сетевых Микро Солнечных инверторах
