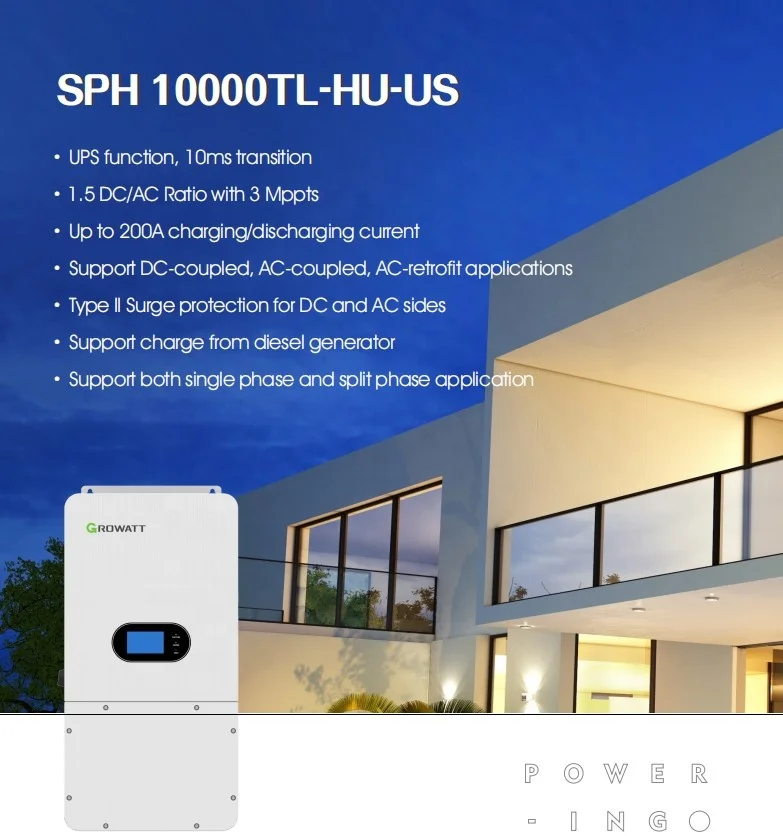

Оптовая продажа Гибридные солнечные инверторы США Growatt 10 кВт SPH 10000TL HU US разделенная фаза 120 В 240 по низкой цене
- Категория: >>>
- Поставщик: Jiangsu Morel Energy Co. Ltd.
Сохранить в закладки 1601014766656:
Описание и отзывы
Характеристики
Product Description
Specification sheet
Datasheet | SPH100000TL-HU-US | SPH-10000TL- HU-US | |||||
Input Data (DC) | |||||||
Max. recommended PV power (for module STC) | 15000W | 8000W | 8000W | 15000W | |||
Max. DC voltage | 525V | ||||||
Start Voltage | 150V | ||||||
MPPT voltage range | 150V-450V/370V | 33.8A | 33.8A | 33.8A | |||
No. of MPP trackers | 3 | 2 | 2 | 2 | |||
No. of PV strings per MPP tracker | 2 | ||||||
Max. input current per MPP tracker | 22A | ||||||
Max. short-circuit current per MPP tracker | 27A | ||||||
Output data (AC) | |||||||
AC nominal power | 1000W | 4600W | 4999W | 6000W | |||
Max. AC apparent power | 1000VA | 4600VA | 4999VA | 6000VA | |||
Nominal AC voltage（range*) | 230V, 120V/240V Split (180Vac - 280Vac) | ||||||
AC grid frequency（range*） | 50Hz/60Hz | ||||||
Max. output current | 50A | 22A | 50Hz/60Hz22A | 27A | |||
Adjustable power factor | 1leading…1lagging | ||||||
THDI | <3% | ||||||
AC grid connection type | Split Phase | ||||||
Efficiency | |||||||
Max. efficiency | 97.5% | ||||||
CEC weighted efficiency | 97% | 98.8% | 99% | 99% | |||
MPPT efficiency | >99.5% | ||||||
DC reverse polarity protection | Yes | ||||||
DC switch | Yes | ||||||
DC surge protection | Type III / Type II | ||||||
Insulation resistance monitoring | yes | ||||||
AC short-circuit protection | yes | ||||||
Ground fault monitoring | yes | ||||||
Grid monitoring | yes | ||||||
Anti-islanding protection | yes | ||||||
Residual-current monitoring unit | yes | ||||||
AFCI protection | Optional | ||||||
Anti-PID function | Optional | ||||||
General Data | |||||||
Dimensions (W / H / D) | 440/855/256mm | ||||||
Weight | 48.84kg/107.8Ibs | 31kg | 31kg | 31kg | |||
Operating temperature range | –25°C ... +60°C | ||||||
Self-Consumption (night) | < 60W | ||||||
Topology | Transformerless | ||||||
Cooling | Smart air cooling | ||||||
Protection degree | IP65 | ||||||
Relative humidity | 0-100% | ||||||
Altitude | 4000m | ||||||
DC connection | H4/MC4(Optional) | ||||||
AC connection | Cable gland+OT terminal | ||||||
Display | OLED+LED/WIFI+APP | ||||||
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN | Yes/Yes/Optional/Optional/Optional /Optional | ||||||
Warranty: 5 years / 10 years | Yes /Optional | ||||||
Case Show

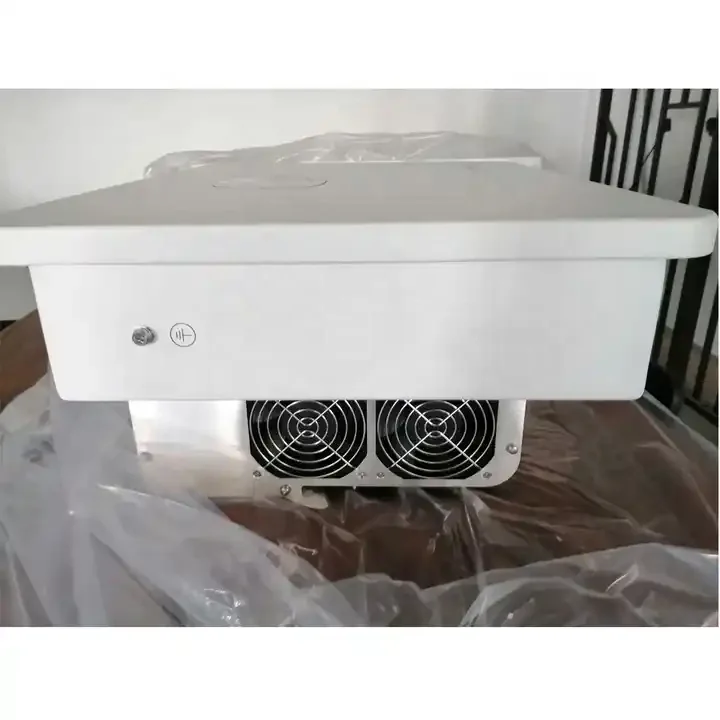

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Jiangsu Morel Energy Co.,Ltd.Is a professional manufacturer of panelized accessories, solar system accessories, off-grid systems and other products.
Jiangsu Morel Energy Co.,Ltd. is located in jingjiang city by the Yangtze river. It has convenient land and water transportation and is only 2 hours' drive from Shanghai airport.
Morel pv takes efficient quotation, efficient drawing and efficient production as our code of conduct. We will consider your needs at the first time, improve the design scheme for you at the first time, and provide competitive quotation and production plan for the industry.Warmly welcome new and old customers to inquire!Wish all new and old customers grow together with us!
Jiangsu Morel Energy Co.,Ltd. is located in jingjiang city by the Yangtze river. It has convenient land and water transportation and is only 2 hours' drive from Shanghai airport.
Morel pv takes efficient quotation, efficient drawing and efficient production as our code of conduct. We will consider your needs at the first time, improve the design scheme for you at the first time, and provide competitive quotation and production plan for the industry.Warmly welcome new and old customers to inquire!Wish all new and old customers grow together with us!
FAQ
Q 1. what's the payment term?
A. 30% deposit by T/T , 70% balance before the delivery.
Q 2. What's the delivery time ?
A. usually 15days delivery,more datails talk with seller.
Q 3. What is the standard of package?
A. Export standard package or special package according to customer requirement.
Q 4. Do you accept OEM business?
A.We can OEM.
Q 5.Which market do you already sell?
A.Solar products really sell all over the world.
Q 6. what kind of certificate you have ?
A.We have all the relevant certificates..
A. 30% deposit by T/T , 70% balance before the delivery.
Q 2. What's the delivery time ?
A. usually 15days delivery,more datails talk with seller.
Q 3. What is the standard of package?
A. Export standard package or special package according to customer requirement.
Q 4. Do you accept OEM business?
A.We can OEM.
Q 5.Which market do you already sell?
A.Solar products really sell all over the world.
Q 6. what kind of certificate you have ?
A.We have all the relevant certificates..
Похожие товары
Гроуатт SPH 8000TL3 BH-UP Гибридный инвертор 8 кВт 3-фазный гибридный солнечный по оптовой цене
188 595,25 ₽ - 196 270,64 ₽
Оптовая цена 5 кВт 7 8 10 MPPT Гибридный инвертор с аккумуляторами LiFePO4 32 В 250ah
21 929,68 ₽ - 43 859,36 ₽
WVC-2800 Китай оптовая продажа 2800 Вт 3000 3 кВА кВт на сетке солнечный микроинвертор с Mppt
25 219,14 ₽ - 28 070,00 ₽
Оптовая продажа 5.5Kw 6Kw 8Kw 10Kw преобразователь частоты 48V Гибридный выключенный Солнечный инвертор
21 929,68 ₽ - 26 315,62 ₽
Оптовая продажа низкочастотный инвертор и зарядное устройство 4000 Вт 3000 5000
14 035,00 ₽ - 15 570,08 ₽

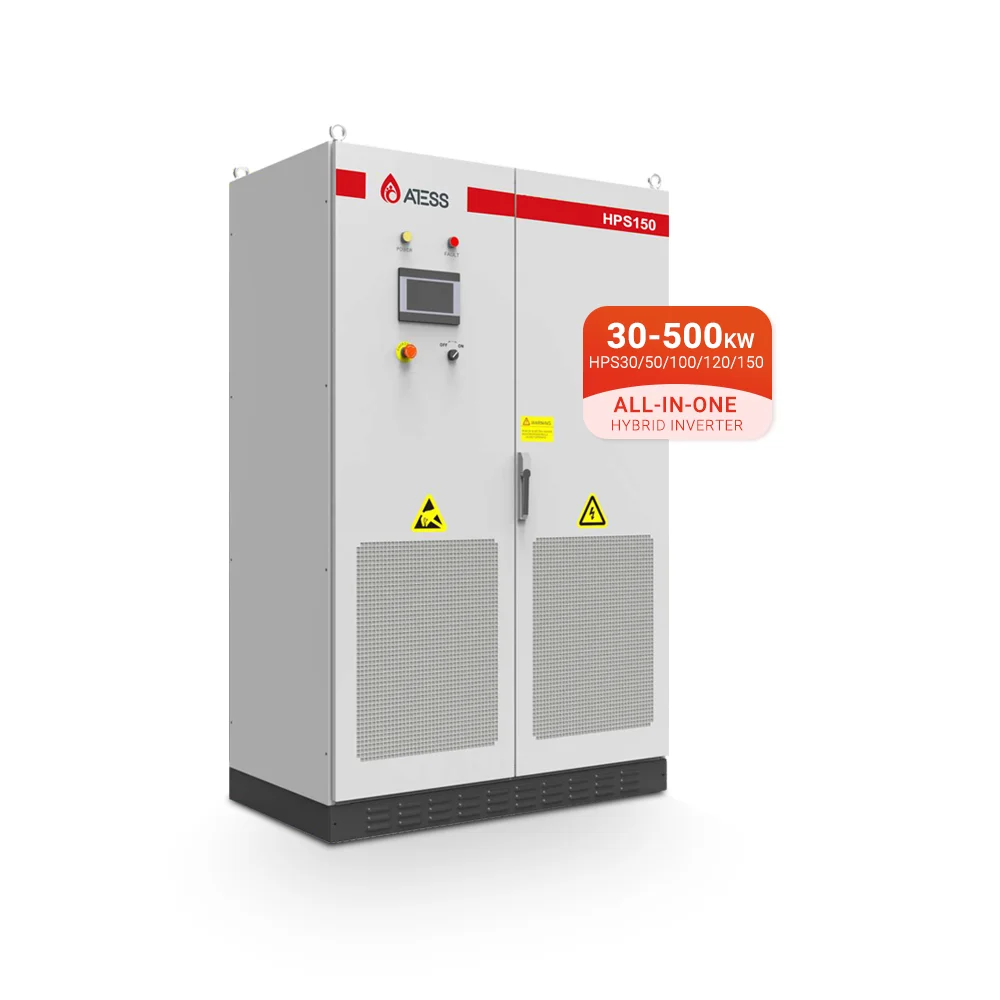

Оптовая продажа 3-фазный 120 В/220 В стандарт США 30 кВт 50 100 150 200 гибридный инвертор Atess HPS On/off Grid
