Лидер продаж всплывающие устройства двойного назначения для лазерной резки листов и труб волоконно лазерный резак стали алюминия титана меди

Лидер продаж всплывающие устройства двойного назначения для лазерной резки листов и труб волоконно лазерный резак стали алюминия титана меди

Категория: >>>
Поставщик: Blue Elephant CNC Machinery Co. Ltd

Цена:2 755 282,50 ₽ - 7 163 734,50 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

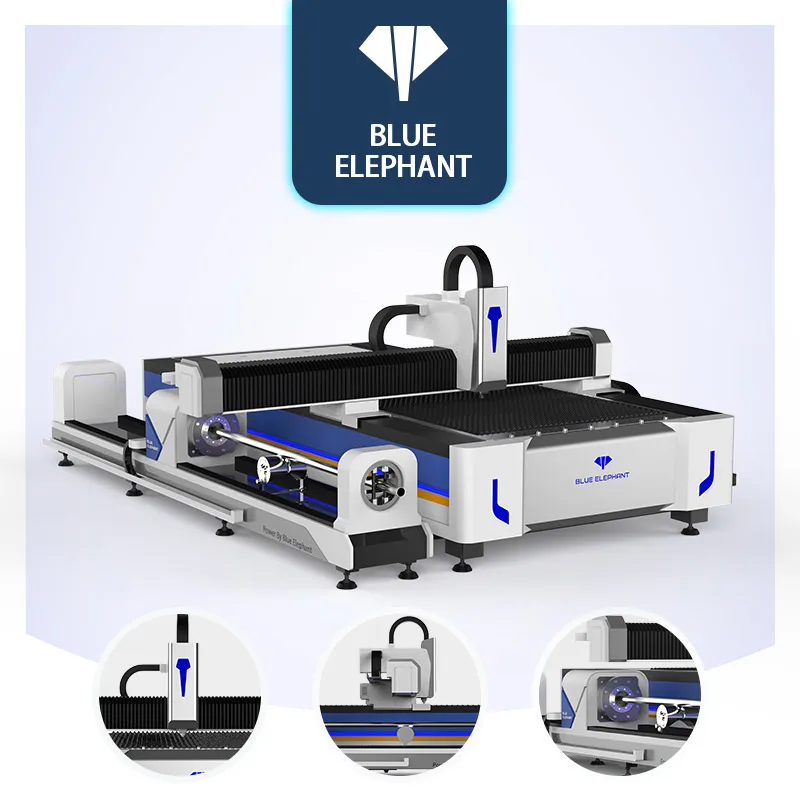

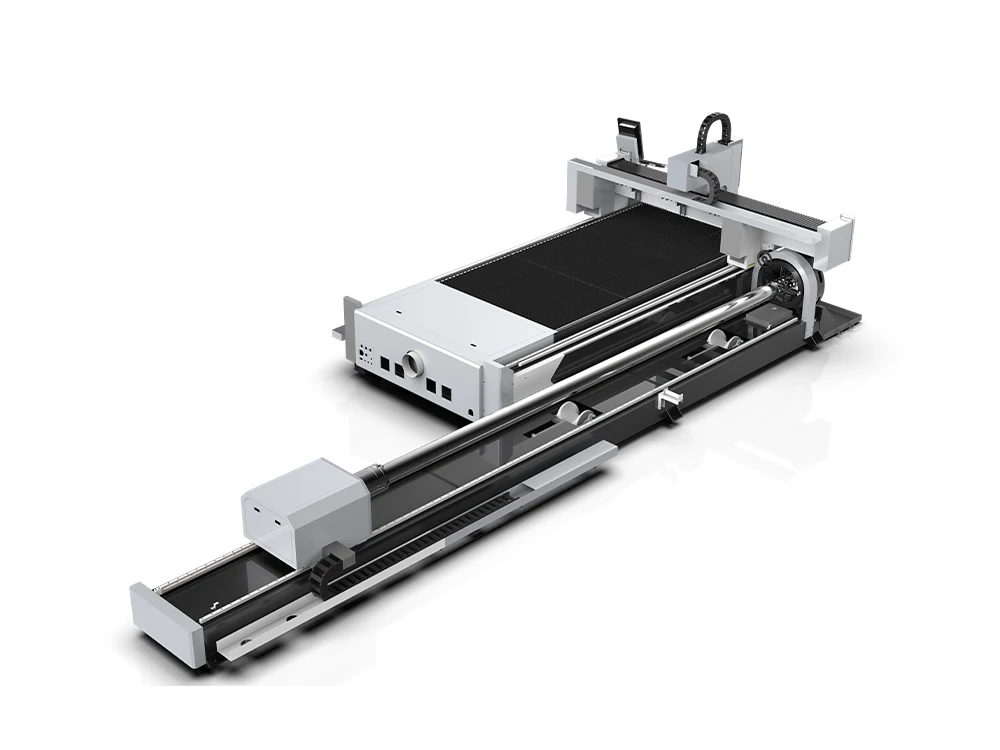

Hot selling pop-ups Dual Purpose Sheet and Tube Laser Cutting Machine Fiber Laser Cutter for Steel, Aluminum, Titanium, Copper

New metal sheet and tuber laser cutting machine is an ideal entry-level laser cutting machine without any high purchase cost or training cost. It has easy operation and simple maintenance. One machine integrates two functions, reducing the floor space and improving efficiency.

1. One machine with dual functions, saving cost

It can cut both metal sheets and pipes. Besides, the two-in-one design saves a lot of floor area and improve work efficiency greatly.

2. Aircraft-grade aluminum beam

Aircraft-grade aluminum is corrosion resistant, lightweight and highly rigid, guaranteeing high speed laser cutting. Besides, it also guarantee the excellent cutting precision due to the perfect dynamic performance such as anti-twisting, anti-tilting and anti-deformation.

3. High quality thick wall carbon steel sheet welded bed

High strength machine bed is more stable and durable. After 600℃ stress relief annealing treatment, the machine bed has strong structural rigidity. The overall mechanical structure of the machine has small deformation, low vibration, ensure cutting accuracy.

4. Independent control cabinet

All electrical components and laser sources are built into a separate control cabinet to prevent dust buildup. Besides, the control cabinet is equipped with automatic thermostatic air conditioning. This prevents damage to components from high summer temperatures.

5. Integrated large volume dust removal system

The dust removal system can remove all the smoke generated from the cutting process with large air volume. This helps protect the operator’s health and the working environment.

Product Details

Automatic lubrication system

Whole body layout, automatic lubrication of guide rails and racks.

Automatic focusing laser head

Laser head follow-up function Follow the change of the height of the board, don't worry about the unevenness of the board affecting the cutting effect.

Max Laser Source

Raycus/Max/IPG, multiple choice different brands, different laser power are available. The higher power, the thicker cutting thickness.

Servo Motor

By adding and improving vibration suppression function, it can improve the following performance and shorten the setting time.

The aviation aluminum beam

The fiber laser cutting machine beam is processed by T6 heat treatment process to make the beam obtain the highest strength.

Thick-walled carbon steel plate welding bed

Adopting high-quality carbon plate steel welding bed, it is more stable and durable than normal tube welding bed. The
high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.

Product Paramenters

Model	ELECNC-1530FT	ELECNC-1560FT	ELECNC-2060FT
Working area (mm)	1515*3030	1515*6050	2020*6050
Max. acceleration	900kg	1500kg	2000kg
Worktable bearing capacity	Rolling blade
Positioning accuracy	±0.03mm
Repositioning accuracy	±0.02mm
Laser power	1kW - 6kW
Pipe section shape	Round/square/rectangular
Max. length of pipe	3m/6m
Laser	Multiple options
Focusing method	Auto/manual
X/Y-axis max. linkage speed	140m/min

Sample & Application

Company Information

Exhibition

Packaging & Delivery

FAQ

1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
