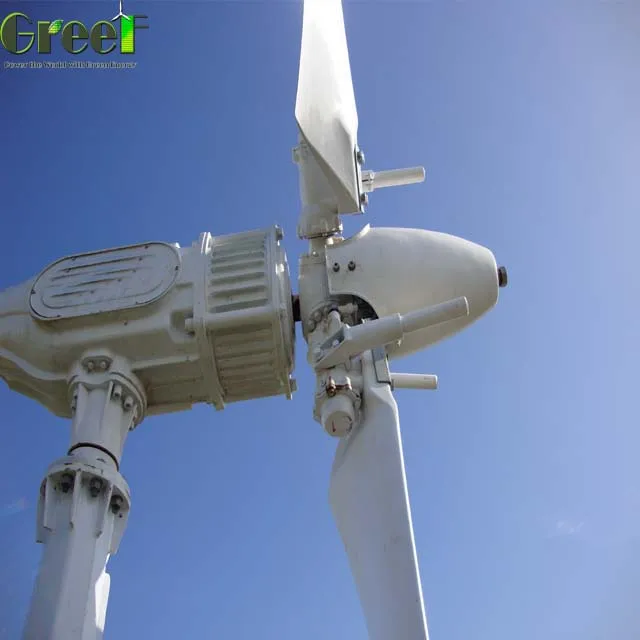

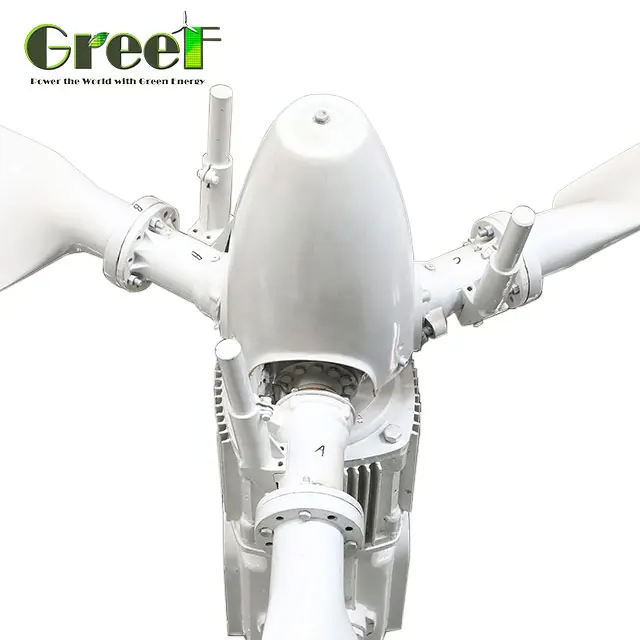

5 кВт с регулируемым шагом высокая Выходная горизонтальная ось ветряная турбина магнитный генератор эффективность
3 837 584,36 ₽
5 кВт 10 горизонтальный ветровой турбины магнитный генератор цена для дома с переменным шагом лопастей
- Категория: >>>
- Поставщик: Qingdao Greef New Energy Equipment Co. Ltd.
Сохранить в закладки 1601015000165:
Описание и отзывы
Характеристики
Why choose AH-10KW wind turbine?
Leading technology-intelligent control, strong system scalability
1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.
High security-continuous operation around the clock to achieve unattended operation
1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.
2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.
A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.
High security-continuous operation around the clock to achieve unattended operation
1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.
2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.
A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
Model | AH-10KW |
Rotor diameter (m) | 7.78 |
Blade material & Qty. | FRP *3 |
Rated power (kW) | 10 |
Rated wind speed(m/s) | 11 |
Rated rotating speed(r/min) | 180 |
Generator model | 3-phase PMG |
Working wind speed (m/s) | 3-30 |
Start-up wind speed (m/s) | 2.5 |
Survival wind speed(m/s) | 60 |
Rated voltage(VDC) | 400 |
Speed regulation method | Pitch-controlled |
Wind answering method | Up wind |
Stop method | Auto brake |
Gale protection | Smart control+unattended |
weight (kg) | 550 |
Noise level (dB) | ≤65 |
Tower height (m) | ≥12 |
Tower model | Tilt-up tower |
Working temperature | -20℃～+50℃ |
Products Description
Below result was tested by Intertek in test farm according to IEC61400-2, the max output power was limited from 12kW to 10kW according to requirements of grid company.

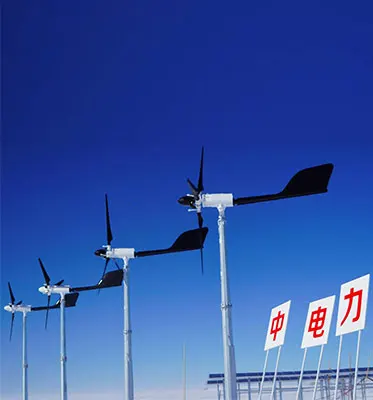

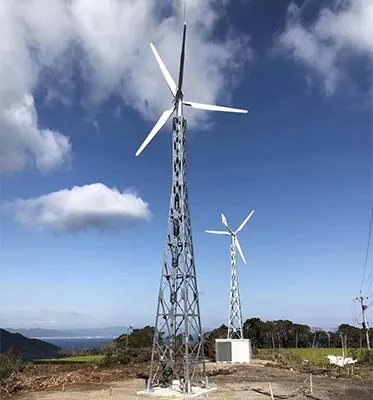

Project case
On-grid System in Denmark
On-grid System in Germany
On-grid Systems in Other Countries
The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.
Systems
Why Choose Us
We are global supplier which focus on Permanent Magnet generator, wind turbine ， wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
Похожие товары
Бытовая ветроэнергетика 5 кВт ветрогенератор для фермы 5000 Вт высокая эффективность низкая скорость 48 вольт
Горизонтальный генератор ветровой турбины mppt контроллер и система
32 784,88 ₽
Ветряная Турбина на крыше 1 кВт 48 В и солнечная гибридная система вертикальная ветряная турбина
39 363,78 ₽ - 43 749,72 ₽

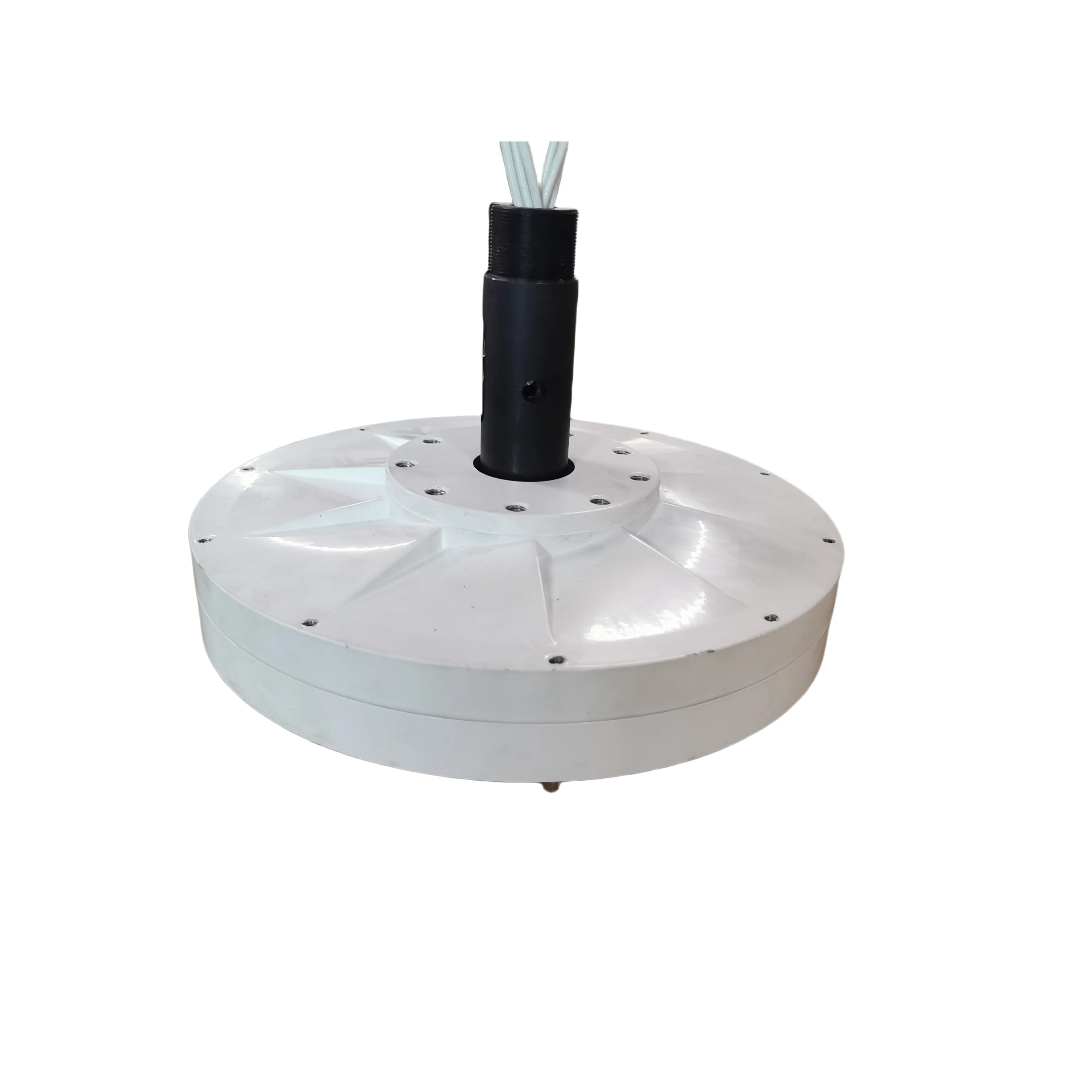

1 кВт 5 низкий Rpm 150RPM крутящий момент вес Осевой поток Coreless Постоянный Магнит ветрогенератор
120 613,24 ₽

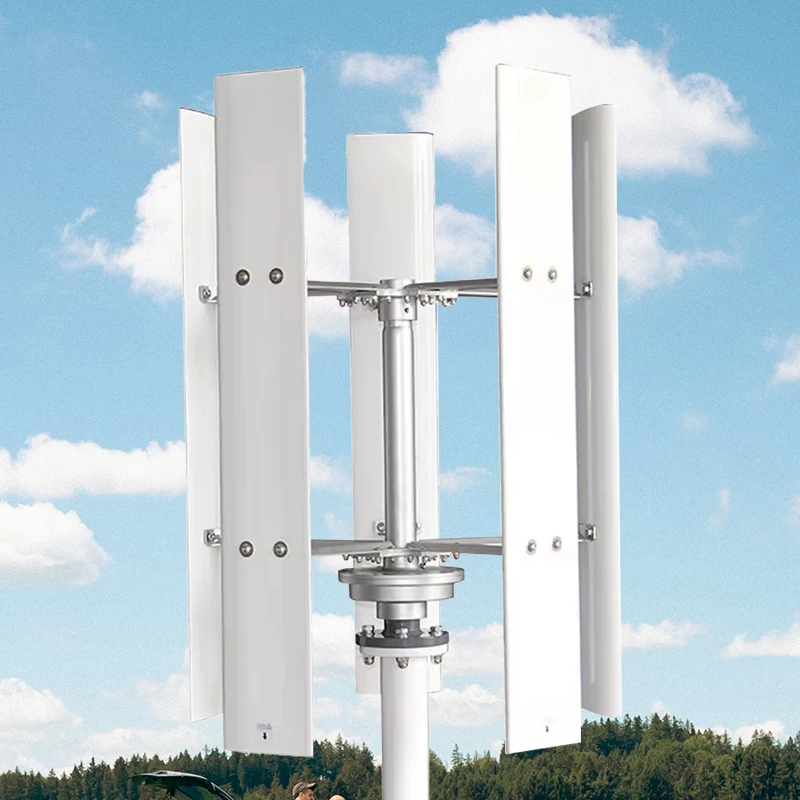

Вертикальная ветряная турбина с сертификатом Ce
