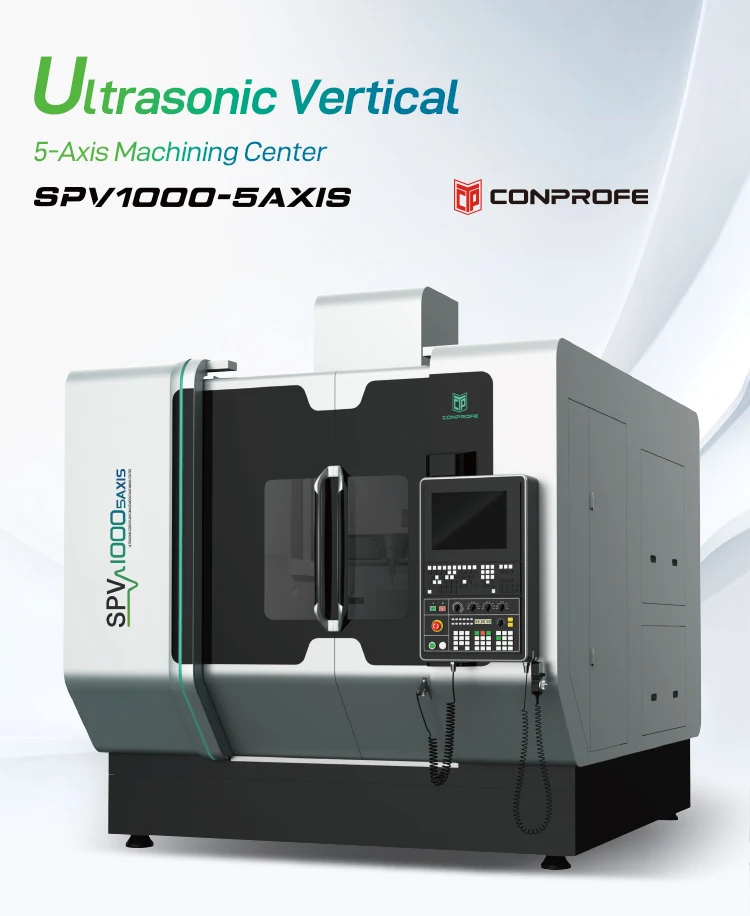

Vertical 5-Axis Simultaneous Machining Center SPV Series
Conprofe Vertical 5-Axis Simultaneous Machining Center SPV Series can meet the five-axis simultaneous machining needs of different sizes of parts, with high speed, high precision, high rigidity and other performance advantages; a single machine tool can complete multiple processes of compound machining to achieve intensive production.
The whole machine bed adopts cast iron material with excellent shock absorption performance, which has extremely high dynamic cutting performance, stability and reliability, and strong applicability.
Integrating ultrasonic technology with independent intellectual property rights, it can machine hard and brittle materials (ceramics, sapphire, glass, carbon fiber composite materials, etc.) and difficult-to-cut materials with better surface quality,longer tool life, and higher machining efficiency. Browse high quality with the best 5-Axis machining center with 5 axis cnc milling machine price below.
The whole machine bed adopts cast iron material with excellent shock absorption performance, which has extremely high dynamic cutting performance, stability and reliability, and strong applicability.
Integrating ultrasonic technology with independent intellectual property rights, it can machine hard and brittle materials (ceramics, sapphire, glass, carbon fiber composite materials, etc.) and difficult-to-cut materials with better surface quality,longer tool life, and higher machining efficiency. Browse high quality with the best 5-Axis machining center with 5 axis cnc milling machine price below.
Product Description
Parameters | ||||||||||
Item | Unit | SPV200-5AXIS | SPV400-5AXIS | SPV500-5AXIS | SPV650-5AXIS | |||||
Travel | ||||||||||
X/Y/Z-Axis Travel | mm | 280x580x280 | 420x800x380 | 500×550×500 | 800×1,000×550 | |||||
A/C-Axis Swivel Range | ° | ±120/360 | ±120/360 | ±120/360 | ±100/360 | |||||
Worktable | ||||||||||
Dimensions | mm | Φ200 | Φ400 | Φ500 | Φ650 | |||||
Max. Load | kg | 30 | 200 | 300 | 800 | |||||
T-Slot (No. x Width) | Pcsxmm | 4-14H8 | 8-1H28 | 8-14H8 | 8-18H8 | |||||
Max. Workpiece Size | mm | Φ200x190 | Φ455x260 | Φ500x400 | Φ650x450 | |||||
Spindle | ||||||||||
Diameter | mm | Φ100 | Φ155 | Φ190 | Φ190 | |||||
Max. Speed (Short-Duration) | rmp | 30,000 | 20,000 | 20,000 | 20,000 | |||||
Max. Speed (Long-Duration) | rmp | 25,000 | 16,000 | 14,000 | 14,000 | |||||
Spindle Taper | - | HSK-E32 | HSK-A63 | HSK-A63 | HSK-A63 | |||||
Motor Power | kW | 6 | 22 | 35 | 35 | |||||
Motor Torque | Nm | 2.7 | 29.2 | 85 | 85 | |||||
Ultrasonic | - | / | / | / | / | |||||
Feed Rate | ||||||||||
X/Y/Z-Axis Rapid Speed | m/min | 36/36/36 | 36/36/36 | 36/36/30 | 36/36/30 | |||||
A/C-Axis Rapid Speed | rmp | 100/200 | 100/150 | 50/100 | 30/70 | |||||
Accuracy | ||||||||||
X/Y/Z-Axis Positioning Accuracy | mm | 0.007 | 0.007 | 0.007 | 0.008 | |||||
X/Y/Z-Axis Repeatability | mm | 0.004 | 0.004 | 0.004 | 0.005 | |||||
A/C-Axis Positioning Accuracy | ” | 8 | 8 | 8 | 8 | |||||
A/C-Axis Repeatability | ” | 4 | 4 | 5 | 5 | |||||
Tool Magazine | ||||||||||
Tool Holding Capacity | No. of Tools | 40 | 40 | 24 | 40 | |||||
Max. Tool Diameter (Full) | mm | Φ50 | Φ70 | Φ75 | Φ75 | |||||
Max. Tool Length | mm | 200 | 200 | 300 | 300 | |||||
Max. Tool Weight | kg | 5 | 8 | 8 | 8 | |||||
Type | - | Chain Type | Chain Type | Umbrella Type | Chain Type | |||||
Miscellaneous | ||||||||||
Power Supply Voltage | - | Three-Phase AC, 380V/50Hz | Three-Phase AC, 380V/50Hz | Three-Phase AC, 380V/50Hz | Three-Phase AC, 380V/50Hz | |||||
Power Capacity | kVA | 16 | 30 | 60 | 110 | |||||
Air Pressure | MPa | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | |||||
Total Air Consumption | L/min | ＞60 | ＞100 | ＞100 | ＞100 | |||||
Total Weight (incl. Accessories) | kg | 4,000 | 7,000 | 10,000 | 16,500 | |||||
Machine Size (LxWxH) | mm | 1,600x2,700x2,080 | 2,000x3,310x2,420 | 2,240x3,780x2,855 | 2,940x4,310x3,310 | |||||
Controller | ||||||||||
CNC Controller | - | SIEMENS 840D sl (Standard) | ||||||||
HEIDENHAIN/HNC (Optional) | ||||||||||
Parameters | ||||||||
Item | Unit | SPV800-5AXIS | SPV1000-5AXIS | SPV1250-5AXIS | ||||
Travel | ||||||||
X/Y/Z-Axis Travel | mm | 800×1000×550 | 1,250×1,250×1,000 | 1,250×1,250×1,000 | ||||
A/C-Axis Swivel Range | ° | ±100/360 | ±100/360 | ±100/360 | ||||
Worktable | ||||||||
Dimensions | mm | Φ800 | Φ1,000 | Φ1,200 | ||||
Max. Load | kg | 900 | 1,000 | 1,000 | ||||
T-Slot (No. x Width) | Pcsxmm | 8-18H8 | 8-18H8 | 8-18H8 | ||||
Max. Workpiece Size | mm | Φ800x500 | Φ1,000x500 | Φ1,200x500 | ||||
Spindle | ||||||||
Diameter | mm | Φ190 | Φ210 | Φ210 | ||||
Max. Speed (Short-Duration) | rmp | 20,000 | 12,000 | 12,000 | ||||
Max. Speed (Long-Duration) | rmp | 14,000 | 10,000 | 10,000 | ||||
Spindle Taper | - | HSK-A63 | HSK-A100 | HSK-A100 | ||||
Motor Power | kW | 35 | 26 | 26 | ||||
Motor Torque | Nm | 85 | 161 | 161 | ||||
Ultrasonic | - | / | / | / | ||||
Feed Rate | ||||||||
X/Y/Z-Axis Rapid Speed | m/min | 36/36/30 | 30/30/30 | 30/30/30 | ||||
A/C-Axis Rapid Speed | rmp | 30/70 | 30/60 | 30/60 | ||||
Accuracy | ||||||||
X/Y/Z-Axis Positioning Accuracy | mm | 0.008 | 0.008 | 0.008 | ||||
X/Y/Z-Axis Repeatability | mm | 0.005 | 0.005 | 0.005 | ||||
A/C-Axis Positioning Accuracy | ” | 8 | 15 | 15 | ||||
A/C-Axis Repeatability | ” | 5 | 8 | 8 | ||||
Tool Magazine | ||||||||
Tool Holding Capacity | No. of Tools | 40 | 40 | 40 | ||||
Max. Tool Diameter (Full) | mm | Φ75 | Φ85 | Φ85 | ||||
Max. Tool Length | mm | 300 | 320 | 320 | ||||
Max. Tool Weight | kg | 8 | 20 | 20 | ||||
Type | - | Chain Type | Chain Type | Chain Type | ||||
Miscellaneous | ||||||||
Power Supply Voltage | - | Three-Phase AC, 380V/50Hz | Three-Phase AC, 380V/50Hz | Three-Phase AC, 380V/50Hz | ||||
Power Capacity | kVA | 110 | 110 | 110 | ||||
Air Pressure | MPa | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | ||||
Total Air Consumption | L/min | ＞100 | ＞100 | ＞100 | ||||
Total Weight (incl. Accessories) | kg | 17,000 | 25,000 | 26,000 | ||||

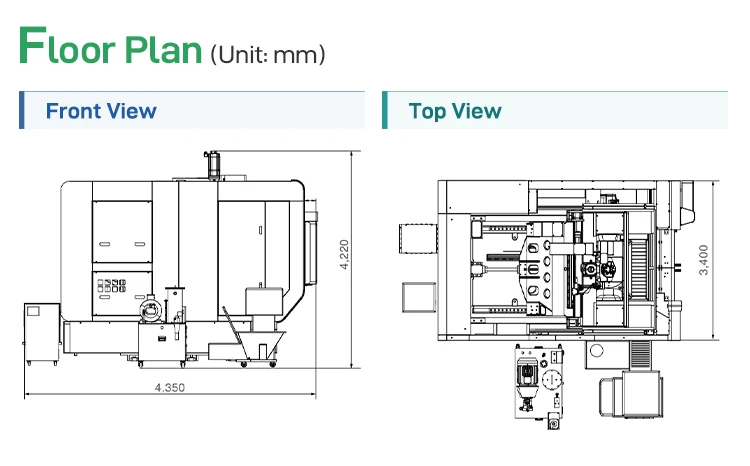

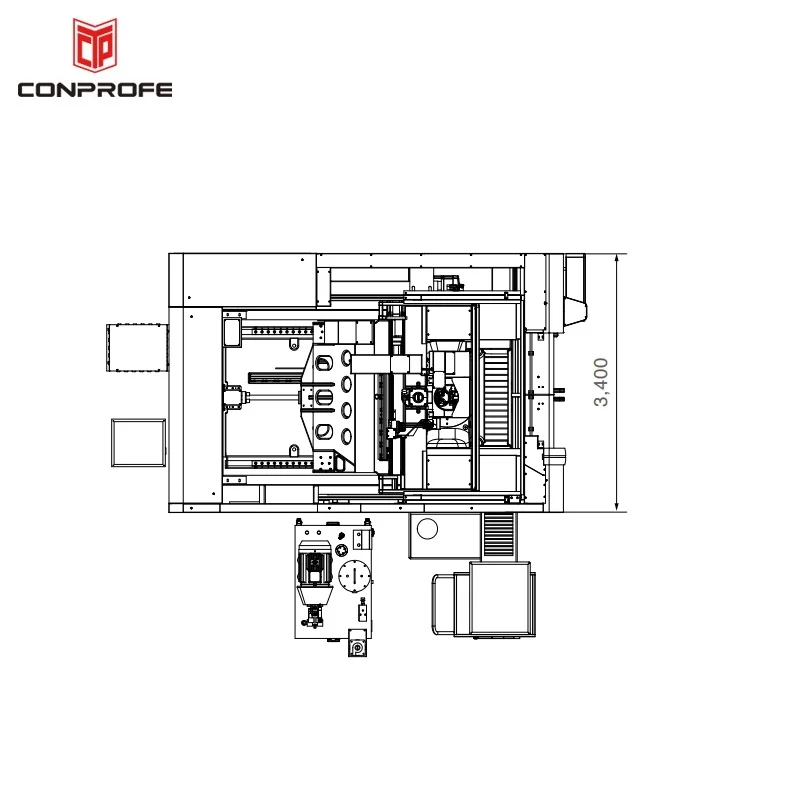

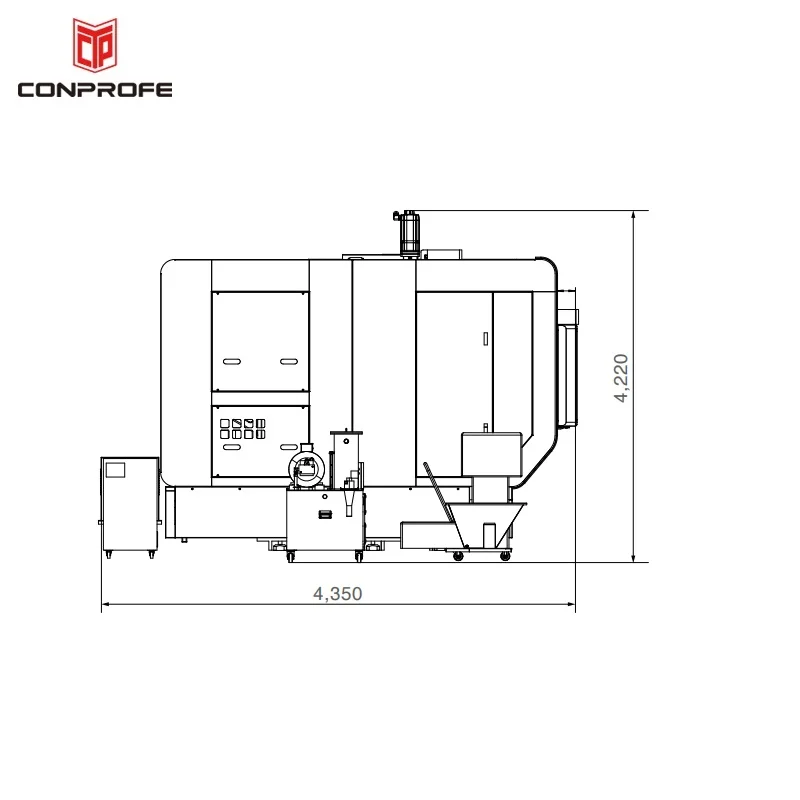

Machine Size (LxWxH) | mm | 2,940x4,310x3,310 | 3,400x4,350x4,220 | 3,400x4,350x4,220 | ||||
Controller | ||||||||
CNC Controller | - | SIEMENS 840D sl (Standard) | ||||||
HEIDENHAIN/HNC (Optional) | ||||||||
Overview
Intelligent Ultrasonic machining system developed by Conprofe to tackle the challenges in machining hard-to-cut materials
Supercritical Carbon Dioxide (ScCO2) Cryogenic Through-Spindle Cooling System and MQL Cooling System available for clean machining
Bridge gantry structure with tilting 5th-axis rotary table; low center of gravity, short overhang, and super high rigidity for lower thermal strain
Equipped with high-power, high-torque, high-speed ultrasonic spindle
Various chain-type tool magazine capacity options: 24~120T
An automatic fire suppression system can be configured to reduce the risk of machining flammable and explosive materials
Siemens 840D sl and SINUMERIK ONE 5-axis Simultaneous control systems available
Ultrasonic Machining Advantages
Efficient processing of metals, hard & brittle materials
Cutting force down by 50%
Cutting heat down by 30%
Sub-surface damage reduced by 40%
Tool life improved by 3~10 times
Efficiency significantly increased by reducing C/T
Cutting force down by 50%
Cutting heat down by 30%
Sub-surface damage reduced by 40%
Tool life improved by 3~10 times
Efficiency significantly increased by reducing C/T
Best Sellers
Company Profile
FAQ
1.Do you have any MOQ?
We set different MOQ for different products.
We set different MOQ for different products.
2.What is your lead time?
lt depends on customers' requirement and quantity.
3.Can you produce according to samples or drawings?
Yes, we can produce by your samples or technical drawings.
4.How do you guarantee your production quality?
We take delivery test with professional Germany Inspectionequipment before shipment.
5.What countries have you exported?
Our business expanded to all over the world, and our mainmarket are North American, Latin American, East Europe,German, UK, South Asia, Southeast Asia, Taiwan, Middle East.
Похожие товары
MD12160 гидравлический двигатель постоянного тока 12 В 1 6 кВт для блока
Светодиодная фиксированная светодиодная видеостена P2, Лидер продаж, рекламный светодиодный рекламный щит для помещений, светодиодное ТВ 4K на продажу
3 800,00 $ - 5 100,00 $

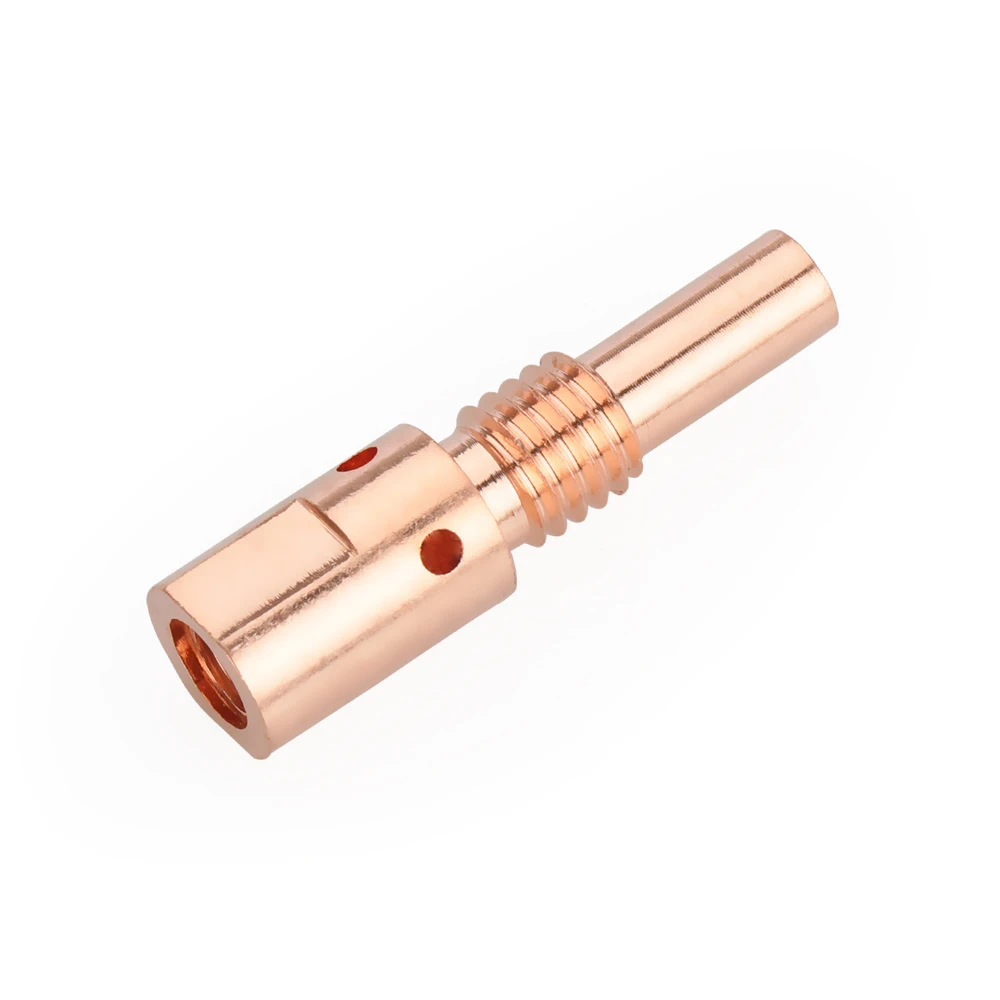

142,0015 MB25 MB 25 25AK AK Mig Gun Сварочная горелка, сопло M6, держатель наконечника, газовый диффузор, часть сварщика, 5 шт.
1,00 $ - 1,50 $

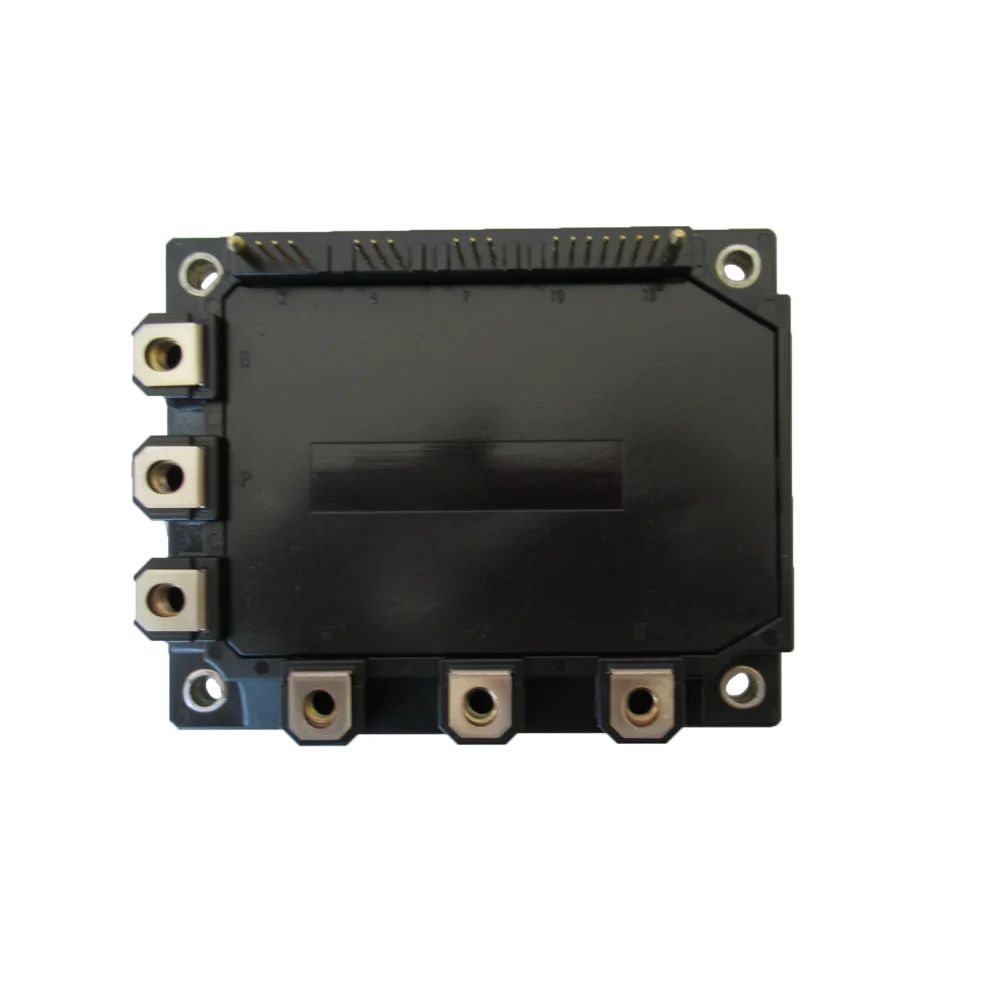

Модули питания ipm fuji ipm igbt Модуль 6MBP500RTM060
