6 функций джойстика 12-24 В гидравлический клапан автокран дистанционное управление радио пульт дистанционного управления крановый джойстик с приводом
104 165,98 ₽ - 107 455,44 ₽
Автокран hiab с беспроводным пропорциональным дистанционным управлением 12 В 24 радио дистанционное управление крановый джойстик приводом
- Категория: >>>
- Поставщик: Shandong Yingshi Import & Export Co. Ltd.
Сохранить в закладки 1601017340502:
Описание и отзывы
Характеристики
Customer Photos
If it has broken within the warranty period, the new spare parts will be sent for free. We aim to provide good quality and service to our customers. Our product won't let you down.
Billy is from Australia and is in the rental crane business for many years. He is happy with our products.
Good review from Belgium who purchased the remote control with five engines
Specification
Radio proportional remote control set is independently developed by Yingshi Intelligent Technology applied in truck cranes, lifts, skid steer loaders and other construction machinery with joysticks.The remote distance around 50~500m (without any shield).All the main parts imported and equipped with high power module.Compared with other brand the signal is more stable and operation more sensitive. Also set with safety protection system.Simple installation with high safety.
Item | remote control |
Applicable | truck crane with 3-8 joysticks/valve |
Voltage | 12V and 24V |
Warranty | 1 years |
Production time | 3-8 days |
4 motors/joysticks/lever
5 motors/joysticks/lever
6 motors/joysticks/lever

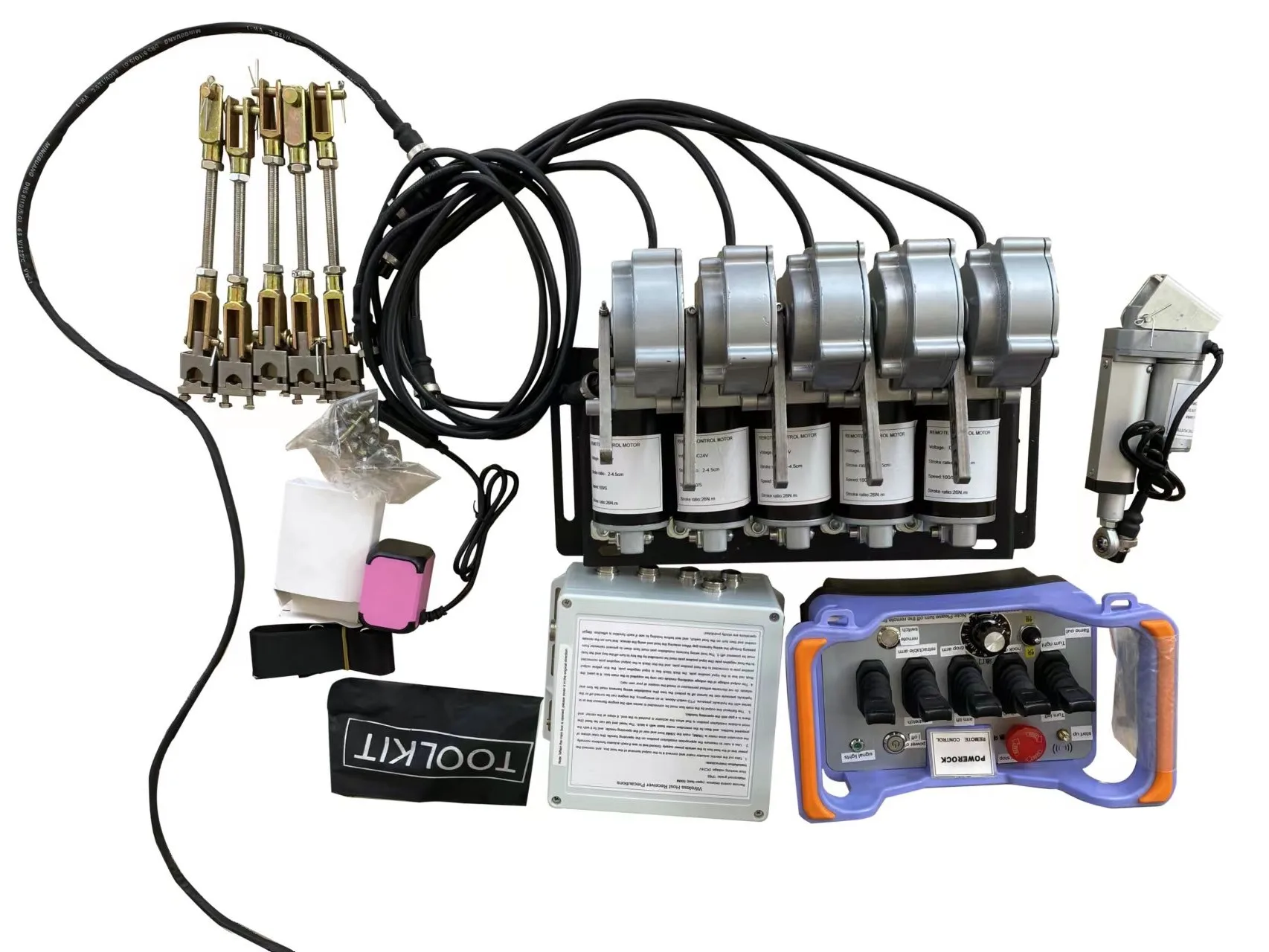

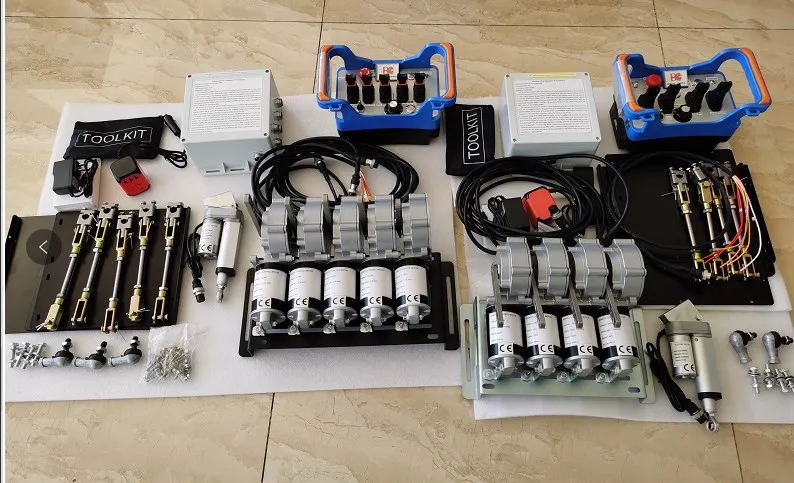

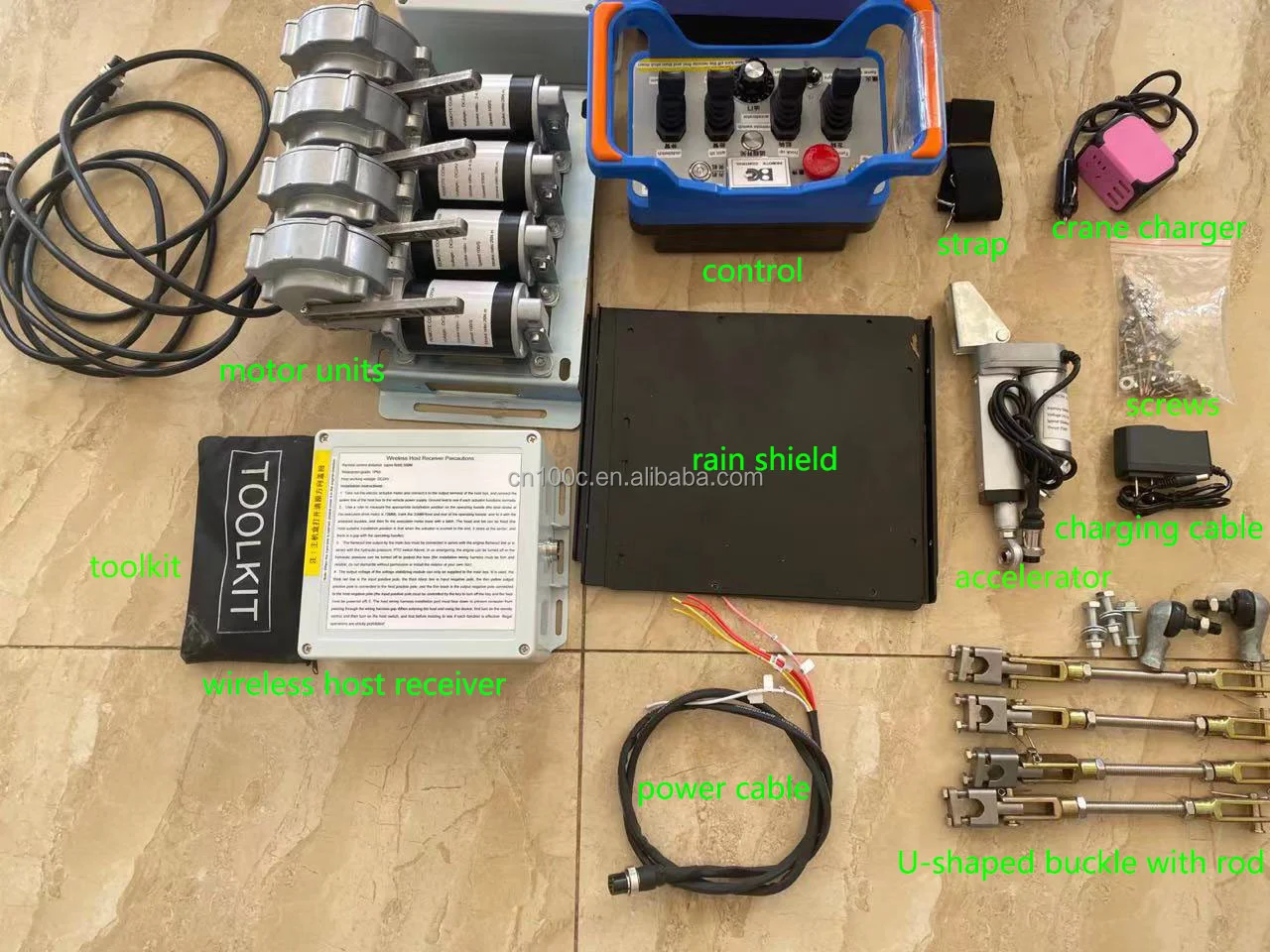

Accessories

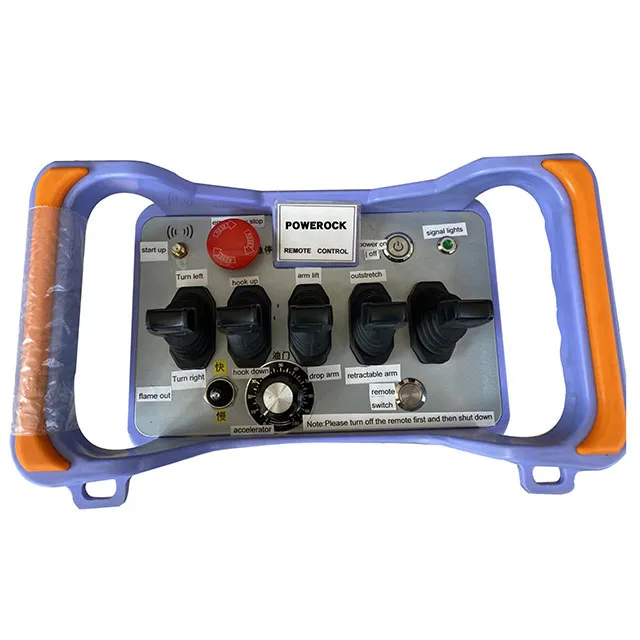

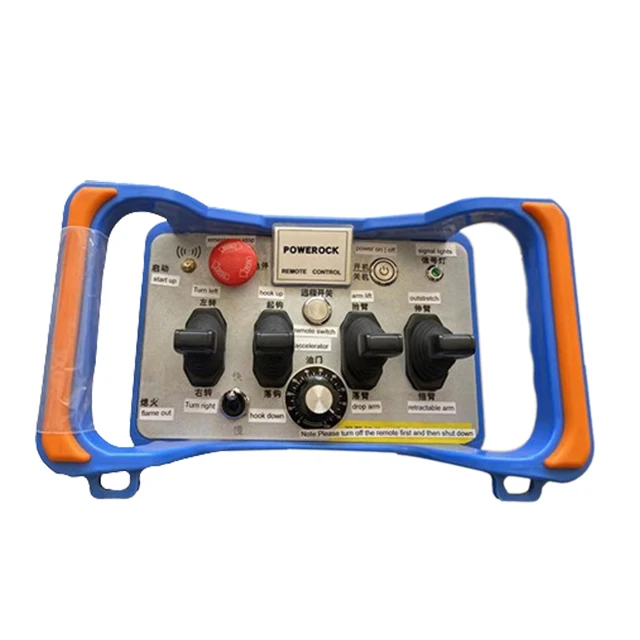

* Remote control Handheld
Operating voltage: 24V
Battery type: polymer lithium battery
Battery installation: Built-in
Remote control distance: ≤500M
Remote control: potential Angle sensing
Battery capacity:2600 m.A
Battery type: polymer lithium battery
Battery installation: Built-in
Remote control distance: ≤500M
Remote control: potential Angle sensing
Battery capacity:2600 m.A
Receiving main control box
Imported chips and electronic components
Equipped with programs developed by Baicai Intelligent Technology.
The control distance is 500 meters.
Equipped with programs developed by Baicai Intelligent Technology.
The control distance is 500 meters.
You can adjust the swing angle of motor in control box.
Clutch motor (waterproof)
Voltage:DC24v
Stroke ratio:2-4.5cm
Motor speed：100/s
Max.Torque：26N.M
Stroke ratio:2-4.5cm
Motor speed：100/s
Max.Torque：26N.M
Waterproof grade: IP67
Advantages
1. Simple installation.The motor can be installed in any place within the control area.Non-destructively install, noneed to change the structure of the console and the hydraulic valves.Fixed by bolts, and can work smoothly once connected with power.
2. All connection wire between the motor and main line are original.Every part is connected by water proof plug. This kind of integrated molding plug, after testing, even bubble into the water for one or two weeks will not enter water, each part can be replaced independently.Very convenient.
3. Imported sensor installed in motor and joystick with good stability and high precision and long lifetime.
4. Prompt reaction and easy to adjust
5. Manual and automatic operation can works at the same time.It can work without affecting manual control.Proportional precision remote control operation, no delay in feedback, and synchronous action same as manual control.
6. Multiple security protection.
1）Remote control emergency stop.In urgent case just press emergency stop the motor and hydraulic locker will be locked automatically. All operation will be stopped
2）Remote control power off and signal cut off protection.During working,if remote control power off or no signal the motor and hydraulic locker will be locked automatically.All operation will be stopped
3）If the system test the motor was blocked or over current short cut.The operation will be stopped automatically
7. Customize design
8. Grantee period:standard one year.Agent can extend for half year
2. All connection wire between the motor and main line are original.Every part is connected by water proof plug. This kind of integrated molding plug, after testing, even bubble into the water for one or two weeks will not enter water, each part can be replaced independently.Very convenient.
3. Imported sensor installed in motor and joystick with good stability and high precision and long lifetime.
4. Prompt reaction and easy to adjust
5. Manual and automatic operation can works at the same time.It can work without affecting manual control.Proportional precision remote control operation, no delay in feedback, and synchronous action same as manual control.
6. Multiple security protection.
1）Remote control emergency stop.In urgent case just press emergency stop the motor and hydraulic locker will be locked automatically. All operation will be stopped
2）Remote control power off and signal cut off protection.During working,if remote control power off or no signal the motor and hydraulic locker will be locked automatically.All operation will be stopped
3）If the system test the motor was blocked or over current short cut.The operation will be stopped automatically
7. Customize design
8. Grantee period:standard one year.Agent can extend for half year
Packing & Delivery
it is packed in carton with foam cushioning material to prevent collision during transportation.
