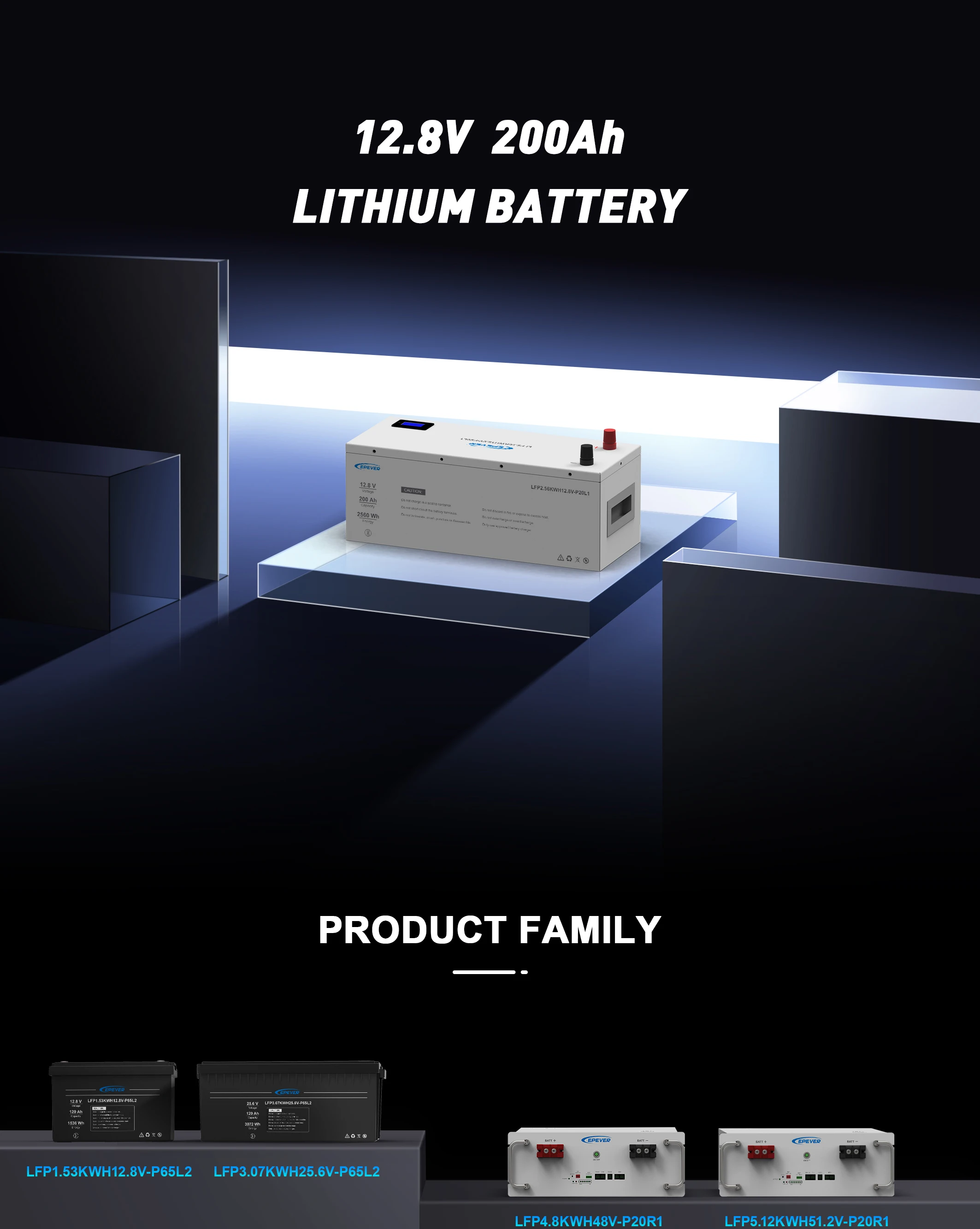

Epever 5 лет гарантии RV домашний Солнечный Bluetooth 12V 100Ah 120Ah 200Ah LiFePO4 Pack металлический литий ионный аккумулятор

Сохранить в закладки 1601017682242:


Цена:15,36 ₽ - 17,55 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

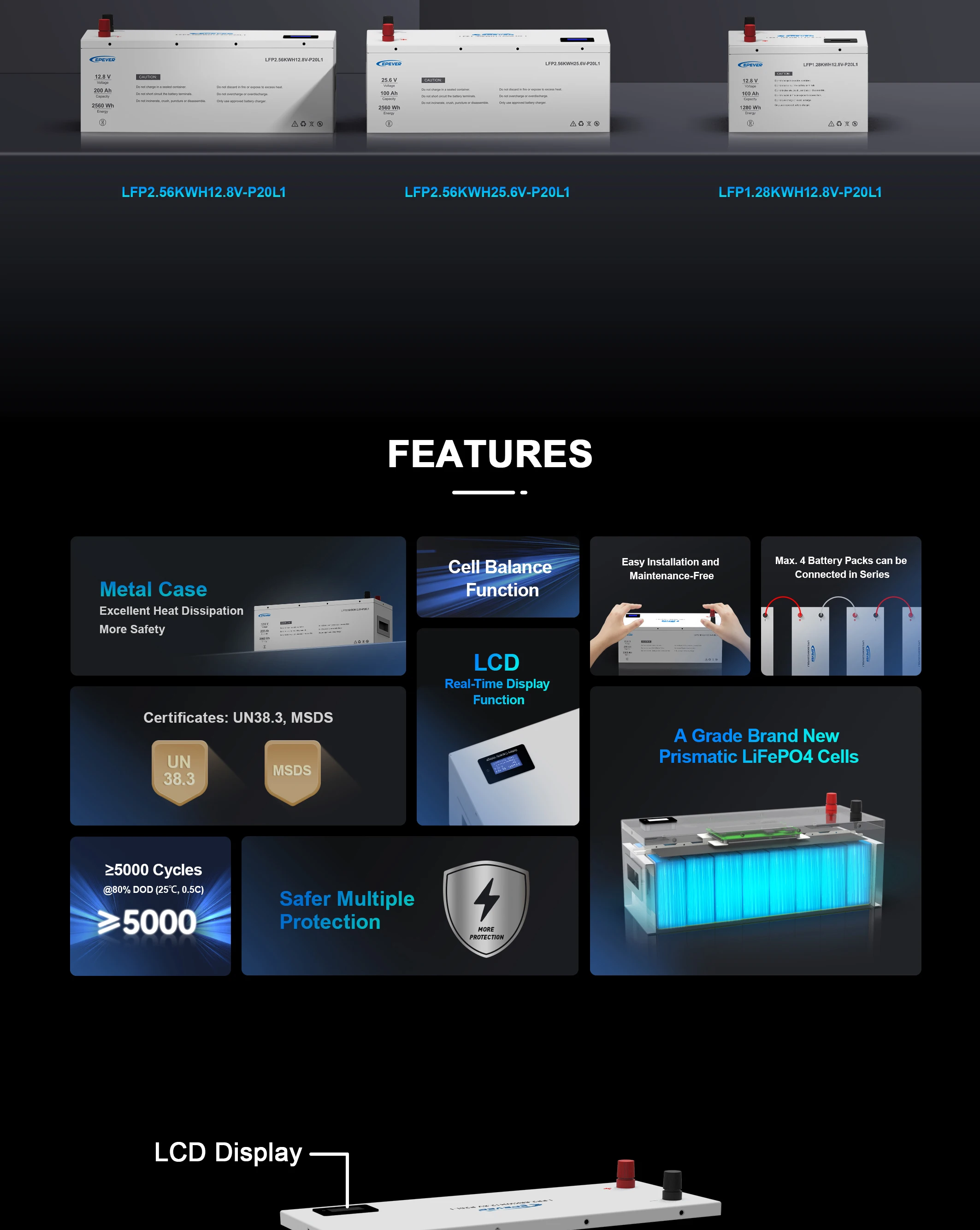

Features

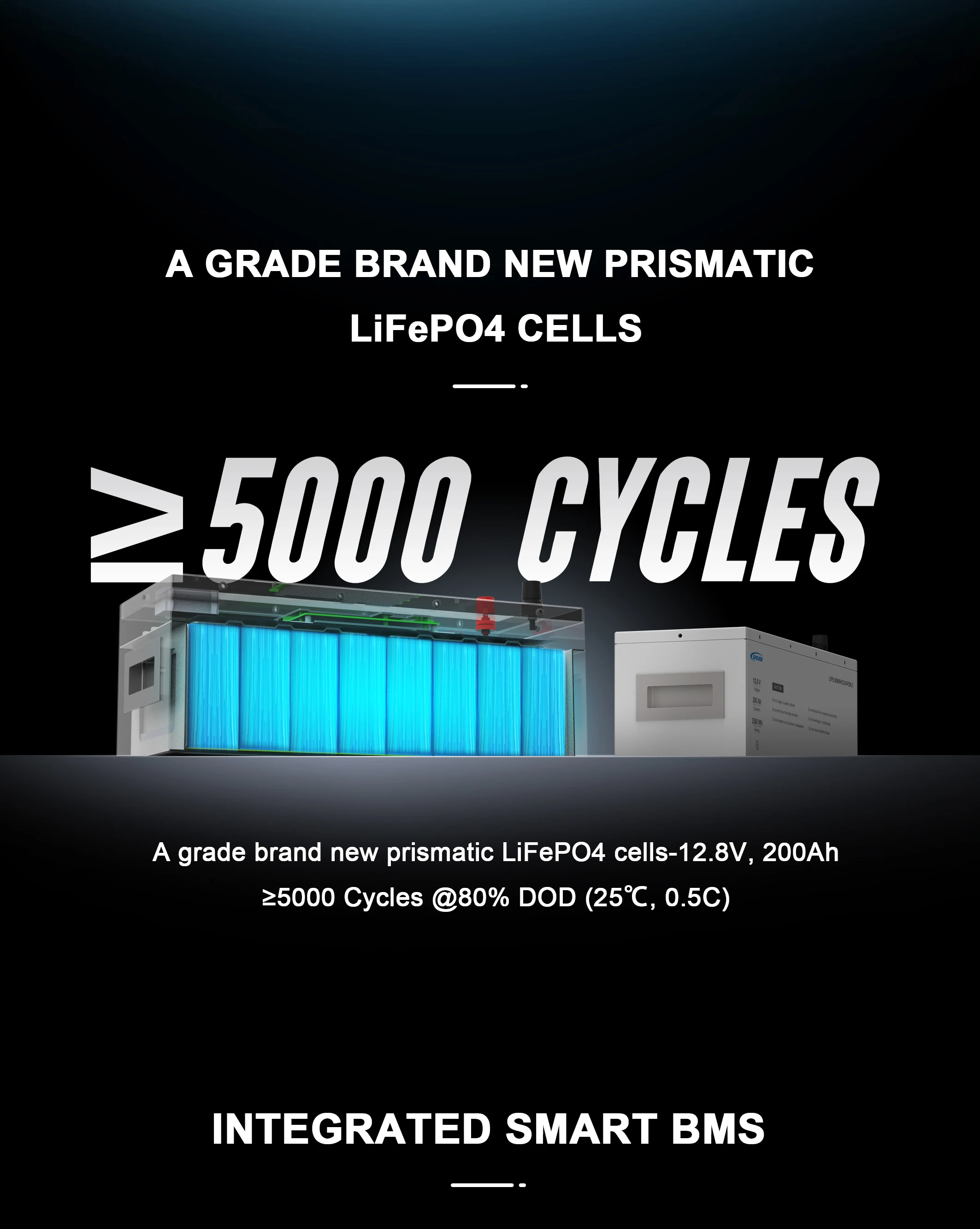

A grade brand new prismatic LiFePO4 cells

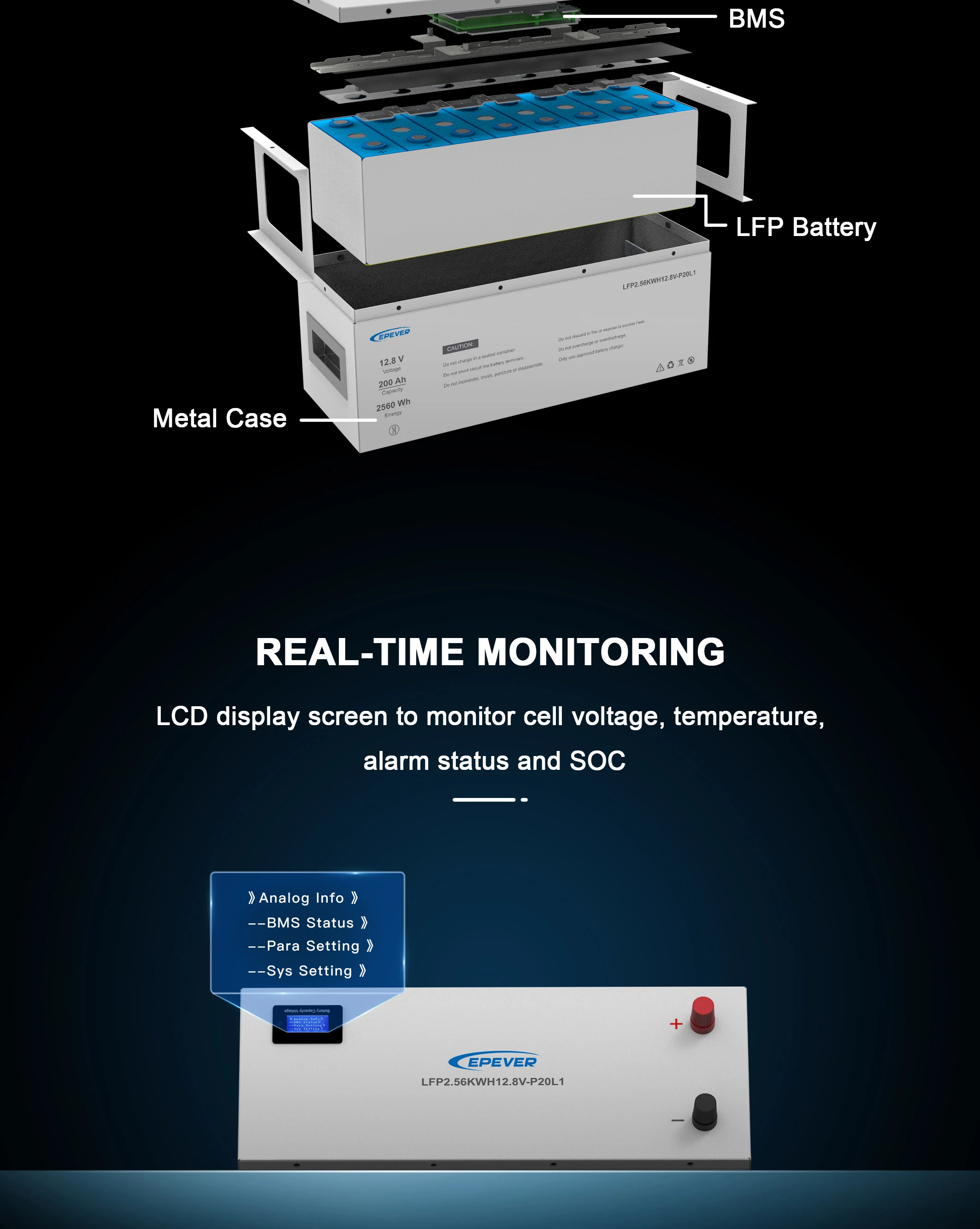

LCD display screen to monitor cell SOC, voltage, temperature
and alarm status


≥5000 cycles @80% DOD(25℃,0.5C)

Cell balance function

Metal Case, excellent heat dissipation, more safety

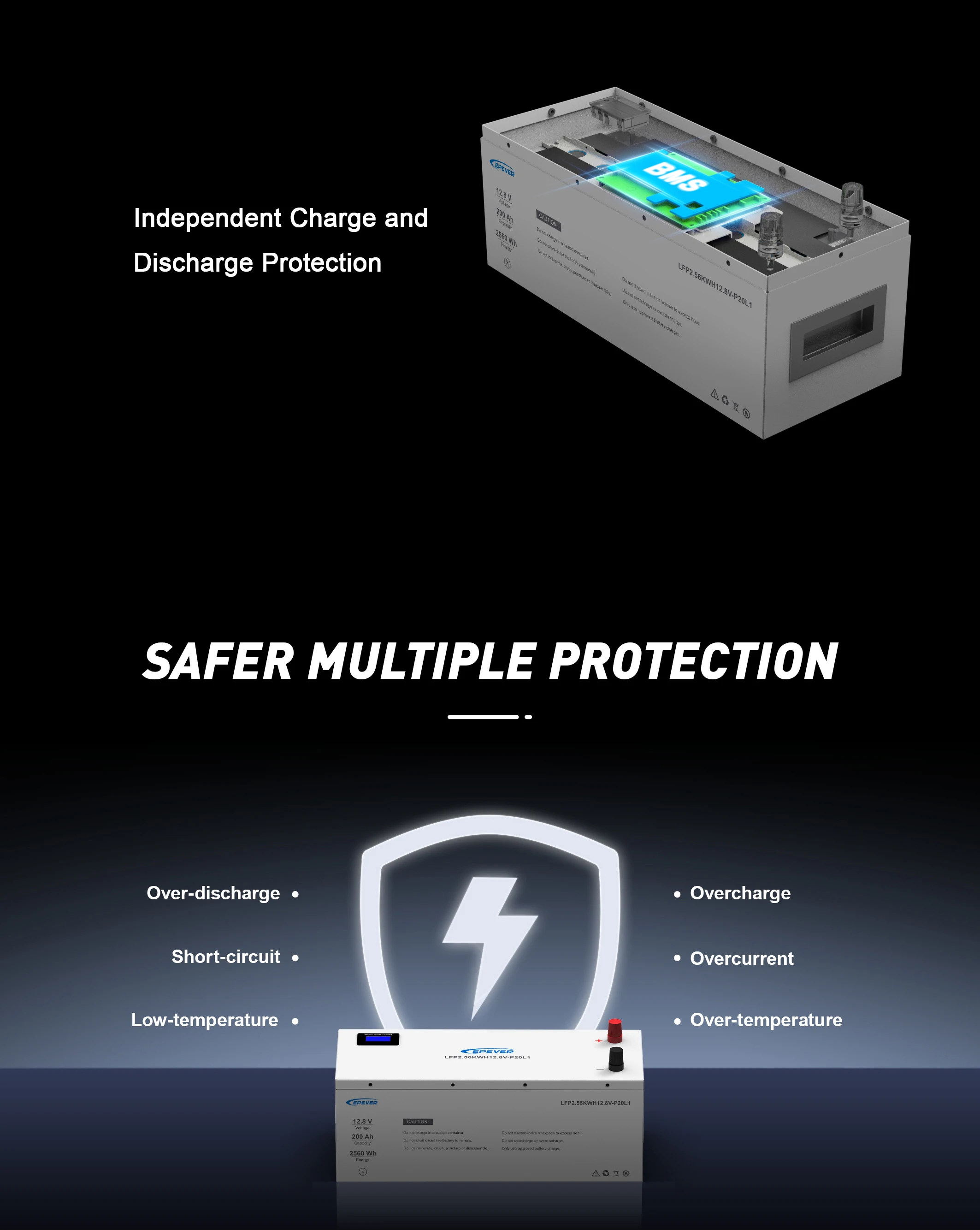

Over charge, over discharge, over temperature, low temperature, over current and short circuit protection

Certificate: UN38.3, MSDS,IEC62133 Easy installation and maintenance free

Max.4 battery packs can be connected in series



Model
LFP1.28KWH12.8V
LFP1.53KWH12.8V
LFP2.56KWH12.8V
Utility Input
Battery Type
LiFePO4
LiFePO4
LiFePO4
Nominal Voltage (V)
12.8
12.8
12.8
Nominal Capacity (AH)
100
120
100
Energy (WH)
1280
1530
2560
Pack Mode
4S1P
4S1P
4S2P
Continuous Discharge Current (A)
50
60
60
Charge Cut-off Voltage (V)
14.4
14.4
14.4
Discharge Cut-off Voltage (V)
10.4
10.4
10.4
Max.Charge Current (A)
50
50
50
Max.Discharge Current (A)
100
100
100
Peak Discharge Current (A)
120@10S
130@10S
130@10S
Recommend Discharge Current (A)
50
60
50
Recommend Discharge Depth (%)
80
80
80
Cycle Life
≥5000 cycles (25°C, 0.5C ) 80% DOD
≥4000 cycles (25°C, 0.5C ) 80% DOD
≥5000 cycles (25°C, 0.5C ) 80% DOD
Communication
Display
LCD
LCD
LCD
Charge&Discharge Temperature (℃)
Charge: 0°C~+55°C / Discharge: -20°C~+60°C
Charge: 0°C~+55°C / Discharge: -20°C~+60°C
Charge: 0°C~+55°C / Discharge: -20°C~+60°C
Optimal Storage Temperature (℃)
5℃~+35℃
5℃~+35℃
5℃~+35℃
Recommend Storage Humidity
20%~80%
20%~80%
20%~80%
Terminal
M8
M8
M8
Dimensions (L*W*H) (mm)
260*180*166
339*185*218
450*180*166
Weight (Kg)
12±0.5
19±0.5
22±0.5
Transportation
UN38.3, MSDS, IEC62133
UN38.3, MSDS, IEC62133
UN38.3, MSDS, IEC62133
IP Class
IP20
IP65
IP20




Certifications




Company Profile


BEIJING EPSOLAR TECHNOLOGY CO.,LTD.founded in 2007, is a research, development and manufacturing enterprise focusing on photovoltaic off-grid controller, inverter, control inverter, photovoltaic energy storage inverter and photovoltaic power generation solutions.And set up a branch office in Shenzhen.
In 2019 we established subsidiary.HUIZHOU EPEVER TECHNOLOGY CO., LTD.passed ISO9001: 2015, ISO14001:2015 and ISO45001:2018.It is a cross-industry fast growing enterprise of green energy, integrating product design, research and development,production, sales and service.Manufacture solar charge controllers, off-grid inverters, inverter chargers, solar power system and other solar power units.
Our products comply with international standards CGC-SOLAR, CE, ROHS, FCC,ETL, and UL certificates.Widely used in solar power station system, communication power supply system, monitoring power supply system,off-grid hybrid power supply system, RV power supply system, street lamp power supply system and other application scenarios. It have been sold to more than 120 countries and regions around the world, and get the user's praise and recognition.
