Оптовая продажа землеройные сверла
132 253,56 ₽
Bonovo заводская цена небольшой винтовой садовый шнек для продажи
- Категория: >>>
- Поставщик: Xuzhou Bonovo Machinery & Equipment Co. Ltd.
Сохранить в закладки 1601017926364:
Описание и отзывы
Характеристики
In order to achieve a more perfect flt
bonovo can customlze the size according to the needs of customers

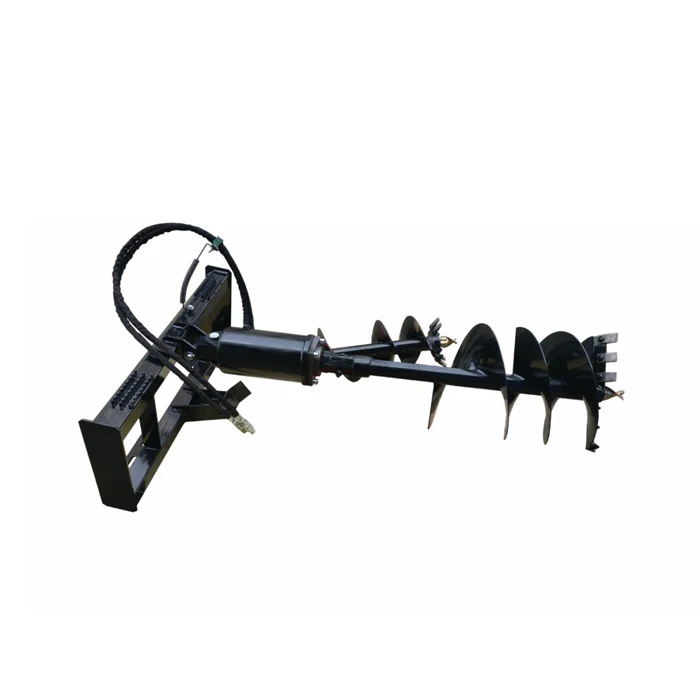

auger attachment skid steer auger attachments for skid steer
Earth auger is a new type of high-efficiency construction machine installed at the front end of excavators, skid steer loaders,cranes, backhoe loader, and other construction machinery. Equipped with an Eaton motor and a self-made precision gearbox, the excavator provides hydraulic oil to drive the motor to drive the gearbox, generate rated torque, and rotate the drill pipe to start the hole-forming operation.
Earth auger is a new type of high-efficiency construction machine installed at the front end of excavators, skid steer loaders,cranes, backhoe loader, and other construction machinery. Equipped with an Eaton motor and a self-made precision gearbox, the excavator provides hydraulic oil to drive the motor to drive the gearbox, generate rated torque, and rotate the drill pipe to start the hole-forming operation.
1-25 Ton
MATERIAL
NM400
WORKING CONDITIONS
Landscape greening, drilling and other drilling operations
Drilling diameter
0.1-1.2m
0.1-1.2m
BONOVO skid steer auger attachment is a new type of high-efficiency construction machine installed at the front end of excavators,skid steer loaders, cranes, backhoe loader, and other construction machinery. Equipped with an Eaton motor and a self-made precision gearbox, the excavator provides hydraulic oil to drive the motor to drive the gearbox, generate rated torque, and rotate the drill pipe to start the hole-forming operation.
Specification
Model | unit in | BA25 | BA45 | BA70 | BA100 | BA150 | BA200 |
Tonnage | T | 1-3 | 4-5 | 6-8 | 8-12 | 13-18 | 19-25 |
Max torque | N.m | 2432 | 4499 | 5910 | 8152 | 15046 | 24949 |
Pressure | Bar | 205 | 240 | 240 | 240 | 240 | 240 |
Flow | Ymin | 30-61 | 38-76 | 45-83 | 61-136 | 80-170 | 80-170 |
Speed | Rpm | 40-82 | 32-64 | 28-50 | 29-64 | 20-43 | 12-26 |
Oil tube | Inch | 1/2 | 1/2 | 1/2 | 3/4 | 1 | 1 |
Link diameter | mm | φ65 | φ65 | φ75 | φ75 | φ75 | φ75 |
Motor weight | Kg | 54 | 71 | 108 | 115 | 167 | 270 |
Motor Height | mm | 595 | 700 | 780 | 850 | 930 | 1150 |
Motor diameter | mm | 200 | 244 | 269 | 269 | 290 | 345 |
Link ears | / | anti-sway biaxial | anti-sway biaxial | anti-sway biaxial | anti-sway biaxial | anti-sway biaxial | anti-sway biaxial |
Bar model | mm | S4 | S4 | S5 | S5 | S6 | S6 |
Length | mm | 1200 | 1200 | 1500 | 1500 | 1750 | 1750 |
Diameter | n | 100-500 | 100-900 | 150-900 | 150-900 | 150-1200 | 150-1200 |
The skid steer attachments auger rig is composed of four parts:
Connection frame:
dual-axis anti-escape bracket can better ensure that the drill pipe is perpendicular to the ground and the hole position is
accurate.

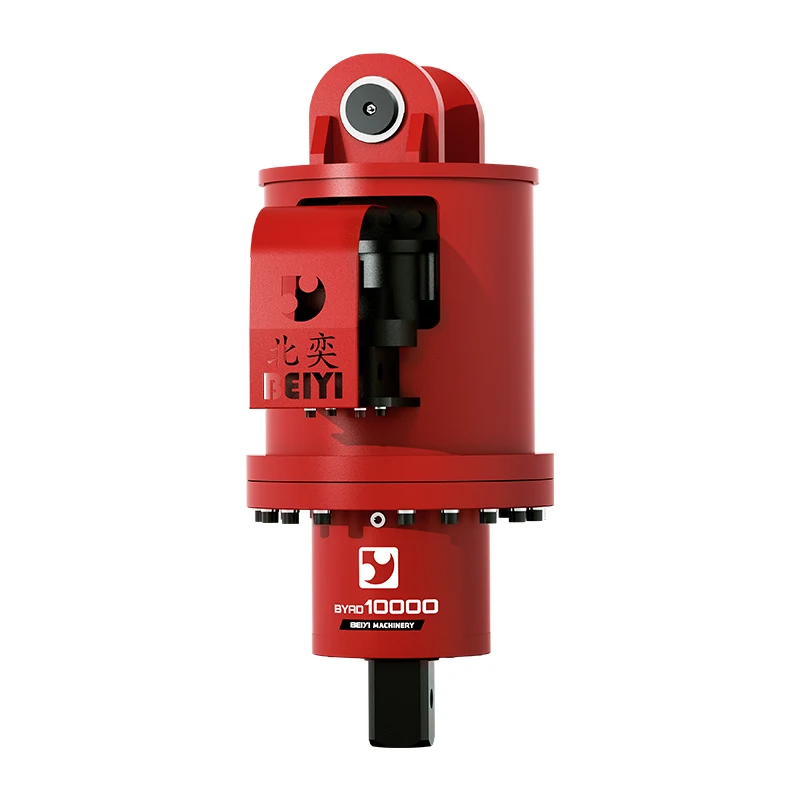

Drive head:
hydraulic auger drilling machine, large torque, efficient rotation, using American Eaton hydraulic motor, durable, worry-free and
labor-saving.

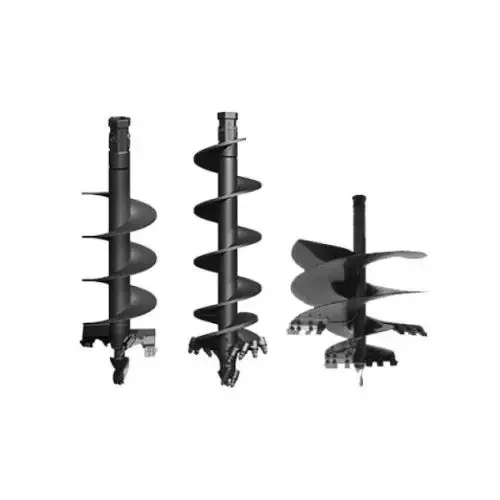

Drill pipe:
The drill pipe is all made of heavy-duty steel pipe, and the blades are made of wear-resistant plates. Three different drill teeth
are available to suit a variety of soil drilling operations.
Tubing:
Inch fittings are adopted in line with export standards
Connection frame:
dual-axis anti-escape bracket can better ensure that the drill pipe is perpendicular to the ground and the hole position is
accurate.
Drive head:
hydraulic auger drilling machine, large torque, efficient rotation, using American Eaton hydraulic motor, durable, worry-free and
labor-saving.
Drill pipe:
The drill pipe is all made of heavy-duty steel pipe, and the blades are made of wear-resistant plates. Three different drill teeth
are available to suit a variety of soil drilling operations.
Tubing:
Inch fittings are adopted in line with export standards

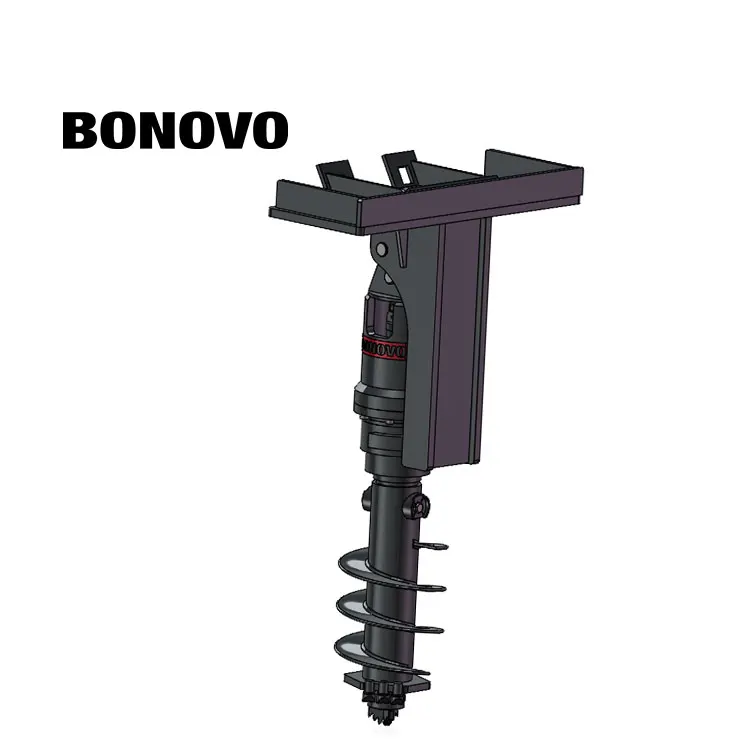

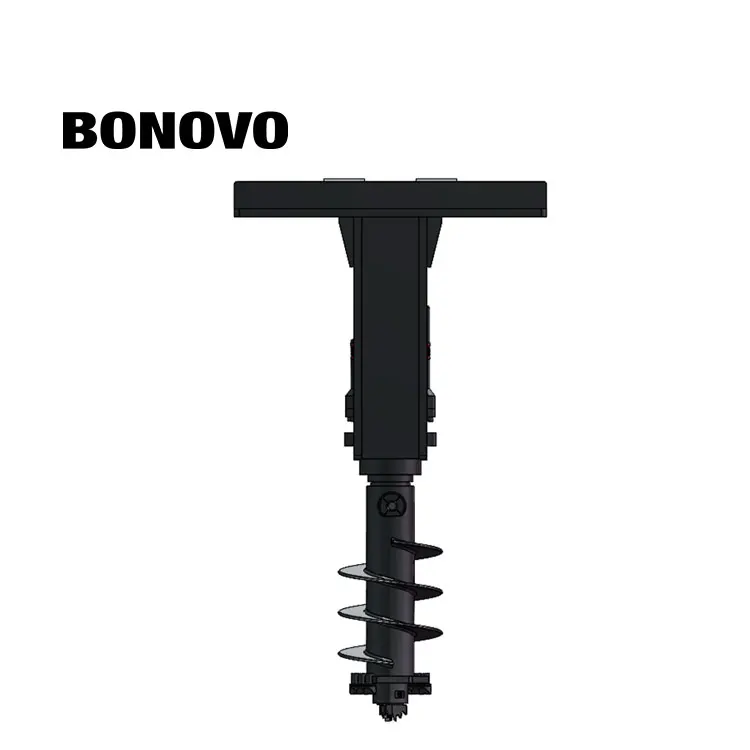

Special connection frame made for the special connection method of skid steer loader.
BONOVO skid steer augers features:
1. Hydraulic auger drill, large torque, efficient rotation, professional hole forming.
2. American Eaton hydraulic motor, durable, worry-free and labor-saving.
3. Three types of drill teeth, suitable for various soil types. Regular products are shipped within 3 working days, which is good and fast.
4. The full range of models matches various equipment, excavators, skid steer loaders, cranes, double-headers, etc.
5. The whole power head has a 12-month warranty.
1. Hydraulic auger drill, large torque, efficient rotation, professional hole forming.
2. American Eaton hydraulic motor, durable, worry-free and labor-saving.
3. Three types of drill teeth, suitable for various soil types. Regular products are shipped within 3 working days, which is good and fast.
4. The full range of models matches various equipment, excavators, skid steer loaders, cranes, double-headers, etc.
5. The whole power head has a 12-month warranty.

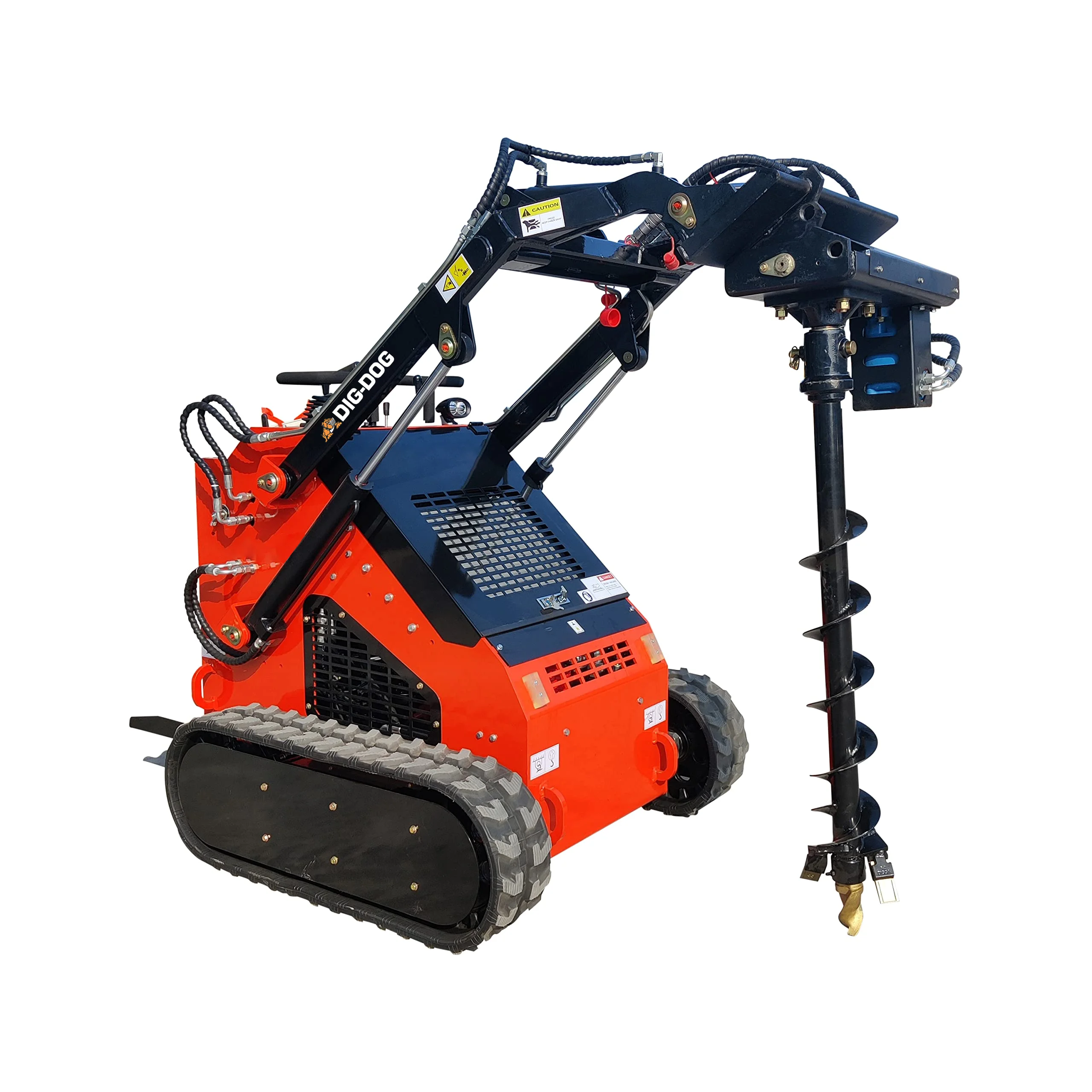

Application Scenario
company introduction
Xuzhou Bonovo Machinery & Equipment Co., Ltd is located in Xuzhou city, which is the largest construction machinery production
base in China. We are a professional company integrating R & D, manufacturing of excavator
and loader attachments.From raw materials to finished products, the whole process is under strict quality nspection for each of
our products to keep our quality.Products of our company are mainly attachments for excavators and loaders to fully meet different
needs in engineering machineryconstruction and the best solution can be provided for all types of earthwork.
What are the classifications of skid loader attachments?
Industrial construction categories: standard bucket, 4-in-1 bucket, skeleton bucket, forklifts, excavator arms, hammers, mixing bucket, etc.Municipal road maintenance category: closed sweepers, advancing sweepers, angle broom, snow blade, snow blower, vibrating compactors, milling machines, manhole cover milling machines, etc. Animal husbandry and landscaping categories: trenchers, augers, lawn mowers, grapple rake, forks, tree movers, dozer blade, bale forks, etc.
What is the steel plate material of the skid loader attachment?
Q355 high strenghth steel plate
What is the connection method of skid steer loader attachments?
The skid steer loader's quick-change device can quickly and safely replace all attachments, thereby effectively improving work efficiency. Quick change devices mainly include mechanical quick change and hydraulic quick change. The hydraulic quick change is based on the mechanical quick change device and adds two oil cylinders, and the attachment is replaced by the expansion and contraction of the oil cylinders.
Does the connection size support customization?
Yes, we support customization. There are different shapes for different attachments to connect the hangers, but the main ones are the size is strictly in accordance with the size of the Bobcat hanger. We will confirm the connection size drawing with you in advance.
