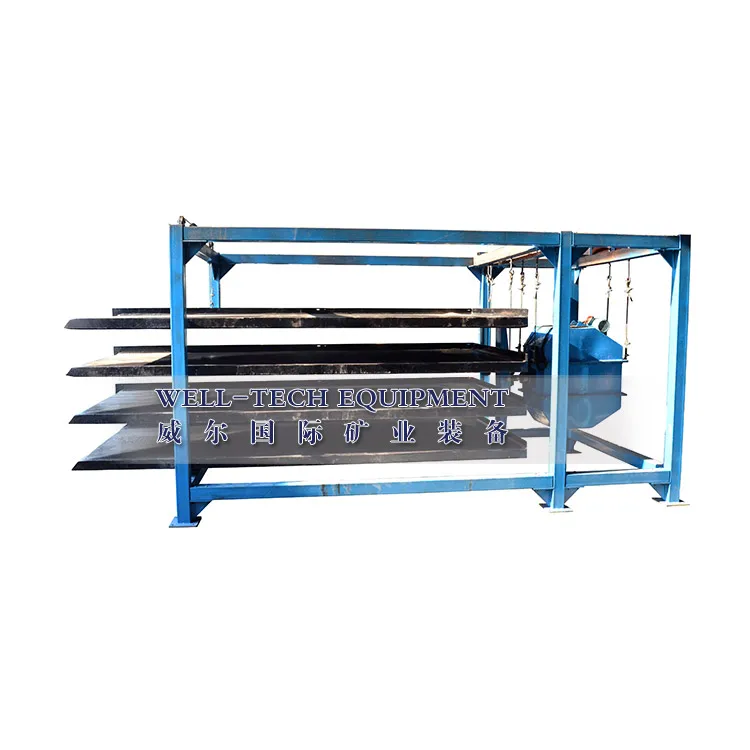

Мульти гравитационный сепаратор оловянной руды мульти встряхивальный стол

Shaking Table which is also called table concentrator, it's effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The range of effective separating particle size of shaking table is 2 to 0.022 mm.

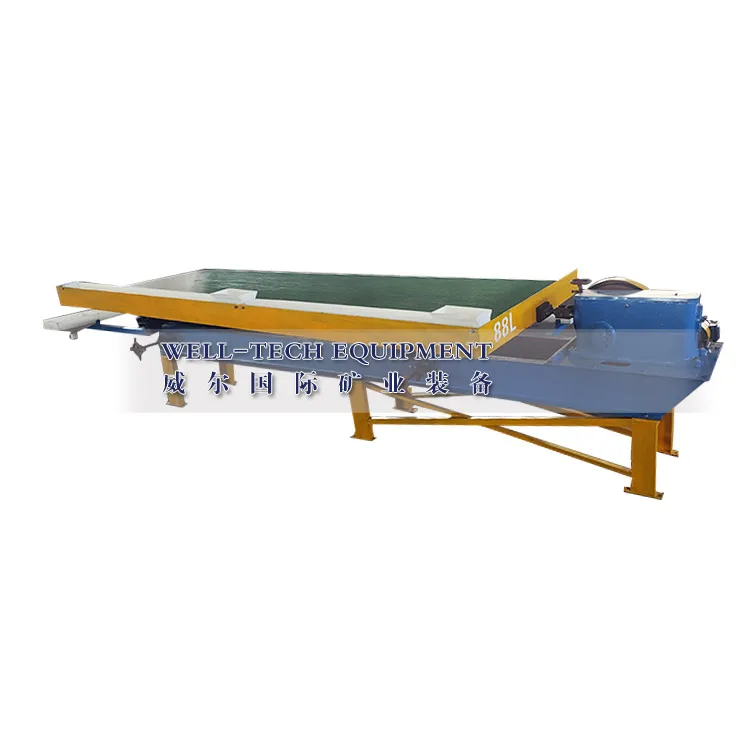

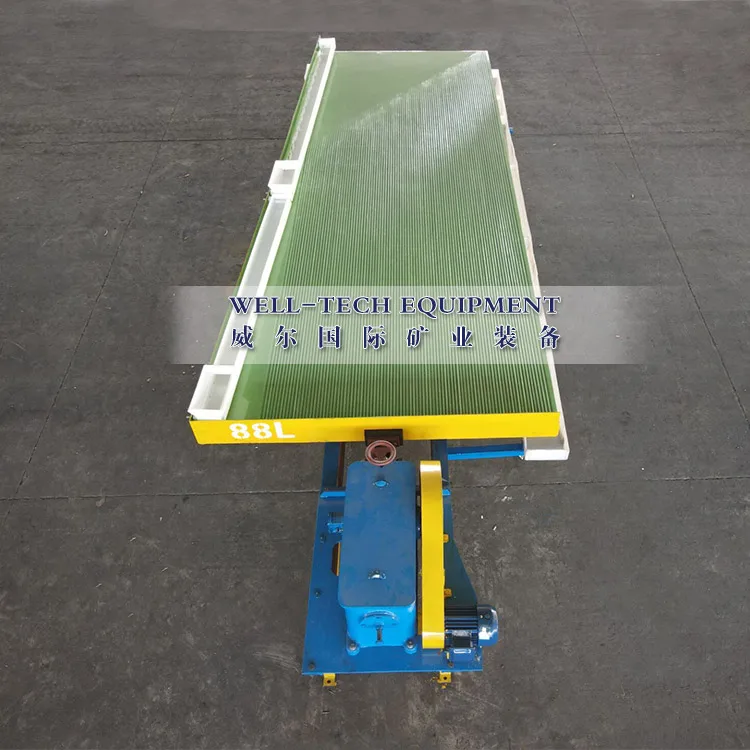

Gravity Separation Shaking Table

Shaking table which is also called table concentrator, is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.

Put the raw materials into the feeding launder, and put some water in to make it into slurry of concentration of 20% to 25%, and gravity flow to the deck. The particle group become loose and layered because of the rinsing of water and shaking of the deck in the bed ditch. After the layered, the upper particle and the bottom particle move in different direction because of the different pressure of flowing water and the friction of the bed surface. The upper light particle moves downward along the transverse of bed surface result of the stronger flowing water., this side called tailing side. The heavy mineral particles which located in the bottom of bed layer was influenced by differential movement of bed surface, thus them move to the opposite of the drive end, and we call this point concentrate side. Because of the different density, granularity, and the directions of movement, the groups of mineral particles spread in Fan-shaped along the diagonal of the feeding launder. The production discharge along the edge of bed surface, the discharge line is so long, so that shaking table could produce many kinds of different quality product precisely.

Separating precisely is the prominent advantage of shaking table. We can get some final concentrate, final tailings and 1 or 2 kinds of middling product after the first separating from raw mineral. The enrichment ratio of concentrate is very good, when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300 times. Besides, the range of separating particle size effectively in dealing with metallic ore is 2 to 0.02 mm.

Main Technical Parameters

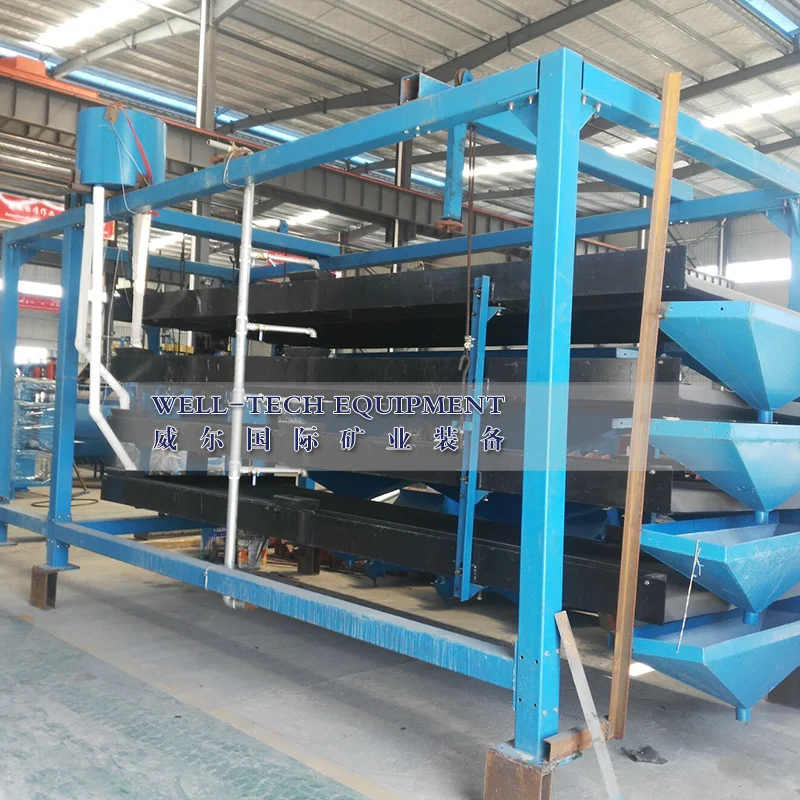

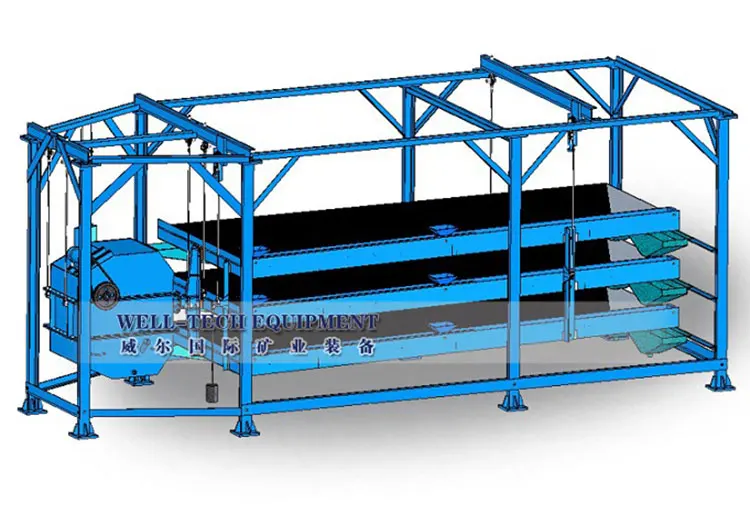

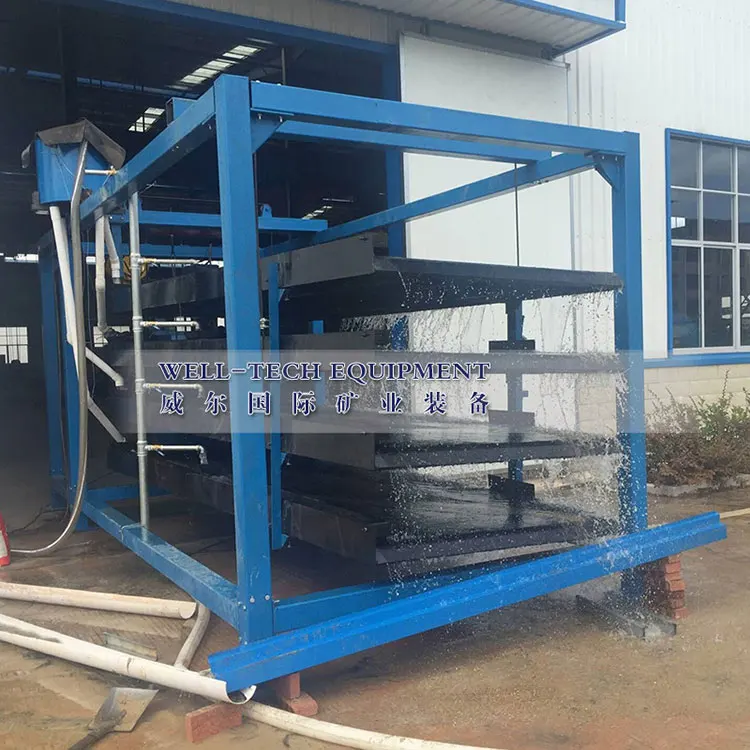

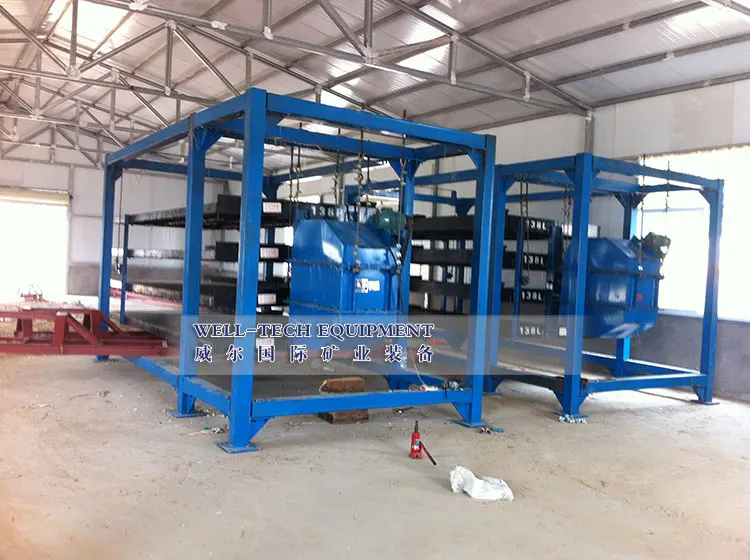

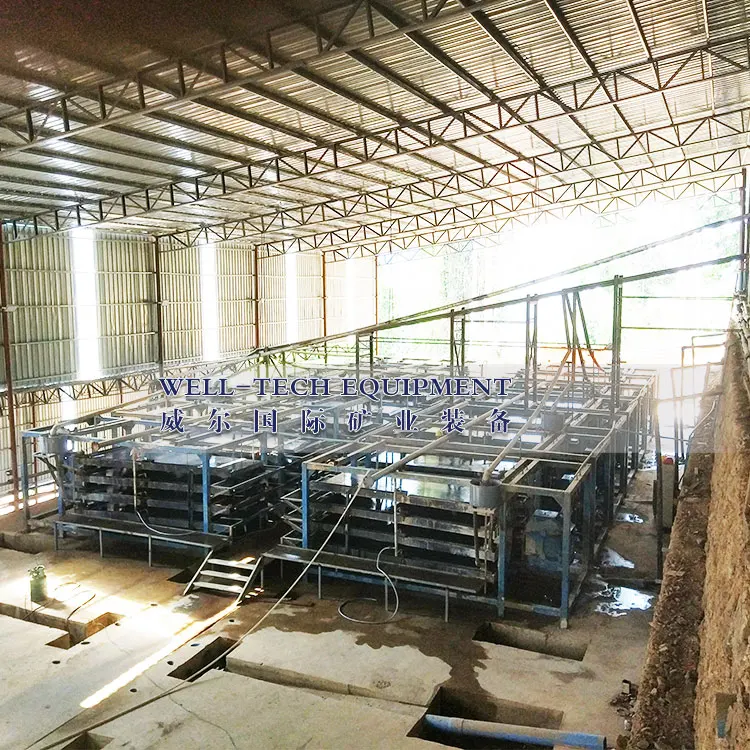

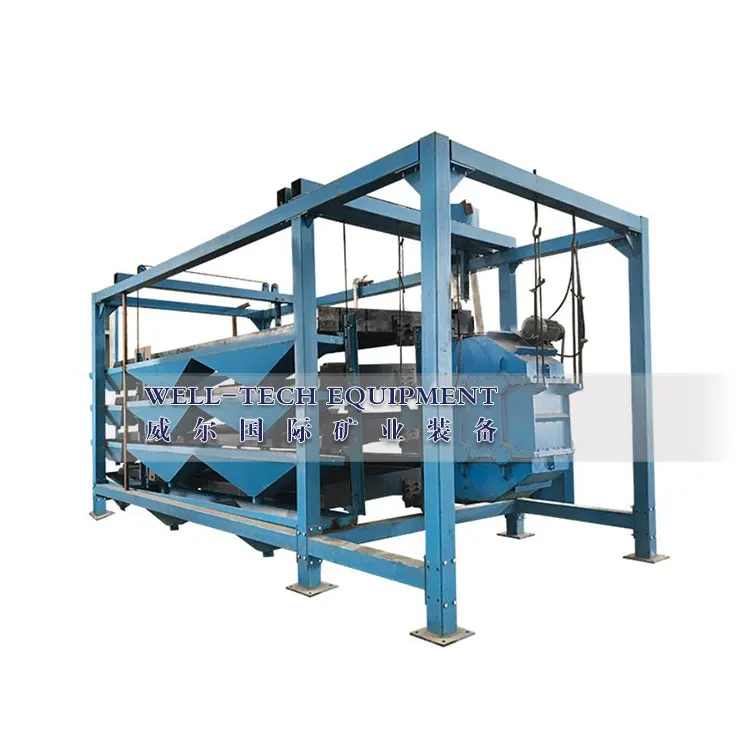

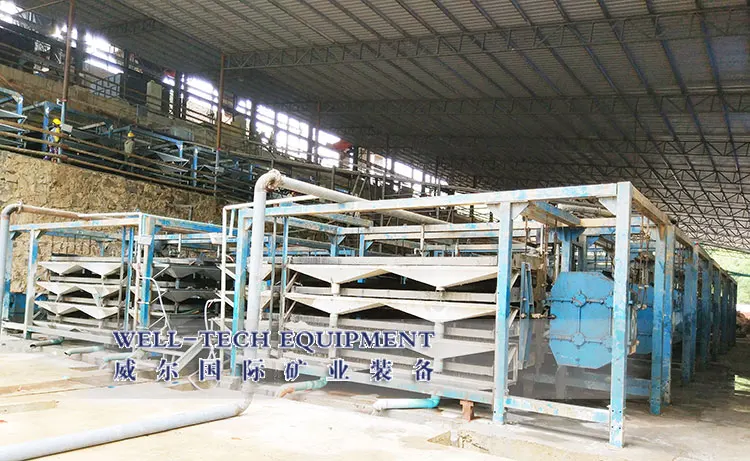

                           4layer shaking table for Tin plant

Advantages and Characteristics

1. Ingenious structure of inertial gearing, self balanced vertical force component. No vertical jump because no vertical vibrating force. It can be installed on the building floor, or on the bracket.

2. Lift type, minimal consumption of friction, reduce vibration and energy-saving, non-required bulky base, quick and flexible installation.

3. It adopts fiberglass deck with wear-resistant layer, wear-resistant, waterproof, anti-dry, anticorrosion, non-deformed, less maintenance, long service life.

4. The deck installed in an uniform frame Layer-by-layer, easy to install and unload, increase processing capacity per unit area. Replace different weight blocks can change the stroke of shaking table.

5. It adopts variable-frequence governor, easily change frequency of stroke to adapt different material with different particle size and feature.

6:The most advantage is save space,it suitable for space was limited.

Application

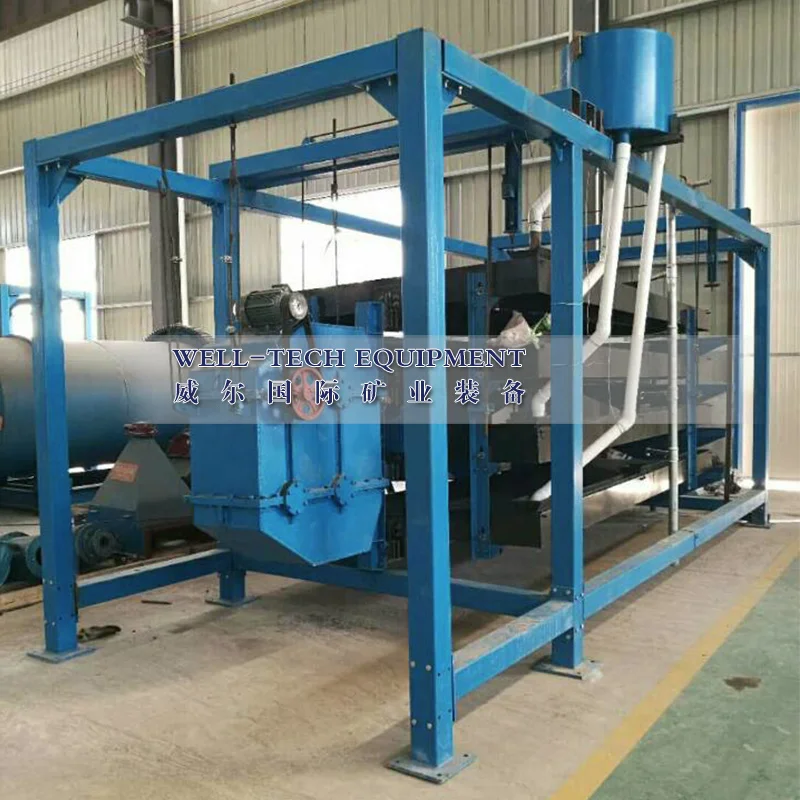

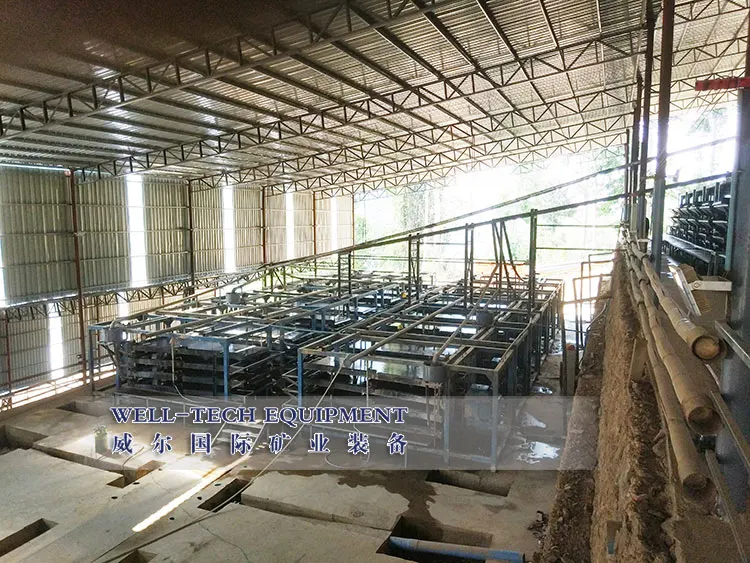

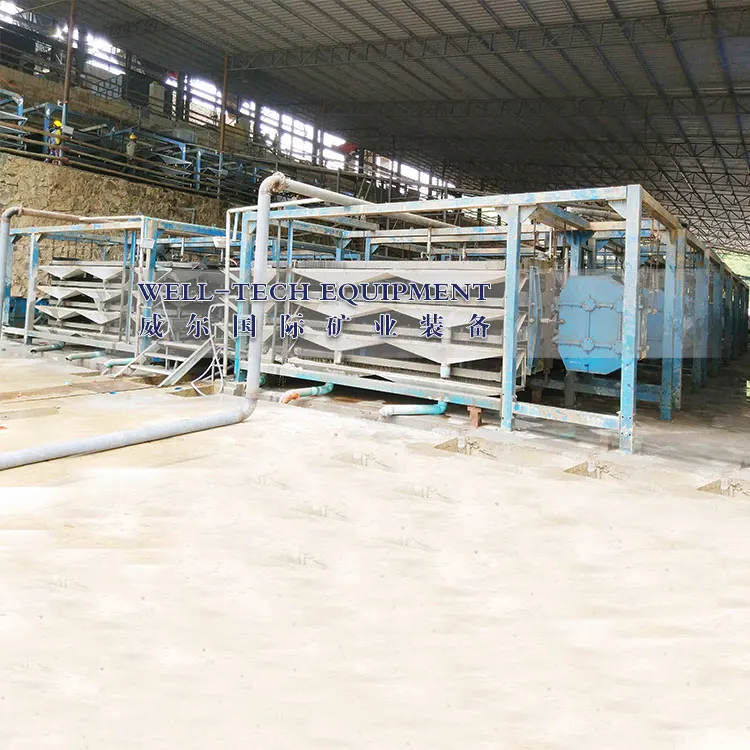

              4layer shaking table for gold plant

Other type shaking table:

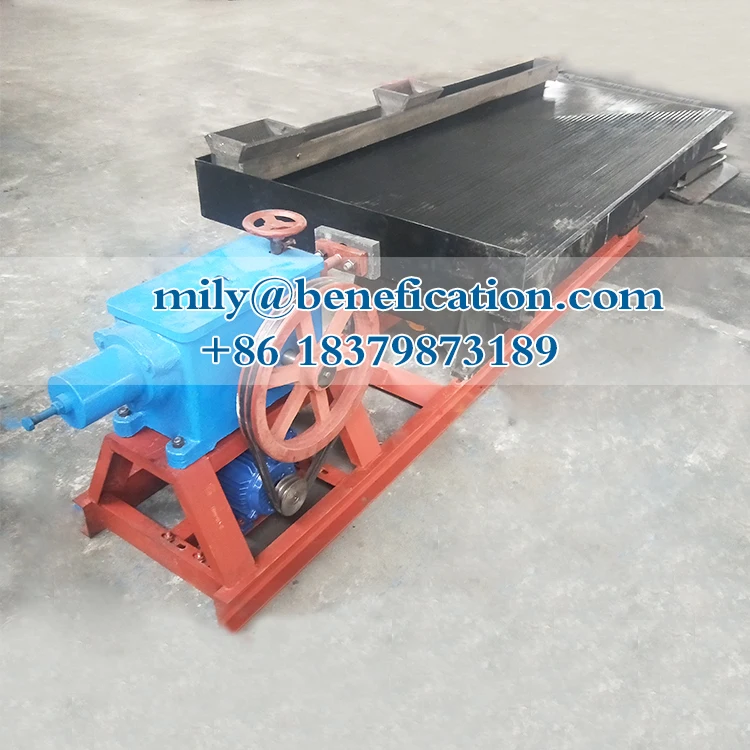

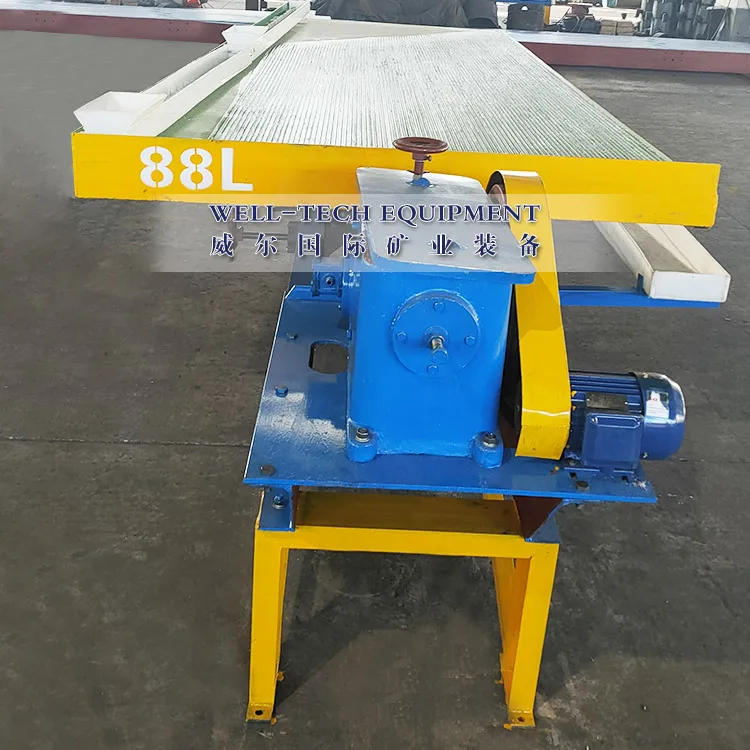

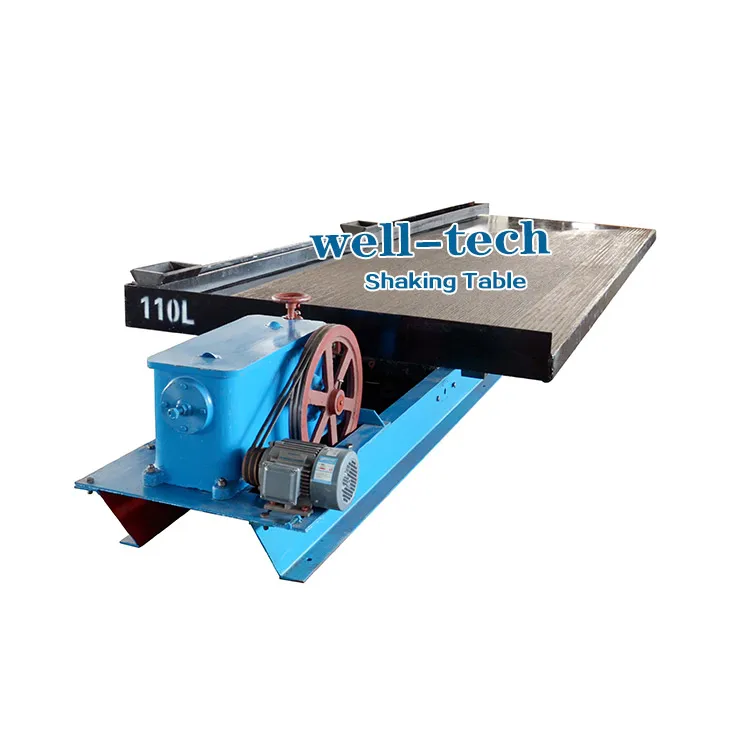

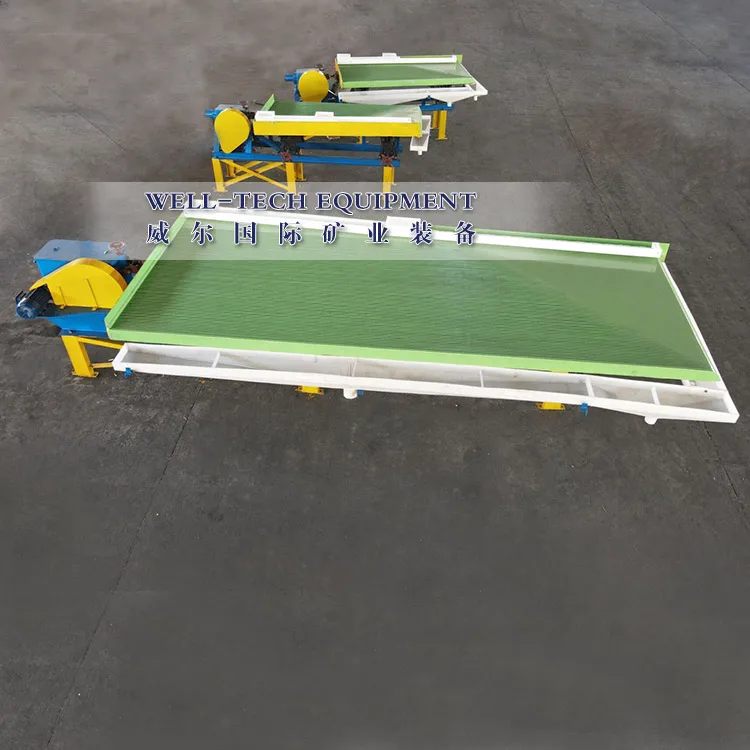

Single layer large/small shaking table

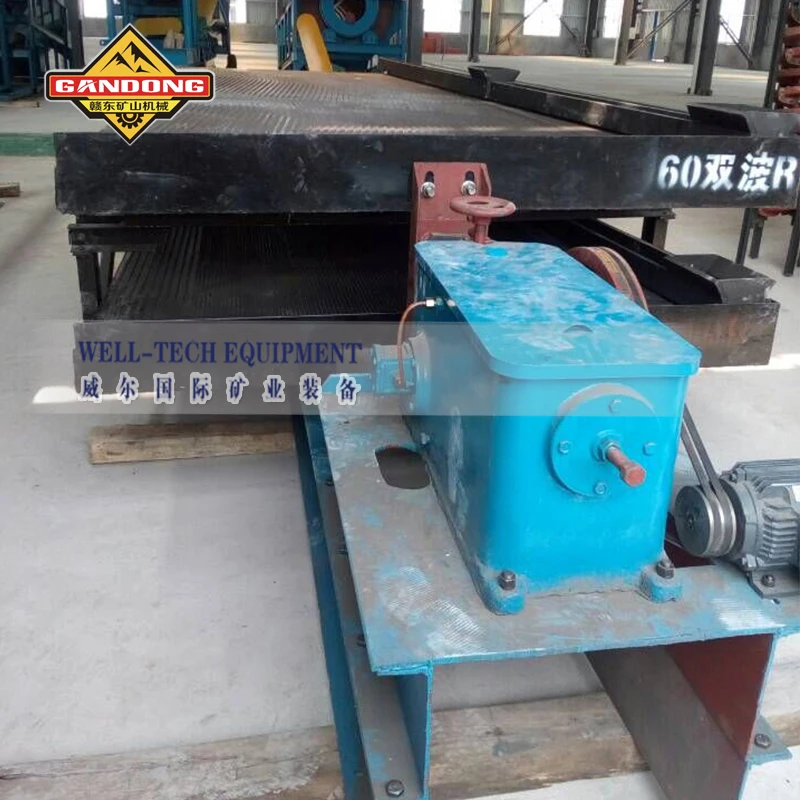

Double layer shaking table

Click for more information

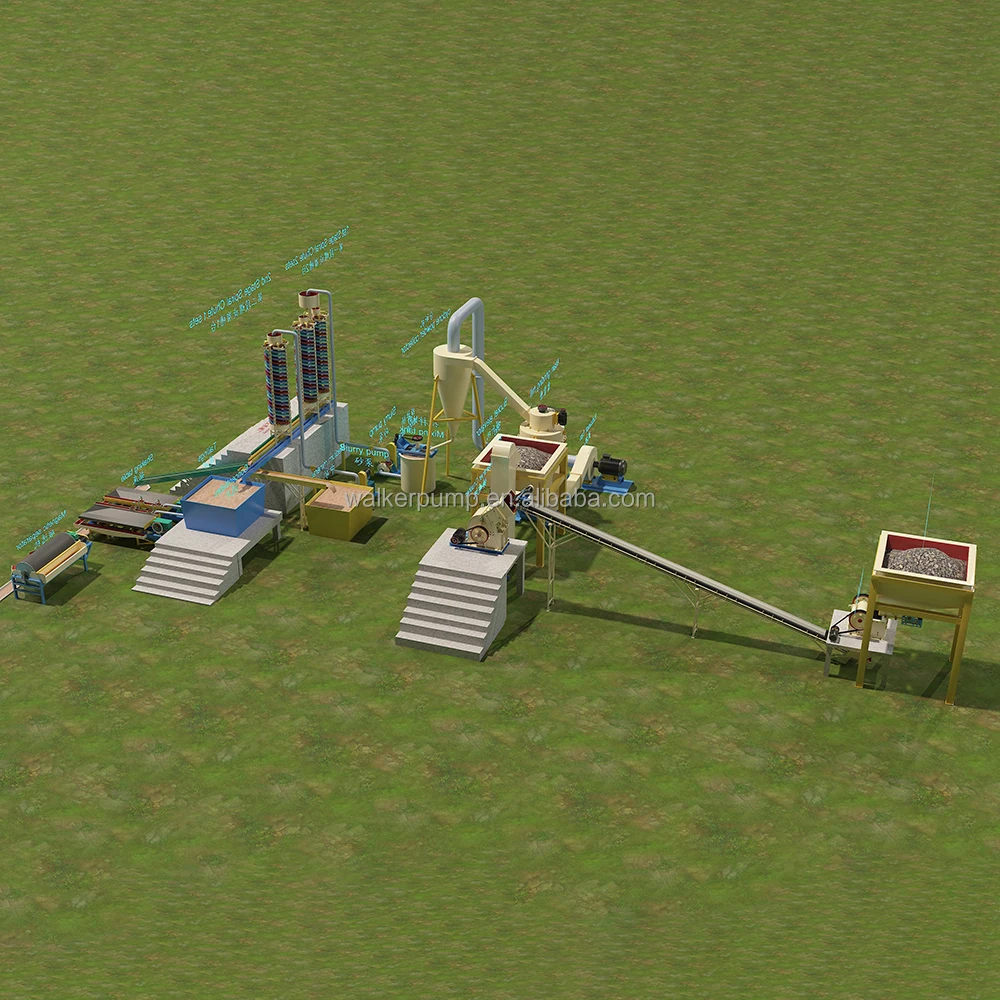

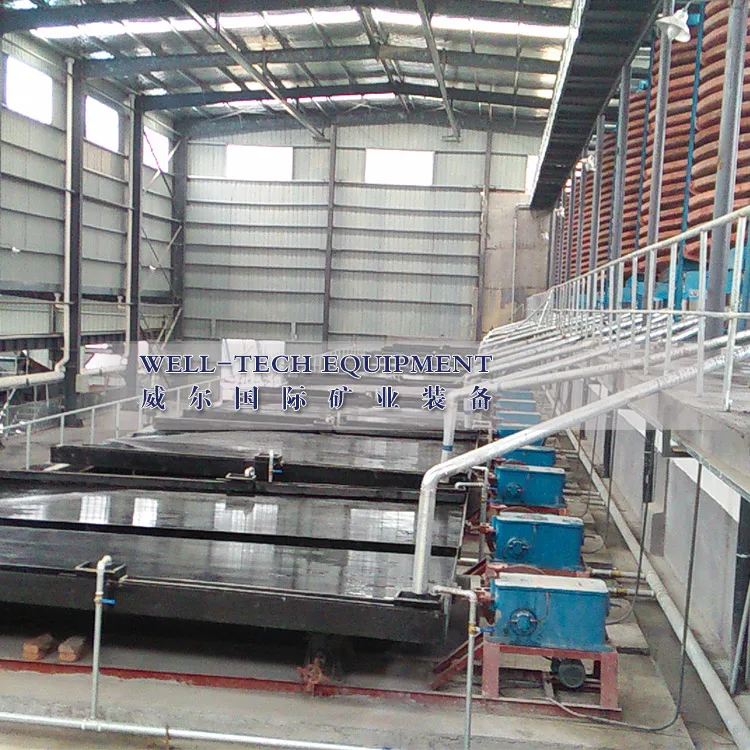

Mineral processing line case show

Our goal is to provide customers with one stop service in the field of mining, including the minerals in the mineral analysis, mineral processing test, engineering design, equipment production, equipment installation, equipment debugging and of technical training etc integrated services, through the provision of our perfect services to solve all customer's problem from his investment to his return.

Jiangxi Well-tech International Mining Equipment Co.,Ltd. (Gandong Mining Equipment) is a large mineral processing service company specialized in designing, manufacturing, installing and debugging of mining equipment as well as providing flow sheet design and course training of mineral processing.

Our company covers an area of 48,000 square meters, the workshop covers 20,000 square meters, we have various large modernized machinery process facilities, professional engineering team and installation team.

Now our company is the largest manufacturer and exporter of gravity dressing equipment in China.

FAQ:

Q:what’s the capacity of each deck?

A:Each deck capacity is about 0.3-1tph.

Q:what’s the feeding size to shaking table?

A:The max feeding size is 2mm.

Q:How many kind of deck type?

A:Coarse ore deck(46#),Fine sand deck(60#,88#),Slime deck(110#,120#138#).

Please provide your feeding size,then we will advice you most suitable deck type.

Q:Are you factory or trade company?

A:our company is the biggest manufacturer of gravity separator machine in China.we have 6 modem workshops,1sample test workshop,1office building.

Q:If your company can provide whole line machine?

A:Yes,From crushing or washing to get final products.

Q:What's capacity you can provide?

A:All machine can customization,we can provide from 1t/h-300t/h.

Q:If can arrange engineer come to worksite for installation?

A:Yes.

Pre-Sales Service
Inquiry and consulting support.

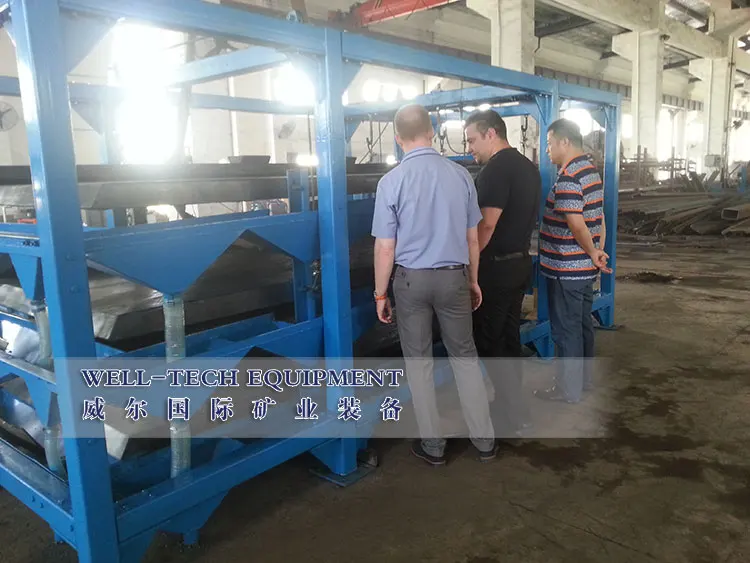

Sample testing support.View our Factory.

After-Sales Service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
