Металлическая труба для обработки 2 5 МПа 4 МПа

Описание и отзывы

Характеристики

PTFE Hose Braided With Stainless Steel

Specification:

Inner Tube:                       PTFE corrugated h

Outer:                               Stainless Steel 201, 304, 316 Braided

Working temperature:      -196 C to 460 C

Working Pressure:            0.6-6.4 Mpa

Size:                                  From ID 6mm -1200mm

Performance:

  The corrugated metal hose has many excellent features such as good flexibility, fatigue resistance, high and low temperature resistance, corrosion resistance, etc. It has a much higher life than other types of hoses (rubber hoses, plastic hoses).

Application

   1. Transport corrosive chemical or organic solvents. (for example: loading and unloading ammonia, acetone, etc.)
     2. It transports high temperature media such as high temperature gas and hot oil. (Example: hot steam, heat transfer oil, etc.)
     3. Transport low temperature or ultra low temperature media. (eg liquid nitrogen)
     4. Conveying water, steam, oil and other media in a high temperature environment. (Example: water vapor system and hydraulic system in coking, steel making, continuous casting equipment)
     5. Piping that requires damping or noise reduction. (eg: import and export of pumps)

Stainless Steel Braided Hose for 304 metal LPG / Gas with FNPT fittings on Both Ends.

Alias:
304 stainless steel corrugated pipe
4 points DN15 steam gas pipe WIth NPT Connector
Industrial metal braided high pressure and temperature explosion-proof Hose

Product : 304  stainless steel metal hose

Material: 304 stainless steel ;

Pipe surface: stainless steel braided mesh

Interior:  304 Metal ;inner tube and outer braided mesh, Connector: 304 material;

Temperature Range:196-400(℃);

Application: acid and alkali resistance, high and low temperature resistance, high pressure resistance, good ductility, industry, chemical industry, natural gas, food

Sanitation, biopharmaceuticals, pressure vessels, sewage treatment, vacuum treatment, oil lines, water lines, etc.

 SIZE:

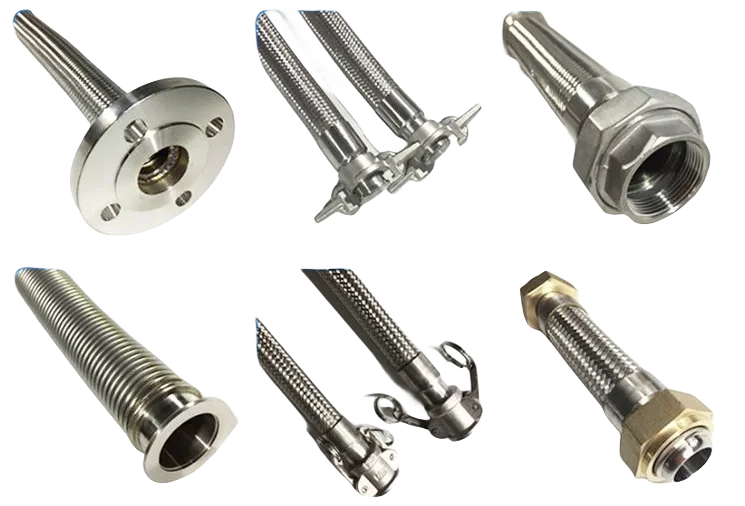

Connection Type

 1. Flange type

 2. Threaded thread type

    (Including:   A type flat head, C type bell mouth, D type round head, H type 24 ° taper buckle)

 3. Sanitary grade chuck type

 4.  Quick joint type

 5. Welded type

Size Details
