Сварочная проволока ERNiCrMo-10 сварочная проволока для Hastolloy B2 C276
4 072,35 ₽ - 4 225,85 ₽
Ws 5 14 MIG и TIG никелевый сплав сварочный стержень ERNiCrMo 3 ERNiCrMo 4 ERNiCr 3 ERNi 1 ErNiCrMo 13
- Категория: >>>
- Поставщик: Qinghe County Liansheng Welding Materials Co. Ltd.
Сохранить в закладки 1601018770845:
Описание и отзывы
Характеристики
Company Profile
Qinghe County Liansheng Welding Materials Co., LTD. founded in 2002, it is an enterprise specializing in the production and development of welding materials. The annual production of various types of welding electrodes, welding wires, fluxes, welding belts totaled more than 30,000 tons, and sales exceeding 650 million yuan.

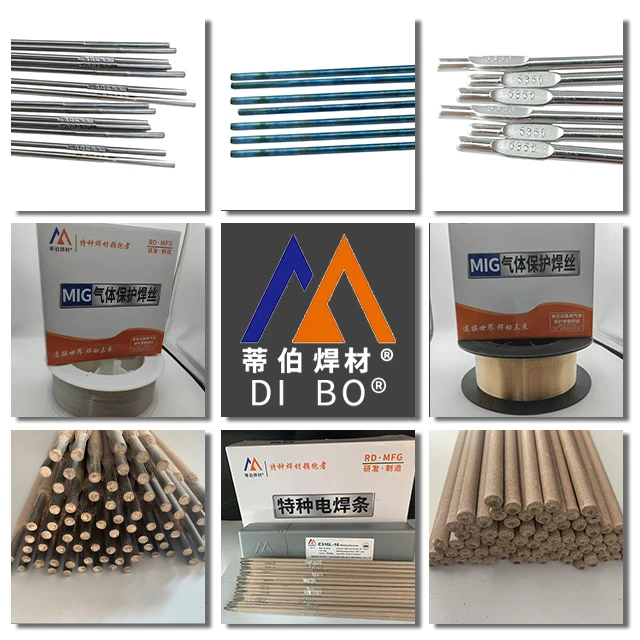

The main products are: carbon steel welding electrode, stainless steel electrode, cast iron electrode, wear-resistant surfacing electrode, nickel based electrode, cobalt alloy electrode, aluminum electrode, silver electrode, gas shielded welding wire, argon arc welding wire, flux-cored welding wire, submerged arc welding wire, stamping wire, welding strip, flux. All products have passed ISO9001:2015 certification,CCS certification,AB certification,DB certification,SGS certification.
The main products are: carbon steel welding electrode, stainless steel electrode, cast iron electrode, wear-resistant surfacing electrode, nickel based electrode, cobalt alloy electrode, aluminum electrode, silver electrode, gas shielded welding wire, argon arc welding wire, flux-cored welding wire, submerged arc welding wire, stamping wire, welding strip, flux. All products have passed ISO9001:2015 certification,CCS certification,AB certification,DB certification,SGS certification.
Our Advantages
Product Description
AWS A5.14 ERNiCrMo-3
Introduction：
The bead has good crack resistance and excellent high temperature and corrosion resistance.
The bead has good crack resistance and excellent high temperature and corrosion resistance.
Purpose：
The product is applicable for welding nickel-based and iron-nickel-based high-temperature corrosion-resistant alloys such as Inconel625, Incoloy800, Incoloy800H and Incoloy825, and can also be used for welding duplex stainless steel.
Precautions:
1. Before welding, impurities such as pollutants and oxides on the welding edge of the work piece and the surface of
the welding wire must be cleaned;
2. During the welding process, the weld gap should be cleaned in time to prevent slag inclusion;
3. Operating with small heat input as possible, and keeping the gap temperature below150℃.
the welding wire must be cleaned;
2. During the welding process, the weld gap should be cleaned in time to prevent slag inclusion;
3. Operating with small heat input as possible, and keeping the gap temperature below150℃.
Chemical Composition(%)
Test item | C | S | Mn | Si | P | Cr | Ni |
Example value | 0.048 | 0.004 | 0.14 | 0.12 | 0.002 | 21.97 | 65.07 |
Test item | Mo | Cu | Nb | Fe | Al | Ti | |
Example value | 8.43 | 0.025 | 3.57 | 0.72 | 0.041 | 0.043 |
Mechanical properties of deposited metal
Test item | Rm (MPa) | ReL/Rp0.2 (MPa) | A(%) |
Example value | 773 | 492 | 46.5 |
Reference current (DCEP/DCEN)
Diameter of welding wire mm | Φ0.8 | Φ1.0 | Φ1.2 | Φ1.6 |
Welding current A | 70-190 | 100-200 | 160-280 | 200-350 |
Weling series:
ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCr-7,ERNiCu-7,ERNi-1, ER70S-6.
ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCr-7,ERNiCu-7,ERNi-1, ER70S-6.
Standard:
AWS A5.14
Size: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM

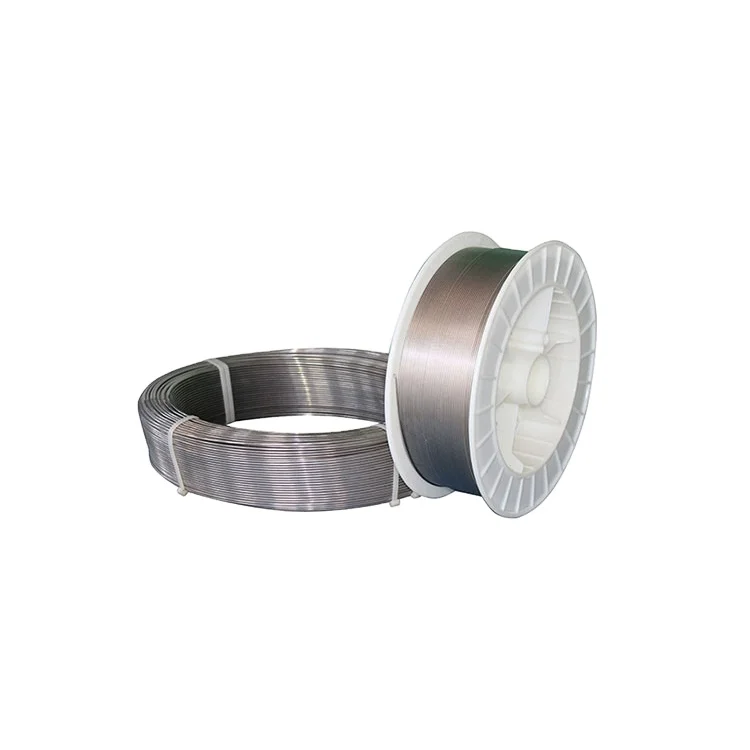

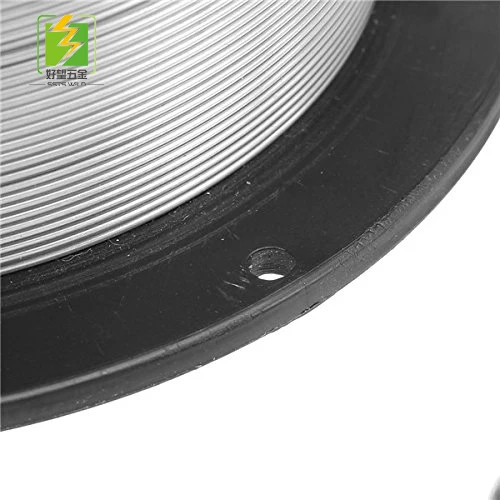

Form: MIG(15kgs/spool), TIG(5kgs/box),Strip
Size: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM
Form: MIG(15kgs/spool), TIG(5kgs/box),Strip
Specification
item | value |
Warranty | 3 years |
Customized support | OEM, ODM, OBM |
Place of Origin | China |
Hebei | |
Brand Name | DIBO |
Model Number | AWS A5.14 ERNiCrMo-3 |
Material | Nickel alloy |
Diameter | 0.8,0.9,1.0,1.2,1.6,2.0,2.4,3.0,4.0 |
Melting Point | standard |
Weight | 15kg/spool,5kg/box,20kg/carton |
Application | nickel-based and iron-nickel-based high-temperature corrosion-resistant alloys |
Flux Content | international standards |
Product name | Nickel alloy welding wire AWS A5.14 ERNiCrMo-3 |
Advantage | good corrosion resistance under many corrosive environmental conditions |
Sample | Avaiable |
Keyword | MIG TIG WELDING WIRE ROD |
OEM | Accept OEM |
Certification | ISO9001:2015 |
Color | Sliver |

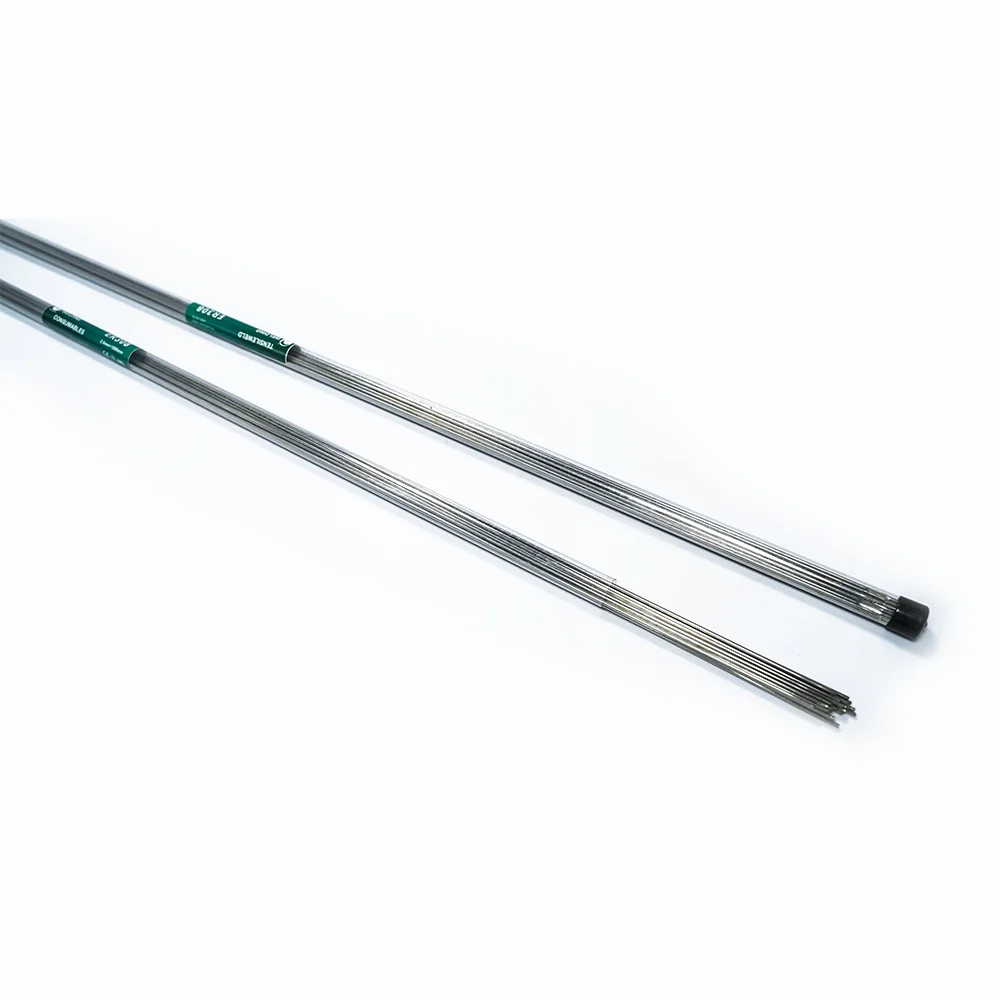

Shape | MIG spool and 1M Tig Rod |
Quality | High Quality(ISO) |
Type | Standard | Manin chemcial composition % | Typical application |
Nickel welding wire | A5.14 ERNi-1 | Ni ≥ 93 Ti3 Al1 Cr-- Mo-- | ERNi-1 is used for GMAW, GTAW and ASAW welding of Nickel 200 and 201, joining these alloys to stainless and carbon steels, and other nickel and copper-nickel base metals. Also used for overlaying steel. |
NiCuwelding wire | A5.14 ERNiCu-7 | Ni 65 Cr-- Mo-- Ti2 Other: Cu | ERNiCu-7 is a copper-nickel alloy base wire for GMAW and GTAW welding of Monel alloys 400 and 404. Also used for overlaying steel after first applying Layer of 610 nickel. |
CuNi welding wire | A5.7 ERCuNi | Ni 30 Cr-- Mo-- Other: Cu | ERCuNi is used for gas metal and gas tungsten arc welding. Can also be used by oxy-fuel welding of 70/30, 80/20, and 90/10 copper nickel alloys. A barrier layer of nickel alloy 610 is recommended prior to overlaying steel with GMAW weld process. |
NiCr welding wire | A5.14 ERNiCrFe-3 | Ni≥ 67 Cr 20 Mo--- Mn3 Nb2.5 Fe2 | Type ENiCrFe-3 electrodes are used for welding of nickel-chromium-iron alloys to themselves and for dissimilar welding between nickel-chromium-iron alloys and steels or stainless steels. |
A5.14 ERNiCrFe-7 | Ni: Rest Cr 30 Fe 9 | Type ERNiCrFe-7 is used for gas-tungsten-arc and gas-metal-arc welding of INCONEL 690. | |
NiCrMo welding wire | A5.14 ERNiCrMo-3 | Ni≥ 58 Cr 21 Mo 9 Nb3.5 Fe ≤1.0 | ERNiCrMo-3 is used primarily for gas tungsten and gas metal arc and matching composition base metals. It is also used for welding Inconel 601 and Incoloy 800. It can be used to weld dissimilar metal combinations such as steel, stainless steel, Inconel and Incoloy alloys. |
A5.14 ERNiCrMo-4 | Ni Rest Cr 16 Mo 16 W3.7 | ERNiCrMo-4 is used for welding nickel-chromium-molybdenum base materials to itself, steel and other nickel base alloys and for cladding steel. | |
A5.14 ERNiCrMo-10 | Ni Rest Cr 21 Mo 14 W3.2 Fe 2.5 | ERNiCrMo-10 is used for welding nickel-chromium-molybdenum base materials to themselves, steel and other nickel base alloys, and for cladding steels. Can be used to weld duplex, super duplex stainless steels. | |
A5.14 ERNiCrMo-14 | Ni Rest Cr 21 Mo 16 W3.7 | ERNiCrMo-14 is used for gas-tungsten-arc and gas-metal-arc welding of duplex, super-duplex and super-austenitic stainless steels, as well as nickel alloys such as UNS N06059 and N06022, INCONEL® alloy C-276, and INCONEL® alloys 22, 625, and 686. |
Packing & Delivery
15kg/spool/carton or 5kg/box , 20kg/carton
FAQ
1.who are we?
We are based in Hebei, China, start from 2010,sell to Southern Europe(14.00%),Northern Europe(12.00%),South Asia(9.00%),Southeast Asia(8.00%),Oceania(8.00%),Mid East(8.00%),Africa(7.00%),Eastern Europe(6.00%),Central America(6.00%),North America(5.00%),South America(5.00%),Western Europe(5.00%),Domestic Market(5.00%),Eastern Asia(2.00%). There are total about 200 people in our company.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Welding Electrode,Welding Wire,Weld Flux
4. why should you buy from us not from other suppliers?
we are the largest manufacturer of welding materials in China, with a national technology center, 20 technical r&d personnel and we have more than 500 product categories, sold in more than 60 countries.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card;
Language Spoken:English,Chinese,Spanish,Japanese,Russian
We are based in Hebei, China, start from 2010,sell to Southern Europe(14.00%),Northern Europe(12.00%),South Asia(9.00%),Southeast Asia(8.00%),Oceania(8.00%),Mid East(8.00%),Africa(7.00%),Eastern Europe(6.00%),Central America(6.00%),North America(5.00%),South America(5.00%),Western Europe(5.00%),Domestic Market(5.00%),Eastern Asia(2.00%). There are total about 200 people in our company.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Welding Electrode,Welding Wire,Weld Flux
4. why should you buy from us not from other suppliers?
we are the largest manufacturer of welding materials in China, with a national technology center, 20 technical r&d personnel and we have more than 500 product categories, sold in more than 60 countries.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card;
Language Spoken:English,Chinese,Spanish,Japanese,Russian
