Product Description
SMD led bulb pcb circuit board Ac85-265v aluminum substrate PCB bulb light board DOB
9W led bulb DOB board/ 12W LED bulb driver board DOB
Product Name | LED DOB driver board for bulbs |
Key words | LED PCB board for bulb |

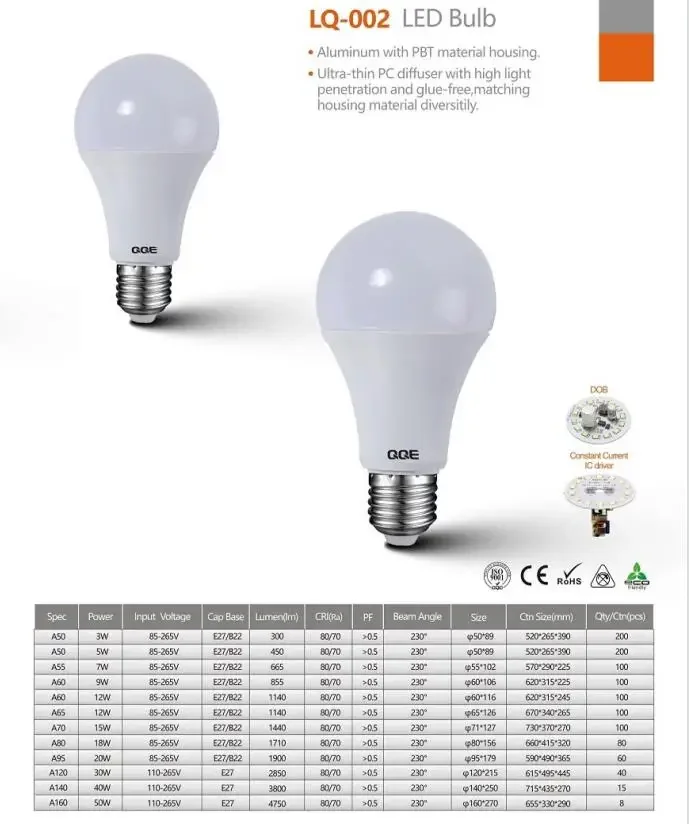

Power | A bulb: 3w 5w 7w 9w 12w 15w 18w 24w T bulb: 5w 7w 9w 13w 18w 20w 30w 40w 50w 60w |
For bulb size | A50 A55 A60 A65 A70 A80 A95 T50 T60 T70 T80 T100 T115 T125 T135 |
LED chip | SMD2835 LED chip |
Material for board | 0.6/0.8/1.0/1.2 thickness Aluminum |
Driver on board | IC driver |
PF | 0.5/0.9 optional |
CCT | 2700-10000K |
Voltage | AC85-265V / DC 12-36V |

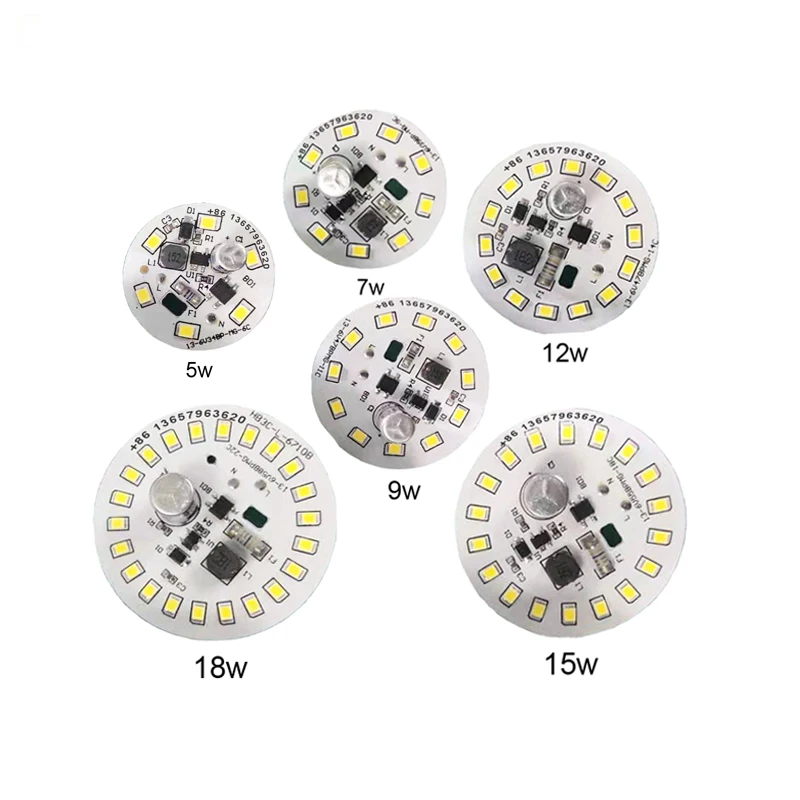

5W bulb DOB board/ 7W bulb driver board/ 15W bulb PCB board/18W bulb circuit board
20w/30W/40W/50W LED T bulb DOB board

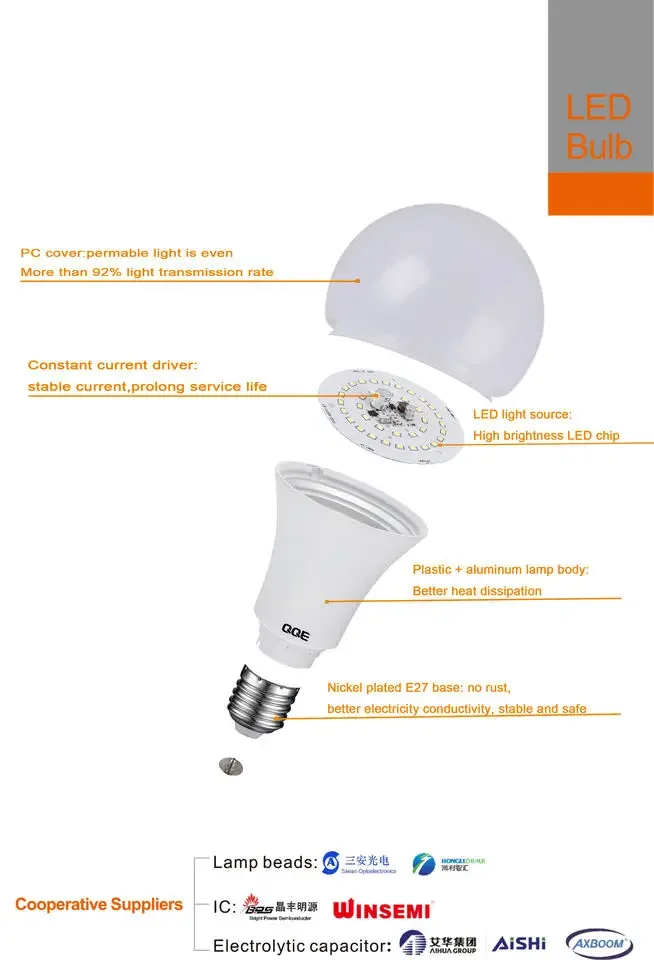

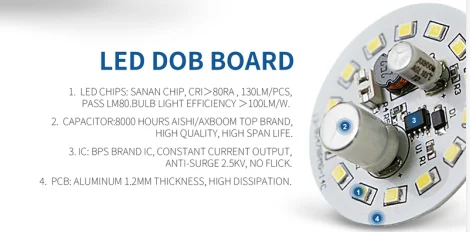

LED bulb DOB board details as below picture, high quality.
Certificate
More certificates, please feel free to contact me +86 13657963620
Related Products
Company Introduction
Top Quantum Lighting Tech. Co.,Ltd. was established in 2009 specializing in the production of energy Saving Lamps, led panel light, led down light, led bulb, T5 and T8 led tube. We have two production base, one is in Guangdong (headquarter) covers 40,000 square meters and another is in Jiangxi 150,000 square meters. We have advanced production, research, and testing equipment including Integrated Sphere (for electrical, illumination, CCT parameters), High-low temperature(-40 to 80 Celsius degree),Salt-spray, EMC, Dust-proof, Water-proof testing machine.All of our products have got CQC, CE, ROHS certificate. QQE is our brand. QQE has an excellent marketing network: At present, with 30 offices, more than 200 brands of the core dealer in Chinese domestic market. At the same time, the products are exported to Europe, the Middle East, South Asia, Southeast Asia, more than 20 countries and regions.
Packing&Shipping
FAQ
Q1: What is the Warranty for your lamps?
A1: For Energy saving Lamps, we have 1.5 years warranty and two years for Led lights. If any quality problems on our side occurred in this period, we will take on the shipping cost and replacement.
Q2: What is colour temperature?
A2: QQE offer lamps in warm, natural, pure and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is, the warmer the light given by the light.
Warm white = 2700K-3200K Natural white = 4000K-4500K Pure white = 5000K-5500K Cool white = 6000K-6500K
Q3: What is CRI?
A3: CRI is a figure which feedback the real objects colors. The higher CRI then higher cost. The CRI of our light is 80Ra .But there are some suppliers write a high data to attract clients, please note.
Q4: Is there cheap shipping cost to import to our country?
A4: For small order, express will be best. And for bulk order, sea ship way is best but take much time. For urgent orders, we suggest via air to airport plus our ship partner send to your door.
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
Q6: Do you have OEM or ODM experience?
A6: Yes, we focused on lighting for years and have lots of big cases. we have ability and will be happy to be your official supplier.
Q7: How about the after sale service?
A7: Customers” satisfaction is always our No. 1 priority. If you have any problem or doubt about our product or policy, welcome to contact us by email or phone. We’ll respond you within 24 working hours.
A1: For Energy saving Lamps, we have 1.5 years warranty and two years for Led lights. If any quality problems on our side occurred in this period, we will take on the shipping cost and replacement.
Q2: What is colour temperature?
A2: QQE offer lamps in warm, natural, pure and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is, the warmer the light given by the light.
Warm white = 2700K-3200K Natural white = 4000K-4500K Pure white = 5000K-5500K Cool white = 6000K-6500K
Q3: What is CRI?
A3: CRI is a figure which feedback the real objects colors. The higher CRI then higher cost. The CRI of our light is 80Ra .But there are some suppliers write a high data to attract clients, please note.
Q4: Is there cheap shipping cost to import to our country?
A4: For small order, express will be best. And for bulk order, sea ship way is best but take much time. For urgent orders, we suggest via air to airport plus our ship partner send to your door.
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
Q6: Do you have OEM or ODM experience?
A6: Yes, we focused on lighting for years and have lots of big cases. we have ability and will be happy to be your official supplier.
Q7: How about the after sale service?
A7: Customers” satisfaction is always our No. 1 priority. If you have any problem or doubt about our product or policy, welcome to contact us by email or phone. We’ll respond you within 24 working hours.
