CT 8681N/8681FA USB Высоковольтная машина для тестирования проводимости кабеля
- Категория: >>>
- Поставщик: Hunan Gonoava Instrument Co. Ltd.
Сохранить в закладки 1601018907963:
Описание и отзывы
Характеристики
Products Description
CT-8681N/8681FA USB High voltage cable conduction testing machine
Boot self-diagnosis, self-correction
The system can automatically scan and find points
The system provides advanced transient short-circuit/on-circuit testing
Can be used for wire single side test/insulation test
Max AC1000V/DC1500V test voltage
Up to 256 test points can be measured
Provides 320×240 resolution graphic LCD display
Linearity and safety tests are available
Fully segmented continuous testing
Provides a variety of interfaces for a variety of applications
The system provides statistics and computer connection printing function
The system can automatically scan and find points
The system provides advanced transient short-circuit/on-circuit testing
Can be used for wire single side test/insulation test
Max AC1000V/DC1500V test voltage
Up to 256 test points can be measured
Provides 320×240 resolution graphic LCD display
Linearity and safety tests are available
Fully segmented continuous testing
Provides a variety of interfaces for a variety of applications
The system provides statistics and computer connection printing function
Specification
CT-8681N/8681FA USB High voltage cable conduction testing machine
item | symbol | Test range | |
Resistance | R | 0.1Ω－10MΩ | |
Capacitance | C | 10pF－1μF | |
Diode test | D | 0.0V－7.0V | |
Shielding Rate (For/+) | Shielding Rate | 0.0－100.0 | |
Conduction | COND | 0.1Ω－50.0Ω | |
Insulation resistance I. | I.S | 1MΩ－1000MΩ | |
High voltage (leakage current) | IL | 0.1mA－5mA | |
Off/Short circuit | O/S | 2KΩ－50ＫΩ | |
Instant break short circuit test | |||
Instantaneous conduction test | |||
Single side test | |||
Short-circuit end point judgment | |||
Advanced function | Programmable continuous testing | ||
Automatic learning and self-finding | |||
self-diagnosis | |||
Self-correcting to zero | |||
Statistics display and print function | |||
Basic accuracy | ±1% | ||
Test scan mode | Automatic/manual scan can be switched | ||
Measurement speed | 0.1Sec base value | ||
Measurement frequency and signal/voltage | 100～100KHz,1Vac | ||
Low voltage measurement signal | 5Vdc,50mA Max | ||
Accuracy±0.5% | |||
High voltage (leakage current) test | 100～500Vac(NA model) | ||
100～1000Vac(FA model) | |||
0.01～60Sec Delay This parameter is set | |||
High voltage insulation test | 200～1000Vdc(NA model) | ||
200～1500Vdc(FA model) | |||
Accuracy±0.5% | |||
Display/Sound device | 320×240analytical graphic LCD display | ||
6 digit digit display | |||
Pass/Fail LED Red line indicator/screen display/sound | |||
Measuring contacts | 128 Measuring contacts independently | ||
256 contacts can be selected | |||
High voltage correction positive and negative output | |||
Automatically find a terminal | |||
Control panel | System/Quick/Edit/Function/button group | ||

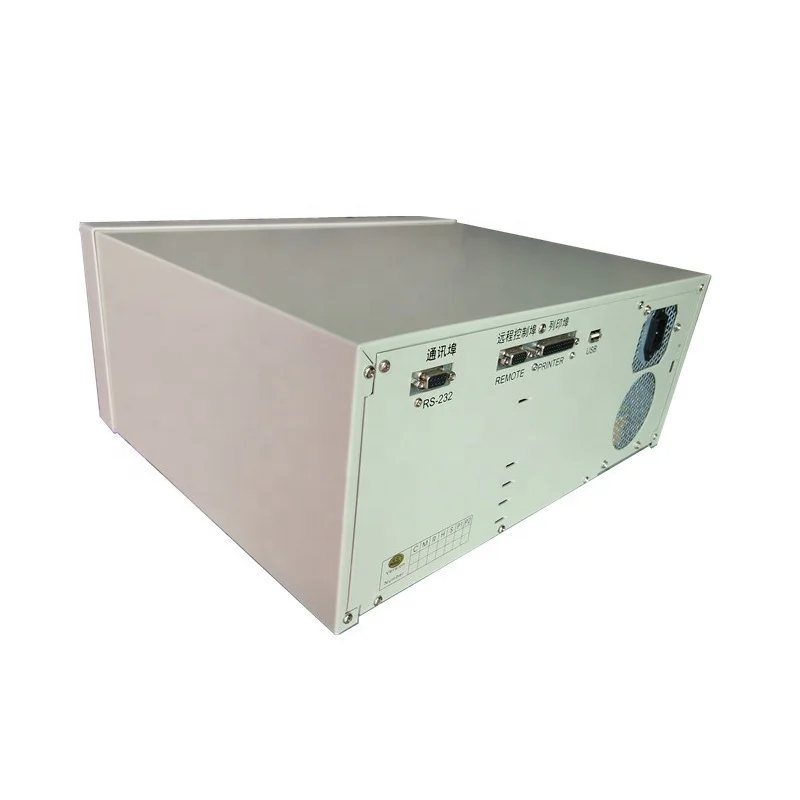

Interface | RS-232 communication port | ||
Printer port | |||
Remote control port | |||
Memory device | 512KB SRAM built in | ||
Built-in backup battery | |||
Power supply | 115/230Vac switchable voltage input ±10% | ||
60/50Hz | |||
attachment | Automatically find a probe | ||
Remote control cable (optional) | |||
RS-232 Communication Cable (Optional) | |||
Fixture line | |||
Power cord | |||
User manual | |||
Temperature and humidity | 15℃～35℃ | ||
Relative humidity ≤75%RH | |||
Dimensions (width × height × depth) | 425×190×350mm | ||
Weight | 14Kg(without accessories) | ||
Wire specifications | up to 1μF | ||
CT-8685NA | AC500V/DC1000V | ||
CT-8685FA | AC100V/DC1500V | ||
CT-8681FA | AC500V/DC700V | ||
/C2 | C2 Select 256 test points | ||
CT-8681N/8681FA USB High voltage cable conduction testing machine
Our Advantages
Company Profile
HUNAN GONOAVA INSTRUMENT CO LTD Professionally supply kinds of testing machines for different industries,it is a collection development,research,production and sales of high accuracy testing machines,products meet UL,ASTM,JIS,ISO,GB,TAPPI,IEC,EN,DIN BS and other domestic and international standards.Provide customers with better overall laboratory solution,including lab design,machine customize and drawing, instrument selection,installation,
training,maintenance,become one stop for testing instrument and machines.
We have many years export experience,products are exported more than 50 countries,welcome abroad instruments dealer to become our sales agent.Our products is widly used in many industries,such as metal,gold,Ore,Raw material,plastic,packaging,paint,printing ink,leather,shoes,fabric,keyboard,Electronic product,auto and motorcycle ,Toys, mobile phone computer ,Sports equipment,Electroplating industry.
training,maintenance,become one stop for testing instrument and machines.
We have many years export experience,products are exported more than 50 countries,welcome abroad instruments dealer to become our sales agent.Our products is widly used in many industries,such as metal,gold,Ore,Raw material,plastic,packaging,paint,printing ink,leather,shoes,fabric,keyboard,Electronic product,auto and motorcycle ,Toys, mobile phone computer ,Sports equipment,Electroplating industry.
Exhibition
Certifications
Packing & Delivery
FAQ
Q: How to buy your products ?
A: We have some products in stock , you can take away the products after you arrange the payment ; If we don’t have the products in stock you want, we will start production once getting the payment.
A: We have some products in stock , you can take away the products after you arrange the payment ; If we don’t have the products in stock you want, we will start production once getting the payment.
Q: What’s the warranty for the products ?
A: The free warranty is one year from the date of commissioning qualified.
A: The free warranty is one year from the date of commissioning qualified.
Q: Can we visit your factory ?
A: Of course, welcome to visit our factory if you come to China.
A: Of course, welcome to visit our factory if you come to China.
Q: How long is the validity of quotation ?
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the price fluctuation of raw material in the market.
A: Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately as the price fluctuation of raw material in the market.
Q: What’s the production date after we confirm the order ?
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production.
A: This depends on the quantity. Normally, for the mass production, we need about one week to finish the production.
Похожие товары
Подлинный новый экскаватор PC3000-6 главный гидравлический насос 708-2K-00024 708-2K-00013 708-2K-00014 PC3000 главный насос
Лидер продаж FDQ-V11P с открытым коллектором с напряжением 12-24 в цифровой дисплей волоконно-оптический усилитель волоконно-оптический датчик
20,00 $ - 20,90 $
RT0-100A 80A 380V 400V высокая отключающая способность низковольтный предохранитель
Высокое качество Shoto SDC10-Box 5 литиевая батарея 5.12kwh стеллаж батарея
90 164,70 ₽ - 94 149,88 ₽
12 14 16 18 дюймов детский велосипед От 3 до 6 лет колесико-стабилизатором для девочек велосипеды для верховой езды для студентов, детей, подарок на день рождения для детей велосипед
10,00 $ - 13,50 $
Разъем D SUB DSUB 21wa4 21W4
0,19 $ - 2,99 $

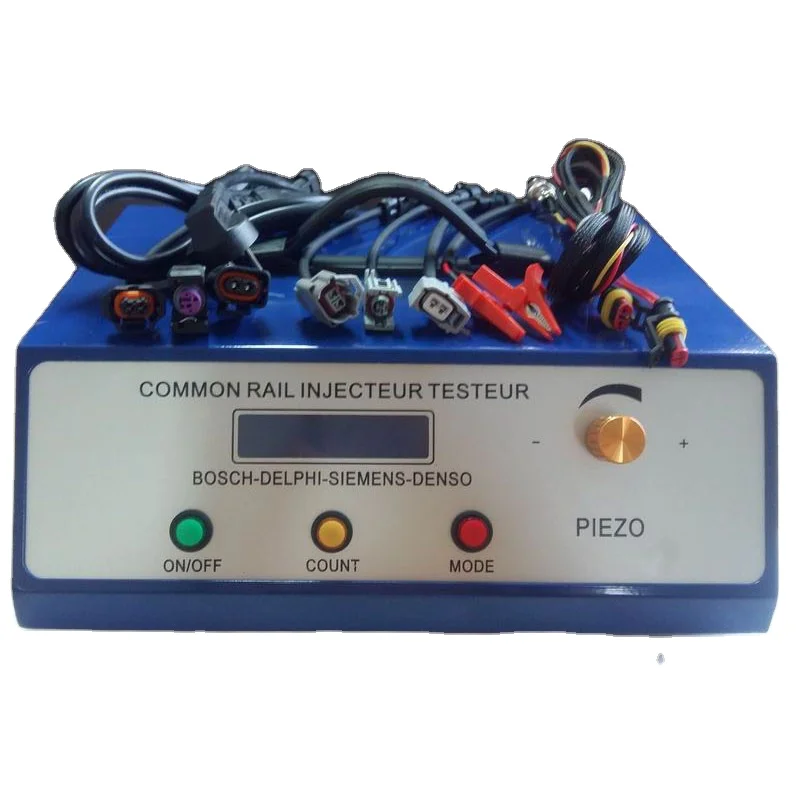

Тестер форсунки с общей топливной магистралью
