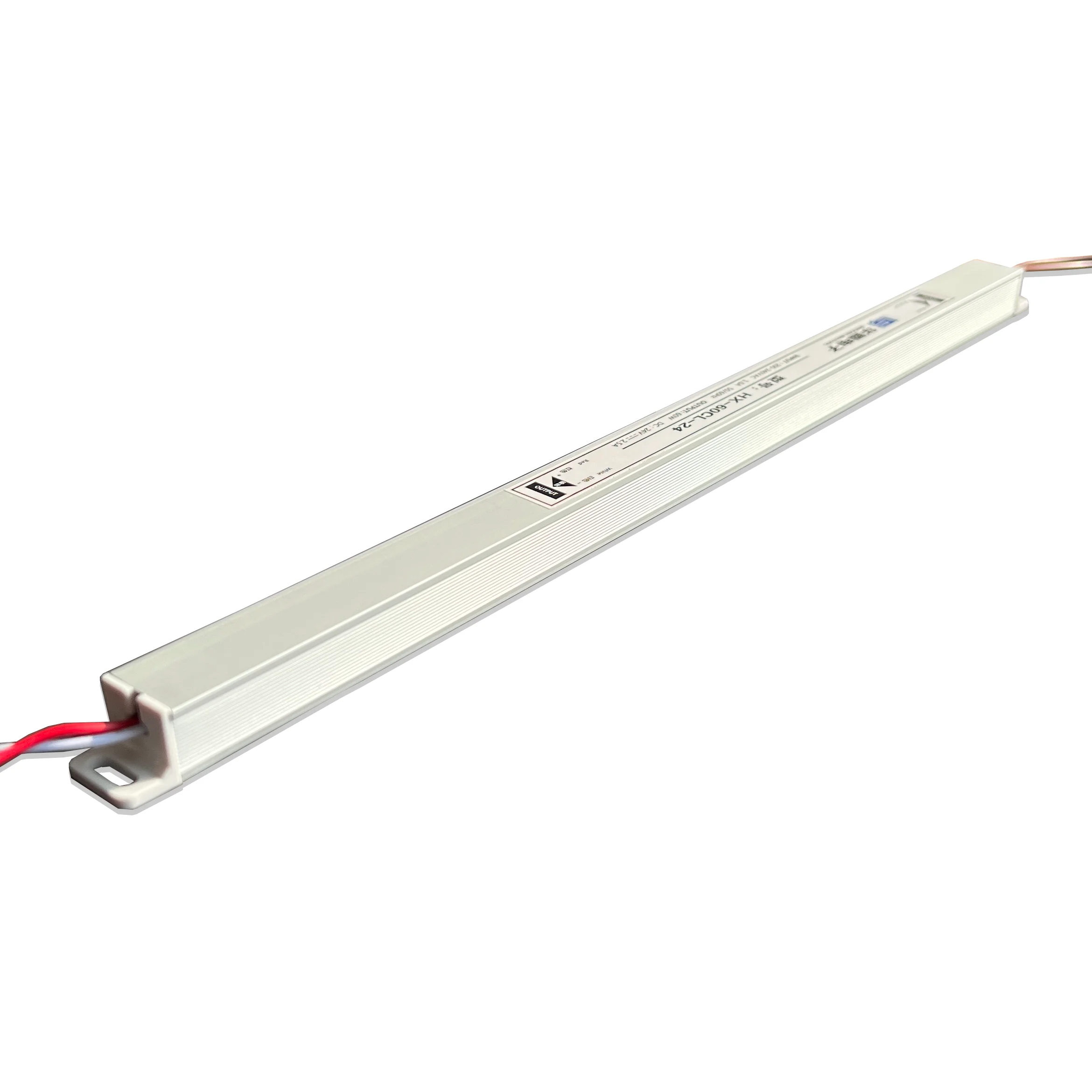

HX 60CL 12 новое качество ультра тонкий 60 Вт импульсный источник питания DC 12 В 5A для светодиода 15 мм толщиной 3 года гарантии

Сохранить в закладки 1601019387214:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

Model:HX-60CL-12


1. High quality series with 3 years warranty ;


2. Input: 180-264VAC,  output: 12V/5A, efficiency>84%, power 60W Max.


3. Size:353*18*15.5mm


4. Protection for: short circuit, overload, over-current


5. Application to: Security systems, monitoring systems, Advertising board, Equipment, Automation systems LED Products, Advertising Logo, Lightbox etc.


6.Professional team will follow the whole after-sale.


7.2~3 times burn-in tests with 100% full load for more than 24 hours.





* New Quality Ultra Slim 60W Switching Power Supply,


* DC 12V 5A for LED Light Box 15mm thick,


* 3 Years Warranty , High efficiency, High Stability

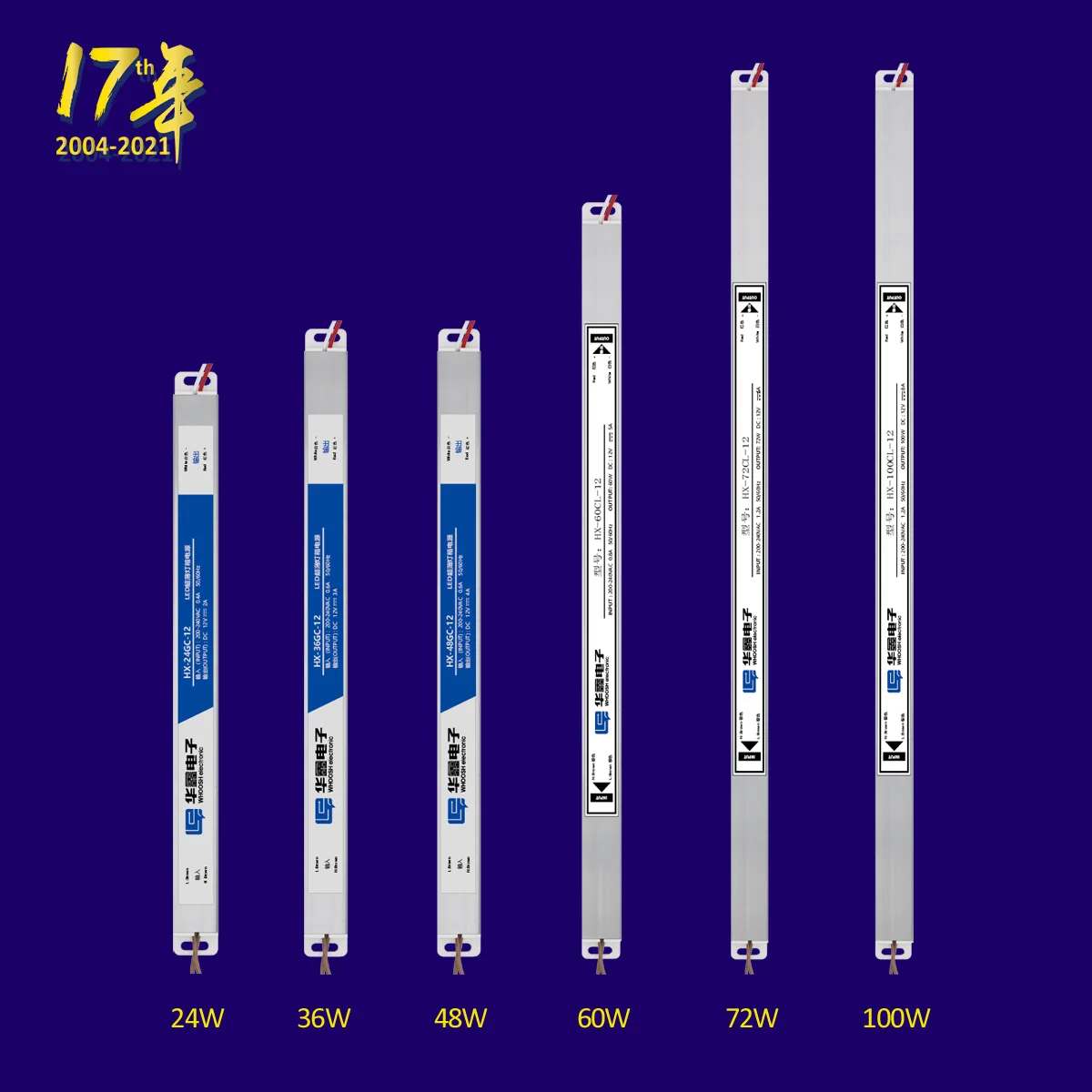

Specifications





















































































































































































































Model

HX-24GC-12


HX-24GC-24



HX-36GC-12


HX-36GC-24



HX-48GC-12


HX-48GC-24



HX-60CL-12


HX-60CL-24



HX-72CL-12


HX-72CL-24



HX-100CL-12


HX-100CL-24


OutputDC12V/ 24V12V/ 24V12V/ 24V12V/ 24V12V/ 24V12V/ 24V
Rated Current2A/ 1A3A/ 1.5A4A/ 2A5A/ 2.5A6A/ 3A8.33A/ 4.17A
Current Range

0-2A


0-1A



0-3A


0-1.5A



0-4A


0-2A



0-5A


0-2.5A



0-6A


0-3A



0-8.33A


0-4.17A


Rated Power24W36W48W60W72W100W
Ripple Wave & Noise (Max.)<300mVp-p<300mVp-p<300mVp-p<300mVp-p<300mVp-p<300mVp-p
Voltage Accuracy±5%±5%±5%±5%±5%±5%
Linear Adjustment Rate±3%±3%±3%±3%±3%±3%
Load Regulation±5%±5%±5%±5%±5%±5%
Start up, Rise Time400ms400ms400ms400ms400ms400ms
Turn on Delay Time<2s<2s<2s<2s<2s<2s
InputVoltage Range180-264V AC180-264V AC180-264V AC180-264V AC180-264V AC180-264V AC
Frequency Range50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz
Efficiency>84%>84%>84%>84%>86%>88%
AC Current0.4A max.0.6A max.0.8A max.0.8A max.1.2A max.1.2A max.
Inrush Current (240V AC)<40A<40A<50A<50A<50A<50A
ProtectionOver-load110%-120%110%-120%110%-120%110%-120%110%-120%110%-120%
hiccup mode, the load abnormal condition can be automatically restored after removal
Over-voltagethe power supply will lock when over voltage, must close and restart AC source
Short-circuithiccup mode protection, the power supply will be auto recovered when short circuit faults remove.
EnvironmentTemperature-20℃-40℃
Dropping Packed600mm±10mm
Working Humidity5%(0℃)~90%(40℃)RH, 72Hrs, Full load, Normal operating.
Storage Temperature-20℃-80℃
SafetySafetyDesign by IEC60950 standard
StandardFCC class B / EN55022 class B/ GB9254-1998, GB17625.1-2003
OthersSize(mm)271*18*15.5293*18*15.5353*18*15.5413*18*15.5

N.W(kg)


Packing(pcs/ctn)



87g


168pcs



95g


168pcs



115g


168pcs



148g


132pcs

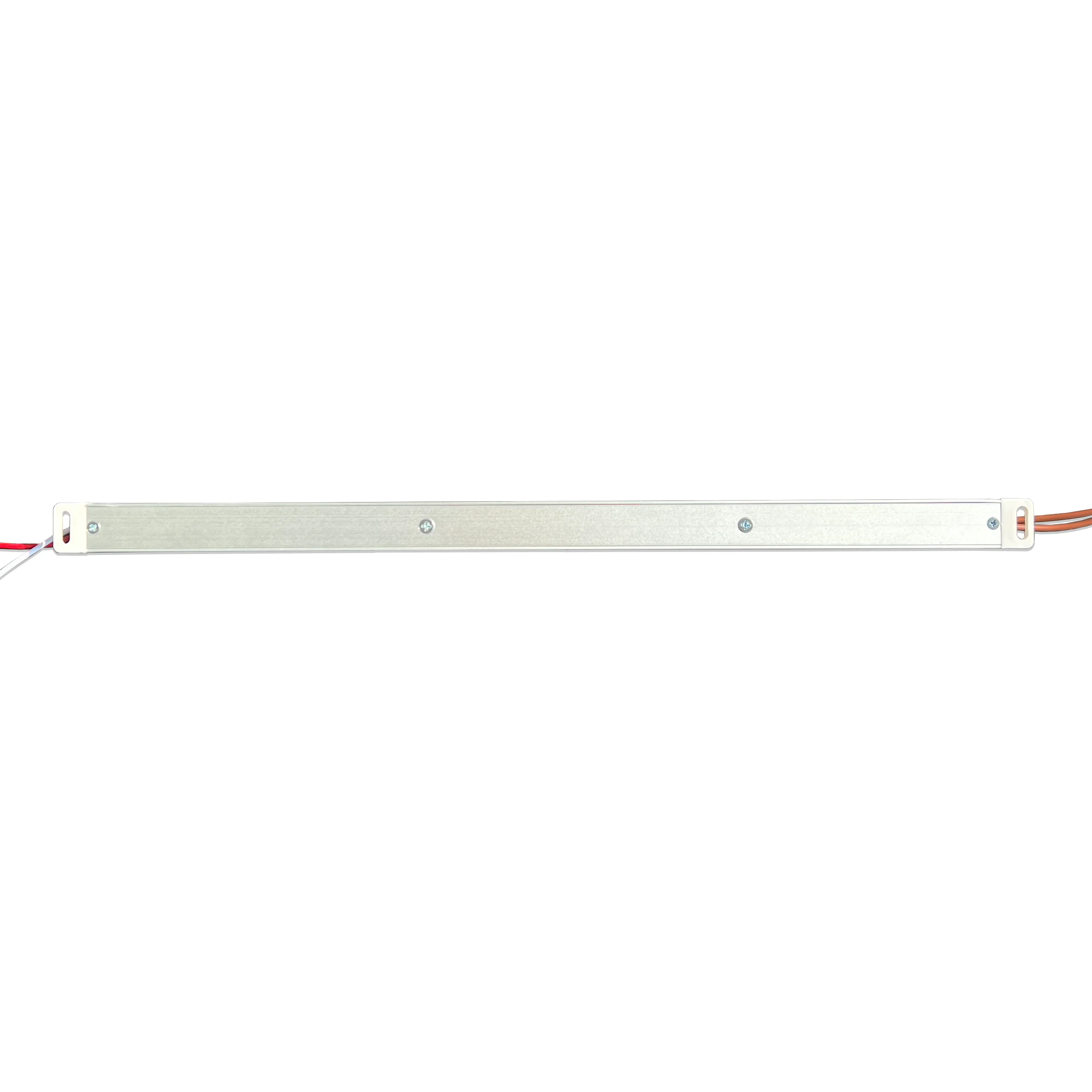

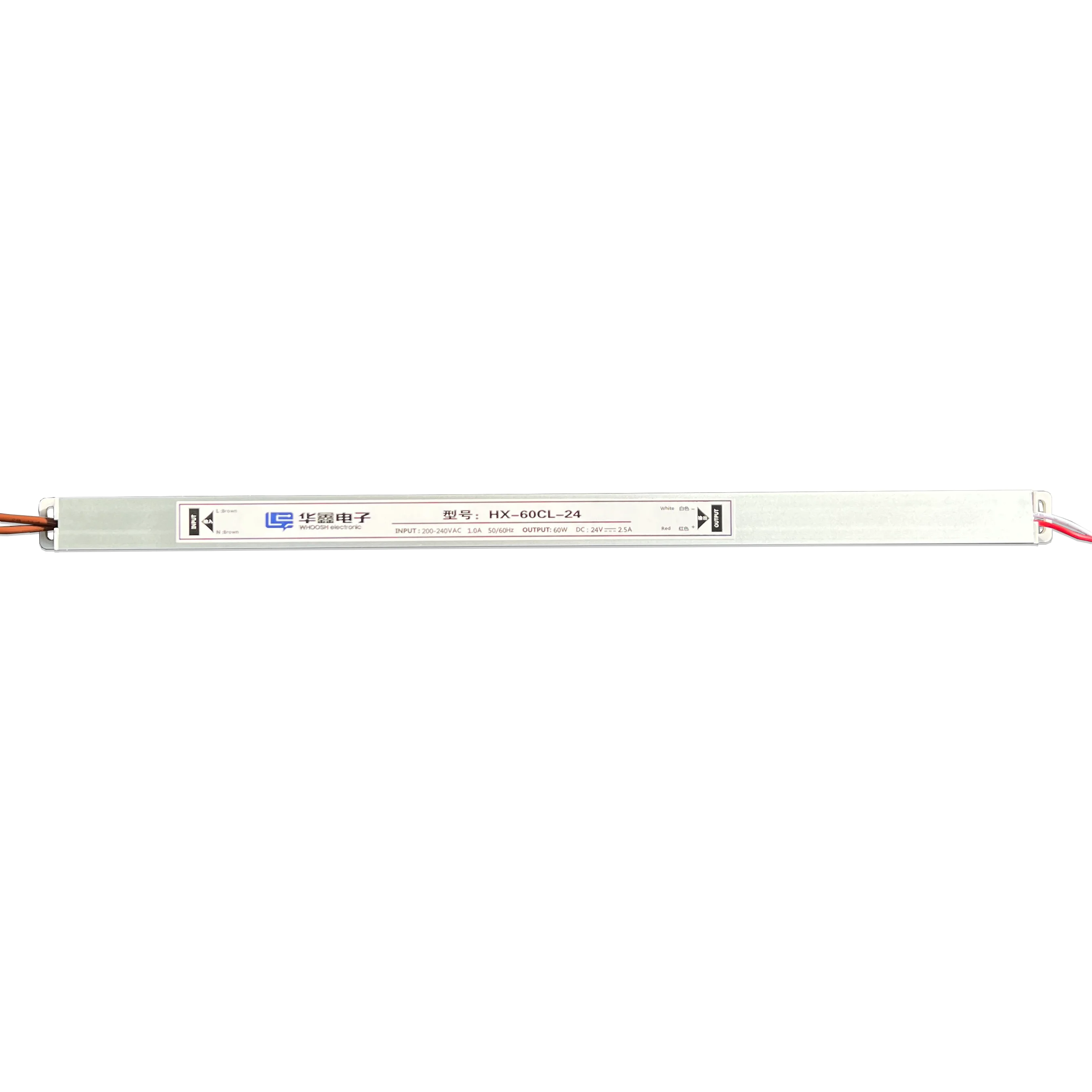

More Pictures

 60CL1000.png60CL 11000.png60CL 31000.png60CL 21000.png_20231026105831.jpg











Company Information





Whoosh Electronics was founded in 2004 and factory area of more than 10000 square meter. It has advanced production equipment and high-quality management team. WHOOSH Electronics has passed the ISO9001:2015 quality management system, and its products have successively passed the 3C, CE, KC and other domestic and foreign certification. The company has more than 400 employees, including more than 50 R&D and engineering technicians, equipped by EMC lab, so as to provide customers with stable and reliable design solutions and products.


Products are widely used in industrial automation, LED lighting, illumination and security devices, medical equipment and other fields.


With a highly rigorous working attitude, Whoosh Electronics is committed to becoming a global famous supplier of power supply with unremitting efforts.












This is our special research and development center, strong and professional, to ensure the quality of products










This is our 7 production lines, capable of producing 2w products per day, striving for stability, accuracy, and efficiency










We have a strong inventory strength, so that you can ship quickly without too much waiting













We have passed the ISO9001:2015 quality management system and the 3C, CE, KC and other domestic and foreign certification.


































Trade Shows


We have extensive experience and have participated in numerous domestic and international exhibitions of all sizes








FAQ





F&Q


Q1: Can I get samples?
A: Yes, 1pc is available if needed.

Q2: What’s your MOQ?
A: Normally the MOQ for commercial order is 1 carton for each kind of product.
However, 1pc can be available to support for your trail order, welcome to inquiry.

Q3: Is there any discount?
A: Of course. Price is based on your quantity. We are committed to supplying best price for every customer.

Q4: How about delivery time?
A: 1-25days which depends on detail items and quantity.

Exporting port:
Guangzhou, Shenzhen, Shanghai, Yiwu, Lianyungang, Tashkent, etc. Guangzhou is the nearest port.



After-sales service:
A strong factory since 2004 and 400 employees, top 5 biggest manufacturer in China to support the aftersales.
We will always behind you to support you with less than 1% natural defective rate.

Payment term:
T/T, Western Union, PayPal, or negotiate when order.
