Product Description
Hot Selling Alfalfa Powder Electric Screening Screen, Stainless Steel Round Vibrating Screen
Product Introduction

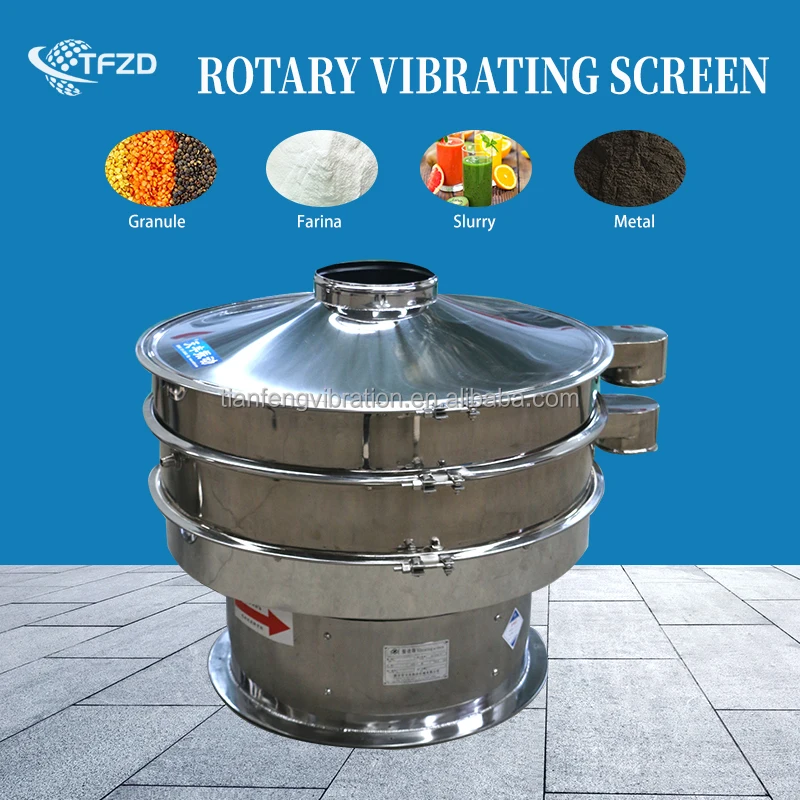

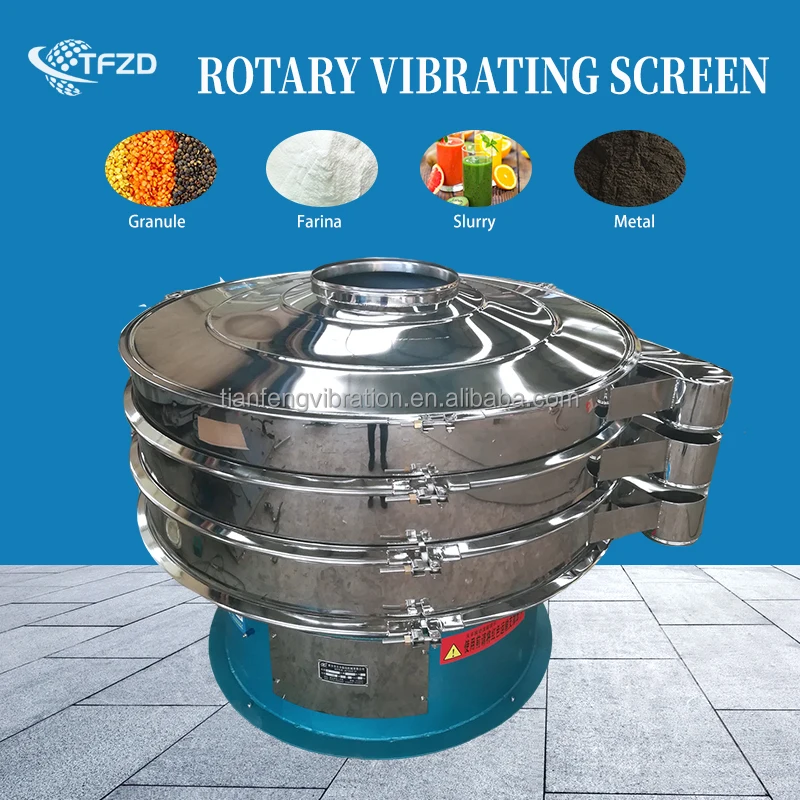

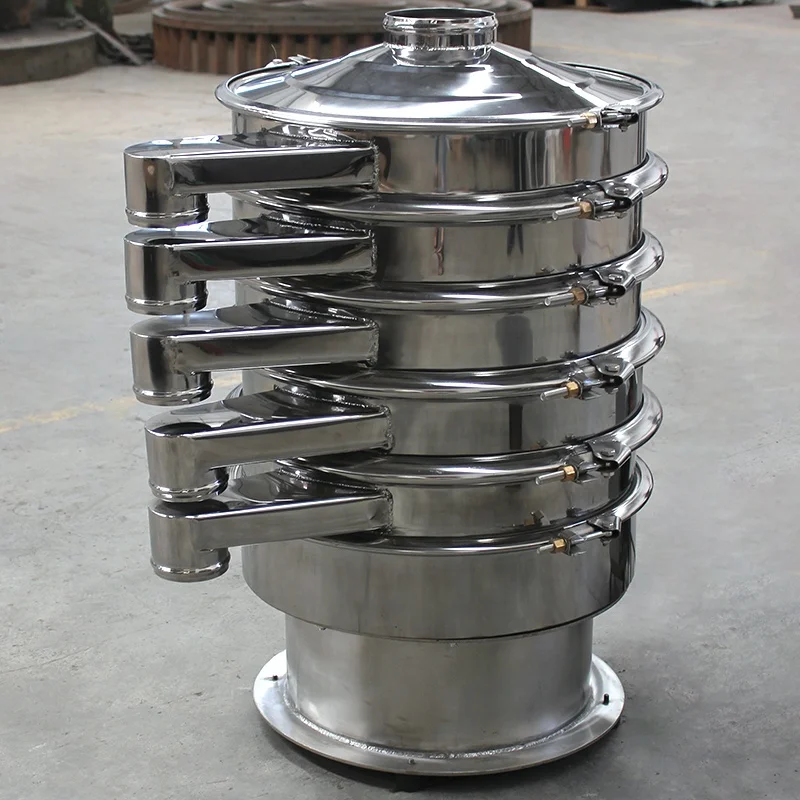

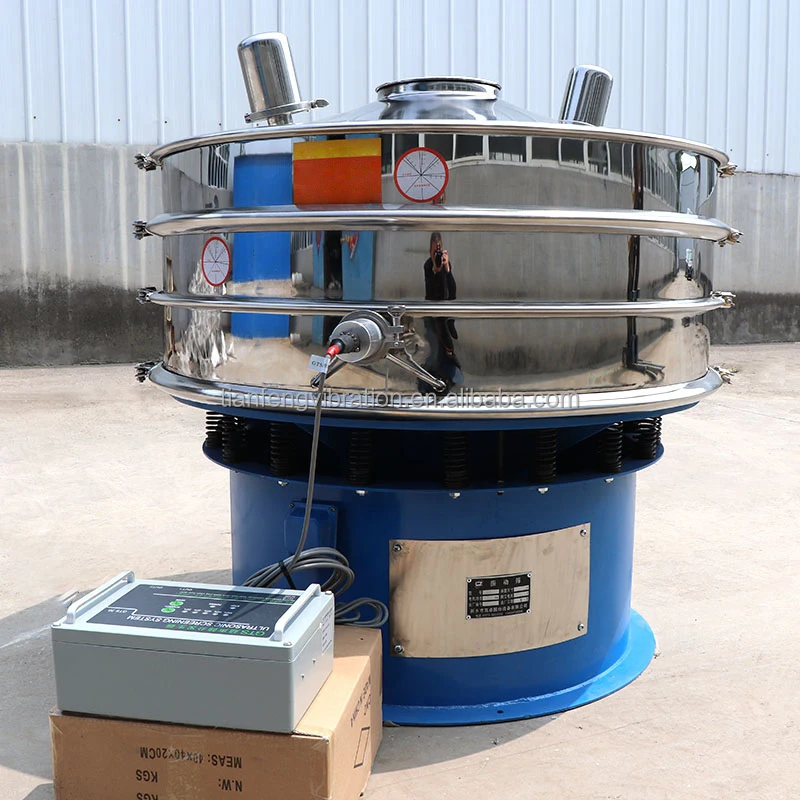

Rotary screen is a brief name of rotary vibrating screen. Tianfeng rotary vibrating screen is a kind high-precision fine powder screening machine with low noise and high efficiency. It only takes 3-5 minutes to change the screen, and the replace of screen is quick and convenient. The screen adopts fully closed structure, and it can be used for screening and filtering of particles, powder, mucus and other materials. The rotary vibrating screen is excited by a vertical motor. The upper and the bottom of the motor are equipped with eccentric weights to convert the rotating motion of the motor into horizontal, vertical and inclined three-dimensional motion, and then the motion will be conveyed to the screen surface. By adjusting the phase angle of the upper end and the lower end, the movement of the material on the screen surface can be changed very well.
Technical Characteristics
1. Any particle, fine powder, slurry, liquid and mucus can be screened and filtered very well.
2. The screen has high screening efficiency, and it can be used for rough classification and fine screening or filtration;
3. The screen has many characteristics such as long service life, convenient cleaning, simple operation and so on. The machine adopts fully closed structure, no dust spillage, conducive to improving working conditions;
4. Mesh frame design (child and mother type), long use of screen, convenient screen change, only 3-5 minutes, simple operation and convenient cleaning;
5. It has no mechanical action, easy maintenance, can be used in single layer or multiple layers, and the parts in contact with materials are made of stainless steel (except for medical use);
6. Small size, light weight, easy to move, the direction of the outlet can be adjusted at will, the coarse and fine materials can be discharged automatically, and can be operated automatically or manually.
2. The screen has high screening efficiency, and it can be used for rough classification and fine screening or filtration;
3. The screen has many characteristics such as long service life, convenient cleaning, simple operation and so on. The machine adopts fully closed structure, no dust spillage, conducive to improving working conditions;
4. Mesh frame design (child and mother type), long use of screen, convenient screen change, only 3-5 minutes, simple operation and convenient cleaning;
5. It has no mechanical action, easy maintenance, can be used in single layer or multiple layers, and the parts in contact with materials are made of stainless steel (except for medical use);
6. Small size, light weight, easy to move, the direction of the outlet can be adjusted at will, the coarse and fine materials can be discharged automatically, and can be operated automatically or manually.

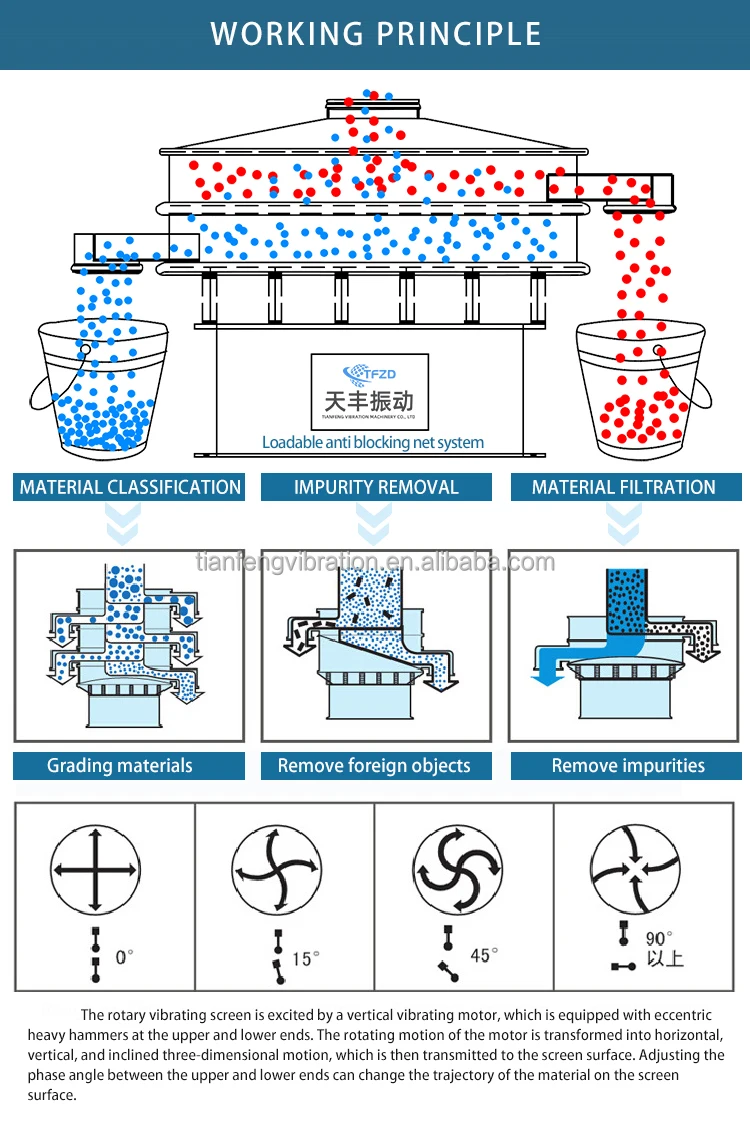

Working Principle
The rotary vibration screen is excited by the unbalanced eccentric weights at the both ends of the vertical vibration motor shaft, or by the eccentric weights at the both ends of the vibrator carried by the ordinary motor. Due to the rotation of the drive motor, the vibrating part of the screen machine moves in three dimensions in the horizontal, vertical and inclined directions. By adjusting the phase angle of the upper and lower weights, the movement track of the material on the screen surface can be changed to meet the best screening effect of various specific gravity materials. Adjusting the counterweight blocks of the upper and lower weights can achieve different excitation forces, so as to achieve better screening weight of materials with different specific gravity and different mesh numbers.
Technical Parameters
Mechanical Model | Power (kw) | Screen Surface Diameter (mm) | Overall Dimension (mm) | Number Of Screen Layers | Effective Diameter φ | Effective Area (m²) |
TS-300 | 0.12 | 190 | 300*315*550 | 5 | 170 | 0.0227 |
TS-450 | 0.37 | 450 | 510*510*680 | 1 | 420 | 0.1385 |
TS-500 | 0.55 | 460 | 665*665*740 | 3 | 430 | 0.1452 |
TS-600 | 0.55 | 560 | 760*760*740 | 3 | 530 | 0.2206 |
TS-800 | 0.75 | 760 | 1000*1000*910 | 3 | 730 | 0.4185 |
TS-1000 | 1.5 | 930 | 1200*1200*1030 | 3 | 900 | 0.5945 |
TS-1200 | 1.85 | 1130 | 1528*1528*1005 | 3 | 1100 | 0.8992 |
TS-1500 | 2.2 | 1430 | 1758*1758*1310 | 3 | 1400 | 1.4741 |
TS-1800 | 3.0 | 1730 | 2137*2137*1455 | 3 | 1700 | 2.0698 |
TS-2000 | 3.7 | 1930 | 2337*2337*1455 | 3 | 1900 | 2.8652 |
Processing Procedure
Packaging&Shipping
Company Profile
Company Information
Xinxiang Tianfeng Vibration Machinery Co., Ltd. is a professional enterprise that produces and develops vibration, screening, and conveying equipment.
We continuously improve product quality and cost-effectiveness, and have obtained multiple honors and patent certificates. Our professional production and sales team always puts customers first. Hand in hand with Tianfeng, success is eternal.
We continuously improve product quality and cost-effectiveness, and have obtained multiple honors and patent certificates. Our professional production and sales team always puts customers first. Hand in hand with Tianfeng, success is eternal.
Customers Visits
Certifications
FAQ
FAQ
1. Who are we?
Our headquarters is located in Henan, China, and our factory was established in 2002. At present, there are more than 100 workers, technical engineers, foreign trade sales personnel, and administrative personnel. The factory covers an area of more than 2000 square and is mainly engaged in vibrating screening and conveying and feeding equipment.2. How do we guarantee quality?
Always provide pre-production samples before mass production; Always carry out a final inspection before shipment.
3. What can you buy from us?
You can purchase a vibrating screen, roller screens, rotary screens, vacuum conveyors, mixer, and customized vibrating machinery and conveying equipment in our factory.
4. What are our strengths?
As one of the old enterprises in the screening industry, Tianfeng has provided a large number of screening equipment and systems at home and abroad. Mass production, rapid delivery, stable quality, affordable price, and excellent after-sales service have become the symbols of Tianfeng.
5. What services can we provide?
Accepted delivery conditions: FOB, CFR, CIF, EXW, CIP, FCA, CPT, DDP, express;
Accepted payment currency: USD, EUR, RMB;
Type of payment accepted: telegraphic transfer, letter of credit, express remittance, credit card, PayPal, Western Union
remittance, cash, custody;
Oral: English, Chinese, French.
6. What information do we need to help you choose a perfect machine?
-Name and characteristics of raw materials.
-Purpose of use: remove impurities, filter, and grade.
-Processing capacity: kg/h, L/h.
-Raw material size: (mesh or mm).
-How many floors do you need?
-Voltage, frequency, phase (single-phase or three-phase) Note: You'd better send us the relevant pictures or materials you want to filter, which can ensure that we recommend the appropriate machine for you.
Похожие товары
Безопасность горячей штамповки голограмма водяные знаки бумага печать A4 Документ сертификат
0,60 $ - 0,80 $
ЖК-дисплей 5,7 дюйма Zinscien Lab, 500 комплектов, устройство хранения данных, калибровка с 5 точками, включая выбор NIST, DIN, GB pH метр
Новый и оригинальный микроконтроллер ADS7830IPWR IC chip ADS7830I ADS7830
Смарт-замок Huarui H9 со сканером отпечатков пальцев, дверной замок со сканером отпечатков пальцев
165,00 $ - 198,00 $
Оптовая продажа Взрослые пластиковые резиновые мужские сапоги с индивидуальным
10,99 $ - 23,99 $
Новинка, Лидер продаж, модные сумки для отдыха, качественный холщовый рюкзак для ноутбука, Холщовая Сумка

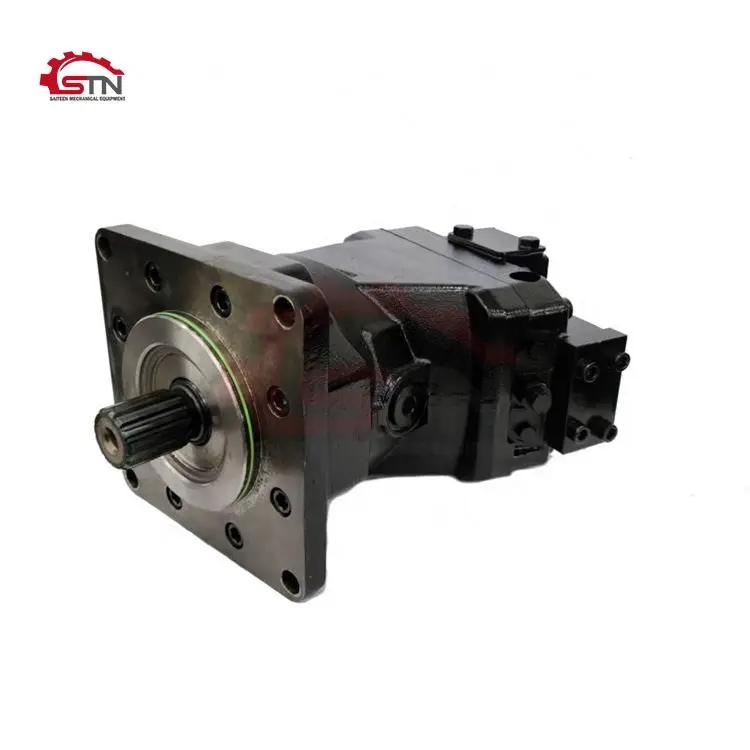

Гидравлический поршневой насос STN A8 A8VO поршневой масляный насос осевой поршневой насос EK-270 A8VO107LA0KH3/63R1-NZG05F001 A8VO107
