Поставщик производства гидравлический осевой насос водяной для аварийного ремонта и дренажа
5 980,00-6 180,00 $
Вакуумный насос для вакуумного покрытия
- Категория: >>>
- Поставщик: Taizhou Shouzhen Machinery Co. Ltd.Taizhou Ltd.
Сохранить в закладки 1601020142738:
Описание и отзывы
Характеристики
ABOUT SOUZ VACUUM
SOUZ VACUUM is a comprehensive high-tech enterprises integrating R&D, production, sales and service of vacuum pumps.
With professional technical team to help every customer to get the most suitable and cost-effective vacuum solutions and vacuum pumps.
We always perseveres in innovative work to develop better products.
SOUZ VACUUM,covering an area of 100000 square meters production plant ,has hundreds of employees and 50 sets modern processing equipments.In order to provide high quality products,SOUZ VACUUM imported Japan Tsugami processing center for processing pump rotor and Japan Okuma vertical processing center for processing pump body,Hexagon coordinate measuring instrument and so on.
Moreover, on the basis of digestion of imported Germany technology and substitution with SOUZ VACUUM improved technology. The key components of vacuum pump were choosen from international well-known brands to make the overall performance to achieve the international level. We can provide alternative basically spare parts to some well-known brands of vacuum pumps.
The acceptance rate of product will be raised by improvement of process's quality control.
With professional technical team to help every customer to get the most suitable and cost-effective vacuum solutions and vacuum pumps.
We always perseveres in innovative work to develop better products.
SOUZ VACUUM,covering an area of 100000 square meters production plant ,has hundreds of employees and 50 sets modern processing equipments.In order to provide high quality products,SOUZ VACUUM imported Japan Tsugami processing center for processing pump rotor and Japan Okuma vertical processing center for processing pump body,Hexagon coordinate measuring instrument and so on.
Moreover, on the basis of digestion of imported Germany technology and substitution with SOUZ VACUUM improved technology. The key components of vacuum pump were choosen from international well-known brands to make the overall performance to achieve the international level. We can provide alternative basically spare parts to some well-known brands of vacuum pumps.
The acceptance rate of product will be raised by improvement of process's quality control.
High Efficiency Motor
Adopts 100% copper coil.
Reliable performance and Stable running.
High Quality Rotor
High precision forming rotor.
Stable operation.

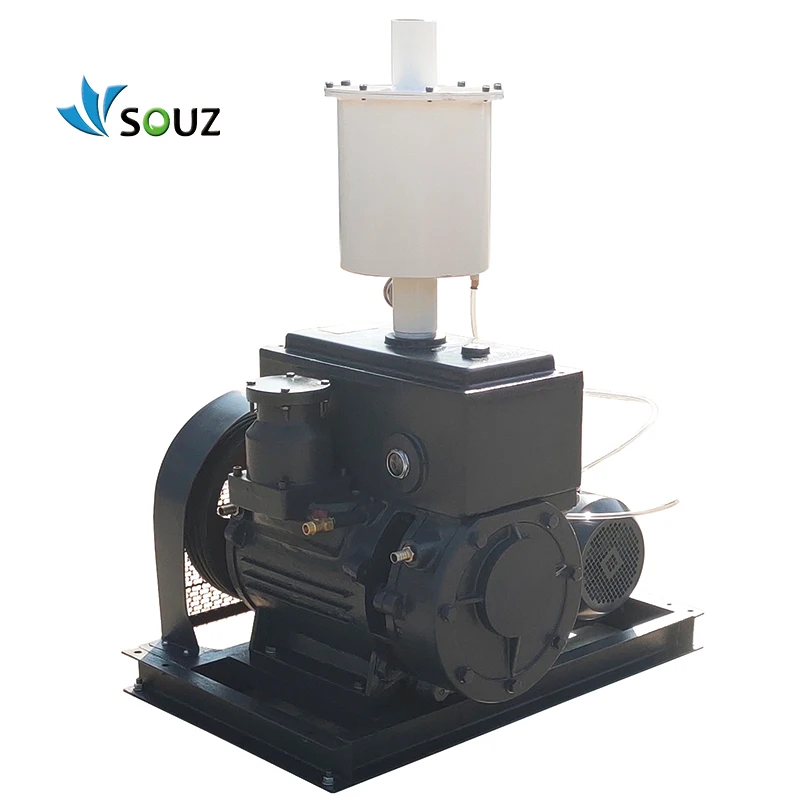

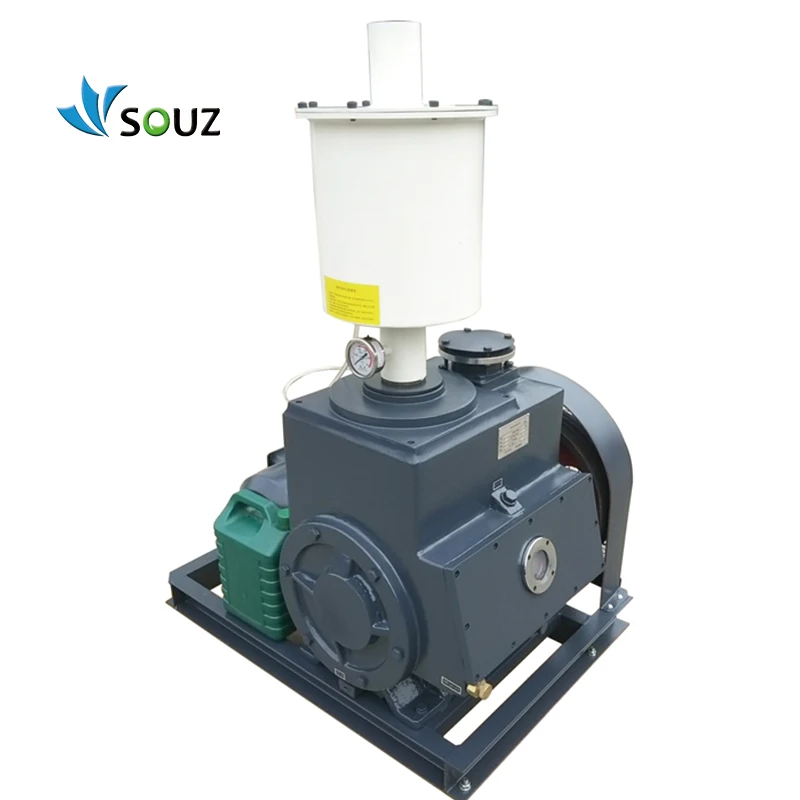

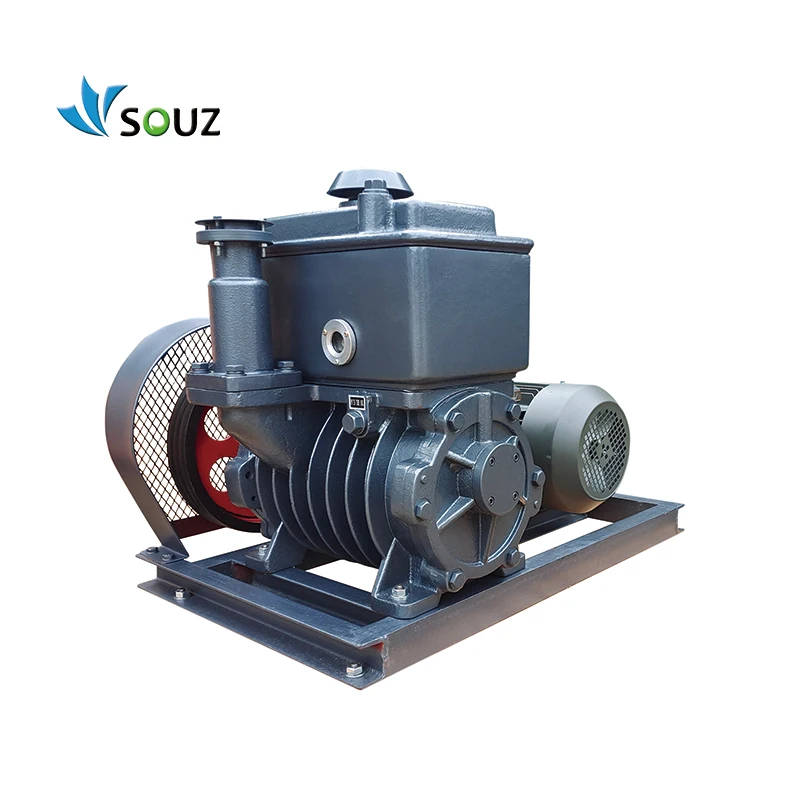

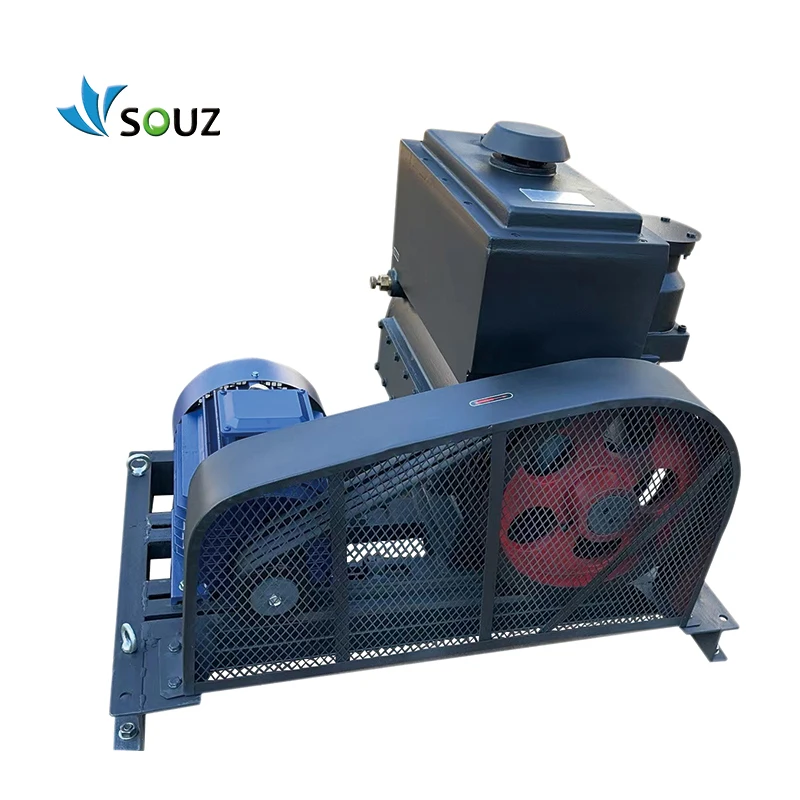

SOUZ Vacuum Pump 2X Two-stage Oil Lubricated Rotary Vane vacuum pumps
2X Belt Drive Rotary Vane Pump is almost identical to a Direct Drive Rotary Vane Pump. The only difference between the two is that the belt drive Rotary Vane Vacuum Pump is driven by a belt. There are several advantages why a belt drive vacuum pump would be preferable. One of these reasons is that the belt drive Rotary Vane Vacuum Pump runs at a slower RPM therefore the temperature created is lower, the wear and tear is less, and the overall lifetime of the pump is longer.
Belt drive vacuum pump 2X series are equipped with highly durable vacuum pump assembled for pumping air from sealed vessels. It provides ultimate vacuum pressure of ≤ 1Pa.The robust design and high end vacuum makes this belt driven vacuum pump powerful system. It can be used as a stand-alone machine or as a fore-pump, process pump or titanium pump of booster pump, oil diffusion pump and molecular pump.
A choice of versions provides the right variant for every application.
Single stage oil flooded rotary vane vacuum pump : SV008-SV630
Two stage oil lubricated rotary vane vacuum pump : 2XZ-2C~2XZ-25C. T8~T60 ; 2X-4A-2X-100A
Features:
1. * Belt driven type vacuum pump.
2. * Robust design.
3. * Ultimate vacuum pressure of ≤1Pa.
4. * High end vacuum.
5. * Easy to use and maintain.
1. * Belt driven type vacuum pump.
2. * Robust design.
3. * Ultimate vacuum pressure of ≤1Pa.
4. * High end vacuum.
5. * Easy to use and maintain.
6. * Highly durable and powerful.
7. * Quiet, low-vibration operation.
Major Applications:
Major Applications:
1. * Physical and chemical apparatus industries(surface and mass analyzers, electron microscopes, pollution measuring instruments, vacuum (freeze) drying, research and development apparatuses).
2. * Electrical and electronic industries(electron tubes, CRTs, relays, substrates, semiconductors, and flat panels; degassing, baking, drying, deposition, sputtering,defoaming).
3. * Food industries (vacuum distillation, concentration, degassing, vacuum (freeze) drying, vacuum packaging)
4. * Chemicals and pharmaceuticals(oil distillation, fat, petroleum, and plasticizers; degassing, deodorization, dewatering, freeze drying of pharmaceuticals.)
5. * Energy (degassing, drying, and impregnation of various electrical cells, such as manganese or lithium ion secondary cells).
6. * Optical industries (fabrication equipment for lenses, mirrors, and half-mirrors; coating, sputtering.)
7. * Industrial machines (resin injection, forming, defoaming, impregnation, packing, backup pump for evacuation equipment (turbo, diffusion, mechanical booster).)
4. * Chemicals and pharmaceuticals(oil distillation, fat, petroleum, and plasticizers; degassing, deodorization, dewatering, freeze drying of pharmaceuticals.)
5. * Energy (degassing, drying, and impregnation of various electrical cells, such as manganese or lithium ion secondary cells).
6. * Optical industries (fabrication equipment for lenses, mirrors, and half-mirrors; coating, sputtering.)
7. * Industrial machines (resin injection, forming, defoaming, impregnation, packing, backup pump for evacuation equipment (turbo, diffusion, mechanical booster).)
PRODUCT FAMILY | ROTARY VANE VACUUM PUMP VERSION | OIL-LUBRICATED OR DRY-RUNNING | CHARACTERISTICS |
SV | Single-stage | Oil-lubricated | Proven and reliable. 8m3/h-630m3/h |
2XZ | Two-stage | Oil-lubricated | Reliable medium vacuum. 2L/S-25L/S |
T | Two-stage | Oil-lubricated | Reliable medium vacuum. 8m3/h-60m3/h |
2X | Two-stage | Oil-lubricated | Robust pump. 4L/S-100L/S |
ZBW | / | Dry-running | Reliable vacuum. 16m3/h-360m3/h |
SOUZ VACUUM 2X-70B model two stage oil sealed rotary vane vacuum pump | ||||||
Model | Capacity | Ultimate vacuum | Motor power | |||
2X-70B | 80L/S (288m3/h) | ≤ 2 Pa | 5.5kW | |||
Inlet /outlet diam. | Pump Rotary speed | Oil consumption | Noise | |||
100mm / G2 1/2'' | 360 RPM | 4.2 L | 75dB(A) | |||
Cooling method | Package weight | Package size | Package material | |||
Water cooling | 500 KG / 540 KG | 103*87*93 cm | Plywood Case | |||
Smooth Operate Durable Vacuum Pump 4800LPM Oil Sealed Rotary Vane 2X-70B Belt-driven Pump For Vacuum Coating | ||||||
2X Two Stage Belt Driven Rotary Vane Vacuum Pump | ||||||||||||||
Specs./ Model | 2X-4D | 2X-8A | 2X-15A | 2X-30A | 2X-70A | 2X-70B | 2X-100 | |||||||
Capacity | 4 L/S | 8L/S | 15L/S | 30L/S | 70L/S | 80 L/S | 100 L/S | |||||||
Max.vacuum | ≤ 2 Pa | |||||||||||||
Pump speed | 450 RPM | 320 RPM | 320 RPM | 450 RPM | 420 RPM | 360 RPM | 400RPM | |||||||
Motor power | 0.55 KW | 1.1KW | 2.2KW | 3 KW | 5.5KW | 5.5KW | 7.5KW | |||||||
Voltage | 380V | 380V | 380V | 380V | 380V | 380V | 380V | |||||||
Inlet diam. | 30 mm | 50 mm | 80 mm | 85 mm | 100 mm | 100 mm | 100 mm | |||||||
Outlet diam. | / | M60*2 | M60*2 | G2 1/2 | G4 | G2 1/2 | G2 1/2 | |||||||
Cooling method | Natural cooling | Natural cooling | Natural cooling | Water cooling | Water cooling | Water cooling | Water cooling | |||||||
Noise | 65 | 70 | 70 | 70 | 75 | 75 | 75 | |||||||
Oil capacity | 1 L | 2 L | 2 L | 3 L | 4.2 L | 4.2 L | 4.2 L | |||||||
Highly Durable Vacuum Pump 4800LPM Oil Sealed Rotary Vane Belt-driven Pump with Vacuum Filter | ||||||||||||||
Find More information from SOUZ VACUUM
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2: How can i storage the vacuum pump?
A2: Drain off the vacuum oil and cooling water completely before kept in dry,clean indoor with temperatures between 0 -40℃.
Q3: Is the pump supplied with vacuum oil?
A3: Yes, all oil vacuum pumps are supplied with the first charge of 100# vacuum oil that sealed in a bottle in order to avoid leaks during the transportation. But not supplied if shipping by Airplane.
Q4: What are your payment terms?
A4: 30% T/T deposit, 70% against documents, or L/C at sight.
Q5: How long is your warranty?
A5: One year except the consumable spare parts.
Q6.Can I use any oil in my vacuum pump?
A6. NO. Vacuum pump MUST be using vacuum pump oil, no other motor oil,gear oil. .
Q7. Any other good service your company can provide?
A7. Yes,we can provide good after-sale and fast delivery.
A3: Yes, all oil vacuum pumps are supplied with the first charge of 100# vacuum oil that sealed in a bottle in order to avoid leaks during the transportation. But not supplied if shipping by Airplane.
Q4: What are your payment terms?
A4: 30% T/T deposit, 70% against documents, or L/C at sight.
Q5: How long is your warranty?
A5: One year except the consumable spare parts.
Q6.Can I use any oil in my vacuum pump?
A6. NO. Vacuum pump MUST be using vacuum pump oil, no other motor oil,gear oil. .
Q7. Any other good service your company can provide?
A7. Yes,we can provide good after-sale and fast delivery.
