Product Description

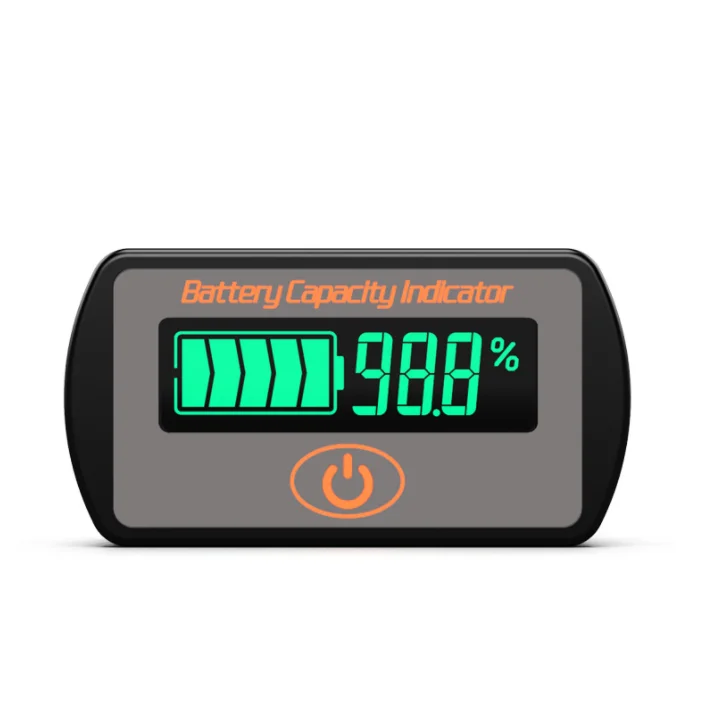

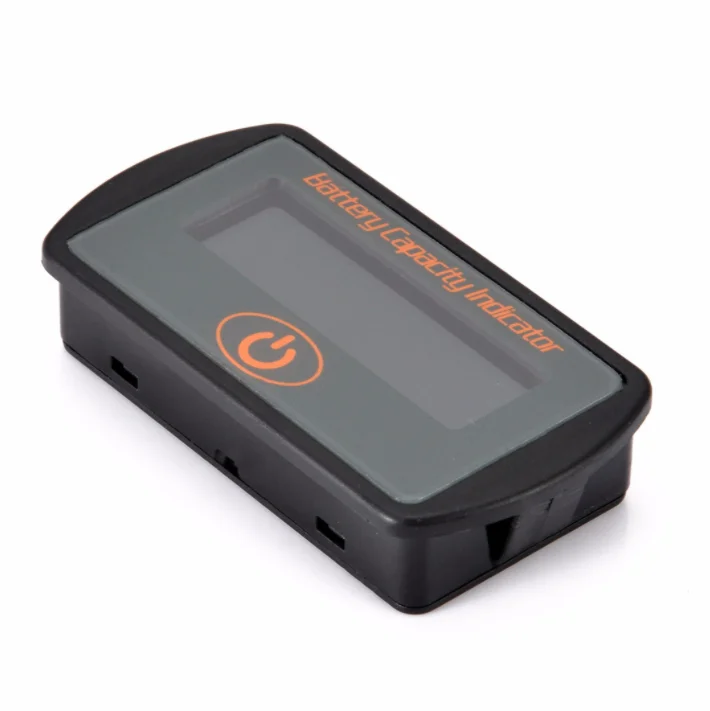

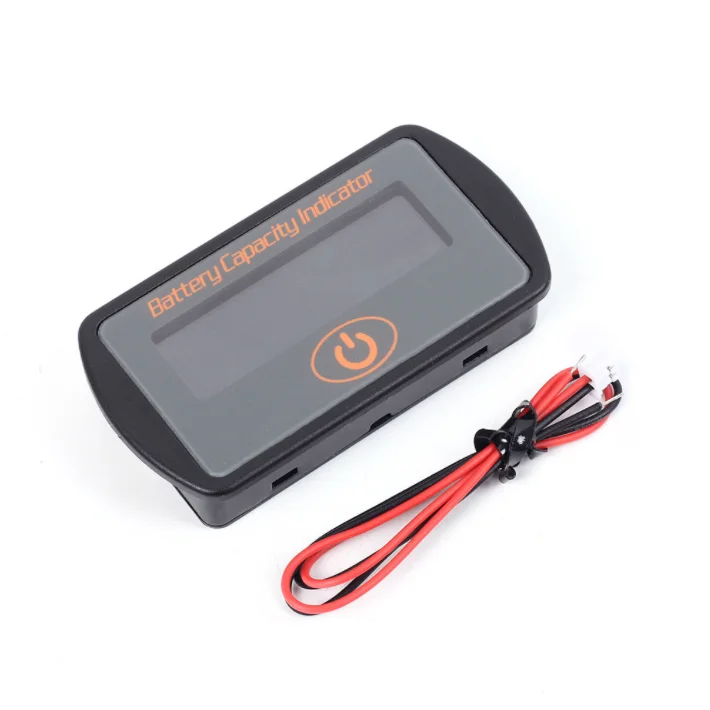

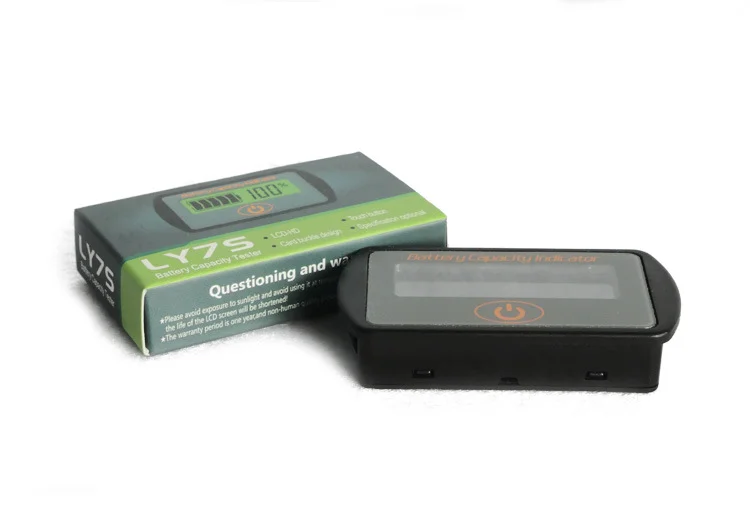

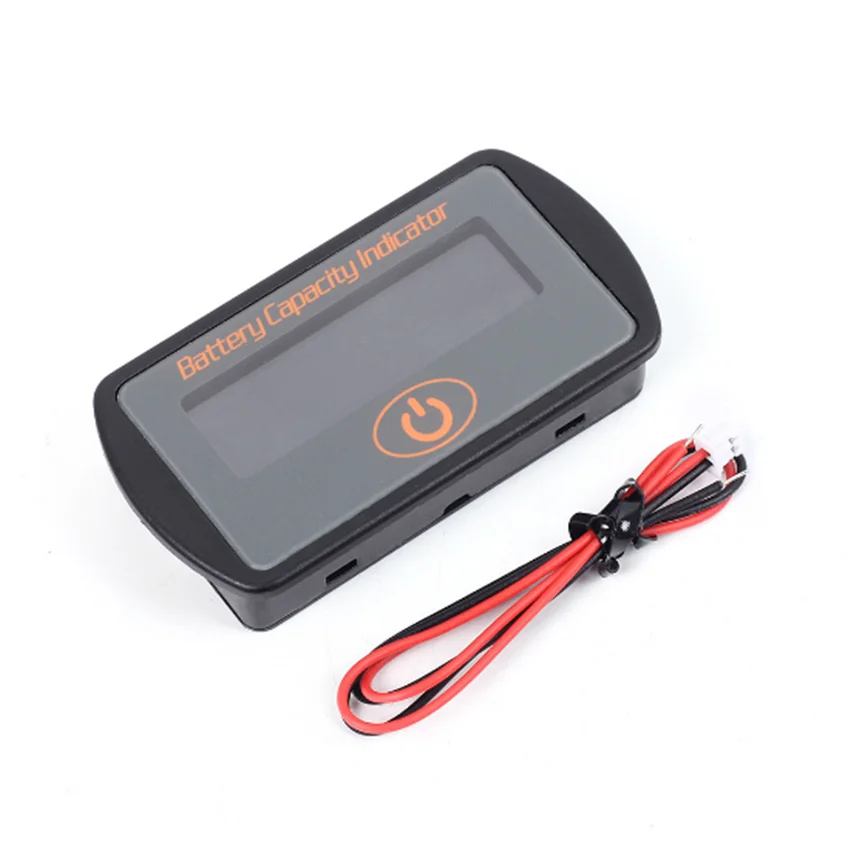

LY7 LY7B LY7S  16S LCD battery tester Battery Monitor lithium lead acid lifepo4 battery capacity indicator










 LY7 is a kind of universal voltage-type battery tester, it can test the voltage and capacity of battery, and display them with
intuitive battery symbol and percentage. Users can know the state of battery in time. LY7 has function of memory. It is suitable for mobile and portable equipment, electro-mobile,balance cars,cleaning machines,instruments,measuring equipment and so on.




LY7 LY7S is suitable for max 16S lithium ion battery, if you want use 17s or higher voltage battery, please contact with us,there is high voltage version LY7 and LY7S available



 Application:
LY7 battery monitor is suitable for for 8-24V lead-acid batteries and lithium batteries





























































































Parameter


Min


Type


Max


Unit


Working voltage


8.0


70.0


V


Working dissipation


8.0


10.0


mA


Standby dissipation


0.5


0.6


mA


Sleep dissipation


50.0


60.0


uA


Capacity accuracy


±2.0


%


Voltage accuracy


±2.0


%


Current accuracy


±2.0


%


Backlight on current


40.0


50.0


mA


Backlight off current


30.0


40.0


mA


Temperature range


-10


20


60




Weight


23.0


g


Size


57*30*12


mm
