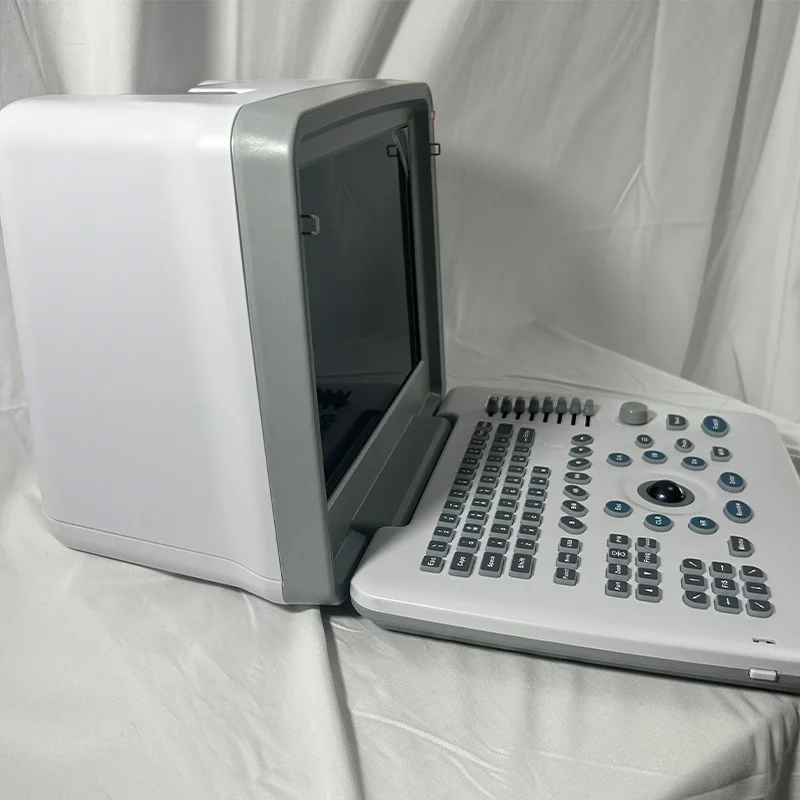

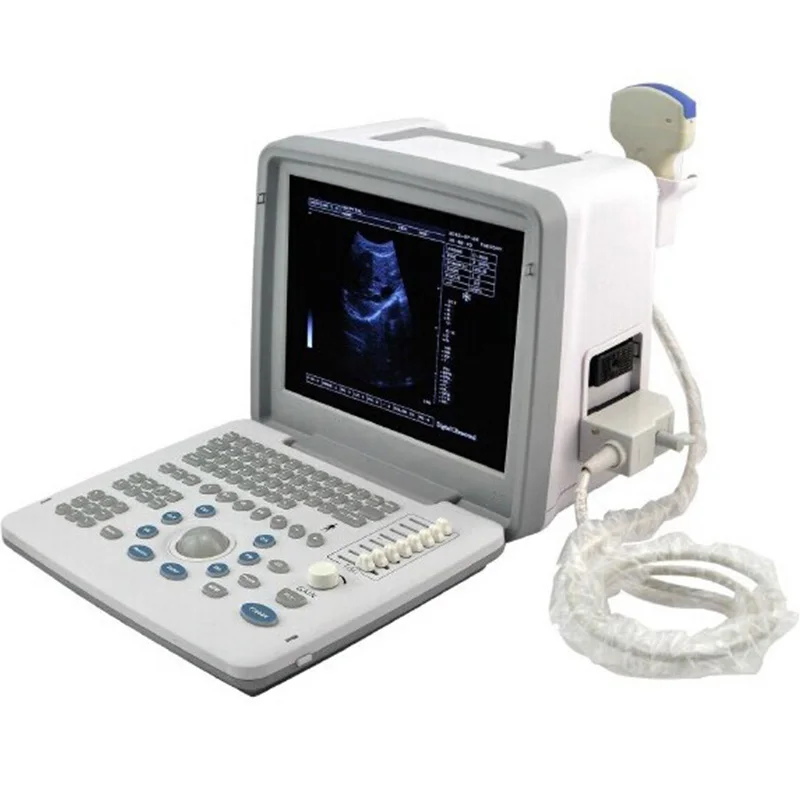

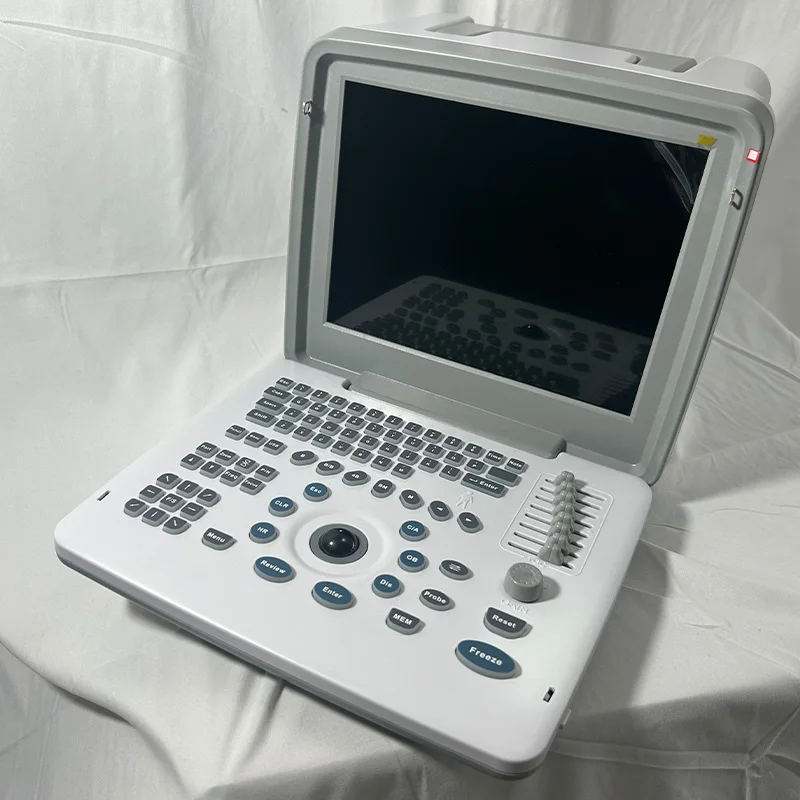

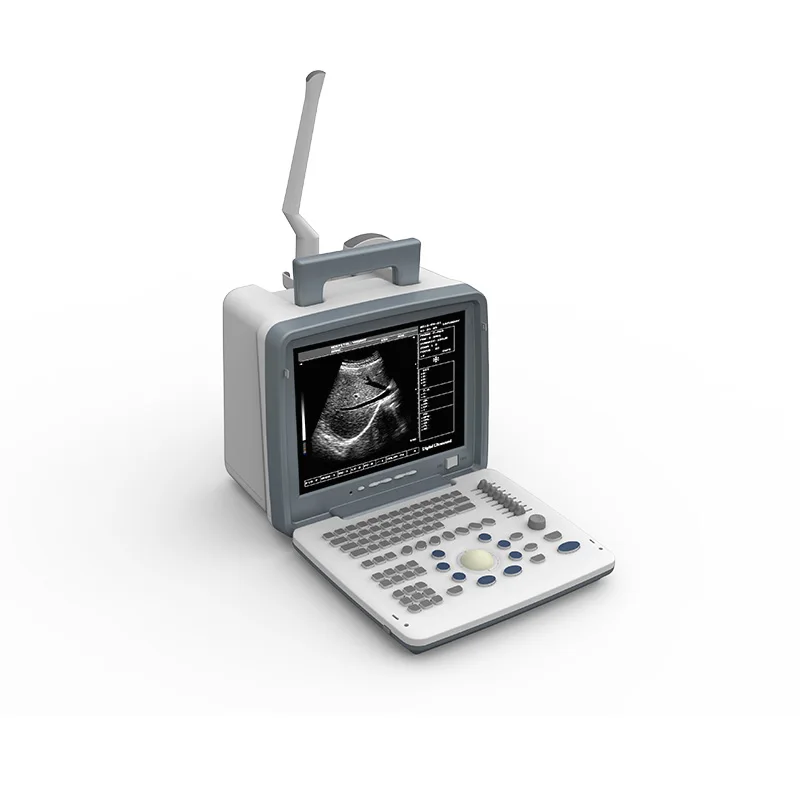

Диагностический беспроводной линейный выпуклый зонд цена ультразвуковой сканер для беременных

Диагностический беспроводной линейный выпуклый зонд цена ультразвуковой сканер для беременных

Категория: >>>
Поставщик: Tianjin Mingtuo Science And Trade Co. Ltd.Tianjin Ltd.

Цена:91 839,68-95 628,07 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

I.Specification:
Model	MT300 LCD Portable VET B Scanner
Display Modes	3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M 5 MHz/R20 Dimpling array probe:B 6.5MHz/R13 Dimpling array probe:B 7.5 MHz/L40 Line array probe:B
Image Mutiplying Factor	3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0 ( 6modes)x0.8, x2.0 (display penetration depth) 6.5MHz/R13 Dimpling array probe: x0.8, x1.0, x1.2, x1.5 (4 modes) 7.5MHz/L40 Line array probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
E-zoom	magnify 2 times of real time image
Dynamic Range	0~120dB ajustable
Focus Position	1,2,3 and 4-segments dynamic electron focusing
Image Processing:	γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc.
Image Processing:		According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.
Frequency Conversion:	2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe
Measuring Function	Distance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC), expected date of confinement and fetus weight, etc.
Annotation Function	hospital name, patient’s name, age and gender 64 body marks (with probe’s position); Full-screen character annotation; Real-time clock display
Puncture Guide	3.5MHz convex array probe can display puncture guide line in B mode
Gain Control	8 segments TGC and overall gain can be adjusted respectively
Image Polarity	left and right flip, black and white flip, up and down flip
Capacity Cine Loop	real time display 256 consecutive images which are memorized successively
Image Playback	series playback or check one by one
Permanent Storage:	128 images
Output Interface	VGA video output offers connection to SVGA color display PAL video output offers connection to PAL display and printer video image recorder and image workstation, etc
USB Port	Offers storing images in USB flash disk

II Features:

1. Mass memory , cine loop and permanent storage.
2. Radium Caved buttons and Silicon backlit buttons to be chosen;
3. Intelligent fluorescence trackball.
4. 8-segment TGC control. Overall Gain control
5. 1 USB ports only save image;
6. 2 probe connectors. Probe automatic identfication;

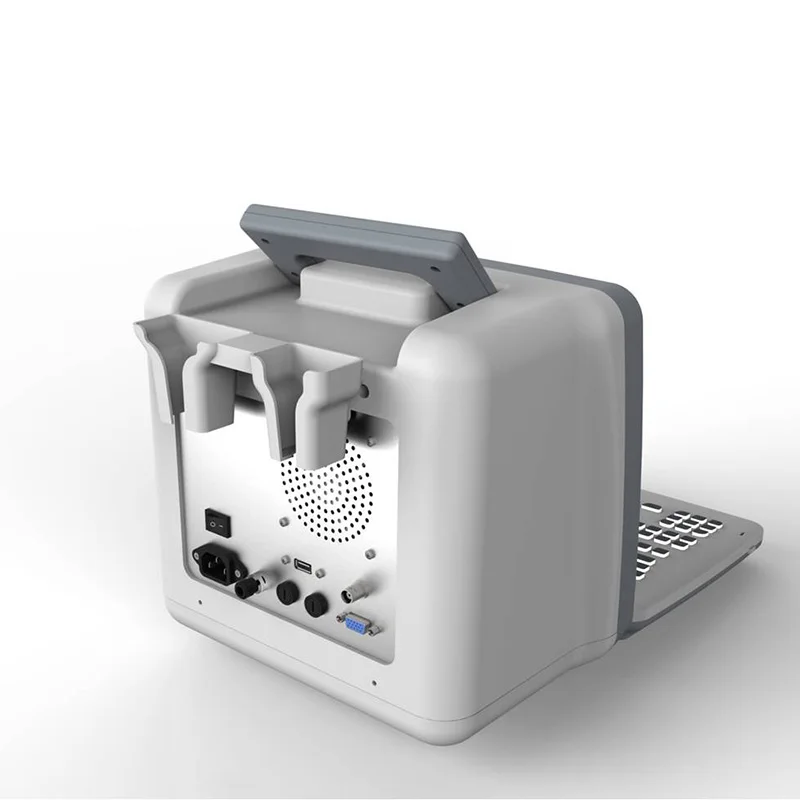

7. 1 SVGA video outputs and 1 PAL video outputs offer connection to video image recorder and image workstation. etc.
8. Report page is generated automatically.
9. According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.

Product	MT300	MT218	MT30 (high voltage version)	MT70A	MT50B (high voltage version)	MT30B
Category	Portable			Notebook (with computer bag)	Notebook, front handle			Notebook, back handle
Display device	12 in	10 in	10 in	12 in			12 in
Memory	128 pictures
External interface	PAL video output, SVGA video output, USB connectable
Probe interface	Double probe interface			Single interface	Double probe interface			Double probe interface
Display mode	B、B/B、4B、B/M&M
Optional probe	3.5 MHz abdominal convex matrix. 6.5 MHz cavity. 7.5MHz linear array
Standby time	/			2 Hours	2 Hours			2 Hours
Standard configuration	Abdominal probe			Abdominal probe battery, computer bag	Abdominal probe, battery
Size	450X350X450mm	500X400X440mm	450X250X360 mm	490X460X250mm			490X460X250mm
Gross / net weight	13/10kg	12/8kg	4.6/3.6kg	6.2/5.5kg			6.2/5.5kg

Product	MT20	MT1100
Category	Notebook	Push cart
Display device	12 in	12 in
Memory	60G	128 pictures
External interface	HDMI, VGA, DICOM3.0, 2 USB,LINE OUT	2 PAL video；2 SVGA video
Probe interface	Double probe	Double probe
Display mode	B、B/B、 4B、 B/M、PW	B、B/B、4B、B/M&M
Optional probe	3.5 MHz abdominal convex matrix. 6.5 MHz cavity. 7.5MHz linear array	3.5 MHz abdominal convex matrix. 6.5 MHz cavity. 7.5MHz linear array. 3.5MHz micro-convex
Standby time	2 Hours	/
Standard configuration	Abdominal probe, battery	Abdominal probe
Size	490X460X250(mm）	900X600X900(mm）
Gross / net weight	6.2/5.5kg	72/40kg

Name	Central frequency	Frequency range			Effective depth	Scope of clinical application
Abdominal probe	3.5MHz	Black and white super	2.0~5.0MHz	160mm	Abdominal, gynecological, obstetrical animals	For human use and animal use
							Color ultrasound	2.0~6.0MHz
Linear array probe	7.5MHz	Black and white super	5.0~8.0MHz	40mm	Superficial organs, blood vessels, muscles, thyroid animals	For human use and animal use
							Color ultrasound	5.0~10.0MHz
Vaginal probe Intracavity probe	6.5MHz	Black and white super	5.0~7.5MHz	80mm	Gynecology Department	For human use
							Color ultrasound	5.0~10.0MHz
Micro-convex probe	3.5MHz 5.0MHz	Black and white super	2.0~5.0MHz	80mm	Gynecological and obstetrical animals	For human use and animal use
							Color ultrasound	2.5~6.0MHz
Rectal probe	6.5MHz	Black and white super	5.0~8.0MHz	40mm	Anorectal animal	For human use and animal use
							Color ultrasound	5.0~10.0MHz
Phased array probe	3.0MHz	Black and white super	~	50mm	Heart animal	For human use and animal use
							Color ultrasound	2.0~4.0MHz
4D probe	4.0MHz	Black and white super	~	130mm	Obstetrics, other organs	For human use
							Color ultrasound	2.0~5.0MHz

Q1: Are you manufacturer(factory)?
A1: Yes, we're. Also OEM/ODM service available here.Welcome to share your ideas with us.It's our pleasure to provide best solution for you.

Q2: What's your MOQ?
A2: One sample can be provided first for evaluation. Any quantity is welcome here for non-customized products. As per customized products, please contact us for further confirmation.

Q3: What's the lead time?
A3: Mass order: 5-15 days depending on order quantity.

Q4: 4 What kinds of payment methods does your company accept?
A4: Most of methods accepted here, such as T/T, L/C, Western Union, Credit Card, Paypal, Money Gram, etc.

Q5 :Can I get the goods successfully?
A5: We have our own freight forwarding, which can pass the Chinese customs. Secondly, our export qualifications are complete, and we will not encounter the problem of stuck goods when exporting.
