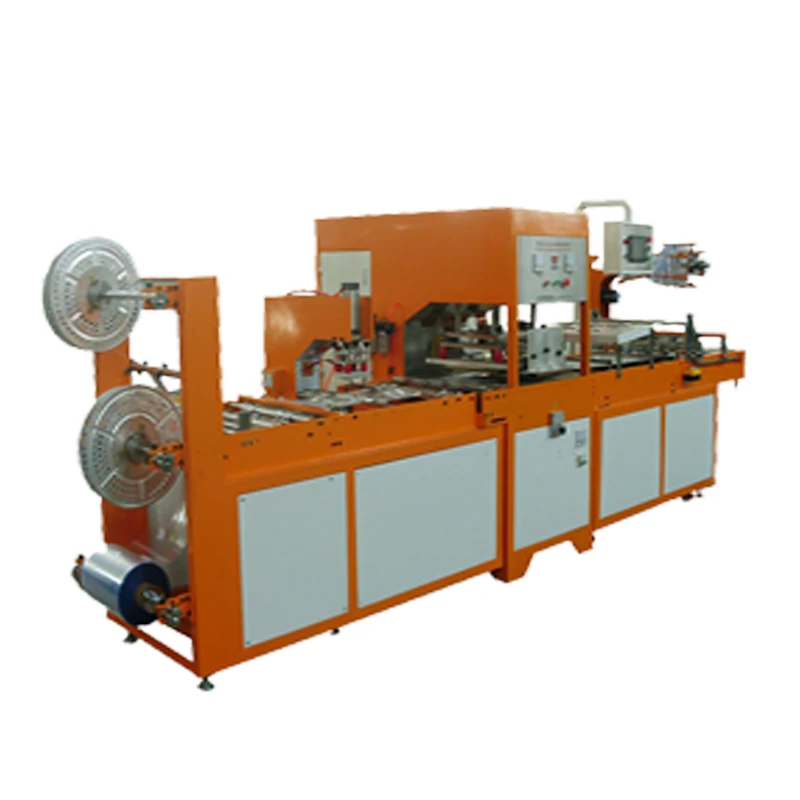

small wicket bag PE HDPE OPP side weld bag making machine for sale chicken bread plastic bag making machine manufacturers
High frequency PVC envelope welding machine is suitable for reflective material ,also could suiatble for
blood bag ,urine bag ,infusion bag ,name card ,ID badge holder ,book cover ,reseal bag etc soft bag
High frequency (HF) welding method (otherwise known as radio frequency <RF> ) is usually often applied whenever PVC and PU products have to be welded. Common products manufactured with HF welding method are tarpaulins, tents, ceilings, advertising outdoor banners, waterbeds, inflatable boats, drip and blood bags, tensile structures, conveyor belts, rain clothing, etc.
Materials for welding:
High frequency welding is useful for sealing and welding plastics such as:
polyvinyl chloride (PVC),
thermoplastic polyurethanes (TPU),
ethylene-vinyl acetate (EVA),
nylons (polyamide PA),
some ABS resins,
special grades of polyolefins (PP, PE, PET).
SPECIFICATIONS FOR AUTOMATIC HIGH FREQUENCY WELDING MACHINE | ||||||
Model | GP10-H6 /GP10-K6 | |||||
HF power | 10kw | |||||
Frequency | 27.12 MHz | |||||
Usage power | 3P 380V 50/60 Hz or Customize | |||||
Rectifier | Silicon Diode | |||||
Max pressure | About 750kg | |||||
Pressure code | Pneumatic | |||||
Max distance of electrodes | 200mm | |||||
Moving distance of electrodes | 100 or 150mm | |||||
Upper polar plate | 400*600mm | |||||
Temperature range | 0-300 degree Adjustable | |||||
Welding time | 0-10 seconds Adjustable | |||||
Production | 1800-2400 pcs /hour | |||||
Weight of machine | 2.3T | |||||
Packing size of machine | 5500*1850*1950mm (L*W*H) |
It has the function of rolling ,auto loosing,auto pulling ,auto heating and cooling ,auto cutting and tracking and cutting function .it can be reduce transfer procedure and management and save manpower ,which is suitable for batch production .
Name: Magnatic Valve
Brand: Airtac
Original: Taiwan
Adopting Airtac air system ,make sure stable machine pressure.
Name: Spark system
Brand: NL-5557
Useing high sensitivity anti spark electron tube ,for protect mould and working produtcs once machne over current.
More machine parts at stock ,easy to repair and delivery .
1.we are here ,where are you ?
we fall this area more than 25 years ,has special experience at welding machine ,forming machine and shrink packing machine
2.reason price ,we are one factory ,all is negotiate price .has you favorite price.
3.24 hours freely technical support
4.professinal packing team can protect you goods well
5.get order faster ,richer than you competitor.
6.a good supplier no matter provide you products ,also help to solve you difficlt ,save cost ,and help you get profit as much as you can.
Packaging | ||
Size | 5500*1850*1950mm | |
Weight | 2.4T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
