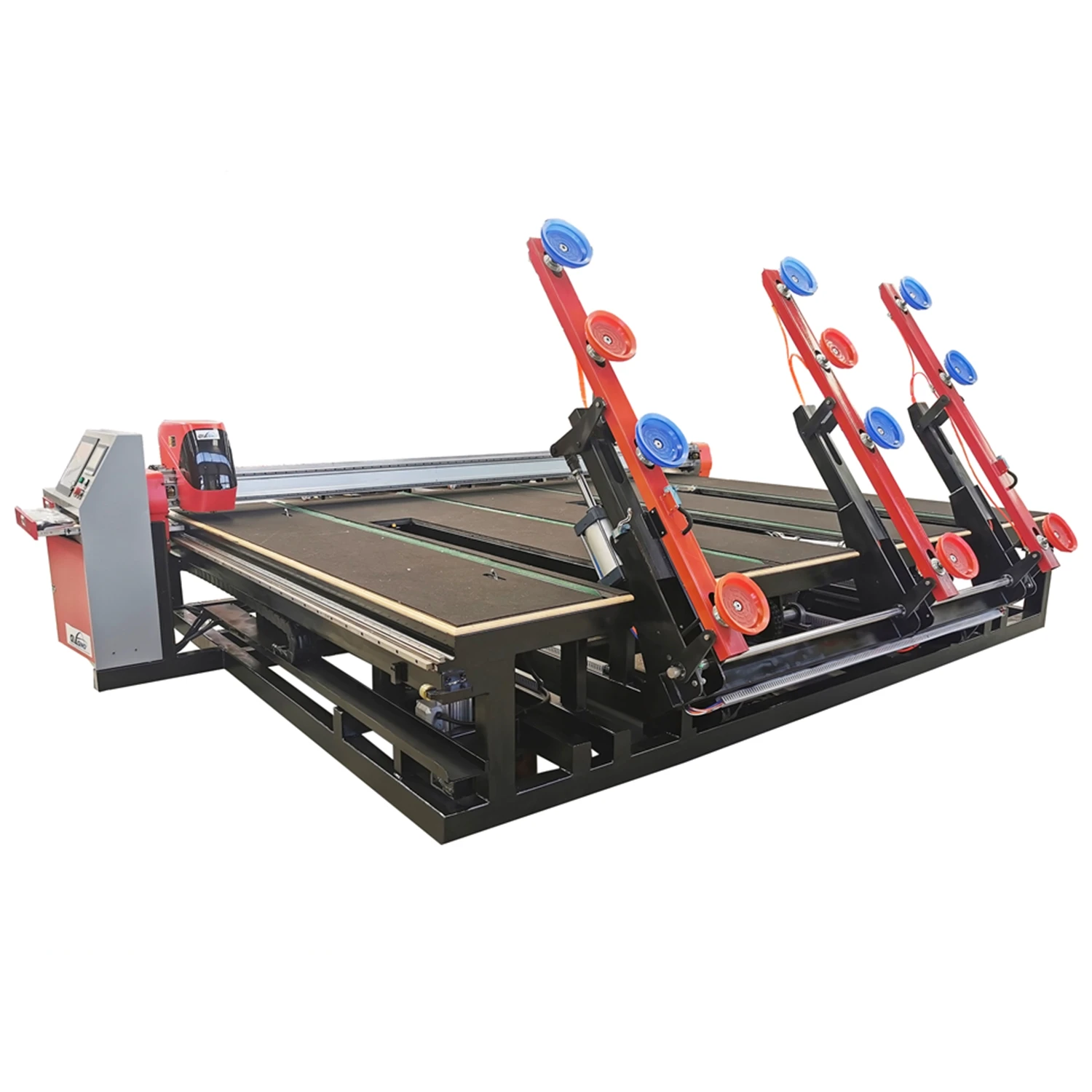

Glasino 360 градусов подвижный ЧПУ интегрированный станок для резки стекла машина обработки
2 609 387,00-2 727 995,50 ₽
Бытовая техника двойная круглая машина для шлифования краев
- Категория: >>>
- Поставщик: Liaoda (LAD) Glass Machinery Co. Ltd.Liaoda Ltd.
Сохранить в закладки 1601021174080:
Описание и отзывы
Характеристики
PRODUCT OVERVIEW
Automatic Glass Double Round Edging Production Line
(For pencil edge)
YD-DR-1206 + YD-TT-1212+ YD-DR-1206
YD series Flat Glass Double Round Egding Machine Production Line consists of 3 parts:
*2 sets of machine for glass edging and polishing
*1 table for glass transfering
*In addition, a glass loading table with or without measuring function can be arranged.
Glass double round edging machine is an ideal tool to design and manufacture glass table top, home appliances, furniture, decorative glass, etc.
Glass double round edging machine is an ideal tool to design and manufacture glass table top, home appliances, furniture, decorative glass, etc.
With a group of high accuracy and high efficiency grinding wheels, the glass edge undergoes a successive processing procedure of preliminarily grinding, accurate grinding, polishing and other requested treatment such as film removing, safety chamfer grinding and angle grinding.
When grinding the first two parallel lines is done, the glass sheet will be transported to the next double edging machine via a glass transfering table. During the transportation, the glass direction is automatically adjusted and hence the another parallel lines of glass sheet get ready to be grinded.
When grinding the first two parallel lines is done, the glass sheet will be transported to the next double edging machine via a glass transfering table. During the transportation, the glass direction is automatically adjusted and hence the another parallel lines of glass sheet get ready to be grinded.
FEATURES AT A GLANCE
Double Edging Machine
saving your labor costs and
improving production capacity.
An ideal tool to design and manufacture glass table top, home appliances, furniture, decorative glass, etc.
First Edger
Transfer
Second Edger
PRODUCT SPECIFICATIONS
Model | YD-DR-1206 | YD-TT-1212 |
Function | Grind the double edges of glass | Change the glass direction and convey |
Grinding Motor Number | 6 | / |
Max. Glass Size | 1200x1200mm | 1200x1200mm |
Min. Glass Size | 120x120mm | 120x120mm |
Processing Speed | 0.8-10m/min | 0.8-15m/min |
Glass Thickness | 3-19mm | 3-19mm |
Control System | PLC, touch screen | Manual |
Power | 18kw | 1kw |
Dimension | 2.6x3.0x2.0m | 2.6x4.0x0.9m |
Wheels Arrangement
Position | NO.1 | NO.2 | NO.3 |
Wheel | Diamond wheel, rough grinding | Diamond wheel, precision grinding | Resin wheel, polishing |
1. YD series Fully Automatic Glass Double Round Edging Line is used to grind and polish the edges of glass automatically.
This production line is a must for most of the glass processing factory and it is widely applied in the industry of furniture, appliances, household decoration, etc.
2. For a more complete processing requirement, our Edging Line can be linked with automatic cutting machine, glass detecting machine, glass washing machine, or other glass processing machine, which can greatly improve the labor cost and productivity.
2. For a more complete processing requirement, our Edging Line can be linked with automatic cutting machine, glass detecting machine, glass washing machine, or other glass processing machine, which can greatly improve the labor cost and productivity.
An automatic glass loading table with suction cups can be arranged.
3. We can arrange different quantity and types of the grinding wheels according to customer's request. The quantity range of spindles can be 2~11 each side.
4. There is L-shaped and Straight line type glass transfer table for option.
3. We can arrange different quantity and types of the grinding wheels according to customer's request. The quantity range of spindles can be 2~11 each side.
4. There is L-shaped and Straight line type glass transfer table for option.
Liaoda can provide the optimal solution for you according to your plant area and the size of glass.

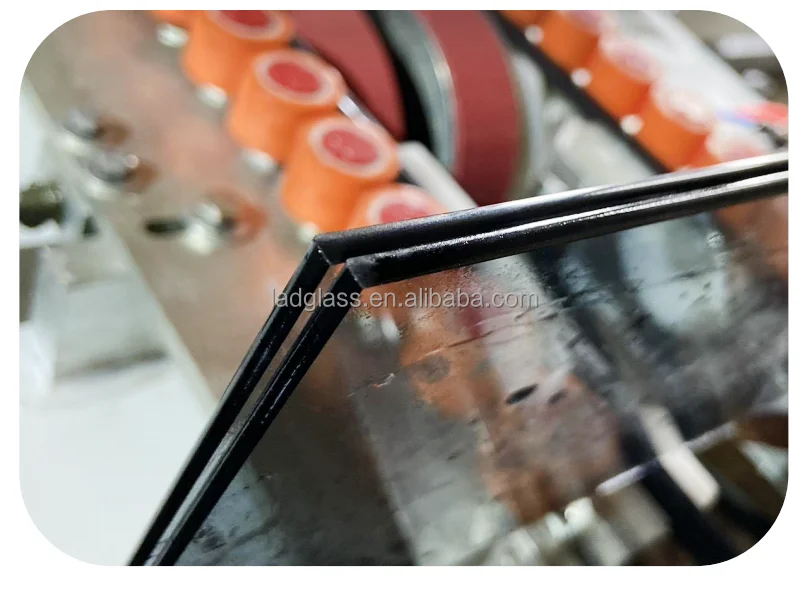

5. The production line is able to grind pencil edge, flat edge or other edging shapes with proper grinding wheels.
5. The production line is able to grind pencil edge, flat edge or other edging shapes with proper grinding wheels.
PRODUCT CONFIGURATION
ABB, CDQC, Chinese brands for option
PLC
Servo motor for option

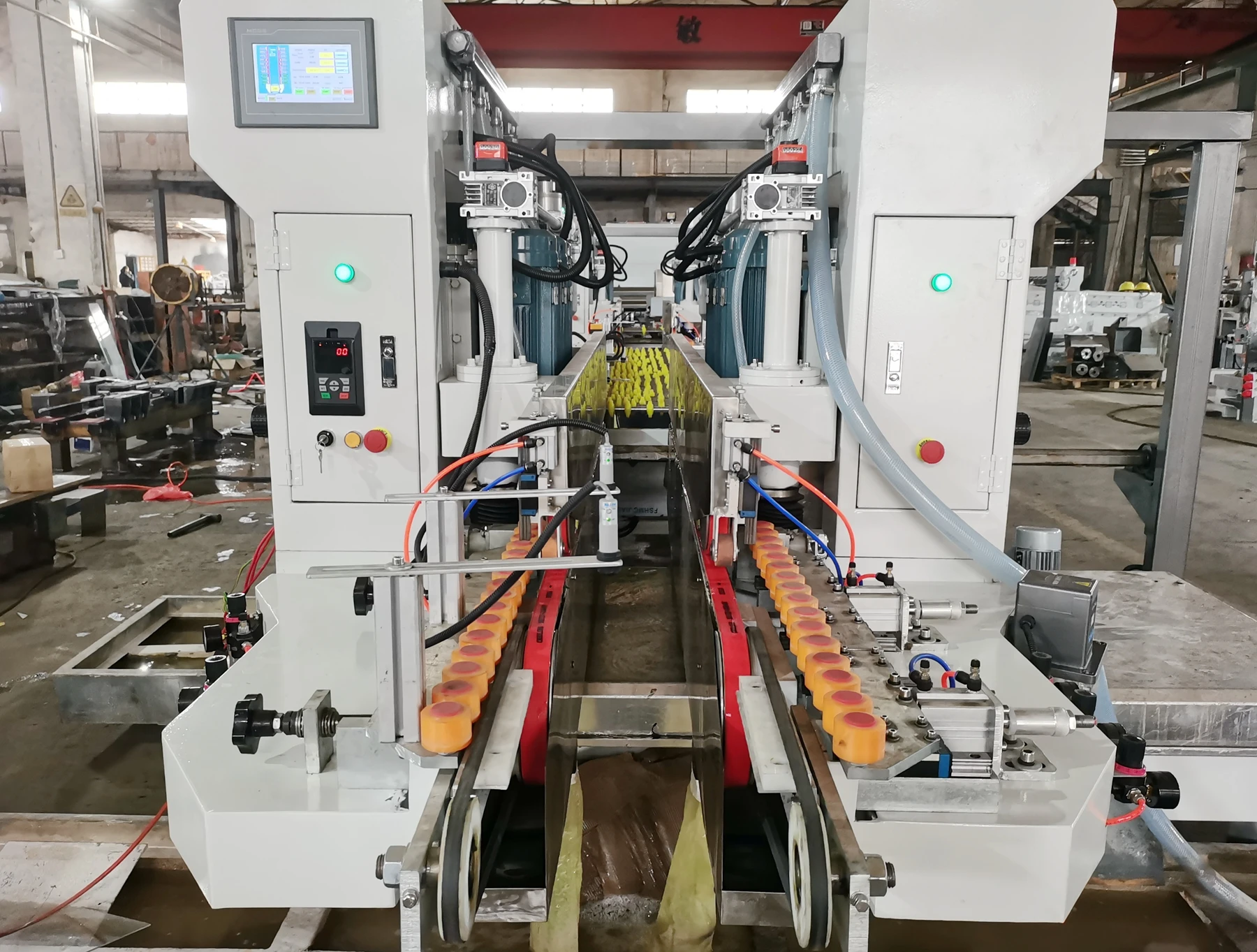

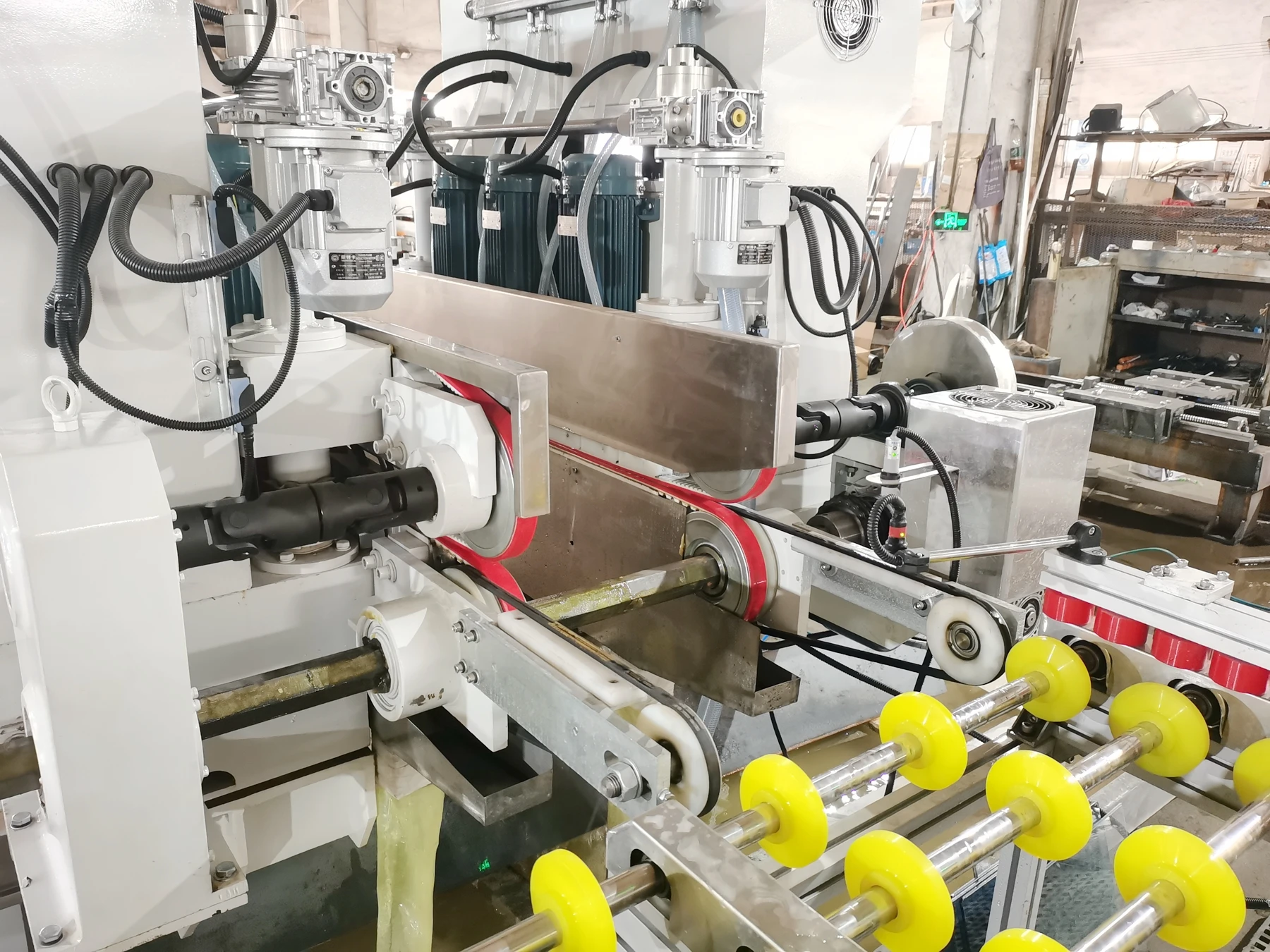

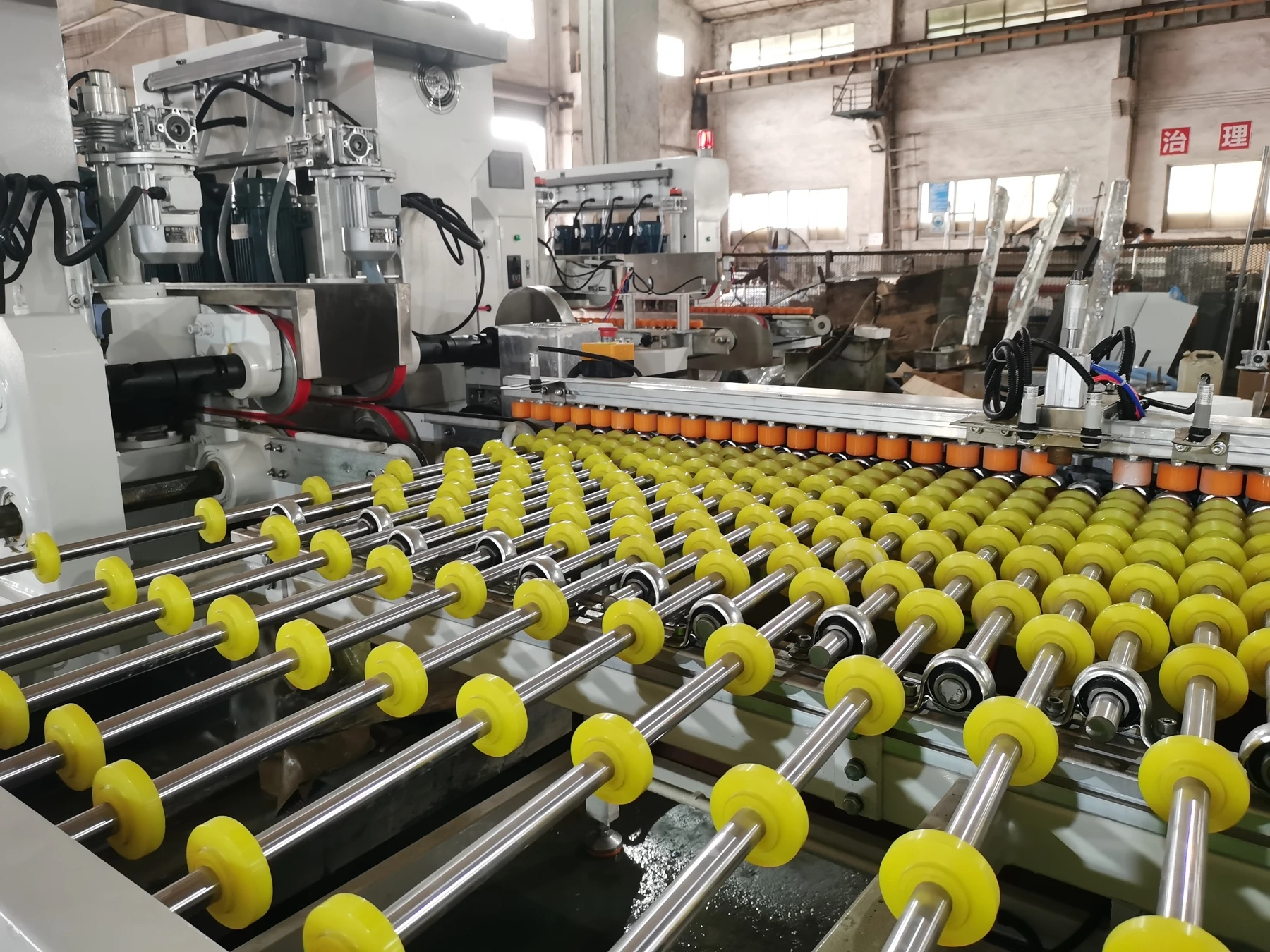

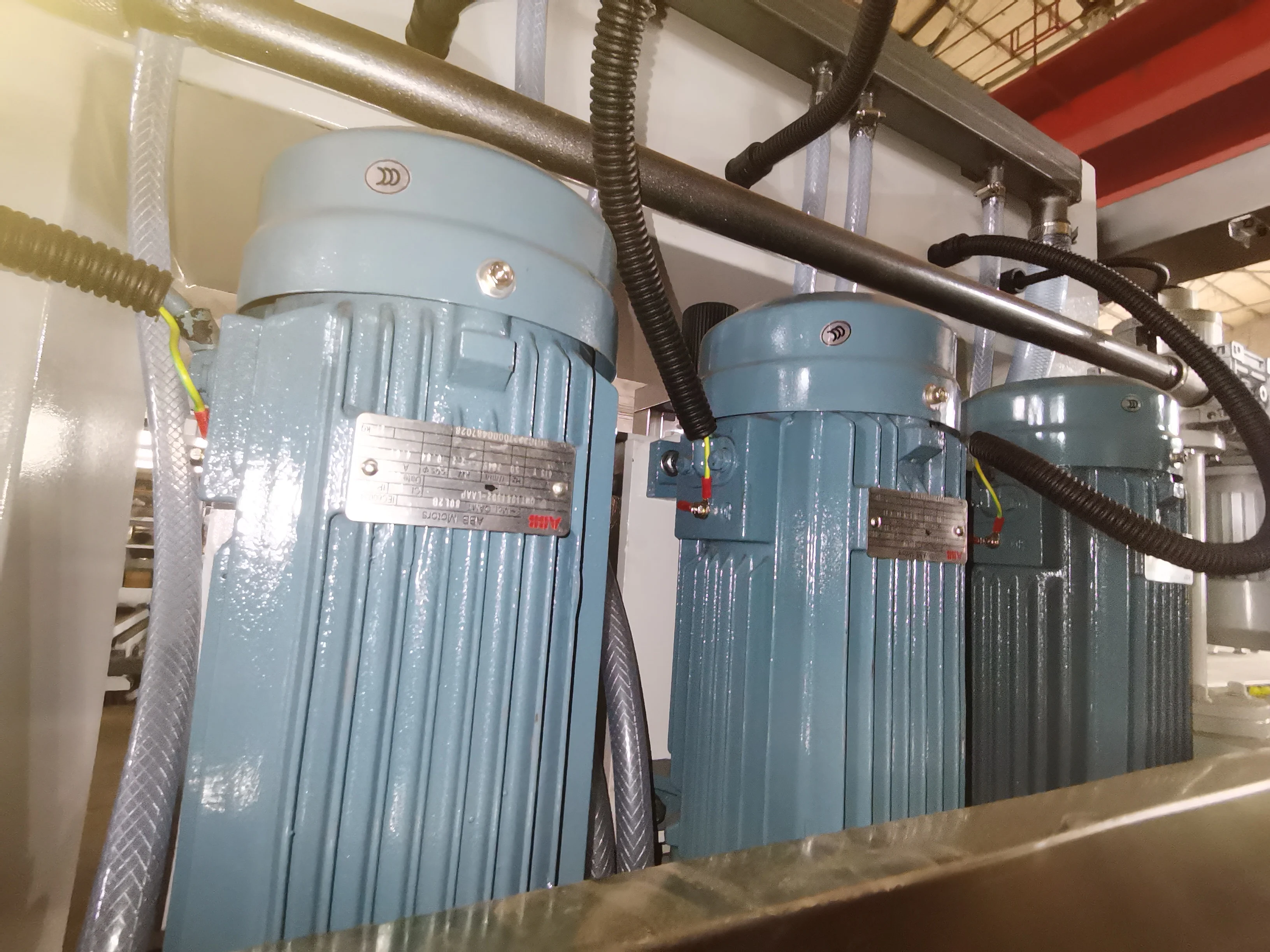

DETAILS IMAGES
SIMILAR PRODUCTS
PACKING AND SHIPPING
FAQ
Похожие товары

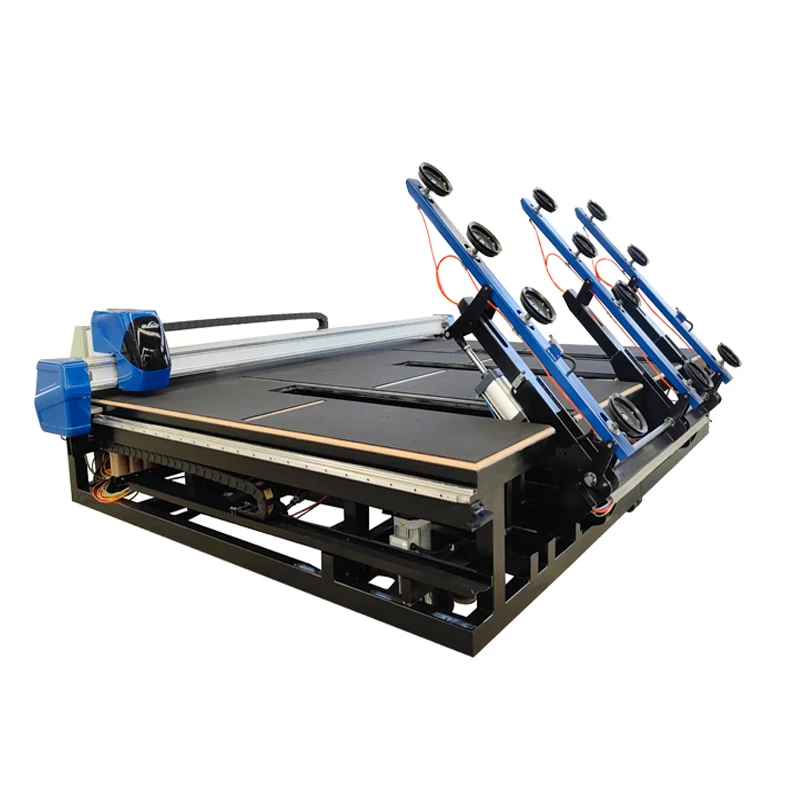

Машина для резки стекла с вертикальной загрузкой разбития машины
2 609 387,00-2 846 604,00 ₽

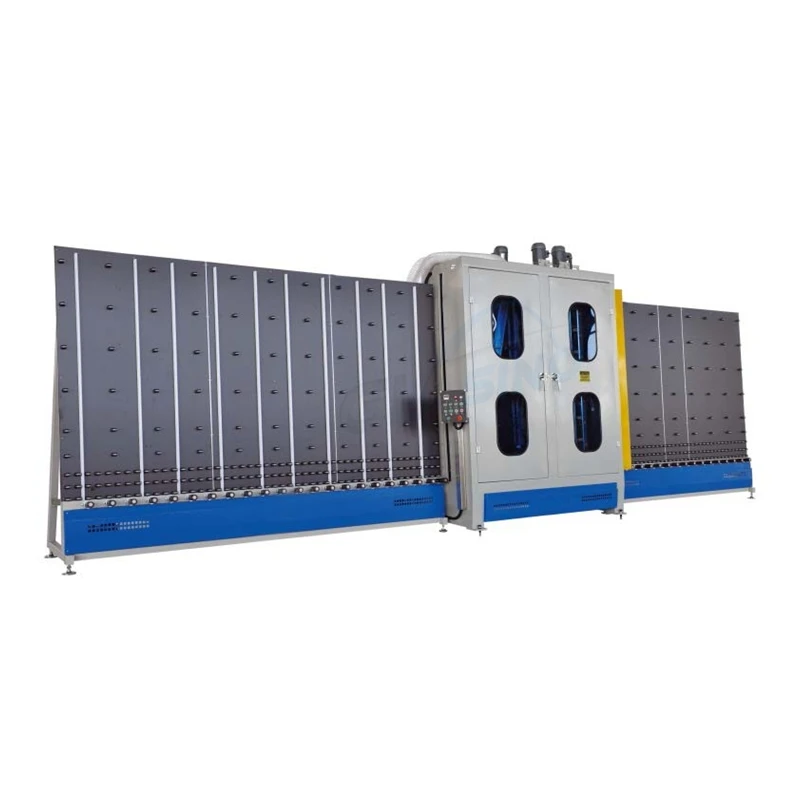

Высококачественная машина для очистки стекла
