Китайский 3-х осевой 4-осевой 3d мраморный гранитный фарфоровый надгробный камень гравировальный станок с ЧПУ несколькими головками
459 198,40-803 597,20 ₽
Оборудование HUALONG HLSD3 1525 4 осевой гранитный мраморный памятник Гравировальный гравировальный станок с ЧПУ каменная скульптурная машина
- Категория: >>>
- Поставщик: Fujian Province Hualong Machinery Co. Ltd.Fujian Ltd.
Сохранить в закладки 1601021269532:
Описание и отзывы
Характеристики
3D Stone Sculpture Carving Machine
HLSD3-1525 is a 4 axis CNC machine mounted with milling cutter for engraving and switchable saw blades for fast roughing. It can realize 3-dimensional stereoscopic engraving for all kind of stones, such as marble, granite, quartize, sandstone or artifical stone or ceramics, glass, plastic, wood or foam etc.
It's mainly applied to tombstone processing industry, home decoration industry, arts and crafts industry for carving stone Buddhas statues & sculptures, stone balustrades, stone crafts, stone artwork projects & ideas etc.
This machine is mounted with switchable double processing heads.
The saw blade make fast roughing first and save lots of time for next engraving.
Main Features
1) Adopt NcStudio CNC control system large color screen display, easy and simple to operate.
2) Break to rusume function. Continue carving from break point after power resuming from failure.
3) Compatible with Artcam JD Paint CAM software and other software programs.
2) Break to rusume function. Continue carving from break point after power resuming from failure.
3) Compatible with Artcam JD Paint CAM software and other software programs.
4) High-performance new material motors and drivers can resist heat, shock and bad environment, ensure the working high speed and accuracy..
5) Professional vector control Inverter guarantee the variety working speed, smooth operation and make lower power consumption.
6) Big standing type rotary table which adding thicken PVC board, Enhancing the loading capacity of the platform.
7) Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.
5) Professional vector control Inverter guarantee the variety working speed, smooth operation and make lower power consumption.
6) Big standing type rotary table which adding thicken PVC board, Enhancing the loading capacity of the platform.
7) Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.
TECHNICAL DATA | ||||||
Model No. | HLSD3-1020 | HLSD3-1525 | HLSD3-2030 | |||
Working platform size | 1500*2000mm | 1500*2500mm | 2000*3000mm | |||
Engraving height | ≤ 1500 mm（customizable） | 2 | 2 | |||
Spindle power | 7.5 kw (customizable) | |||||
Spindle rotating speed | 6000-24000 rpm/min | |||||
Saw power | 22 kw | mm | ||||
Max. power required | 25 kw | mm | ||||
Relief working | 30000 mm/min | |||||
Diameter of engraving tool | ø1-16 mm | kg | ||||
Positioning precision | +/- 0.03 mm | kw | ||||
Repeat positioning accuracy | +/- 0.02 mm | kw | ||||
Command code | G code | kw | ||||
Driving system | Servo (customiable) | kw | ||||
Cooling system | Water cooling | |||||
Dimensions (L x W x H) | 4500x3000x5000mm | |||||
Application:
* Stone Buddhas statues, Church sculptures
* Stone balustrades, Roman columns, colum cap & base
* stone crafts, artwork
* Funeral tablets/tombstones, Milestones
Control system -- CNC
Brand:NC studio
Original: China
CNC control system,easy to learn and operate, Breakpoint specific memory, power outages continued carving.
CNC control system,easy to learn and operate, Breakpoint specific memory, power outages continued carving.
It can compatible with Artcam JD paint softwares and other CAM software.
Water-cooling Spindle
Power: 3.5/4.5/5.5 kw (customizable)
Rotating Speed: 6000-24000 rpm/min
Frequency changing water cooled spindle with high-speed bearing technology, make low noise, fast response, high rotational speed and safeguard stability for longtime work.
Guide Rail, Ball screw
Origin: Taiwan, China
High quality guide rail, ballscrew, rack used on X, Y and Z axises provide smooth motion and tight control for precise and quality engraving.
Auto Lubricating System
Automatic oil feedingand lubrication system makes the regular maintenance very easy and reduce waste.
Servo Motor
Brand: Dorna
Origin: China
Nr of revolutions: 0-2000 rpm
They are very resistant to heat and bad envirament with fast speed , high precision and shock resitant.
Drive X and Y axis moving accuracy and reposefully.
Nr of revolutions: 0-2000 rpm
They are very resistant to heat and bad envirament with fast speed , high precision and shock resitant.
Drive X and Y axis moving accuracy and reposefully.
Rotary Table
The rotary platform is made with sturdy and durable chuck, which make it easy to fasten the working piece.
VR
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
Похожие товары
4-осевой станок с ЧПУ для резьбы по дереву
516 598,20-592 251,14 ₽
Шицзин 9261-1600 45 градусов настольный резак для мокрой плитки мрамора керамики фарфора машина резки кварца портативная
68 535,37-70 831,36 ₽

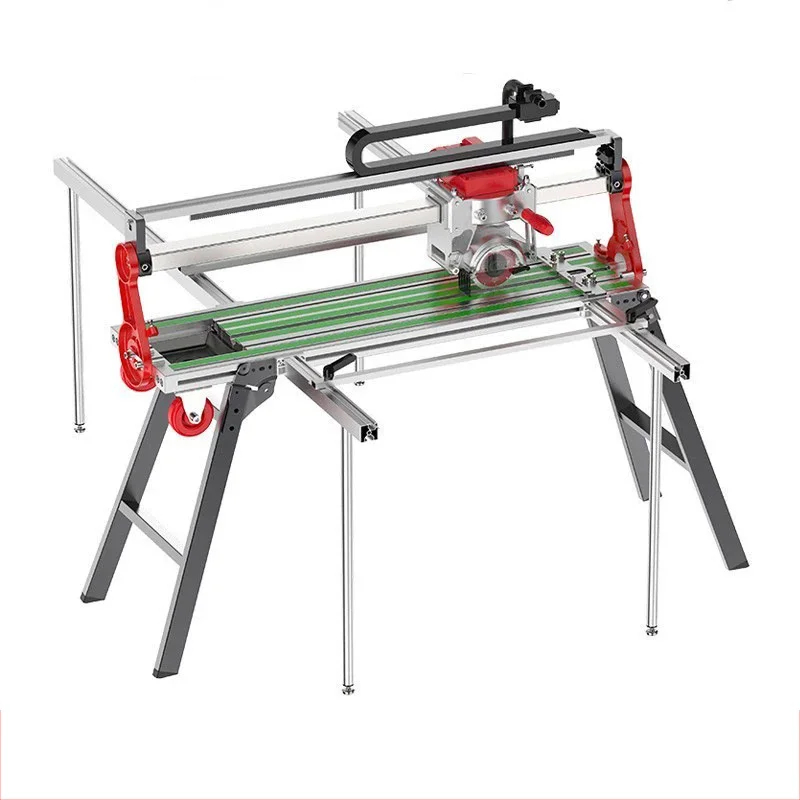

Станок для резки 9231 плитки Shijing монорельсовый камень Портативный станок камня электрический резак 1200 мм
56 137,01-57 285,01 ₽
Станок для резки камня 9231-1200 мм
54 989,01-57 285,01 ₽
1325 маршрутизатор с ЧПУ atc деревообрабатывающий гравировальный станок для древесины
516 598,20-592 251,14 ₽

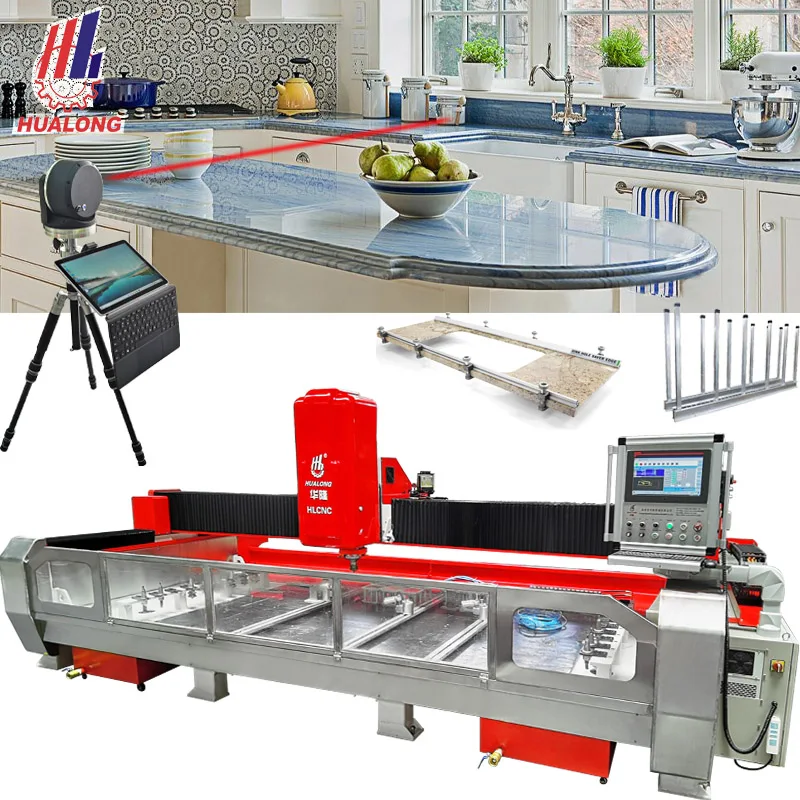

HUALONG machinery Италия система чпу гранитный камень кварцевая столешница отверстия для раковины вырезание и полировка кромок мрамора
