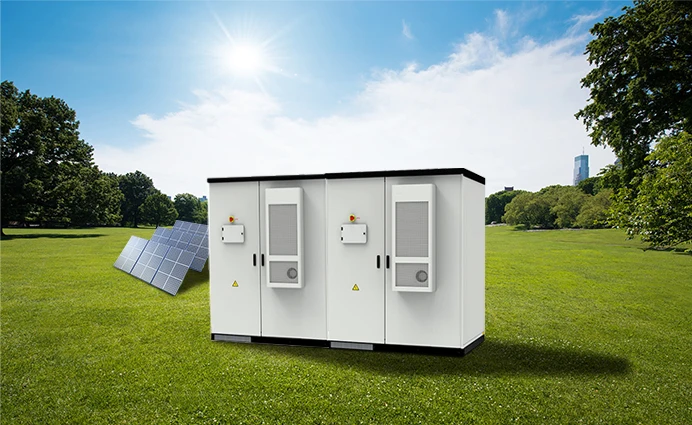

200kw 430kWh BESS литиевая воздушная охлаждающая интегрированная коммерческая и промышленная уличная система хранения солнечной энергии
- Категория: >>>
- Поставщик: Shenzhen Sinostorage Energy Co. Ltd.
Сохранить в закладки 1601021323172:
Описание и отзывы
Характеристики
Product Description
Sinostorage Outdoor All-in-one Energy Storage Cabinet is based on lithium iron phosphate batteries as energy carriers, which is used to charge and discharge through PCS to achieve a variety of energy exchange with the power system. Diesel generator and power storage systems such as power grids. The output of the energy storage system can be connected to grid, supply various load equipment and electric vehicle chargers.

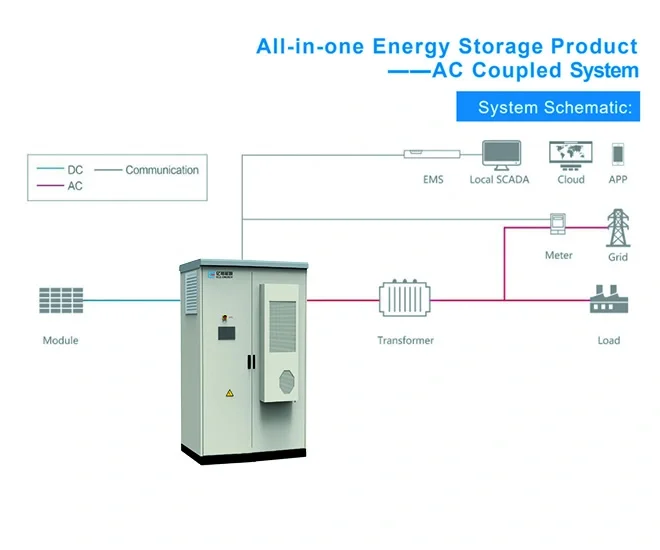

The energy storage cabinet primary circuit includes the battery system, cluster control box and PCS; The output of the battery system is controlled and protected by the cluster control box and connected to the DC side of the PCS.
The energy storage cabinet primary circuit includes the battery system, cluster control box and PCS; The output of the battery system is controlled and protected by the cluster control box and connected to the DC side of the PCS.

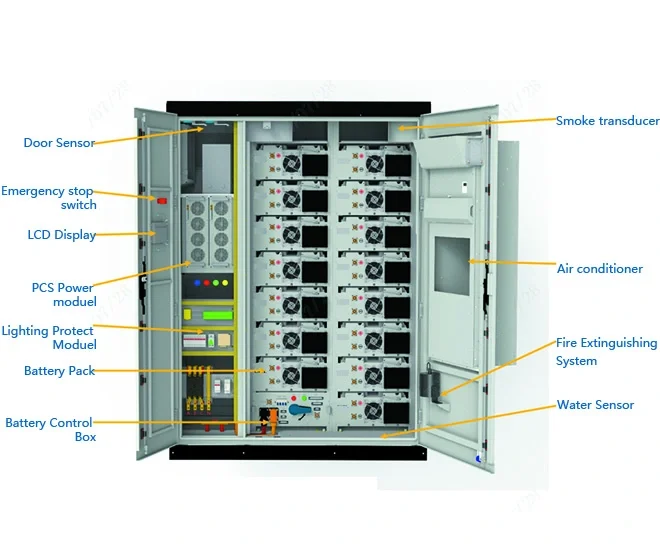

This integrated energy storage system cabinet include Lithium Battery Clusters,BMS and cluster control box,Power Conversion System( PCS),Energy Management System(EMS) temperature control and fire protection, water door magnetic and monitoring communication, fully control the system operation status and risks .The core of the technology is the design of the battery pack, the battery cluster structure, the thermal design of the battery system, the protection technology of the battery system, and the battery management system.
This separate off-grid power generation system adopts：
Integrated energy storage system cabinet-All-IN-ONE cabinet ((215kwh-100kw)*2set)
A: The battery cabinet， integrates 1 clusters of battery packs, each cluster of battery pack has a power of 215.04kWh+BMS High voltage managements system+cooling system +fire fighting system+EMS+ATS,isolation transformer.
B: Power conversion system(PCS) ,with AC rated output power 100KW (2sets of DC-AC conversion modules)+DC input rated power 100KW(2sets of DC-DC conversion module).
This separate off-grid power generation system adopts：
Integrated energy storage system cabinet-All-IN-ONE cabinet ((215kwh-100kw)*2set)
A: The battery cabinet， integrates 1 clusters of battery packs, each cluster of battery pack has a power of 215.04kWh+BMS High voltage managements system+cooling system +fire fighting system+EMS+ATS,isolation transformer.
B: Power conversion system(PCS) ,with AC rated output power 100KW (2sets of DC-AC conversion modules)+DC input rated power 100KW(2sets of DC-DC conversion module).
Specification

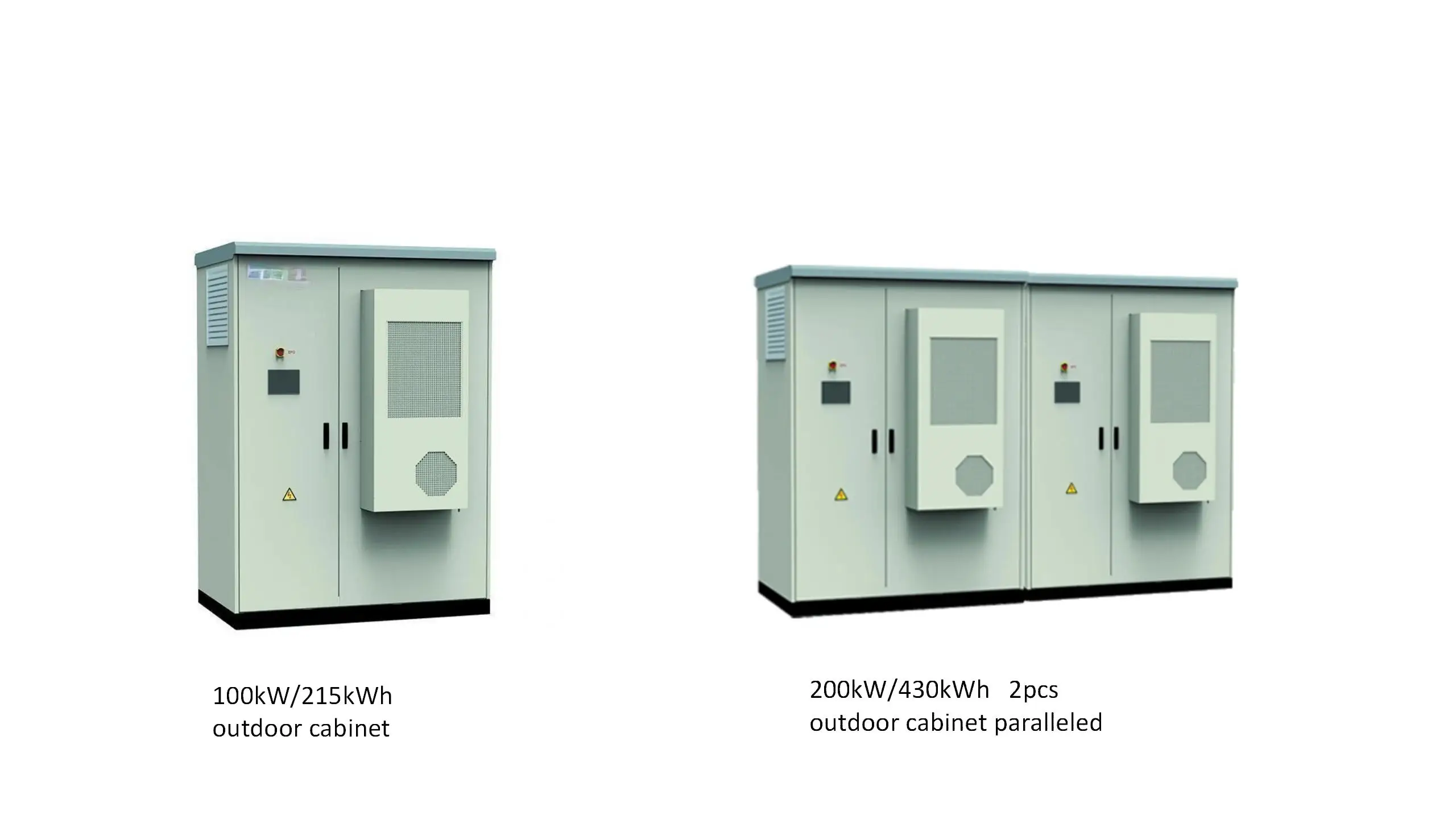

Model | 100kW/215kWh | 200kW/430kwh | ||
Battery parameters | ||||
Battery rated energy storage capacity | 215.04kWh | 430.8KWh | ||
System rated voltage | 768V | 768V | ||
Battery type | Lithium iron phosphate battery | |||
Cell capacity | 280Ah | 280Ah | ||
Battery pack series and parallel mode | 1P“20S*12Pack | 2P“20S*12Pack | ||
AC parameters | ||||
Rated AC power | 100kW | 200kW | ||
Rated AC current | 144A | 288A | ||
Rated AC voltage | 400V,3P+N+PE,50Hz | |||
Total current distortion | <3% | |||
Power factor | -1 advance ~ + 1 lag | |||
Conventional parameters | ||||
Protection | IP54 | |||
Isolation method | Non-isolation (optional transformer) | |||
Working temperature | -25-60°C(derate above 45 °C) | |||
Height above sea level | 3000m(derate over 3000m) | |||
Communication interface | RS485/CAN2.0/Ethernet / dry contact | |||
Dimensions (W * D * H/mm) | 1800"1200*2300 | (1800"1200*2300)*2 | ||
Weight(Kg) | 2200 | 2200*2 | ||

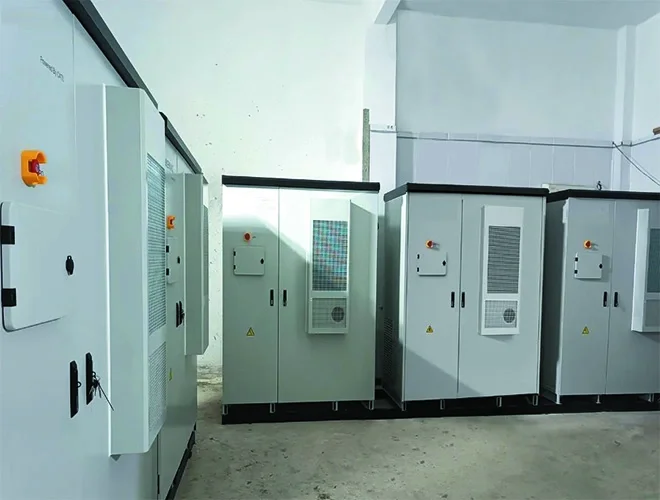

Details Images
Company Profile
Based in China, Shenzhen Sinostorage Energy Co., Ltd is a specialist manufacturer of battery energy storage systems and back-up power solutions for various commercial, industrial, and residential scenarios. With years of field experience, professional R&D team, reliable quality, and effective supply chain management, we are capable of delivering high-quality solutions and customized production to help our customers realize greater value.
We boast a cutting edge R&D team, fully automatic battery pack assembly lines, manufacturing ability of the whole industry chain including SMT patch mold injection molding, Battery Management System(BMS), Power Conversion System(PCS), Energy Management System(EMS), cabinet assembly, and comprehensive machine testing. We follow rigorous IS09001 quality management system, and implement strict production process control. Our products have been certified and sold to over one hundred countries and regions, and have been recognized repeatedly by world users and markets.
By sticking to the industrial manufacturing concept of “safety, stability, quality, and reliability”, Sinostorage is committed to providing reliable products and integrated solutions to our customers worldwide, and will continue to do our bits in transition of clean power and minimizing carbon footprint for greener future.
We boast a cutting edge R&D team, fully automatic battery pack assembly lines, manufacturing ability of the whole industry chain including SMT patch mold injection molding, Battery Management System(BMS), Power Conversion System(PCS), Energy Management System(EMS), cabinet assembly, and comprehensive machine testing. We follow rigorous IS09001 quality management system, and implement strict production process control. Our products have been certified and sold to over one hundred countries and regions, and have been recognized repeatedly by world users and markets.
By sticking to the industrial manufacturing concept of “safety, stability, quality, and reliability”, Sinostorage is committed to providing reliable products and integrated solutions to our customers worldwide, and will continue to do our bits in transition of clean power and minimizing carbon footprint for greener future.
Certifications
Packing & Delivery
FAQ
1.Q:How long is the delivery time of your products?
A:We can ship in 7-30 days from factory warehouse.
2.Q:Can you supply OEM &ODM service ?
A:Yes, but there is a minimum order quantity required.
3.Q:How Long is the warranty?
A:Our warranty is 10 years .
4.Q:Can I customize the products as my requests ?
A:Yes. Let me know the specific customization requirements and we will get back to you as soon as possible.
5.Q:How do you provide after-sales service?
A:Please contact with us we will arrange that
6.Q:Can I order a sample ?
A:Yes, please leave your contact information and our sales manager will contact you soon.
A:We can ship in 7-30 days from factory warehouse.
2.Q:Can you supply OEM &ODM service ?
A:Yes, but there is a minimum order quantity required.
3.Q:How Long is the warranty?
A:Our warranty is 10 years .
4.Q:Can I customize the products as my requests ?
A:Yes. Let me know the specific customization requirements and we will get back to you as soon as possible.
5.Q:How do you provide after-sales service?
A:Please contact with us we will arrange that
6.Q:Can I order a sample ?
A:Yes, please leave your contact information and our sales manager will contact you soon.
>> Click here to get more details <<
Похожие товары
PLQ-20 passbook принтер запчасти параллельный
бар пистолет код

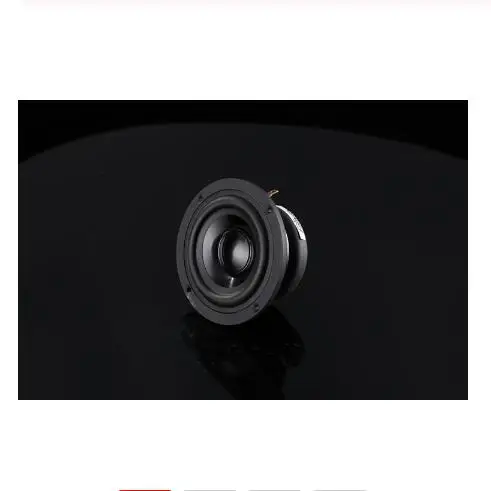

Fountek FR89EX полный спектр 3 дюймов HIFI Динамик/книжная полка динамик Алюминий Стенд
Новое поступление, Детские тени для век, губная помада для девочек, набор для макияжа с кисточкой
1,95 $ - 2,34 $
Медицинский цифровой гинекологический осмотр колпоскоп HD видео вагинальная камера для гинекологии вагинальный эндоскоп

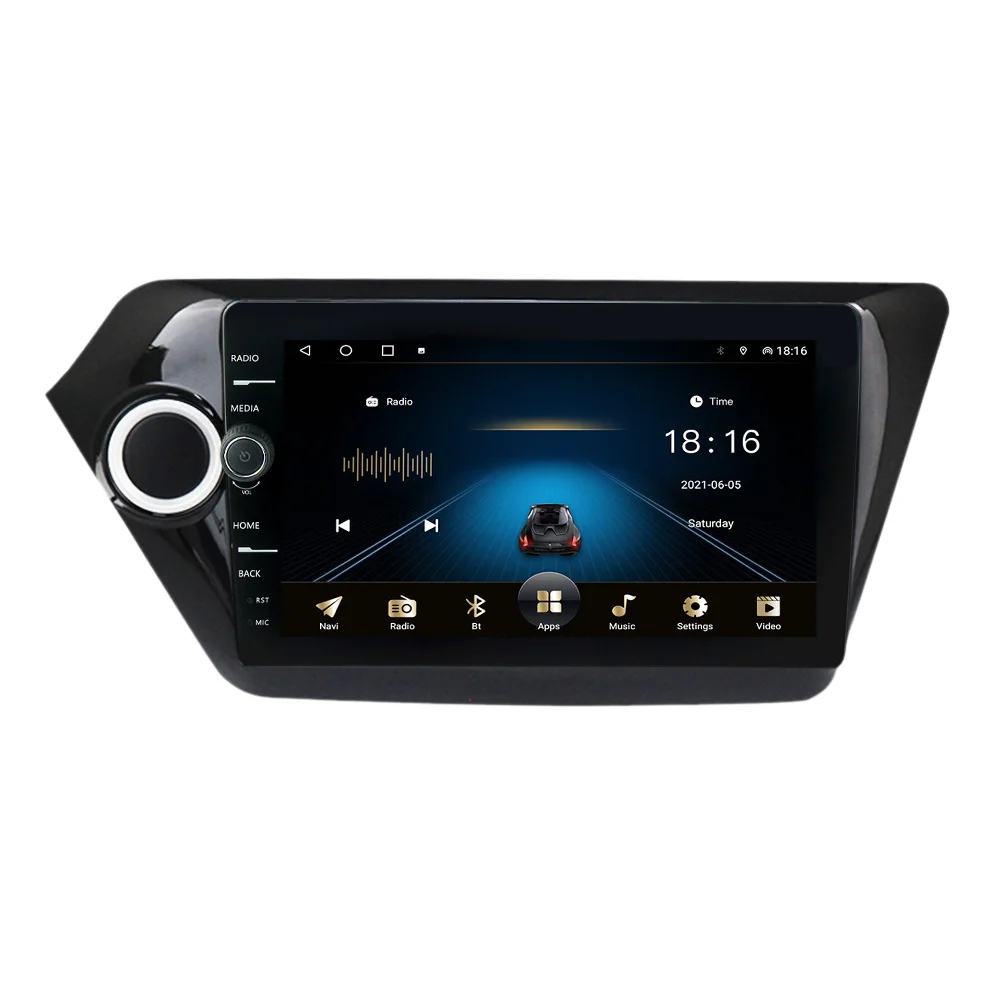

AM FM RDS Радио Автомобильная Мультимедийная система для KIA K2 RIO 3 4 2011 2012 2013 2014 2015 автомобильный dvd-плеер 6 + 128G IPS QLED сенсорный экран
