Деревянная Кнопка лазерная гравировальная машина/Лазерная кнопка дизайн маркировочная машина
308 583,52 ₽ - 330 625,20 ₽
ЧПУ вся крышка 1000 Вт 3000 углеродистая нержавеющая сталь пластина и трубка интеграция лазерная резка 10 мм из нержавеющей стали
- Категория: >>>
- Поставщик: Jinan Dxtech CNC Machine Co. Ltd.
Сохранить в закладки 1601021907848:
Описание и отзывы
Характеристики
CNC All Cover 1000w 3000w Carbon Stainless Steel plate and tube integration laser cutting 10 mm plate and tube stainless steel
Product Description
——

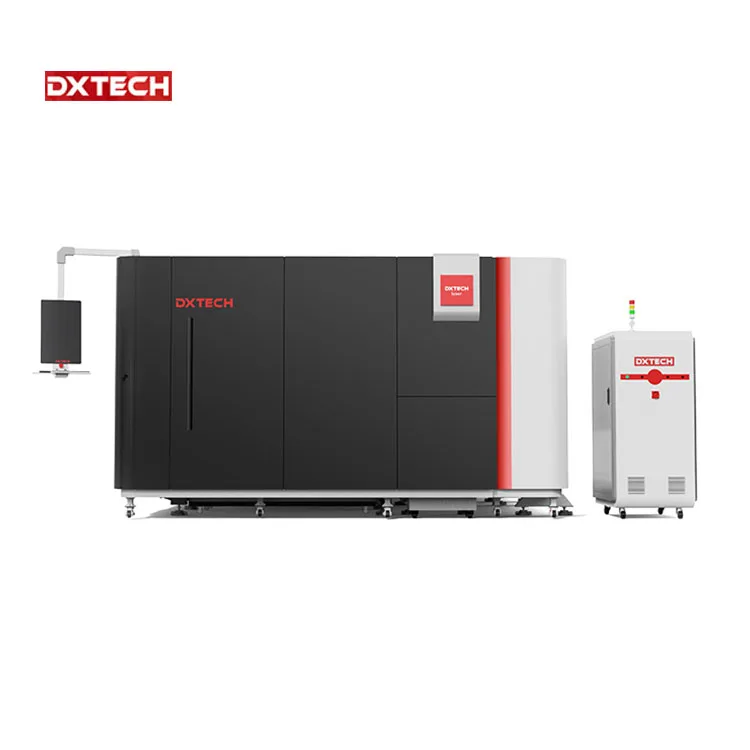

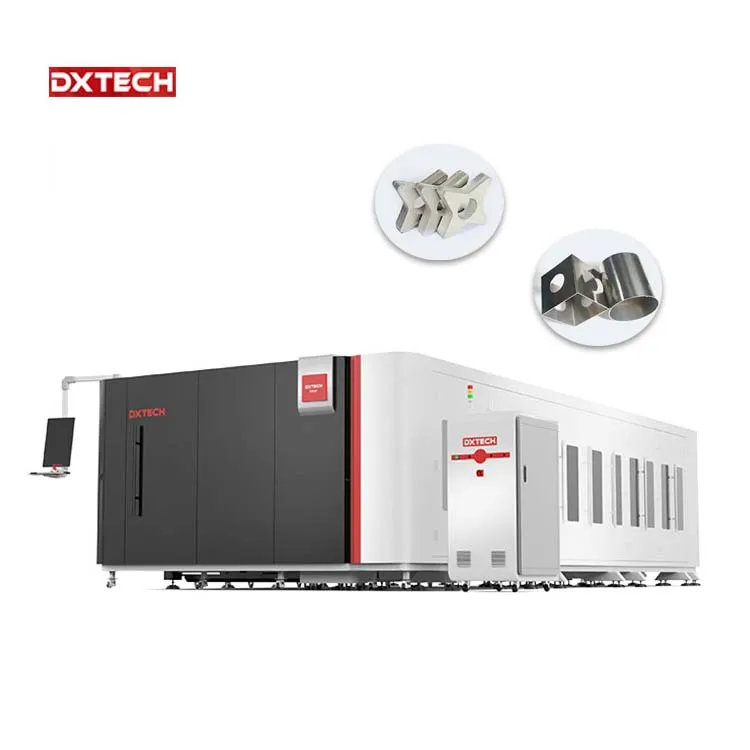

DXTECH Model SLT protective fiber laser cutting machine is equipped with an exchange table and a laser protection observation window. The two cutting platforms are exchanged back and forth, which improves processing efficiency and saves manpower. The comprehensive enclosure protection design not only ensures the safety of the processing process, but also benefits the factory environment and meets environmental protection standards.Besides, this all cover fiber laser cutting machine is equipped with high-quality components and parts, ensuring the high cutting precision, high speed and long service life. The working size and laser power can be customized according to the customer needs.
Features
1. With the fully enclosed protective cover, the smoke and dust can be prevented, which is more environmentally friendly.
2. With the 15s exchange platform adopted, this laser cutter can achieve fast loading and unloading, which greatly improves the processing efficiency.
3. With the lightweight aviation aluminum beam adopted, the machine greatly improves the moving speed, and the processing precision is guaranteed.
4. Simple operating system, to realize rapid cutting on the shape what you want on the metal material, like carbon steel ,stainless steel, cooper, aluminum, and galvanized sheet
Fully enclosed protective cover
——Eco-friendly and safer
Fully endosed protective cover is designed to improve the safety of use, Equipped with o smoke purification system to avoid environmental pollution and protect the health of operators
——More stable
Compliant with EU and ISO standard certification, the weight of the bed can reach 10 tons, which makes the machine more stable when operating at high speed.
Intelligent focusing laser head
——Cooling:
Both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which
effectively protects the nozzle and the ceramics and prolongs the working time.
Both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which
effectively protects the nozzle and the ceramics and prolongs the working time.
——Chasing aperture:
Through the 35 mm aperture, the interference of stray light is effectively reduced.
Through the 35 mm aperture, the interference of stray light is effectively reduced.
——Autofocus:
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Automatic exchange of platform
——Adopts the dual-platform automatic exchange system with the platform exchange time of 20-25s, which greatly improves work efficiency.
——Thick-walled carbon steel pipe welding bed Adopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine todl adopts 600 ℃ stress relief amealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Aviation aluminum beam
——It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
——It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.

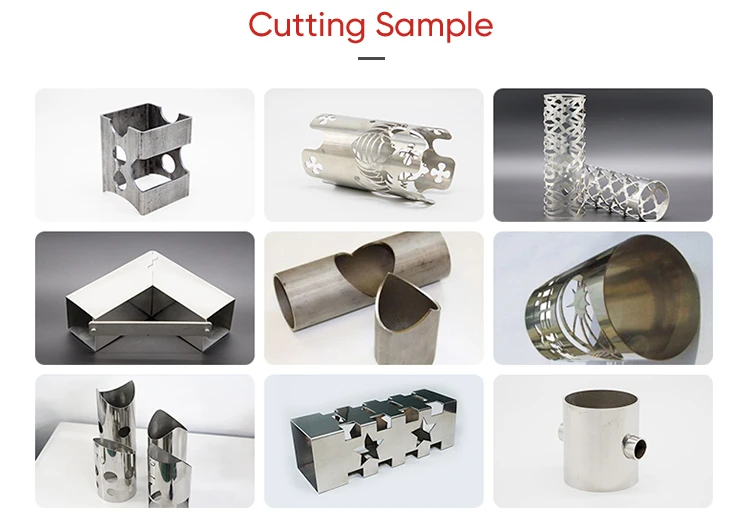

Sample Show
Technical Parameters
Model | DXTECH-1530SLT | DXTECH-2040SLT | DXTECH-2560SLT |
Working area (mm) | 1515*3030 | 2020*4040 | 2525*6050 |
Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
Max. exchange time | 25s | 30s | 40s |
Max. acceleration | 2.0G | 2.0G | 2.0G |
Laser power | 1kW – 6kW | 1kW – 6kW | 1kW – 6kW |
Laser | Multiple options | Multiple options | Multiple options |
Focusing method | Auto/manual | Auto/manual | Auto/manual |
Machine bed | Tube welded bed | Tube welded bed | Tube welded bed |
Max. running speed | 160m/min | 160m/min | 160m/min |
Product category
Company Profile
Our factory
Our strict quality policy ensures thehigh reliability and longevity of DXTECH laser machines.
Quality control in the production process.
Random sample testing by Quality Control.
Traceability for DXTECH laser machines.
Reliable laser machines with long service life.
Laser machine spare parts availability exceeds 96%.
Our Certificate and Exhibition
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum,
copper, etc.
copper, etc.
02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.
Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
