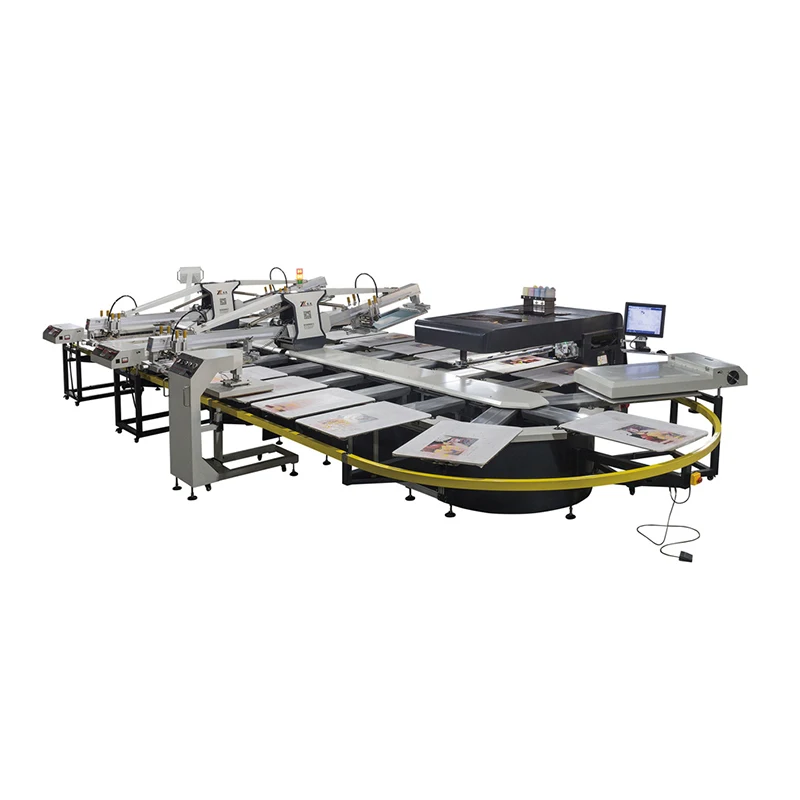

Большие размеры 10 видов цветов Автоматическая карусель овальной формы для трафаретной печати
46 800,00-47 200,00 $
Полностью автоматический Печатный принтер smt паяльная паста печатная машина для 1200 мм светодиодное сборочное производство
- Категория: >>>
- Поставщик: Shenzhen Wenzhan Electronic Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601022215457:
Описание и отзывы
Характеристики
Product Description
Machine | |
Repeat Position Accuracy | ±0.015mm |
Printing Accuracy | ±0.03mm |
Cycle Time | <15s (Exclude Printing & Cleaning) |
Product Changeover | <5Min |
Air Required | 4.5~6Kg/cm2 |
Power Input | AC:220±10%,50/60HZ 1Φ 3KW |
Control Method | PC Control |
Machine Dimensions | 2200(L)X1200(W)X1500(H)mm |
Machine Weight | Approx:1500Kg |

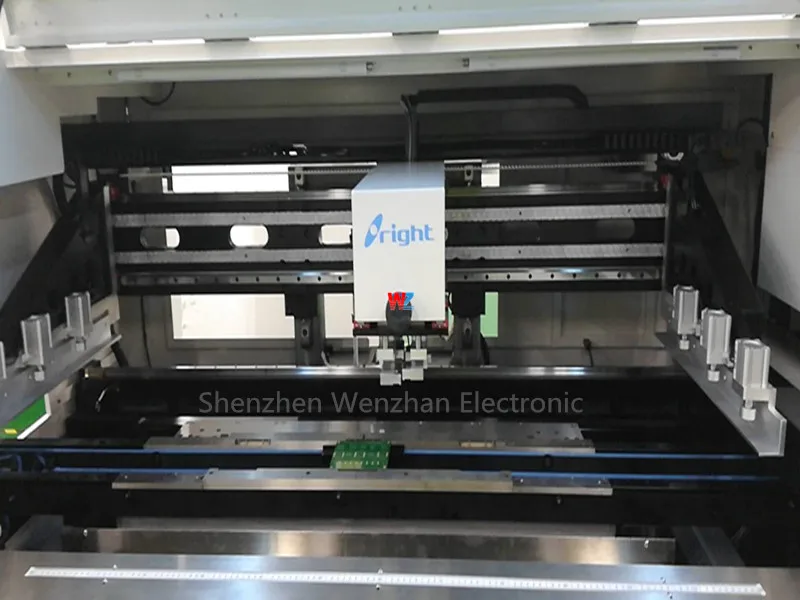

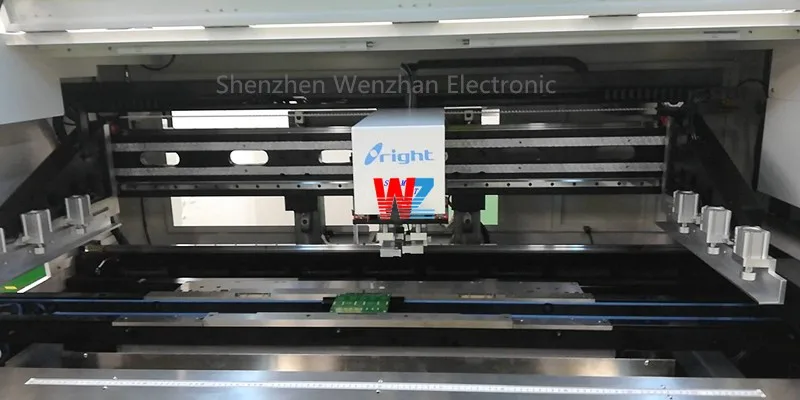

1. Scraper system
* the arch bridge is suspended straight and straight
* programmable suspension self-adjusting stepping motor drives the printing head
* four-wheel positioning sliding rail structure of bilateral double-slide block ensures the accuracy and smoothness of operation
before and after scraping
* for before and after the squeegee pressure difference required and the stability of the lifting design, to prevent leakage of
solder paste and blade clamping design has certain elasticity, squeegee pressure, lifting speed, the printing speed, print scope
software is adjustable, and provides customers with a variety of tin under the demoulding ways to adapt to different requirements
of PCB, for the customer provides a good platform for the control of printing;
* slide rail scraper system to improve operation stability and prolong service life;
Full closed-loop scraper pressure feedback device, always monitor the pressure of scraper pressure, make the lower tin more full.
2. Steel mesh positioning system
The size of steel mesh has good and wide applicability
The imported SMC cylinder is used as the cylinder.
Embedded scale, never fall off
Segmented fixed steel frame.
3. Image and optical path system
X, the Y-axis USES the Japanese black field high ground wire rod, the two ends Japan matsushita motor drive
Internal increase polaroid, automatic accurate grasping different type of the MARK point
Upper, lower and coaxial 3 uniform light source
Japan's Toshiba industrial camera.
4. PCB transportation and positioning system
The inlet direction arbitrary selection, free combination
Special process of inner tooth transport belt, prevent card board
Programmable transport speed control can make the suspension more accurate
Use the sexual side clamp and vacuum suction chamber, effectively clamping the PCB to ensure the complete smooth contact between
PCB and steel mesh.
5. Cleaning system
Spray type cleaning
Dry, wet, vacuum-free combination
Separate cleaning structures
Circular cleaning rubber strip
Cleaning fluid, and steel net cleaning paper amount controlled.
6. Platform calibration system
UVW platform structure, high precision, large rigidity and compact structure
Triaxial linkage, small volume, high precision
7. Base and rack system
Solid forming Panasonic motor plus Japan original plant high precision ground wire rod
High rigidity, high stability of left and right symmetrical frame structure.
8. Electrical road system
Safe and concise circuit gas circuit layout
The circuit gas road erect the two sides and the rear of the machine, the maintenance is convenient.
9. Operating system
Easy to learn easy to use friendly operation interface, with good man-machine dialogue function
The program file has teaching and navigation functions, and every step has a hint
Switch between Chinese and English
It has operation log, fault recording analysis and diagnosis.
10. Other functional options
Automatic point glue function
Automatic scanning function
Automatic add tin function
The whole line closed loop control
Constant temperature and humidity function
Steel mesh plugging function
Other functions can be customized according to customer's actual demand
* the arch bridge is suspended straight and straight
* programmable suspension self-adjusting stepping motor drives the printing head
* four-wheel positioning sliding rail structure of bilateral double-slide block ensures the accuracy and smoothness of operation
before and after scraping
* for before and after the squeegee pressure difference required and the stability of the lifting design, to prevent leakage of
solder paste and blade clamping design has certain elasticity, squeegee pressure, lifting speed, the printing speed, print scope
software is adjustable, and provides customers with a variety of tin under the demoulding ways to adapt to different requirements
of PCB, for the customer provides a good platform for the control of printing;
* slide rail scraper system to improve operation stability and prolong service life;
Full closed-loop scraper pressure feedback device, always monitor the pressure of scraper pressure, make the lower tin more full.
2. Steel mesh positioning system
The size of steel mesh has good and wide applicability
The imported SMC cylinder is used as the cylinder.
Embedded scale, never fall off
Segmented fixed steel frame.
3. Image and optical path system
X, the Y-axis USES the Japanese black field high ground wire rod, the two ends Japan matsushita motor drive
Internal increase polaroid, automatic accurate grasping different type of the MARK point
Upper, lower and coaxial 3 uniform light source
Japan's Toshiba industrial camera.
4. PCB transportation and positioning system
The inlet direction arbitrary selection, free combination
Special process of inner tooth transport belt, prevent card board
Programmable transport speed control can make the suspension more accurate
Use the sexual side clamp and vacuum suction chamber, effectively clamping the PCB to ensure the complete smooth contact between
PCB and steel mesh.
5. Cleaning system
Spray type cleaning
Dry, wet, vacuum-free combination
Separate cleaning structures
Circular cleaning rubber strip
Cleaning fluid, and steel net cleaning paper amount controlled.
6. Platform calibration system
UVW platform structure, high precision, large rigidity and compact structure
Triaxial linkage, small volume, high precision
7. Base and rack system
Solid forming Panasonic motor plus Japan original plant high precision ground wire rod
High rigidity, high stability of left and right symmetrical frame structure.
8. Electrical road system
Safe and concise circuit gas circuit layout
The circuit gas road erect the two sides and the rear of the machine, the maintenance is convenient.
9. Operating system
Easy to learn easy to use friendly operation interface, with good man-machine dialogue function
The program file has teaching and navigation functions, and every step has a hint
Switch between Chinese and English
It has operation log, fault recording analysis and diagnosis.
10. Other functional options
Automatic point glue function
Automatic scanning function
Automatic add tin function
The whole line closed loop control
Constant temperature and humidity function
Steel mesh plugging function
Other functions can be customized according to customer's actual demand

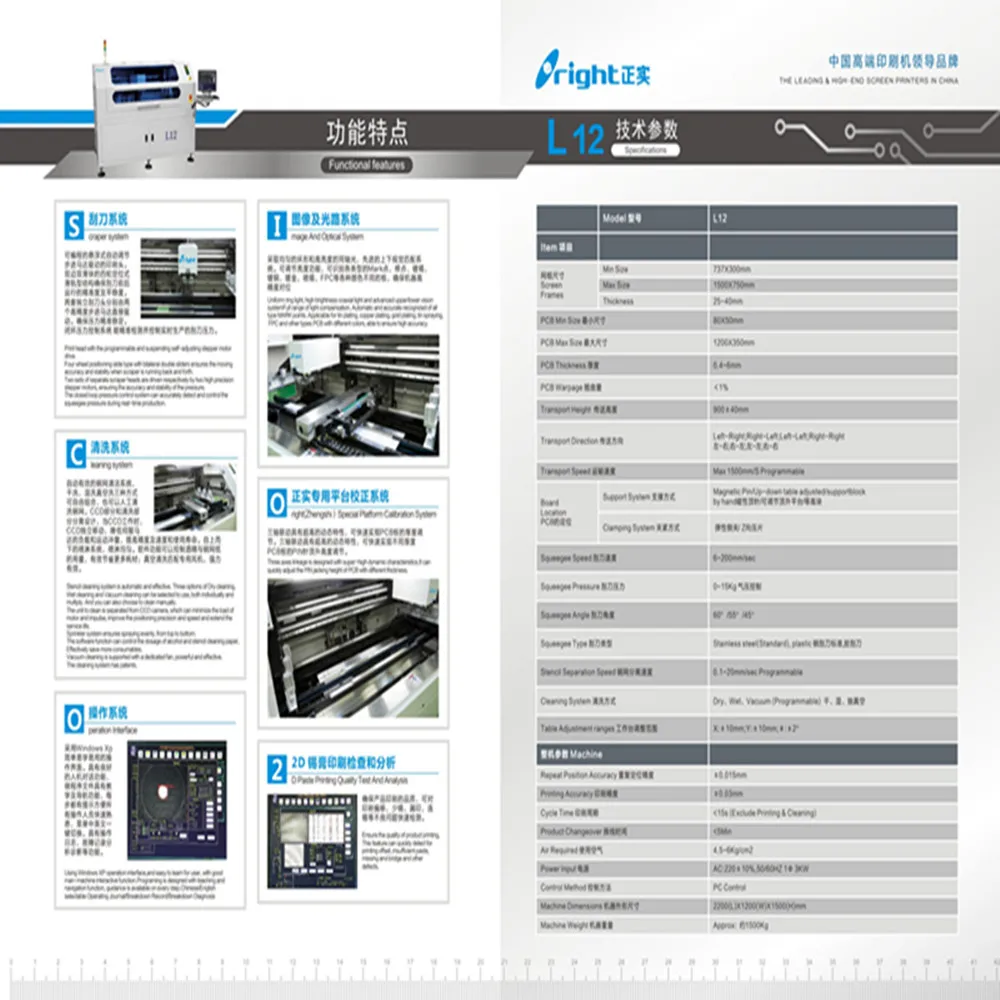

Specification
Plate Type | Screen Printer |
Applicable Industries | Manufacturing Plant |
After Warranty Service | Video technical support, Field maintenance and repair service |
Local Service Location | Egypt, Canada, United States |
Showroom Location | Egypt, Canada, United States |
Place of Origin | China |
Guangdong | |
Brand Name | wenzhan |
Usage | solder paste printing |
Automatic Grade | Automatic |
Color & Page | Two colors |
Voltage | 220v |
Dimensions(L*W*H) | 2200(L)X1200(W)X1500(H)mm |
Weight | 1500KG |
Max. Print Area | 1200X350mm |
Warranty | 6 months |
Key Selling Points | High-accuracy |
Marketing Type | New Product 2020 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 6 months |
Core Components | other |

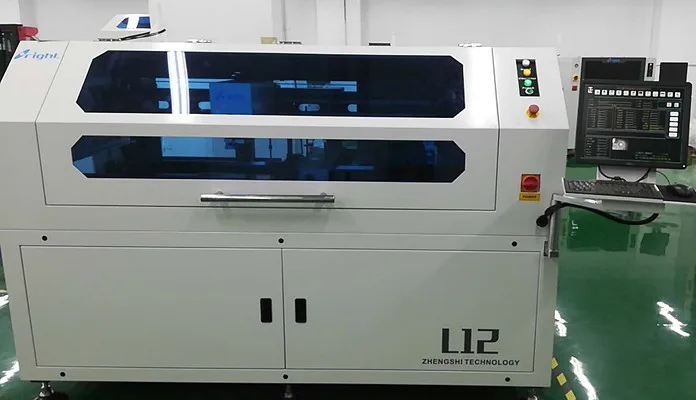

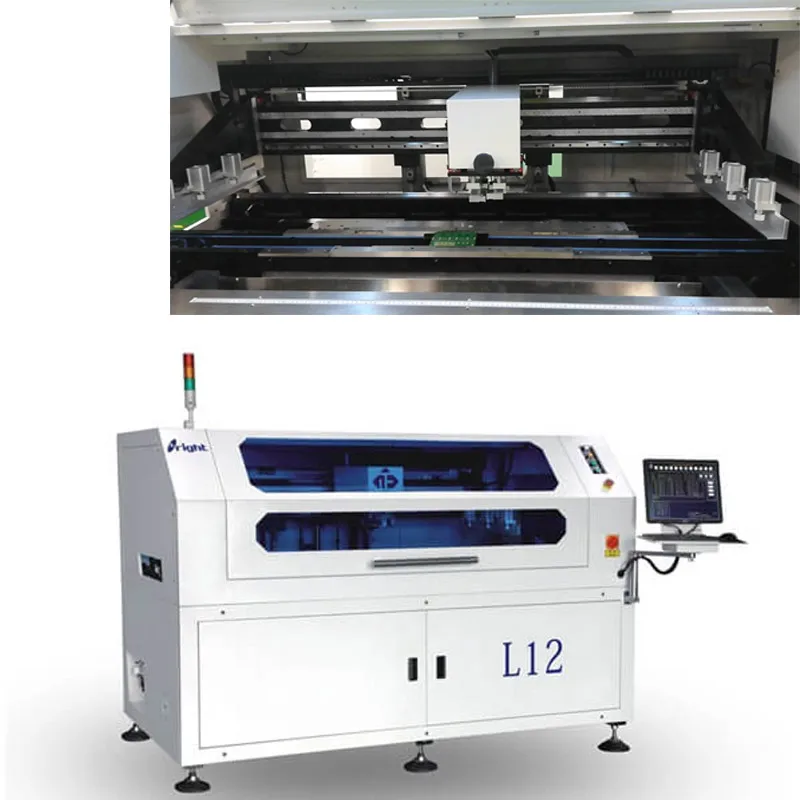

Product name | Full Automatic screen printer machine solder paste printing machine |
Model number | L12 |
Quality | Top |
package | wooden case |
Type | SMT machine |
Brand | ODM |
Weight | 1500Kg |
Printing Accuracy | ±0.03mm |
PCB Min Size | 80X50mm |
Delivery | ups,dhl,fedex,as your order |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shenzhen wenzhan co., LTD. Is a professional SMT pick&place machine and the machine parts service providers.Company mainly provide SAMSUNG SMT machine parts/YAMAHA SMT machine parts/FUJI SMT machine parts/PANASONIC SMT machine parts/JUKI SMT machine parts/SONY SMT machine parts' sales and maintenance services, selling SMT related equipment, accessories, consumables. Design and manufacturing SMT special parts, tooling fixture.We also deal with second-hand SMT machine business.
Provide customers with the most economical, most efficient, the most suitable SMT production solutions and services is our management tenet.
Shenzhen wenzhan co., LTD., established by a elite group who has more than 10 years of working experience in SMT industry, the company spirit of "for customers to save money, make the customers to make money" business philosophy, with their professional knowledge for the industry of many electronics manufacturers in the SMT production line selection, production efficiency, improving the quality of the product and reduce the production loss , provide strong product support and technical services, to become their long-term reliable cooperation partners.
Company always adhere to the "quality first, customer satisfaction" business philosophy.We believe that our sincere service will create benefits for your business!Wish wenzhan company can help you reduce the investment risk in the fierce competition, enhance product competitiveness all render ,wish our career in the tide of SMT industry grow up together, development together.
The company's business main content is as follows:
Original, highly copy parts of SMT equipment sales. Include the following SMT equipment: FUJI, Panasert, KME, SANYO, JUKI, YAMAHA, Universal, Samsung, Siemens, Tenyu, etc.
The above second-hand equipments' buying and selling, installation, commissioning
The above equipment overhaul, maintenance, maintenance, technical training, consulting, etc.
Repair all kinds of equipments' damaged big parts, such as servo motor, control box, control card, power box, power card, amplifier, etc.
The sales of auxiliary equipment and tools, such as feeder calibration fixture, solder paste mixer, rubber red deaeration, reflow furnace, steel net, scraper, etc.
Selling production materials, consumables, such as SMT material belt, solder paste, red rubber oil, lubricating oil, high temperature, stencil wiping paper, etc.
Undertake processing all kinds of refined machinery parts.
looking forward have a cooperation with you
Provide customers with the most economical, most efficient, the most suitable SMT production solutions and services is our management tenet.
Shenzhen wenzhan co., LTD., established by a elite group who has more than 10 years of working experience in SMT industry, the company spirit of "for customers to save money, make the customers to make money" business philosophy, with their professional knowledge for the industry of many electronics manufacturers in the SMT production line selection, production efficiency, improving the quality of the product and reduce the production loss , provide strong product support and technical services, to become their long-term reliable cooperation partners.
Company always adhere to the "quality first, customer satisfaction" business philosophy.We believe that our sincere service will create benefits for your business!Wish wenzhan company can help you reduce the investment risk in the fierce competition, enhance product competitiveness all render ,wish our career in the tide of SMT industry grow up together, development together.
The company's business main content is as follows:
Original, highly copy parts of SMT equipment sales. Include the following SMT equipment: FUJI, Panasert, KME, SANYO, JUKI, YAMAHA, Universal, Samsung, Siemens, Tenyu, etc.
The above second-hand equipments' buying and selling, installation, commissioning
The above equipment overhaul, maintenance, maintenance, technical training, consulting, etc.
Repair all kinds of equipments' damaged big parts, such as servo motor, control box, control card, power box, power card, amplifier, etc.
The sales of auxiliary equipment and tools, such as feeder calibration fixture, solder paste mixer, rubber red deaeration, reflow furnace, steel net, scraper, etc.
Selling production materials, consumables, such as SMT material belt, solder paste, red rubber oil, lubricating oil, high temperature, stencil wiping paper, etc.
Undertake processing all kinds of refined machinery parts.
looking forward have a cooperation with you
FAQ
1. who are we?
We are based in Guangdong, China, start from 2009,sell to Domestic Market(50.00%),North America(12.00%),Western Europe(10.00%),Eastern Asia(5.00%),Southern Europe(5.00%),Northern Europe(3.00%),South America(2.00%),Eastern Europe(2.00%),Southeast Asia(2.00%),Oceania(2.00%),Mid East(2.00%),Central America(2.00%),South Asia(2.00%),Africa(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
SMT pick and place machine,PCB loader machine,Reflow oven,AOI,PCB conveyor
4. why should you buy from us not from other suppliers?
Our advantage lies in:
1.\tTop quality:
We have more than 10 years experience in SMT,we have the goods with best quality,just tell me what you need,then will do the best for you
2.\tLowest pirce:
In order to make a long-term cooperation,we will give yo
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2009,sell to Domestic Market(50.00%),North America(12.00%),Western Europe(10.00%),Eastern Asia(5.00%),Southern Europe(5.00%),Northern Europe(3.00%),South America(2.00%),Eastern Europe(2.00%),Southeast Asia(2.00%),Oceania(2.00%),Mid East(2.00%),Central America(2.00%),South Asia(2.00%),Africa(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
SMT pick and place machine,PCB loader machine,Reflow oven,AOI,PCB conveyor
4. why should you buy from us not from other suppliers?
Our advantage lies in:
1.\tTop quality:
We have more than 10 years experience in SMT,we have the goods with best quality,just tell me what you need,then will do the best for you
2.\tLowest pirce:
In order to make a long-term cooperation,we will give yo
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Похожие товары
2023 Профессиональный 1-5 цветов автоматическая машина для трафаретной печати на бочках
124 500,00 $
Микрокомпьютер трафаретная печатная машина автоматическая
Puhui печатная плата паяльная паста машина ручная высокоточная трафаретная печать

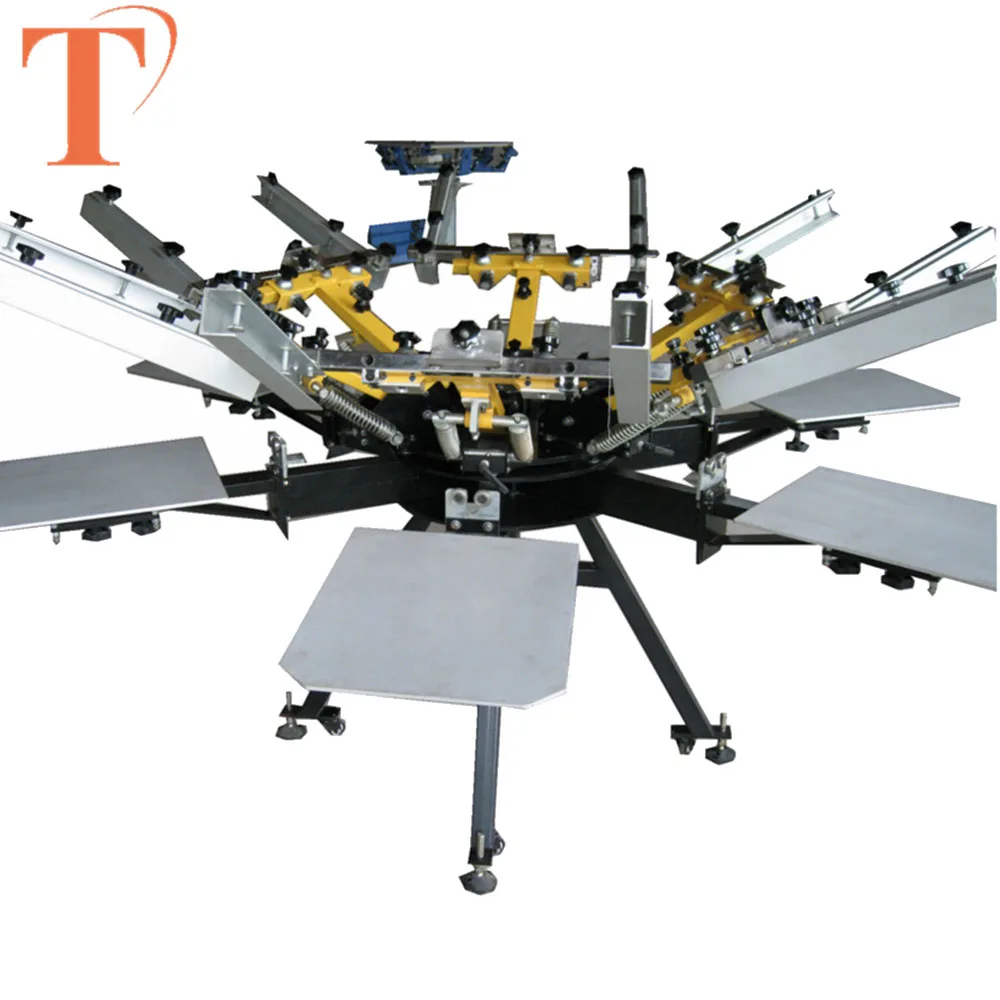

Хорошая цена китайская ручная трафаретная печатная машина с 6 цветами станций
1 500,00-1 800,00 $

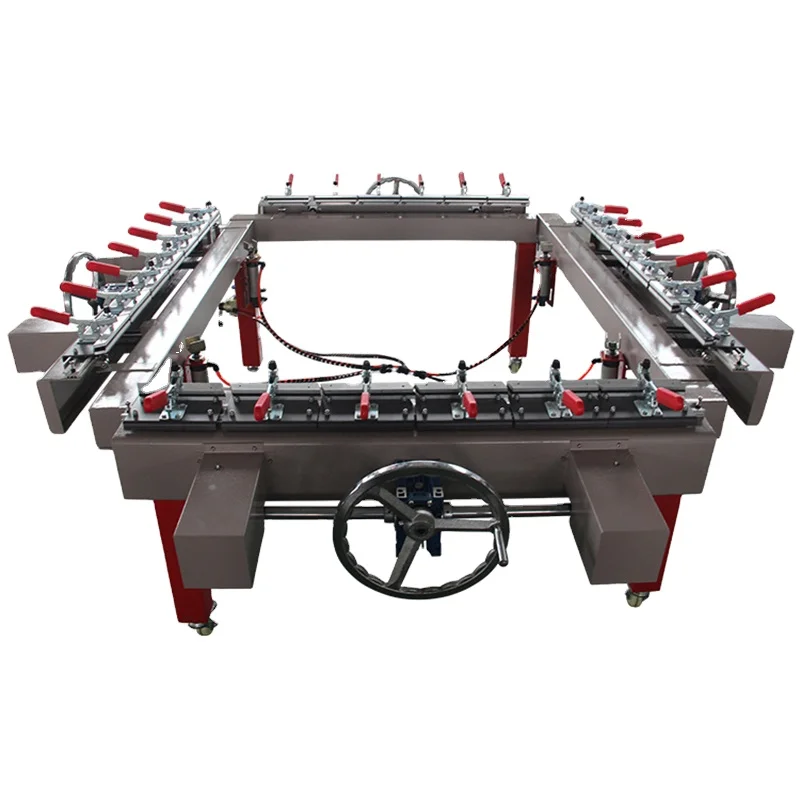

Пневматическое растягивающее устройство типа турбины 1200*1500 мм
2 000,00-2 500,00 $

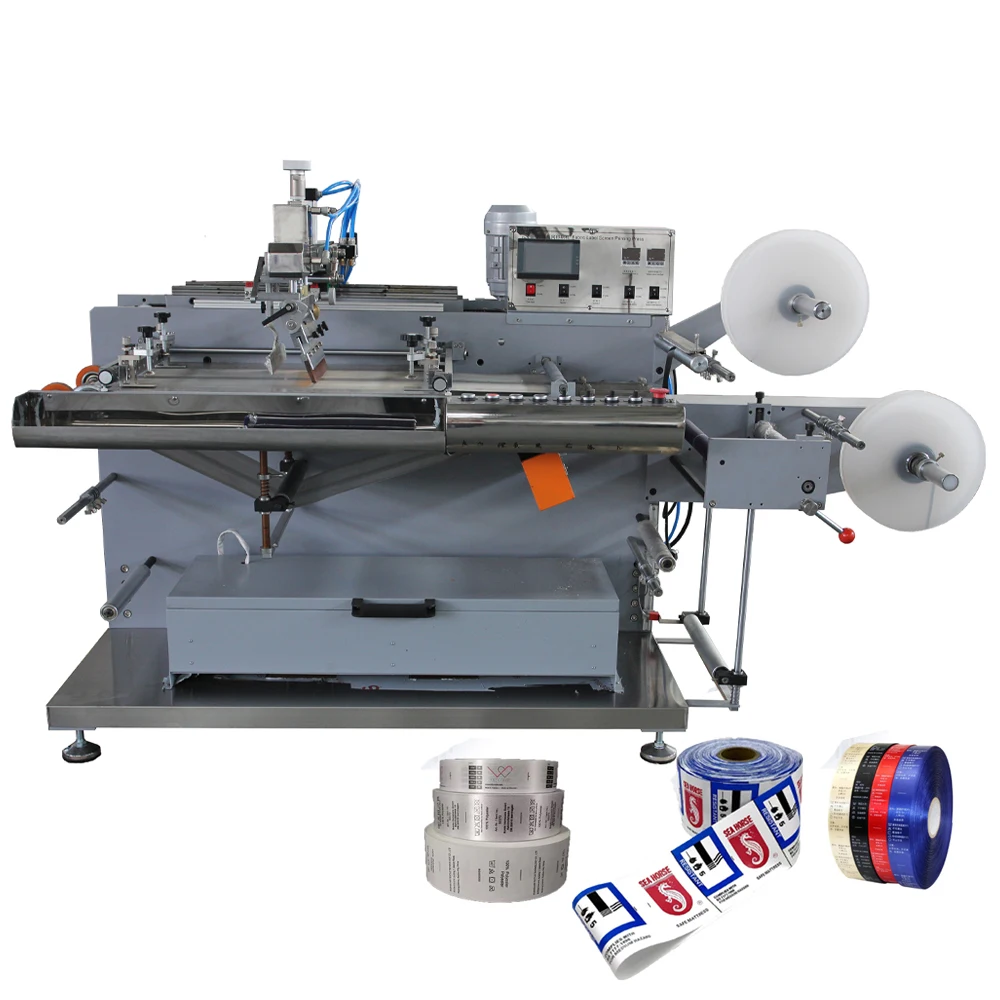

Машина для шелкотрафаретной печати на атласной ленте
7 600,00 $

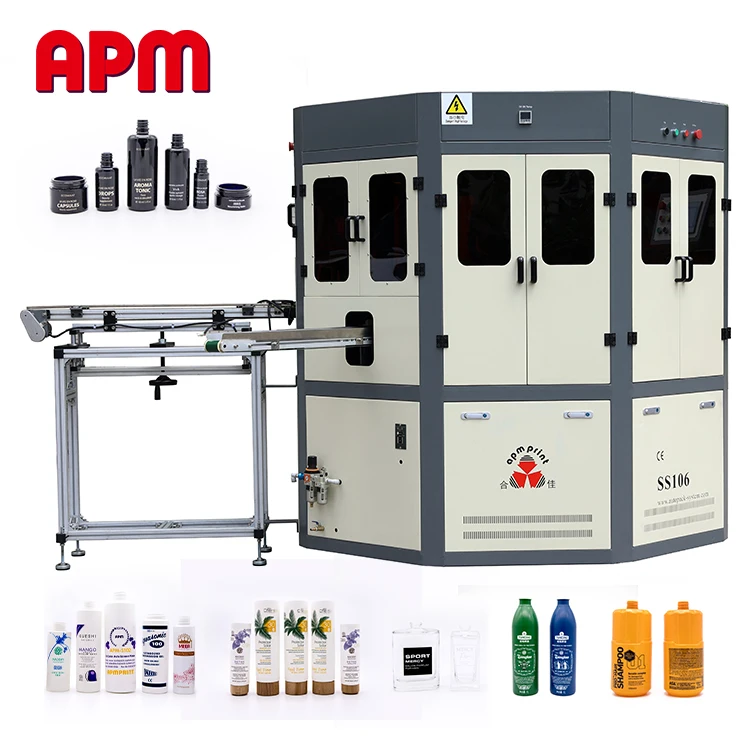

SS106 полностью автоматический Трафаретный принтер с обработкой пламенем и машиной для горячей штамповки фольги стеклянной/пластиковой бутылки банки трубки
Новые поступления
Новинки товаров от производителей по оптовым ценам
Умный цифровой электронный ручной инфракрасный лазерный термометр для ветеринарного и медицинского мониторинга человека
5-10 $
Цифровой инфракрасный лазерный термометр для взрослых
5,90-6,70 $
Командная версия 24-скоростной ультралегкий карбоновый шоссейный велосипед Гоночная рама и комплект колес
Четырехцилиндровый двигатель CA6110/125G5 части клапана 1007011-A013-0000 1007016-A013-0000
0,50 $
55203781 46740344 55181201 55266538 зубчатый шкив коленчатого вала для FIAT 500 BRAVA BRAVO DOBLO PANDA PUNT0
3-3,70 $
Оптовая продажа 100% Рафинированное Масло из семян подсолнечника малазия масло для приготовления пищи
GY031 металлическая рамка пользовательских игровых сидений Sim гоночные игровые сиденья симулятор вождения кабины для Xbox 360 Logitech G25 G27 G29 G920
88-143 $
Роскошные пользовательские островные стулья современные кухонные с выдвижными ящиками и раковиной кухонный шкаф U-образной формы из нержавеющей стали
160-180 $
