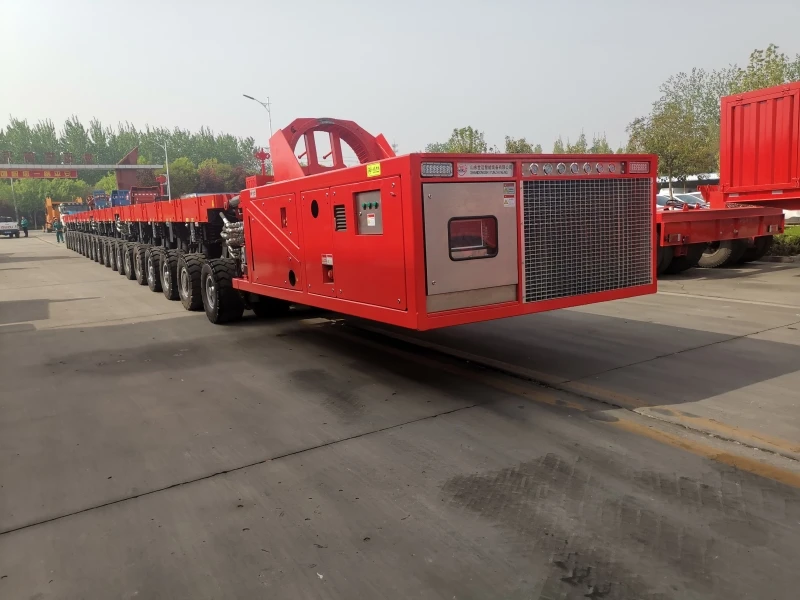

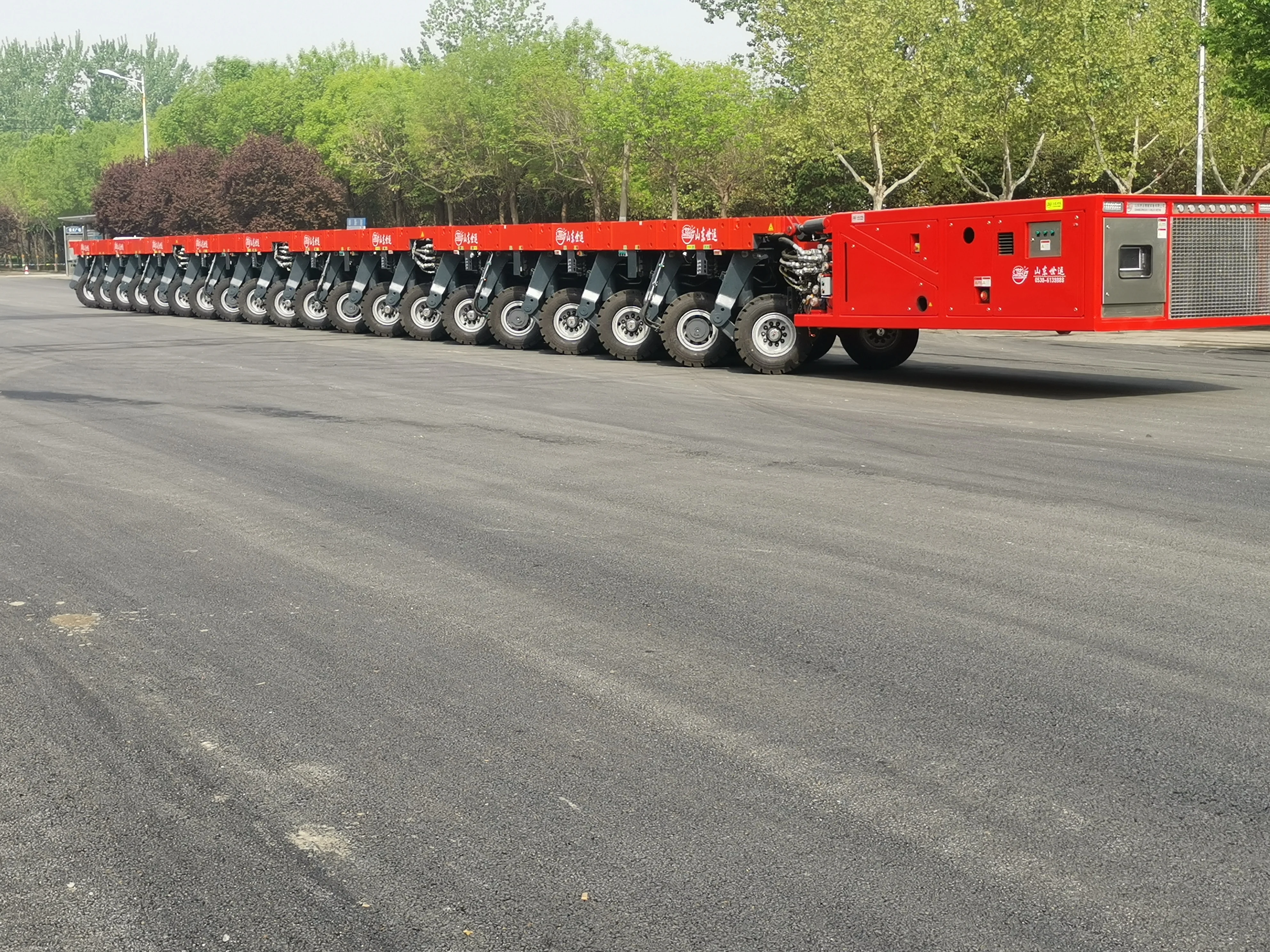

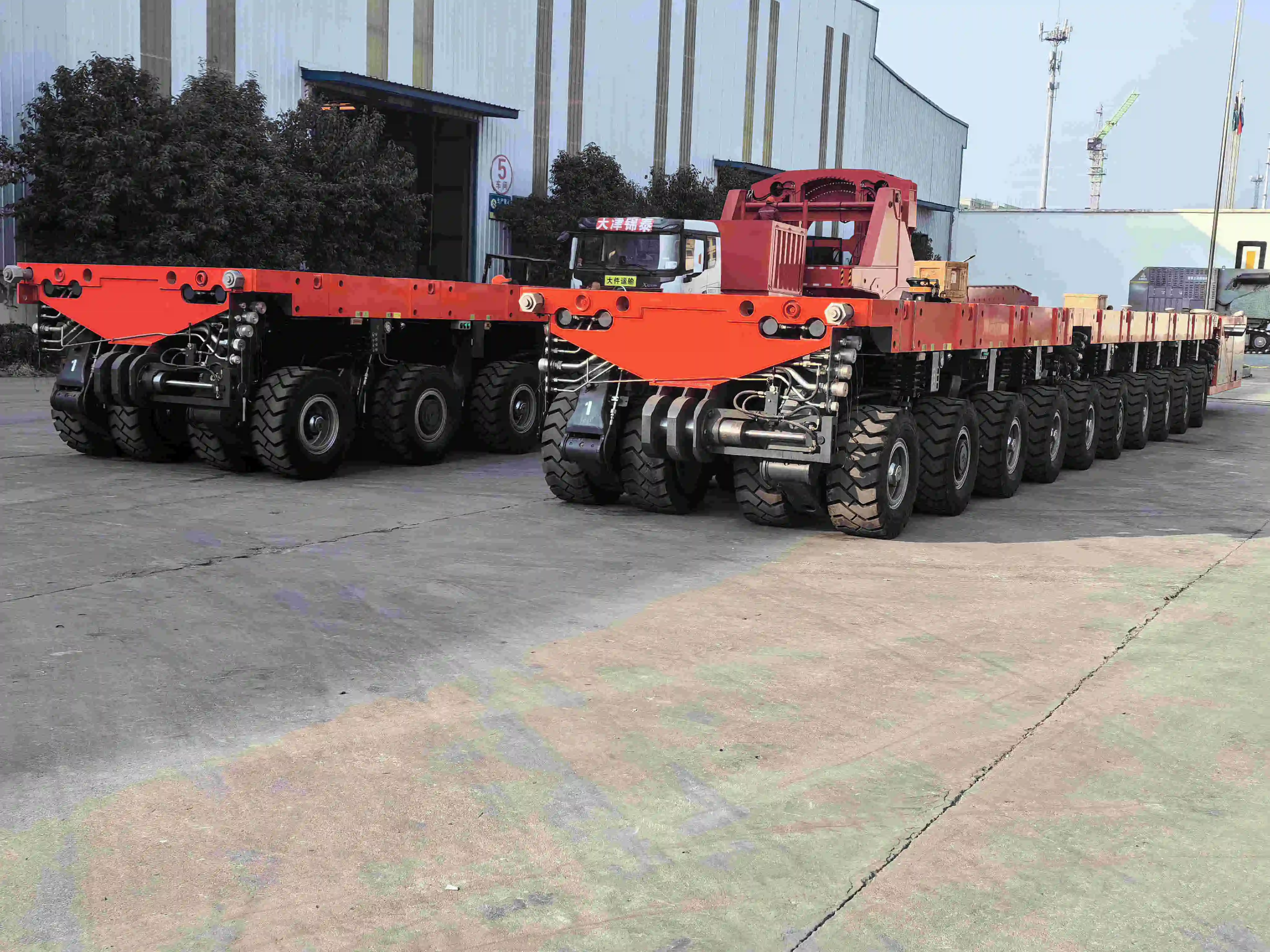

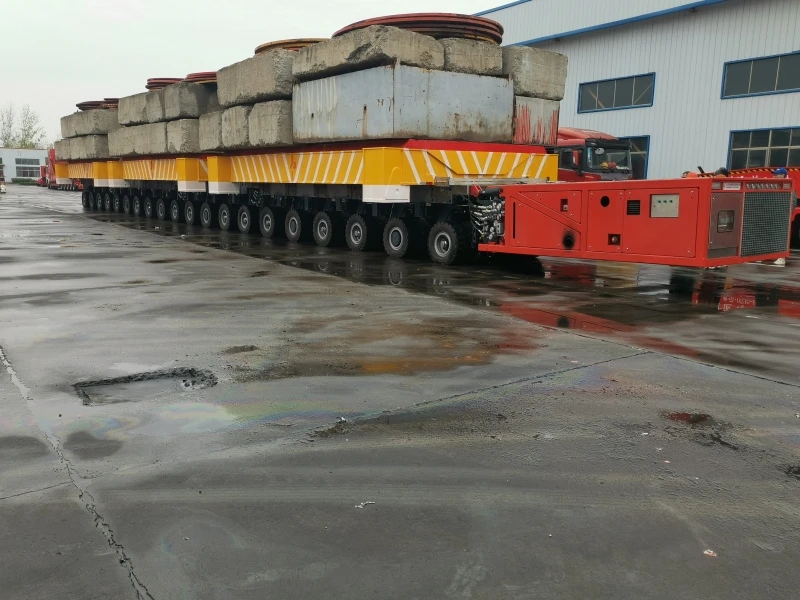

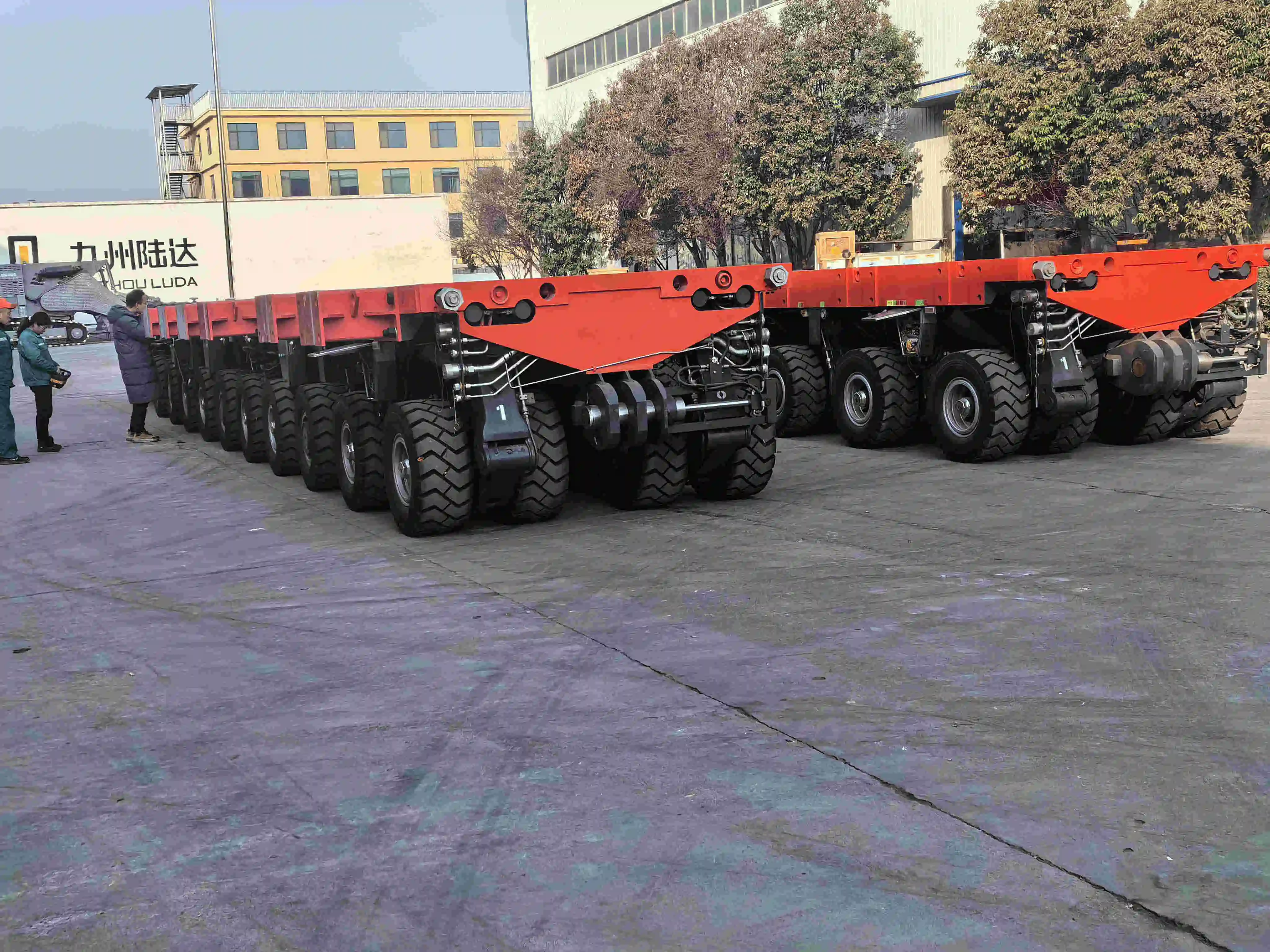

Тяжелый транспортный самоходный гидравлический модульный прицеп для тяжелого моста большой грузовой транспорт
- Категория: >>>
- Поставщик: Shandong Benchi Heavy Industry Co. Ltd.
Сохранить в закладки 1601022327979:
Описание и отзывы
Характеристики
Product Description
Product features of SPMT
1. Narrow-body modular design, single module width 2430mm;
2. 44t large axle load, especially suitable for concentrated load transport;
3. Multi-vehicle combination function: It can realize the soft and hard connection of up to 600 axis modules, and the maximum load can reach 20000t;
4. Multi-mode steering with the same steering mode for single and combined vehicles;
5. The hydraulic pipe adopts flaring joint, which has better pressure resistance and leakage resistance.
6. The arrangement and combination of axis positions can be automatically identified after multiple vehicles are combined independently, and a visual digital interface can be generated for operators to perform operations after checking, which can reduce manual errors, reduce operation difficulty and save operation time.
2. 44t large axle load, especially suitable for concentrated load transport;
3. Multi-vehicle combination function: It can realize the soft and hard connection of up to 600 axis modules, and the maximum load can reach 20000t;
4. Multi-mode steering with the same steering mode for single and combined vehicles;
5. The hydraulic pipe adopts flaring joint, which has better pressure resistance and leakage resistance.
6. The arrangement and combination of axis positions can be automatically identified after multiple vehicles are combined independently, and a visual digital interface can be generated for operators to perform operations after checking, which can reduce manual errors, reduce operation difficulty and save operation time.
Product Paramenters
PPU Technical Data | ||||
Power Module Unit（PPU）：390kw | ||||
1 | Model | P390 | ||
2 | Power | 390kw/2100rpm | ||
3 | Weight | 8000Kg | ||
4 | Length | 4350mm | ||
5 | Width | 2310mm | ||
6 | Height | 1080mm | ||
7 | Exhaust emission standard | The third phase of China’s non-road | ||
8 | Fuel tank volume | 400L | ||
9 | Hydraulic tank volume | 750L | ||
10 | Nominal voltage of electrical system | DC24V | ||
11 | Maximum axis that can be driven | 40 | ||
Axis Module Unit | ||
Six Axis Line | ||
Technical Data of SPMT6243.46 | ||
1 | Driving powers 4X60kN=240kN | |
2 | Ramp rate 7.00% | |
3 | Braking force 55*6=330kN | |
4 | Running speed 0.5km/h | |
Weight & Load | ||
5 | Self weight (max.) 28000Kg | |
6 | Payload (total) 260000Kg | |
7 | Gross weight 288000Kg | |
8 | Axial load 48000Kg | |
Size | ||
9 | Total Length 8400mm+ fittings | |
10 | Total width 2430mm | |
11 | Load height 1500mm(±350mm） | |
12 | Moving height 1500mm | |
13 | Wheelbase (Lengthways) 1400mm | |
14 | Wheel track (Crosswise) 1450mm | |
15 | Tyre gauge 620mm | |
Suspension steering unit | ||
16 | Total number 12 | |
17 | Drive 4 | |
18 | Braking 6 | |
19 | Driven 2 | |
Four Axis Line | ||
Technical Data of SPMT4243.24 | ||
1 | Driving powers 2X60kN=120kN | |
2 | Ramp rate 5% | |
3 | Braking force 55*4=220kN | |
4 | Running speed 0.5km/h | |
Weight & Load | ||
5 | Self weight (max.) 18500Kg | |
6 | Payload (total) 173500Kg | |
7 | Gross weight 192000Kg | |
8 | Axial load 48000Kg | |
Size | ||
9 | Total Length 5600mm+fittings | |
10 | Total width 2430mm | |
11 | Load height 1500mm(±350mm） | |
12 | Moving height 1500mm | |
13 | Wheelbase (Lengthways) 1400mm | |
14 | Wheel track (Crosswise) 1450mm | |
15 | Tyre gauge 620mm | |
Suspension steering unit | ||
16 | Total number 8 | |
17 | Drive 2 | |
18 | Braking 4 | |
19 | Driven 2 | |
Drawing of product
Company Profile
Packing & Delivery
FAQ
How can we trust your company?
Shandong Benchi Heavy Industry Co., Ltd.. It is an industrial and trade enterprise integrating scientific research,
production and sales. It was invested and established in 2019 by the factory Shandong Changda Special Vehicle Co., Ltd. which was founded in 2006. It has a complete R&D system and a team of technical experts, and has obtained more than 50 patented technologies and intellectual property rights of special vehicle & semi-trailers.
It has an annual production capacity of 5,000 special-purpose vehicles and semi-trailers.
It provides customers with high-quality and reliable products and a complete after-sales service system.
Is it available to print our own brand on the vehicle?
Yes, vehicles can be customized according to customer’s request, and the customer's brand can be displayed on the vehicle.
How about warranty item?
The warranty is two years.
Enjoy the global after-sales service of well-known brands
How to ship it?
The trailers can be shipped by 20FT container, 40FT container,40FT high container,
open-top container,flat bed container,Ro-Ro ship or bulk
It will according to the size the products.
Shandong Benchi Heavy Industry Co., Ltd.. It is an industrial and trade enterprise integrating scientific research,
production and sales. It was invested and established in 2019 by the factory Shandong Changda Special Vehicle Co., Ltd. which was founded in 2006. It has a complete R&D system and a team of technical experts, and has obtained more than 50 patented technologies and intellectual property rights of special vehicle & semi-trailers.
It has an annual production capacity of 5,000 special-purpose vehicles and semi-trailers.
It provides customers with high-quality and reliable products and a complete after-sales service system.
Is it available to print our own brand on the vehicle?
Yes, vehicles can be customized according to customer’s request, and the customer's brand can be displayed on the vehicle.
How about warranty item?
The warranty is two years.
Enjoy the global after-sales service of well-known brands
How to ship it?
The trailers can be shipped by 20FT container, 40FT container,40FT high container,
open-top container,flat bed container,Ro-Ro ship or bulk
It will according to the size the products.
