35% скидка! Волоконно-лазерная маркировочная машина с логотипом Лазерная печатная uv/co2 лазерная опционально
76 753,88 ₽ - 93 201,14 ₽

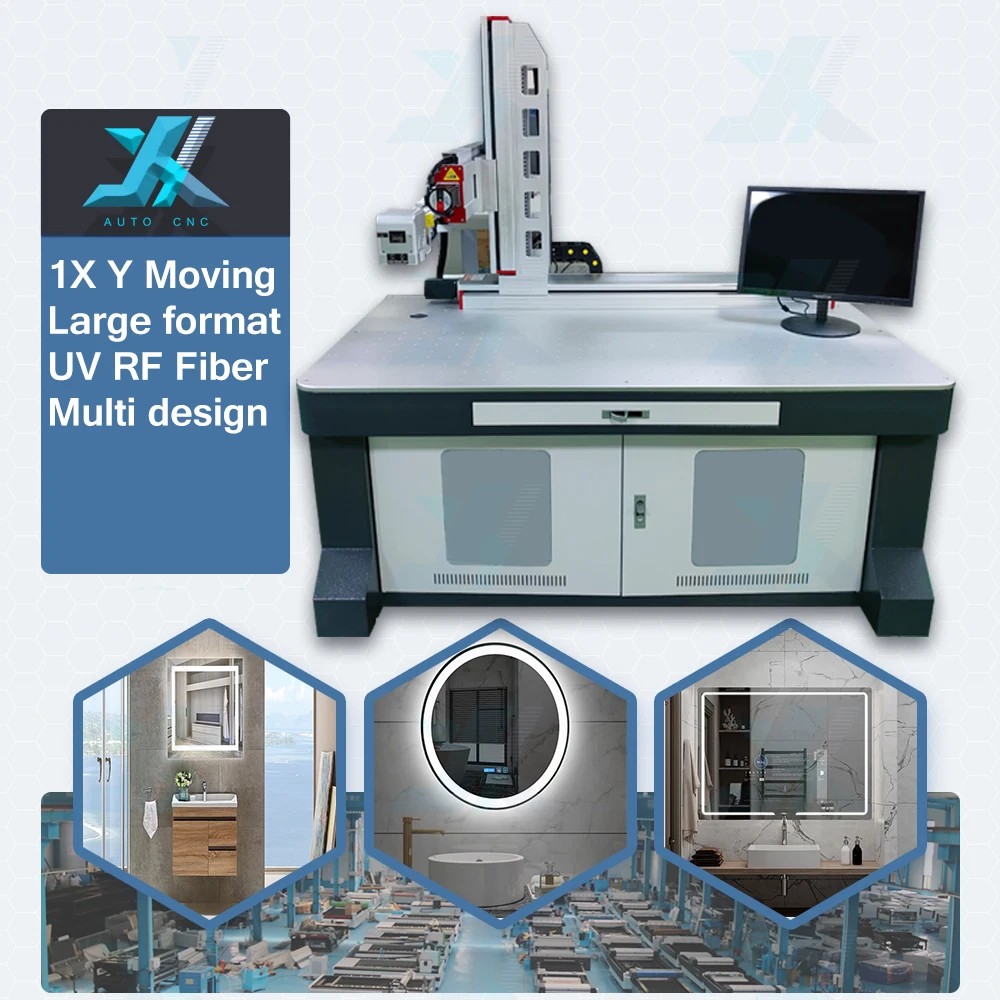

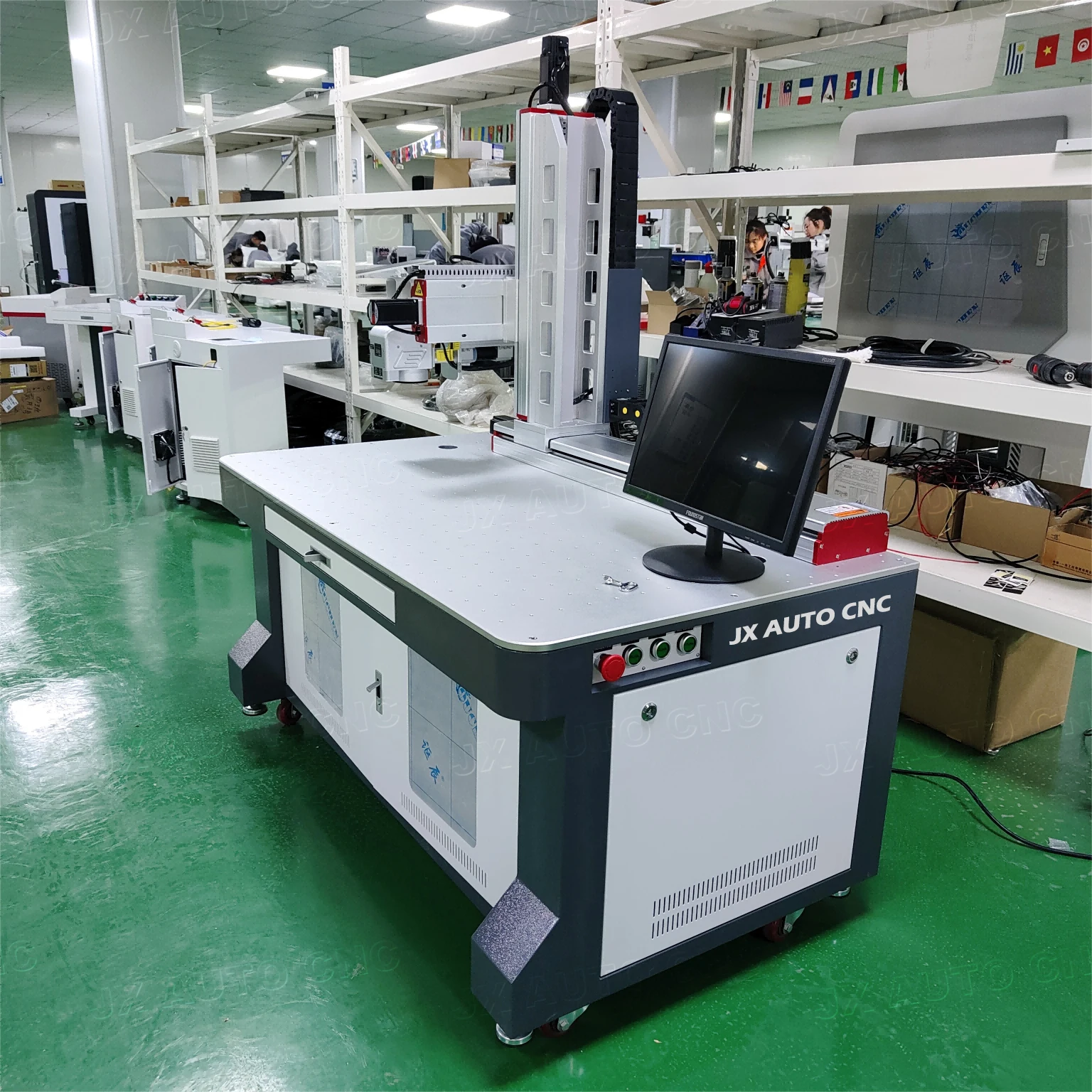

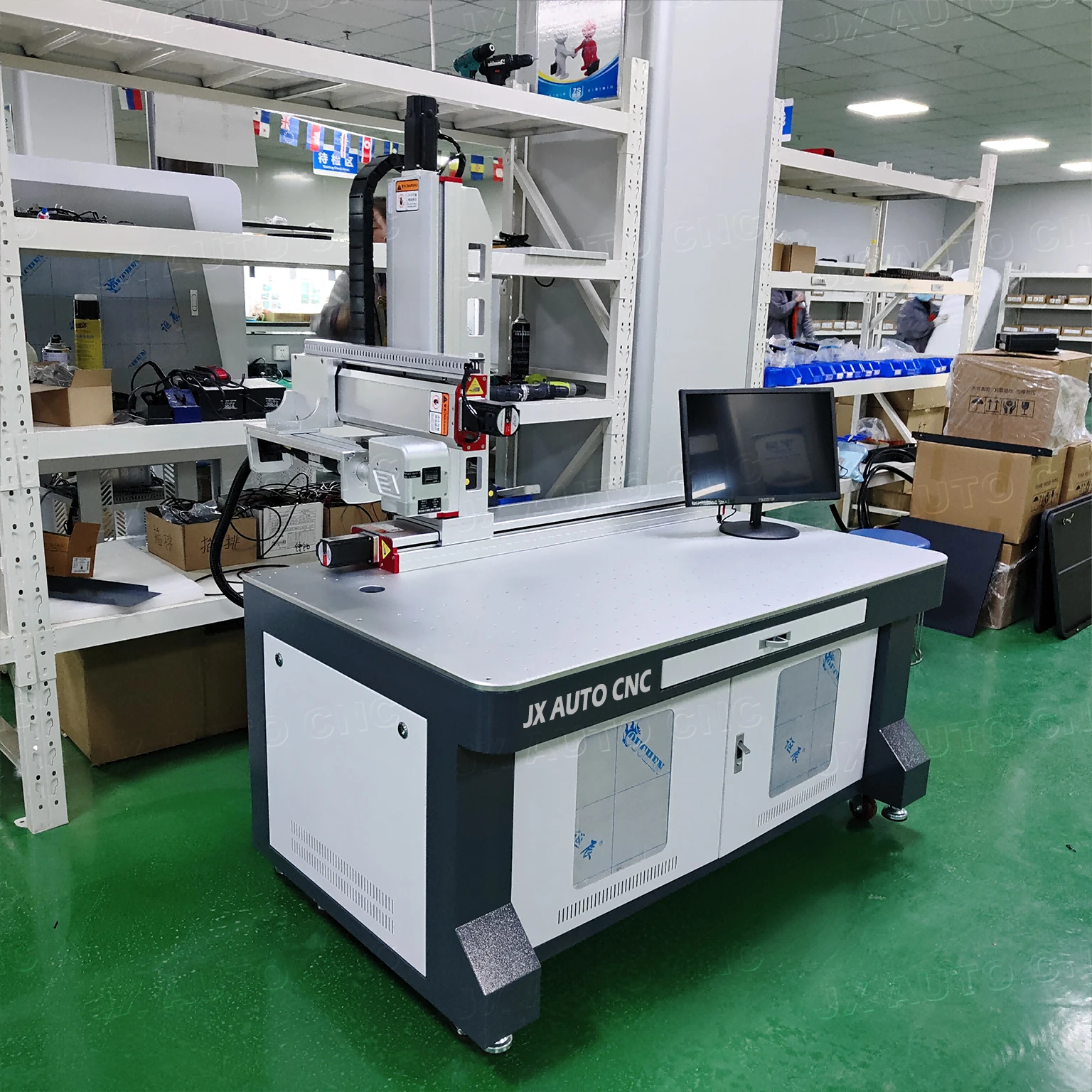

JX XY движущийся JPT 100 Вт 3D Динамическая сканирующая головка лазерный гравировальный станок 2.5D волоконный лазер рельефный электрическая ось Z
- Категория: >>>
- Поставщик: Shandong Jx Auto Cnc Machinery Co. Ltd
Сохранить в закладки 1601022373264:
Описание и отзывы
Характеристики
Products Description

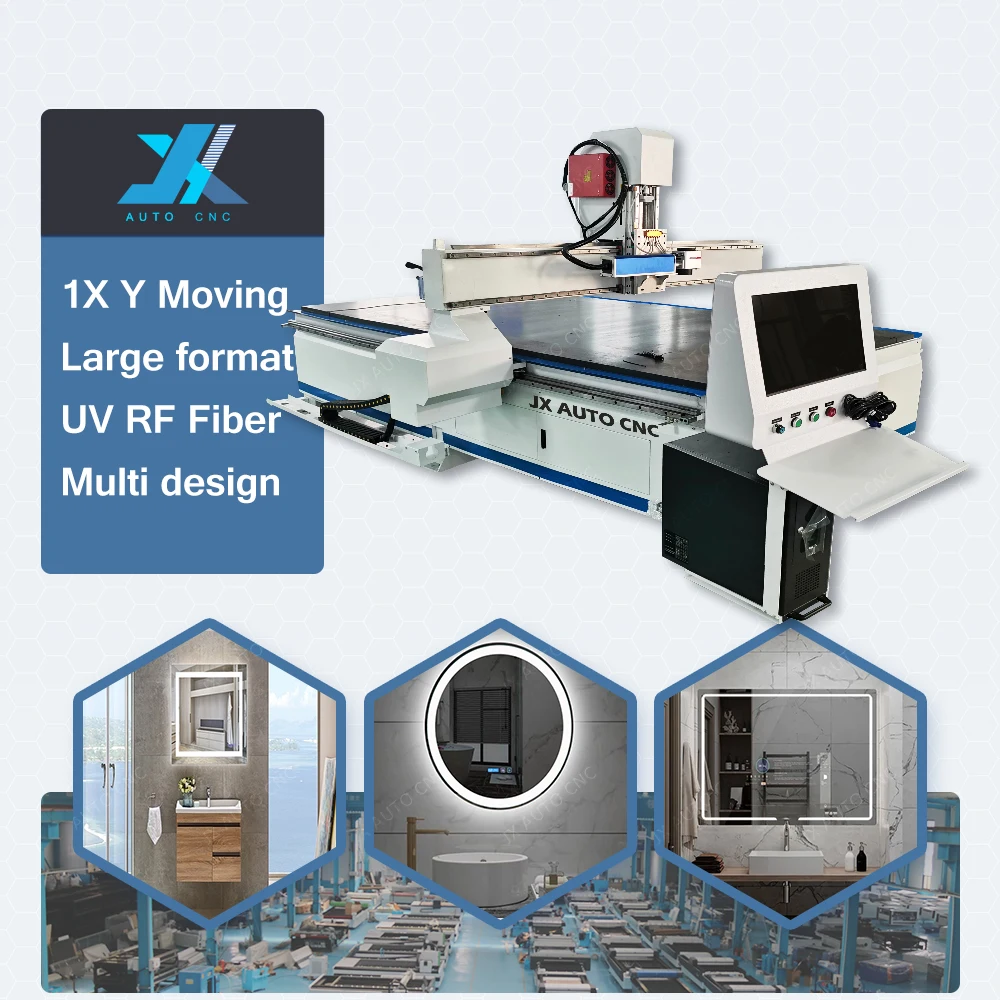

Large Format Motorised Split Marking System can install with Camera system ,and the laser source is multi choose ,we have RF metal laser tube ,co2 glass tube ,fiber laser source ,uv laser source ,mopa laser source .
relief engraving machine Electric Z axis do?
This 3D laser printing machine software allows for industrial laser marking on various part geometries. This industrial laser marking machine will perform fast and reliable laser etching on various part geometries. It specialize in creating 3D images on a variety of materials.
1. 3D Laser engraving machines specialize in creating 3D images on a variety of materials.
2. It is special use full for coin mould and die mould. it is also know for mould making machine
3. Marks curved, tilted, multi-level surfaces without rotary.
1. 3D Laser engraving machines specialize in creating 3D images on a variety of materials.
2. It is special use full for coin mould and die mould. it is also know for mould making machine
3. Marks curved, tilted, multi-level surfaces without rotary.
Model | 30/50W Fiber laser marking machine |
Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
Typical beam quality, M2 | <1.8 |
Output fiber delivery length | 3M |
Operating voltage | 220V |
Max. Power consumption | 600W |
Scanning Speed | 0-7000mm/s |
Marking Speed | 0-5000mm/s |
Spot size | ≤ 40 micron (F-theta 160) |
Humidity | 45~85% (no condensation) |
Operating temperature | 0~40°C |
Details Images
EZ-CAD3 CONTROL SYSTEM
Adopts EZ-CAD3 control system, User friendly easy to operate,supporting PLT, BMPDXF JPG TIF. AL. PNG. JPG, etc formats. Mainly used for large format laser markingsystem.
SINO-GALVO SCANNER
SINO-Galvo Scanner has compact design, high positioning accuracy, highermarking speed and strong anti-interference ability. In the process ofdynamic marking, the marking line has high precision, distortion free, poweruniform; pattern without distortion, the overall performance has reached theinternational leadina level in the field
GOOD LASER SOURCE
Equipped with high quality fiber laser source from RAYCUS brand laser lifespan up to100.000 hours
Our Advantages
1.Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 240kg.
2. High Precision: Re-position precision is 0.002mm
3.High Speed: Imported scanning system makes the scanning speed is up to 7000m/s
4.Easily Operating:Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
5.High Reliability: MTBF>100,000 hours
6. Energy Saving: The efficiency of optic-electrical converting is up to 30%
7.Low Running Cost: No wearing part. Free maintaining.
Spare name | Brand | |
Controller | EZCAD software with stable perfomance and high reliability,Compatible with Windows XP/Vista/7/8/9/10; Supporting file types AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP; Support language English, Spanish, Arabic, Korean, Japanese | |
Laser Source | We use Chinese best brand Raycus laser generator with best cost performance.Optional:CAS/MAX/IPG/JPT color marking laser source | |
Field Lens | high system resolution and good light perception,Famous“Wavelength" brand, fast speed,high transparent rate. | |
Galvo Head | High speed galvanometer scan head ,using digital signal,high precision. | |
Rotary | Which can aslo add rotary and rotary table , suitable for ring ,pens and other ring items | |
Red dots | Double red dots more easy to get focus | |
Switch | Schneider AC conductor and switch | |
Power supply | Quality Taiwan mingwei power supply | |
Aftersale service | ||
1.Maintenance-free and 100 000 hours long life tim | ||
2.2 years gurantee | ||
What is the difference between JXAUTOCNC laser 2D 2.5D 3D machines?
1. 2D laser can be used for flat surface marking , deep engraving and some thin metals cutting, works 2D galvo scanning head and EZCAD2 control card, EZCAD2.1 4.11 version software;
2. 2.5D laser means 2D laser+ motorized Z axis. Based on the common 2D laser, the latest 2.5D machine is composed by the motorized Z axis and EZCAD3 software, mainly used for STL file metal mold coin relief engraving etc + All features of 2D machines.
3. 3D laser is the most comprehensive machine, which also have the motorized Z axis and EZCAD3 control card, plus a 3D Dynamic focus scanning head , it can be used for curved surface (app 120 degree) marking without rotary, can be used for metal mold and coin relief engraving, what's more, it can be used for big format like 300*300mm metal deep engraving. (for 2D and 2.5D laser, the max deep engraving area is app 110*110MM)
2. 2.5D laser means 2D laser+ motorized Z axis. Based on the common 2D laser, the latest 2.5D machine is composed by the motorized Z axis and EZCAD3 software, mainly used for STL file metal mold coin relief engraving etc + All features of 2D machines.
3. 3D laser is the most comprehensive machine, which also have the motorized Z axis and EZCAD3 control card, plus a 3D Dynamic focus scanning head , it can be used for curved surface (app 120 degree) marking without rotary, can be used for metal mold and coin relief engraving, what's more, it can be used for big format like 300*300mm metal deep engraving. (for 2D and 2.5D laser, the max deep engraving area is app 110*110MM)
Optional Spare
Product packaging
Company Profile
Our Advantages
Certifications
Client Feedback
FAQ
Похожие товары
Подгонянная 20 Вт 30 портативная мини волоконно-лазерная маркировочная машина для наружной маркировки
Профессиональный производитель волоконно-лазерная маркировочная машина с ЧПУ волоконно-Лазерный Маркер 200 ватт mopa волоконный лазер

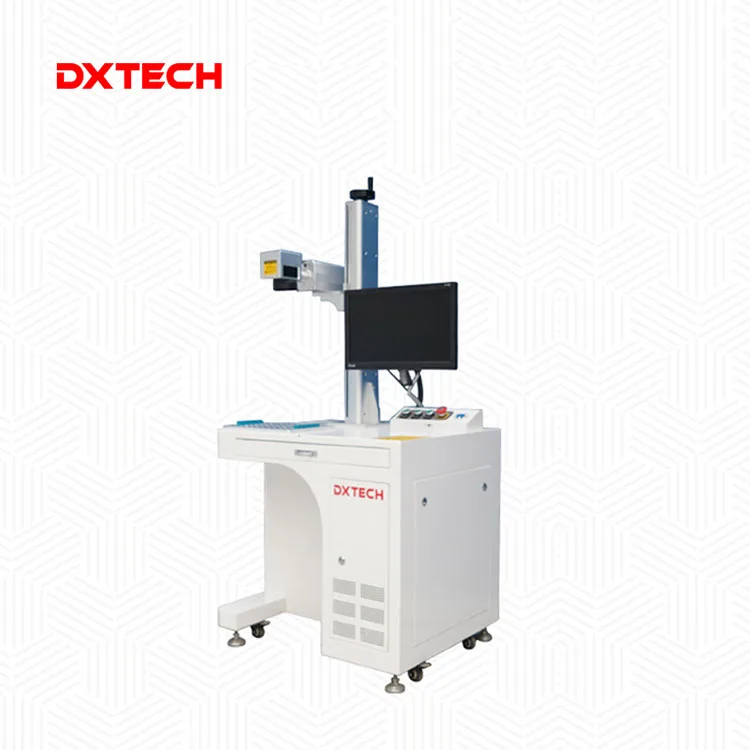

DXTECH глубокая гравировка портативная мини волоконно-лазерная маркировочная машина 50 Вт для маркировки металла
328 945,20 ₽ - 383 769,40 ₽

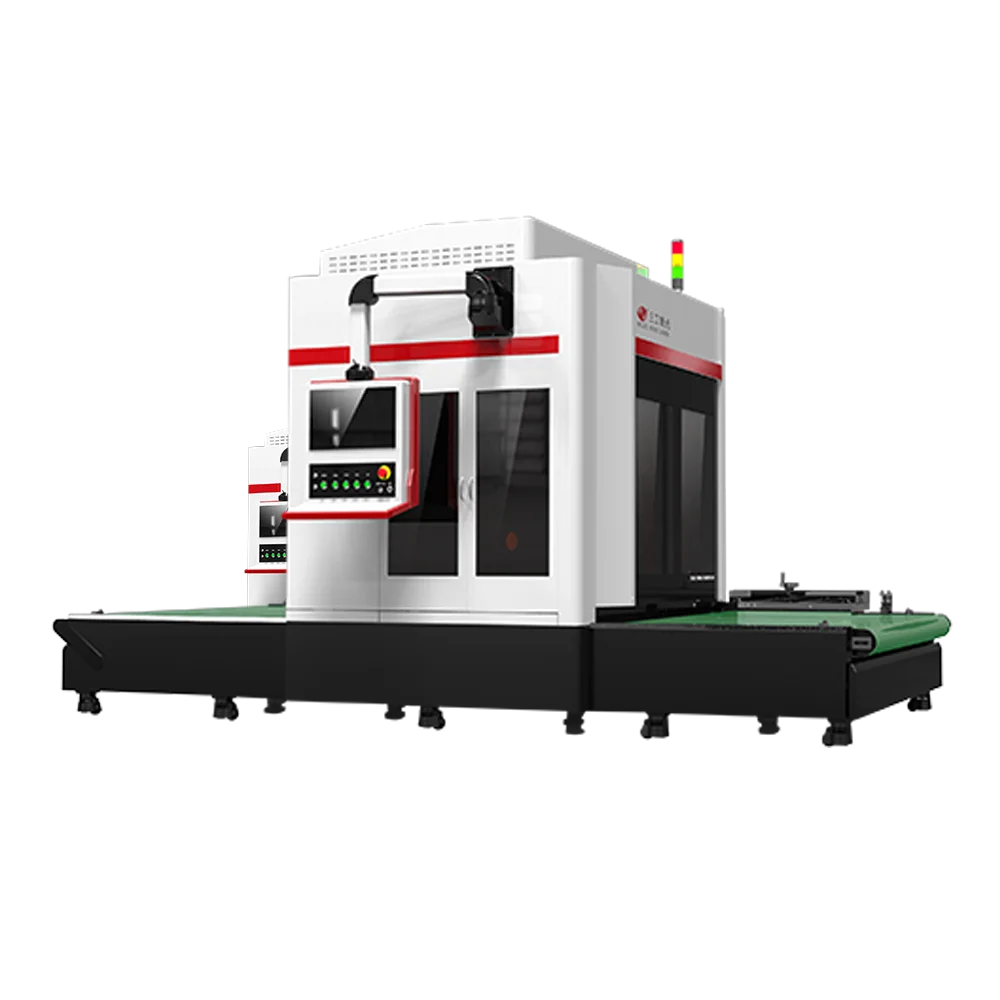

ARGUS Dynamic co2 galvo Лазерная маркировка джинсовых сковородок лазерная гравировка акриловая маркировочная машина lgp
7 346 442,80 ₽ - 7 456 091,20 ₽
3D лазерная гравировка машина для колец/волоконный лазер маркировочная с гравировка/2D код lazer
Kindlelaser Co2 лазерная маркировочная машина 30 Вт 35 40 Fly on Line для неметаллических материалов портативный лазер

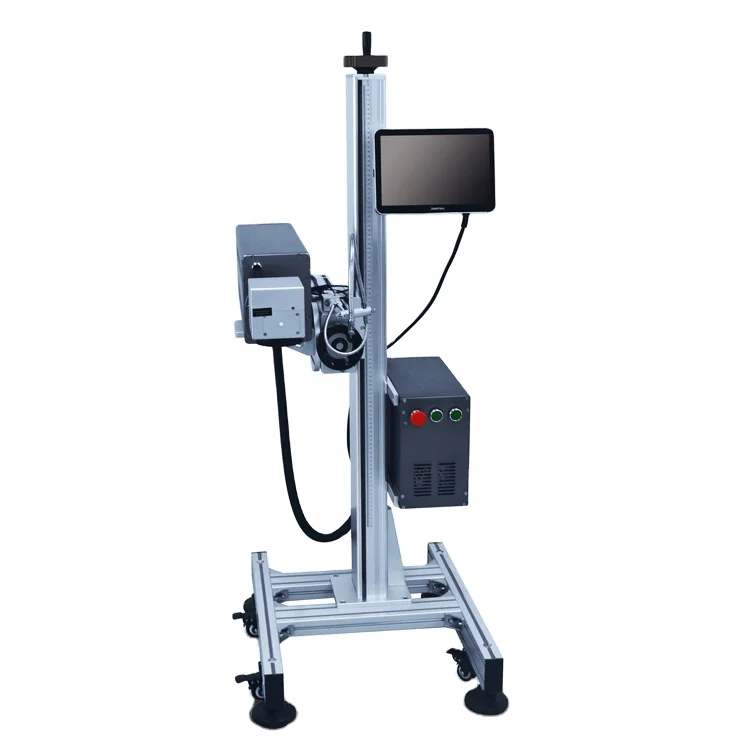

Лазерная маркировочная машина Fly CO2 10 64 мкм 30 Вт Неметаллическая упаковочная промышленная линия
