Туннель с инфракрасным излучением
- Категория: >>>
- Поставщик: Luen Cheong Printing Equipment Ltd.
Сохранить в закладки 1601022520816:
Описание и отзывы
Характеристики
Products Description
1.Infrared dryer by near-infrared waves to molecules of ink or moisture produced vibration absorption, accelerated ink, or moisture dry.
2.The infrared dryer dries the printing ink well by making use of the infrared, it is with the new concept of proportion control, with a strong heating wind circle system.
3.It can dry the moisture and ink of all articles (except UV ink). It is widely used in the drying of the printing industry, is especially suitable for solidifying heat-set and a special type of printing ink.
4.This tunnel dryer enables the production of printed products with good colorfastness, high flexibility, and high gloss.
2.The infrared dryer dries the printing ink well by making use of the infrared, it is with the new concept of proportion control, with a strong heating wind circle system.
3.It can dry the moisture and ink of all articles (except UV ink). It is widely used in the drying of the printing industry, is especially suitable for solidifying heat-set and a special type of printing ink.
4.This tunnel dryer enables the production of printed products with good colorfastness, high flexibility, and high gloss.
Infrared Dryer Feature
The infrared dryer uses electricity to produce infrared so that the dried object's ink or moisture be absorbed and penetrates from the surface to the inside. The drying rate is higher and the thermal efficiency is higher.
Advantages:
1) Intelligent temperature control system, can effectively control temperature deviation. The temperature range can be customized.
2)The thermal circulation system is used in the drying furnace to uniformly heat the product, speed up the drying speed, shorten the drying time and save energy.
3)The mesh belt is made of an imported Teflon high-temperature resistant mesh belt, which can be customized into stainless steel mesh belt and stainless steel chainplate.
4)The heating system is 6 U-shaped stainless steel heating tubes, which can be heated quickly and have a long life.
5) Automatic control system, convenient to monitor and adjust the operating speed and tunnel temperature.
6) According to customer requirements, our engineers can additionally customize the preheating system and cooling system. Welcome to ask your inquiry.
The infrared dryer uses electricity to produce infrared so that the dried object's ink or moisture be absorbed and penetrates from the surface to the inside. The drying rate is higher and the thermal efficiency is higher.
Advantages:
1) Intelligent temperature control system, can effectively control temperature deviation. The temperature range can be customized.
2)The thermal circulation system is used in the drying furnace to uniformly heat the product, speed up the drying speed, shorten the drying time and save energy.
3)The mesh belt is made of an imported Teflon high-temperature resistant mesh belt, which can be customized into stainless steel mesh belt and stainless steel chainplate.
4)The heating system is 6 U-shaped stainless steel heating tubes, which can be heated quickly and have a long life.
5) Automatic control system, convenient to monitor and adjust the operating speed and tunnel temperature.
6) According to customer requirements, our engineers can additionally customize the preheating system and cooling system. Welcome to ask your inquiry.
Specifications
Conveyor length | 3000mm | Conveyor width | 600mm | |||
Belt speed adjustment | 0-10M/MIN | temperature resolution | 1º C | |||
machine size | 3100*1050*1260mm | Temperature adjustment | 0-200 Centigrade | |||
working power | AC 380V 50HZ | Gross weight | 438 KG | |||
The constant temperature will be 2º C more or less | ||||||

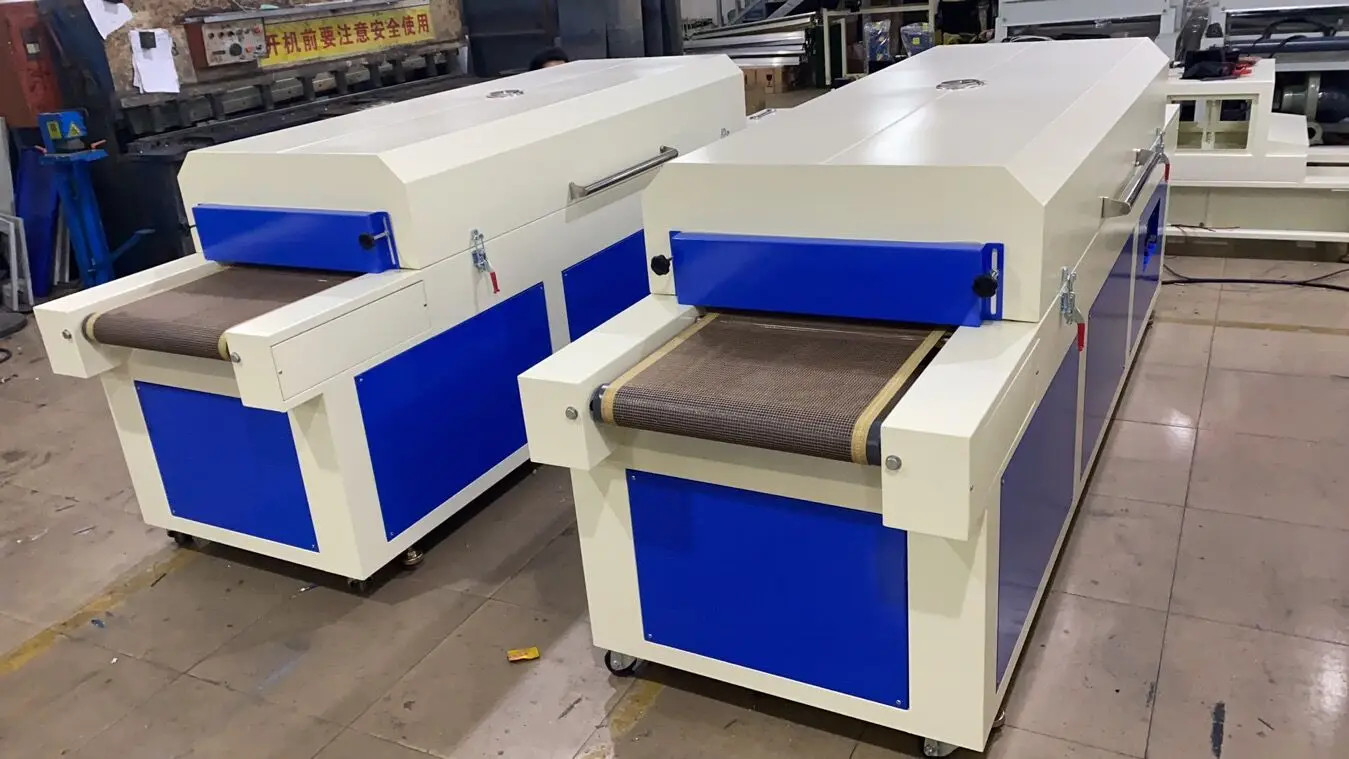

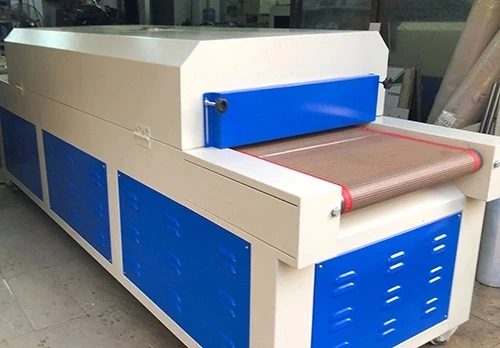

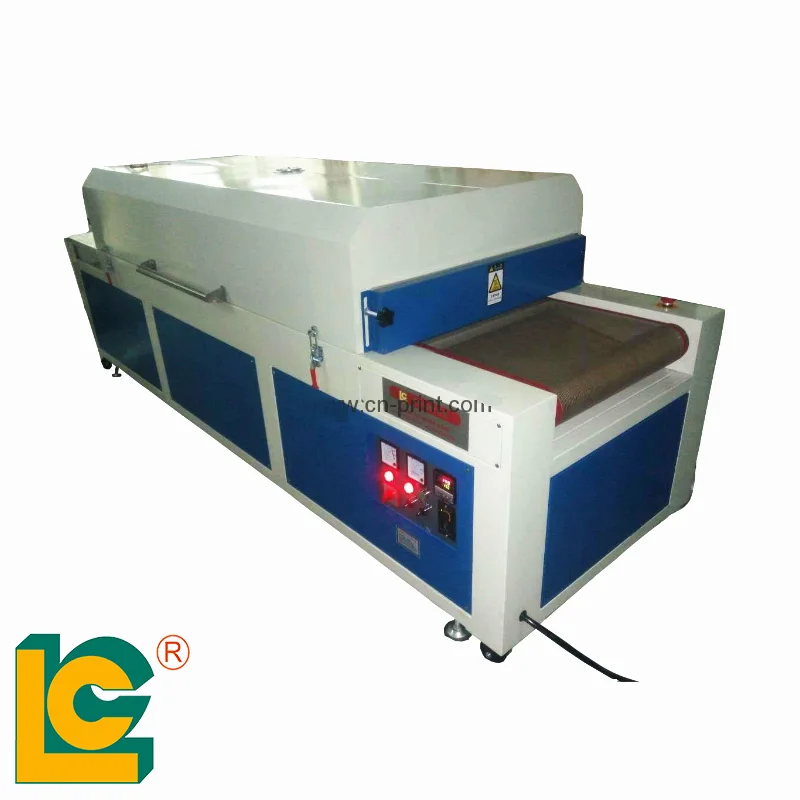

Machine Photos
Product Details

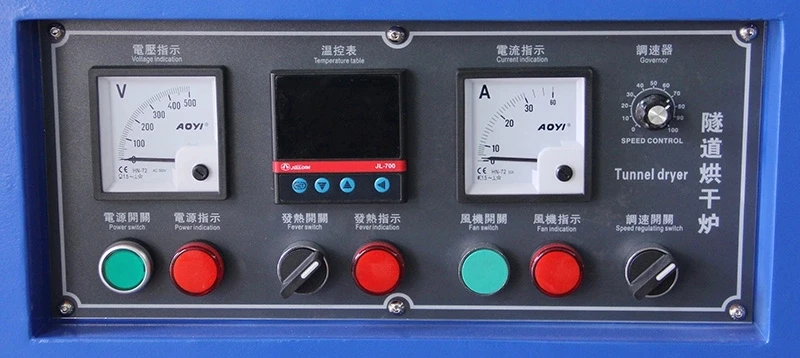

Control Panel
Control monitor temperature and speed
Height Adjustment
120mm (can be customized different height)
Air Outlet
Drain moisture from the dried articles
Stainless steel chainplate(can be customized)

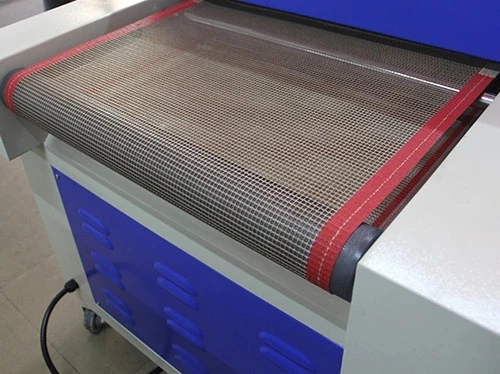

Stainless Steel Mesh Belt (can be customized)
Noted:Because the power of the machine is too large, the machine has no plug,and need to be directly connected to the safety circuit.
Applicable Industries
Printing Industry
Agriculture
Textile Industry
Manufacturing Industry
The scope of application is very wide, such as printing industry, paper industry, wood processing industry, textile industry, plastics industry, tanning and shoemaking industry, agricultural and sideline industry: drying grain, solving farmers' drying grain problem, etc.
