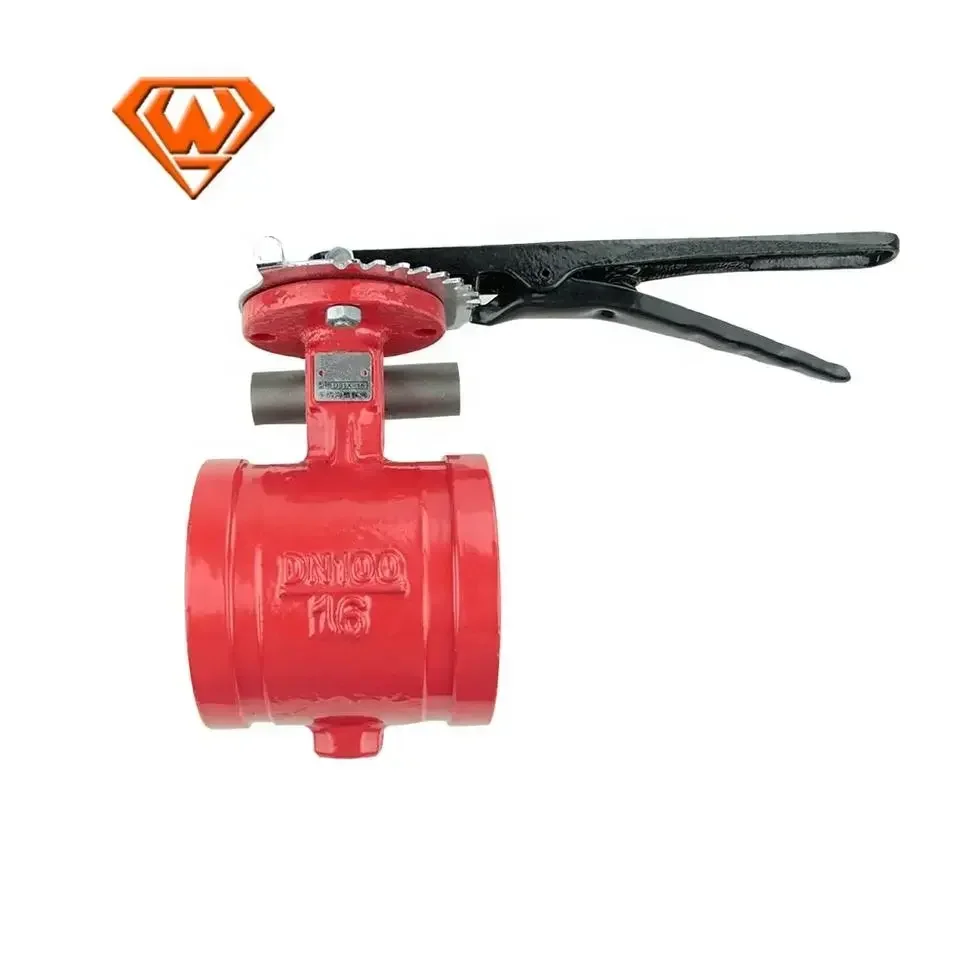

Санитарные чугунные рифленые ворота ANSI PN16 3 дюймовый Клапан Бабочка

Сохранить в закладки 1601023059251:


Цена:1 782,11 ₽ - 1 900,91 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики


































technical data




















































































































































































CAST IRON BUTTERFLY VALVES
Material Specification
PartMaterailEN Spec.
BodyCast IronA126 Class B
Ductile IronA536 Gr.65-45-12
DiscDuctile IronA536 Gr.65-45-12
BronzeB148 C95400
Stainless Steel 304A351 CF-8
Stainless Steel 316A351 CF-8M
ShaftStainless Steel 410A276 S410 00
Stainless Steel 431A276 S431 00
Seat RingEPDM /NBR
O-RingEPDM /NBR
BushingPTFE
BronzeB62 C83600
Valve Standard
ISO 5752/BS5155/BS EN 593/MSS SP-67/API 609
Pressure Temprature and Rating
Working Pressure16bar/27.5bar
Testing pressureShell: 24bar/37.5bar
Seal: 17.6bar/27.5bar
Working Temperature-20°C to 110°C EPDM Seat
-10°C to 80°C NBR Seat
Suitable MediaWater, Oll& Cas
Description Products
SizeDN40-DN1200
End flangeANSI B 16.1, EN 1092, AS 2129
Face to faceANSI B 16.10; EN 558-1 Series 20
Top flangeISO 5211
Related products1. Carbon steel nipples and sockets2. Flanges
3. Carbon steel butt-welding fittings4. Pipes
5. High-pressure fittings6. Valves
7. P.T.F.E .thread seal tape8. Brass fittings
9. Ductile iron pipe fittings10. Copper fittings
11. Grooved fittings12. Sanitary fittings, etc.
CertificateBSI, ISO9001:2008,FM
ApplicationsFresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.
Buyer’s drawings or designs are available.
Package1. Cartons without pallets.
2. Cartons with pallets.
Or as buyer’s requirements.
Delivery detail
According to the quantities and specifications of each order.
Normal delivery time is from 30 to 45 days after receiving the deposit.
