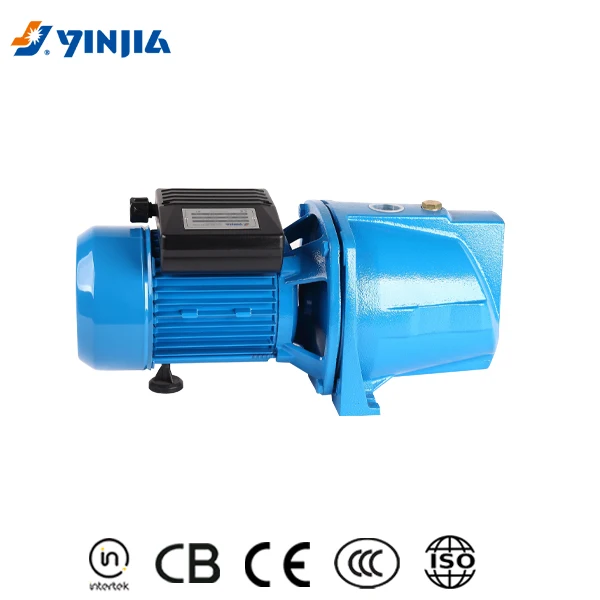

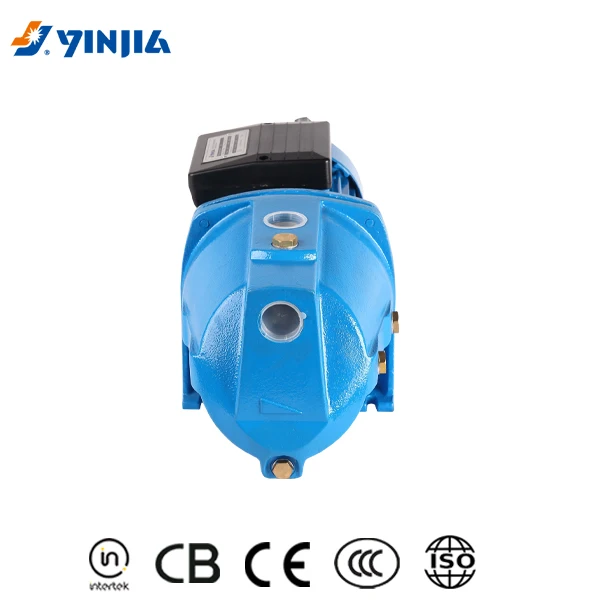

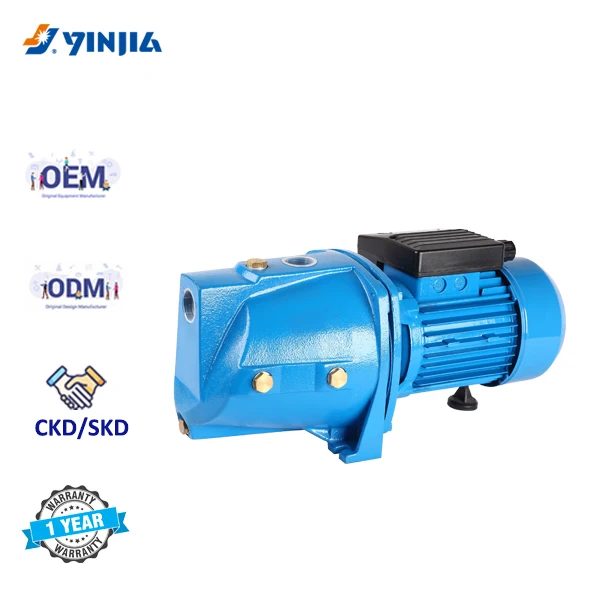

Однофазный самовсасывающий струйный насос для садового распыления 1 дюйм 100% медный провод

Сохранить в закладки 1601023340377:


Цена:4 178,58 ₽ - 4 343,70 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики





APPLICATION
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for lifting water from well, sprinkling irrigation in garden, pressure boosting of running water, or supporting
equipment etc.

OPERATING LIMITS
-Total suction lift up to 9 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.
MOTOR
-Insulation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1
DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Ejection union: PPO
-Impeller: Brass
-Bearing: C&U
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Carbon/Ceramic/NBR/SUS304
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-PPO/SUS304 impeller
-Cast iron diffuser,brass nozzle
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insulation class: F




Performance










Fujian New Yinjia Pump Co.,Ltd established in 1990, has specialized in various of surface clean water pumps. Covering an area of 66,000m², with 250 employees, monthly capacity 60,000pcs. Thanks to advanced production equipment and strict QC system, we keep providing high quality pumps with factory direct price, and support 1 year guarantee. Welcome to inquiry Yinjia pump, always at your service!








FAQ


Q: Are you a factory or trading company?
A: We are a professional surface water pump manufacturer since 1990, located in Fuan, Fujian, China.

Q: Do you provide OEM/ODM service?
A: Yes, we are premium OEM/ODM manufacturer which assessed by independent third parties.

Q: What is the feature of your products ?
A: Our products have 3 obviously features: quite, powerful, heavy duty.

Q: What is your MOQ ?
A: 100 pcs per model for factory brand and package.
300 pcs per model for OEM brand and package.

Q: How do you control the quality ?
A: All production process strict to follow ISO9001 system, QC team check the quality during the production and do the test before each shipment.

Q: What is your delivery time?
A: 15 days for sample order, 30 days for container order. ( Busy season may need more days )
