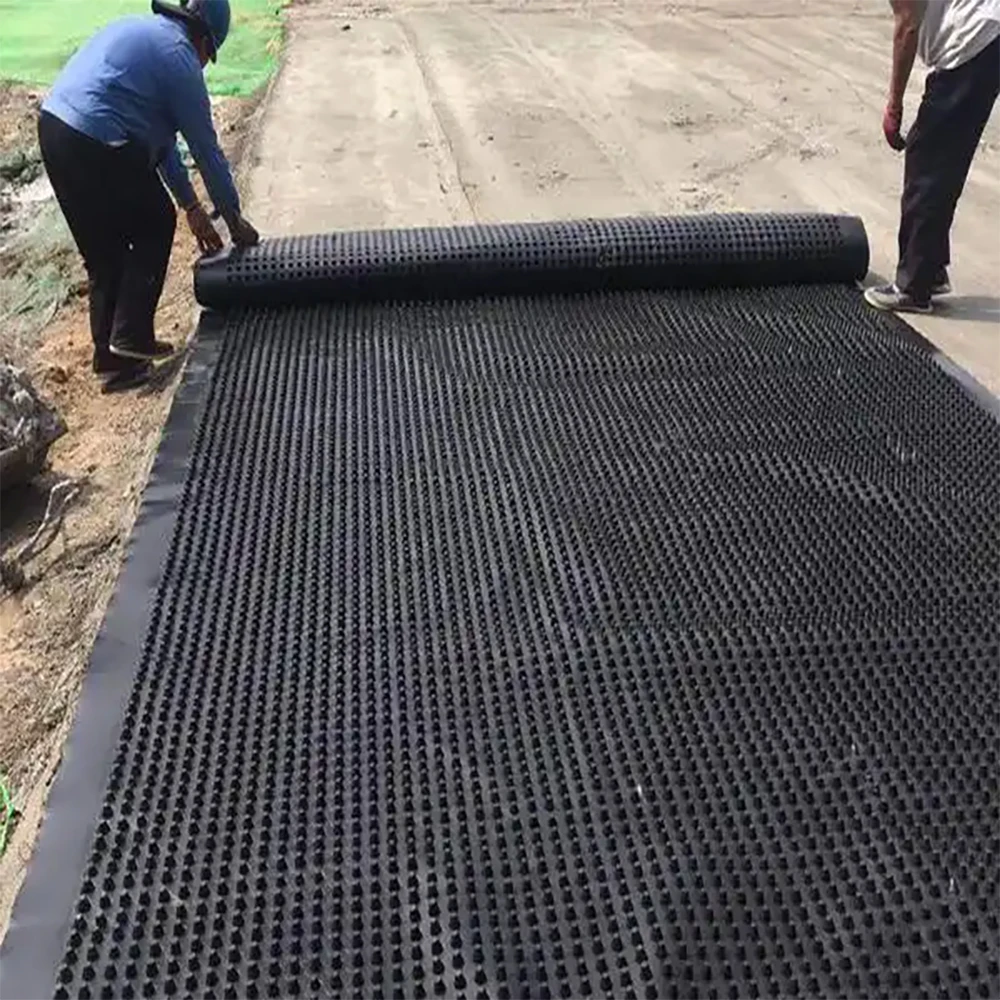

Лидер продаж водостойкий пластиковый лист дренажная доска из полиэтилена дренажный коврик HDPE ячейка
- Категория: >>>
- Поставщик: Feicheng Huabo New Material Co. Ltd.
Сохранить в закладки 1601024211971:
Описание и отзывы
Характеристики
Waterproof drainage board
Steel plastic geogrid is made of high-strength steel wire (or other fibers), specially treated with polyethylene (PE), and added with other additives. It is extruded to form a composite high-strength tensile strip with rough embossing on the surface, which is a high-strength reinforced geogrid. From this single strip, it is formed by weaving or clamping at a certain distance vertically and horizontally, and welding its junction points using special reinforced bonding fusion welding technology, which is a reinforced geogrid.

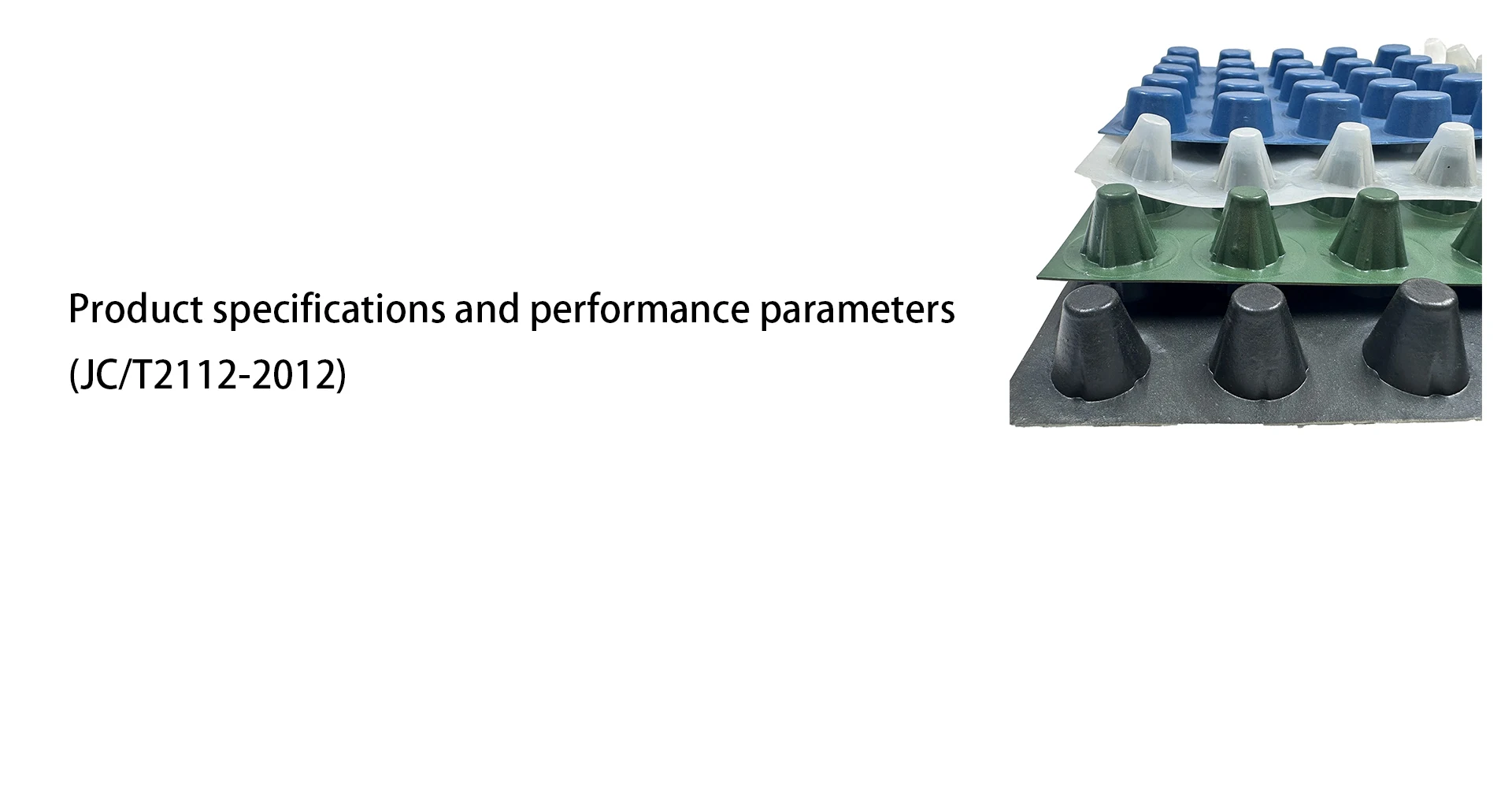

Waterproof drainage board | ||||||||
Item | Index | |||||||
Tensile force at 10% elongation (N/100 mm) | 350 | |||||||
Maximum tensile force (N/100 mm) | 600 | |||||||
Medium elongation at break % | 25 | |||||||
Tearing performance N | 100 | |||||||
Compression | Maximum strength at 20% compression k/Pa | 150 | ||||||
Extreme compression | No cracking | |||||||
Low tenderness | -10°C No cracking | |||||||
Heat aging | Tensile strength retention at 10% elongation % ≥ | 80 | ||||||
Maximum tensile strength retention % ≥ | 90 | |||||||
Retention rate at break % ≥ | 70 | |||||||
Maximum strength retention at 20% compression rate % ≥ | 90 | |||||||
Extreme compression phenomenon | No cracking | |||||||
Low tenderness | -10°C No cracking | |||||||
Longitudinal flux (lateral pressure150 kPa)(cm³/s) ≥ | 10 | |||||||
Resist long-term high pressure

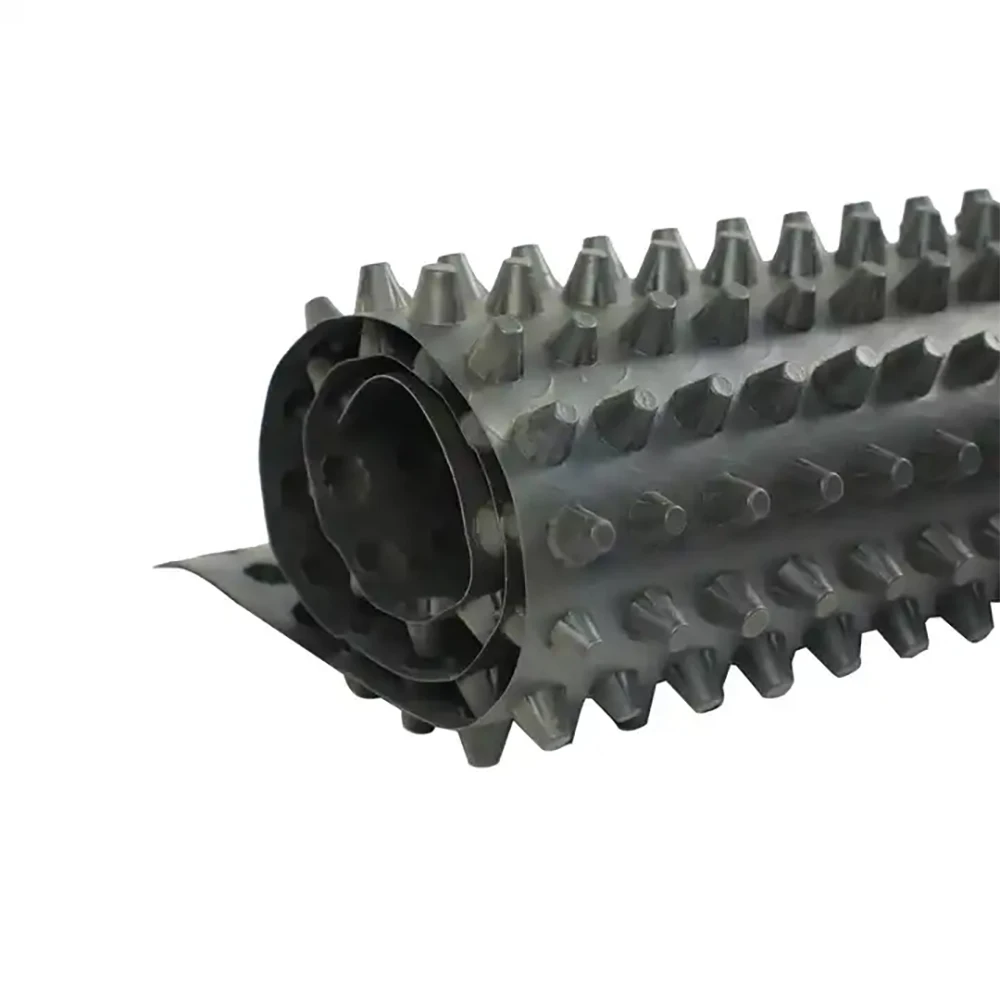

Made from polystyrene or polyethylene as raw materials, the plastic base adhesive is stamped and can resist long-term high pressure and is not easily deformed.
Not easily blocked

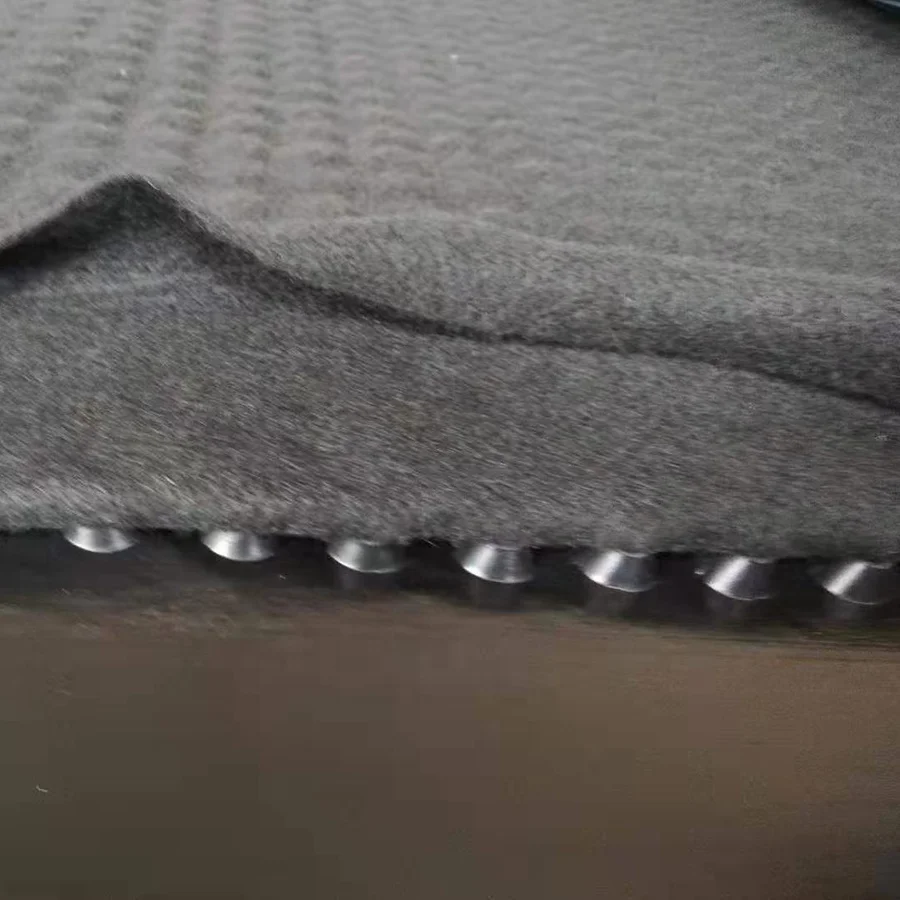

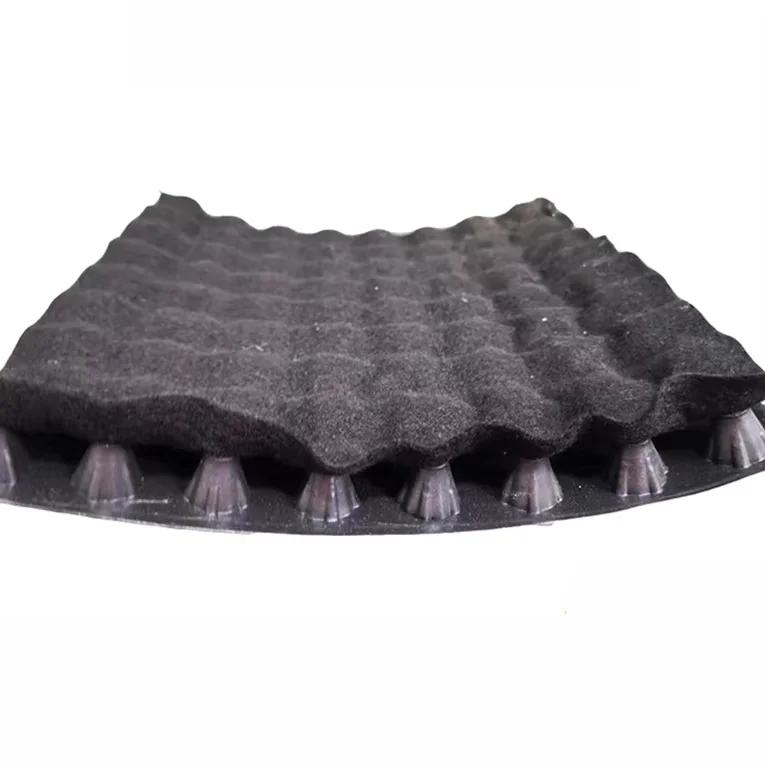

The filter layer geotextile on the bottom plate ensures that the drainage channel is not blocked by foreign objects, such as backfill soil particles or concrete.
High economic benefits and wide application
Drainage boards are more reliable in terms of drainage function and economic benefits than traditional stone, ceramic drainage,and other filter layers. They are widely used in retaining walls, basements, tunnels, slope protection, and highway embankments.
construction scheme
1.The construction of the roof or garage roof should be carried out on the basis of a waterproof layer, with a slope of 2 ‰ -5% ‰, and the entire area should be kept free from water accumulation and flow. | ||

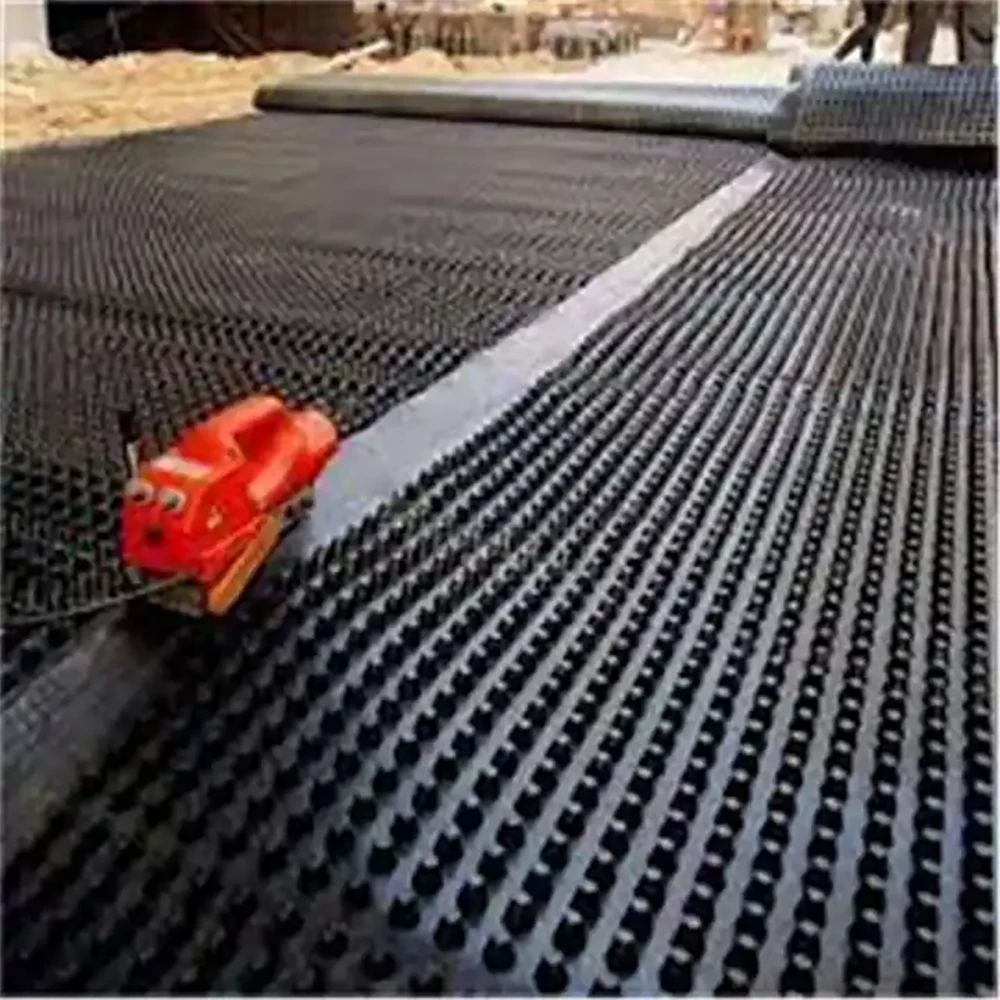

2.The drainage board should be laid along the edge of the top plate along the slope, with a uniform laying direction. The edges of the drainage board should be overlapped by 2-4cm and welded together. The drainage board should be covered with a layer of geotextile, and the geotextile should be covered with another layer of geotextile. The geotextile should overlap with the edge of the geotextile by 10cm to prevent soil from flowing into the gaps of the drainage board and maintain smooth drainage. | ||
3.A fully loaded labor vehicle cannot walk directly on the drainage board, and wooden boards can be laid to form a passage to prevent damage to the drainage board. | ||
4. Backfilling soil should be done in a timely manner to avoid damage to drainage boards and geotextiles caused by other types of work on site. It is best to fill the soil as it is laid. | ||

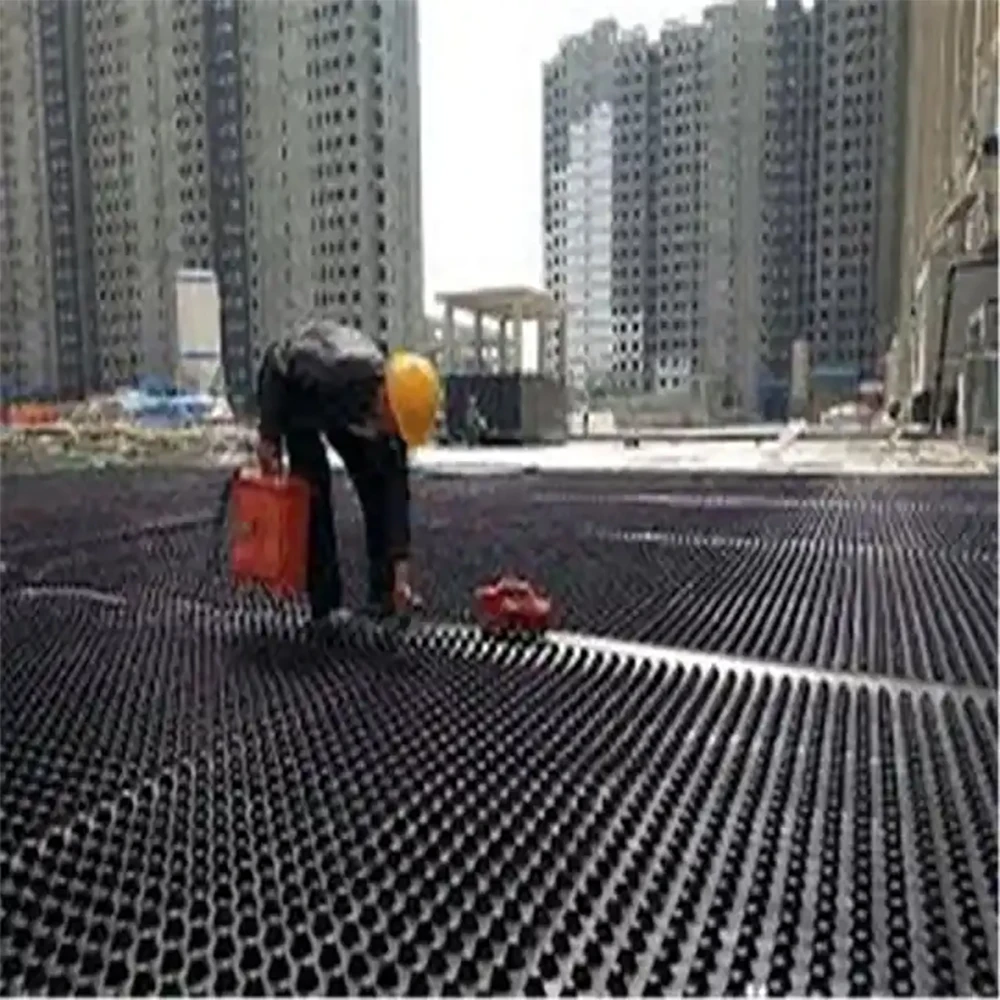

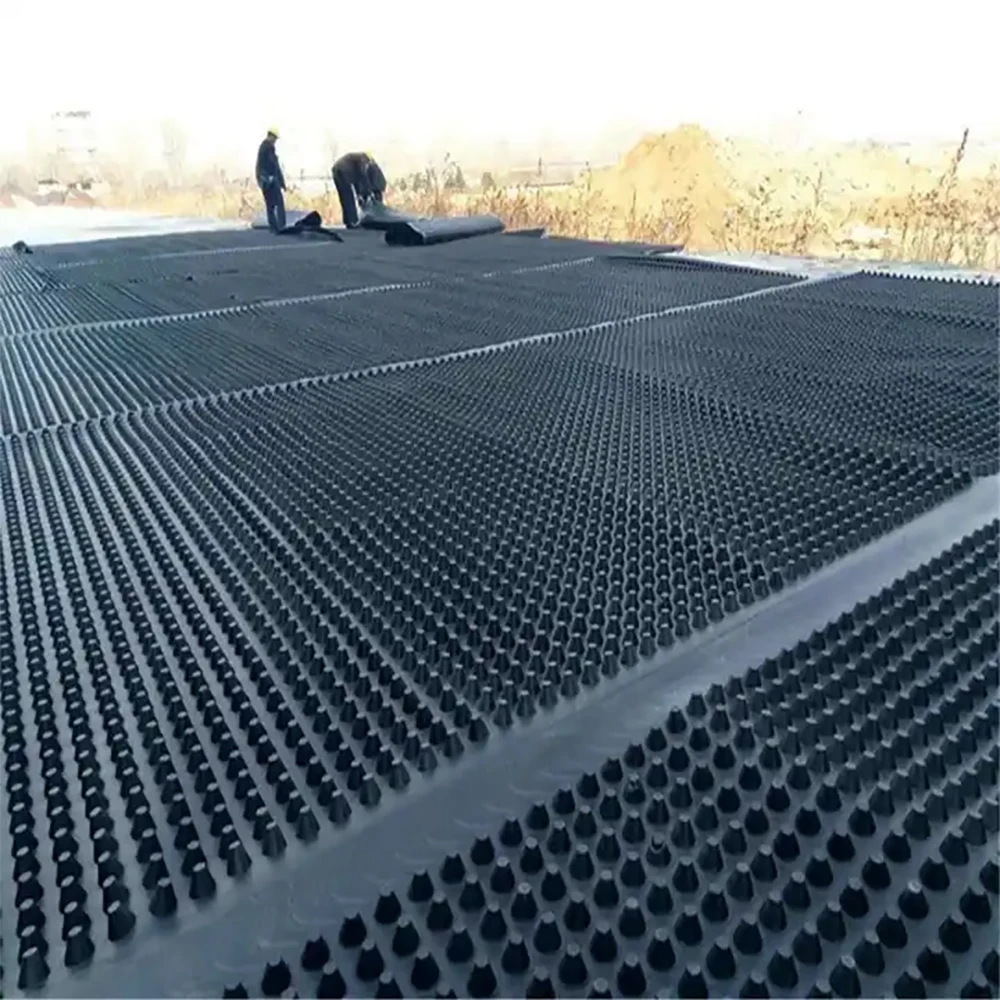

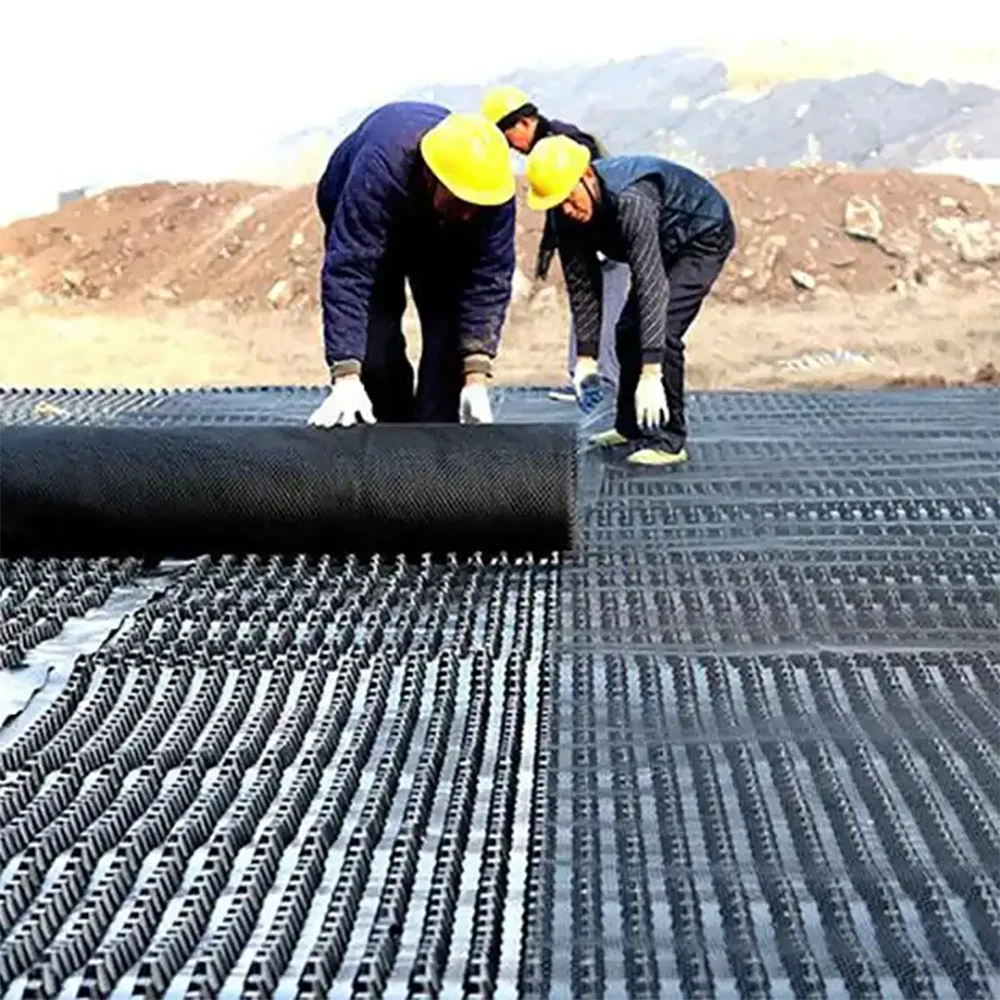

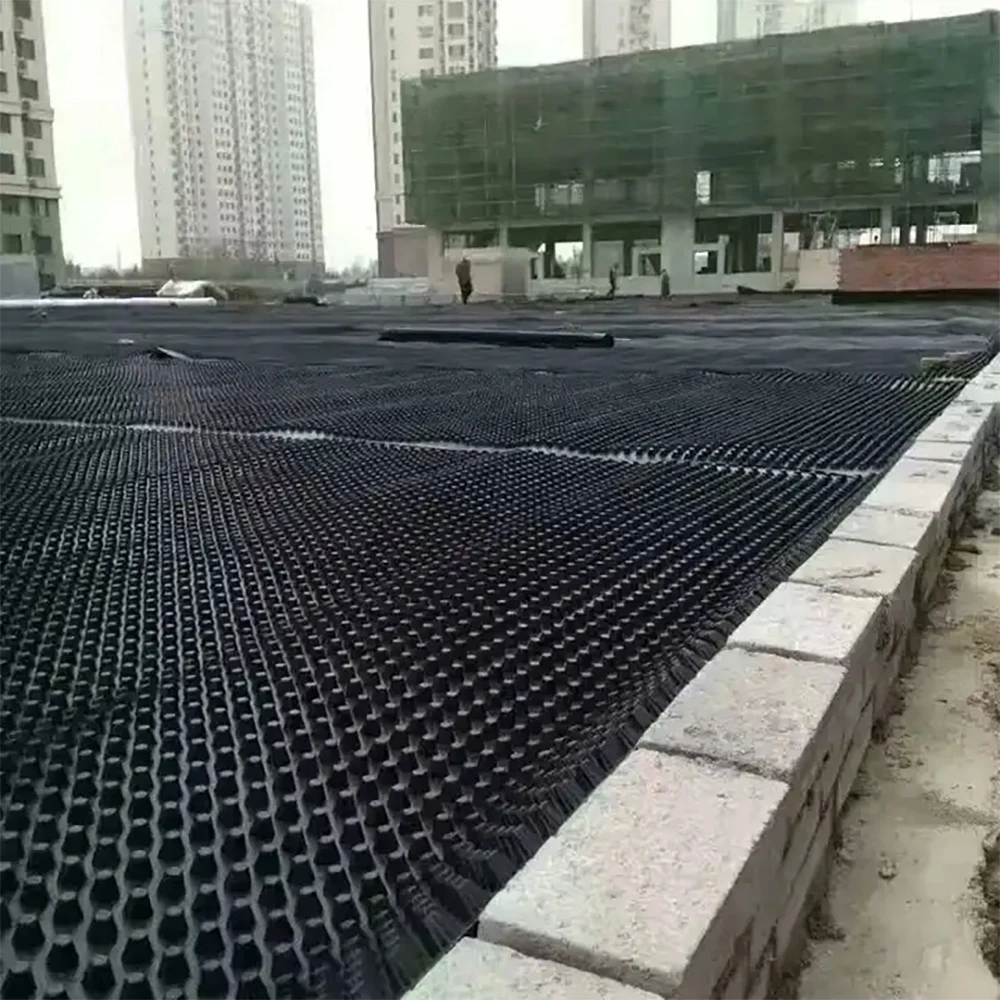

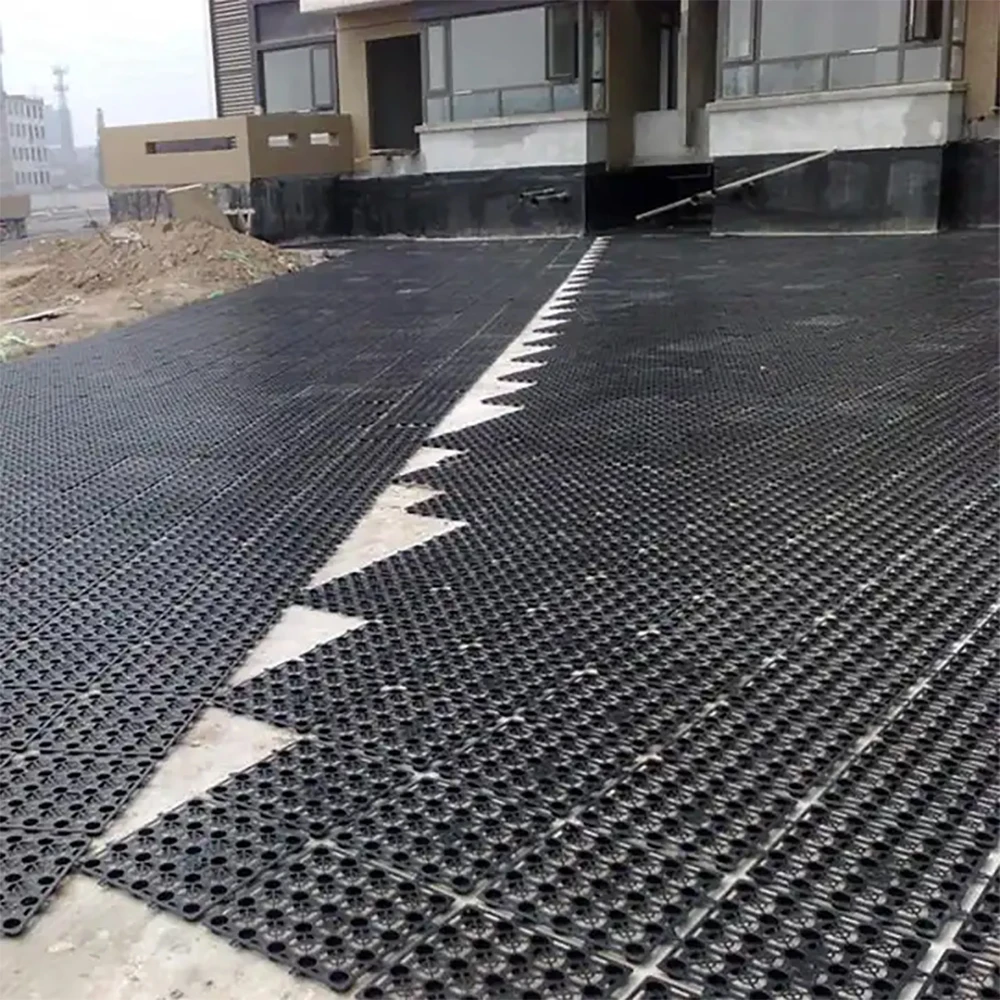

Construction cases

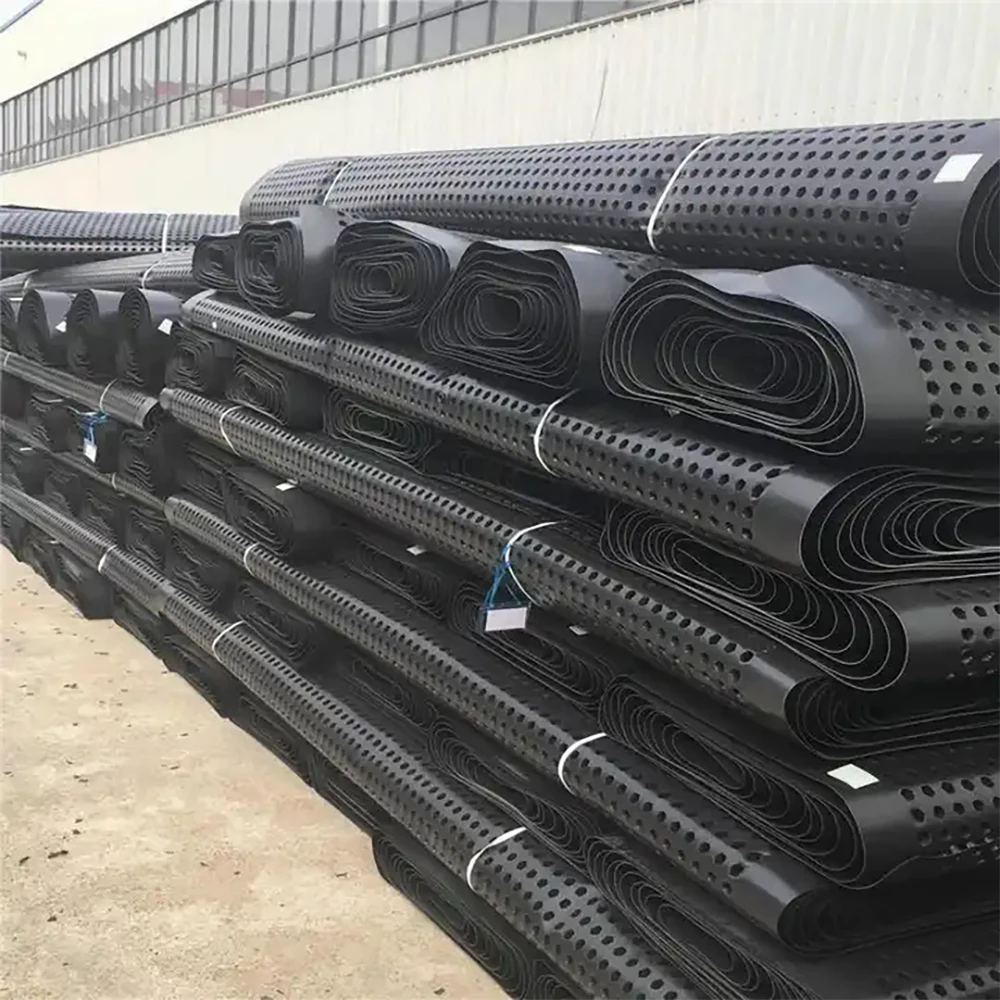

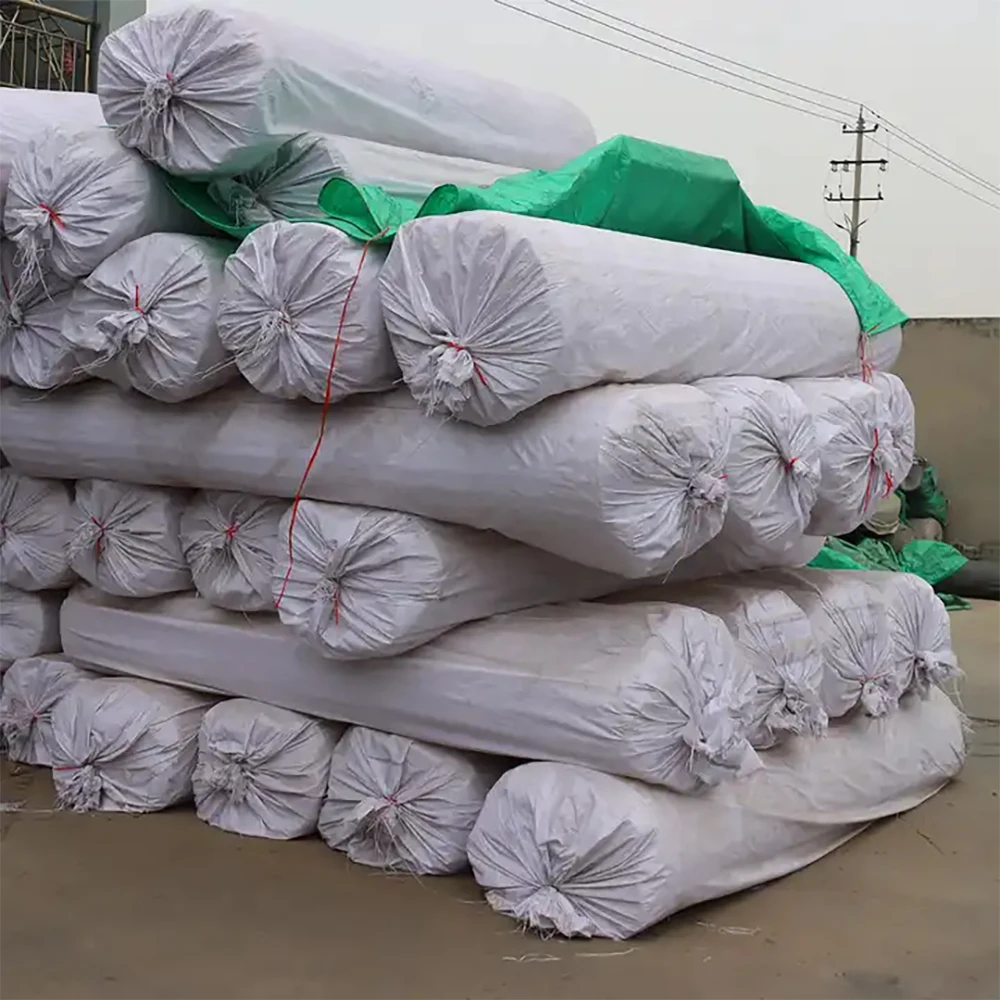

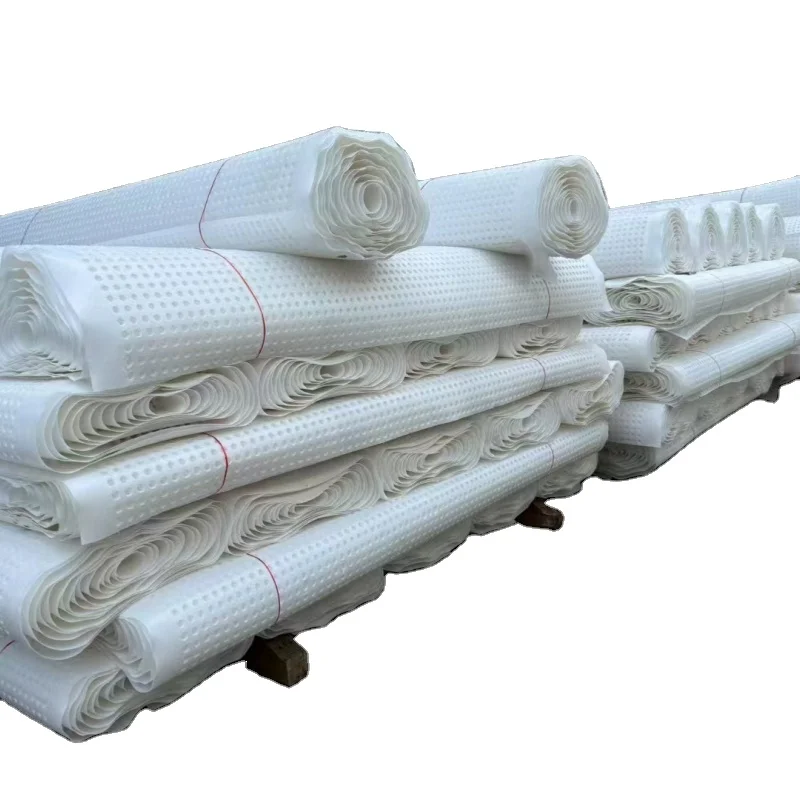

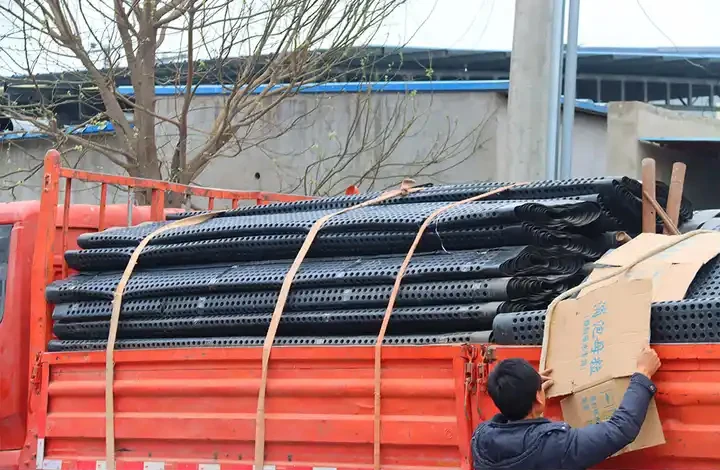

shipment
Company Profile
FAQ
1. Who are we?
Feicheng Huabo New Material Co., Ltd., a prominent manufacturing facility specializing in the production of geotextile membrane, geotextile fabric, geogrid, vegetation netting, waterproof fabric, and more.
2. How can we guarantee quality?
Feicheng Huabo New Material Co., Ltd., is an advanced geomaterial manufacturing company that produces products that have passed all import and export tests. And we are able to customize the products according to customers' needs.
3.What can we offer you?
a.Multiple modes of transportation
b.Multi-currency payment options（EXW FCA FOB CIF）
c.Multiple Product Combination Purchase
d.Advice from professional engineering team
c.Free samples for testing
4.How long will it take us to finish sending the goods?
When in stock, we are able to send them out immediately. In other cases such as customization, it will only take three days to complete.
5.Whether to support the visit?
Our company supports visits to clients in various countries and can provide hospitality services.
Other：
a. We are able to provide free samples, but generally do not cover shipping costs.
Feicheng Huabo New Material Co., Ltd., a prominent manufacturing facility specializing in the production of geotextile membrane, geotextile fabric, geogrid, vegetation netting, waterproof fabric, and more.
2. How can we guarantee quality?
Feicheng Huabo New Material Co., Ltd., is an advanced geomaterial manufacturing company that produces products that have passed all import and export tests. And we are able to customize the products according to customers' needs.
3.What can we offer you?
a.Multiple modes of transportation
b.Multi-currency payment options（EXW FCA FOB CIF）
c.Multiple Product Combination Purchase
d.Advice from professional engineering team
c.Free samples for testing
4.How long will it take us to finish sending the goods?
When in stock, we are able to send them out immediately. In other cases such as customization, it will only take three days to complete.
5.Whether to support the visit?
Our company supports visits to clients in various countries and can provide hospitality services.
Other：
a. We are able to provide free samples, but generally do not cover shipping costs.
b.The payment method we currently support is generally T/T（30%T/T+70T/T or 30%T/T+70% sight L/C）& OA
c.Our quotes are valid for 7 days. d.Whatspp:+86 19305387786
c.Our quotes are valid for 7 days. d.Whatspp:+86 19305387786
