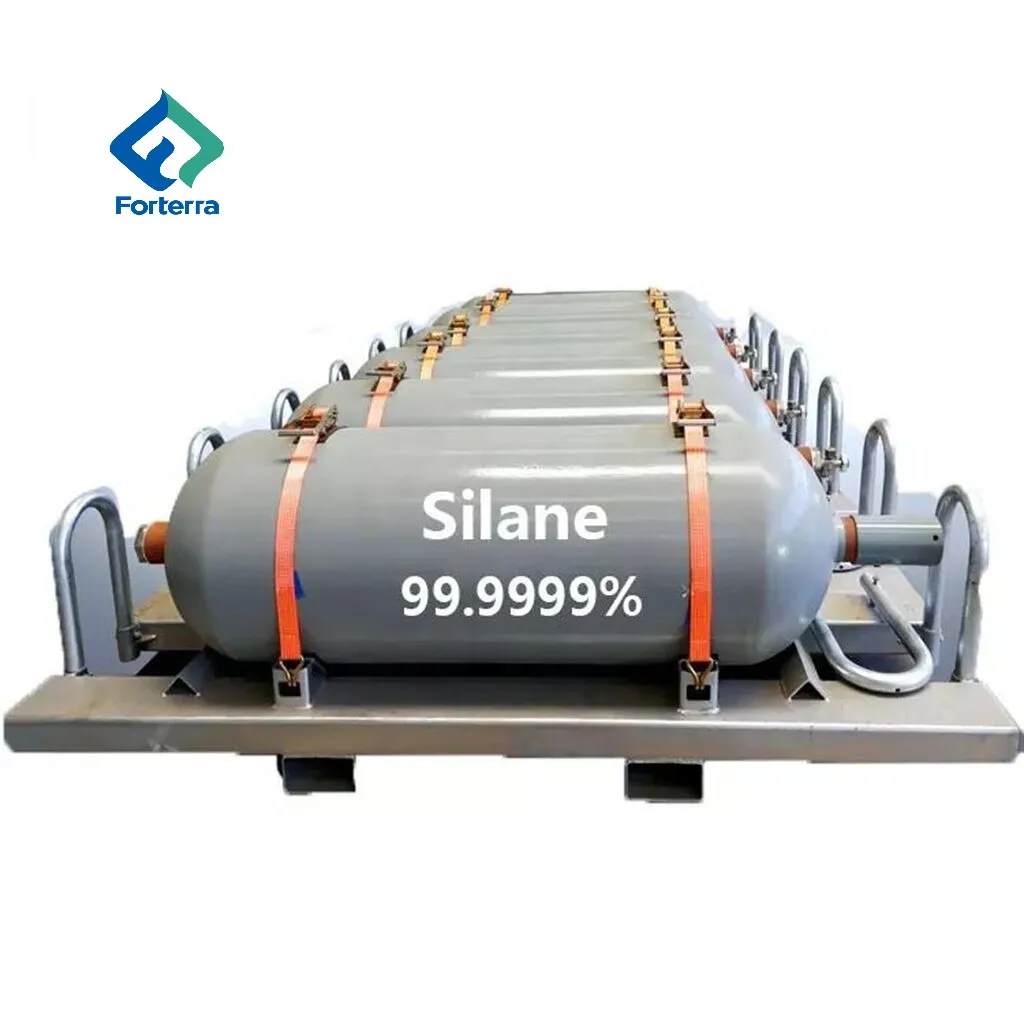

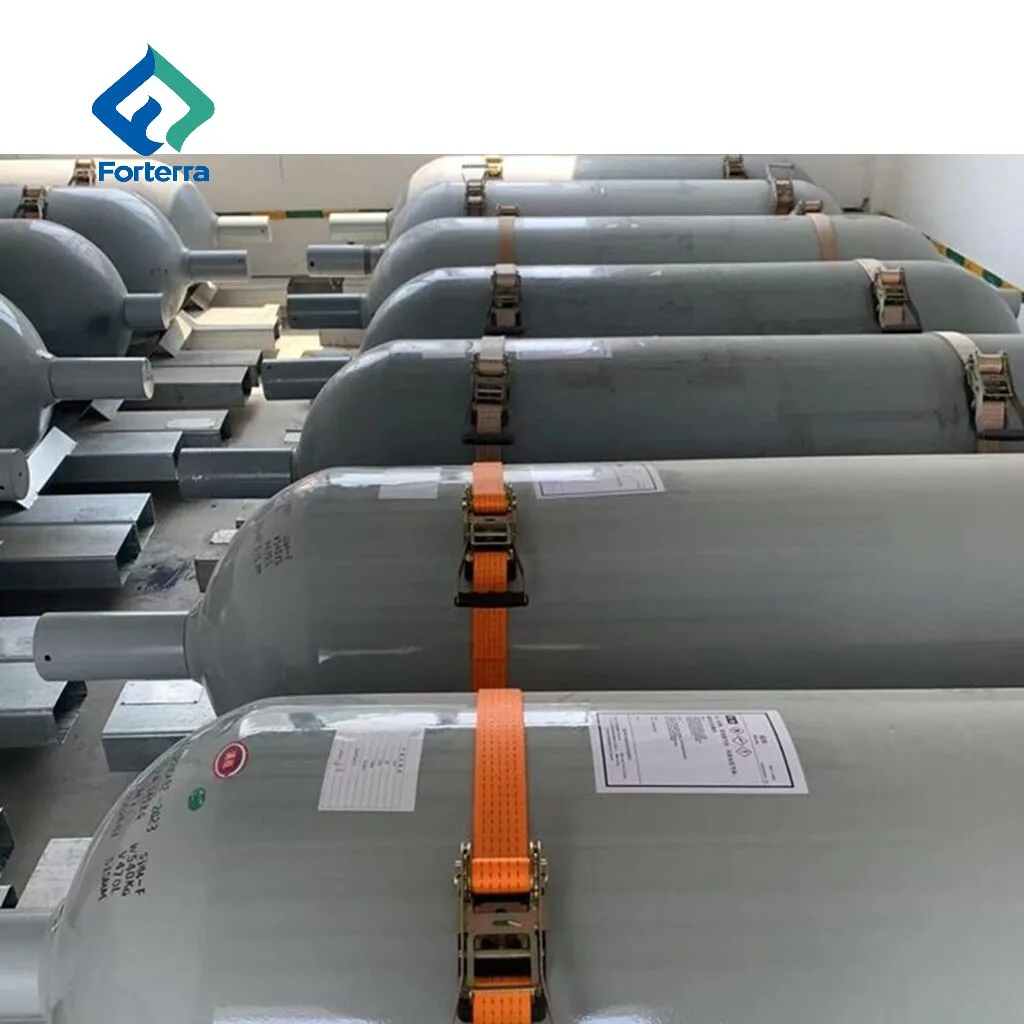

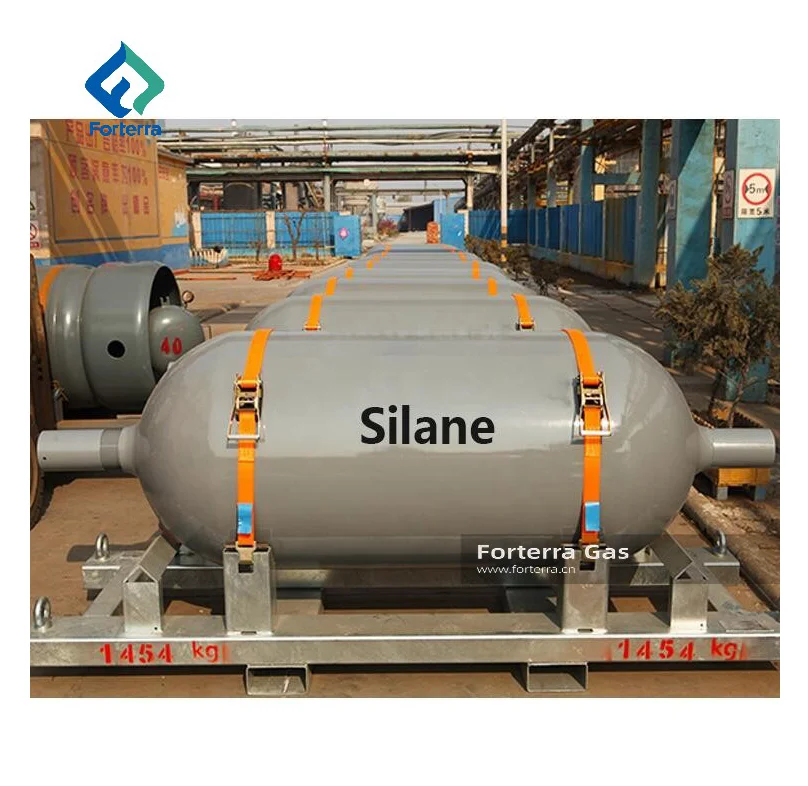

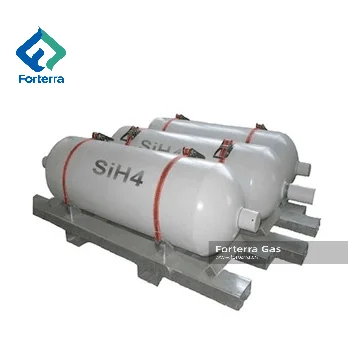

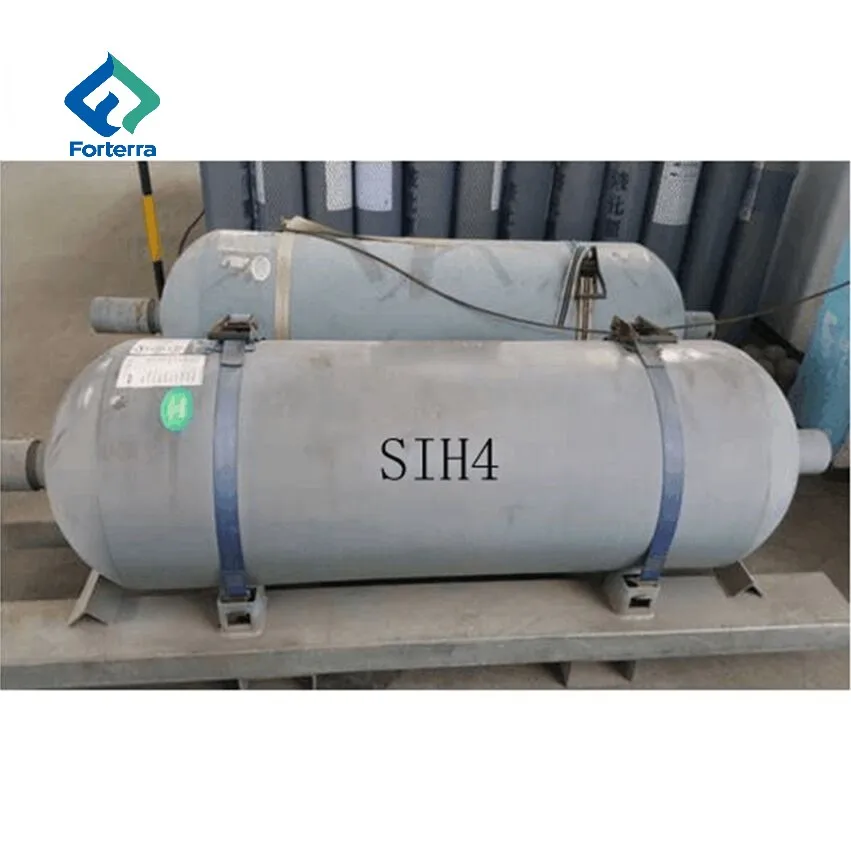

China Supply 470L DOT Standard Y Cylinder For Silane Gas High Pressure Compressed SiH4 Gas
Our Company—Qingdao Forterra Gas Co.,Ltd.
*One of the leading manufactures of Industrial Gas and gas cylinders.
*Business domain includes Africa, South America, Middle East, South Asia, Russia, Spain,
Brazil, Australia.
Other Names | Silane |
MF | SiH4 |
EINECS No. | 232-263-4 |
CAS No. | 7803-62-5 |
Usage | electronics industry |
Size | 470L |
Boiling point | -112℃ |
Appearance | Colorless |
Package | Seamless Steel Cylinder |
A variety of container packaging can be provided: steel cylinders, Y cylinders, T cylinders, ISO tank boxes and pipe trucks;
Gas use consultation of domestic experts;
Cooperate with the bottled gas business, store outlets cover a wide range, and provide
customers with off-site storage services;
Cooperate with customers' gas consumption plan and make inventory management plan for customers;
Usage | Typical Application | ||||||
Semiconductor Microelectronics Industry | Used in various microelectronic film preparation, including single crystal film, microcrystalline, polycrystalline, silicon oxide, nitrogen silicon, metal silicide, etc. | ||||||
Glass manufacturer Silicon-containing film and coating applications | In the production process of float glass, silane is applied to the surface of the glass with a reflective layer. The adhesion is extremely strong and does not fade under long-term sunlight. The light transmittance is only 1/3 of ordinary glass; coated with silicon nitride. The large-area polycrystalline silicon battery (BSNSC) has reached a high efficiency of 15.7%. | ||||||
Manufacturing high performance ceramic engine parts | Silane-based (Si3N4, SiC, etc.) micropowder technology | ||||||
Regular Specs:
ITEM | NAME | CYLINDER SIZE | WORKING PRESSURE | GAS PURITY |
1 | Argon | 20L/30L/40L/50L | 150BAR/200BAR | 99.99% ~ 99.999% |
2 | Oxygen | 10L/20L/30L/40L/50L | 150BAR/200BAR | 99.9% ~ 99.999% |
3 | CO2(Food) | 10L/15L/40L/50L | 150BAR/200BAR | 99.9% ~ 99.99% |
4 | CO2(Industrial) | 40L/50L | 150BAR/200BAR | 99.9% ~ 99.99% |
5 | Nitrogen | 20L/30L/40L/50L | 150BAR/200BAR | 99.99% ~ 99.999% |
6 | Helium | 20L/30L/40L/50L | 150BAR/200BAR | 99.99% ~ 99.999% |
规格型号 Models | 容 积 | 外 径 | 长 度 | 壁 厚 | 重 量 | 工作压力 | ||
Water Cap. | Outside Dia. | Overall Length | Wall Thickness | Empty Weight | Working Pressure | |||
Lts | mm | mm | mm | kgs | bar | |||
Steel Cylinder ISO9809-3 | ||||||||
(ISO)108-1.5-150 | 1.5 | 108 | 315 | 3.2 | 3.15 | 150 | ||
(ISO)108-2.0-150 | 2.0 | 108 | 342 | 3.2 | 2.75 | 150 | ||
(ISO)108-2.5-150 | 2.5 | 108 | 430 | 3.2 | 3.75 | 150 | ||
(ISO)108-3.0-150 | 3.0 | 108 | 475 | 3.2 | 4.15 | 150 | ||
(ISO)108-3.5-150 | 3.5 | 108 | 525 | 3.2 | 4.75 | 150 | ||
(ISO)108-4.0-150 | 4.0 | 108 | 575 | 3.2 | 5.25 | 150 | ||
(ISO)108-4.5-150 | 4.5 | 108 | 630 | 3.2 | 5.85 | 150 | ||
(ISO)108-5.0-150 | 5.0 | 108 | 705 | 3.2 | 6.35 | 150 | ||
(ISO)140-4.0-150 | 4.0 | 140 | 395 | 3.6 | 7.1 | 150 | ||
(ISO)140-5.0-150 | 5.0 | 140 | 465 | 3.6 | 8.2 | 150 | ||
(ISO)140-6.0-150 | 6.0 | 140 | 535 | 3.6 | 9.3 | 150 | ||
(ISO)140-6.7-150 | 6.7 | 140 | 600 | 3.6 | 10.0 | 150 | ||
(ISO)140-7.0-150 | 7.0 | 140 | 610 | 3.6 | 10.4 | 150 | ||
(ISO)140-8.0-150 | 8.0 | 140 | 680 | 3.6 | 11.5 | 150 | ||
(ISO)140-9.0-150 | 9.0 | 140 | 750 | 3.6 | 12.5 | 150 | ||
(ISO)140-10.0-150 | 10.0 | 140 | 820 | 3.6 | 13.6 | 150 | ||
(ISO)152-7.0-150 | 7.0 | 152 | 530 | 4.0 | 10.5 | 150 | ||
(ISO)152-8.0-150 | 8.0 | 152 | 590 | 4.0 | 11.5 | 150 | ||
(ISO)152-9.0-150 | 9.0 | 152 | 650 | 4.0 | 12.5 | 150 | ||
(ISO)152-10.0-150 | 10.0 | 152 | 710 | 4.0 | 13.5 | 150 | ||
(ISO)159-9.0-150 | 9.0 | 159 | 614 | 4.2 | 13.0 | 150 | ||
(ISO)159-10.0-150 | 10.0 | 159 | 671 | 4.2 | 14.0 | 150 | ||
(ISO)159-12.0-150 | 12.0 | 159 | 785 | 4.2 | 16.0 | 150 | ||
(ISO)159-13.0-150 | 13.0 | 159 | 842 | 4.2 | 17.0 | 150 | ||
(ISO)159-14.0-150 | 14.0 | 159 | 899 | 4.2 | 18.0 | 150 | ||
(ISO)159-150.0-150 | 15.0 | 159 | 956 | 4.2 | 19.0 | 150 | ||
(ISO)159-16.0-150 | 16.0 | 159 | 1013 | 4.2 | 20.0 | 150 | ||
(ISO)159-17.0-150 | 17.0 | 159 | 1070 | 4.2 | 21.0 | 150 | ||
(ISO)159-18.0-150 | 18.0 | 159 | 1130 | 4.2 | 22.0 | 150 | ||
(ISO)219-20-150 | 20.0 | 219 | 715 | 5.7 | 28.0 | 150 | ||
(ISO)219-25-150 | 25.0 | 219 | 865 | 5.7 | 33.0 | 150 | ||
(ISO)219-30-150 | 30.0 | 219 | 1015 | 5.7 | 38.0 | 150 | ||
(ISO)219-40-150 | 40.0 | 219 | 1315 | 5.7 | 48.0 | 150 | ||
Steel Cylinder ISO9809-1 | ||||||||
(ISO)232-40-15-5.4 | 40.0 | 232 | 1175 | 5.4 | 43.0 | 150 | ||
(ISO)232-47-15-5.4 | 47.0 | 232 | 1360 | 5.4 | 49.2 | 150 | ||
(ISO)232-50-15-5.4 | 50.0 | 232 | 1435 | 5.4 | 52.0 | 150 | ||
(ISO)232-40-20-5.2 | 40.0 | 232 | 1165 | 5.2 | 42.0 | 200 | ||
(ISO)232-47-20-5.2 | 47.0 | 232 | 1345 | 5.2 | 48.0 | 200 | ||
(ISO)232-50-20-5.2 | 50.0 | 232 | 1425 | 5.2 | 50.0 | 200 | ||
(ISO)232-40-15-5.8 | 40.0 | 232 | 1180 | 5.8 | 47.6 | 200 | ||
(ISO)232-47-15-5.8 | 47.0 | 232 | 1370 | 5.8 | 54.9 | 200 | ||
(ISO)232-50-15-5.8 | 50.0 | 232 | 1450 | 5.8 | 57.8 | 200 | ||
We offer the defect-free products and satisfying services, we spare no pains to keep improving our quality and we obey accurate delivery at any time.
So far our products are enjoying good markets at home and exporting to European and American countries, the Middle East countries, West Asia, as well as South and East.
So far our products are enjoying good markets at home and exporting to European and American countries, the Middle East countries, West Asia, as well as South and East.
Our Services:
1. We can supply you high quality gas cylinders, which include seamless steel cylinders, welded cylinders (such as dissolved acetylene cylinders, disposable helium cylinders).
2. We can supply you with high purity gas products, such as argon gas, oxygen gas, nitrogen gas, carbon dioxide gas, hydrogen gas, helium gas, acetylene, propane gas, mixed gas, standard gas, electronic gas...etc.
3. We can refill your cylinders, when the gas used up, you can send back to us for refill.
4. We can supply you high quality gas related equipment, such as cryogenic pump, dewar for liquid gas, valve, filling pipe, manifold, gas cylinder bundle, vaporizer...etc.
5. We guarantee you the best service, fast delivery. and good customers’ feedback.
6. We can assist you for technical support for setting up new gas plants for filling gas.
2. We can supply you with high purity gas products, such as argon gas, oxygen gas, nitrogen gas, carbon dioxide gas, hydrogen gas, helium gas, acetylene, propane gas, mixed gas, standard gas, electronic gas...etc.
3. We can refill your cylinders, when the gas used up, you can send back to us for refill.
4. We can supply you high quality gas related equipment, such as cryogenic pump, dewar for liquid gas, valve, filling pipe, manifold, gas cylinder bundle, vaporizer...etc.
5. We guarantee you the best service, fast delivery. and good customers’ feedback.
6. We can assist you for technical support for setting up new gas plants for filling gas.
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3.Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3.Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
