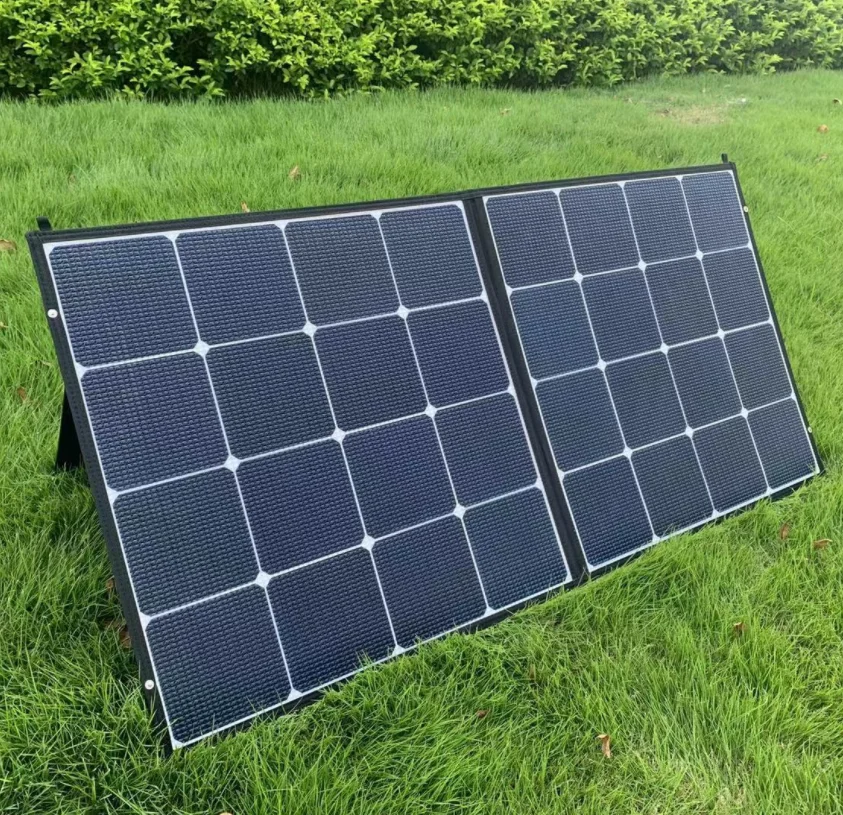

Производитель высокая эффективность 100 Вт 110 18 В 12 солнечная энергия Складные портативные складные солнечные панели для кемпинговых электростанций
7 461,98-10 331,97 ₽
Dokio 100 Вт комплект гибких солнечных панелей с 10A 12 В водонепроницаемая система контроллера зарядного устройства для дома каравана кемпинга лодки путешествий
- Категория: >>>
- Поставщик: Jinhua Dokio Technology Co. Ltd.Jinhua Ltd.
Сохранить в закладки 1601024961296:
Описание и отзывы
Характеристики
This is for 1pc 100w flexible solar panel with 12v 10A charger controller price, pls note.
Most of the panels have in stock in our Europe warehouse and American warehouse, we can ship to you within 3 working days after you ordered!!!FREE SHIPPING FROM OVERSEA WAREHOUSE!!!
Delivery is not supported in the following areas:
*Spanish island region. The zip code starts with "35" and "38".
remote areas in France, and areas subject to transportation restrictions.
Ukraine supports offline delivery.
*Spanish island region. The zip code starts with "35" and "38".
remote areas in France, and areas subject to transportation restrictions.
Ukraine supports offline delivery.
Recommend Products
All of the following Item have in Stock, Can Click the Link to Purchase, More than 10pcs, Welcome to send me message for Discount!

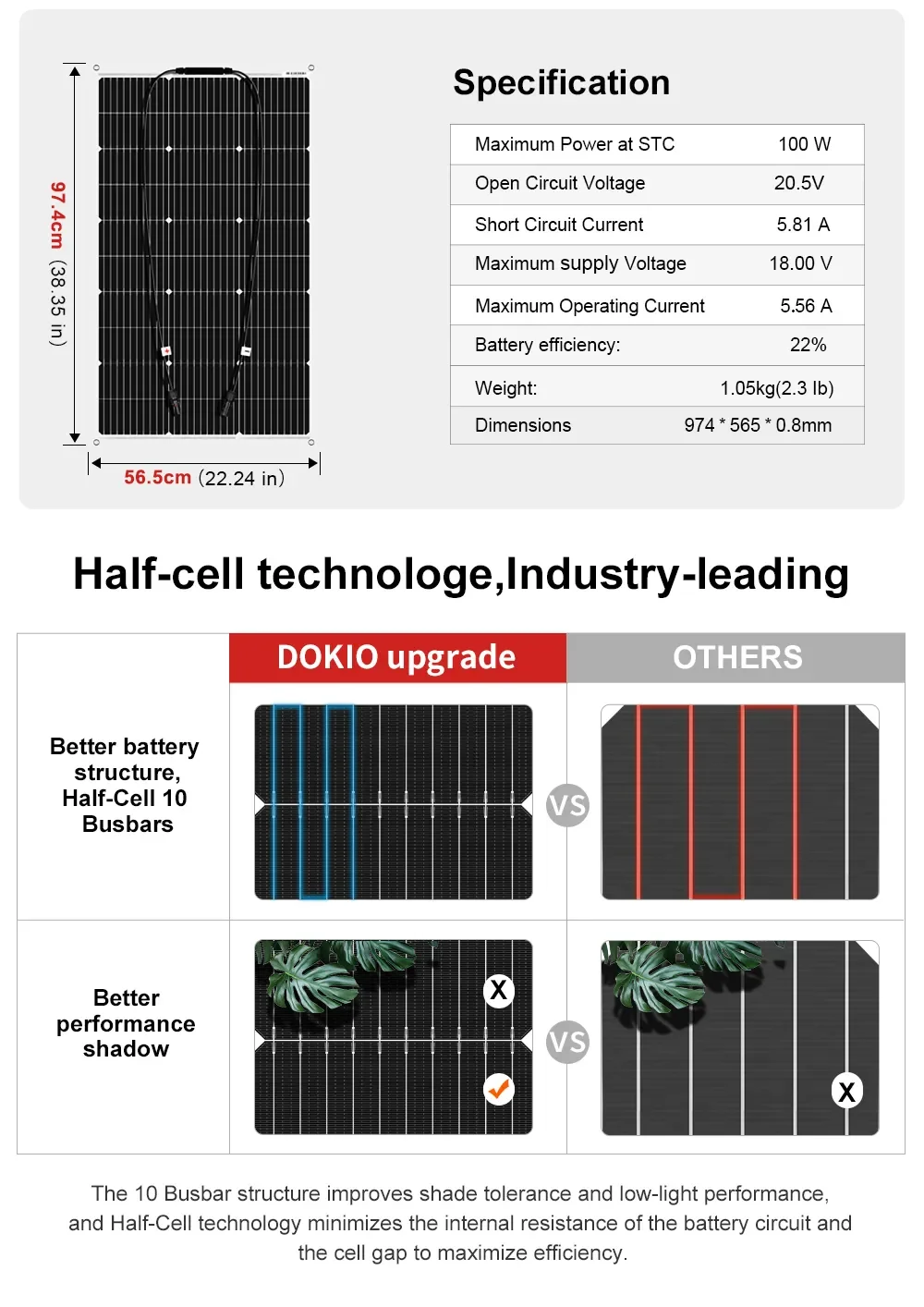

Specification
pv module | DFSP-100M |
Ratin power (Pm) | 100w |
Cells | Mono crystal 182x91 m square |
Number of cells | 30 (3x10) series connected |
Size | 970(L) x565(W) x0.8(H)mm |
Weight | 0.7KGS |
Typical application | 12V DC |
Maximum voltage | 600V DC |
Operating temperature | 45°C |
Hail diameter @ 80Km/h | Up to 25 mm |
Continuous wind pressure | Up to 24 m/s |
Efficiency of cell | ≥22% |
Tolerance | ±3% |
Rated current (Im) | 5.56A |
Rated voltage(Vm) | 18V |
Short circuit Current(Isc) | 5.81A |
Open circuit Voltage(Voc) | 22.5V |
Product Description
Purchase Notes
Our products have been upgraded, the new 100W flexible panel size: 970*565 mm.
Due to product upgrades and production batch issues, the appearance and size of the product you received may be different.
Due to product upgrades and production batch issues, the appearance and size of the product you received may be different.
Please Note that if you have a request for the size of the solar panel, please contact us beface ordering
Material structure：
1 floor: ETFE
2 floor: EVA Film
3 floor: High Efficiency Solar Cell
4 floor: EVA Film
5 floor: TPT Backsheet
1 floor: ETFE
2 floor: EVA Film
3 floor: High Efficiency Solar Cell
4 floor: EVA Film
5 floor: TPT Backsheet
Package List:
100W flexible mono solar panel *2
Connector *1pair
100W flexible mono solar panel *2
Connector *1pair
20A Controller *1
5M connected cable with MC4 *1
3M connected cable with clips *1
5M connected cable with MC4 *1
3M connected cable with clips *1
Easy to use:

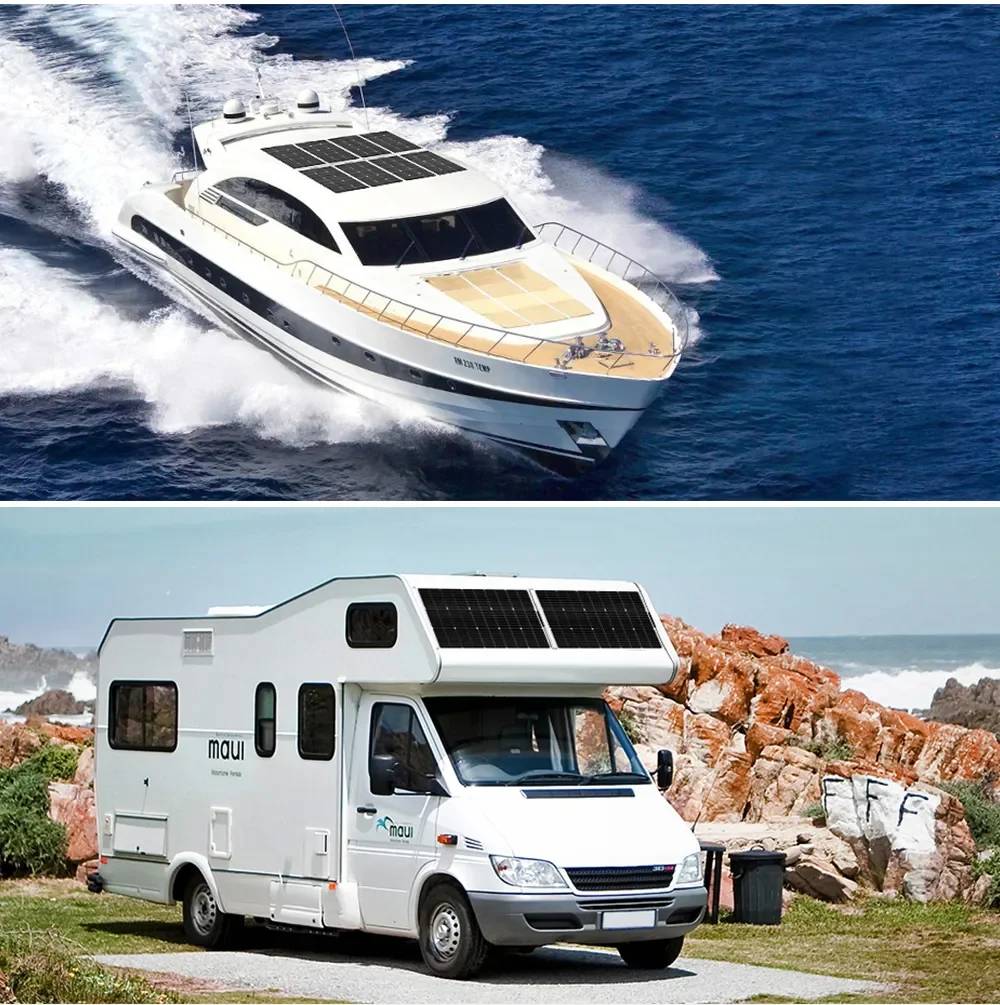

Semi-flexible panels can be mounted on irregular surfaces such as RV roofs, boats, tents, vaulted roofs, etc. Up to 30 degrees.
High efficiency, Light weight:only 1.5mm thick, weight 0.7kg, easy to hang, disassemble and carry.
Easy to install:
Easy to install:
Metal holes in the four corners of the product for fixing screws and mounting. Each solar panel has been tested several times.
As a professional solar panel manufacturer with more than ten years of production experience. Choose us, your interests will be the best protection.
Our Advantages:
The surface is made of ETFE advanced materials. It is more durable than the PET materials used by other sellers on the Aliexpress.
The junction box on the back of the solar panel is IP67 rated, and the waterproof rating is the same as IPHONE X and IPHONE 8 PLUS.
The junction box on the back of the solar panel has a Schottky diode built in to prevent reverse current.
About transparation:
As a professional solar panel manufacturer with more than ten years of production experience. Choose us, your interests will be the best protection.
Our Advantages:
The surface is made of ETFE advanced materials. It is more durable than the PET materials used by other sellers on the Aliexpress.
The junction box on the back of the solar panel is IP67 rated, and the waterproof rating is the same as IPHONE X and IPHONE 8 PLUS.
The junction box on the back of the solar panel has a Schottky diode built in to prevent reverse current.
About transparation:
Certifications
Packing & Delivery
Company Profile
Jinhua Dokio Technology Co.,Ltd, with an international Brand of “DOKIO”, which is registered in Madrid, Spain for photovoltaic module. Dokio Soar company is a professional manufacturer of solar panels, solar power station system, solar roof system, balcony system, garden solar system, flexible solar panels, portable folding solar panels and others.
Since our inception in 2007, DOKIO have more than 15 years of experience in production and sales of solar panels. Dokio solar committed to providing the user with cleanest, most efficient and most economical solar panel and solar systems, committed to achieving the “double carbon” goal, adopted advanced equipment with solid techniques and a rigorous technical team make high-quality products, for every solar module from sorting to testing, from welding to lamination, from framing to cleaning, from final testing and packing, then can be put into the market.
DOKIO sincerely hold the tenet of “DO AND KEEP IT OUTSTANDING” in mind when conducting business. At present, Dokio solar company has more than 100 products designs and invention patents, is a national high-tech enterprise and a "little giant" business incubator. DOKIO acquired a wide range of customers from 50 countries and regions in the world, have more of 10 oversea warehouses, which is American, Poland, Germany, France, United Kingdom, Ukraine, Russia, Japan, Australia, United Arab Emirates(UAE), We can ship within 3 days after receiving the order, you can receive the package at home within 7-10 days!! Super service from the beginning to the end!!
Welcome to DOKIO solar energy, join us together!
Since our inception in 2007, DOKIO have more than 15 years of experience in production and sales of solar panels. Dokio solar committed to providing the user with cleanest, most efficient and most economical solar panel and solar systems, committed to achieving the “double carbon” goal, adopted advanced equipment with solid techniques and a rigorous technical team make high-quality products, for every solar module from sorting to testing, from welding to lamination, from framing to cleaning, from final testing and packing, then can be put into the market.
DOKIO sincerely hold the tenet of “DO AND KEEP IT OUTSTANDING” in mind when conducting business. At present, Dokio solar company has more than 100 products designs and invention patents, is a national high-tech enterprise and a "little giant" business incubator. DOKIO acquired a wide range of customers from 50 countries and regions in the world, have more of 10 oversea warehouses, which is American, Poland, Germany, France, United Kingdom, Ukraine, Russia, Japan, Australia, United Arab Emirates(UAE), We can ship within 3 days after receiving the order, you can receive the package at home within 7-10 days!! Super service from the beginning to the end!!
Welcome to DOKIO solar energy, join us together!
Exhibition
FAQ
Q1. Can I have a sample order for solar panel?
A: Yes, we welcome sample order to check and test quality.
Mixed samples are acceptable.
Q2. How do you send the goods?
A: Normally sample order is sent by DHL, UPS, FedEx or TNT, bulk order ship by sea.
Q3.What about the lead time?
A:Sample needs 5-10days.
Mass production time: 15--20 days.
Q4.Do you accept custom design and size ?
A: Yes, we can accept custom design and size.
Q5. Is it OK to print my logo on package?
A: Yes.we can do printing customer logo based on customer's requirement.
A: Yes, we welcome sample order to check and test quality.
Mixed samples are acceptable.
Q2. How do you send the goods?
A: Normally sample order is sent by DHL, UPS, FedEx or TNT, bulk order ship by sea.
Q3.What about the lead time?
A:Sample needs 5-10days.
Mass production time: 15--20 days.
Q4.Do you accept custom design and size ?
A: Yes, we can accept custom design and size.
Q5. Is it OK to print my logo on package?
A: Yes.we can do printing customer logo based on customer's requirement.
Похожие товары
Многопортовая складная солнечная панель 20 Вт 5 В Водонепроницаемая ETFE 9 12 18 для портативной электростанции
688,80-2 066,40 ₽
Комплект solaire complet SunPower портативный 200 ватт сложенный комплект солнечной энергии для палатки на
17 908,74 ₽
Оптовая продажа уличные складные солнечные панели зарядное устройство 21 Вт портативная складная солнечная панель зарядка для внешнего аккумулятора/ноутбука/телефона
2 353,40-3 271,79 ₽

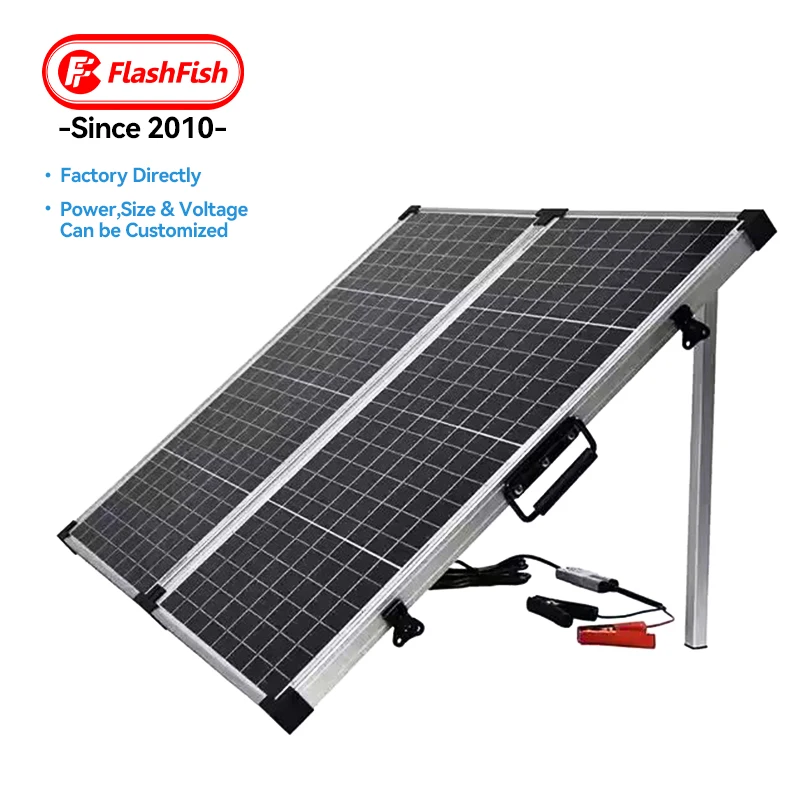

Flashfish моно 100 Вт 200 400 160 300 260 Складная портативная монокристаллическая Кремниевая солнечная панель для лодки
