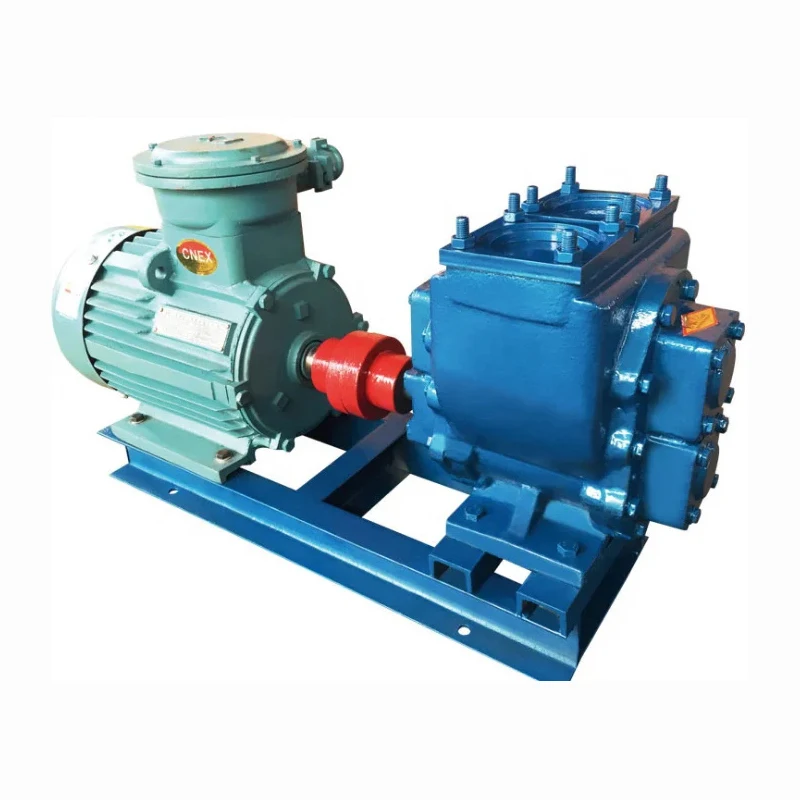

Профессиональный производственный насос для смазочного масла с шестеренчатым насосом 0 6 МПа
- Категория: >>>
- Поставщик: Shanghai Mac-Beyond Machinery Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1601026343494:
Описание и отзывы
Характеристики

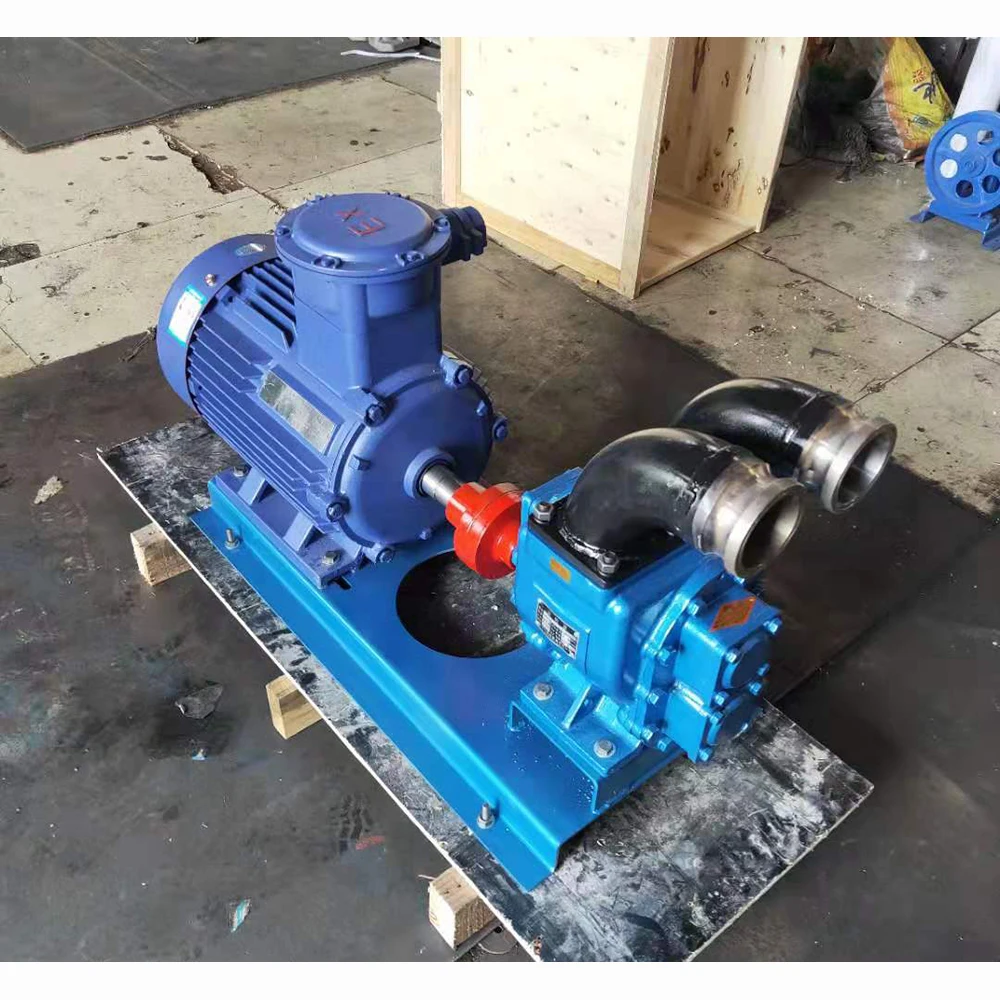

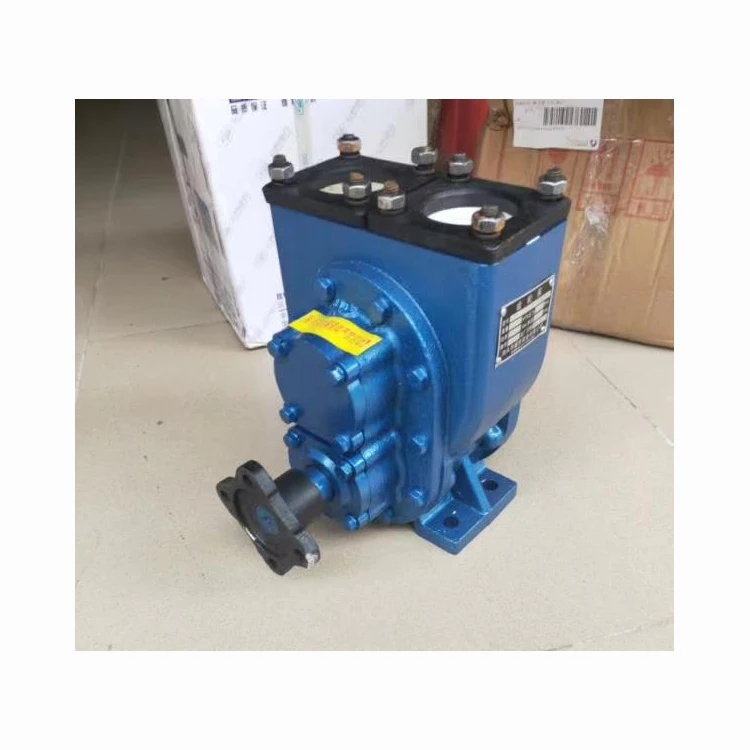

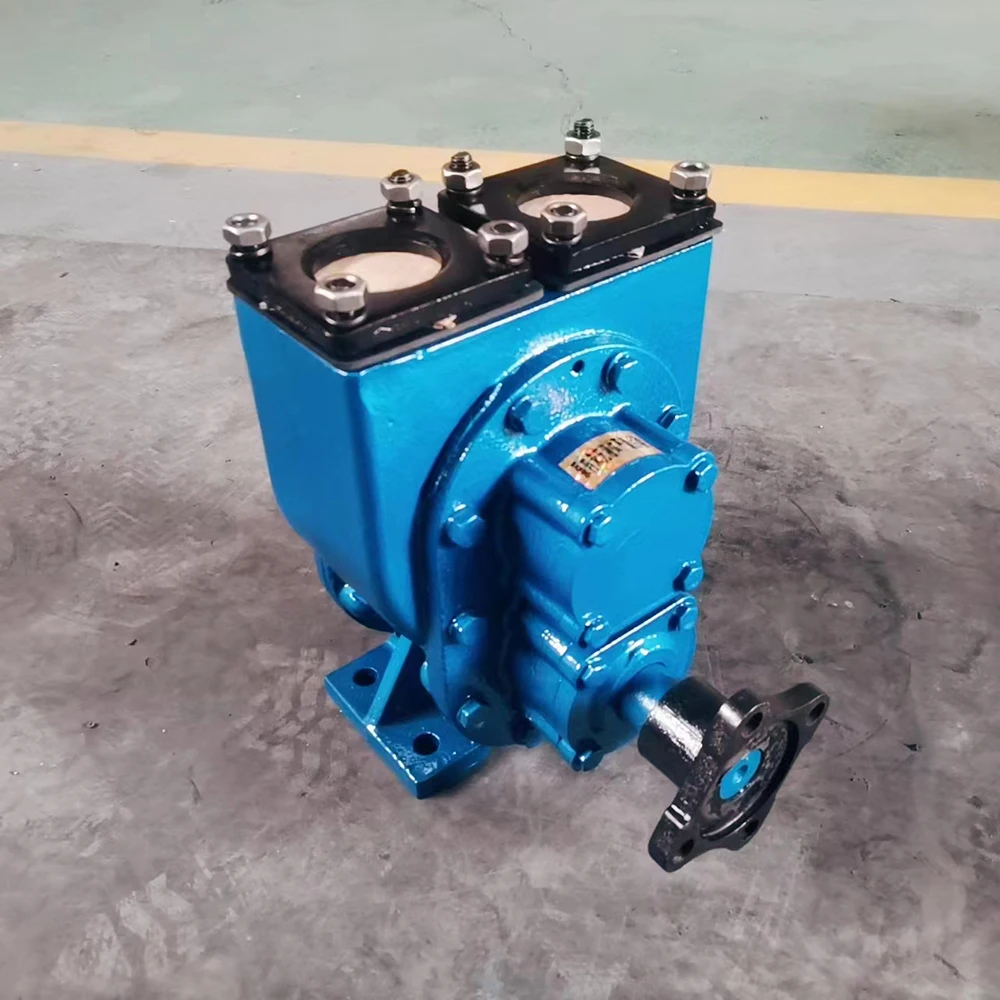

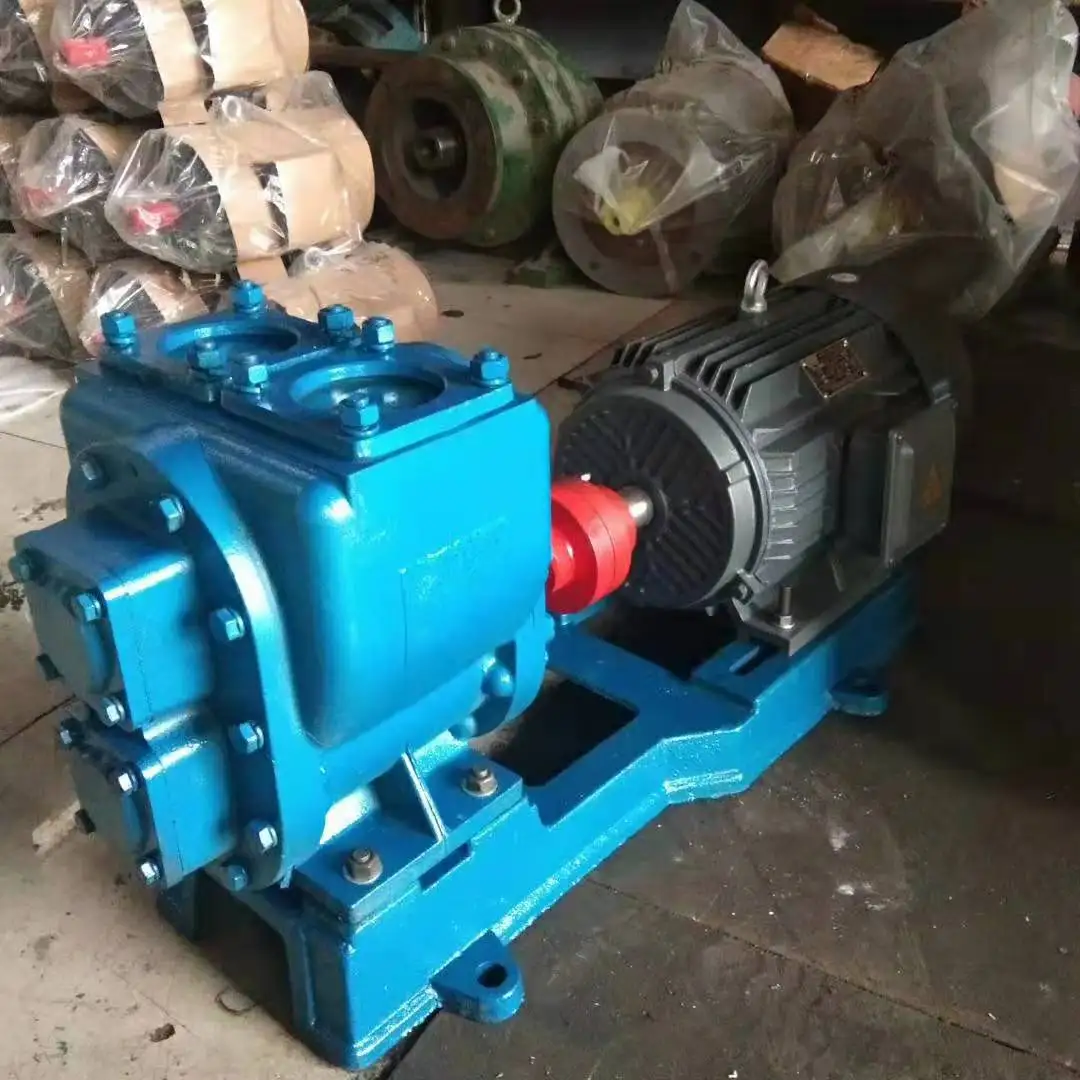

Brief Introduction:
YHCB series diesel fuel oil PTO gear pump using Japan's advanced technology design and produce,its outstanding characteristic is high efficiency and energy saving.Compared with ordinary gear pump, the amount of liquid transport, less energy consumption. ordinary gear pump capacity is 58m3/h,pressure is 2.8kg, use 18.5kw motor. But YHCB oil pump capacity 60m3/h,pressure 6kg, use 11kw motor. YHCB series circle arc gear pump mainly suitable for transferring all kinds of liquids with viscosity 5~1500cst, temperature below 80℃,not
contain solid particles and noncorrosive. Such as petrol , Kerosene, diesel oil and mechanical lubricating oil. It is a kind of high efficiency and energy saving special gear pump. It has big capacity, high pressure,small volume,low noise,good selfpriming performance, convenient to install and repair. It is also the ideal choice for oil tanker refitting industry and petroleum sector. This product refer to JB/6434-92 standard.
1)YHCB series diesel fuel oil PTO gear pump the viscosity at the 5 ~ 1500cSt and temperature does not exceed 80 ° C,non-corrosive liquid without solid particles, such as gasoline,kerosene,diesel machinery lubricants,liquefied petroleum gas (LPG),acetic acid diamine,acetic acid amine and acetic acid methenamine.
2)YHCB series diesel fuel oil PTO gear pump is a special energy-efficient gear pump.It has the advantage of high volume flow and pressure,low noise,self-priming performance,easy installation and maintenance, etc.
3)YHCB series diesel fuel oil PTO gear pump is the ideal selection for tank car modification industry and the oil sector.
2)YHCB series diesel fuel oil PTO gear pump is a special energy-efficient gear pump.It has the advantage of high volume flow and pressure,low noise,self-priming performance,easy installation and maintenance, etc.
3)YHCB series diesel fuel oil PTO gear pump is the ideal selection for tank car modification industry and the oil sector.
Product Paramenters
PRODUCT PARAMETERS
Model | 80YHCB-60 |
Capacity | 60 m³/h |
Pressure | 0.6 Mpa |
Speed | 970 r/min |
Effciency | 70 % |
NPSHR | 5 M |
Power | 11 kw |
Motor Model | YB160L1-6 |
Model | Capacity m³/h | Pressure Mpa | Speed r/min | Efficiency % | NPSHR m | Motor | ||
Power Kw | Model | |||||||
50YHCB-15 | 15 | 0.6 | 960 | 70 | 5 | 3 | YB132S-6 | |
50YHCB-20 | 20 | 0.2 | 1100 | 70 | 5 | 3 | YB132S-6 | |
65YHCB-30B | 30 | 0.4 | 970 | 70 | 5 | 5.5 | YB132M2-6 | |
65YHCB-35 | 35 | 0.6 | 1440 | 70 | 5 | 7.5 | YB132M2-4 | |
65YHCB-35A | 35 | 0.6 | 960 | 70 | 5 | 7.5 | YB160M-6 | |
76YHCB-40 | 40 | 0.6 | 1440 | 70 | 5 | 7.5 | YB132M-4 | |
76YHCB-40A | 40 | 0.6 | 970 | 70 | 5 | 7.5 | YB160M-6 | |
76YHCB-40B | 40 | 0.4 | 970 | 70 | 5 | 7.5 | YB160M-6 | |
76YHCB-50 | 50 | 0.6 | 970 | 70 | 5 | 11 | YB160L-6 | |
80YHCB-60 | 60 | 0.6 | 970 | 70 | 5 | 11 | YB160L-6 | |
80YHCB-60A | 60 | 0.6 | 970 | 70 | 5 | 11 | YB160L-6 | |
80YHCB-60B | 60 | 0.4 | 970 | 70 | 5 | 11 | YB160L-6 | |
80YHCB-80 | 80 | 0.6 | 970 | 70 | 5 | 15 | YB160L-6 | |
100YHCB-100 | 100 | 0.4 | 970 | 70 | 5 | 18.5 | YB200L1-6 | |
150YHCB-150 | 150 | 0.4 | 980 | 70 | 5 | 30 | YB225M-4 | |
200YHCB-200 | 200 | 0.4 | 740 | 70 | 5 | 45 | YB280M-6 | |
Company Profile
COMPANY PROFILE
Shanghai Mac-Beyond was founded in 2014, and has specialized in the manufacturing of first-classfueling equipment since the 1980's. We integrate design, development,production, sales, and technical service, to provide our customers the finest experience in product quality and customer service.
Our unsurpassed products include bulk flow meters, oil pumps, fuel & LPG dispenser and components, oil tank truck parts, ultrasonic water flow meter and water pumps, and test instruments.Mac-beyond places first-class quality at the top of our list, and works to continually provide the most innovative and advanced products on the market to date. Our products are durable, reliable,economical, and have received UL,CE and ISO90001 certifications, and are exported to the United States, Europe, the Middle East,South East Asia, Africa and more.
Our Advantages
OUR ADVANTAGES
Work Shop
WORKSHOP
Certifications
CERTIFICATE
EXHIBITION AND OUR PEOPLE
CUSTOMER REVIEWS
PAYMENT DELIVERY
FAQ
FAQ
If you are not sure of which product meet your requirement.
1.About flow meter -------what medium you are going to measure ? What is the flow rate & Pipe diameter ?
2.About pump ----what kind of pump you need ? what medium that you need to pump for , diesel, petrol, lpg Or others ? what Power ? what is the pipe diameter ?
3.About nozzle ---automatic or manual ?Flow rate ?
4.About lpg compressor, what is the intake pressure, discharge pressure? What is the volume of flow meter? What is the power ?
For more information please contact us:
Name: Sunny. Wang
Whatsapp & Wechat : +86 15800689238
Email: sunnywang@mac-beyond.com
Похожие товары
Вакуумная камера на 2 галлона 1 л/с 3/2.5cfm RS-1 одноступенчатый роторный вакуумный насос для переменного тока
86,00-89,00 $

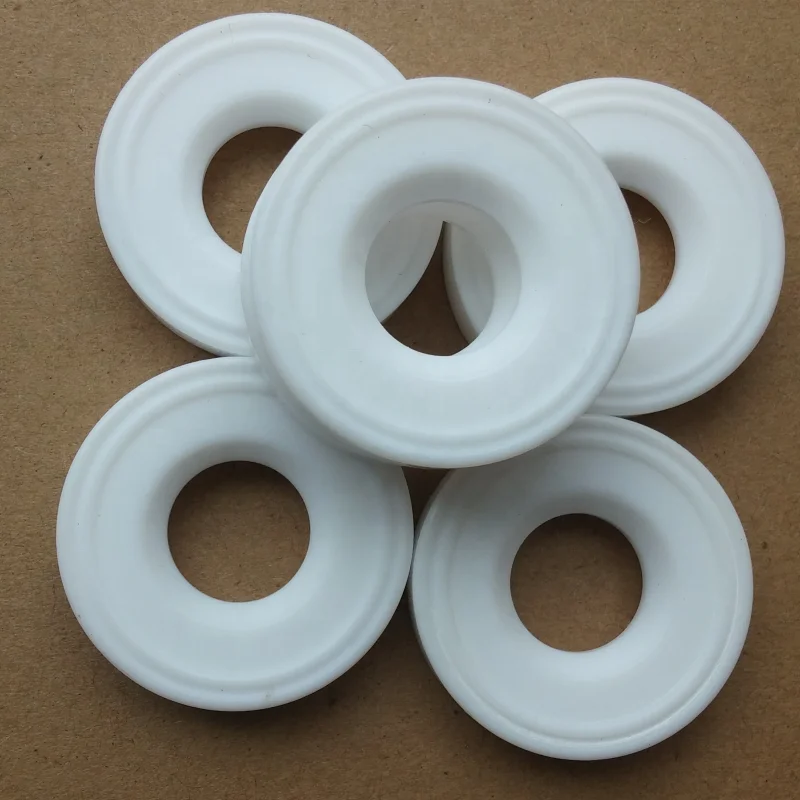

722-099-600 | 722.099.600 сиденья клапана обратный шарик из ПТФЭ совместимый с насосами Sandpiper детали для насосов Уоррен Рупп
1,00-1,50 $

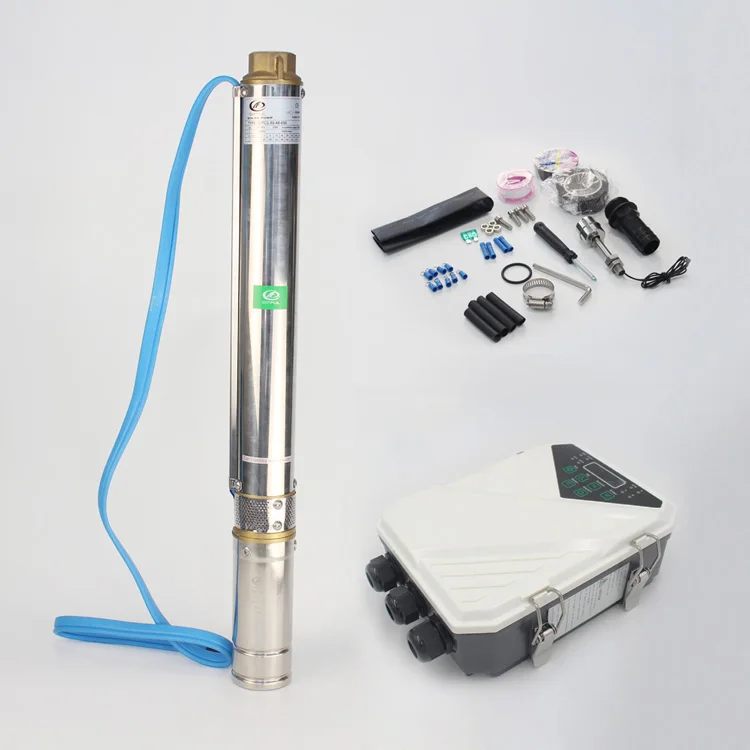

Самые популярные солнечные Скважинные Насосы 72 в 750 Вт на рынке Таиланда
195,00-205,00 $

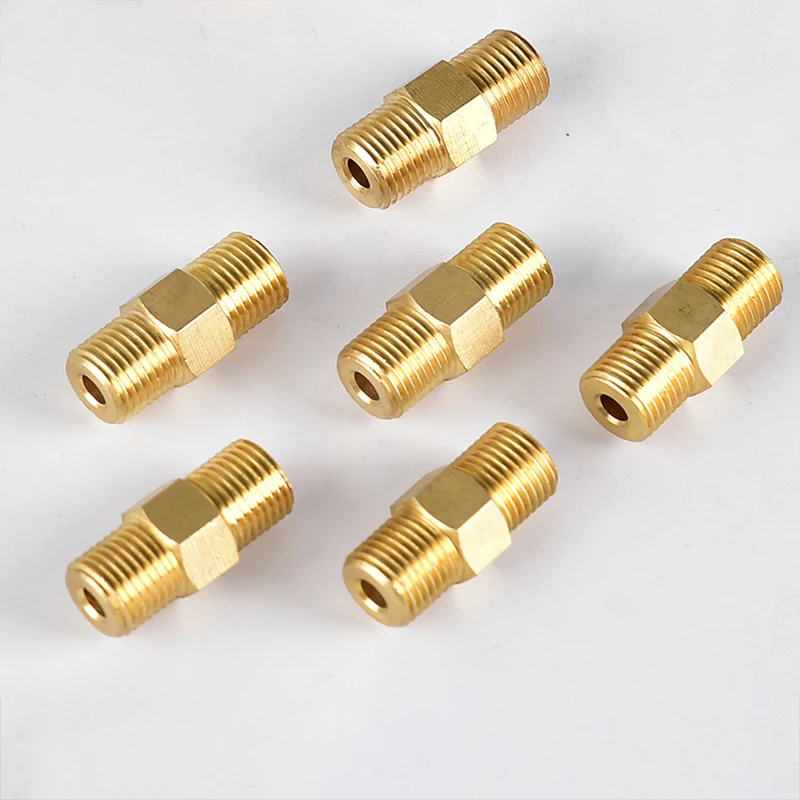

Штекерный соединитель для смазки шланг и фитинги резьбовые втулки централизованной системы
0,30-0,80 $

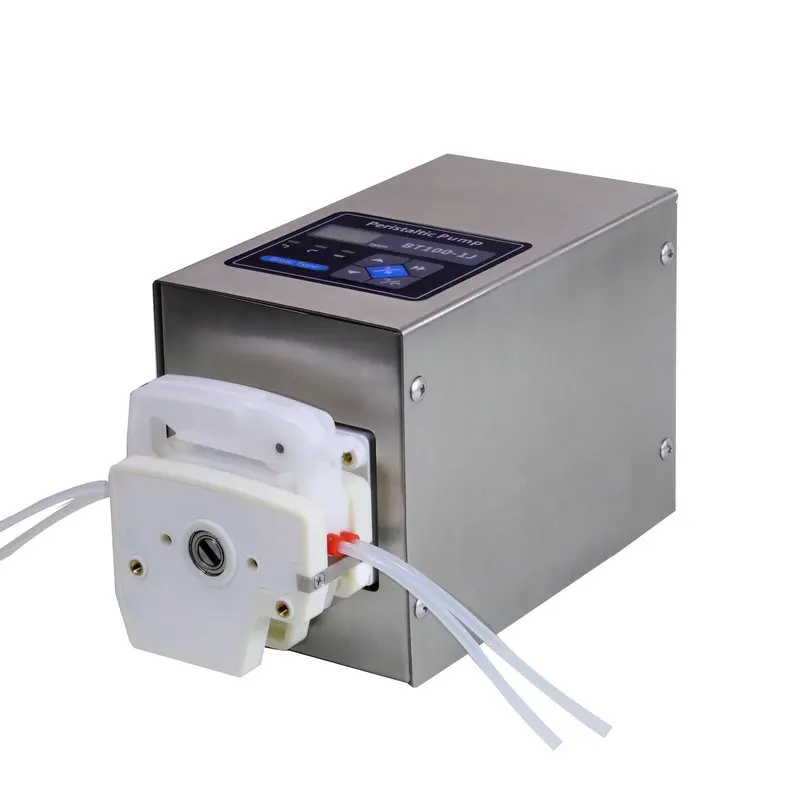

Ditron tech Factory direct micro flow многоканальный Высокоточный перистальтический насос из нержавеющей стали 304
