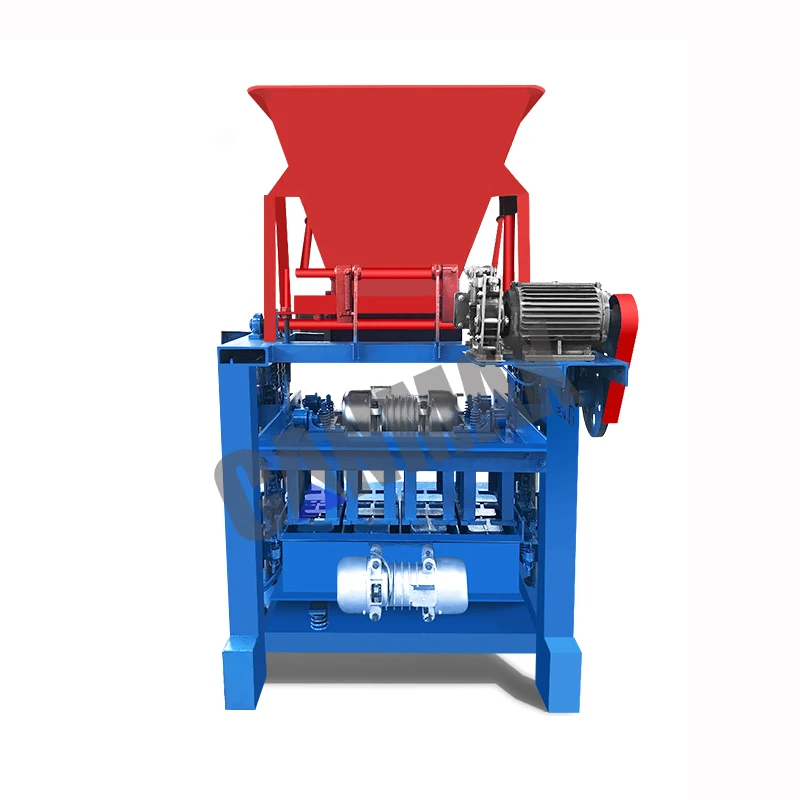

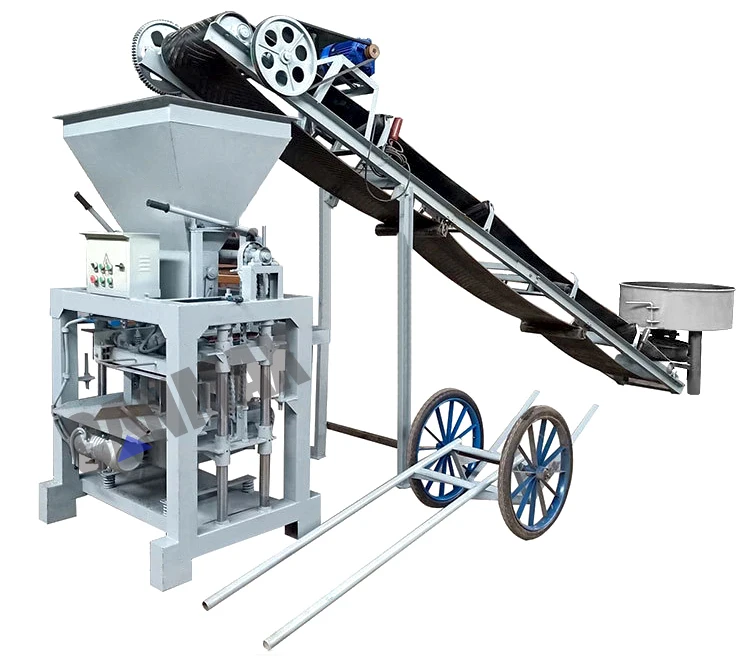

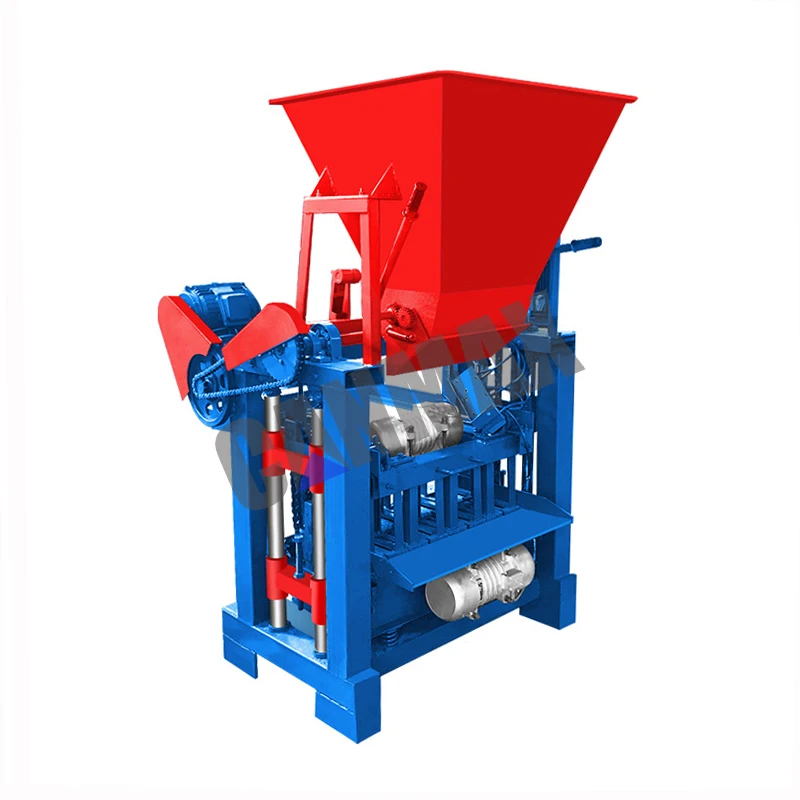

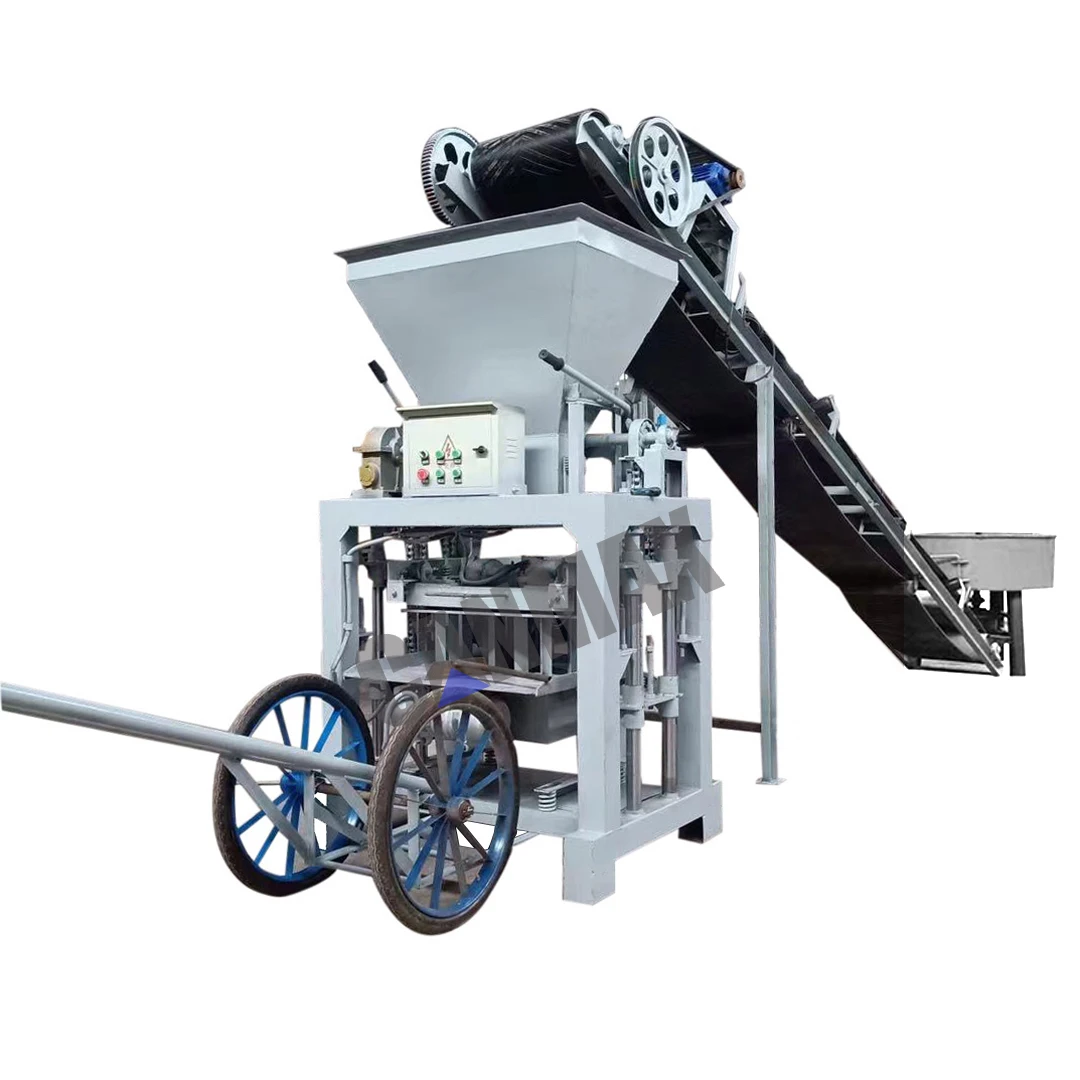

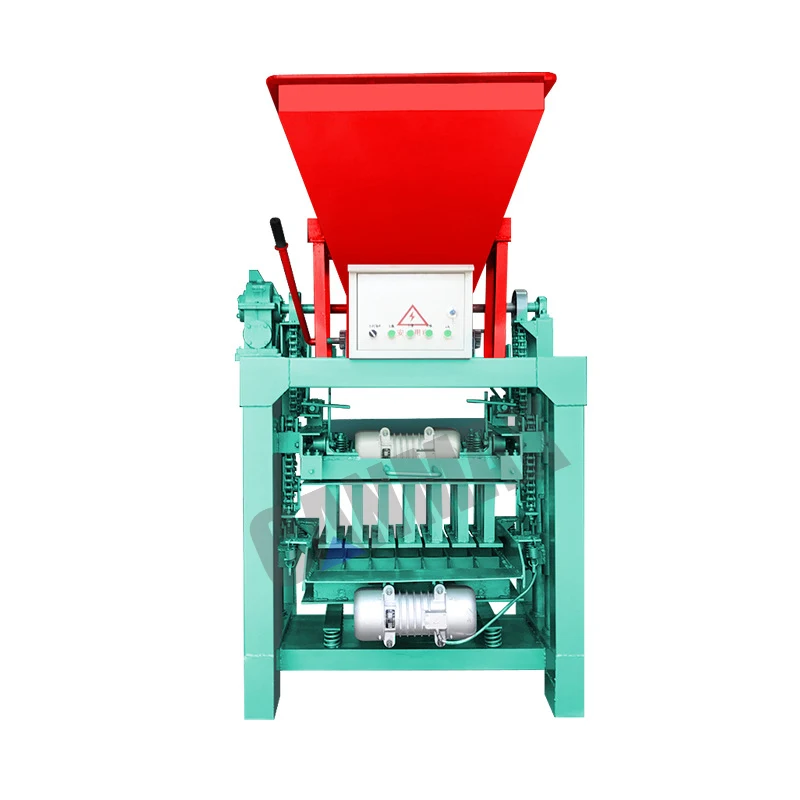

Электрический дорожный фитинг машина для производства кирпича из сжатого блока

Электрический дорожный фитинг машина для производства кирпича из сжатого блока

Категория: >>>
Поставщик: Zhengzhou Canmax Machinery&Equipment Co. Ltd.

Цена:196 908,12 ₽ - 218 786,80 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

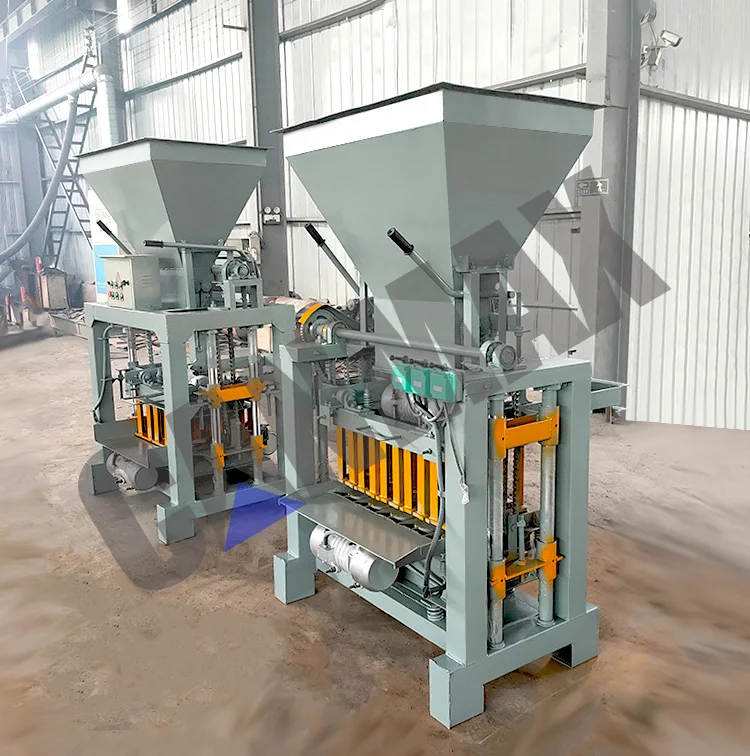

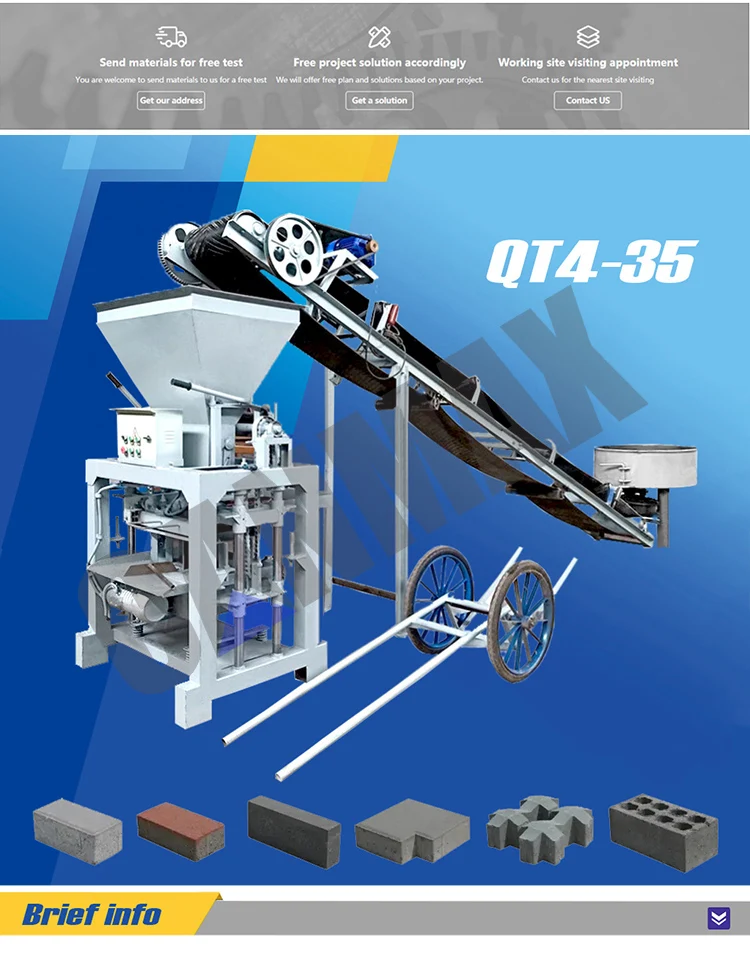

QT4-35 block Machine is one kind of perfecting model for a starting or an upgrading project. With economical prie, compact and exquisite structure, simple and convenient operation and maintenance, small investment and quick results. It is suitable for small and medium-sized customers to invest in a simple production line.

Main features of the product:

*Easy operation and labor saving;
*Low investment and high benefit;
*PLC Controlled fully automatic system;
*Imported hydraulic valves; hydraulic pressure with vibration force to form together;
*Strong vibration force generated by national certified motors and patend design V-box;
*Simple horizontal secondary feeding system for lighter loading volume;
*360°rotating mixing bars, more suitable for solid bricks and pavers;

SPECIFICATIONS

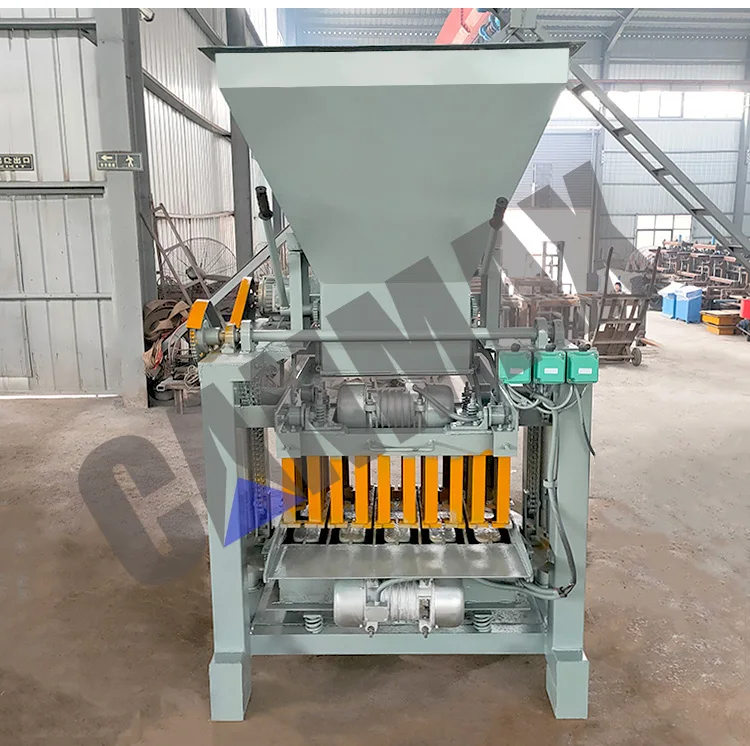

2 specs.jpg

MODEL	QT4-35
POWER (KW)	4.8KW
DIMENSION (MM)	120012801950mm
WEIGHT	780KG
PALLET SIZE (MM)	850*550mm
CYCLE TIME (s)	35S
CAPACITY	8 HOURS SHIFT
VIBRATION FORCE (KN)	50KN
HYDRAULIC PRESSURE (mpa)	12-16mpa
OPERATION METHOD	PLC controlled fully automatic

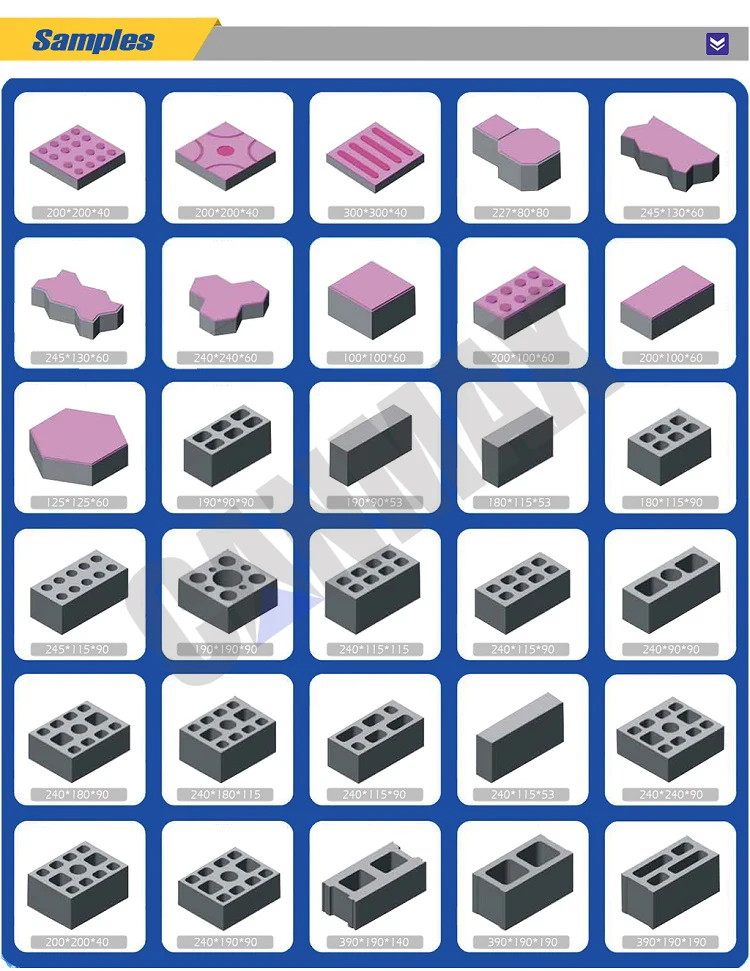

BLOCK DESIGNS	BLOCK SIZE (mm)	PCS. / PALLETS	PCS / HOUR
	400200200	4 PCS	450 PCS
	23011575	20 PCS	2,125 PCS
	20010060	14 PCS	1,500 PCS
	225112.560	12 PCS	1,300PCS

QT SERIES BLOCK MACHINES
For bigger or smaller plants please refer to the models below:
Model	Power	Size(mm)	Weight	Capacity/day (400200200)	Capacity/day (23011575)	Pallets Suggested	Area Suggested	Staff Suggested
QT4-35A	4.8KW	112014001700	1T	3,300	16,000	300	300	2
QT4-35B	4.8KW	112014002000	1T	3,500	17,000	300	300	2
QT4-40A	9.5KW	140012501900	1.2T	3,500	17,000	300	500	2
QT4-40B	11KW	140012502000	1.25T	3,700	18,000	300	500	2
QT4-26	13.5KW	206015302400	2.4T	4,400	19,000	500	600	2
QT4-25BH	11.5KW	258015502000	2.5T	4,800	23,000	500	800	2~3
QT4-25PLC	9KW	265014001800	2.5T	5,000	24,000	500	800	2~3
QT4-25PLC-A	14KW	120018001800	2.8T	5,200	25,000	500	800	2~3
QT4-22	19.5KW	295015801800	3T	5,250	26,000	500	800	2~3
QT4-18	16KW	290015802580	3.2T	6,400	30,000	850	1,000	3~4
QT3-15	19KW	280014502300	3.2T	5,760	31,000	1,000	1,000	4~5
QT4-15	28.5KW	300016002300	4.5T	7,680	38,500	1,000	1,500	4~5
QT6-15	32KW	435016802450	6.5T	11,520	57,500	1,000	2,000	4~5
QT8-15	32KW	440018002680	8.8T	15,360	77,000	1,000	2,500	4~5
QT10-15	40KW	540025002680	11T	19,200	96,000	1,000	3,000	4~5
QT12-15	40KW	540025002680	11T	23,000	115,500	1,000	3,000	4~5
