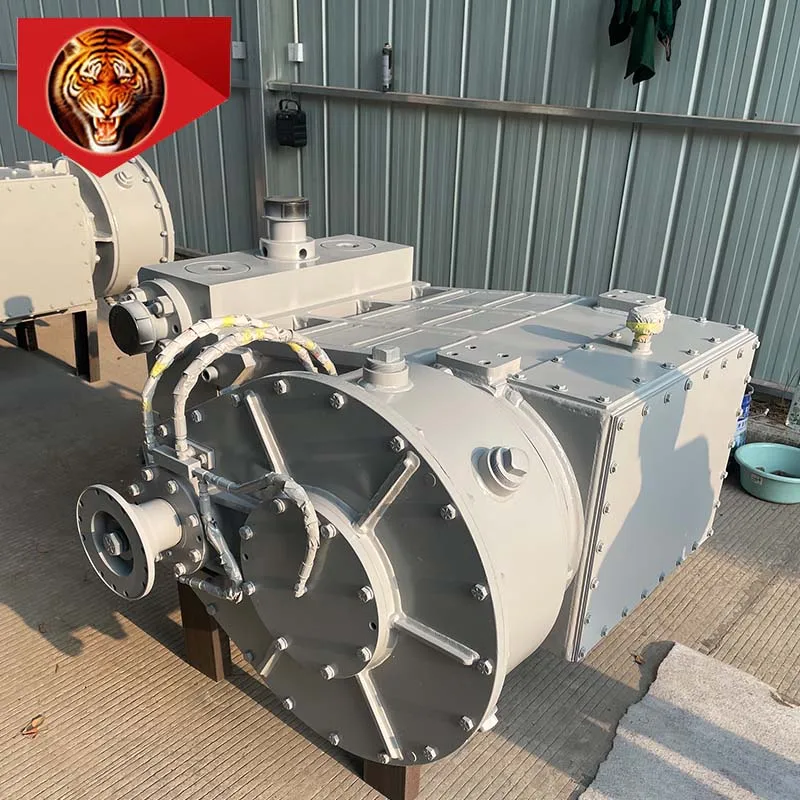

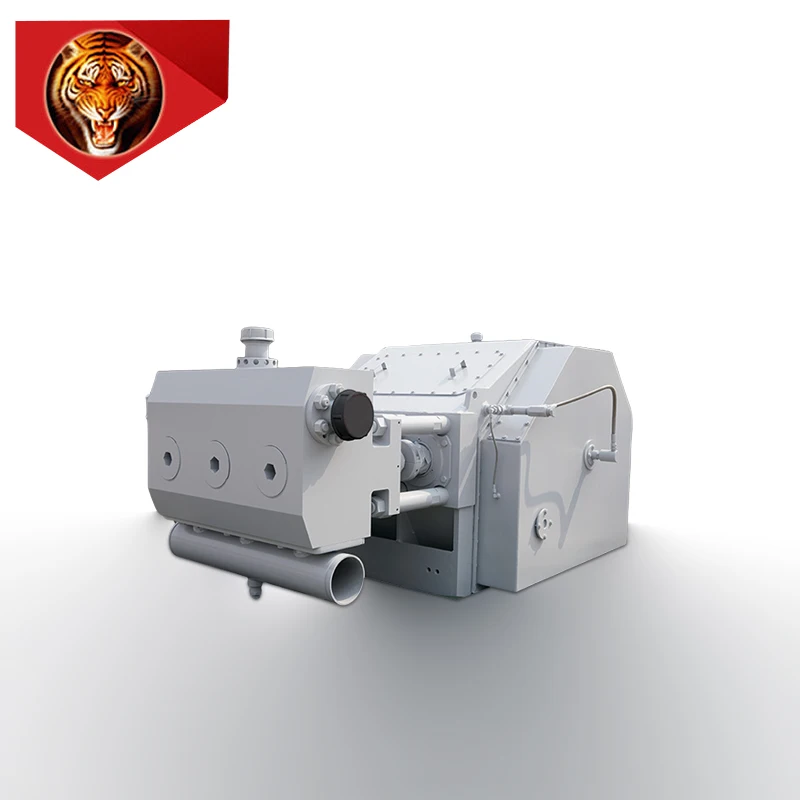

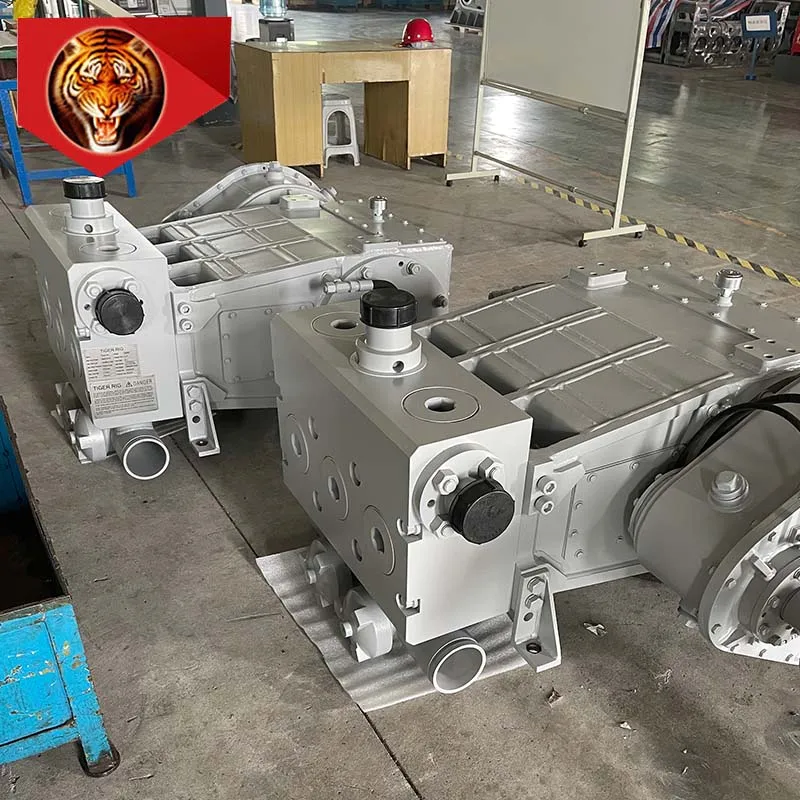

Tigerrig TWS 2250 л.с. плунжерный насос высокого давления цементировочный для цементирования
- Категория: >>>
- Поставщик: Zhonghang (avic) Machinery Manufacturing Group Co. Ltd.Zhonghang Ltd.
Сохранить в закладки 1601026404293:
Описание и отзывы
Характеристики
Company Information
Zhonghang (avic) Machinery Group Co., Ltd.. (brand: Tiger Rig) is a professional mud pump manufacturer factory in china, our factory covered 80,000 square meters, have 200 workers. Headquartered in the energy capital of the China, Chengdu city, Sichuan, we can design and manufacture SPM, Halliburton, SJ, Jerry (made in China) products. Such as HT400, TWS600, QWS1000, TWS2000, QTW2500, QTW3000, QTW3500 fracturing pump. And we also can manufacture these pump with truck or trainer. The diesel engine is caterpillar or Cummins or the American brand you requested. Besides, these pumps can also be connected to the Allison or caterpillar transmission gear box.
We can provide wellhead products, such as oil and gas production wellhead devices, casing heads, blowout preventer, drilling spool, and various gate valves and butterfly valves. We also provide diesel generator and engine for CAT, Commins, MTU. Besides, we have drilling motor, air compressor, gear box transmission and son on. Welcome to ask for more information about your favorite products, we are always waiting for your arrival!
Our plunger pump meets the rigorous industry standards established by the American Petroleum Institute (API) and the International Standards Organization (ISO).
Product Specifications
Plunger diameter | Output per rev | Displacement at pump strokes per minute / pinion rpm | ||||||||||
100/635 | 116/736 | 150/953 | ||||||||||
mm (in) | gal/re (liter/rev) | gpm (lpm) | kg/cm2 (psi) | gpm (lpm) | kg/cm2 (psi) | gpm (lpm) | kg/cm2 (psi) | |||||
88.9 (31/2) | 6.3 (1.67) | 631 (167) | 1409 (19990) | 730 (193) | 1409 (19990) | 946 (250) | 1088 (15432) | |||||
95.3 (33/4) | 7.2 (1.91) | 724 (191) | 1227 (17413) | 838 (221) | 1227 (17413) | 1086 (287) | 947 (13443) | |||||
101.6 (4) | 8.2 (2.18) | 824 (218) | 1079 (15305) | 954 (252) | 1079 (15305) | 1235 (326) | 833 (11815) | |||||
114.3 (41/2) | 10.4 (2.75) | 1042 (275) | 852 (12093) | 1207 (319) | 852 (12093) | 1564 (413) | 658 (9336) | |||||
127.0 (5) | 12.9 (3.40) | 1487 (340) | 690 (9795) | 1490 (394) | 690 (9795) | 1930 (510) | 533 (7562) | |||||
139.7 (51/2) | 15.6 (4.11) | 1557 (411) | 570 (8195) | 1803 (476) | 570 (8095) | 2336 (617) | 440 (6249) | |||||
146.1 (53/4) | 17.0 (4.5) | 1702 (450) | 522 (7406) | 1971 (521) | 522 (7406) | 2553 (674) | 403 (5718) | |||||
152.4 (6) | 18.5 (4.9) | 1853 (490) | 479 (6802) | 2146 (567) | 479 (6802) | 2780 (734) | 370 (5251) | |||||
165.1 (61/2) | 21.7 (5.75) | 2175 (575) | 408 (5796) | 2518 (665) | 408 (5796) | 3262 (862) | 315 (4474) | |||||
171.5 (63/4) | 23.5 (6.20) | 2345 (620) | 379 (5375) | 2716 (718) | 379 (5375) | 3518 (929) | 292 (4149) | |||||
Input power: bhp (kw) | 1611(2159) | 1866(2500) | 1866(2500) | |||||||||
Plunger diameter | Output per rev | Displacement at pump strokes per minute / pinion rpm | ||||||||||
200/1271 | 250/1588 | 330/2096 | ||||||||||
mm (in) | gal/re (liter/rev) | gpm (lpm) | kg/cm2 (psi) | gpm (lpm) | kg/cm2 (psi) | gpm (lpm) | kg/cm2 (psi) | |||||
88.9 (31/2) | 6.3 (1.67) | 1261 (333) | 816 (11574) | 1576 (416) | 653 (9259) | 2081 (550) | 494 (7015) | |||||
95.3 (33/4) | 7.2 (1.91) | 1448 (382) | 711 (10082) | 1810 (478) | 568 (8066) | 2389 (631) | 431 (6111) | |||||
101.6 (4) | 8.2 (2.18) | 1647 (435) | 624 (8861) | 2059 (544) | 500 (7189) | 2718 (718) | 378 (5371) | |||||
114.3 (41/2) | 10.4 (2.75) | 2085 (551) | 493 (7002) | 2606 (688) | 395 (5601) | 3440 (909) | 299 (4243) | |||||
127.0 (5) | 12.9 (3.40) | 2574 (680) | 400 (5671) | 3217 (850) | 320 (4537) | 4247 (1122) | 242 (3437) | |||||
139.7 (51/2) | 15.6 (4.11) | 3114 (823) | 330 (4687) | 3893 (1028) | 264 (3750) | 5139 (1358) | 200 (2841) | |||||
146.1 (53/4) | 17.0 (4.5) | 3404 (899) | 302 (4288) | 4255 (1124) | 242 (3431) | 5616 (1484) | 183 (2599) | |||||
152.4 (6) | 18.5 (4.9) | 3706 (979) | 278 (3938) | 4633 (1224) | 222 (3151) | 6115 (1616) | 168 (2387) | |||||
165.1 (61/2) | 21.7 (5.75) | 4350 (1149) | 236 (3356) | 5437 (1436) | 189 (2685) | 7177 (1896) | 143 (2034) | |||||
171.5 (63/4) | 23.5 (6.20) | 4691 (1239) | 219 (3112) | 5863 (1549) | 175 (2489) | 7740 (2045) | 133 (1886) | |||||
Input power: bhp (kw) | 1866(2500) | 1866(2500) | 1866(2500) | |||||||||
Products Description
Application: fracturing
TWS 2250 Performance Specs:
Max Brake Horsepower:2,250HP(1641kw)
Max Rod Load Capacity:225,000lbs(102,060kg)
Stroke Length:8”(203.2 mm)
TWS 2250 Performance Specs:
Max Brake Horsepower:2,250HP(1641kw)
Max Rod Load Capacity:225,000lbs(102,060kg)
Stroke Length:8”(203.2 mm)
Gear Ratio: 6.353:1
Approx. Length:98 3/4”(2,280mm)
Approx. Width: 59 3/4”(1,518mm)
Approx. Height:44 1/4”(1,124mm)
Approx.Weight(Dry):12,608lbs(5,751kg)
Recommend Products
Company Profile

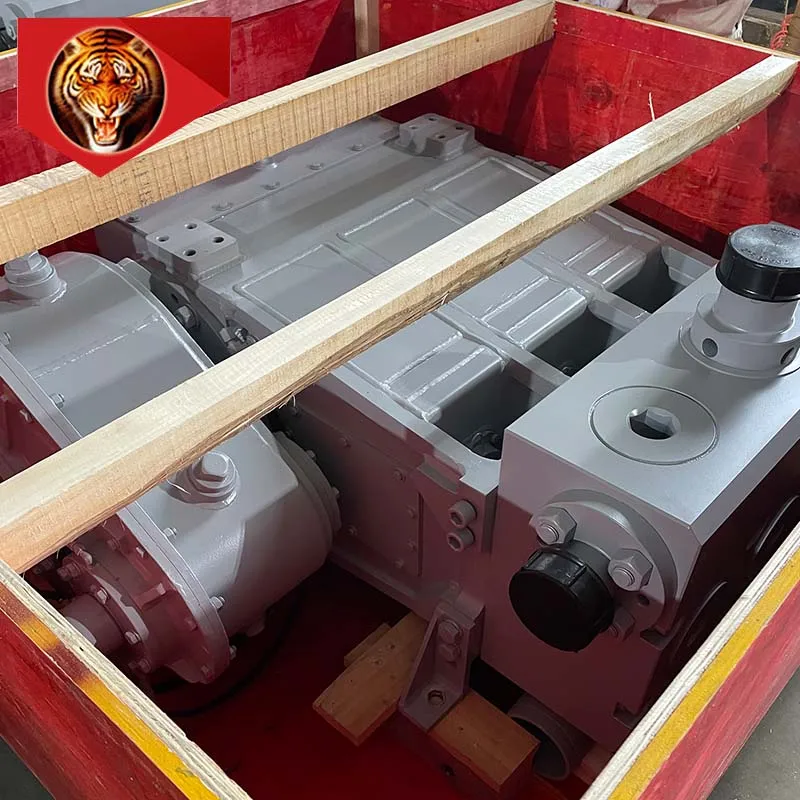

Packing & Delivery
FAQ
1.How long is the delivery time?
Some parts are available from stock. The delivery time is within 3 days after you pay on alibaba.com.
2.How is your workflow?
We can confirm the specification and specification first, and then sign the sales contract and the drawings. Once the drawings are confirmed, we will take photos for you to confirm that the goods are new and in shipment before shipment. Please pay the balance before the machine leaves the factory, and then we will ship the machine to Shanghai.
3.How to contact us?
Company Website: www.tigerrig.com.cn
WECHAT: drillingrig
Email: terry@tigerrig.com
Похожие товары
Гидравлический плунжерный насос высокого давления для гидроразрыва пласта Tigerrig QWS1000S 1000 psi

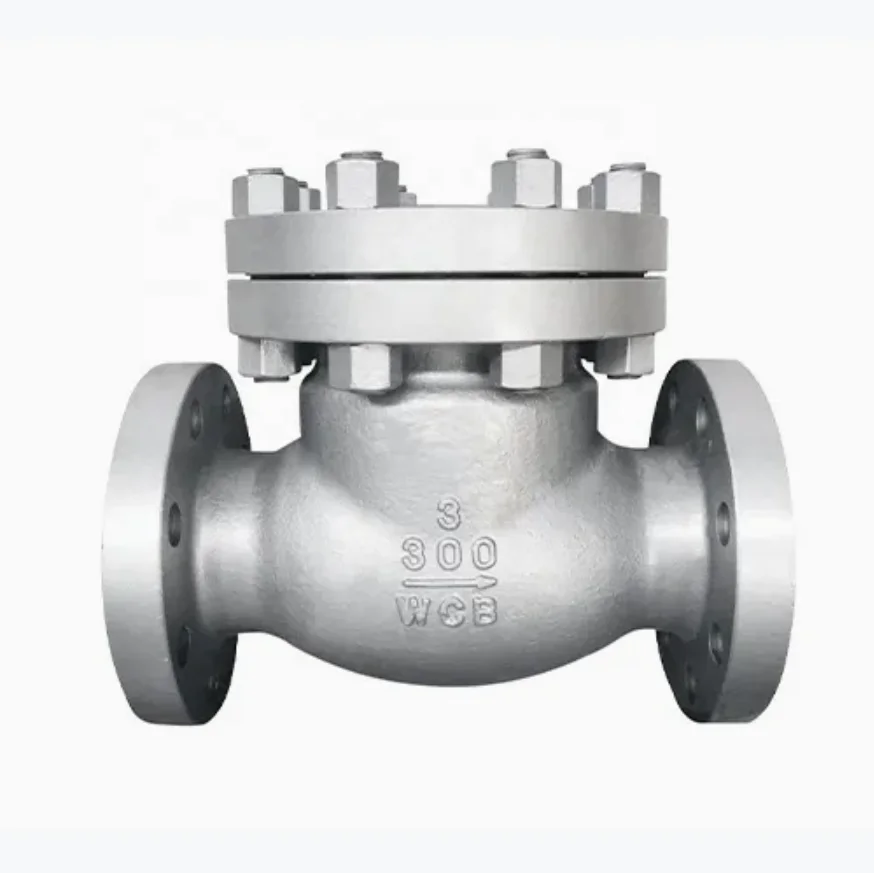

Обратный клапан API 6D обратный
6 221,91 ₽
Насос с присоской для нефтяных месторождений оборудование канализации насос тяжелый масляный гидравлический
1 131 256,00 ₽

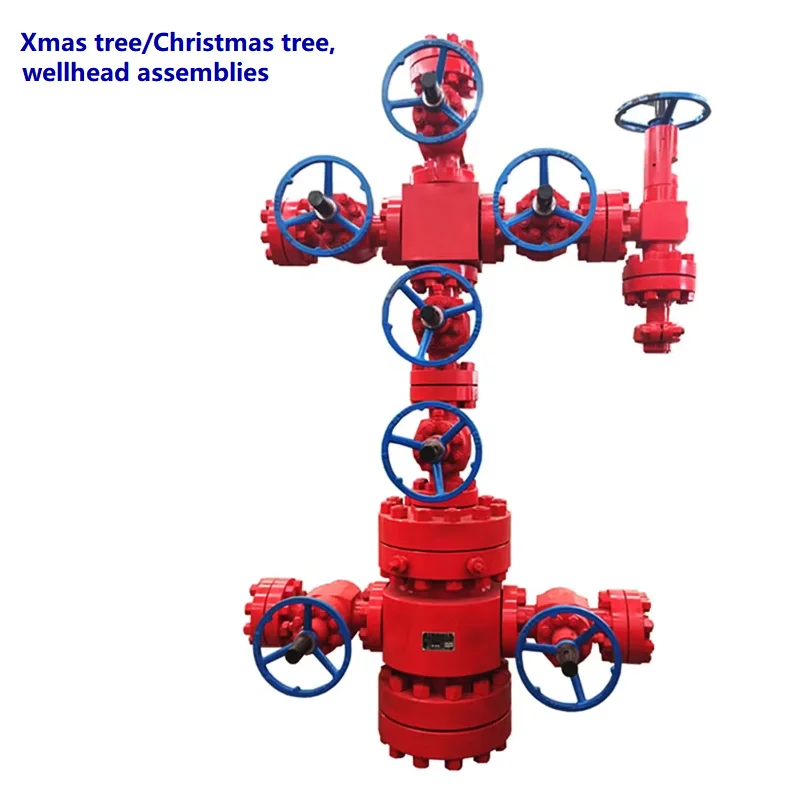

Нефтяное оборудование Рождественская елка Xmas wellohead control
