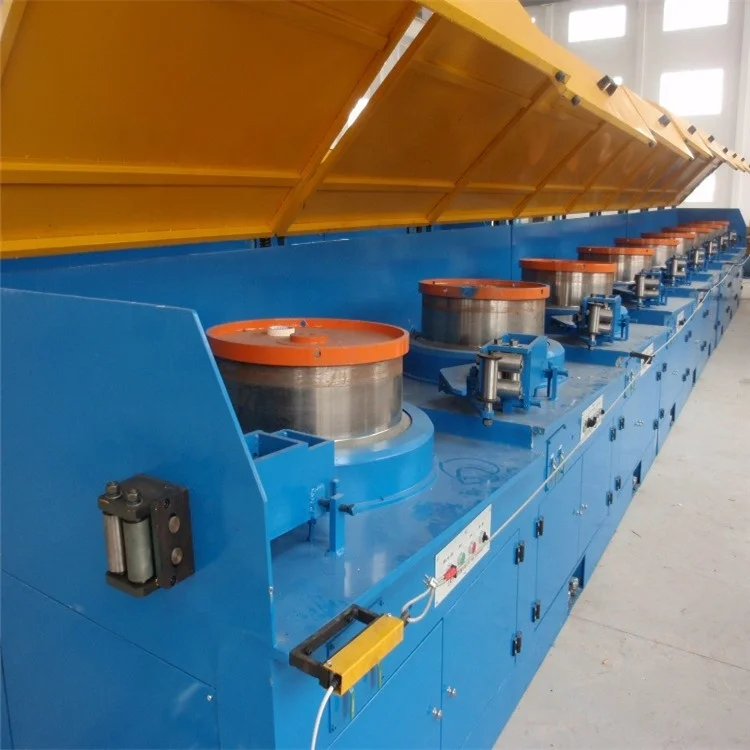

Прямолинейная проволочная машина для отжига проволоки и оцинкованной проволочной обмотки
176 535,36 ₽ - 507 746,16 ₽
Машина покраски производственной линии рулонного цветного покрытия металла новый продукт 2024 алюминиевое оборудование для порошкового 180 тонн
- Категория: >>>
- Поставщик: Zhangjiagang Evertopest International Trade Co. Ltd.
Сохранить в закладки 1601026717093:
Описание и отзывы
Характеристики
Aluminum Color Coating Production Line
Aluminum Coil Color Coating Production Line
Evertopest has the advance production line for coating the aluminum coil, it can be suitable for high gloss, polyester, PVDF, FEVE, mirror,stone, wooden, water paint etc.All this coated coil can be used for Aluminum composite panel, wall cladding, facades, roofing,signboards, blind window, electrical panel, kitchen panel, food container, bottle cap, etc.
If you want to know more EVERTOPEST service , pls send us inquiry without hesitate !
Structural Composition
Products Description

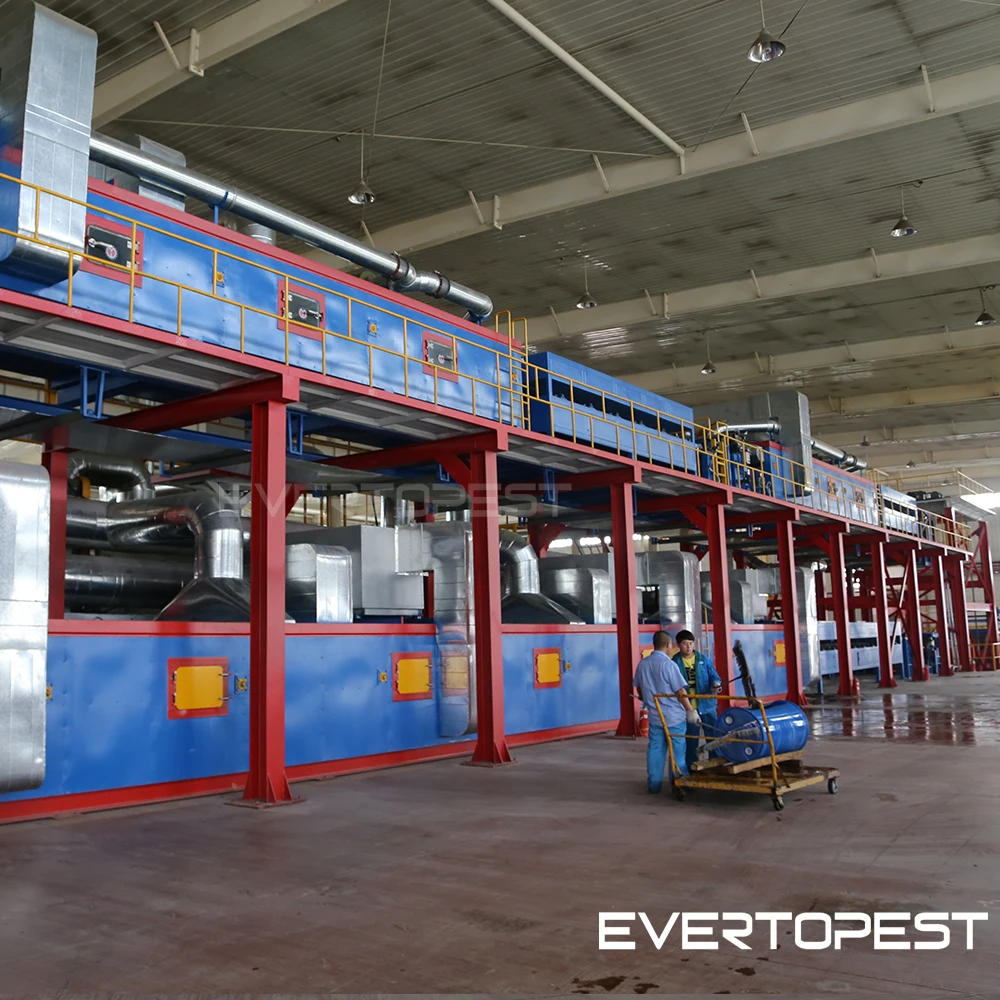

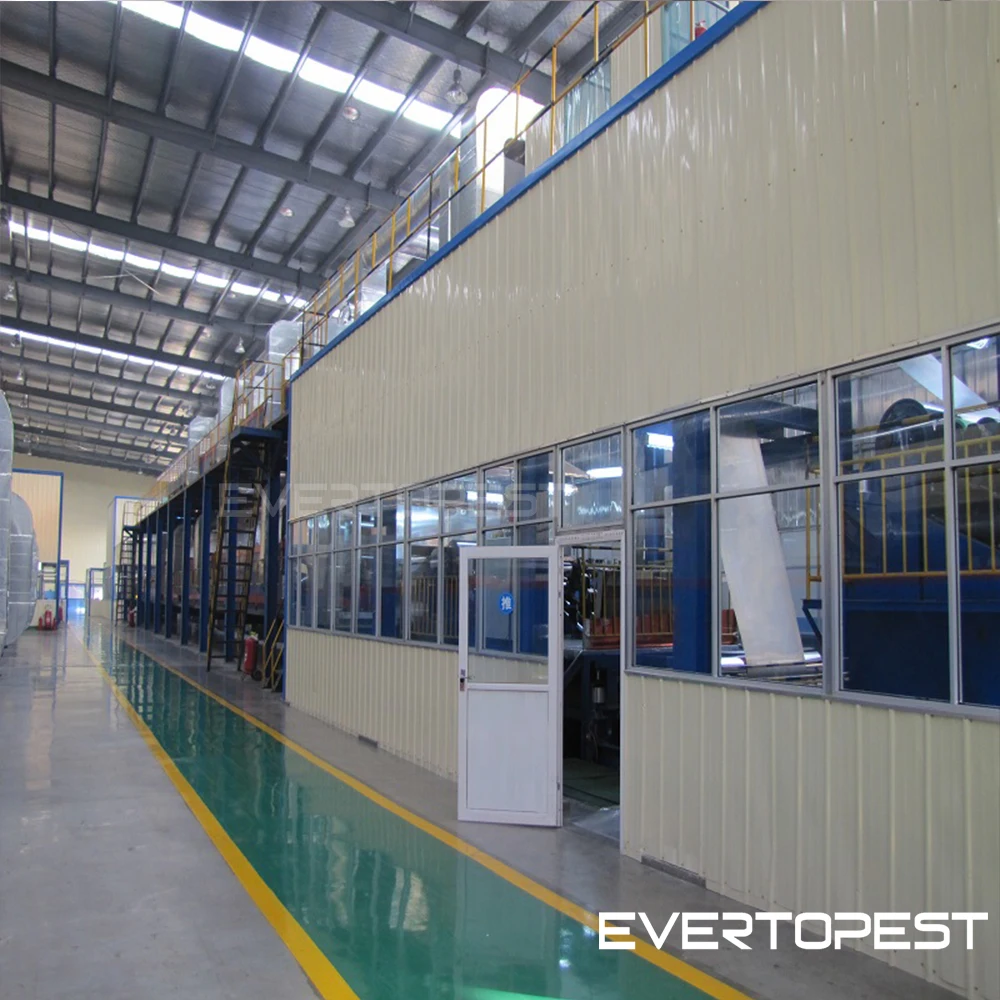

The Advanced Aluminum Color Coating Production Line
The production line is designed by Evertopest, which used to describe the application of a decorative and or protective organic coating to metal supplied in coil form.
To design a line to meet the customer’s capacity requirements, Evertopest requires a reference coil width and thickness, together with maximum/minimum thickness and widths. The reference strip is the strip size most commonly processed. With this information our designers are able to determine:
1. The thermal capacity of the oven and the strip contact time in the oven and/or
2. The maximum process section line speed
2. The maximum process section line speed
The initial selection of these parameters must be suited to the desired output. To purchase a line with excess capacity would be over-capitalising, and one with insufficient capacity means losing market share.
Pretreating System
No matter what the feed coil type, the strip must be pre-treated before paint is applied to obtain any acceptable level of prolonged paint adhesion and corrosion resistance.
Prior to pre-treatment the feed is cleaned to remove oil and any other surface contaminants. This is done in high pressure spray tanks with contact times of between 2 and 5 seconds. The solution is normally hot (60 -70 degC) alkali although acid based cleaners are also available. Following the cleaning tanks usually two hot (50 -60 degC) water spray tanks are used to be sure that the alkali from cleaning is not carried through to the pre-treatment stage. Between each spray tank rubber squeegees also prevent carry through of the solution from one tank to the next.
Following cleaning, the pre-treatment is applied. This is usually chromic or phosphoric acid based although chromium free systems are now available. The pre-treatment performs a dual function.
● It creates a very high bond between the paint and the base metal.
● It provides corrosion protection. Without the pre-treatment protection, any cuts,
● It creates a very high bond between the paint and the base metal.
● It provides corrosion protection. Without the pre-treatment protection, any cuts,

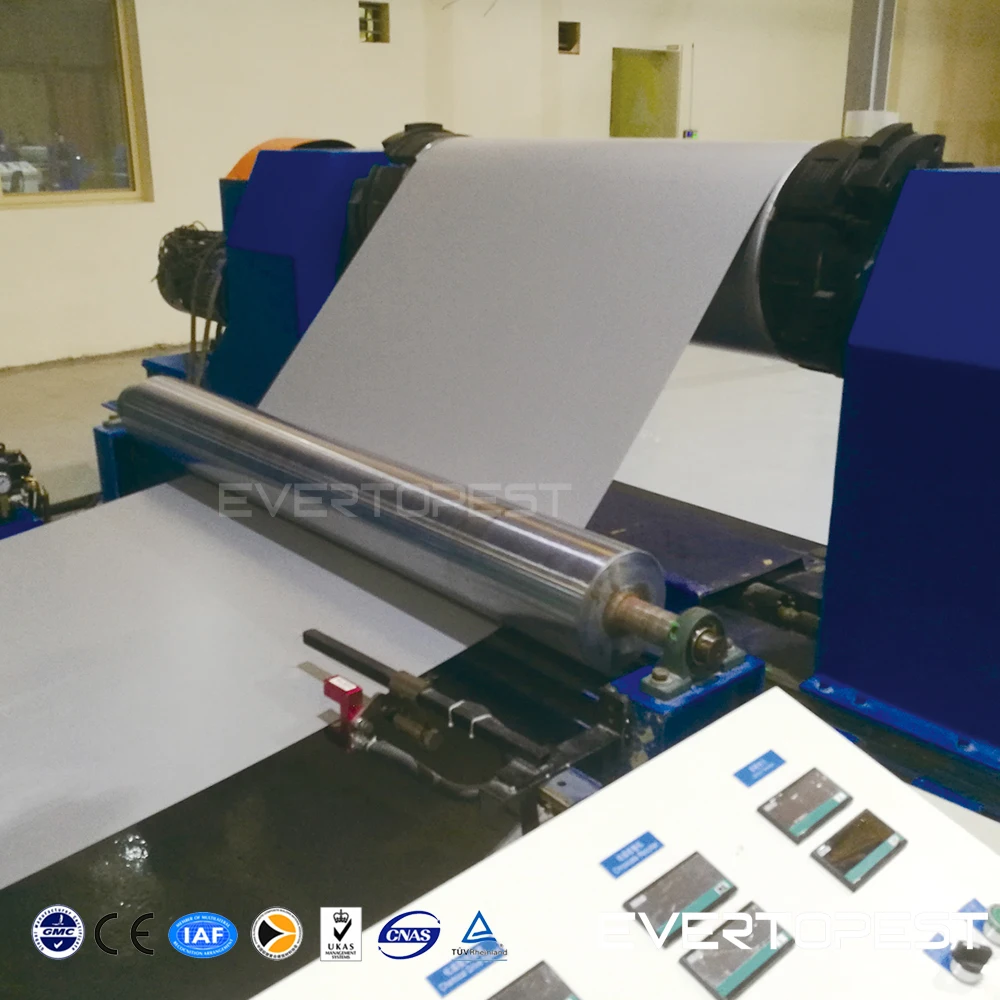

S-Type Coater System
This machine is the most popular machine used. The main advantage of this machine is that the Top Head paints the strip as the strip is supported around a large diameter Back-Up Roll. This Back-Up Roll supports the strip and keeps it very flat so the painting process can be done very accurately. This machine provides very good operator access and visibility on both the top and
bottom sides of the strip.
bottom sides of the strip.
C-Type Coater System
This machine is also a modification of the S-Type Coater Machine. It operates in a similar manner to the U-Type Coater Machine in that it is also a Color Quick Change Coater. The main difference here is that the two Back-Up Rolls are positioned vertically above each other whereas in the U-Type Coater Machine, the Back-Up Rolls are positions horizontally apart from each other.

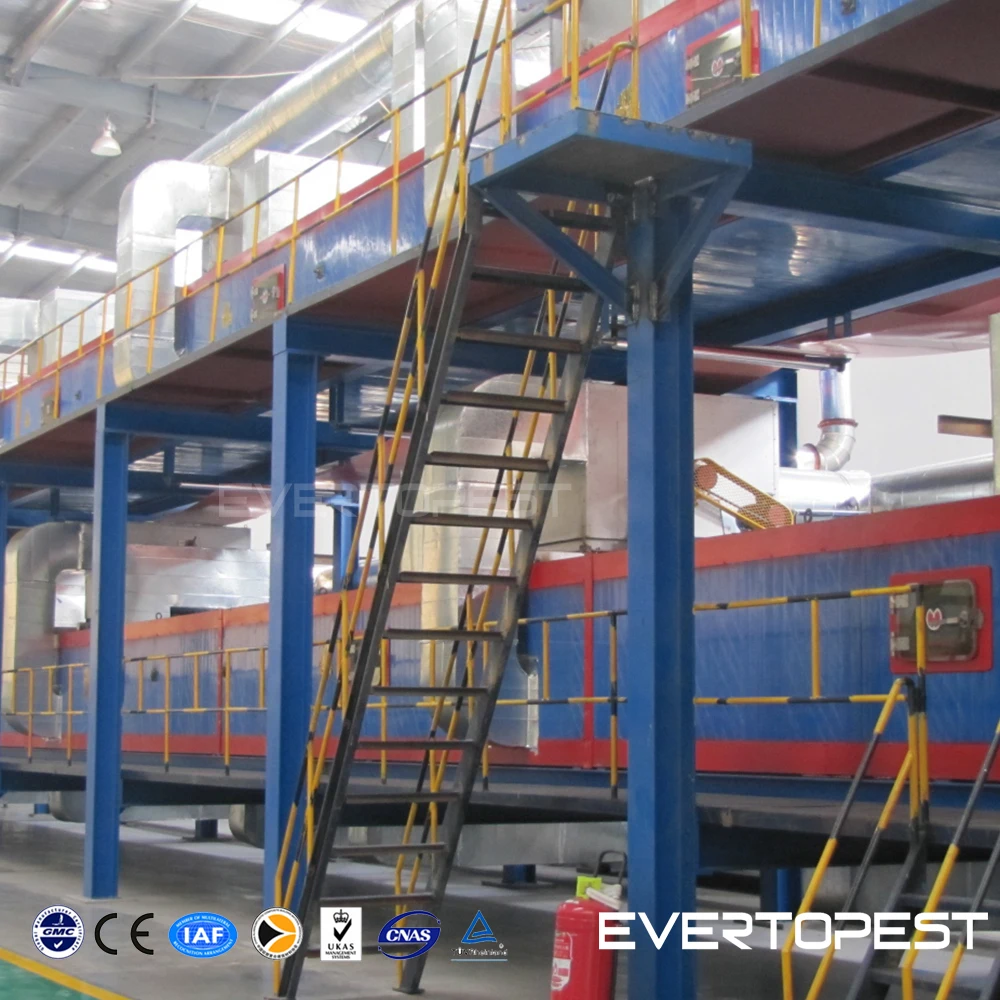

Baking Oven System
The oven fan blade all use the SS304 stainless steel, and the whole body used 200 thick thermal insulation cotton wool, so the oven surface can't feel any extra heat.Such kind high-performance floatation oven for drying the solvents stands out for even heating performance, and exceptionally high efficiency. To ensure a flawless finish, the strip travels contact-free through the entire furnace.
Automatic Electrical Control System
Evertopest's machine all standard use the Schneider brand low voltage components.The Plc, HMI, all choose the Siemens brand. The Inverter choose the ABB brand.Which all world famous. It makes customer satisfy the system stability.
RTO System (Regenerative thermal oxidizer)
The solvent-containing gasses are exhausted from the oven and cleaned in an RTO with high thermal efficiency. Depending on the solvent content in the exhaust air it is possible to operate the post-combustion system and, when using a highly efficient energy recirculation system, the ovens without feeding additional energy.

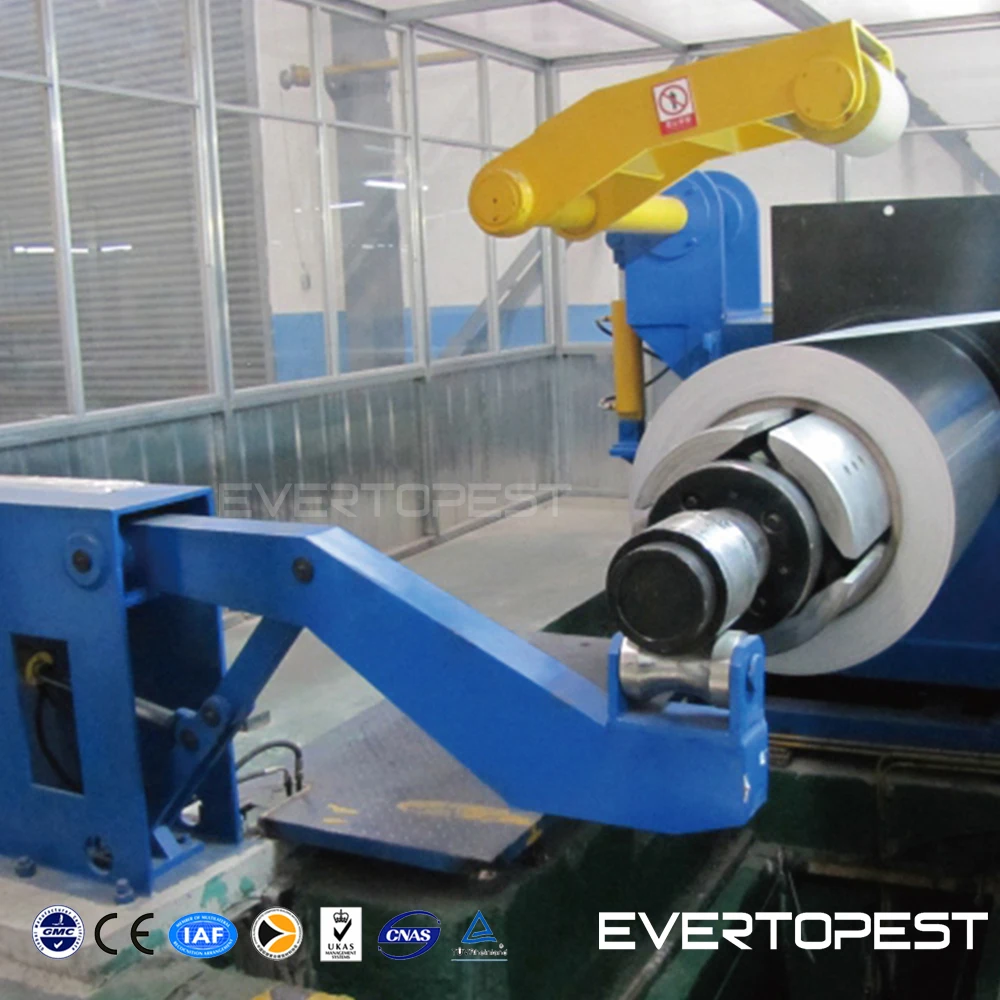

EPC Rewinding System
In order to get perfect rewinding edge for the coil roll, Evertopest cooperated with famous brand EPC &CPC system company, to make the strip automatic rectify the position of the strip, make sure strip always in the center with right tension. When in rewinding process, the EPC system can make the edge smooth, also can make staggered.
Application
● Roofing &wall cladding● Guttering
● Fences &walls
● Whitegoods
● Roofing tiles
● Pop can
● Composite panel
● Solid aluminum
● Office furniture
● TV board
● Sports equipment
● Windows shades
● etc.
● Fences &walls
● Whitegoods
● Roofing tiles
● Pop can
● Composite panel
● Solid aluminum
● Office furniture
● TV board
● Sports equipment
● Windows shades
● etc.
Evertopest Profile
EVERTOPEST Co.,Ltd.
1 / Standardized workshop of total 10,000 square meters.
2 / The equipment will be well assembled and test before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
3 / Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
2 / The equipment will be well assembled and test before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
3 / Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
EVERTOPEST Sales Manager Team and Engineer Team.
1 / Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
2 / The engineers are experienced. We can produce different product with different kinds of requirements and work out reasonable flow chart as per customers' requirements to save space and cost.
2 / The engineers are experienced. We can produce different product with different kinds of requirements and work out reasonable flow chart as per customers' requirements to save space and cost.
EVERTOPEST Sales Manager Team and Engineer Team.
1 / Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
2 / The engineers are experienced. We can produce different product with different kinds of requirements and work out reasonable flow chart as per customers' requirements to save space and cost.
2 / The engineers are experienced. We can produce different product with different kinds of requirements and work out reasonable flow chart as per customers' requirements to save space and cost.
EVERTOPEST Cetificates and Patents.
1 / International certification, National Certificate of equipment verification, and more than 40 invention patents are done in EVERTOPEST.
2 / Verification Certificates of equipments: ISO9001:2015; CE Certificate , TUV
3 / National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Saber certificate of Saudi Arabia, etc.
2 / Verification Certificates of equipments: ISO9001:2015; CE Certificate , TUV
3 / National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Saber certificate of Saudi Arabia, etc.
Evertopest Service
What Evertopest can do for you ?
Professional.
Professional engineers supply suitable machine according to customer requirements.
Machine Layout.
We will make the machine layout design according to your factory conditions.
Technical Supporting
When you set up the machine we offer the compelet engineering & raw materials supporting.
If you want to know more EVERTOPEST service , pls send us inquiry without hesitate !
Packing & Delivery
EVERTOPEST | ||
Packing | Conventional packaging: inside is wrapped with PE film, outside is ply wooden box. | |
Delivery | The normal delivery period is 90 days, depending on the place order time, the specific time is about 90 to 120 days. | |
We will make detail packing lists even one nut, also make very clear photo for each parts and each package. | ||
FAQ
YOU ARE WELCOME TO US AT ANY TIME.
● If we can fullfill your request and you interested in our products, you may pay a visit to Evertopest site
● The meaning of visiting supplier, because seeing is believing, Evertopest with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
● The meaning of visiting supplier, because seeing is believing, Evertopest with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.
SEE EVERTOPEST HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years
●After all the equipment are completed, we will assembling all the machines and run parts testing for at least 12 hours to ensure the stable running in customers' factory
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years
●After all the equipment are completed, we will assembling all the machines and run parts testing for at least 12 hours to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE OF EVERTOPEST!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
● After the commissioning, we will package the equipment by standard export package for shipment.
● We will arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the
customers' project.
● After the commissioning, we will package the equipment by standard export package for shipment.
● We will arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the
customers' project.
If you want to know more EVERTOPEST service , pls send us inquiry without hesitate !
Похожие товары
2024 лучшие продажи SSP машина для горячего прессования с одним лезвием Высококачественная производства пильных лент
3 361 789,62 ₽ - 3 367 309,80 ₽

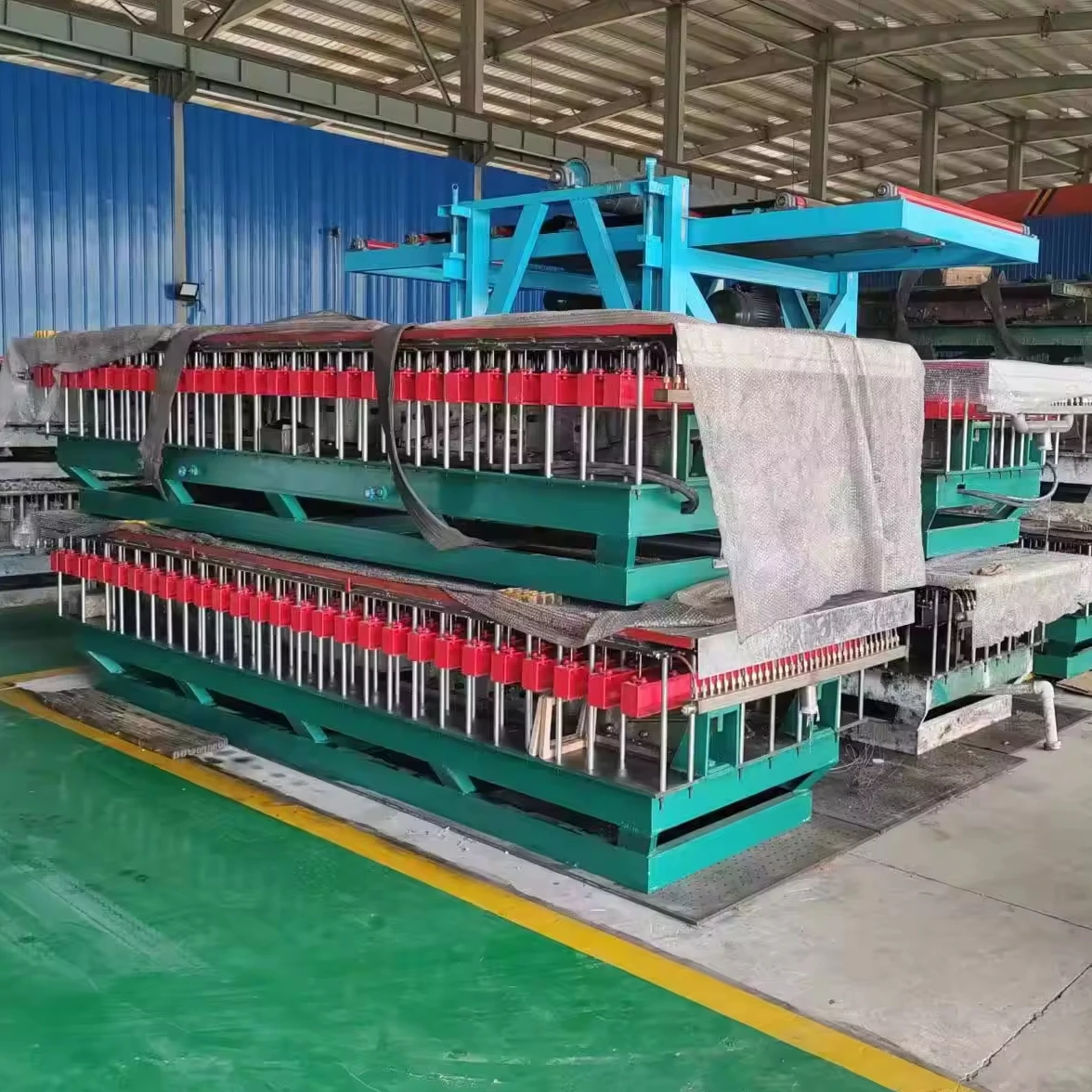

Оборудование для производства решетки из стекловолокна
552 018,00 ₽ - 1 104 036,00 ₽
PT-Perf защитная решетка ступени
2 980 897,20 ₽ - 4 747 354,80 ₽
Автоматическая 1 5-2 0 мм оцинкованная стальная лазерная сварка стеллажи для хранения ступенчатая машина формовки рулонов
8 556 279,00 ₽ - 8 777 086,20 ₽
Горячая распродажа Высокоэффективная машина для формовки сэндвич-панелей
628 187 651,72 ₽
Гидравлический Электрический 6-80 мм стальной железный стержень бар резак бесщеточный мотор арматура для резки

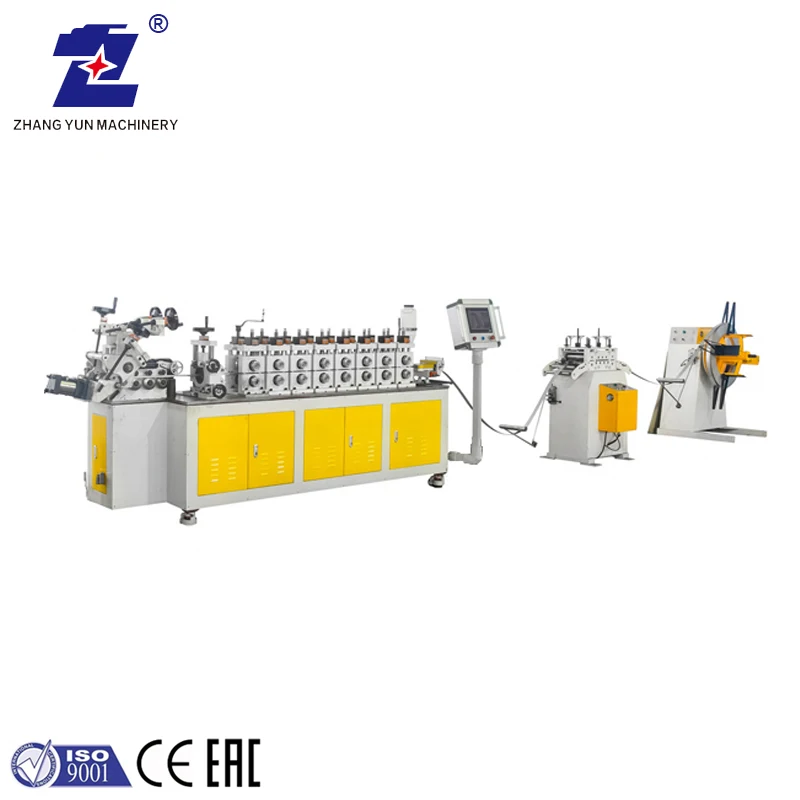

С гарантированным качеством кольцевая машина автоматическая обруч машина/оборудование
