Product Description

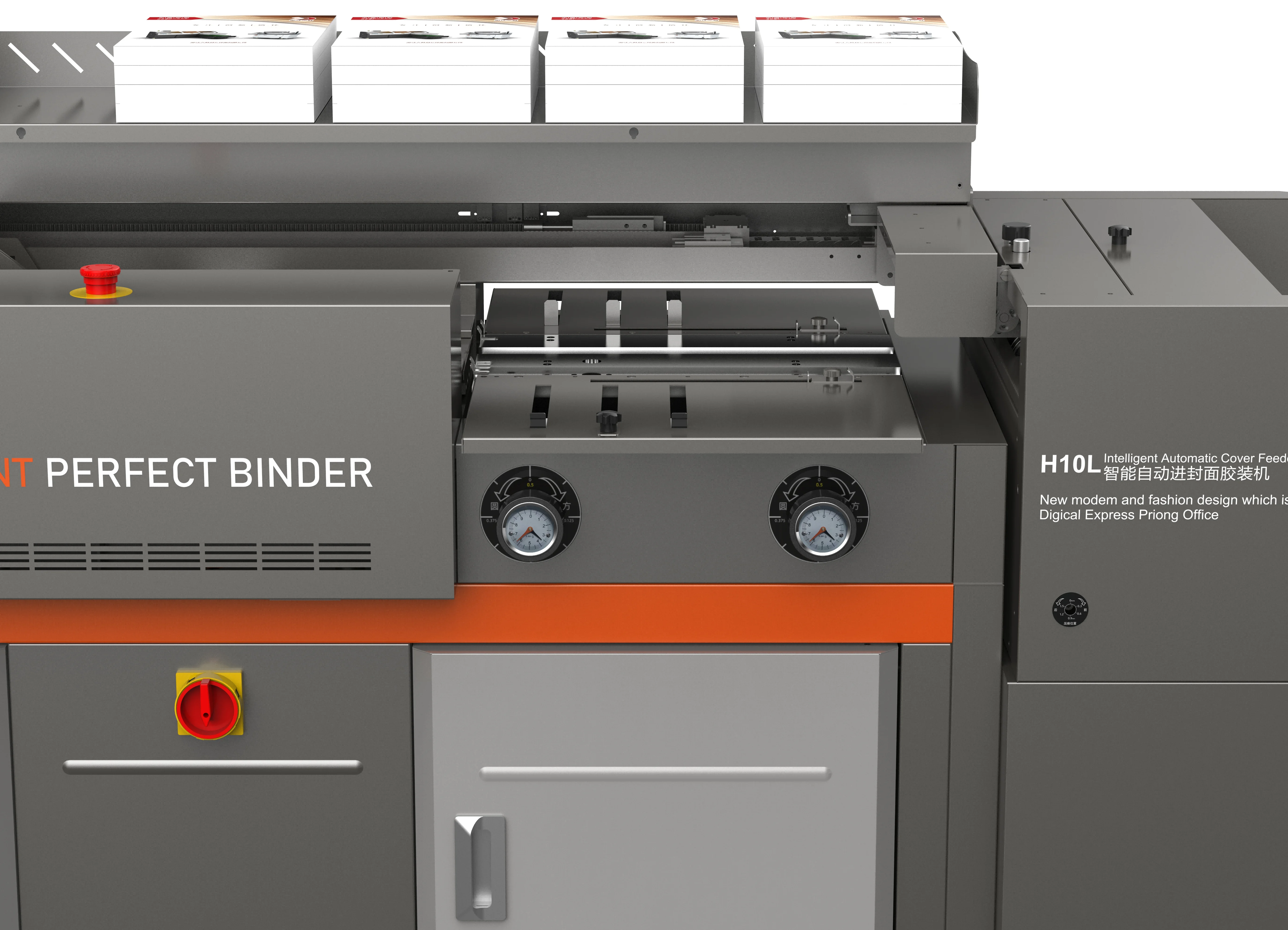

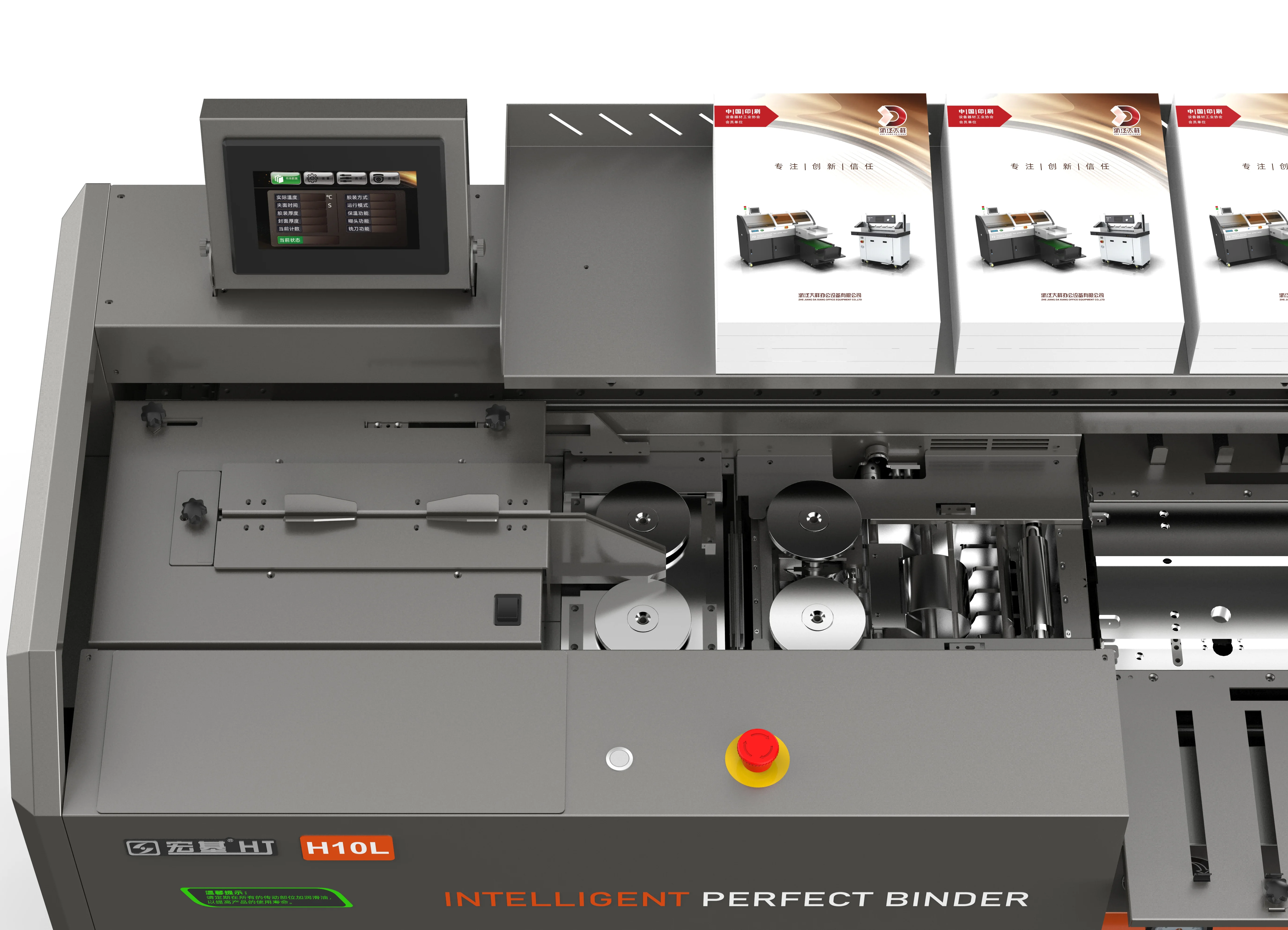

HJ H10L is a professional glue binding machine specially designed for large quantities for binding. It adopts a new intelligent indentation design, paper feed and four indentation synchronization, which is easy to use ,it saves manpower and improves the efficiency for book production. According to the thickness of the book,it can automatically measure the
thickness and adjust the running speed of the machine,also it automatically adjust the pressure of the clip surface, so that it can obtain the best binding effect. This can greatly improve production efficiency and reduce the workload of the operator.High-precision binding ensures that each book has a uniform and firm binding connection, improving the quality and durability ofthe product. Industrial synchronous belt transmission structure, light sound, fast speed.At the same time, the machine also added the function that automatic finishing glue structure ，it can solve the glue problem left on the clamping surface platform effectively , meanwhile the binding looks more beautiful. It also added the function for cover secondary positioning technology, to solve the book cover position deviation problem, to ensure the cover left and right positioning accuracy.The new pre-melt groove structure allows the operator to add glue without stopping, improving the binding efficiency.
This automatic glue binding machine is more efficient, accurate, intelligent, longer life than other binders, and the plc
integrated module control circuit design is more stable and reliable, which is loved by consumers.7 inch color touch screen display, using arm chip and color touch screen, powerful intelligent control program a number of self-test functions.
thickness and adjust the running speed of the machine,also it automatically adjust the pressure of the clip surface, so that it can obtain the best binding effect. This can greatly improve production efficiency and reduce the workload of the operator.High-precision binding ensures that each book has a uniform and firm binding connection, improving the quality and durability ofthe product. Industrial synchronous belt transmission structure, light sound, fast speed.At the same time, the machine also added the function that automatic finishing glue structure ，it can solve the glue problem left on the clamping surface platform effectively , meanwhile the binding looks more beautiful. It also added the function for cover secondary positioning technology, to solve the book cover position deviation problem, to ensure the cover left and right positioning accuracy.The new pre-melt groove structure allows the operator to add glue without stopping, improving the binding efficiency.
This automatic glue binding machine is more efficient, accurate, intelligent, longer life than other binders, and the plc
integrated module control circuit design is more stable and reliable, which is loved by consumers.7 inch color touch screen display, using arm chip and color touch screen, powerful intelligent control program a number of self-test functions.

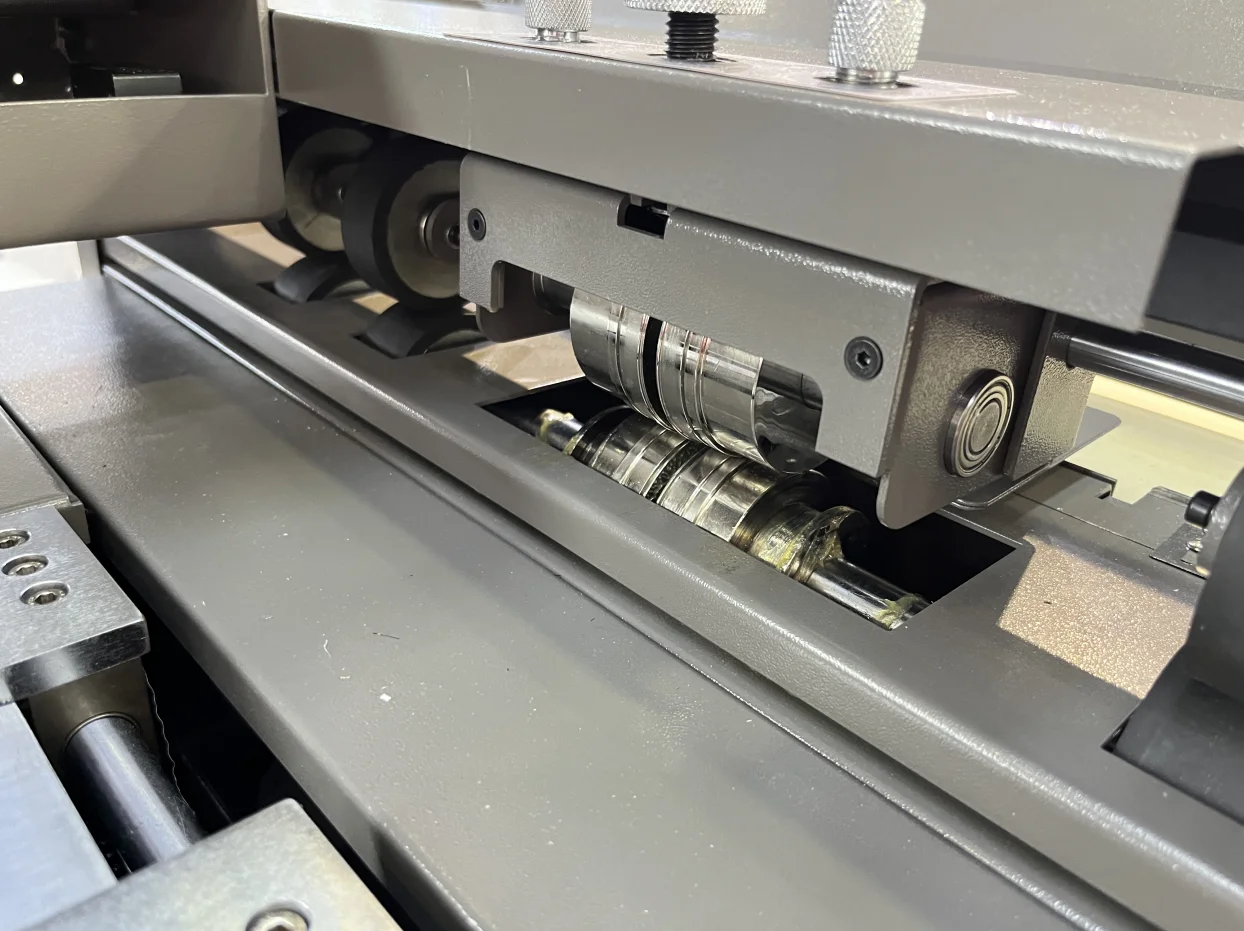

1.Automatic Cover Feeder With Indentation Design:
The machine incorporates a new intelligent indentation design, allowing for synchronized paper feed and four-indentation processes. This design enhances user-friendliness and facilitates the binding process.
2.Automatic Thickness Measurement and Speed Adjustment:
The machine can automatically measure the thickness of the book and adjust its running speed accordingly. This feature ensures optimal performance based on the specific requirements of each book, enhancing efficiency.
3.Automatic Pressure Adjustment
The machine automatically adjusts the pressure of the clip surface, optimizing the binding effect.
This feature contributes to consistent and high-quality binding, reducing the workload on the operator.
This feature contributes to consistent and high-quality binding, reducing the workload on the operator.
4. High-Precision Binding:
The machine ensures high-precision binding, resulting in uniform and firm connections for each book.
This not only improves the quality of the final product but also enhances its durability.
This not only improves the quality of the final product but also enhances its durability.
5. Industrial Synchronous Belt Transmission:
The machine utilizes an industrial synchronous belt transmission structure, providing a light and quiet operation with fast speed. This design contributes to a smooth and efficient binding process.
6. Automatic Finishing Glue Structure:
The addition of an automatic finishing glue structure addresses the issue of residual glue on the clamping surface platform, enhancing the aesthetics of the binding.
7. Cover Secondary Positioning Technology:
The machine features cover secondary positioning technology, addressing potential deviations in the book cover position to ensure accurate left and right positioning.
8.New Pre-Melt Groove Structure:
The pre-melt groove structure allows the operator to add glue without stopping the machine, improving overall binding efficiency.
9.PLC Integrated Module Control Circuit Design:
The PLC integrated module control circuit design enhances stability and reliability, contributing to the machine's longer life and consistent performance.
10.10.1-Inch Color Touch Screen Display:
The machine is equipped with a 10.1-inch color touch screen display, utilizing an ARM chip and color touch screen for powerful intelligent control and incorporating several self-test functions.
11.Frequency conversion technology
This innovative design enables easier binding, particularly suitable for large quantities for binding. The binding process is more efficient, ensuring precision and convenience, thereby providing users with a superior binding experience.
Product Paramenters
Model： | H10L | H20L | H300 |
binding length： | 120-330mm （Manua 120-425mm） | 120-425mm | 120-330mm （Manua 120-425mm） |
binding thickness： | 0.2-60mm | 0.2-60mm | 0.2-60mm |
Book block height: | 135-297mm | 135-297mm | 135-297mm |
Cover width: | 500*330mm (Manual 660*425mm） | 660*330mm | 660*330mm |
Cover thickness: | 120-300g | 120-300g | 120-300g |
Stacking height of cover: | 98mm | 98mm | 98mm |
Cover mode: | Feida paper feed | Feida paper feed | Feida paper feed |
Cover indentation: | Automatic paper feeding front and back synchronous indentation | Automatic paper feeding front and back synchronous indentation | Automatic paper feeding front and back synchronous indentation |
Cover indentation center positioning function: | Automatically adjusted | Automatically adjusted | Automatically adjusted |
Speed: | 350-400 books/h | 350-400 books/h | 400-500 books/h |
Melt time: | 45min | 45min | 45min |

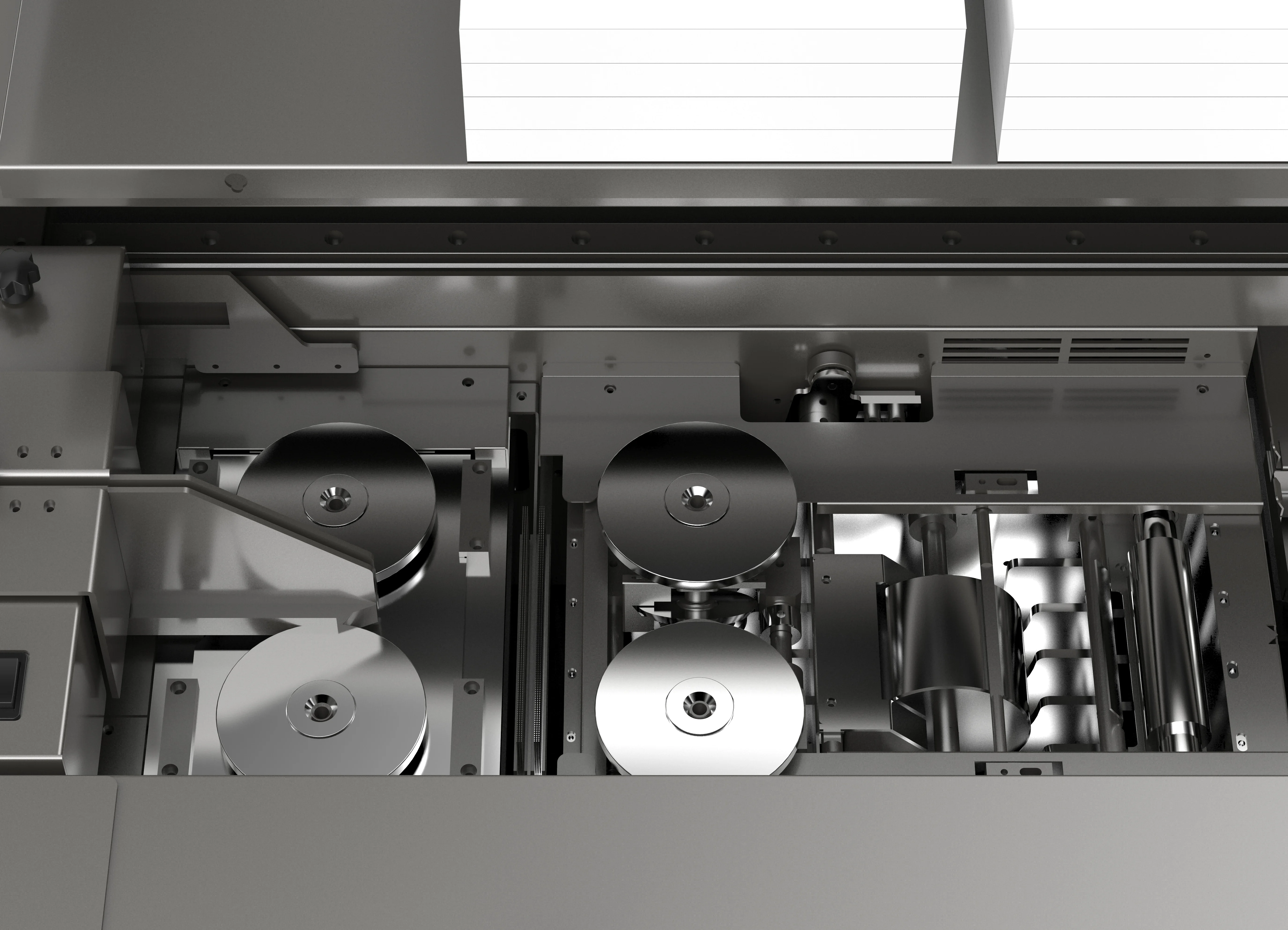

Binding method: | Three glue wheel with side glue | Three glue wheel with side glue | Three glue wheel with side glue |
Automatic finishing glue: | √ | √ | √ |
Height adjustment of rubber roller: | Automatic | Automatic | Automatic |
Automatic side glue: | √ | √ | √ |
Milling cutter: | 22 foot large disc milling cutter | 22 foot large disc milling cutter | 34 foot large disc milling cutter |
Book management platform: | √ | √ | √ |
Automatic book thickness measurement: | √ | √ | √ |
Smoke exhaust function: | √ | √ | √ |
Height adjustment of clamping surface: | numerical control | numerical control | numerical control |
Side rubber wheel pre opening: | Automatic | Automatic | Automatic |
Double suction function: | √ | √ | √ |
Milling cutter cover plate pre opening | - | - | √ |
Display: | 7 Inch-touch screen | 7-Inch touch screen | 10.2-Inch touch screen |
Machine weight: | 300kgs | 320kgs | 550kgs |
Machine size: | 19850*710*1260mm | 2228*820*1260mm | 2203*968*1245mm |
Related products
Our Factory
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 7-20days if the goods are not in stock, it is according toquantity.
Q:What about your warranty?
A:Our warranty is 13 months, all machine part can be replaced for free within 13 months if broken(not including man made).
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have 13 months warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 7-20days if the goods are not in stock, it is according toquantity.
Q:What about your warranty?
A:Our warranty is 13 months, all machine part can be replaced for free within 13 months if broken(not including man made).
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have 13 months warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L
Contact
Zhejiang Daxiang Office Equipment Co., Ltd.
Tel:+89-571-85241584
Mobile:+86 18857135931
Email:sales04@hzdxjd.com
Zhejiang Daxiang Office Equipment Co., Ltd.
Tel:+89-571-85241584
Mobile:+86 18857135931
Email:sales04@hzdxjd.com
Похожие товары

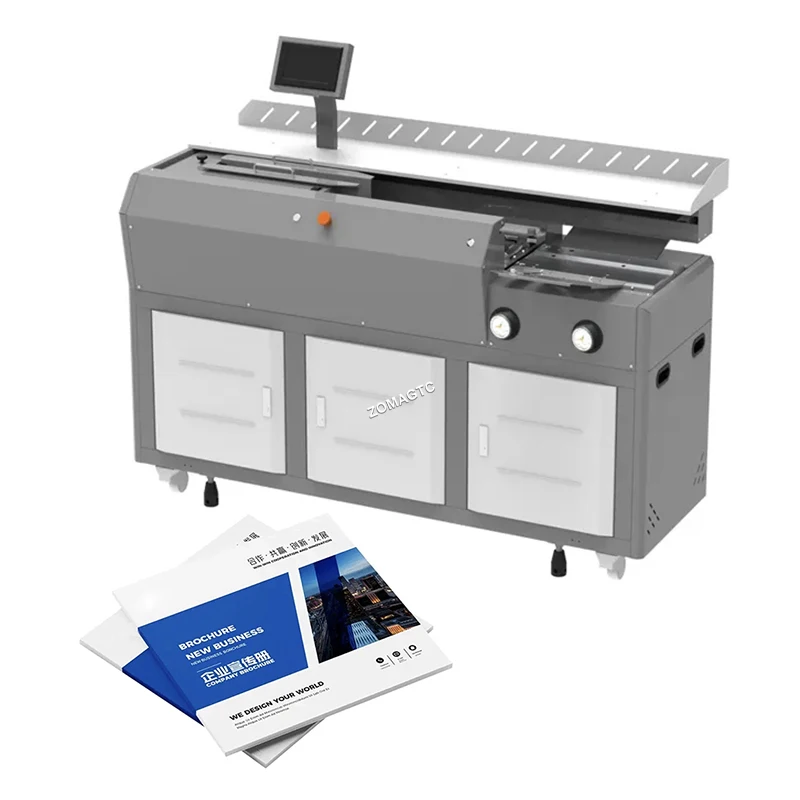

Автоматическая машина для скрепления клея бумаги формата А4 с простым управлением
92 765,61 ₽ - 133 241,17 ₽

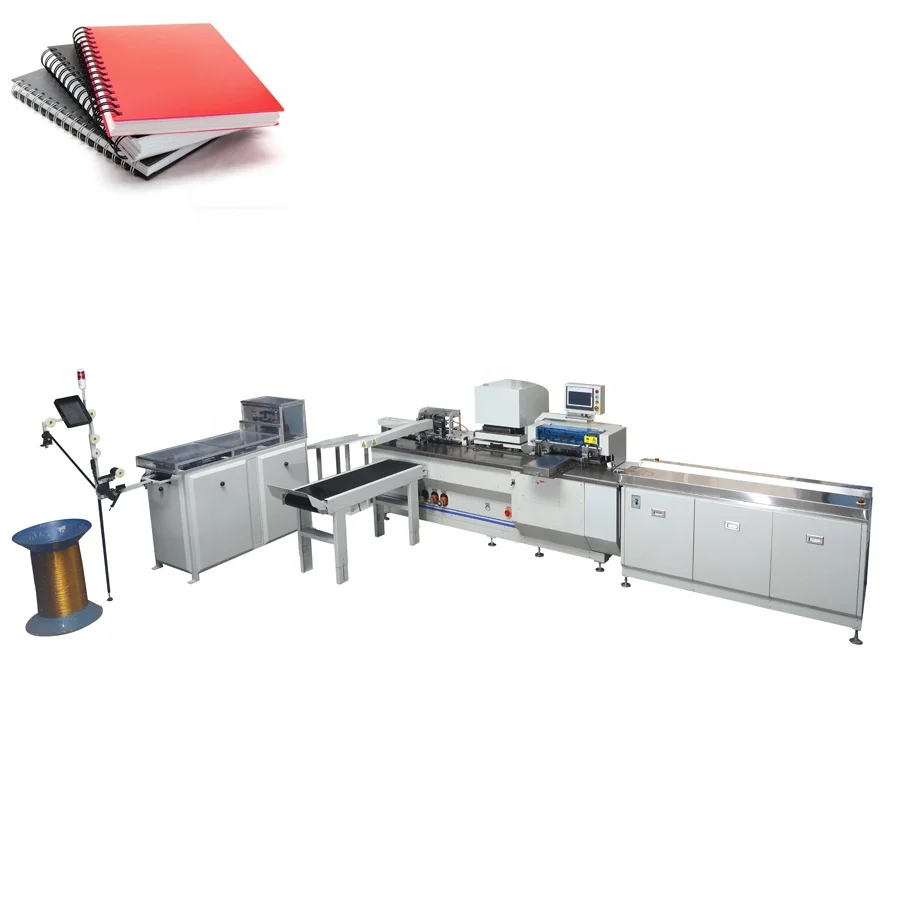

Спиральная рулонная штамповочная и связующая машина для металлических и пластиковых катушек
6 016,64 ₽ - 7 110,58 ₽
Автоматическая офисная настольная машина для переплета клея, машина для переплета книг
40 256,78 ₽ - 58 416,08 ₽
Привлекательный продукт и цена, машина для переплета термоплавкого клея для книг, машина для переплета для книг, продажа
223 818,90 ₽ - 245 697,58 ₽
Интегрированная машина для изготовления проволоки с календарем
2 734 835,00 ₽ - 2 898 925,10 ₽

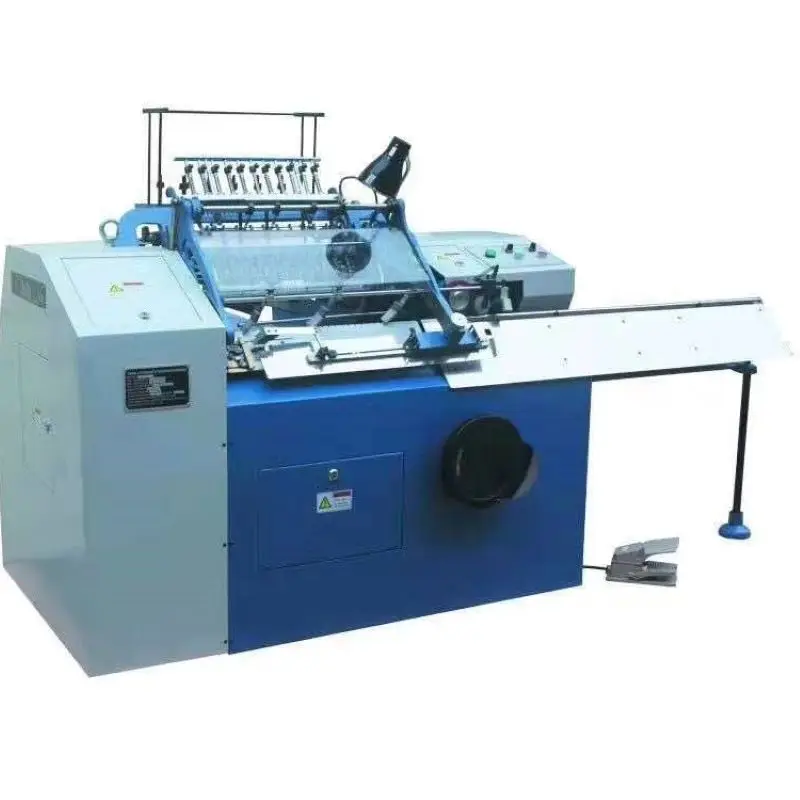

Автоматическая книжная швейная машина, переплетная бумага, книжные швейные машины
820 450,50 ₽ - 1 039 237,30 ₽

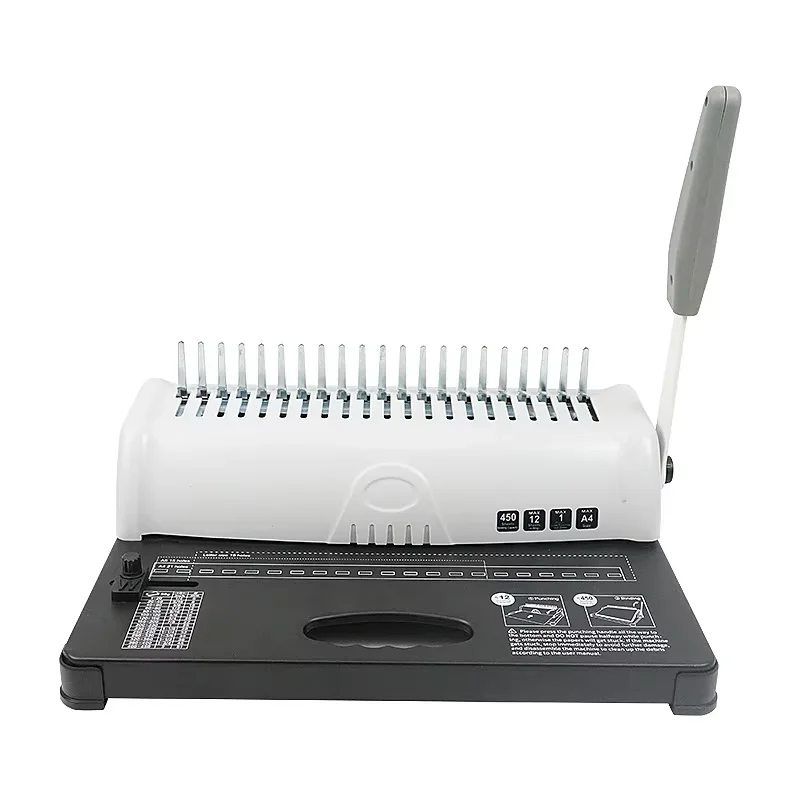

Машина для переплета 450 листов с 21 отверстиями
