Демпфер пульсации и амортизатор воздушной подушки для деталей грязевого насоса
10 870,90 ₽ - 11 092,75 ₽

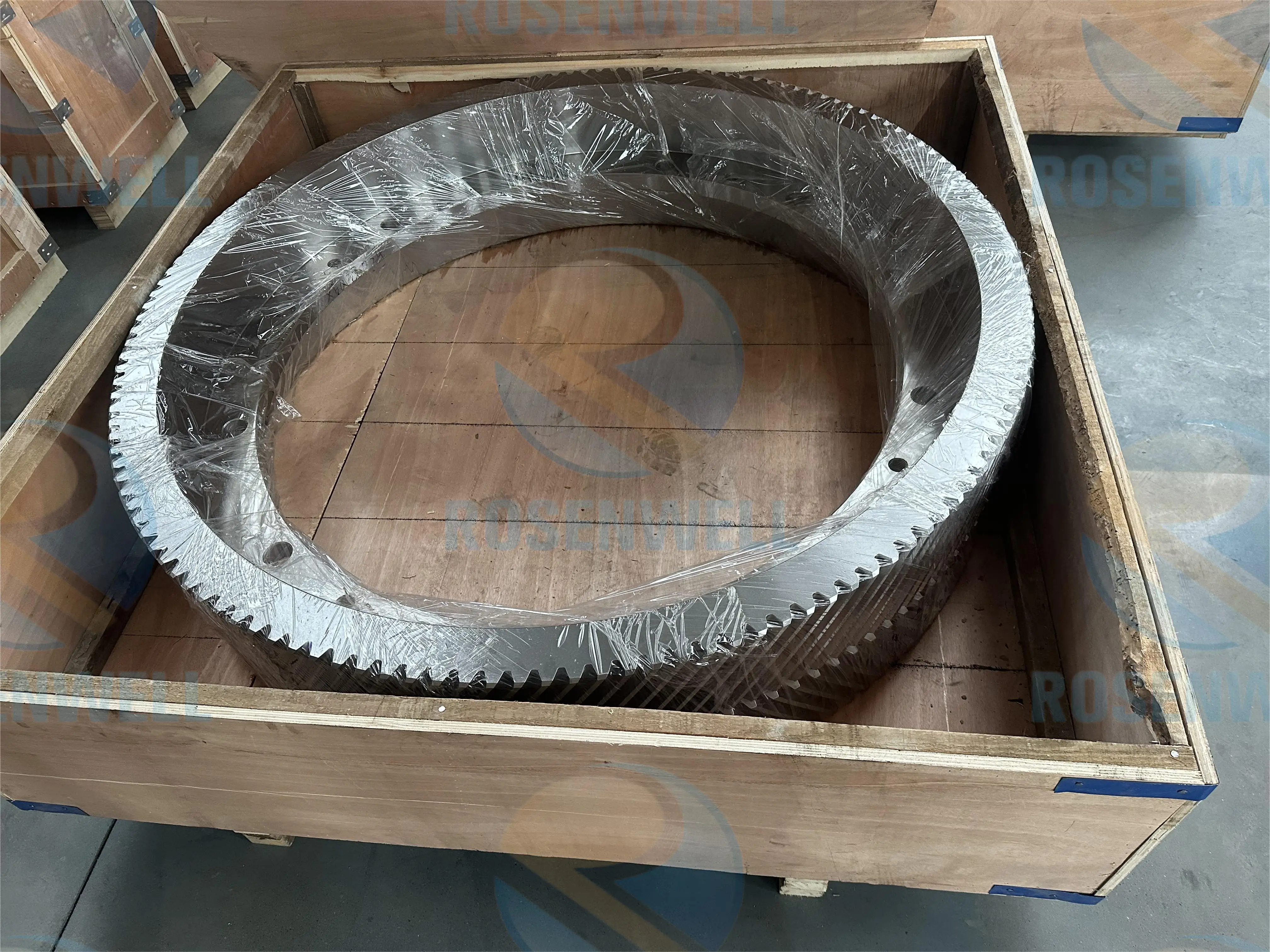

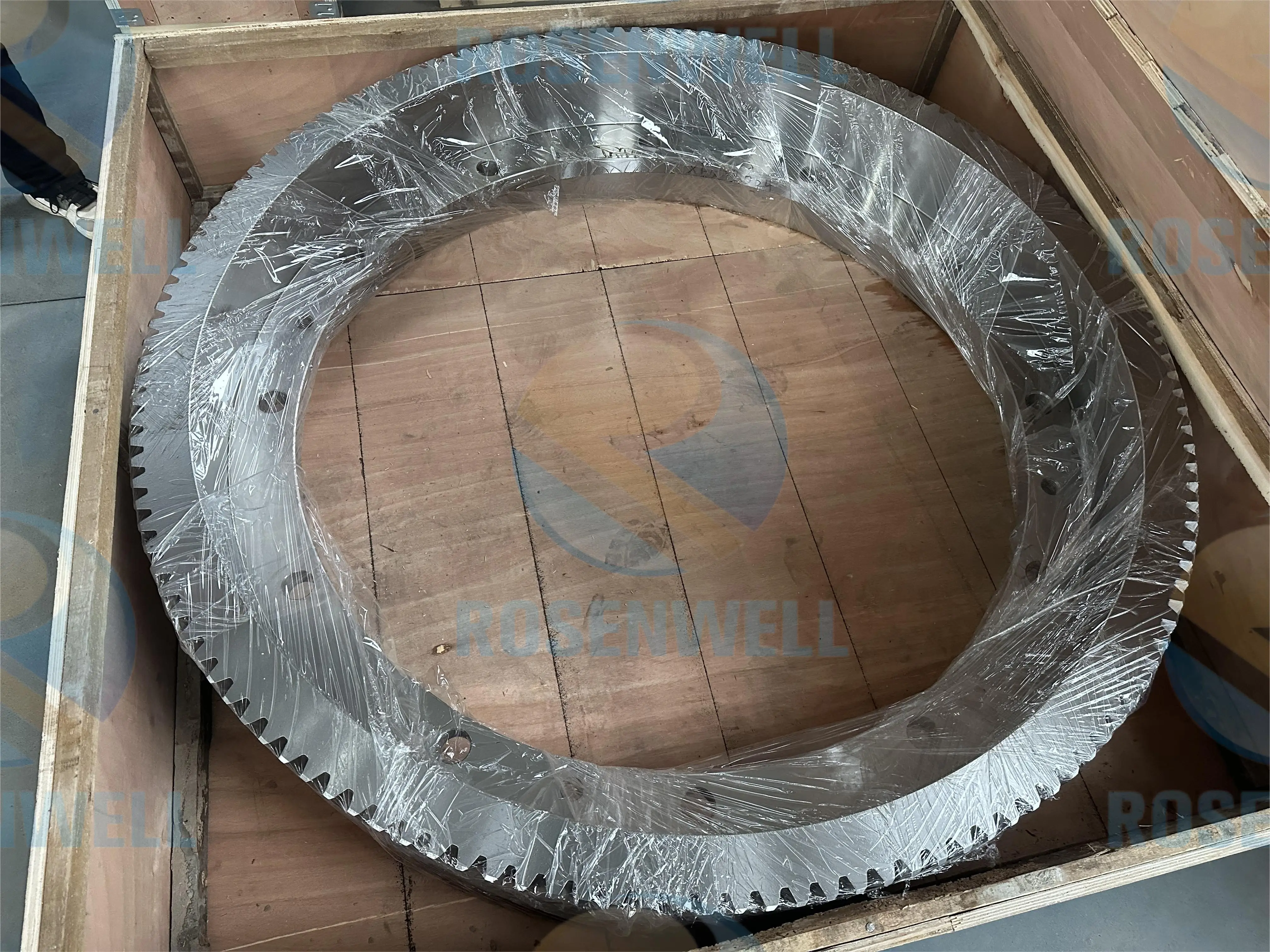

Зубчатое кольцо (двойная спираль)
- Категория: >>>
- Поставщик: Shandong Rosenwell Petroleum Technology Co. Ltd.
Сохранить в закладки 1601026982822:
Описание и отзывы
Характеристики
Company Profile
Shandong Rosenwell petroleum technology Co.,Ltd(hereinafter as Rosenwell company) is located in Dongying city ,Shengli Oilfield (Belongs to Sinopec),which is the second largest oilfield and the largest petroleum industry base in China .Rosenwell company is a specialized supplier of petroleum equipment and spare parts.Based on our domestic business with Shengli oilfield and professional engineering&commercial team , Rosenwell had built up solid network and same-boat partnership with different OEM factories ,which grants company unique advantage in terms of competitive prices , in-time delivery ,after-sales warranty service,etc.
ITE M No. | QTY | DESCRIPTION | PART No. | ||
F-l300 | F-l600 | ||||
1 | 1 | Key 2" X2" X11 3/8" | AH36001-03.01 | AH36001-03.01 | |
2 | 1 | Pinion Shaft | AH36001-03.02 | AH36001-02.01A | |
3 | 2 | Oil Seal Wear Ring | AH36001-03.03 | AH36001-03.03 | |
4 | 2 | Carrier | AH36001-03.04 | AH36001-03.04 | |
5 | 2 | Gasket | AH36001-03.05 | AH36001-03.05 | |
6 | 2 | Gasket | AH36001-03.06 | AH36001-03.06 | |
7 | 2 | Bearing Carrier | AH36001-03.07A | AH36001-03.07A | |
8 | 2 | Baffle | AH36001-03.10 | AH36001-03.10 | |
9 | 2 | Gasket | AH36001-03.12 | AH36001-03.12 | |
10 | 2 | Oil Collecting Box | AH36001-03.13.00 | AH36001-03.13.00 | |
11 | 24 | Bolt M12x35 | GB5782-86 | GB5782-86 | |
12 | 16 | Bolt M22x50 | GB5782-86 | GB5782-86 | |
13 | 2 | Oil Seal 9.125 x 10.375" xO.625" | AH36001-03.08A | AH36001-03.08A |
14 | 2 | Bearing 4G32844H | AH36001-03.09 | AH36001-03.09 |
15 | 16 | Washer 22 | GB93-87 | GB93-87 |
16 | 24 | Washer 12 | GB93-87 | GB93-87 |
17 | 1 | Flange | AH36001-03.il | AH36001-03.il |
18 | 3 | Bolt M16x45 | GB5783-86 | GB5783-86 |
19 | 3 | Washer 16 | GB93-87 |
ITEM No. | QTY. | DESCRIPTION | PART No. | |
1 | 1 | Crosshead | AH36001-04.01A | |
2 | 1 | Crosshead Guide (Upper) | AH36001-04.02 | |
3 | 8 | Shim Set | AH36001-04.03A.00 | |
4 | 2 | Adjusting Shim | AH36001-04.04 | |
5 | 1 | Diaphragm Stuffing Box | AH360010-04.05 | |
6 | 1 | Sealing Ring | AH36001-04.21 | |
7 | 1 | O-Ring ① 190x3.55 | GB3452.1-82 | |
8 | 2 | Double Lip Oil Seal 5" x6.25〃 x 0.625” | AH36001-04.08A | |
9 | 1 | Lock Spring | AH36001-04.13 | |
10 | 1 | Fluid Baffle Back-Up Plate | AH36001-04.10 | |
11 | 1 | Crosshead Extension | AH36001-04.il | |
12 | 1 | Crosshead Pin | AH36001-04.12A | |
13 | 1 | O-Ring 0125x7 | GB3452.1.-82 | |
14 | 8 | Bolt M20x65 | T52-6005K | |
15 | 1 | Gasket | AH36001-04.15 | |
16 | 1 | O-Ring ① 160x7 | GB3452.1-82 | |
17 | 1 | Crosshead Guide (Lower) | AH36001-04.17 | |
18 | 1 | Crosshead Pin Retainer | AH36001-04.18 | |
19 | 1 | Crosshead Bearing | AH36001-04.19 | |
20 | 2 | Male Connector NPT3/8 " x2 | AH33001-04.07 | |
21 | 2 | Bolt M24x60 | T52-7008K | |
22 | 6 | Bolt M24x70 | T52-7009K | |
23 | 8 | Locking Plate | AH33001-04.13A | |
24 | 4 | BoltM10x25 | GB5780-86 | |
25 | 8 | Bolt M24x65 | GB70-85 | |
26 | 4 | Washer 10 | GB93-87 | |
27 | Lock Wire ① 1.6 | GB4240-84 | ||
30 | 25ml | Loctite ( Lock + Tight) | 243 |
ITE M No. | QTY | DESCRIPTION | PART No. | |
1 | 3 | Fluid End Studded Assy. | AH36001-05.01A.00 | |
2 | 3 | Thread Ring | AH36001-05.02 | |
3 | 3 | Cylinder Cover | AH36001-05.03 | |
4 | 3 | Flashboard Assy. | AH36001-05A.04.00 | |
5 | 3 | Valve Guide ( Lower ) | AH36001-05A.05.00 | |
6 | 3 | Cylinder Head | AH36001-05A.06.00 | |
7 | 3 | Alignment Ring | AH36001-05A.07 | |
8 | 3 | Cylinder Head Seal | AH36001-05.08 | |
9 | 1 | Discharge Manifold | AH36001-05.09 | |
10 | 6 | Valve Spring | AH33001-05.16A | |
11 | 3 | O-Ring ① 95x5.3 | GB3452.1-82 | |
12 | 6 | Valve Assy. | AH36001-05.12A.00 | |
13 | 3 | Valve Cover Seal | AH36001-05.13 | |
14 | 3 | Valve Cover | AH36001-05.14A | |
15 | 3 | Liner Seal | AH36001-05.15 | |
16 | 3 | Wear Plate | AH36001-05.16A | |
17 | 3 | Liner Flange | AH36001-05.17 | |
18 | 3 | Liner Lock | AH36001-05.18.00 | |
19 | 3 | Piston Rod | AH36001-05.19A | |
20 | 1 | Spray Pipe Assy. | AH36001-05.20A.00 | |
21 | 3 | O-Ring 0200x7 | GB3452.1-82 | |
22 | 3 | Liner Locking Ring | AH36001-05.22 | |
23 | 3 | Liner | AH36001-05.23A.00 | |
24 | 3 | Piston Rod Clamp | AH36001-05.24.00 | |
27 | 3 | Liner End Cover | AH36001-05.27 | |
28 | 3 | Piston | AH36001-05.28.00 | |
29 | 18 | BoltM22x65 | GB5782-86 | |
32 | 1 | Suction Manifold | AH36001-05.32A.00 | |
33 | 4 | Shim Set | AH36001-05..33A.00 | |
35 | 3 | Valve Guide (Upper) | AH33001-05.12 | |
36 | 16 | Bolt M39x270 | T53-1003 | |
37 | 44 | Nut M39x8 | T57-2011 | |
38 | 3 | Retainer | AH33001-05.14 | |
39 | 12 | Bolt M10x20 | AH33001-05.15A | |
40 | 3 | Piston Seal | AH33001-05.20A | |
41 | 3 | Piston Nut | T57-3005.0 | |
42 | 3 | O-Ring® 185x7 | GB3452.1-82 | |
43 | 1 | Suction Damper | AH33001-05.35A.00 | |
44 | 3 | O-Ring 0 345x7 | GB3452.1-82 | |
45 | 1 | Suction Flange (I) | AH33001-05.39 |
46 | 1 | Suction Flange (II) | AH33001-05.40 | |
47 | 36 | NutM27 | 8841-86 | |
48 | 24 | Bolt M27x90 | GB5780-86 | |
49 | 1 | Stainless Wire ① 1.6x1830 | GB4240-84 | |
51 | 1 | Screw Plug NPT 1-1/2 | T56-1007 | |
52 | 12 | Stud M39x563 | AH36001-05.35B | |
53 | 190ml | Locitite 243 | 243 | |
54 | 1 | Suction Hole Baffle | T55-1006 | |
55 | 1 | Discharge Hole Baffle | T55-1008 | |
56 | 30 | Washer 39 | AH36001-05.39 | |
57 | 12 | Bolt M27x80 | GB5780-86 |
ITEM No. | QTY. | DESCRIPTION | PART No. | ||
F-1300 | F-1600 | ||||
1 | 1 | Frame Assembly | AH36001-01.00D | AH3600-01.00D | |
2 | Crank Shaft | AH36001-02.00 | AH37001-01.00 | ||
3 | 1 | Pinion Shaft | AH36001-03.00 | AH37001-02.00 | |
4 | 3 | Crosshead Assembly | AH36001-04.00 | AH36001-04.00 | |
5 | 1 | Fluid End Assembly | AH36001-05A.00 | AH36001-05A.00 | |
6 | Lubrication Assembly | AH36001-06C.00 | AH36001-06C.00 | ||
7 | 1 | Skid | AH36001-07K.00 | AH36001-07K.00 | |
8 | 1 | Piston &Liner | AH36001-08C.00 | AH36001-08C.00 | |
9 | Gasket ,Inspect Door | AH33001-09 | AH33001-09 | ||
10 | 1 | Breather Cap | T515-1001.00 | T515-1001.00 | |
11 | 2 | Bs Name Plate | AH36001-09A | AH37001-03A | |
12 | 1 | Crane | AH36001-10.00 | AH36001-10.00 | |
13 | Crane | AH36001-11A.00 | AH36001-11A.00 | ||
14 | 1 | Cover Plate | AH36001-12.00 | AH36001-12.00 | |
15 | Gasket | AH36001-13 | AH36001-13 | ||
16 | 14 | Bolt M12×25 | GB5780-86 | GB5780-86 | |
17 | 2 | Oil Level Indication | AH33001-17 | AH33001-17 | |
18 | 2 | Oil Leyer Indicator | AH33001-18.00 | AH33001-18.00 | |
21 | 2 | Clean Out Cover(IⅢ〉 | AH33001-22.00 | AH33001-22.00 | |
22 | 2 | Gasket | AH36001-19 | AH36001-19 | |
23 | 8 | Bolt M12×35 | GB5780-86 | GB5780-86 | |
24 | 2 | Crosshead Door | AH36001-15A | AH36001-15A | |
25 | 2 | Gasket | AH36001-16 | AH36001-16 | |
26 | 28 | Bolt M16×24 | GB5780-86 | GB5780-86 | |
27 | 14 | Washer 12 | GB848-85 | GB848-85 | |
28 | 6 | Rivet 3×10 | GB827-76 | GB827-76 | |
29 | 28 | Bolt M27×90 | GB5780-86 | GB5780-86 | |
30 | 8 | Nut M27 | GB41-86 | GB41-86 |
31 | 8 | Washer 27 | GB93-87 | GB93-87 |
33 | 22 | Washer 12 | GB848-85 | GB848-85 |
35 | 28 | Washer 16 | GB848-85 | GB848-85 |
36 | 4 | Bolt M16×60 | GB5780-86 | GB5780-86 |
37 | 6 | Nut M16 | GB41-86 | GB41-86 |
38 | 4 | Washer 16 | GB93-87 | GB93-87 |
39 | 8 | Bolt M24×110 | GB5780-86 | GB5780-86 |
40 | 8 | Nut M24 | GB41-86 | GB41-86 |
41 | 8 | Washer 24 | GB93-87 | GB93-87 |
42 | Rubber Bar | 40×10×5800 | ||
43 | 8 | Cap Screw M4×16 | GB818-85 | GB818-85 |
44 | Double Scale | Yk-150ZG11/2” | Yk-150ZG11/2" | |
45 | Discharge Elbow | AH36003-11.00 | AH36003-11.00 | |
46 | Screw Plug ZG11/2 | Q/ZB286.6 | Q/ZB286.6 | |
47 | 3 | Ring Gasket R44 | T58-5002 | T58-5002 |
48 | Discharge Strainer | AH33014-04.00 | AH33014-04.00 | |
49 | Flange | T58-1002 | T58-1002 | |
50 | Tool | AH36001-17.00 | AH36001-17.00 | |
51 | KB-75 Pulsation | AAH33002-00A | AAH33002-00A | |
52 | JA-3shear Relief | AH33003-00 | AH33003-00 | |
53 | Spare Parts | AH36001-18.00 | AH36001-18.00 | |
55 | 1 | Cover Assy. | AH36001-21B.00 | AH36001-21B.00 |
57 | 10ml | Glue for Screw Lock | 243 | 243 |
58 | Adjusting Shim | AH36001-23 | AH36001-23 |
ITE M No. | QTY | DESCRIPTION | PART No. | ||
F-1300 | F-1600 | ||||
2 | Main Bearing Cover | AH36001-02.01C.00 | AH37001-01.01C.00 | ||
2 | Bearing Carrier Right | AH36001-02.02 | AH37001-01.02 | ||
3 | 2 | Gasket Main Bearing Cover | AH36001-02.03 | AH36001-02.03 | |
4 | 2 | Inner Race Retainer | AH36001-02.04 | AH36001-02.04 | |
5 | 3 | Outer Race Retainer | AH36001-02.05 | AH37001-01.03 | |
6 | 3 | Eccentric Strap | AH36001-02.06 | AH37001-01.04 | |
7 | 1 | Inner Race Retainer (I) | AH36001-02.07 | AH36001-02.07 | |
8 | 1 | Crankshaft | AH36001-02.08A.00 | AH36001-02.08A.00 | |
9 | 1 | Inner Race Retainer(II) | AH36001-02.09 | AH36001-02.09 | |
10 | 1 | Eccentric Ring Gear | AH36001-02.10D.00 | AH37001-01.05D.00 | |
11 | 12 | Capscrew M39× 3-6g×14C | T52-3007 | T52-3007 | |
12 | 2 | Spacer,Main Bearing | AH36001-02.12 | AH36001-02.12 | |
13 | 1 | Bearing Carrier (Left) | AH36001-02.13 | AH3701-01.06 | |
14 | 2 | Outer Race Retainer | AH36001-02.14 | AH37001-01.07 | |
15 | 2 | Inner Race Retainer | AH36001-02.15 | AH36001-02.15 | |
16 | 4 | Housing Bolt Main Bearing | AH36001-02.16C | AH36001-02.16C | |
17 | Shim Set | AH36001-02.17 | AH36001-02.17 | ||
18 | 2 | Capscrew M16×120 | T52-6006K | T52-6006K | |
19 | 12 | Lock Nut M39×3-6H | T57-3005.0 | T57-3005.0 | |
20 | 72 | Capscrew M16×40 | T57-7003K | T57-7003K |
21 | 28 | Capscrew M16×45 | GB5780-86 | GB5780-86 |
22 | 3 | Eccentric Bearing | AH36001-02.19.00 | AH37001-01.08.00 |
23 | 2 | Bearing 3G3760HY | AH36001-02.20.00 | AH37001-01.09.00 |
24 | 28 | Washer 16 | GB848-85 | GB848-85 |
25 | 40m | Lock Wireφ1.5 | GB343-82 | GB343-82 |
26 | 3m | Lock Wire φ1.5 | GB343-82 | GB343-82 |
27 | 90ml | Loctite | 243 | 243 |
28 | 2 | Capscrew M16×100 | T52-6004K | T52-6004K |
ITE M No. | QTY. | DESCRIPTION | PART No. | ||
F-1300 | F-1600 | ||||
1 | Key 2"×2”×113/8" | AH36001-03.01 | AH36001-03.01 | ||
2 | Pinion Shaft | AH36001-03.02 | AH36001-02.01A | ||
3 | 2 | Oil Seal Wear Ring | AH36001-03.03 | AH36001-03.03 | |
4 | 2 | Carrier | AH36001-03.04 | AH36001-03.04 | |
5 | 2 | Gasket | AH36001-03.05 | AH36001-03.05 | |
6 | 2 | Gasket | AH36001-03.06 | AH36001-03.06 | |
7 | 2 | Bearing Carrier | AH36001-03.07A | AH36001-03.07A | |
8 | 2 | Baffle | AH36001-03.10 | AH36001-03.10 | |
9 | 2 | Gaskel | AH36001-03.12 | AH36001-03.12 | |
10 | 2 | Oil Collecting Box | AH36001-03.13.00 | AH36001-03.13.00 | |
11 | 24 | Bolt M12×35 | GB5782-86 | GB5782-86 | |
12 | 16 | Bolt M22×50 | GB5782-86 | GB5782-86 | |
13 | 2 | Oil Seal 9.125” ×10.375”×0.625” | AH36001-03.08A | AH36001-03.08A |
14 | 2 | Bearing 4G32844H | AH36001-03.09 | AH36001-03.09 |
15 | 16 | Washer 22 | GB93-87 | GB93-87 |
16 | 24 | Washer 12 | GB93-87 | GB93-87 |
17 | 1 | Flange | AH36001-03.11 | AH36001-03.11 |
18 | 3 | Bolt M16×45 | GB5783-86 | GB5783-86 |
19 | 3 | Washer 16 | GB93-87 |
Похожие товары

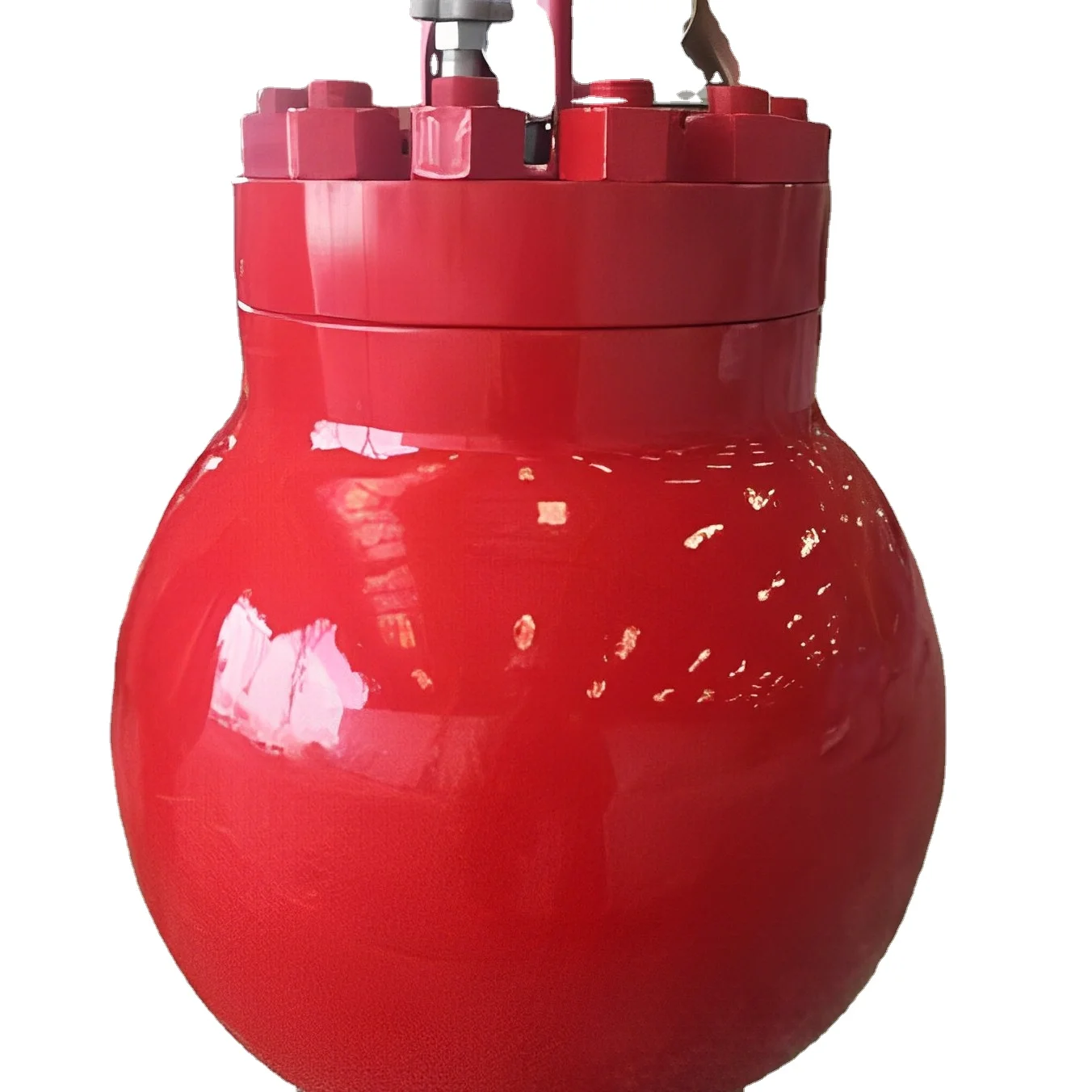

Гидравлический пульсационный демпфер для нефтепромыслового насоса
6 544,73 ₽ - 7 654,00 ₽
Высококачественные компоненты бурового насоса для демпфера пульсации
10 870,90 ₽ - 11 092,75 ₽
Буровой насос из хромированной стали
5 546,38 ₽

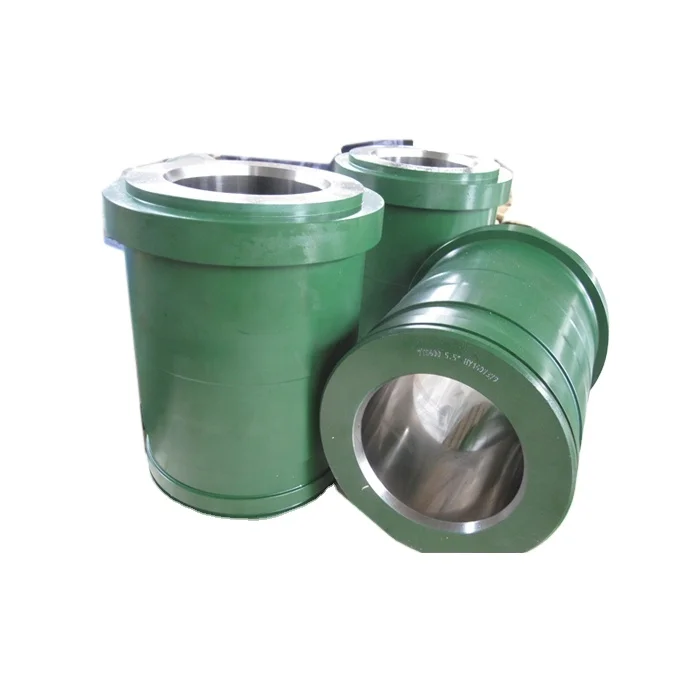

F500 F800 F1000 F1600 вкладыши бурового насоса bi-metal вкладыш
31 059,70 ₽ - 32 168,98 ₽
OEM Сменные P/N:0-7502-0841-00 FD-1600 бурового насоса запасные части масляного уплотнения прокладка для буровой установки
482,54 ₽ - 504,73 ₽

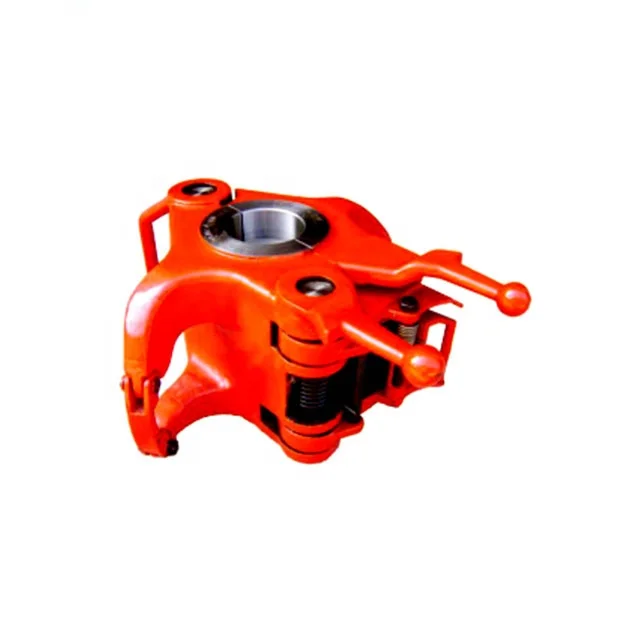

Лифт для бурильной трубы типа API 8C CDZ месторождения нефти
61 637,47 ₽

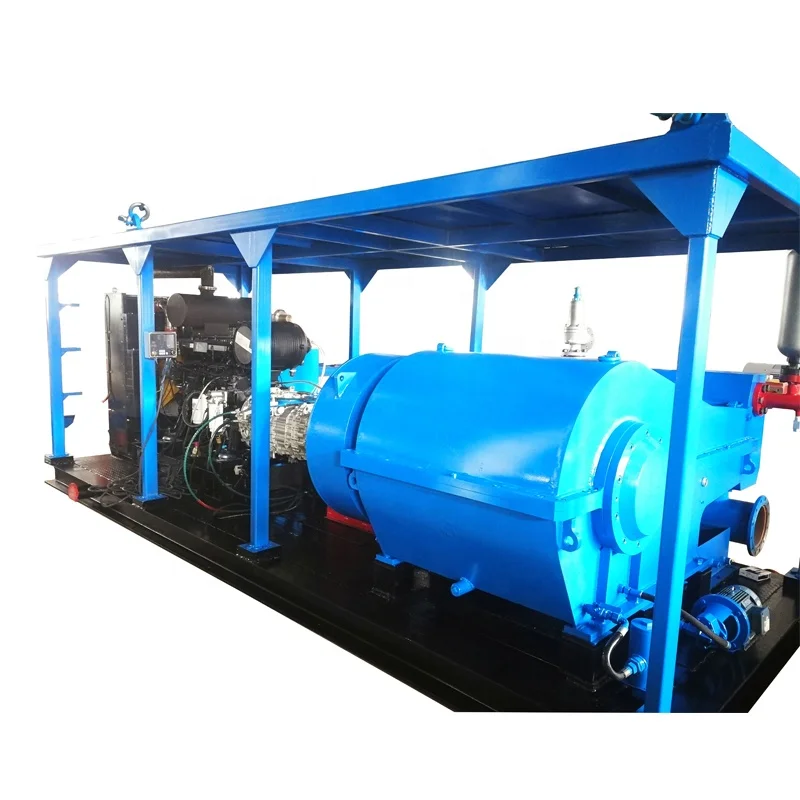

Высококачественный горизонтальный направленный буровой насос Trenchless
6 322 867,50 ₽ - 6 655 650,00 ₽
Новые поступления
Новинки товаров от производителей по оптовым ценам
Светлая Золотая морская солнечная энергия ландшафтное украшение постмодерн минималистский стиль чистая ручная роспись маслом 24x3 1 дюйм/60x80
35-53 $
Европейские антикварные простой Последние двойной металлической кровати
Автоматизированная складская система автоматического хранения в Гуанчжоу Eyda с эффективными стеллажами и
10 000-35 000 $
Декоративный чехол для PS5 Сменный Чехол консоли пластины Playstation5 пылезащитный с защитой от царапин
7,50-7,70 $
Лучшее качество детские подгузники для сухих подгузников новорожденных размер 2 4 и большие доставка или
3 $
Выключатель для формованного корпуса Schneider NSX100N 50KA AC 3P3D 25A TMD новая модель C10N3TM025
Буф2-.. М .. Краны
Оптовая продажа высококачественный сублимированный клубничный порошок Заводская поставка
5,50-6,40 $
