Полностью автоматическая машина для наполнения и запечатывания суппозиторий суппозитория большой емкости
- Категория: >>>
- Поставщик: Sino Pharmaceutical Equipment Development (Liaoyang) Co. Ltd.
Сохранить в закладки 1601026994373:
Описание и отзывы
Характеристики

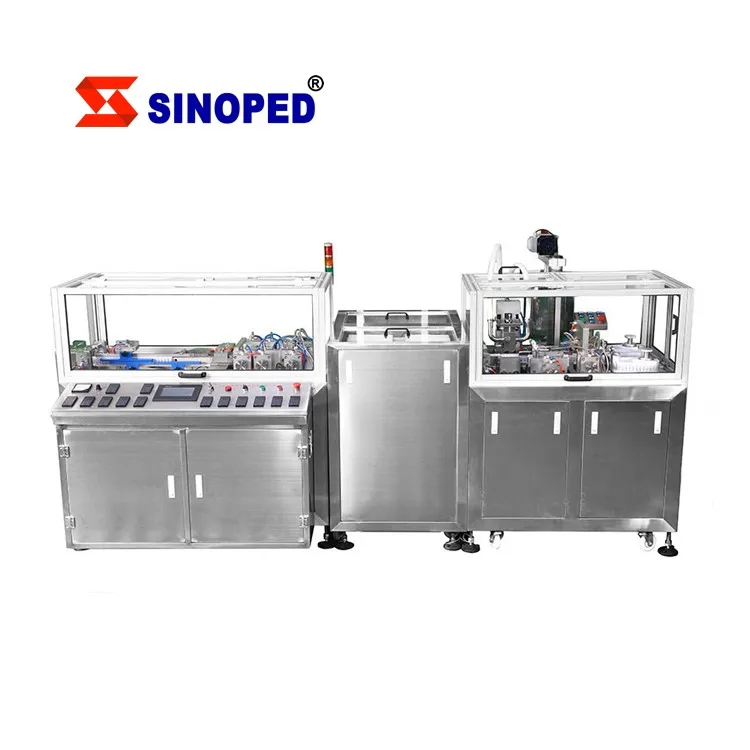

{SINOPED} High Effective Automatic Suppository Line Filling Sealing Machine
Product Description
Suppository Filling Machine
Function Description
Full-automatic Suppository Production Line is suitable for the production of special shape such as bullet head, oval and duck bill, to meet the production of your suppository. (according to the specifications of your specifications).
Sample
Specification
Commodity | Full automatic suppository production line | Model | SN-Z-2K |
Output | 5,000—6,000 pcs/h | single dosage | 0.5—5g |
Dosage allowed | ＜±2% | Packaging Film | PVC\\PE (thickness0.15mm) |
Stirring tank capacity | 30L | Air pressure | ≥0.7Mpa |
Air consumption/min | 1.5m3 | Water consumption/h | 50kg (recycling) |
Working voltage | 3 phase 380V | total power | 5KW |
Adopt forming shapes | Bullet, duck shapes and other shapes | Machine Weight | 600KG |
Adapt Material | Synthetic fatty acid glycerol, glycerin gelatin, polyethylene glycol etc | Each distance of suppository | 17.4mm |
Working Principle:
1.Thermoforming:
The PVC/PE film into the forming area after preheating mold -- > forming mold blowing mold -- >blow film forming.
triangle knife cutting process and dotted line.
2. Filling:
6 filling heads, forming suppository for one-time embedded type filling, filling accuracy + / - 2%, material barrel has electric
heating insulation system, with stirring motor at the top to make the in a uniform state, material barrel pump into the by the high precision of filling head, filling a residual through the other end of the cycle to the raw material filling barrel again
next time.
3.Cooling:
into the cooling racks after the whole filled, external cooling box is equipped with water chiller, cooling air through the
cooling box of four condenser suppository of cooling rack to cool.
sealing and part code:
4.Sealing and Cutting:
After cooling of the solid suppository into the sealing area: preheating mold -- -- > the sealing mould -- - > code mold. And then to shear a set of finished product for 5 and 6 grain (be) according to customer's requirements.
1.Thermoforming:
The PVC/PE film into the forming area after preheating mold -- > forming mold blowing mold -- >blow film forming.
triangle knife cutting process and dotted line.
2. Filling:
6 filling heads, forming suppository for one-time embedded type filling, filling accuracy + / - 2%, material barrel has electric
heating insulation system, with stirring motor at the top to make the in a uniform state, material barrel pump into the by the high precision of filling head, filling a residual through the other end of the cycle to the raw material filling barrel again
next time.
3.Cooling:
into the cooling racks after the whole filled, external cooling box is equipped with water chiller, cooling air through the
cooling box of four condenser suppository of cooling rack to cool.
sealing and part code:
4.Sealing and Cutting:
After cooling of the solid suppository into the sealing area: preheating mold -- -- > the sealing mould -- - > code mold. And then to shear a set of finished product for 5 and 6 grain (be) according to customer's requirements.

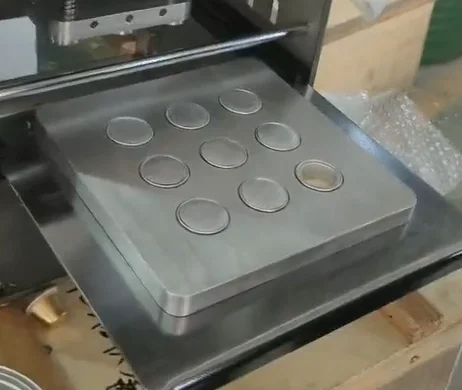

Suppository Shapes
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
SINOPED is a professional machine manufacturer and supplier machinery and equipment in China,We belong to SINOPED International Group. We have a well-experienced team to manufacture machinery and equipments and a professional design institute.Due to our good credit and service,we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. In SINOPED you can get your desired goods with the best prices and good quality. Welcome your inquiries from all over the world.
FAQ
Q1. Are you really a manufacturer? Where is your factory? How can I visit your factory?
Yes, we are a source manufacturer with headquarter located in Liaoning province China. Sinoped dates from 1947. We are Warmly Welcome You to Visit Our Factory if You Have a Travel Plan.
Q2. Why choose your company?
With more than 70 years of precipitation, Sinoped has experienced technology,production, quality inspection, sales and after-sales departments. Every client has his own service team in our company and according to the different needs of clients, we develop different programs to provide customers with the best quality equipment.
Moreover, we have exhibition halls and distributors in many overseas countries, which can ensure our service quality.
Q3. How can I trust you for the first-time business?
Please note our business license and certificates above. if you still worry about our company, we suggest using Alibaba trade assurance service for all transactions to protect your money and ensure our service for you.
Q4. How about the after-sale service and guarantee period?
1.18-month warranty period for whole machine except for human factors etc. and 18 months’ after-sale service starts from the date when you receive machine or 18 months when installation finished.
2.Consultation services for whole machine life, and 24 hours technical support by email or video on line.
3.English software, user manual and the installation & debugging by our experienced technicians.
Q5. If we have very special request on the production line, could you help me to do the design?
Customized design is provided.
Q6. How does the machine fit our voltage? How can I know your machine is designed for my product?
1. For each equipment, our sales team will confirm the voltage with the customer.If you need standard machines and samples, we can buy samples for your product testing in China, provided we have prototype machines.
2. If you need non-standard machine and special sample, please communicate with our team, then pay the deposit first, we will customize the machine according to the sample, after the production, we will provide you with detailed operation video and equipment photos.
Q7. How can you ensure the machine's quality after we put the order?
Before delivery, we will produce the equipment according to the agreed requirements, and after production, we will provide
detailed installation videos, operation videos, operating instructions, testing documents, certification documents, etc.
Alternatively, we can arrange a third-party inspector to perform FAT, and we also support SAT.
Q2. Why choose your company?
With more than 70 years of precipitation, Sinoped has experienced technology,production, quality inspection, sales and after-sales departments. Every client has his own service team in our company and according to the different needs of clients, we develop different programs to provide customers with the best quality equipment.
Moreover, we have exhibition halls and distributors in many overseas countries, which can ensure our service quality.
Q3. How can I trust you for the first-time business?
Please note our business license and certificates above. if you still worry about our company, we suggest using Alibaba trade assurance service for all transactions to protect your money and ensure our service for you.
Q4. How about the after-sale service and guarantee period?
1.18-month warranty period for whole machine except for human factors etc. and 18 months’ after-sale service starts from the date when you receive machine or 18 months when installation finished.
2.Consultation services for whole machine life, and 24 hours technical support by email or video on line.
3.English software, user manual and the installation & debugging by our experienced technicians.
Q5. If we have very special request on the production line, could you help me to do the design?
Customized design is provided.
Q6. How does the machine fit our voltage? How can I know your machine is designed for my product?
1. For each equipment, our sales team will confirm the voltage with the customer.If you need standard machines and samples, we can buy samples for your product testing in China, provided we have prototype machines.
2. If you need non-standard machine and special sample, please communicate with our team, then pay the deposit first, we will customize the machine according to the sample, after the production, we will provide you with detailed operation video and equipment photos.
Q7. How can you ensure the machine's quality after we put the order?
Before delivery, we will produce the equipment according to the agreed requirements, and after production, we will provide
detailed installation videos, operation videos, operating instructions, testing documents, certification documents, etc.
Alternatively, we can arrange a third-party inspector to perform FAT, and we also support SAT.
