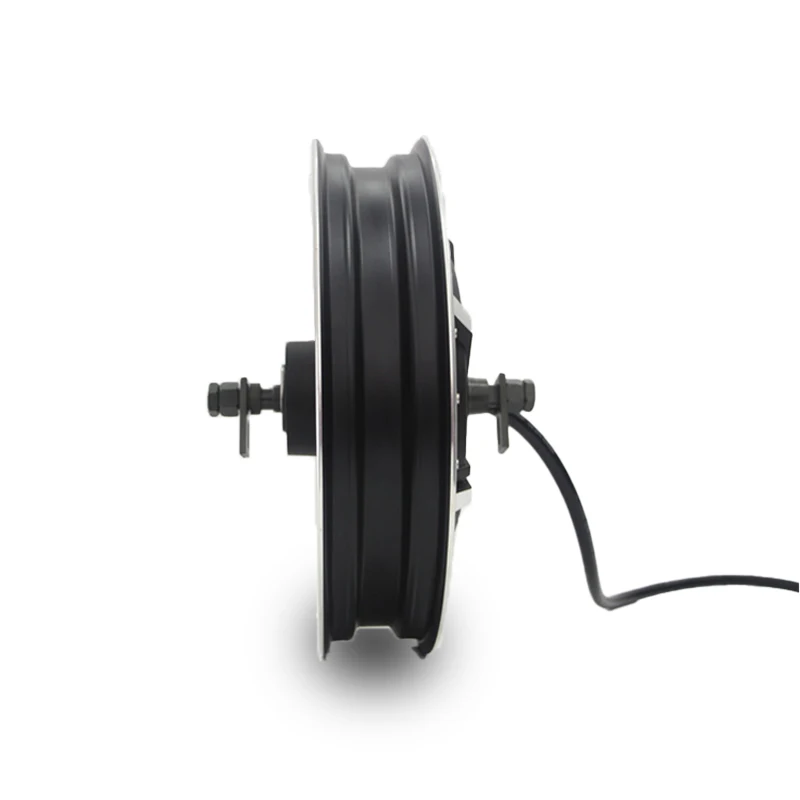

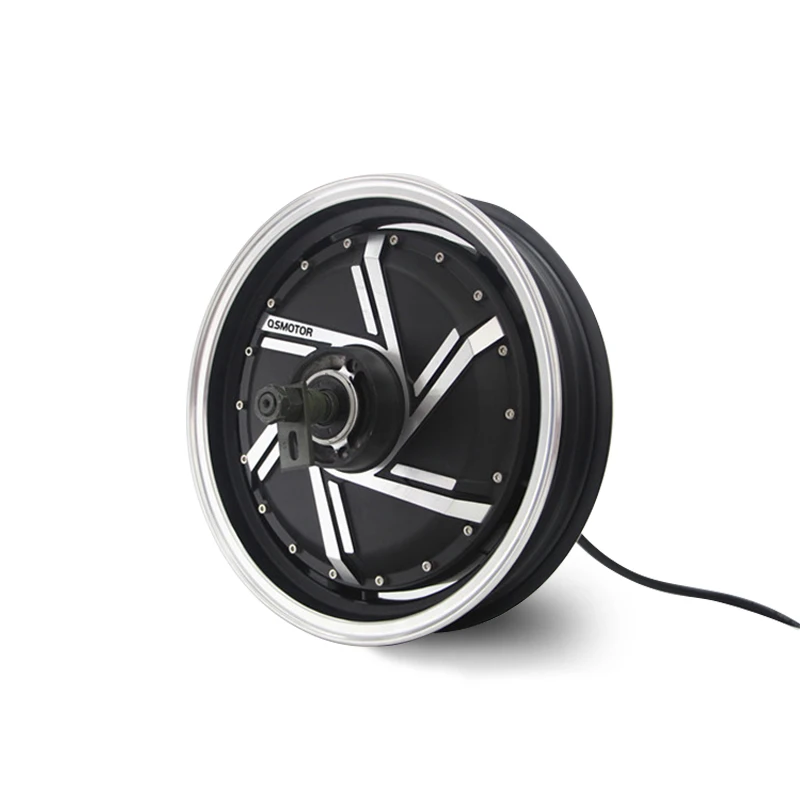

QS 273 14 дюймов 5000 Вт (45 ч) V2 E Scooter бесщеточный двигатель постоянного тока для электрического мотоцикла
- Категория: >>>
- Поставщик: Jiaxing Wat Technology Co. Ltd.
Сохранить в закладки 1601027078093:
Описание и отзывы
Характеристики
Product Description
Specification
item | value |
Voltage | 72V |
Design | Brushless |
Style | Two rounds |
Place of Origin | China |
Zhejiang | |
Model Number | QS273 |
Brand Name | QSMOTOR |
Application | Electric Scooter |
Color | Black |
Magnet height | 45H |
Certification | CE |
Motor Specification:
1.Motor Type: BLDC Hub Motor with Permanent Magnets
2.Motor design: Double axle out with 14inch Aluminium rim
3.Rim size:2.75x14, 2.15x14
4.Matching Tire: 110/80-14,90/90-14
5.Magnet Height: 45MM
6.No. of Pole Pairs: 28 pairs
7.Rated Power: 5000W
8.Max Power:7576W(Peak 10000W)
9.Rated Voltage: 72V( 60V-144V Can be optional)
10.Speed: 100km/h (30-100km/h can be customized)
11.Max No-load RPM:1243RPM
12.Max Torque: 200N.M
13.Max Efficiency: 88%
14.Continious current:81A
15.Max current:118A ,Peak 170A
16.Brake type: Disc brake
17.Rear Fock width for installation: 200mm
18.Winding Core material: Aluminium
19.Cross Section of Phase wire: 16 mm2
20.Hall sensor phasing angle: 120 degree
21.Temperature Sensor: Optional
22.Max. Working Temperature: 70 degree, Peak 120 degree
2.Motor design: Double axle out with 14inch Aluminium rim
3.Rim size:2.75x14, 2.15x14
4.Matching Tire: 110/80-14,90/90-14
5.Magnet Height: 45MM
6.No. of Pole Pairs: 28 pairs
7.Rated Power: 5000W
8.Max Power:7576W(Peak 10000W)
9.Rated Voltage: 72V( 60V-144V Can be optional)
10.Speed: 100km/h (30-100km/h can be customized)
11.Max No-load RPM:1243RPM
12.Max Torque: 200N.M
13.Max Efficiency: 88%
14.Continious current:81A
15.Max current:118A ,Peak 170A
16.Brake type: Disc brake
17.Rear Fock width for installation: 200mm
18.Winding Core material: Aluminium
19.Cross Section of Phase wire: 16 mm2
20.Hall sensor phasing angle: 120 degree
21.Temperature Sensor: Optional
22.Max. Working Temperature: 70 degree, Peak 120 degree
Packing & Delivery
Foam and Carton package
Company Profile
We are specialized in manufacturing and sales of High level quality and performance Brush-less Hub motor,Controller and other spare parts for electric bike,electric scooters or electric motorcycles.
Our product lines as follows,
In-Wheel Hub Motor for electric vehicles
Mid-drive Motor
Motor Controller
Extensive selection of other Electric bike parts
We have a specialist knowledge sales and after service team to provide professional electric bike assemble and converting solution. We have the factory with many years production and research experience in the hub motor and controller field and ensure the hub motor and controller with high performance and quality.
Our products are widely exported to South America, Europe and Asia.etc.
Our mission is to promote for your green driving life!
Our product lines as follows,
In-Wheel Hub Motor for electric vehicles
Mid-drive Motor
Motor Controller
Extensive selection of other Electric bike parts
We have a specialist knowledge sales and after service team to provide professional electric bike assemble and converting solution. We have the factory with many years production and research experience in the hub motor and controller field and ensure the hub motor and controller with high performance and quality.
Our products are widely exported to South America, Europe and Asia.etc.
Our mission is to promote for your green driving life!
FAQ
Q1: . Why us?
As a professional supplier of electric drive and control systems, we can provide you with professional and high-quality electric
vehicle drive solutions and electric vehicle accessory products.
Q2.What can you buy from us?
Electric Hub Motor and PMSM Motor
Electric Control system
Complete Power-train Solution
Battery
Other parts for EV
Q3. Can you provide any customs service?
Yes, we accept the customs items and ODM
Q4. How long is your production time?
Some of general motor and controller model ready in stock,any special models production time about 12-15days. Mass production time
usually in 25-30days
For any customs motors depends on the design and moulding time
Andy development of CAN-BUS,RS485 or other program on controllers about 15days
Q4: What is your Minimum Order Quantity?
M.O.Q from 1 pc
Q5: What about your warranty?
We provide generally 15 months for any motor and controller power kits.
If you have any confuse during use, just contact us for after-service
Any damage caused by the user's illegal use (Disassembly self without proof from seller, over loading, over current, over
voltage, wading, Refit, running off-road conditions, etc.) is not covered in the warranty.
As a professional supplier of electric drive and control systems, we can provide you with professional and high-quality electric
vehicle drive solutions and electric vehicle accessory products.
Q2.What can you buy from us?
Electric Hub Motor and PMSM Motor
Electric Control system
Complete Power-train Solution
Battery
Other parts for EV
Q3. Can you provide any customs service?
Yes, we accept the customs items and ODM
Q4. How long is your production time?
Some of general motor and controller model ready in stock,any special models production time about 12-15days. Mass production time
usually in 25-30days
For any customs motors depends on the design and moulding time
Andy development of CAN-BUS,RS485 or other program on controllers about 15days
Q4: What is your Minimum Order Quantity?
M.O.Q from 1 pc
Q5: What about your warranty?
We provide generally 15 months for any motor and controller power kits.
If you have any confuse during use, just contact us for after-service
Any damage caused by the user's illegal use (Disassembly self without proof from seller, over loading, over current, over
voltage, wading, Refit, running off-road conditions, etc.) is not covered in the warranty.
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Похожие товары

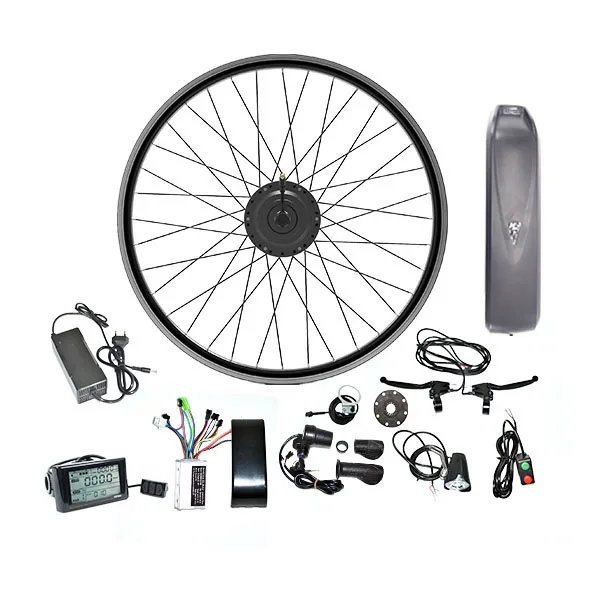

36 В 250 Вт 350 низкая цена электрический преобразователь e-цикл втулка мотора комплект для рынка Индии Пакистана
10 470,08 ₽ - 12 674,30 ₽

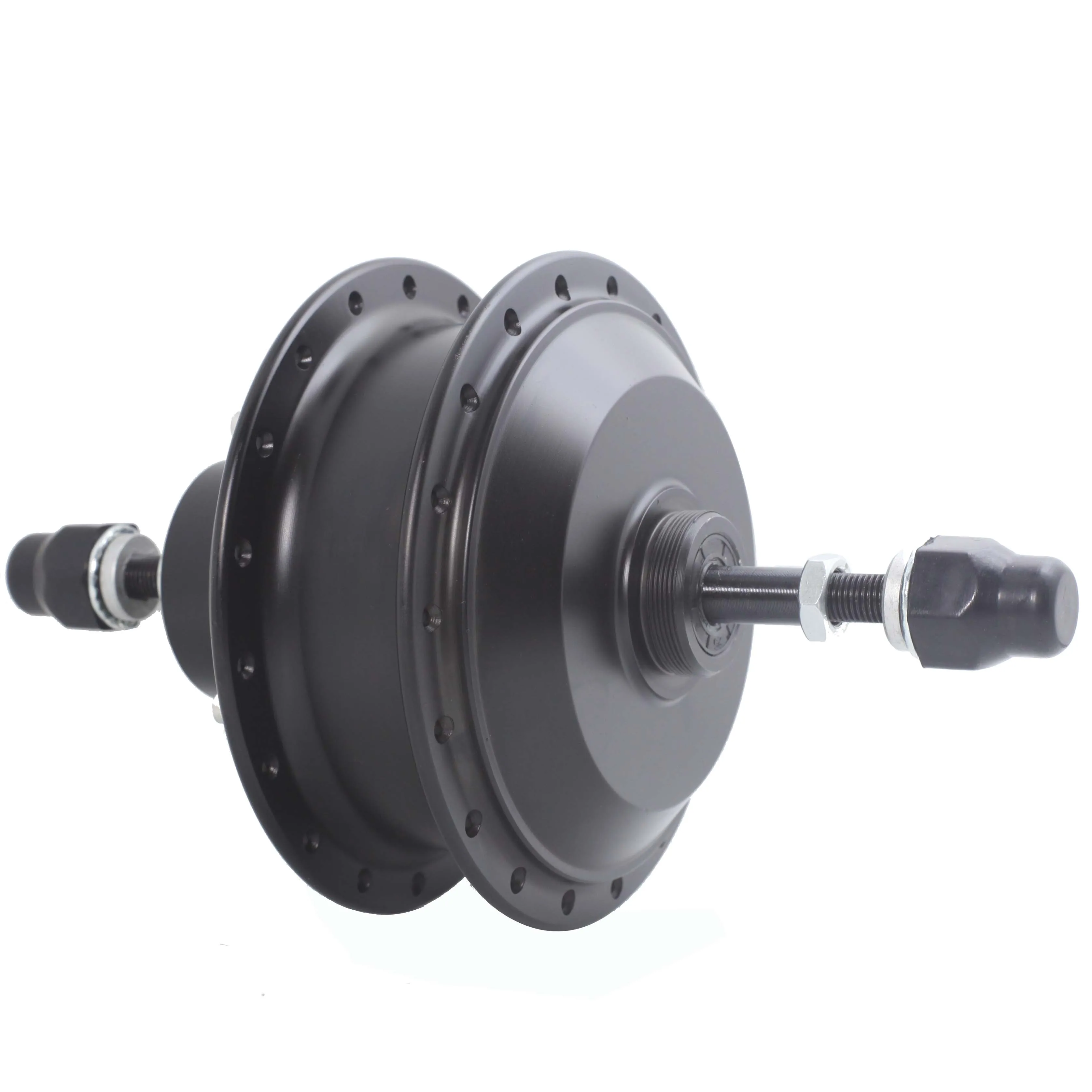

Электродвигатель для электровелосипеда 350 Вт
7 163,74 ₽ - 8 265,85 ₽

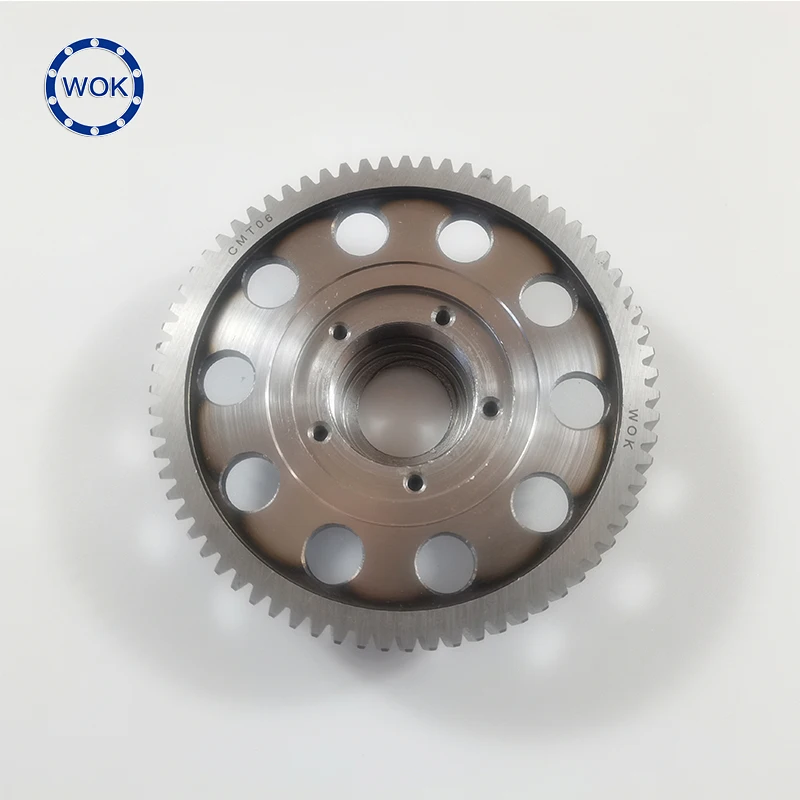

Высокое качество CMT06 шкив зубчатого ремня используется в промышленности мотора
2 204,23 ₽ - 2 755,29 ₽

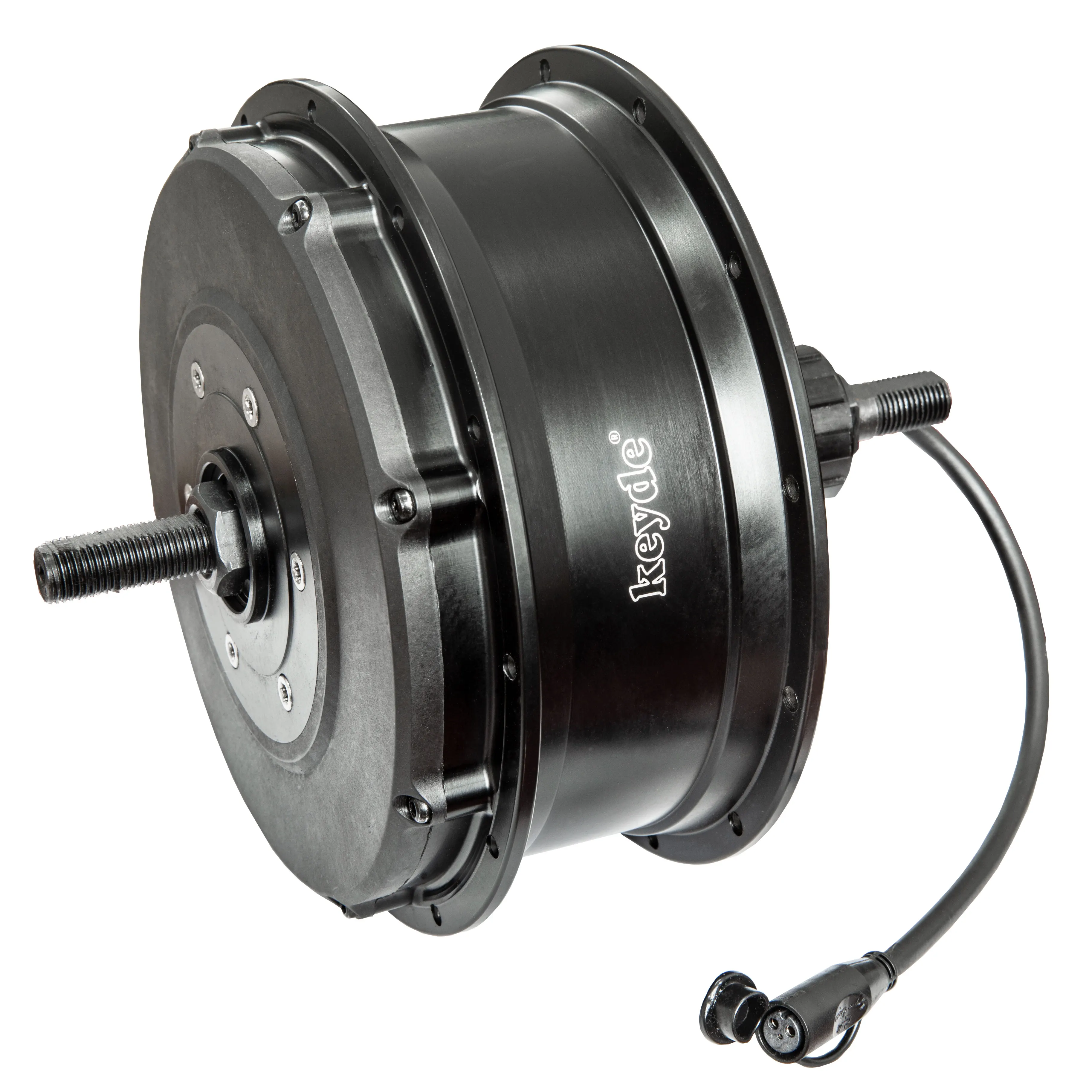

Keyde 30 В 250 Вт 400
39 565,86 ₽ - 43 974,31 ₽

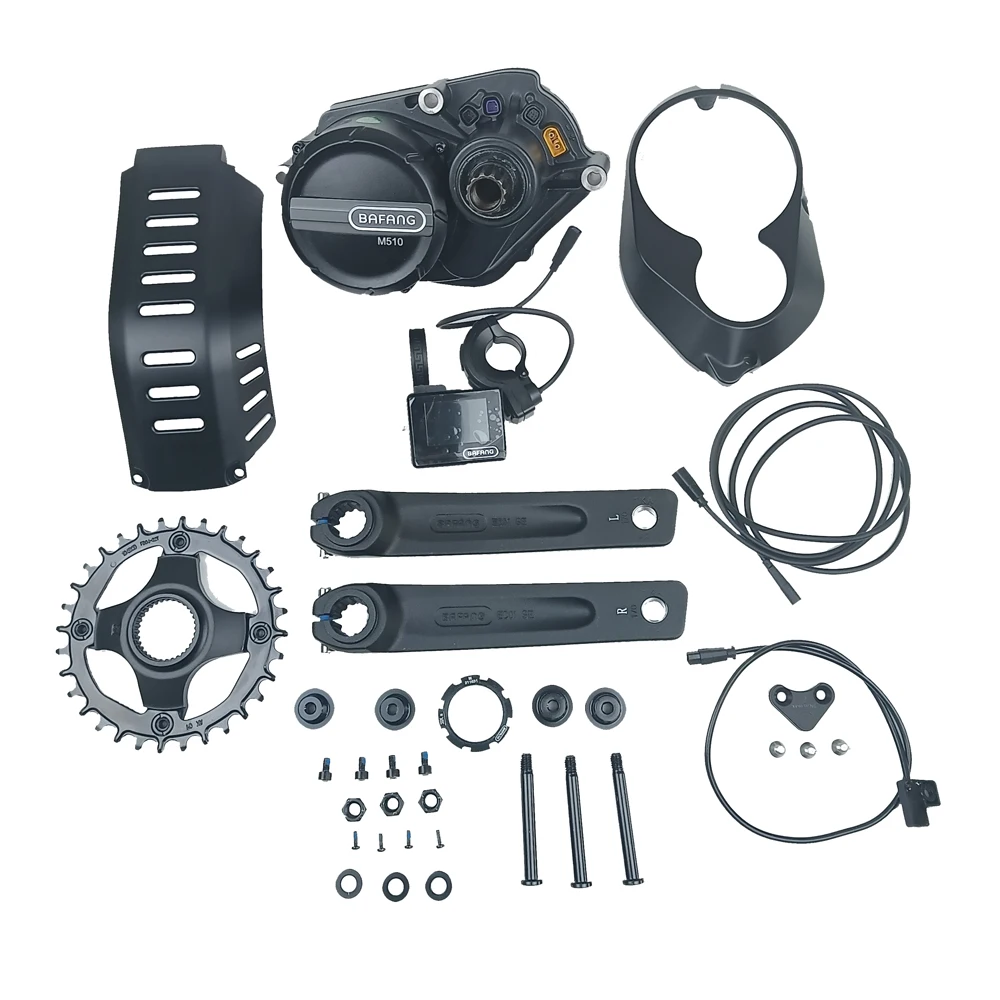

OUKA bafang новый тип M510 36v/43v/48v 250W mid drive комплект для преобразования электрического велосипеда с красочным дисплеем DPC245 BT
58 963,05 ₽ - 64 473,62 ₽
Кассета мотора bafang RM G0F2.1000.DC G0F0.1000.DC 52 в 1000 Вт передний обод заднее колесо 20 дюймов
20 389,10 ₽

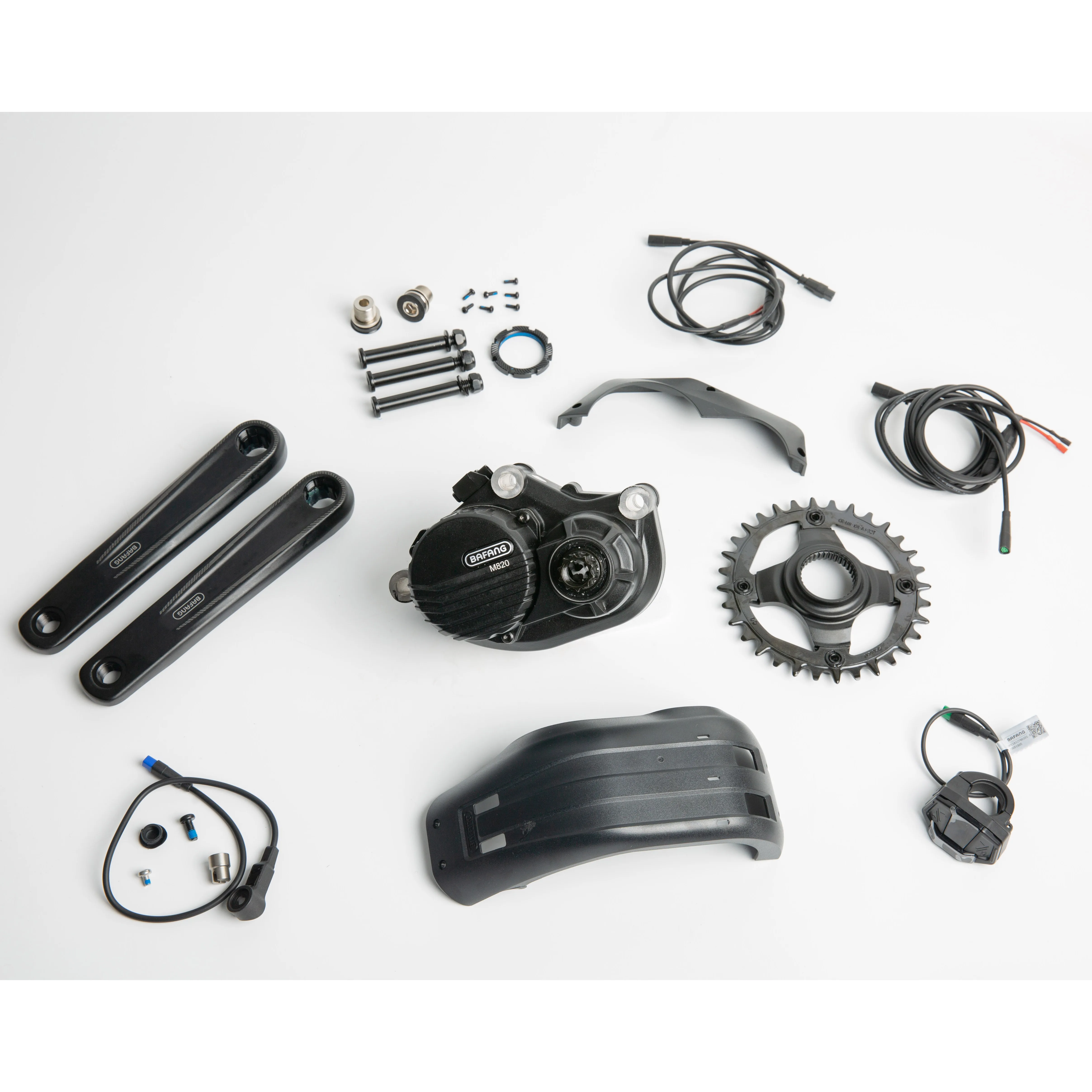

2023 BAFANG новейший мотор bafang M820 43 в 250 Вт мм G532.250.C комплекты двигателей среднего привода с Bluetooth дисплеем DPE181 и батареей
