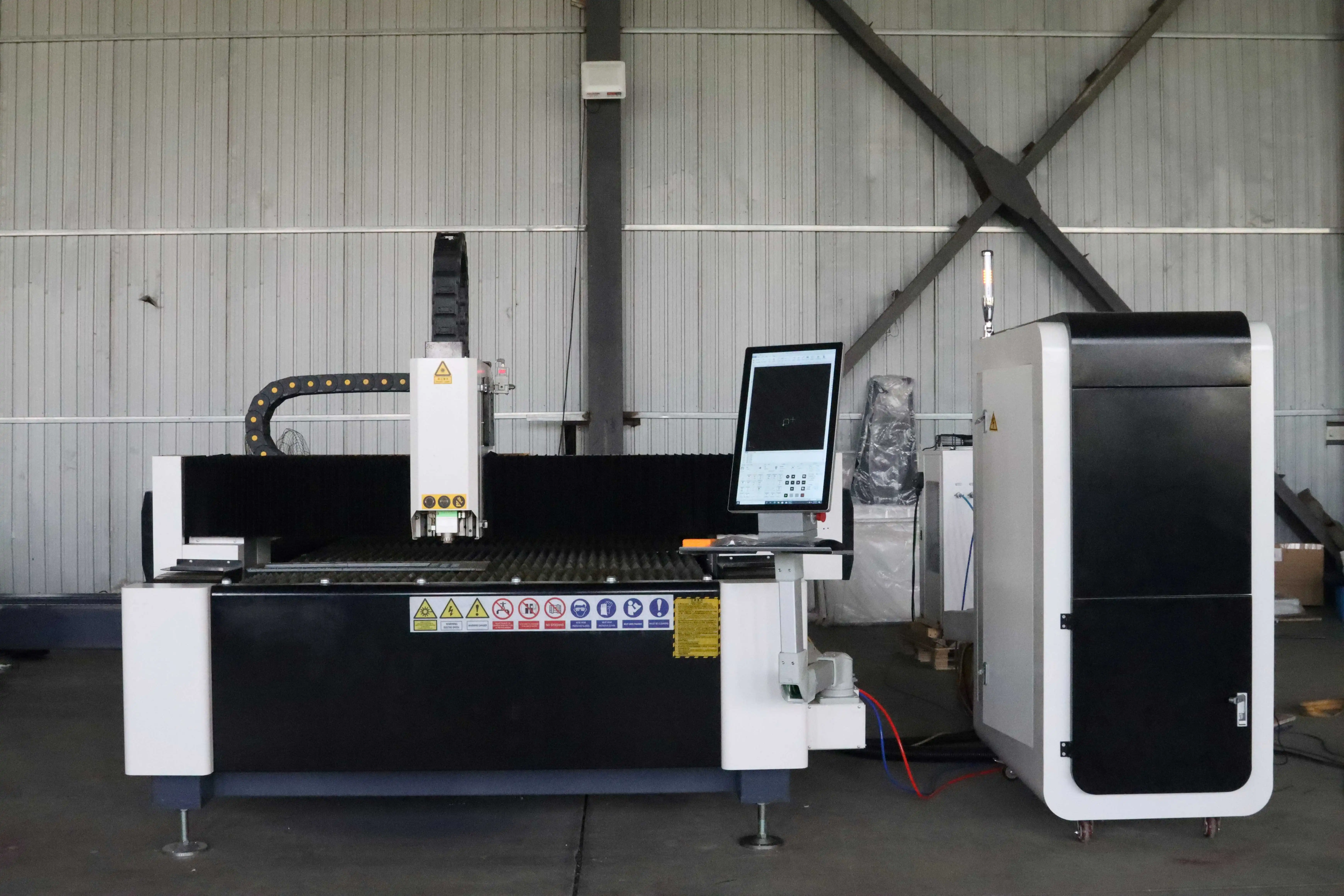

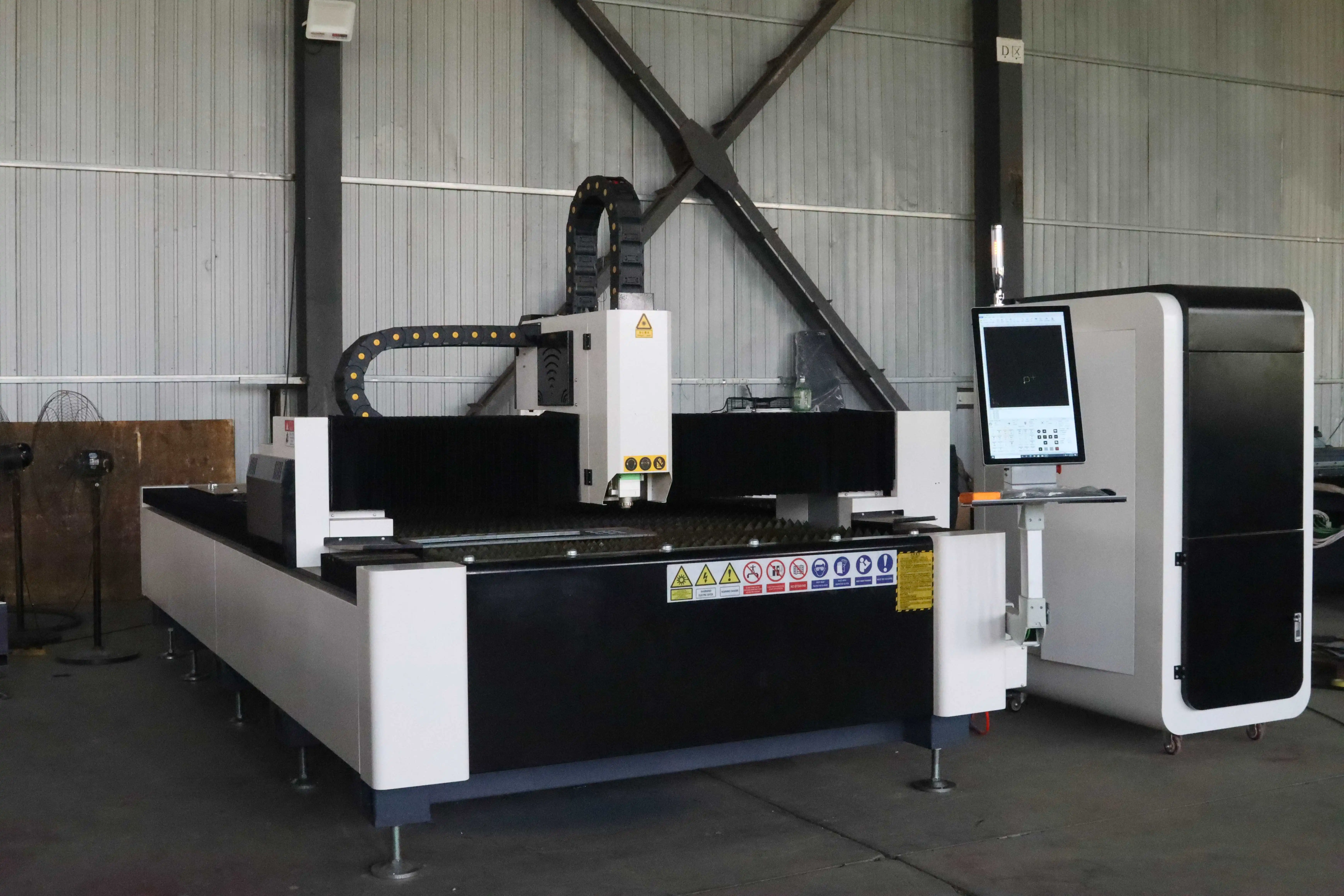

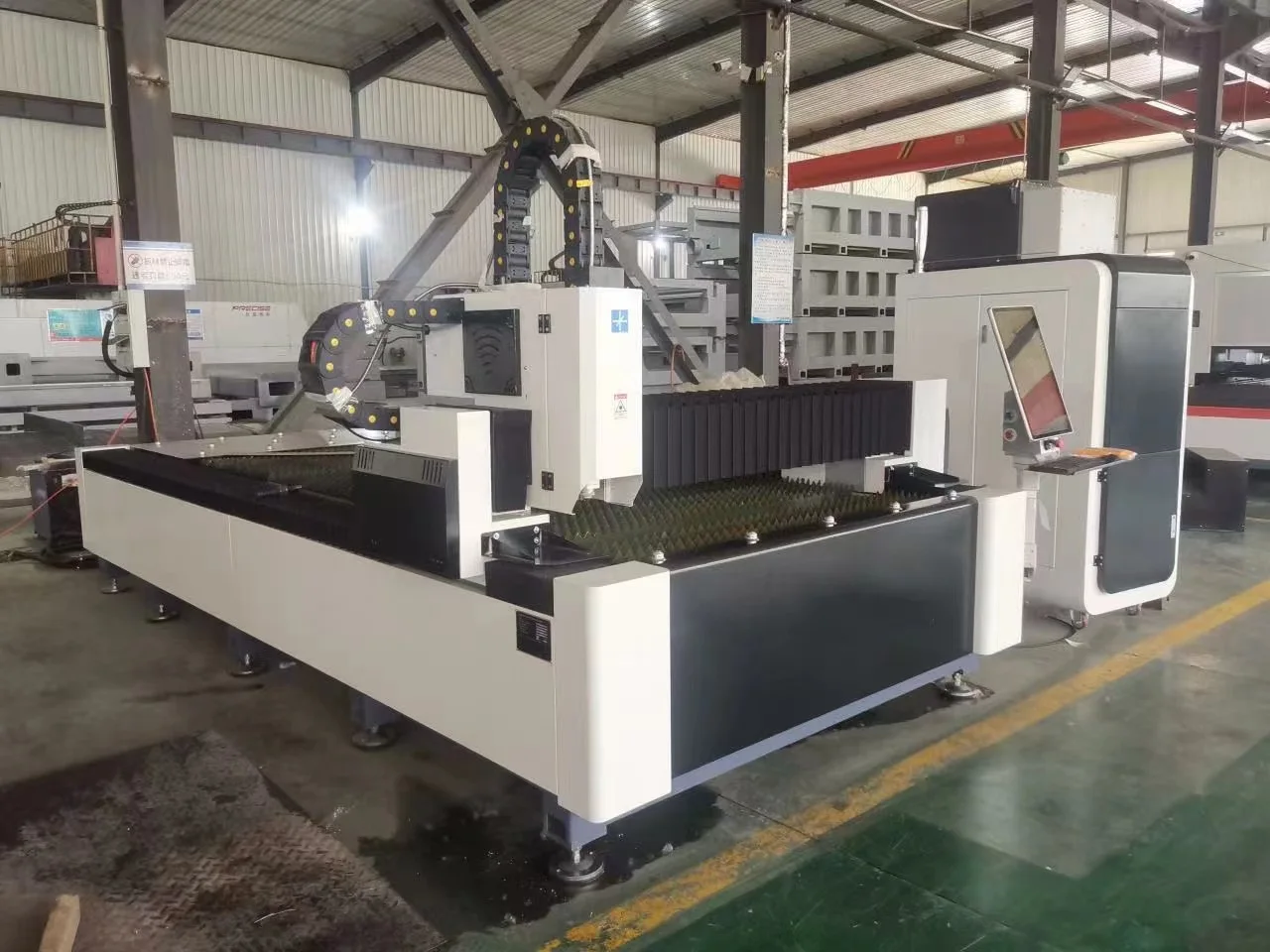

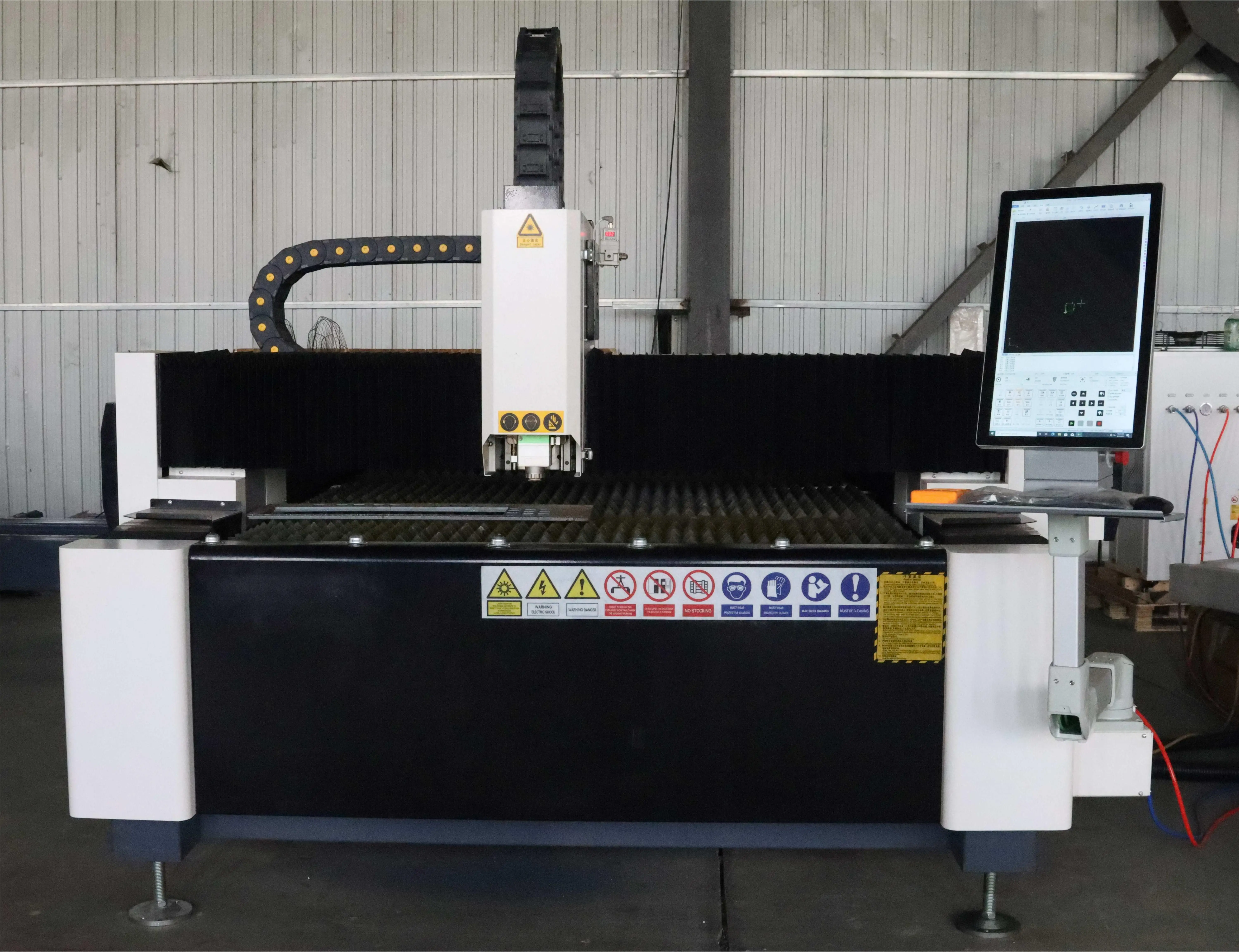

High Precision Fiber Laser 2000 watt 3000w Cutting Machine Single Table Lazer Cutter 3015 Laser Cutting Machine for Price
Features of 1325 fiber laser cutting machine:
1.Fiber laser cutting machine equipment can meet the needs of types of sheet metal parts production, except they are equipped with advanced fiber laser.
2.High-performance servo transmission equipment, imported gear rack and linear guide, also adopted aluminum alloy extrusion bar, gantry lathe bed ,to ensure that the equipment of high speed, extremely precision,.
3.Maximum simultaneous positioning speed : 160m/min.
4.Quick and easy installation.
5.Up to 300% faster cutting .
6.High wall plug efficiency (＞30%).
2.High-performance servo transmission equipment, imported gear rack and linear guide, also adopted aluminum alloy extrusion bar, gantry lathe bed ,to ensure that the equipment of high speed, extremely precision,.
3.Maximum simultaneous positioning speed : 160m/min.
4.Quick and easy installation.
5.Up to 300% faster cutting .
6.High wall plug efficiency (＞30%).
#1000W Raycus fiber laser generator
#Shanghai Cypcut control system
#Raytools cutting head
#Japan Yaskawa Servo motor and driver for X,Y axis
#Automatic following adjust focus system
#Serrate working platform table
#Location system:Red dot indicator
#Taiwan PMI ball screw
#Taiwan helical gears and racks
#Taiwan Hiwin square guide rail
#Hanli Industrial chiller
#MOTOVARIO reducer
#Shanghai Cypcut control system
#Raytools cutting head
#Japan Yaskawa Servo motor and driver for X,Y axis
#Automatic following adjust focus system
#Serrate working platform table
#Location system:Red dot indicator
#Taiwan PMI ball screw
#Taiwan helical gears and racks
#Taiwan Hiwin square guide rail
#Hanli Industrial chiller
#MOTOVARIO reducer
#Heavy-duty welded bed, cast aluminum beam
Machine specification | ||
Model & Name | APEX-1325 fiber laser cutting machine | |
Brand | APEXCNC | |
Working Area( X,Y axis travelling) | 1300mm*2500mm | |
Laser power | 1000W Raycus fiber laser generator (optional) | |
Wavelength | 1064nm | |
Cutting speed | depending on material and thickness | |
Positioning accuracy | ±0.02mm | |
Repositioning accuracy | ±0.01mm | |
Equipment total power | 18.5KW | |
Water cooling System | Constant temperature water chiller | |
Power supply | AC 380V/220V (customer demand) | |
Location system | Red dot indicator | |
Machine Package Dimension | 3710*2070*1325 mm | |
Running Environment | Temperature: 0℃~45℃ | |
Raytools laser head
1. The cutting laser head has great advantages in medium power large platform cutting applications.
2. laser head is completely sealed which avoiding optical parts polluted by dust.
3. The laser head adopts two-point centering adjustment, focusing adopting imported motor drive, which improves the punching efficiency
Cypcut control system
Cypcut Laser Cutting System
More user-friendly human-machine interaction;
Simple, economical, practical and convenient;
Highly integrated and highly intelligent with file reading, design, output and processing control all in one
More user-friendly human-machine interaction;
Simple, economical, practical and convenient;
Highly integrated and highly intelligent with file reading, design, output and processing control all in one
Raycus laser source
Raycus fiber laser source supplier has R&D, producing, serving , to vertical integration capability from materials , parts, to whole laser source having global influence
CW-5200 water chiller
Automatically adjust the temperature according to different working environment, no need to change settings parameters. Reduce the temperature of the laser source and the laser head through water circulation, thereby protecting these two main parts.
Yaskawa servo motor and driver
High-performance servo motor adopts a one-step locking connector, which is highly resistant to vibration and shock. The debugging is convenient, operation is more stable, the positioning faster, which can match servo drive to control the position , speed and torque .

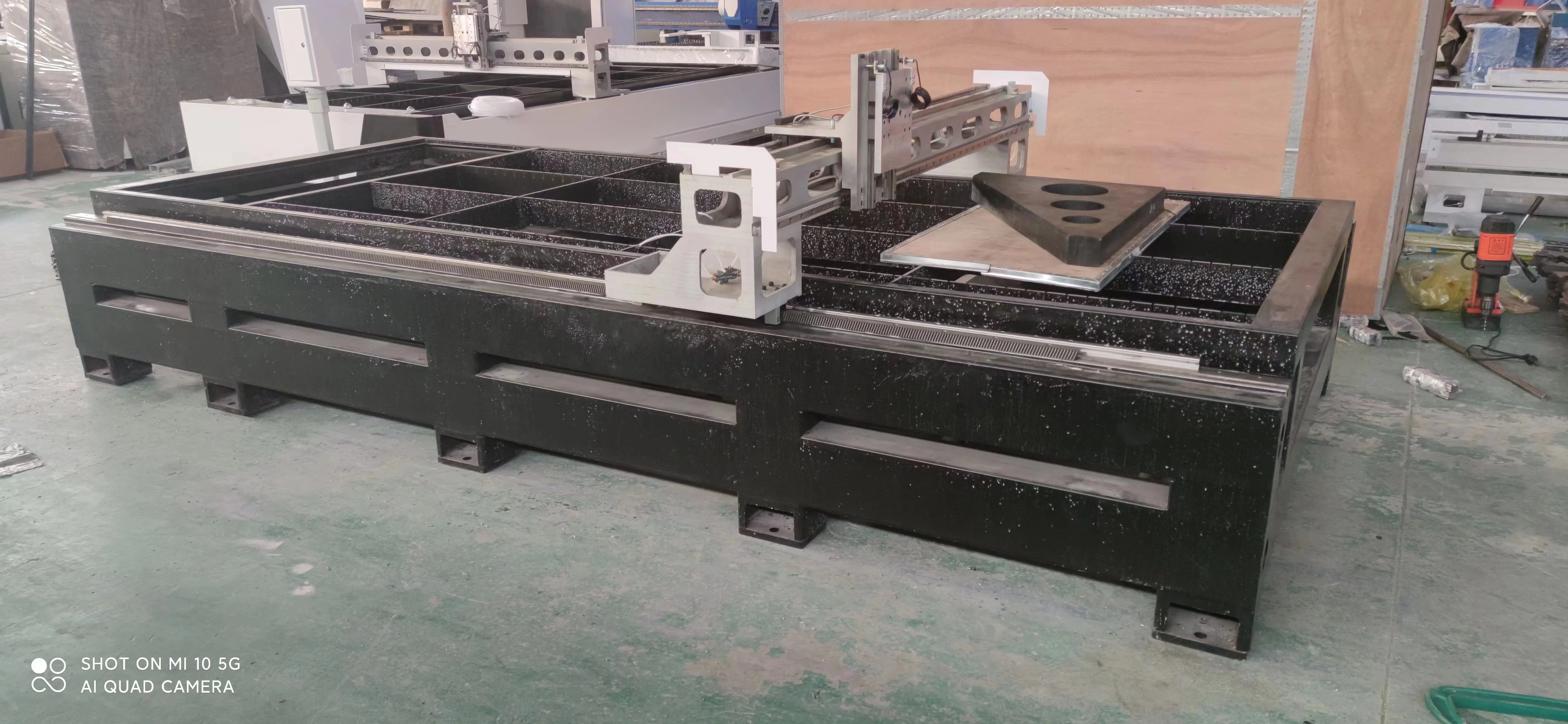

Heavy plate welding machine body
This machine body is suitable for medium and high power laser cutting machines. It has ultra-high stability. The heavy-duty plate welded body is welded with high-quality carbon structural steel, so that the machine body will not be deformed during long-term operation and can ensure good processing accuracy.
Application:
Widely used in: machinery manufacturing, elevators, sheet metal, kitchen equipment, chassis cabinets, machine tool equipment, electrical equipment, lighting hardware, advertising signs, automotive parts, display equipment, various metal products, sheet metal cutting and other industries.
1. Whole film packaging with the metal sheet fiber laser cutting machine.
2. Anti-collision package edge.
3. Fumigation-free plywood wooden box and pallets with iron binding belt.
3. Fumigation-free plywood wooden box and pallets with iron binding belt.
Jinan Apex Machinery Equipment Co., Ltd. is situated in Jinan, Shandong, China. We are a professional and good reputation manufacturer of CNC router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine etc. The new and existing customers that are spread throughout South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines have passed the CE certificate.
APEX CNC has 10 modern production and processing workshops, including the R&D workshop which can do special design for clients, 6 assembly workshops, 2 riveting and welding workshops, 2 machine processing workshops, more than 600 employees. Our machines are most popular among multi industries, and clients covering almost all the countries who doing importing and exporting business. Welcome to cooperate and to be our big sales agent.
Products including: CNC router, 5 axis machining center, 4 axis machining center, ATC CNC router, General 3 axis CNC router, CNC wood lathe, mold CNC milling machine, CO2 laser engraving cutting machine, and plasma cutting machine. Applications: woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc.
The aim of Jinan Apex CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after-sale service.
We are looking for reliable and excellent distributors all over the world. In addition to high-quality products and good after-sales service, we will also provide you with competitive prices, cooperate with your advertising, and provide a variety of advertising materials, text, pictures, and videos. For engraving and cutting a variety of different materials, we can provide professional design schemes and even drawings. We sincerely look forward to your cooperation and joining.
2. Friendly English version manual and operation video CD disk.
3. Machine will be adjusted before it is delivered, operation disk/CD was included.
4. Our technician can give you remote guide online if you have any questions.
5. Engineers available to service machinery overseas, seller and buyer discuss the charges.
3. Machine will be adjusted before it is delivered, operation disk/CD was included.
4. Our technician can give you remote guide online if you have any questions.
5. Engineers available to service machinery overseas, seller and buyer discuss the charges.
Q1: Do you have CE document and other documents for customs clearance?
A1: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q4: Do you have after sales support?
A4: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
A1: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q2: If we are interested in your machine, how do we choose?
A2:1. What main job you do with the machine?
A2:1. What main job you do with the machine?
2. What is your request max working area? __mm* __mm?
3. What's your material diameter and length?
4. What material you want to cut,stainless steel,carbon steel?
Please tell us, then we can recommend the suitable machine to you.
3. What's your material diameter and length?
4. What material you want to cut,stainless steel,carbon steel?
Please tell us, then we can recommend the suitable machine to you.
Q3: How about warranty?
A3: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
A3: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q4: Do you have after sales support?
A4: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
