S300алюминиевая оконная машина для резки с ЧПУ изготовления дверей и окон высокоскоростным лазерным сверлильно-фрезерным станком
89 911 688,00 ₽
Вертикальный фрезерный станок с ЧПУ 4 оси Vmc вертикальный обрабатывающий центр для алюминиевых профилей
- Категория: >>>
- Поставщик: Shandong Weike Cnc Machinery Co. Ltd.
Сохранить в закладки 1601027312913:
Описание и отзывы
Характеристики

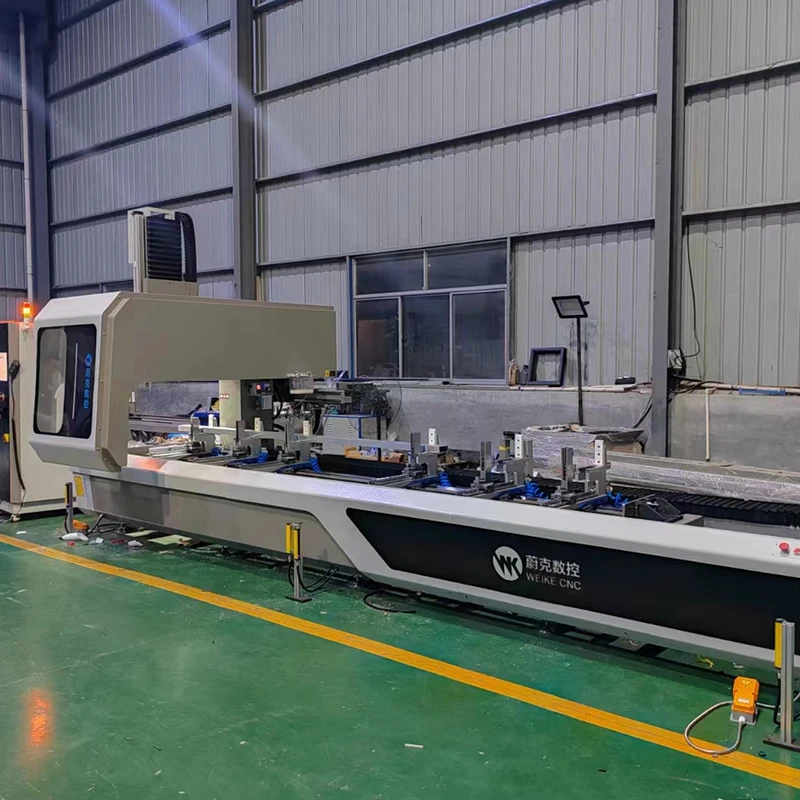

WEIKE CNC High Speed 4-axis Machining Center can according to processing needs, independently complete multiple processes such as milling lock holes, slots, drainage channels, air pressure balance holes, and installation holes. The entire process requires only one operator, meeting customers' personalized customization requirements for doors and windows. Suitable for processing various complex parts, including aluminum, copper, PVC, industrial profiles, architectural curtain walls, sunrooms, etc.
* It can achieve continuous automatic milling of profiles with different specifications and sizes. CAD drawings can be imported into the system, and it can be interfaced with German window and door façade system software such as Klaes, Chuangao, Doot, New Gell, etc.
* Adopting a dynamic beam and column single-arm frame structure for smoother operation, enhancing the machining rigidity of the machine tool.
* Adopting a dynamic beam and column single-arm frame structure for smoother operation, enhancing the machining rigidity of the machine tool.
* Equipped with a high-quality four-axis milling head, capable of simultaneously processing the remaining three sides excluding the bottom surface, and equipped with a vertical disc tool magazine.
* Utilizing a pneumatic clamping worktable to enhance loading and unloading speed. Optional T-shaped worktable available.
* The machine body is equipped with a grating safety protection function to ensure the safety of the operator.
* Utilizing a pneumatic clamping worktable to enhance loading and unloading speed. Optional T-shaped worktable available.
* The machine body is equipped with a grating safety protection function to ensure the safety of the operator.
Specification
Model | WSJ4-CNC-7000 |
Spindle Speed | 24000r/min |
X-axis travel | 7000mm |
Y-axis travel | 1500mm |
Z-axis travel | 600mm |
Processing Accuracy | ±0.1mm/m |
Overall Dimensions | 8800×2500×2800mm |
Working Pressure | 0.6-0.8MPa |
Control System | CNC |
Tool Magazine Form | Vertical disc tool magazine |
Tool Magazine Capacity | 12 |
Function | Aluminum profile milling |
After-sales Service Provided | Engineers available to service machinery overseas |

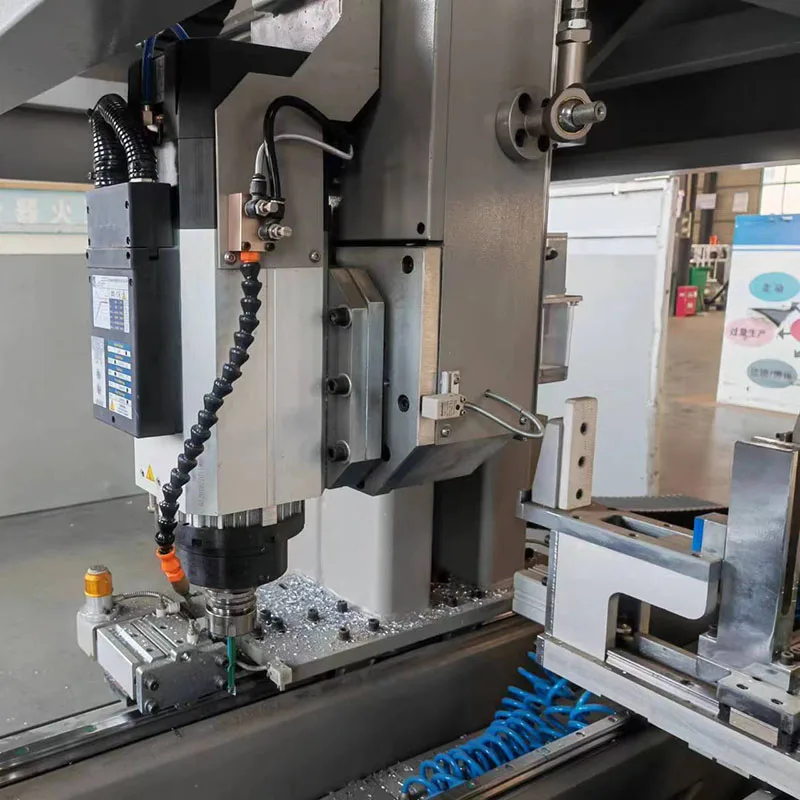

High-quality 4 axis milling head
Capable of simultaneously processing the remaining three sides excluding the bottom surface, and equipped with a vertical disc tool magazine, achieve continuous automatic milling of profiles with different specifications and sizes.
Vertical disc tool magazine
Rapid blade replacement enhances production efficiency.

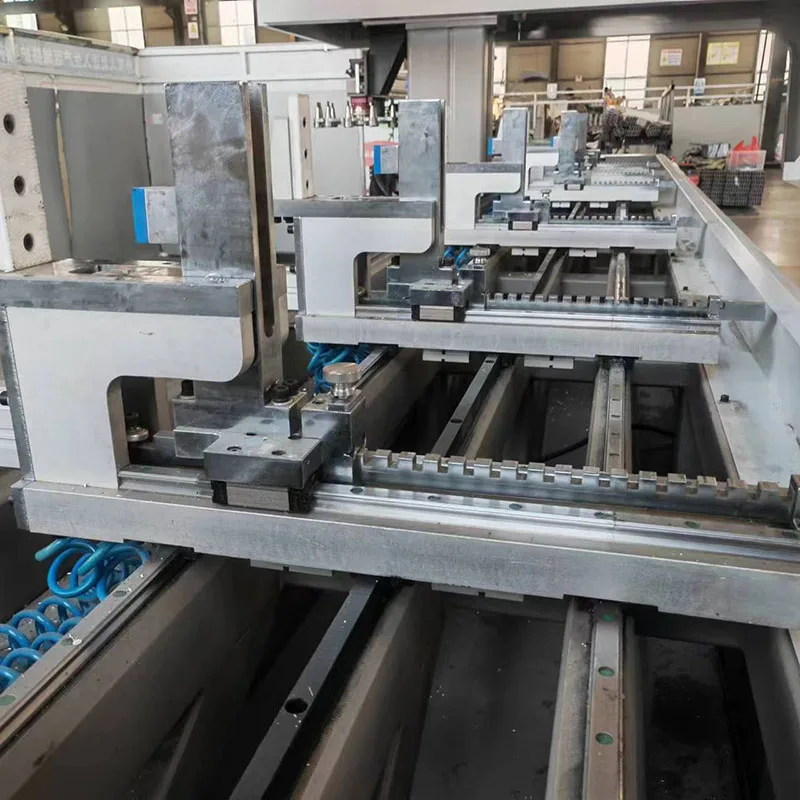

Smooth feeding system
Adopting a dynamic beam and column single-arm frame structure for smoother operation, enhancing the machining rigidity of the machine tool.
Factory Introduction
Shandong Weike CNC Machinery Co.,Ltd. is a well-known manufacturer specializing in the research, development, production and sales of aluminum doors, windows and curtain wall equipment in China. It‘s the most large-scale and industrialized production enterprise in the industry.
We have large production workshop and strong mechanical processing supporting capabilities, high-quality scientific research team and high-tech production team. We have strong research and development strength, perfect product system, and insists on independent innovation, improve products scientific and practical continuously. The company has several offices in China, forming a one-stop comprehensive service system integrating product development, production, sales and service.

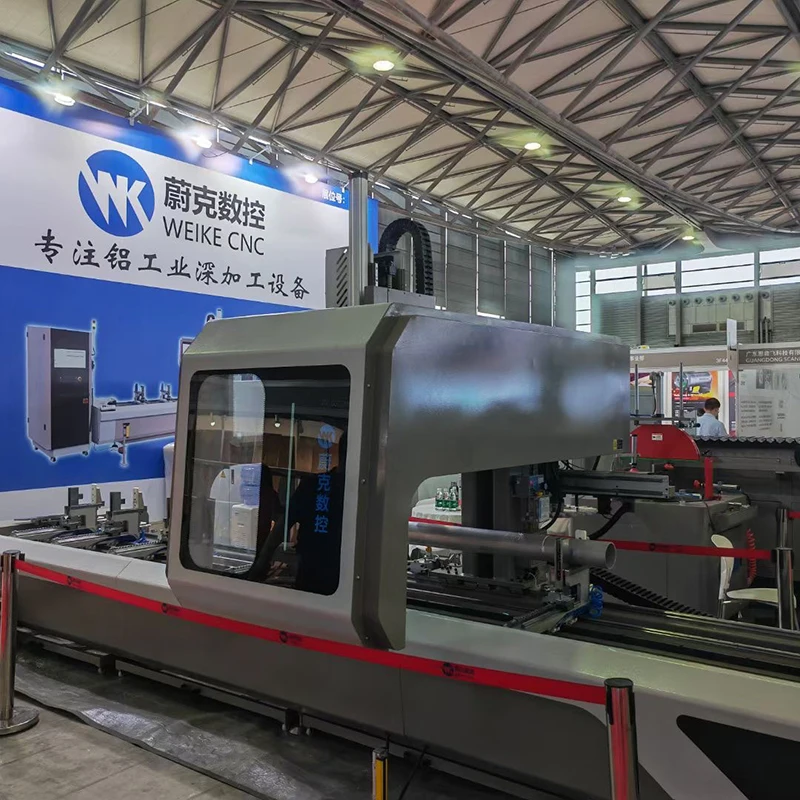

Customer and exhibition photos
After Sale Service Introduction
1. 3 year warranty. Provide a full range of technical support for life.
2. From monday to sunday 9am to 18pm. Experienced technician to guarantee lifetime online support (by whatsapp /skyper /wechat /email) . So there is no need to worry about technical support due to time difference.
3. Support local after-sales service. Up to 2024, we have provided on-site services to more than 50 countries and regions: Canada, Mexico, the United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia, etc.
Packing & Delivery
Professional package of mitre saw cutting machine:
1. Whole film packaging mitre saw cutting machine;
2. Anti-collision package edge;
3. Fumigation-free plywood wooden box and pallets with iron binding belt.
2. Anti-collision package edge;
3. Fumigation-free plywood wooden box and pallets with iron binding belt.
FAQ
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: What customized services you provided?
A: WEIKE CNC is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
A: WEIKE CNC is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
